自定义注解实现Redis分布式锁、手动控制事务和根据异常名字或内容限流的三合一的功能

文章目录

@[toc]

1.依赖
2.Redisson配置
2.1单机模式配置
2.2主从模式
2.3集群模式
2.4哨兵模式

3.实现
3.1 RedisConfig
3.2 自定义注解IdempotentManualCtrlTransLimiterAnno
3.3自定义切面IdempotentManualCtrlTransAspect

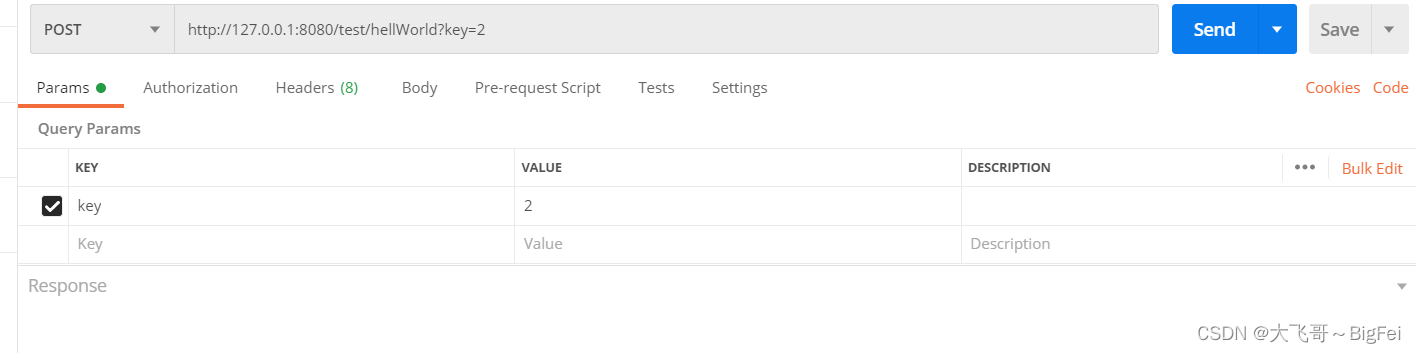

4.测试验证
5.总结

1.依赖

<dependency>
    <groupId>org.springframework.bootgroupId>
    <artifactId>spring-boot-starter-data-redisartifactId>
     <version>2.3.9.RELEASEversion>
dependency>

<dependency>
    <groupId>org.redissongroupId>
    <artifactId>redisson-spring-boot-starterartifactId>
    <version>3.13.4version>
dependency>
1
2
3
4
5
6
7
8
9
10
11

2.Redisson配置

2.1单机模式配置

spring:
  redis:
    host: localhost
    port: 6379
    password: null
redisson:
  codec: org.redisson.codec.JsonJacksonCodec
  threads: 4
  netty:
    threads: 4
  single-server-config:
    address: "redis://localhost:6379"
    password: null
1
2
3
4
5
6
7
8
9
10
11
12
13

2.2主从模式

spring:
  redis:
    sentinel:
      master: my-master
      nodes: localhost:26379,localhost:26389
    password: your_password
redisson:
  master-slave-config:
    master-address: "redis://localhost:6379"
    slave-addresses: "redis://localhost:6380,redis://localhost:6381"
    password: ${spring.redis.password}
1
2
3
4
5
6
7
8
9
10
11

2.3集群模式

spring:
  redis:
    cluster:
      nodes: localhost:6379,localhost:6380,localhost:6381,localhost:6382,localhost:6383,localhost:6384
    password: your_password
redisson:
  cluster-config:
    node-addresses: "redis://localhost:6379,redis://localhost:6380,redis://localhost:6381,redis://localhost:6382,redis://localhost:6383,redis://localhost:6384"
    password: ${spring.redis.password}
1
2
3
4
5
6
7
8
9

2.4哨兵模式

spring:
  redis:
    sentinel:
      master: my-master
      nodes: localhost:26379,localhost:26389
    password: your_password
redisson:
  sentinel-config:
    master-name: my-master
    sentinel-addresses: "redis://localhost:26379,redis://localhost:26380,redis://localhost:26381"
    password: ${spring.redis.password}
1
2
3
4
5
6
7
8
9
10
11

Redission的集成还有很多种方式的，所以不局限于这种方式，条条大路通罗马，一万个读者就有一万个哈姆雷特。

3.实现

3.1 RedisConfig

package xxxxx.config;

import com.fasterxml.jackson.annotation.JsonAutoDetect;
import com.fasterxml.jackson.annotation.PropertyAccessor;
import com.fasterxml.jackson.databind.ObjectMapper;
import com.fasterxml.jackson.databind.SerializationFeature;
import com.fasterxml.jackson.datatype.jsr310.JavaTimeModule;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.data.redis.connection.RedisConnectionFactory;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.data.redis.serializer.GenericToStringSerializer;
import org.springframework.data.redis.serializer.Jackson2JsonRedisSerializer;
import org.springframework.data.redis.serializer.StringRedisSerializer;

@Configuration
public class RedisConfig {
    @Bean
    @SuppressWarnings("all")
    public RedisTemplate<String, Object> redisTemplate(RedisConnectionFactory factory) {
        // 定义泛型为  的 RedisTemplate
        RedisTemplate<String, Object> template = new RedisTemplate<String, Object>();
        // 设置连接工厂
        template.setConnectionFactory(factory);
        // 定义 Json 序列化
        Jackson2JsonRedisSerializer jackson2JsonRedisSerializer = new Jackson2JsonRedisSerializer(Object.class);
        // Json 转换工具
        ObjectMapper om = new ObjectMapper();
        om.setVisibility(PropertyAccessor.ALL, JsonAutoDetect.Visibility.ANY);
        om.enableDefaultTyping(ObjectMapper.DefaultTyping.NON_FINAL);
        //方法二：解决jackson2无法反序列化LocalDateTime的问题
        om.disable(SerializationFeature.WRITE_DATES_AS_TIMESTAMPS);
        om.registerModule(new JavaTimeModule());
        jackson2JsonRedisSerializer.setObjectMapper(om);
        // 定义 String 序列化
        StringRedisSerializer stringRedisSerializer = new StringRedisSerializer();
        // key采用String的序列化方式
        template.setKeySerializer(stringRedisSerializer);
        // hash的key也采用String的序列化方式
        template.setHashKeySerializer(stringRedisSerializer);
        // value序列化方式采用jackson
        template.setValueSerializer(jackson2JsonRedisSerializer);
        // hash的value序列化方式采用jackson
        template.setHashValueSerializer(jackson2JsonRedisSerializer);
        template.afterPropertiesSet();
        return template;
    }

    @Bean
    RedisTemplate<String, Long> redisTemplateLimit(RedisConnectionFactory factory) {
        final RedisTemplate<String, Long> template = new RedisTemplate<>();
        template.setConnectionFactory(factory);
        template.setKeySerializer(new StringRedisSerializer());
        template.setHashValueSerializer(new GenericToStringSerializer<>(Long.class));
        template.setValueSerializer(new GenericToStringSerializer<>(Long.class));
        return template;
    }

}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59

3.2 自定义注解IdempotentManualCtrlTransLimiterAnno

package xxxxx.annotation;

import java.lang.annotation.Documented;
import java.lang.annotation.ElementType;
import java.lang.annotation.Retention;
import java.lang.annotation.RetentionPolicy;
import java.lang.annotation.Target;
import java.util.concurrent.TimeUnit;

/**
 * @author zlf
 */
@Target({ElementType.METHOD, ElementType.PARAMETER})
@Retention(RetentionPolicy.RUNTIME)
@Documented
public @interface IdempotentManualCtrlTransLimiterAnno {


    /**
     * 是否开启RedissonLock
     * 1:开启
     * 0:不开启
     *
     * @return
     */
    boolean isOpenRedissonLock() default false;

    /**
     * 是否开启手动控制事务提交
     * 1:开启
     * 0:不开启
     *
     * @return
     */
    boolean isOpenManualCtrlTrans() default false;

    /**
     * 分布式锁key格式：
     * keyFormat a:b:%s
     *
     * @return
     */
    String keyFormat() default "";

    /**
     * 锁定时间
     * 默认 3s
     *
     * @return
     */
    long lockTime() default 3l;

    /**
     * 锁定时间单位
     * TimeUnit.MILLISECONDS 毫秒
     * TimeUnit.SECONDS 秒
     * TimeUnit.MINUTES 分
     * TimeUnit.HOURS 小时
     * TimeUnit.DAYS 天
     *
     * @return
     */
    TimeUnit lockTimeUnit() default TimeUnit.SECONDS;

    /**
     * 是否开启限流
     *
     * @return
     */
    boolean isOpenLimit() default false;

    /**
     * 限流redis失败次数统计key
     * public方法第一个string参数就是%s
     *
     * @return
     */
    String limitRedisKeyPrefix() default "limit:redis:%s";

    /**
     * 限流redisKey统计的key的过期时间
     * 默认10分钟后过期
     *
     * @return
     */
    long limitRedisKeyExpireTime() default 10l;

    /**
     * 锁过期单位
     * TimeUnit.MILLISECONDS 毫秒
     * TimeUnit.SECONDS 秒
     * TimeUnit.MINUTES 分
     * TimeUnit.HOURS 小时
     * TimeUnit.DAYS 天
     *
     * @return
     */
    TimeUnit limitRedisKeyTimeUnit() default TimeUnit.MINUTES;

    /**
     * 默认限流策略：
     * 异常计数器限流：可以根据异常名称和异常内容来计数限制
     * 根据异常次数，当异常次数达到多少次后，限制访问(异常类型为RuntimeException类型) (实现)
     * RedisTemplate的配置文件中需要有这个类型的bean
     *
     * @return
     * @Bean RedisTemplate redisTemplateLimit(RedisConnectionFactory factory) {
     * final RedisTemplate template = new RedisTemplate<>();
     * template.setConnectionFactory(factory);
     * template.setKeySerializer(new StringRedisSerializer());
     * template.setHashValueSerializer(new GenericToStringSerializer<>(Long.class));
     * template.setValueSerializer(new GenericToStringSerializer<>(Long.class));
     * return template;
     * }
     * 滑动窗口限流 (未实现)
     * 令牌桶 (未实现)
     * ip限流 (未实现)
     * Redisson方式限流 (未实现)
     *
     * limitTye() 异常计数器限流 可以写Exception的子类
     * 这个和下面的expContent()互斥,二选一配置即可
     */
    String limitTye() default "";

    /**
     * 异常信息内容匹配统计
     *
     * @return
     */
    String expContent() default "";

    /**
     * 异常统计次数上线默认为10次
     *
     * @return
     */
    int limitMaxErrorCount() default 10;

}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139

3.3自定义切面IdempotentManualCtrlTransAspect

package xxxxxx.annotation;

import cn.hutool.core.lang.Tuple;
import lombok.extern.slf4j.Slf4j;
import org.apache.commons.lang3.StringUtils;
import org.apache.commons.lang3.exception.ExceptionUtils;
import org.aspectj.lang.ProceedingJoinPoint;
import org.aspectj.lang.annotation.Around;
import org.aspectj.lang.annotation.Aspect;
import org.aspectj.lang.annotation.Pointcut;
import org.aspectj.lang.reflect.MethodSignature;
import org.redisson.api.RLock;
import org.redisson.api.RedissonClient;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.jdbc.datasource.DataSourceTransactionManager;
import org.springframework.stereotype.Component;
import org.springframework.transaction.TransactionDefinition;
import org.springframework.transaction.TransactionStatus;

import java.util.ArrayList;
import java.util.List;
import java.util.Objects;
import java.util.concurrent.TimeUnit;


@Slf4j
@Aspect
@Component
public class IdempotentManualCtrlTransAspect {

    @Autowired
    private TransactionDefinition transactionDefinition;

    @Autowired
    private DataSourceTransactionManager transactionManager;

    @Autowired
    private RedissonClient redissonClient;

    @Autowired
    private RedisTemplate<String, Long> redisTemplateLimit;

    private static final List<String> KEY_FORMAT_MATCHS = new ArrayList<>();

    static {
        KEY_FORMAT_MATCHS.add("%s");
    }

    @Pointcut("@annotation(com.dy.member.annotation.IdempotentManualCtrlTransLimiterAnno)")
    public void idempotentManualCtrlTransPoint() {

    }

    @Around("idempotentManualCtrlTransPoint()")
    public Object deal(ProceedingJoinPoint pjp) throws Throwable {
        //当前线程名
        String threadName = Thread.currentThread().getName();
        log.info("-------------IdempotentManualCtrlTransLimiterAnno开始执行-----线程{}-----------", threadName);
        //获取参数列表
        Object[] objs = pjp.getArgs();
        String key = null;
        String redisLimitKey = null;
        String message = "";
        IdempotentManualCtrlTransLimiterAnno annotation = null;
        try {
            //注解加上的public方法的第一个参数就是key,只支持改参数为String类型
            key = (String) objs[0];
            if (Objects.isNull(key)) {
                return pjp.proceed();
            }
            //获取该注解的实例对象
            annotation = ((MethodSignature) pjp.getSignature()).
                    getMethod().getAnnotation(IdempotentManualCtrlTransLimiterAnno.class);
            //是否开启RedissonLock
            boolean openRedissonLock = annotation.isOpenRedissonLock();
            boolean openManualCtrlTrans = annotation.isOpenManualCtrlTrans();
            boolean openLimit = annotation.isOpenLimit();
            boolean bothFlag = openRedissonLock && openManualCtrlTrans;
            if (openLimit) {
                int errorCount = annotation.limitMaxErrorCount();
                String limitRedisKey = annotation.limitRedisKeyPrefix();
                redisLimitKey = String.format(limitRedisKey, key);
                TimeUnit timeUnit = annotation.limitRedisKeyTimeUnit();
                this.checkFailCount(redisLimitKey, errorCount, timeUnit);
                if (!openRedissonLock && !openManualCtrlTrans) {
                    return pjp.proceed();
                }
            }
            if (!bothFlag) {
                if (openRedissonLock) {
                    key = checkKeyFormatMatch(annotation, key);
                    RLock lock = redissonClient.getLock(key);
                    try {
                        Tuple lockAnnoParamsTuple = this.getLockAnnoParams(annotation);
                        long t = lockAnnoParamsTuple.get(0);
                        TimeUnit uint = lockAnnoParamsTuple.get(1);
                        if (lock.tryLock(t, uint)) {
                            return pjp.proceed();
                        }
                    } catch (Exception e) {
                        log.error("-------------IdempotentManualCtrlTransLimiterAnno锁异常ex:{}-----线程{}-----------", ExceptionUtils.getMessage(e), threadName);
                        throw new RuntimeException(ExceptionUtils.getMessage(e));
                    } finally {
                        if (lock.isLocked() && lock.isHeldByCurrentThread()) {
                            lock.unlock();
                            log.info("-------------IdempotentManualCtrlTransLimiterAnno释放锁成功-----线程{}-----------", threadName);
                        }
                    }
                }
                if (openManualCtrlTrans) {
                    TransactionStatus transactionStatus = transactionManager.getTransaction(transactionDefinition);
                    try {
                        Object proceed = pjp.proceed();
                        transactionManager.commit(transactionStatus);
                        return proceed;
                    } catch (Exception e) {
                        transactionManager.rollback(transactionStatus);
                        log.info("-------------IdempotentManualCtrlTransLimiterAnno执行异常事务回滚1-----线程{}-----------", threadName);
                        throw new RuntimeException(ExceptionUtils.getMessage(e));
                    }
                }
            }
            if (bothFlag) {
                key = checkKeyFormatMatch(annotation, key);
                RLock lock = redissonClient.getLock(key);
                TransactionStatus transactionStatus = transactionManager.getTransaction(transactionDefinition);
                try {
                    Tuple lockAnnoParamsTuple = this.getLockAnnoParams(annotation);
                    long t = lockAnnoParamsTuple.get(0);
                    TimeUnit uint = lockAnnoParamsTuple.get(1);
                    if (lock.tryLock(t, uint)) {
                        Object proceed = pjp.proceed();
                        transactionManager.commit(transactionStatus);
                        return proceed;
                    }
                } catch (Exception e) {
                    log.error("-------------IdempotentManualCtrlTransLimiterAnno处理异常ex:{}-----线程{}-----------", ExceptionUtils.getMessage(e), threadName);
                    transactionManager.rollback(transactionStatus);
                    log.info("-------------IdempotentManualCtrlTransLimiterAnno执行异常事务回滚2-----线程{}-----------", threadName);
                    throw new RuntimeException(ExceptionUtils.getMessage(e));
                } finally {
                    if (lock.isLocked() && lock.isHeldByCurrentThread()) {
                        lock.unlock();
                        log.info("-------------IdempotentManualCtrlTransLimiterAnno释放锁成功2-----线程{}-----------", threadName);
                    }
                }
            }
        } catch (Exception e) {
            message = ExceptionUtils.getMessage(e);
            String stackTrace = ExceptionUtils.getStackTrace(e);
            String limitExType = annotation.limitTye();
            log.error("------------IdempotentManualCtrlTransLimiterAnno-------msg:{},stackTrace:{},limitExType:{}-------", message, stackTrace, limitExType);
            boolean openLimit = annotation.isOpenLimit();
            TimeUnit timeUnit = annotation.limitRedisKeyTimeUnit();
            long limitRedisKeyExpireTime = annotation.limitRedisKeyExpireTime();
            String expContent = annotation.expContent();
            if (openLimit) {
                if (StringUtils.isNotBlank(message) && StringUtils.isNotBlank(expContent) && message.indexOf(expContent) != -1) {
                    log.error("------------IdempotentManualCtrlTransLimiterAnno-------openLimit:{},message:{},expContent:{}-------", openLimit, message, expContent);
                    if (!redisTemplateLimit.hasKey(redisLimitKey)) {
                        redisTemplateLimit.opsForValue().set(redisLimitKey, 1L, limitRedisKeyExpireTime, timeUnit);
                    } else {
                        redisTemplateLimit.opsForValue().increment(redisLimitKey);
                    }
                } else if (stackTrace.indexOf(limitExType) != -1 && StringUtils.isBlank(expContent)) {
                    log.error("------------IdempotentManualCtrlTransLimiterAnno-------openLimit:{},stackTrace:{},expContent:{}-------", openLimit, stackTrace, limitExType);
                    if (!redisTemplateLimit.hasKey(redisLimitKey)) {
                        redisTemplateLimit.opsForValue().set(redisLimitKey, 1L, limitRedisKeyExpireTime, timeUnit);
                    } else {
                        redisTemplateLimit.opsForValue().increment(redisLimitKey);
                    }
                } else {
                    if (!redisTemplateLimit.hasKey(redisLimitKey)) {
                        redisTemplateLimit.opsForValue().set(redisLimitKey, 1L, limitRedisKeyExpireTime, timeUnit);
                    } else {
                        redisTemplateLimit.opsForValue().increment(redisLimitKey);
                    }
                }
            }
            log.error("-------------IdempotentManualCtrlTransLimiterAnno开始异常ex:{}-----线程{}-----------", ExceptionUtils.getMessage(e), threadName);
        }
        throw new RuntimeException(message.replaceAll("RuntimeException", "").replaceAll("Exception", "").replaceAll(":", "").replaceAll(" ", ""));
    }

    private void checkFailCount(String key, long errorCount, TimeUnit timeUnit) {
        boolean isExistKey = redisTemplateLimit.hasKey(key);
        if (isExistKey) {
            Long count = (Long) redisTemplateLimit.opsForValue().get(key);
            log.info("=========IdempotentManualCtrlTransLimiterAnno=====key:{}=======failCount:{}=========", key, count);
            if (Objects.nonNull(count) && count > errorCount) {
                Long expire = redisTemplateLimit.getExpire(key, timeUnit);
                String unitStr = "";
                if (timeUnit.equals(TimeUnit.DAYS)) {
                    unitStr = "天";
                } else if (timeUnit.equals(TimeUnit.HOURS)) {
                    unitStr = "小时";
                } else if (timeUnit.equals(TimeUnit.MINUTES)) {
                    unitStr = "分钟";
                } else if (timeUnit.equals(TimeUnit.SECONDS)) {
                    unitStr = "秒钟";
                } else if (timeUnit.equals(TimeUnit.MILLISECONDS)) {
                    unitStr = "毫秒";
                }
                log.error("IdempotentManualCtrlTransLimiterAnno异常次数限制,错误次数:{}", errorCount);
                throw new RuntimeException("请求异常,请" + expire + unitStr + "后重试!");
            }
        }
    }

    private Tuple getLockAnnoParams(IdempotentManualCtrlTransLimiterAnno annotation) {
        long t = annotation.lockTime();
        TimeUnit unit = annotation.lockTimeUnit();
        return new Tuple(t, unit);
    }

    private String checkKeyFormatMatch(IdempotentManualCtrlTransLimiterAnno annotation, String key) {
        String keyFormat = annotation.keyFormat();
        if (StringUtils.isNotBlank(keyFormat)) {
            if (!KEY_FORMAT_MATCHS.contains(keyFormat)) {
                throw new RuntimeException("注解key格式匹配有误!");
            }
            key = String.format(keyFormat, key);
        }
        return key;
    }

}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228

4.测试验证

在controller层新建TestController1

package com.xxxx.controller;

import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;

@RestController
@Slf4j
@RequestMapping("/test")
public class TestController1 {

    @Autowired
    private xxxxRecordService xxxRecordService;

    @PostMapping("/hellWorld")
    @IdempotentManualCtrlTransLimiterAnno(isOpenRedissonLock = true, isOpenManualCtrlTrans = true, isOpenLimit = true, limitRedisKeyExpireTime = 10, expContent = "我是异常")
    public RestResponse hellWorld(@RequestParam String key) {
        xxxRecord pm = new xxxRecord();
        pm.setOrderNo(key);
        xxxRecordService.save(pm);
        if (key.equals("2")) {
            //int i = 10;
            //i = i / 0;
            throw new RuntimeException("我是异常");
        }
        return RestResponse.success(key);
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31

使用postMan请求接口，在自定定义的aspect的类中的deal方法内打上断点就可以调试了：

请添加图片描述

使用这个方法才可以调试，如果使用的是springBoot的单元测试，不会进断点，这个也是奇怪的很，切面表达式可以切一个注解，也可以切指定包下的某些方法，比如可以切所有controller下的xx类的xx方法的xxx参数，这个可以参考网上的教程实现，也可以把SPEL表达式的解析实现进去，key的解析通过SPEL表达式解析配偶到第一个参数中对应的String参数或者是Json参数匹配的字段上，这种灵活性就好一点了，本文的这个约定的也是好使的，一点也不影响，复杂度没有那么高，本文约定的是公共方法的第一个String的参数为key,可以读上面的代码实现，都有注释说明的。

5.总结

在日常开发当中，进场会遇到这三个场景，所以需要写一些重复性的代码，用一次写一次，CV哥就是这样养成的，所以经过我的思考，突发了这个灵感，搞个注解全部搞定，这个多方便，要那个功能开哪个功能，而且还可以组合使用，优雅永不过时，本次分享就到这里，希望我的分享对你有所帮助，请一键三连，么么么哒！

相关阅读:
动态链接库Dll的编写与使用
 SpringBoot SpringBoot 基础篇 1 快速上手SpringBoot 1.6 入门案例解析【parent】
✔ ★【备战实习（面经+项目+算法）】 10.21学习时间表（总计学习时间：5h30min）（算法刷题：7道）
git（实现代码存档和同步）
图像直方图的基础知识
 [RoarCTF 2019]Easy Calc
（216）Verilog HDL：实现FSM1异步复位
 建立TCP连接后发送窗口, 接收窗口, 拥塞窗口的变化情况
 域名不部署SSL证书有什么影响？
js 正则表达式大全
原文地址：https://blog.csdn.net/qq_34905631/article/details/133325782
