• 【autodesk】浏览器中渲染rvt模型

    使用Forge完成渲染

    Forge是什么 为什么能够渲染出来rvt模型

    • Forge是由Autodesk开发的一套云端开发平台和工具集。
    • 在Forge平台中，有一个名为"Model Derivative"的服务，它可以将包括RVT（Revit）在内的多种BIM（Building Information Modeling）文件格式转换为可在Web上浏览和渲染的格式。
    • 具体来说，"Model Derivative"服务可以将RVT（Revit）文件转换为SVF（Scalable Vector Graphics）格式。
    • SVF是一种基于Web的轻量级3D模型表示格式，可以实现高性能的3D模型渲染和交互。通过将RVT文件转换为SVF格式，可以在Web端使用Forge提供的Viewer组件加载和展示RVT模型

    Forge与Autodesk的关系

    • Autodesk是一家设计软件公司，Forge可以视为Autodesk的云端扩展

    渲染步骤：

    首先要注册autodesk平台，并创建项目 获取自己的client_id与client_secret

    官网地址：Autodesk Platform Services (formerly Forge)

    如下图：

    配置postman环境

    下面我们演示通过postman上传模型到Forge云端，然后配置Forge的js渲染出来

    post环境文件：

    BIM.postman collection.json

    1. {
    2. 	"info": {
    3. 		"_postman_id": "aedeb5db-ab5a-4b0e-ba31-d329f6ef66ba",
    4. 		"name": "Beijing-Workshop",
    5. 		"schema": "https://schema.getpostman.com/json/collection/v2.0.0/collection.json",
    6. 		"_exporter_id": "24665034"
    7. 	},
    8. 	"item": [
    9. 		{
    10. 			"name": "1获取access token",
    11. 			"event": [
    12. 				{
    13. 					"listen": "test",
    14. 					"script": {
    15. 						"exec": [
    16. 							"var data = JSON.parse(responseBody);",
    17. 							"postman.setEnvironmentVariable(\"access_token\", data.access_token);",
    18. 							"postman.setEnvironmentVariable(\"expires_in\", data.expires_in);",
    19. 							"postman.setEnvironmentVariable(\"token_type\", data.token_type);"
    20. 						],
    21. 						"type": "text/javascript"
    22. 					}
    23. 				}
    24. 			],
    25. 			"request": {
    26. 				"method": "POST",
    27. 				"header": [
    28. 					{
    29. 						"key": "Content-Type",
    30. 						"value": "application/x-www-form-urlencoded"
    31. 					}
    32. 				],
    33. 				"body": {
    34. 					"mode": "urlencoded",
    35. 					"urlencoded": [
    36. 						{
    37. 							"key": "client_id",
    38. 							"value": "{{client_id}}",
    39. 							"type": "text"
    40. 						},
    41. 						{
    42. 							"key": "client_secret",
    43. 							"value": "{{client_secret}}",
    44. 							"type": "text"
    45. 						},
    46. 						{
    47. 							"key": "grant_type",
    48. 							"value": "client_credentials",
    49. 							"type": "text"
    50. 						},
    51. 						{
    52. 							"key": "scope",
    53. 							"value": "data:read data:write bucket:create bucket:read",
    54. 							"type": "text"
    55. 						},
    56. 						{
    57. 							"key": "expires_in",
    58. 							"value": "360000",
    59. 							"type": "text"
    60. 						}
    61. 					]
    62. 				},
    63. 				"url": "{{base_domain}}/authentication/v1/authenticate"
    64. 			},
    65. 			"response": []
    66. 		},
    67. 		{
    68. 			"name": "2创建的存储桶（bucket）",
    69. 			"event": [
    70. 				{
    71. 					"listen": "prerequest",
    72. 					"script": {
    73. 						"exec": [
    74. 							"if (request.data) {",
    75. 							"    var requestData = JSON.parse(request.data);",
    76. 							"    postman.setEnvironmentVariable(\"bucketKey\", requestData.bucketKey);",
    77. 							"    postman.setEnvironmentVariable(\"bucketPolicy\", requestData.policyKey);",
    78. 							"}"
    79. 						],
    80. 						"type": "text/javascript"
    81. 					}
    82. 				}
    83. 			],
    84. 			"request": {
    85. 				"method": "POST",
    86. 				"header": [
    87. 					{
    88. 						"key": "Authorization",
    89. 						"value": "Bearer {{access_token}}"
    90. 					},
    91. 					{
    92. 						"key": "Content-Type",
    93. 						"value": "application/json"
    94. 					}
    95. 				],
    96. 				"body": {
    97. 					"mode": "raw",
    98. 					"raw": "{\n  \"bucketKey\":\"ac-persistent-bucket-test8\",\n  \"policyKey\":\"persistent\"\n}"
    99. 				},
    100. 				"url": "{{base_domain}}/oss/v2/buckets"
    101. 			},
    102. 			"response": []
    103. 		},
    104. 		{
    105. 			"name": "3 查看bucket是否创建成功",
    106. 			"request": {
    107. 				"method": "GET",
    108. 				"header": [
    109. 					{
    110. 						"key": "Authorization",
    111. 						"value": "Bearer {{access_token}}"
    112. 					}
    113. 				],
    114. 				"url": {
    115. 					"raw": "{{base_domain}}/oss/v2/buckets?limit=10",
    116. 					"host": [
    117. 						"{{base_domain}}"
    118. 					],
    119. 					"path": [
    120. 						"oss",
    121. 						"v2",
    122. 						"buckets"
    123. 					],
    124. 					"query": [
    125. 						{
    126. 							"key": "limit",
    127. 							"value": "10"
    128. 						}
    129. 					]
    130. 				}
    131. 			},
    132. 			"response": []
    133. 		},
    134. 		{
    135. 			"name": "4往bucket里放置object模型",
    136. 			"event": [
    137. 				{
    138. 					"listen": "test",
    139. 					"script": {
    140. 						"exec": [
    141. 							"if (responseCode.code === 200) {",
    142. 							"    var data = JSON.parse(responseBody);",
    143. 							"    postman.setEnvironmentVariable(\"urn\", data.objectId);",
    144. 							"    postman.setEnvironmentVariable(\"urnBase64\", window.btoa(data.objectId));",
    145. 							"    postman.setEnvironmentVariable(\"file_location\", data.location);",
    146. 							"}",
    147. 							""
    148. 						],
    149. 						"type": "text/javascript"
    150. 					}
    151. 				}
    152. 			],
    153. 			"request": {
    154. 				"method": "PUT",
    155. 				"header": [
    156. 					{
    157. 						"key": "Authorization",
    158. 						"value": "Bearer {{access_token}}"
    159. 					}
    160. 				],
    161. 				"body": {
    162. 					"mode": "file",
    163. 					"file": {
    164. 						"src": "/C:/Users/ac135/Desktop/rvtText/data/textOne.rvt"
    165. 					}
    166. 				},
    167. 				"url": "{{base_domain}}/oss/v2/buckets/{{bucketKey}}/objects/aggregate-1.rvt"
    168. 			},
    169. 			"response": []
    170. 		},
    171. 		{
    172. 			"name": "5检查对象模型是否成功上传",
    173. 			"request": {
    174. 				"method": "GET",
    175. 				"header": [
    176. 					{
    177. 						"key": "Authorization",
    178. 						"value": "Bearer {{access_token}}"
    179. 					}
    180. 				],
    181. 				"url": "{{base_domain}}/oss/v2/buckets/{{bucketKey}}/objects"
    182. 			},
    183. 			"response": []
    184. 		},
    185. 		{
    186. 			"name": "6将模型在云端转换成SVF格式",
    187. 			"event": [
    188. 				{
    189. 					"listen": "test",
    190. 					"script": {
    191. 						"exec": [
    192. 							"var data = JSON.parse(responseBody);",
    193. 							"",
    194. 							"var setEnvVar = function (tar, src) {",
    195. 							"    if (!src) {",
    196. 							"        return;",
    197. 							"    }",
    198. 							"    postman.setEnvironmentVariable(tar, src);",
    199. 							"}",
    200. 							"",
    201. 							"if (data) {",
    202. 							"    if (data.urn) {",
    203. 							"        setEnvVar(\"urnBase64\", data.urn);",
    204. 							"    }",
    205. 							"}"
    206. 						],
    207. 						"type": "text/javascript"
    208. 					}
    209. 				}
    210. 			],
    211. 			"request": {
    212. 				"method": "POST",
    213. 				"header": [
    214. 					{
    215. 						"key": "Authorization",
    216. 						"value": "Bearer {{access_token}}"
    217. 					},
    218. 					{
    219. 						"key": "Content-Type",
    220. 						"value": "application/json"
    221. 					},
    222. 					{
    223. 						"key": "x-ads-force",
    224. 						"value": "true"
    225. 					}
    226. 				],
    227. 				"body": {
    228. 					"mode": "raw",
    229. 					"raw": "{\n    \"input\": {\n        \"urn\": \"{{urnBase64}}\" \n    },\n    \"output\": {\n        \"destination\": {\n            \"region\": \"us\"\n        },\n        \"formats\": [\n        {\n            \"type\": \"svf\",\n            \"views\":[\"2d\", \"3d\"]\n        }]\n    }\n}"
    230. 				},
    231. 				"url": "{{base_domain}}/modelderivative/v2/designdata/job"
    232. 			},
    233. 			"response": []
    234. 		},
    235. 		{
    236. 			"name": "7检查模型是否转化完成",
    237. 			"request": {
    238. 				"method": "GET",
    239. 				"header": [
    240. 					{
    241. 						"key": "Authorization",
    242. 						"value": "Bearer {{access_token}}"
    243. 					},
    244. 					{
    245. 						"key": "Accept",
    246. 						"value": "application/vnd.api+json,application/json"
    247. 					}
    248. 				],
    249. 				"url": "{{base_domain}}/modelderivative/v2/designdata/{{urnBase64}}/manifest"
    250. 			},
    251. 			"response": []
    252. 		},
    253. 		{
    254. 			"name": "04-POST job",
    255. 			"event": [
    256. 				{
    257. 					"listen": "test",
    258. 					"script": {
    259. 						"type": "text/javascript",
    260. 						"exec": [
    261. 							"var data = JSON.parse(responseBody);",
    262. 							"",
    263. 							"",
    264. 							"if (data) {",
    265. 							"    if (data.urn) {",
    266. 							"        postman.setEnvironmentVariable(\"urnBase64\", data.urn);",
    267. 							"    }",
    268. 							"}"
    269. 						]
    270. 					}
    271. 				}
    272. 			],
    273. 			"request": {
    274. 				"method": "POST",
    275. 				"header": [
    276. 					{
    277. 						"key": "Authorization",
    278. 						"value": "Bearer {{access_token}}"
    279. 					},
    280. 					{
    281. 						"key": "Content-Type",
    282. 						"value": "application/json"
    283. 					},
    284. 					{
    285. 						"key": "x-ads-force",
    286. 						"value": "true"
    287. 					}
    288. 				],
    289. 				"body": {
    290. 					"mode": "raw",
    291. 					"raw": "{\n    \"input\": {\n        \"urn\": \"{{urnBase64}}\" \n    },\n    \"output\": {\n        \"destination\": {\n            \"region\": \"us\"\n        },\n        \"formats\": [\n        {\n            \"type\": \"svf\",\n            \"views\":[\"2d\", \"3d\"]\n        }]\n    }\n}"
    292. 				},
    293. 				"url": "{{base_domain}}/modelderivative/v2/designdata/job"
    294. 			},
    295. 			"response": []
    296. 		},
    297. 		{
    298. 			"name": "06-GET metadata",
    299. 			"request": {
    300. 				"method": "GET",
    301. 				"header": [
    302. 					{
    303. 						"key": "Authorization",
    304. 						"value": "Bearer {{access_token}}"
    305. 					}
    306. 				],
    307. 				"url": "{{base_domain}}/modelderivative/v2/designdata/{{urnBase64}}/metadata"
    308. 			},
    309. 			"response": []
    310. 		},
    311. 		{
    312. 			"name": "07-GET metadata/​:guid",
    313. 			"request": {
    314. 				"method": "GET",
    315. 				"header": [
    316. 					{
    317. 						"key": "Authorization",
    318. 						"value": "Bearer {{access_token}}"
    319. 					},
    320. 					{
    321. 						"key": "Accept-Encoding",
    322. 						"value": "gzip"
    323. 					}
    324. 				],
    325. 				"url": "{{base_domain}}/modelderivative/v2/designdata/{{urnBase64}}/metadata/{{metadata_guid}}"
    326. 			},
    327. 			"response": []
    328. 		},
    329. 		{
    330. 			"name": "08-GET :urn/metadata/:guid/properties",
    331. 			"request": {
    332. 				"method": "GET",
    333. 				"header": [
    334. 					{
    335. 						"key": "Authorization",
    336. 						"value": "Bearer {{access_token}}"
    337. 					}
    338. 				],
    339. 				"url": "{{base_domain}}/modelderivative/v2/designdata/{{urnBase64}}/metadata/{{metadata_guid}}/properties"
    340. 			},
    341. 			"response": []
    342. 		},
    343. 		{
    344. 			"name": "09-bucket details",
    345. 			"event": [
    346. 				{
    347. 					"listen": "test",
    348. 					"script": {
    349. 						"type": "text/javascript",
    350. 						"exec": [
    351. 							"if (responseCode.code === 200 && responseBody) {",
    352. 							"    var data = JSON.parse(responseBody);",
    353. 							"    postman.setEnvironmentVariable(\"bucketKey\", data.bucketKey);",
    354. 							"}"
    355. 						]
    356. 					}
    357. 				}
    358. 			],
    359. 			"request": {
    360. 				"method": "GET",
    361. 				"header": [
    362. 					{
    363. 						"key": "Authorization",
    364. 						"value": "Bearer {{access_token}}"
    365. 					}
    366. 				],
    367. 				"url": "{{base_domain}}/oss/v2/buckets/{{bucketKey}}/details"
    368. 			},
    369. 			"response": []
    370. 		},
    371. 		{
    372. 			"name": "12-GET formats",
    373. 			"request": {
    374. 				"method": "GET",
    375. 				"header": [
    376. 					{
    377. 						"key": "Authorization",
    378. 						"value": "Bearer {{access_token}}"
    379. 					}
    380. 				],
    381. 				"url": "{{base_domain}}/modelderivative/v2/designdata/formats"
    382. 			},
    383. 			"response": []
    384. 		}
    385. 	]
    386. }

    BIM.postman environment,.json

    1. {
    2. 	"id": "63cf71cf-bae6-411f-8e53-7319cf62fd9a",
    3. 	"name": "Beijing-Workshop",
    4. 	"values": [
    5. 		{
    6. 			"key": "base_domain",
    7. 			"value": "https://developer.api.autodesk.com",
    8. 			"type": "text",
    9. 			"enabled": true
    10. 		},
    11. 		{
    12. 			"key": "client_id",
    13. 			"value": "xxxxxxxxx",
    14. 			"type": "text",
    15. 			"enabled": true
    16. 		},
    17. 		{
    18. 			"key": "client_secret",
    19. 			"value": "xxxxxxxxxxx",
    20. 			"type": "text",
    21. 			"enabled": true
    22. 		},
    23. 		{
    24. 			"key": "urnBase64",
    25. 			"value": "dXJuOmFkc2sub2JqZWN0czpvcy5vYmplY3Q6YWMtcGVyc2lzdGVudC1idWNrZXQtdGVzdDMvYWdncmVnYXRlLTEucnZ0",
    26. 			"type": "text",
    27. 			"enabled": true
    28. 		},
    29. 		{
    30. 			"key": "access_token",
    31. 			"value": "eyJhbGciOiJIUzI1NiIsImtpZCI6Imp3dF9zeW1tZXRyaWNfa2V5In0.eyJjbGllbnRfaWQiOiJNbDhXdWJFdW52WVRaRk1za2xpQ200YnZCM0dkREVibyIsImV4cCI6MTUyNjExNDc3OCwic2NvcGUiOlsiZGF0YTpyZWFkIiwiZGF0YTp3cml0ZSIsImJ1Y2tldDpjcmVhdGUiLCJidWNrZXQ6cmVhZCJdLCJhdWQiOiJodHRwczovL2F1dG9kZXNrLmNvbS9hdWQvand0ZXhwNjAiLCJqdGkiOiIxMEV2aEVpcGhQMGszTm9FNkFOa2NnR1pKOVJUaUhDazA3dXhWMDFFc1R1M2twS2tVNnB4a2d5d3A5QXBFakpDIn0.prPXmCc9e1oxZcPFSEgPOlonHG8po16RdzDciborQlg",
    32. 			"type": "text",
    33. 			"enabled": true
    34. 		},
    35. 		{
    36. 			"key": "guid",
    37. 			"value": "57873878-6d98-b389-aa22-fead1053823f",
    38. 			"type": "text",
    39. 			"enabled": true
    40. 		},
    41. 		{
    42. 			"key": "bucketKey",
    43. 			"value": "xiaodong-persistent-bucket-test8",
    44. 			"type": "text",
    45. 			"enabled": true
    46. 		},
    47. 		{
    48. 			"key": "guid",
    49. 			"value": "e22cc916-cabd-4b97-9ccd-1ab1e613f707",
    50. 			"type": "text",
    51. 			"enabled": true
    52. 		},
    53. 		{
    54. 			"key": "objectKey",
    55. 			"value": "RevitNative.rvt",
    56. 			"type": "text",
    57. 			"enabled": true
    58. 		},
    59. 		{
    60. 			"key": "expires_in",
    61. 			"value": "3599",
    62. 			"type": "text",
    63. 			"enabled": true
    64. 		},
    65. 		{
    66. 			"key": "token_type",
    67. 			"value": "Bearer",
    68. 			"type": "text",
    69. 			"enabled": true
    70. 		},
    71. 		{
    72. 			"key": "bucketPolicy",
    73. 			"value": "persistent",
    74. 			"type": "text",
    75. 			"enabled": true
    76. 		},
    77. 		{
    78. 			"key": "urn",
    79. 			"value": "urn:adsk.objects:os.object:xiaodong-persistent-bucket-test8/workshop-2.rvt",
    80. 			"type": "text",
    81. 			"enabled": true
    82. 		},
    83. 		{
    84. 			"key": "file_location",
    85. 			"value": "https://developer.api.autodesk.com/oss/v2/buckets/xiaodong-persistent-bucket-test8/objects/workshop-2.rvt",
    86. 			"type": "text",
    87. 			"enabled": true
    88. 		}
    89. 	],
    90. 	"_postman_variable_scope": "environment",
    91. 	"_postman_exported_at": "2023-07-15T15:06:21.850Z",
    92. 	"_postman_exported_using": "Postman/10.16.0"
    93. }

     client_secret与client_id记住改成自己的，然后就开始用postman请求上传了

    获取access token

    https://developer.api.autodesk.com/authentication/v1/authenticate

    是用于获取 Autodesk API 的访问令牌（access token）的认证

    请求中包含必要的认证信息

    • 客户端 ID（client_id）
    • 客户端密钥（client_secret）
    • grant_type：授权类型，通常为 "client_credentials"（客户端凭据模式）
    • scope：请求的权限范围，用空格分隔多个权限（如 "data:read data:write"）
    • expires_in：设置合适的过期时间，单位毫秒

    响应结果：

    创建 Autodesk Forge 中的存储桶（bucket）

    https://developer.api.autodesk.com/oss/v2/buckets

    请求中包含必要的认证信息:

    • Authorization：Authorization: Bearer {{access_token}}
    • bucketKey：存储桶的唯一标识符，它必须是全局唯一的。可以使用小写字母、数字、连字符 - 和下划线 _ 来命名。长度应在3到128个字符之间。
    • policyKey：存储桶的访问策略。默认为 transient，表示存储桶中的对象在30天后过期； persistent，表示永久保存

     响应结果：

     查看bucket是否创建成功

    https://developer.api.autodesk.com/oss/v2/buckets

    请求中包含必要的认证信息:

    • Authorization：Authorization: Bearer {{access_token}}

    请求可选的参数信息:

    • limit：指定要返回的存储桶数量的限制。例如，返回最多 10 个存储桶，默认为 10

     响应结果：

     往bucket里放置object模型

    https://developer.api.autodesk.com/oss/v2/buckets/{bucketKey}/objects/{objectName}

     请求中包含必要的认证信息:

    • Authorization：Authorization: Bearer {{access_token}}
    • 选择需要放置的rvt模型
    • objectName：每个文件在存储桶中都有一个唯一的标识符

     响应结果：

     检查对象模型是否成功上传到 Autodesk Forge 存储桶（bucket）中

    https://developer.api.autodesk.com/oss/v2/buckets/{{bucketKey}}/objects

    请求中包含必要的认证信息:

    • Authorization：Authorization: Bearer {{access_token}}
    • bucketKey：查询的存储桶的实际标识符

     响应结果：

    将模型在云端转换成SVF格式

    https://developer.api.autodesk.com/modelderivative/v2/designdata/job

    请求中包含必要的认证信息:

    • Authorization：Authorization: Bearer {{access_token}}
    • input：指定要转换的对象的 URN（Uniform Resource Name）。将 object_id 的 URN 作为输入。
    • output：指定要生成的输出格式和文件类型。在这里，你可以指定 SVF 格式作为输出。例如，{"formats": [{"type": "svf", "views": ["2d", "3d"]}]}

    备注：input中的urn是 objectId转化为Base64格式

    响应结果：

    检查模型是否转化完成

    https://developer.api.autodesk.com/modelderivative/v2/designdata/{base64_urn}/manifest

    请求中包含必要的认证信息:

    • Authorization：Authorization: Bearer {{access_token}}
    • base64_urn：经过 Base64 编码的 URN

    响应结果：

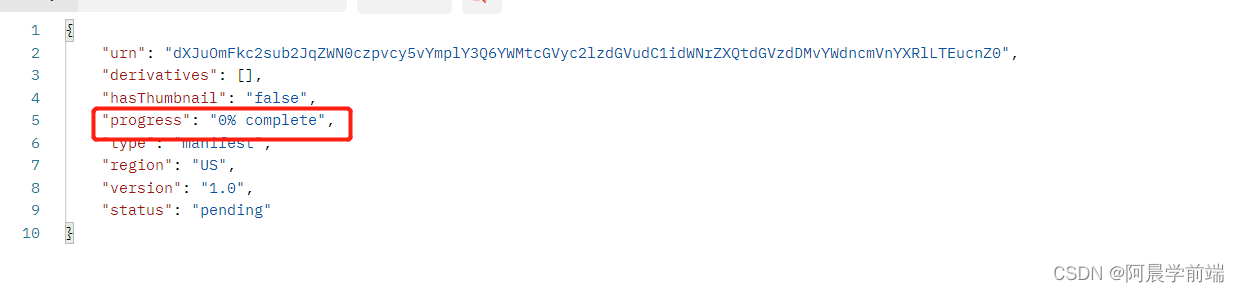

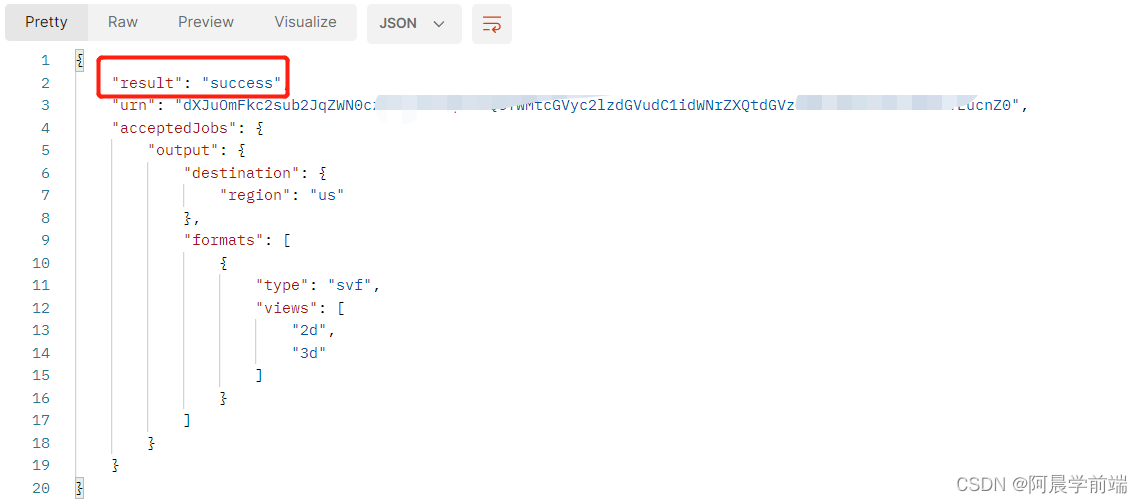

     图一表示进度，图二代表成功

    浏览器渲染：

    html渲染模板   将accessToken与documentId替换掉就行

    1. html>
    2. <html>
    3.
    4. <head>
    5.     <title>Autodesk Forge: 3D Viewer App Sampletitle>
    6.
    7.     <meta http-equiv="cache-control" content="max-age=0" />
    8.     <meta http-equiv="cache-control" content="no-cache" />
    9.     <meta http-equiv="expires" content="0" />
    10.     <meta http-equiv="expires" content="Tue, 01 Jan 1980 1:00:00 GMT" />
    11.     <meta http-equiv="pragma" content="no-cache" />
    12.
    13.     <script src="https://code.jquery.com/jquery-3.3.1.min.js">script>
    14.
    15.     <link rel="stylesheet" href="https://developer.api.autodesk.com/modelderivative/v2/viewers/7.51/style.min.css"
    16.         type="text/css">
    17.     <script src="https://developer.api.autodesk.com/modelderivative/v2/viewers/7.51/viewer3D.min.js">script>
    18.
    19.     <style>
    20.         /** Just simple CSS styling to make this page a little nicer **/
    21.         body {
    22.             margin: 0;
    23.             padding: 0;
    24.         }
    25.     style>
    26. head>
    27.
    28. <body>
    29.
    30.
    31.     <div id="MyViewerDiv">div>
    32.
    33.
    34.     <script>
    35.         var viewer;
    36.         var options = {
    37.             env: 'AutodeskProduction',
    38.             api: 'derivativeV2', // TODO: for models uploaded to EMEA change this option to 'derivativeV2_EU'
    39.             // getAccessToken: getForgeToken
    40.             accessToken: 'eyJhbGciOiJSUzI1NiIsImtpZCI6IlU3c0dGRldUTzlBekNhSzBqZURRM2dQZXBURVdWN2VhIiwicGkuYXRtIjoiN3ozaCJ9.eyJzY29wZSI6WyJkYXRhOnJlYWQiLCJkYXRhOndyaXRlIiwiYnVja2V0OmNyZWF0ZSIsImJ1Y2tldDpyZWFkIl0sImNsaWVudF9pZCI6IkpCcldjc3p3RVZCQ0dNMm5sY1J6N0tIZXZTbXpYUXM0IiwiYXVkIjoiaHR0cHM6Ly9hdXRvZGVzay5jb20vYXVkL2Fqd3RleHA2MCIsImp0aSI6ImJjWXBRalcwekh5aTZyUEd3QU1kNjdjamlWS1Q2dDZIYXNqcjFmOXR4OUExeGhZY05JWkhINVlibkdDeHVaTWoiLCJleHAiOjE2ODk5MTI0ODB9.JdpIFQAmWmsGc-t2g3tpU677G1Y11RwF4ndTxbwSa4hE5tOjYtLsMK7pR-jGGWIHAEHUkScvDixQWFIUG_o5UWpwhAdH7r06126QhGFNk_Wf1d8OvoDknqdKt9aXns_1xvxucOdPs3VkJ8BWH6j65B3fxZ7GB5jub3zeF7sGuYd1zBL9FdAcQ5_uQUBpEXh8uP4yZ_Y3yDe_mnTx2OxTMyRXsHw7quWjtxXDQXweGq0xDn3ENayOTkYnsru3_GJmGXUE4b-Zl1csHENJyyegkDqrfbaLbMeKagCWxY-RnCikmg80iWDqOd6KvIejRbQdqpjdQWz4i3Qx6Wnj6Lzf4w'
    41.         };
    42.         // var documentId = 'urn:' + getUrlParameter('urn');
    43.         var documentId = 'urn:dXJuOmFkc2sub2JqZWN0czpvcy5vYmplY3Q6YWMtcGVyc2lzdGVudC1idWNrZXQtdGVzdDMvYWdncmVnYXRlLTEucnZ0'
    44.         // 初始化和加载文档的部分
    45.         Autodesk.Viewing.Initializer(options, function onInitialized() {
    46.             // Find the element where the 3d viewer will live.
    47.             var htmlElement = document.getElementById('MyViewerDiv');
    48.             if (htmlElement) {
    49.                 // Create and start the viewer in that element
    50.                 viewer = new Autodesk.Viewing.GuiViewer3D(htmlElement);
    51.                 viewer.start();
    52.                 // Load the document into the viewer.
    53.                 Autodesk.Viewing.Document.load(documentId, onDocumentLoadSuccess, onDocumentLoadFailure);
    54.                 $('.adsk-viewing-viewer').css('height', '80%')
    55.                 $('.adsk-viewing-viewer').css('width', '42%')
    56.             }
    57.         });
    58.
    59.         /**
    60.         * 加载模型的回调函数
    61.         */
    62.         function onDocumentLoadSuccess(doc) {
    63.             // Load the default viewable geometry into the viewer.
    64.             // Using the doc, we have access to the root BubbleNode,
    65.             // which references the root node of a graph that wraps each object from the Manifest JSON.
    66.             var viewable = doc.getRoot().getDefaultGeometry();
    67.             if (viewable) {
    68.                 viewer.loadDocumentNode(doc, viewable).then(function (result) {
    69.                     console.log('Viewable Loaded!');
    70.                 }).catch(function (err) {
    71.                     console.log('Viewable failed to load.');
    72.                     console.log(err);
    73.                 }
    74.                 )
    75.             }
    76.         }
    77.
    78.         /**
    79.         * 文档加载失败时的回调函数
    80.         */
    81.         function onDocumentLoadFailure(viewerErrorCode) {
    82.             console.error('onDocumentLoadFailure() - errorCode: ' + viewerErrorCode);
    83.             jQuery('#MyViewerDiv').html('
      Translation in progress... Please try refreshing the page.
      '      );
    84.         }
    85.
    86.     script>
    87. body>
    88.
    89. html>

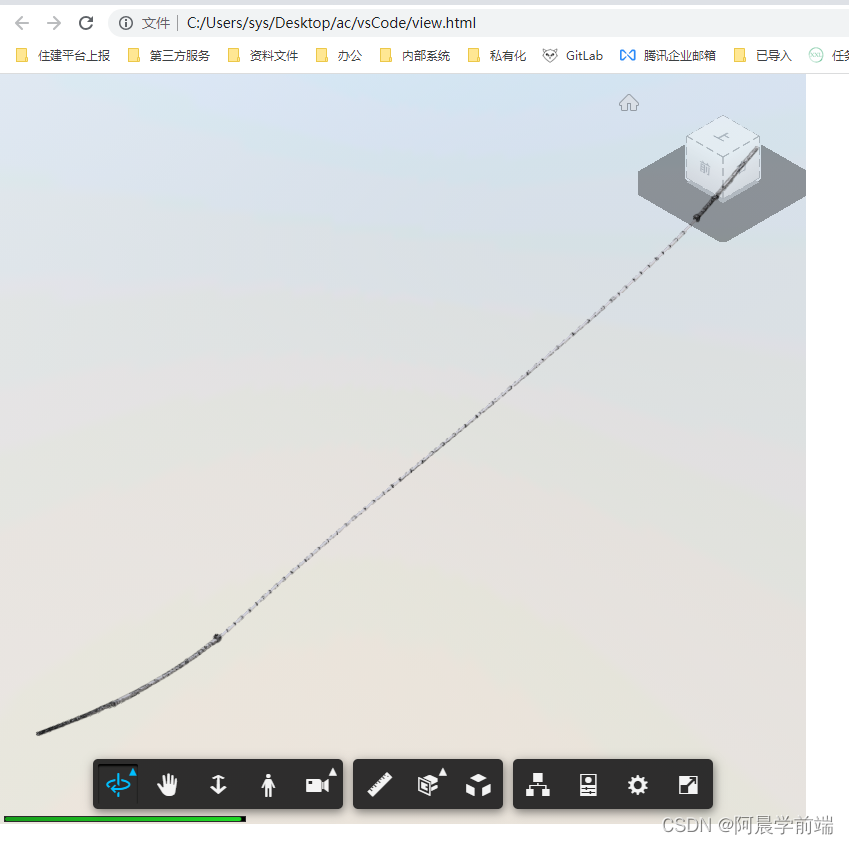

    效果图如下：

    其他资源分享：

    视频教程：通过Forge十分钟实现Web端3D模型浏览_哔哩哔哩_bilibili

    有其他问题可以留言 或者私信

  • 相关阅读:
    find 查找 Bazel 构建覆盖率文件的一个☝️坑
    Redis篇---第八篇
    [C#]C#调用cplex
    【做题小技巧】乘法得出的数超过int怎么办
    【ADI低功耗2k代码】基于ADuCM4050的ADXL363、TMP75的加速度、温度检测及串口打印、蜂鸣器播放音乐（孤勇者）
    stl_stack_queue的模拟实现
    EasyAR使用
    无限猴子 歌唱王国 题解
    数据库&SQL
    【C#语音文字互转】.NET的TTS文本转语音合成
  • 原文地址：https://blog.csdn.net/weixin_52479803/article/details/131740763
