Activiti7工作流引擎：节点动态跳转

Activiti7中并没有实现从一个UserTask跳转到另一个UserTask，要实现节点之间自由跳转，需要通过自定义命令来实现。

Activiti7实现主要使用了命令模式(Command)和责任链模式(Intercepter)。

命令模式：主要是将每个操作封装成一个命令。如：
- DeployCmd：部署操作。
- CompleteTaskCmd：审批操作。
- DeleteTaskCmd：删除操作。
- AddCommentCmd：添加审批意见操作。
责任链模式：每个拦截器AbstractCommandInterceptor有一个next属性指向下一个拦截器。
- LogIntercepter：第一个拦截器 first。
- SpringTransactionIntercepter：Spring事务拦截器。
- CommandContextIntercepter：命令上下文拦截器。
- CommandInvoker：最后一个拦截器，用于执行前面的各种Cmd命令。

一：application.yml

spring:
  datasource:
    url: jdbc:mysql://localhost:3306/user?useUnicode=true&characterEncoding=utf8&serverTimezone=GMT
    username: root
    password: root123
    driver-class-name: com.mysql.cj.jdbc.Driver
## Mybatis 配置
mybatis:
  typeAliasesPackage: com.example.demo.entity
  mapperLocations: classpath:mapper/*.xml
  configuration:
    map-underscore-to-camel-case: true

# 打印mybatis中的sql语句
logging:
    level:
      org.activiti.engine.impl.persistence.entity: debug


activiti:
  #1.flase： 默认值。activiti在启动时，会对比数据库表中保存的版本，如果没有表或者版本不匹配，将抛出异常
  #2.true： activiti会对数据库中所有表进行更新操作。如果表不存在，则自动创建
  #3.create_drop： 在activiti启动时创建表，在关闭时删除表（必须手动关闭引擎，才能删除表）
  #4.drop-create： 在activiti启动时删除原来的旧表，然后在创建新表（不需要手动关闭引擎）
  database-schema-update: true
  #检测历史表是否存在 activiti7默认没有开启数据库历史记录 启动数据库历史记录
  db-history-used: true
  #记录历史等级 可配置的历史级别有none, activity, audit, full
  history-level: full
  #校验流程文件，默认校验resources下的processes文件夹里的流程文件
  check-process-definitions: false
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31

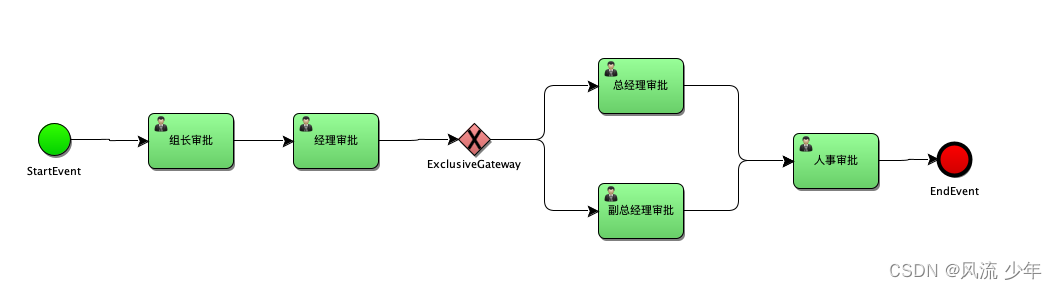

二：bpmn

在这里插入图片描述


<definitions xmlns="http://www.omg.org/spec/BPMN/20100524/MODEL" xmlns:activiti="http://activiti.org/bpmn" xmlns:bpmndi="http://www.omg.org/spec/BPMN/20100524/DI" xmlns:omgdc="http://www.omg.org/spec/DD/20100524/DC" xmlns:omgdi="http://www.omg.org/spec/DD/20100524/DI" xmlns:tns="http://www.activiti.org/test" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" expressionLanguage="http://www.w3.org/1999/XPath" id="m1692856575168" name="" targetNamespace="http://www.activiti.org/test" typeLanguage="http://www.w3.org/2001/XMLSchema">
  <process id="leave" isClosed="false" isExecutable="true" name="请假流程" processType="None">
    <startEvent id="start" name="StartEvent"/>
    <userTask activiti:exclusive="true" id="leads" name="组长审批"/>
    <userTask activiti:exclusive="true" id="manager" name="经理审批"/>
    <sequenceFlow id="_5" sourceRef="start" targetRef="leads"/>
    <sequenceFlow id="_6" sourceRef="leads" targetRef="manager"/>
    <exclusiveGateway gatewayDirection="Unspecified" id="_7" name="ExclusiveGateway"/>
    <sequenceFlow id="_8" sourceRef="manager" targetRef="_7"/>
    <userTask activiti:exclusive="true" id="gm" name="总经理审批"/>
    <userTask activiti:exclusive="true" id="dgm" name="副总经理审批"/>
    <sequenceFlow id="_11" sourceRef="_7" targetRef="gm">
      <conditionExpression xsi:type="tFormalExpression">

      conditionExpression>
    sequenceFlow>
    <sequenceFlow id="_12" sourceRef="_7" targetRef="dgm">
      <conditionExpression xsi:type="tFormalExpression">

      conditionExpression>
    sequenceFlow>
    <userTask activiti:exclusive="true" id="hr" name="人事审批"/>
    <sequenceFlow id="_2" sourceRef="gm" targetRef="hr"/>
    <sequenceFlow id="_3" sourceRef="dgm" targetRef="hr"/>
    <endEvent id="end" name="EndEvent"/>
    <sequenceFlow id="_9" sourceRef="hr" targetRef="end"/>
  process>
  <bpmndi:BPMNDiagram documentation="background=#3C3F41;count=1;horizontalcount=1;orientation=0;width=842.4;height=1195.2;imageableWidth=832.4;imageableHeight=1185.2;imageableX=5.0;imageableY=5.0" id="Diagram-_1" name="New Diagram">
    <bpmndi:BPMNPlane bpmnElement="leave">
      <bpmndi:BPMNShape bpmnElement="start" id="Shape-start">
        <omgdc:Bounds height="32.0" width="32.0" x="60.0" y="160.0"/>
        <bpmndi:BPMNLabel>
          <omgdc:Bounds height="32.0" width="32.0" x="0.0" y="0.0"/>
        bpmndi:BPMNLabel>
      bpmndi:BPMNShape>
      <bpmndi:BPMNShape bpmnElement="leads" id="Shape-leads">
        <omgdc:Bounds height="55.0" width="85.0" x="170.0" y="150.0"/>
        <bpmndi:BPMNLabel>
          <omgdc:Bounds height="55.0" width="85.0" x="0.0" y="0.0"/>
        bpmndi:BPMNLabel>
      bpmndi:BPMNShape>
      <bpmndi:BPMNShape bpmnElement="manager" id="Shape-manager">
        <omgdc:Bounds height="55.0" width="85.0" x="315.0" y="150.0"/>
        <bpmndi:BPMNLabel>
          <omgdc:Bounds height="55.0" width="85.0" x="0.0" y="0.0"/>
        bpmndi:BPMNLabel>
      bpmndi:BPMNShape>
      <bpmndi:BPMNShape bpmnElement="_7" id="Shape-_7" isMarkerVisible="false">
        <omgdc:Bounds height="32.0" width="32.0" x="480.0" y="160.0"/>
        <bpmndi:BPMNLabel>
          <omgdc:Bounds height="32.0" width="32.0" x="0.0" y="0.0"/>
        bpmndi:BPMNLabel>
      bpmndi:BPMNShape>
      <bpmndi:BPMNShape bpmnElement="gm" id="Shape-gm">
        <omgdc:Bounds height="55.0" width="85.0" x="620.0" y="95.0"/>
        <bpmndi:BPMNLabel>
          <omgdc:Bounds height="55.0" width="85.0" x="0.0" y="0.0"/>
        bpmndi:BPMNLabel>
      bpmndi:BPMNShape>
      <bpmndi:BPMNShape bpmnElement="dgm" id="Shape-dgm">
        <omgdc:Bounds height="55.0" width="85.0" x="620.0" y="220.0"/>
        <bpmndi:BPMNLabel>
          <omgdc:Bounds height="55.0" width="85.0" x="0.0" y="0.0"/>
        bpmndi:BPMNLabel>
      bpmndi:BPMNShape>
      <bpmndi:BPMNShape bpmnElement="hr" id="Shape-hr">
        <omgdc:Bounds height="55.0" width="85.0" x="815.0" y="170.0"/>
        <bpmndi:BPMNLabel>
          <omgdc:Bounds height="55.0" width="85.0" x="0.0" y="0.0"/>
        bpmndi:BPMNLabel>
      bpmndi:BPMNShape>
      <bpmndi:BPMNShape bpmnElement="end" id="Shape-end">
        <omgdc:Bounds height="32.0" width="32.0" x="960.0" y="180.0"/>
        <bpmndi:BPMNLabel>
          <omgdc:Bounds height="32.0" width="32.0" x="0.0" y="0.0"/>
        bpmndi:BPMNLabel>
      bpmndi:BPMNShape>
      <bpmndi:BPMNEdge bpmnElement="_12" id="BPMNEdge__12" sourceElement="_7" targetElement="dgm">
        <omgdi:waypoint x="512.0" y="176.0"/>
        <omgdi:waypoint x="620.0" y="247.5"/>
        <bpmndi:BPMNLabel>
          <omgdc:Bounds height="0.0" width="0.0" x="0.0" y="0.0"/>
        bpmndi:BPMNLabel>
      bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge bpmnElement="_2" id="BPMNEdge__2" sourceElement="gm" targetElement="hr">
        <omgdi:waypoint x="705.0" y="122.5"/>
        <omgdi:waypoint x="815.0" y="197.5"/>
        <bpmndi:BPMNLabel>
          <omgdc:Bounds height="0.0" width="0.0" x="0.0" y="0.0"/>
        bpmndi:BPMNLabel>
      bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge bpmnElement="_3" id="BPMNEdge__3" sourceElement="dgm" targetElement="hr">
        <omgdi:waypoint x="705.0" y="247.5"/>
        <omgdi:waypoint x="815.0" y="197.5"/>
        <bpmndi:BPMNLabel>
          <omgdc:Bounds height="0.0" width="0.0" x="0.0" y="0.0"/>
        bpmndi:BPMNLabel>
      bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge bpmnElement="_5" id="BPMNEdge__5" sourceElement="start" targetElement="leads">
        <omgdi:waypoint x="92.0" y="176.0"/>
        <omgdi:waypoint x="170.0" y="177.5"/>
        <bpmndi:BPMNLabel>
          <omgdc:Bounds height="0.0" width="0.0" x="0.0" y="0.0"/>
        bpmndi:BPMNLabel>
      bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge bpmnElement="_6" id="BPMNEdge__6" sourceElement="leads" targetElement="manager">
        <omgdi:waypoint x="255.0" y="177.5"/>
        <omgdi:waypoint x="315.0" y="177.5"/>
        <bpmndi:BPMNLabel>
          <omgdc:Bounds height="0.0" width="0.0" x="0.0" y="0.0"/>
        bpmndi:BPMNLabel>
      bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge bpmnElement="_8" id="BPMNEdge__8" sourceElement="manager" targetElement="_7">
        <omgdi:waypoint x="400.0" y="177.5"/>
        <omgdi:waypoint x="480.0" y="176.0"/>
        <bpmndi:BPMNLabel>
          <omgdc:Bounds height="0.0" width="0.0" x="0.0" y="0.0"/>
        bpmndi:BPMNLabel>
      bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge bpmnElement="_9" id="BPMNEdge__9" sourceElement="hr" targetElement="end">
        <omgdi:waypoint x="900.0" y="197.5"/>
        <omgdi:waypoint x="960.0" y="196.0"/>
        <bpmndi:BPMNLabel>
          <omgdc:Bounds height="0.0" width="0.0" x="0.0" y="0.0"/>
        bpmndi:BPMNLabel>
      bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge bpmnElement="_11" id="BPMNEdge__11" sourceElement="_7" targetElement="gm">
        <omgdi:waypoint x="512.0" y="176.0"/>
        <omgdi:waypoint x="620.0" y="122.5"/>
        <bpmndi:BPMNLabel>
          <omgdc:Bounds height="0.0" width="0.0" x="0.0" y="0.0"/>
        bpmndi:BPMNLabel>
      bpmndi:BPMNEdge>
    bpmndi:BPMNPlane>
  bpmndi:BPMNDiagram>
definitions>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139

三：自定义跳转命令

DynamicJumpCmd

/**
 * 节点动态跳转.
 */
@Slf4j
@AllArgsConstructor
public class DynamicJumpCmd implements Command<Void> {

    /** 流程实例id */
    private String processInstanceId;

    /** 从哪个节点 */
    private String fromActivityId;

    /** 跳转到那个节点 */
    private String toActivityId;


    @Override
    public Void execute(CommandContext commandContext) {
        log.info("node jump: processInstanceId={}, fromActivityId={}, toActivityId={}", processInstanceId, fromActivityId, toActivityId);
        // 0.参数合法性检查
        ExecutionEntityManager executionEntityManager = commandContext.getExecutionEntityManager();
        ExecutionEntity executionEntity = executionEntityManager.findById(processInstanceId);
        Assert.isTrue(executionEntity != null, "processInstanceId is not exist");
        BpmnModel bpmnModel = ProcessDefinitionUtil.getBpmnModel(executionEntity.getProcessDefinitionId());
        FlowElement fromFlowElement = bpmnModel.getFlowElement(fromActivityId);
        Assert.isTrue(fromFlowElement != null, "fromActivityId is not exist");
        FlowElement toFlowElement = bpmnModel.getFlowElement(toActivityId);

        // 1.找出子执行实例fromActivityId，并删除该执行实例
        List<ExecutionEntity> childList = executionEntityManager.findChildExecutionsByProcessInstanceId(processInstanceId);
        ExecutionEntity currentChildExecutionEntity = null;
        for (ExecutionEntity child : childList) {
            if (child.getCurrentActivityId().equals(fromActivityId)) {
                currentChildExecutionEntity = child;
                break;
            }
        }
        executionEntityManager.deleteExecutionAndRelatedData(currentChildExecutionEntity, "任务动态跳转");

        // 2.创建新的执行实例，并绑定到toActivityId
        ExecutionEntity childExecution = executionEntityManager.createChildExecution(executionEntity);
        childExecution.setCurrentFlowElement(toFlowElement);

        // 执行流程操作
        Context.getAgenda().planContinueProcessOperation(childExecution);
        return null;
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49

DynamicJumpService

@Service
public class DynamicJumpService {

    @Autowired
    protected ManagementService managementService;

    public void jumpTask(String processInstanceId, String fromActivityId, String toActivityId) {
        DynamicJumpCmd dynamicJumpCmd = new DynamicJumpCmd(processInstanceId, fromActivityId, toActivityId);
        managementService.executeCommand(dynamicJumpCmd);
    }
}
1
2
3
4
5
6
7
8
9
10
11

@RequestMapping("/jump")
public void jump(String processInstanceId, String from, String to) {
    dynamicJumpService.jumpTask(processInstanceId, from, to);
}

@RequestMapping("/complete")
public void complete(String processInstanceId, String assignee) {
    ProcessEngine processEngine = ProcessEngines.getDefaultProcessEngine();
    TaskService taskService = processEngine.getTaskService();
    Task task = taskService.createTaskQuery().processDefinitionKey("leave")
            .processInstanceId(processInstanceId)
            .singleResult();

    taskService.setAssignee(task.getId(), assignee);
    taskService.complete(task.getId());
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

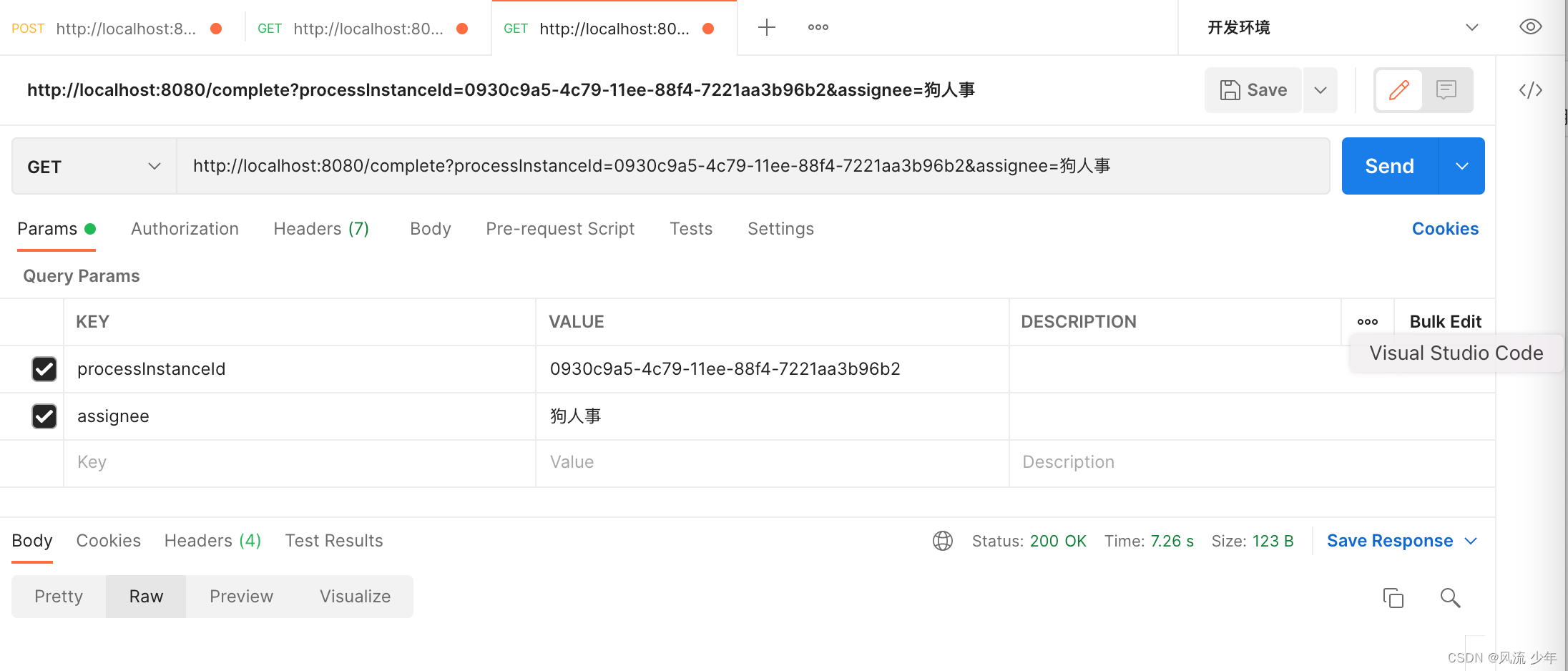

四：Test

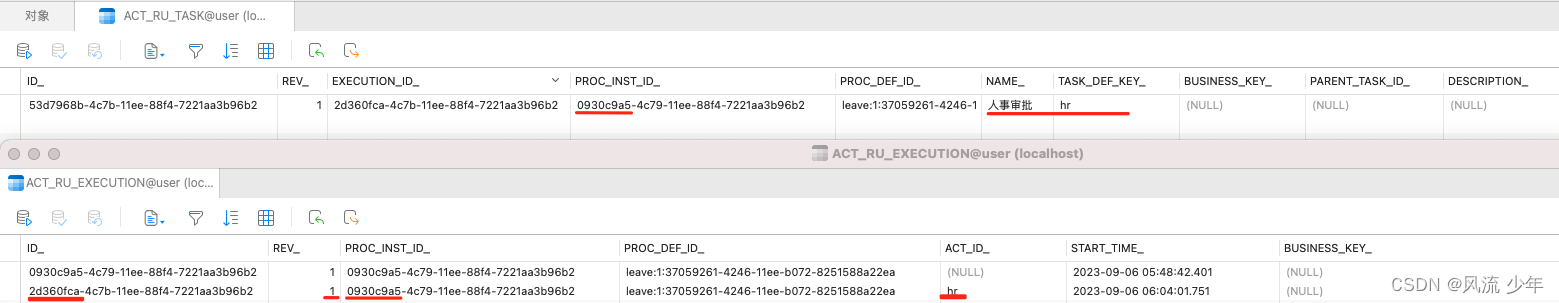

在这里插入图片描述

insert into ACT_RU_EXECUTION
insert into ACT_RU_TASK
update ACT_RU_EXECUTION：更新子执行实例
delete from ACT_RU_TASK
delete from ACT_RU_EXECUTION

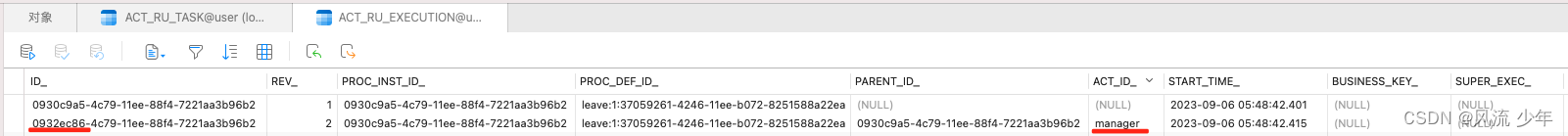

在这里插入图片描述

insert into ACT_RU_EXECUTION (ID_, REV_, PROC_INST_ID_, BUSINESS_KEY_, PROC_DEF_ID_, ACT_ID_, IS_ACTIVE_, IS_CONCURRENT_, IS_SCOPE_,IS_EVENT_SCOPE_, IS_MI_ROOT_, PARENT_ID_, SUPER_EXEC_, ROOT_PROC_INST_ID_, SUSPENSION_STATE_, TENANT_ID_, NAME_, START_TIME_, START_USER_ID_, IS_COUNT_ENABLED_, EVT_SUBSCR_COUNT_, TASK_COUNT_, JOB_COUNT_, TIMER_JOB_COUNT_, SUSP_JOB_COUNT_, DEADLETTER_JOB_COUNT_, VAR_COUNT_, ID_LINK_COUNT_, APP_VERSION_) values ( ?, 1, ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ? )
2d360fca-4c7b-11ee-88f4-7221aa3b96b2(String), 0930c9a5-4c79-11ee-88f4-7221aa3b96b2(String), null, leave:1:37059261-4246-11ee-b072-8251588a22ea(String), hr(String), true(Boolean), false(Boolean), false(Boolean), false(Boolean), false(Boolean), 0930c9a5-4c79-11ee-88f4-7221aa3b96b2(String), null, 0930c9a5-4c79-11ee-88f4-7221aa3b96b2(String), 1(Integer), (String), null, 2023-09-06 14:04:01.751(Timestamp), null, false(Boolean), 0(Integer), 0(Integer), 0(Integer), 0(Integer), 0(Integer), 0(Integer), 0(Integer), 0(Integer), null



insert into ACT_RU_TASK (ID_, REV_, NAME_, BUSINESS_KEY_, PARENT_TASK_ID_, DESCRIPTION_, PRIORITY_, CREATE_TIME_, OWNER_, ASSIGNEE_, DELEGATION_, EXECUTION_ID_, PROC_INST_ID_, PROC_DEF_ID_, TASK_DEF_KEY_, DUE_DATE_, CATEGORY_, SUSPENSION_STATE_, TENANT_ID_, FORM_KEY_, CLAIM_TIME_, APP_VERSION_) values (?, 1, ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ?, ? )
53d7968b-4c7b-11ee-88f4-7221aa3b96b2(String), 人事审批(String), null, null, null, 50(Integer), 2023-09-06 14:05:06.638(Timestamp), null, null, null, 2d360fca-4c7b-11ee-88f4-7221aa3b96b2(String), 0930c9a5-4c79-11ee-88f4-7221aa3b96b2(String), leave:1:37059261-4246-11ee-b072-8251588a22ea(String), hr(String), null, null, 1(Integer), (String), null, null, null

update ACT_RU_EXECUTION set REV_ = 3, ACT_ID_ = ‘manager’  where ID_ = '0932ec86-4c79-11ee-88f4-7221aa3b96b2' and REV_ = 2;

delete from ACT_RU_TASK where ID_ = '0970dfe9-4c79-11ee-88f4-7221aa3b96b2' and REV_ = 1;

delete from ACT_RU_EXECUTION where ID_ = '0932ec86-4c79-11ee-88f4-7221aa3b96b2' and REV_ = 3
1
2
3
4
5
6
7
8
9
10
11
12
13

在这里插入图片描述

五：继续审批

节点跳转之后继续审批一下，验证节点跳转是否有问题。
在这里插入图片描述

相关阅读:
强化学习环境报错解决
 双Buff加持！无GPU畅玩ControlNet Union，一个模型搞定10+图像控制
 【JVM基础】虚拟机栈
 【vue3】10.跟着官网学习vue3-表单输入绑定，双向绑定，封装input组件，封装ant-design-vue的input组件
 JS 这次真的可以禁止常量修改了！
【Linux】多线程基础
 在 uni-app 中选中奇偶子元素
 Gerrit | 重磅! 2.x 版本升级到 3.x 版本----转
 OpenGL编程学习笔记——glBegin
『heqingchun-ubuntu系统下安装nvidia显卡驱动3种方法』
原文地址：https://blog.csdn.net/vbirdbest/article/details/132714353
