ssm和springboot整合

一、整合Mybatis

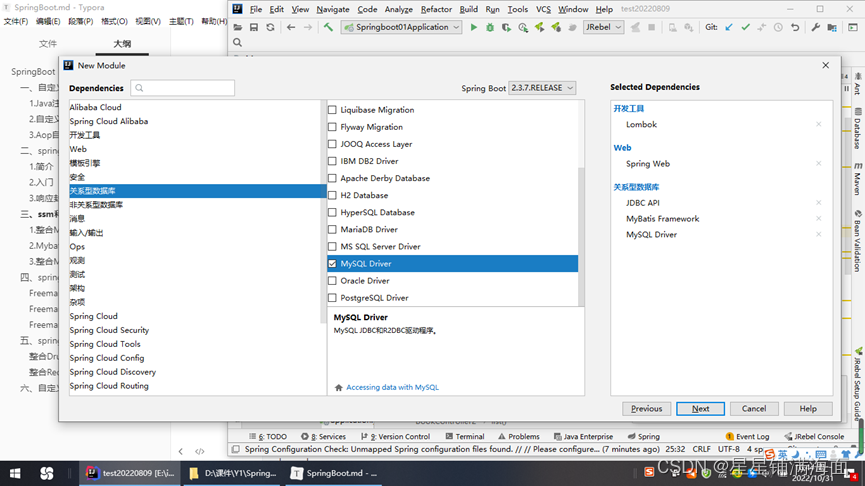

1、新建一个springboot项目

在这里插入图片描述

2、修改pom依赖

<dependency>
            <groupId>mysqlgroupId>
            <artifactId>mysql-connector-javaartifactId>
            <version>5.1.44version>
        dependency>
1
2
3
4
5

<plugin>
                <groupId>org.mybatis.generatorgroupId>
                <artifactId>mybatis-generator-maven-pluginartifactId>
                <version>1.3.2version>
                <dependencies>

                    <dependency>
                        <groupId>mysqlgroupId>
                        <artifactId>mysql-connector-javaartifactId>
                        <version>5.1.44version>
                    dependency>
                dependencies>
                <configuration>
                    <overwrite>trueoverwrite>
                configuration>
            plugin>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

3、修改generatorConfig.xml


        <sqlMapGenerator targetPackage="com.xnx.springbootmybatis.mapper"
                         targetProject="src/main/resources/mappers">

            <property name="enableSubPackages" value="false"/>
        sqlMapGenerator>
1
2
3
4
5
6

4、修改application.yml

mybatis:
    mapper-locations: classpath:mappers/**/*.xml
    type-aliases-package: com.xnx.springbootmybatis.model
server:
    port: 8080
spring:
    application:
        name: springbootmybatis
    datasource:
        driver-class-name: com.mysql.jdbc.Driver
        name: defaultDataSource
        password: 123456
        url: jdbc:mysql://localhost:3306/t280?useUnicode=true&characterEncoding=UTF-8
        username: root

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

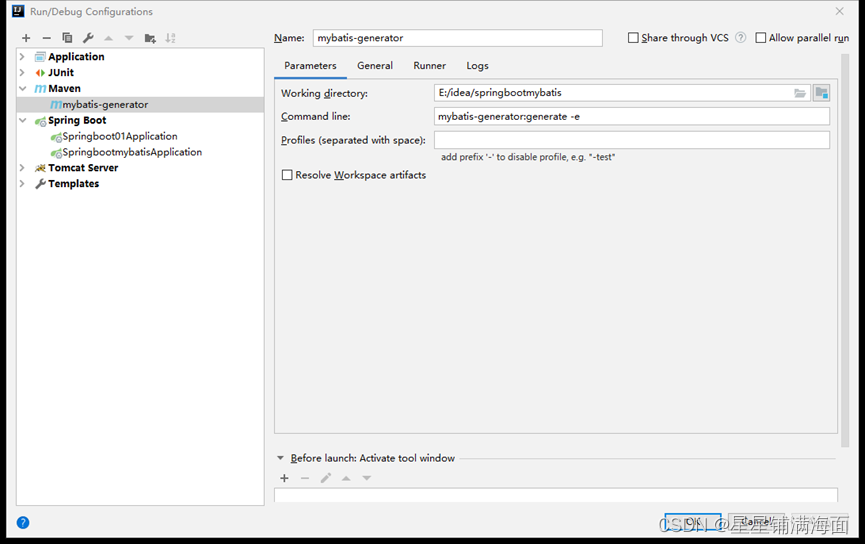

5、配置逆向生成

在这里插入图片描述

6、边写controller层

BookController：

package com.xnx.springbootmybatis;

import com.xnx.springbootmybatis.mapper.BookMapper;
import com.xnx.springbootmybatis.model.Book;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;

import java.util.List;

/**
 * @author xnx
 * @create 2022-11-01 15:07
 */
@RestController
@RequestMapping("/mybatis")
public class BookController {
    @Autowired
    private BookMapper bookMapper;

//    查询
    @GetMapping("/get")
    public Book get(Integer bid){
        return bookMapper.selectByPrimaryKey(bid);
    }

    //    删除
    @DeleteMapping("/delete")
    public int delete(Integer bid){
        return bookMapper.deleteByPrimaryKey(bid);
    }

    //    新增
    @PutMapping("/add")
    public int add(Book book){
        return bookMapper.insert(book);
    }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38

7、测试

新增：
在这里插入图片描述

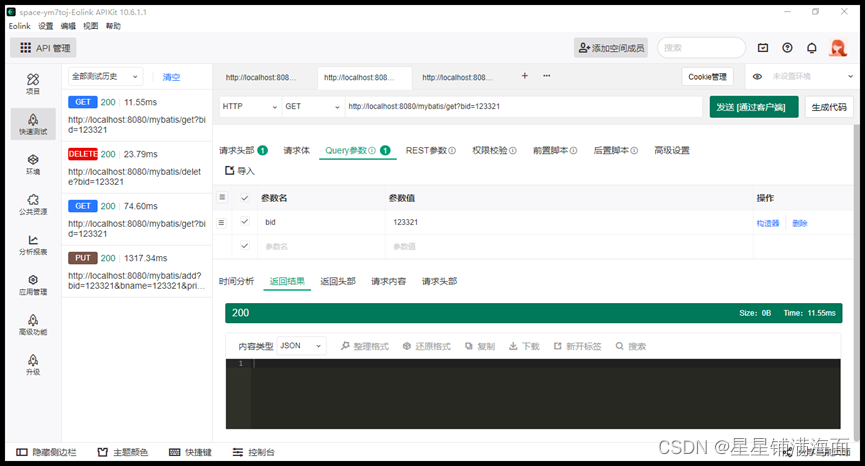

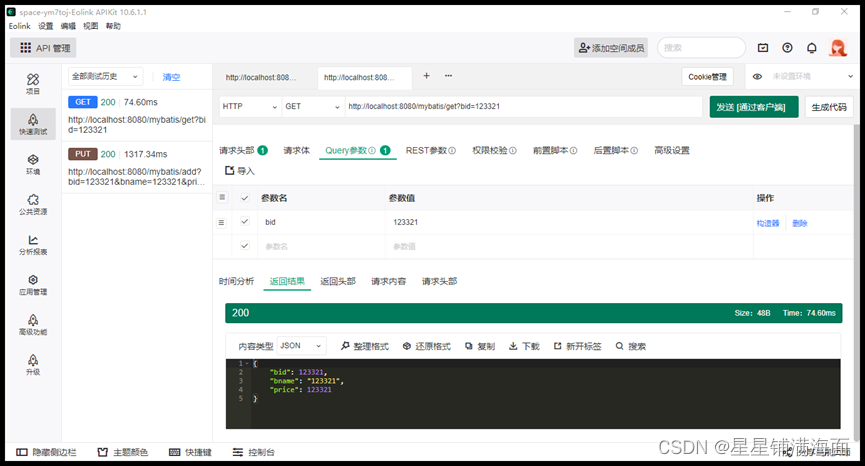

查询单个：

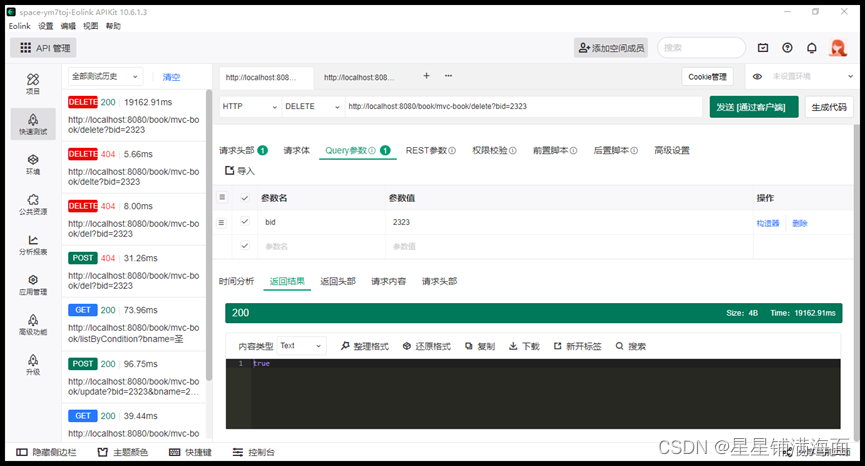

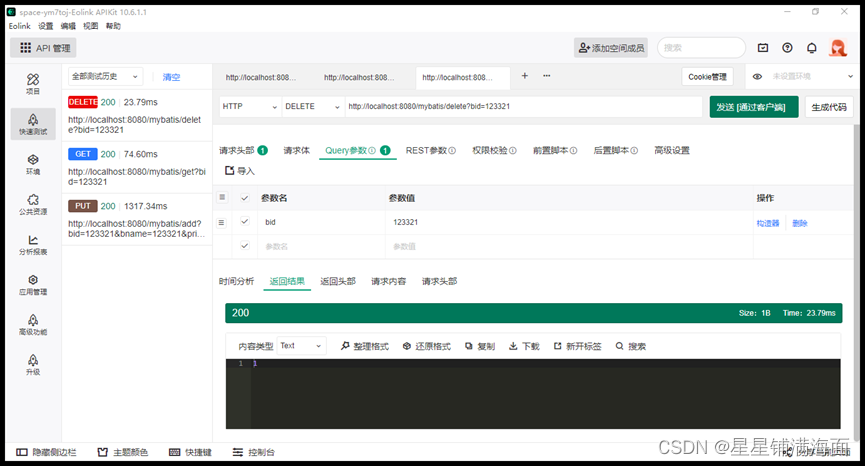

删除：

二、整合Mybatisplus

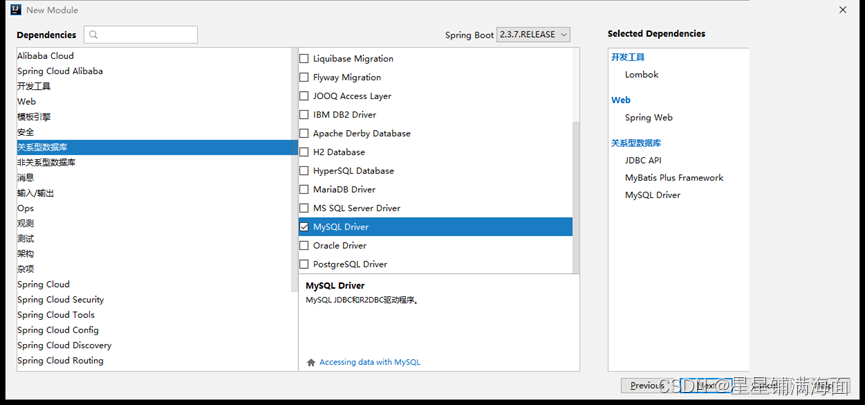

1、新建一个springboot项目

在这里插入图片描述

2、application.yml

server:
    port: 8080
spring:
    application:
        name: springbootmp
    datasource:
        driver-class-name: com.mysql.jdbc.Driver
        name: defaultDataSource
        password: 123456
        url: jdbc:mysql://localhost:3306/t280?useUnicode=true&characterEncoding=UTF-8
        username: root
logging:
    level:
        com.zking.demo: debug
mybatis-plus:
    mapper-locations: classpath:mappers/**/*.xml
    type-aliases-package: com.xnx.springbootmp.book.model

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

3、MPGenerator

package com.xnx.springbootmp.mp;

import com.baomidou.mybatisplus.annotation.DbType;
import com.baomidou.mybatisplus.annotation.IdType;
import com.baomidou.mybatisplus.core.exceptions.MybatisPlusException;
import com.baomidou.mybatisplus.core.toolkit.StringPool;
import com.baomidou.mybatisplus.core.toolkit.StringUtils;
import com.baomidou.mybatisplus.generator.AutoGenerator;
import com.baomidou.mybatisplus.generator.InjectionConfig;
import com.baomidou.mybatisplus.generator.config.*;
import com.baomidou.mybatisplus.generator.config.po.TableInfo;
import com.baomidou.mybatisplus.generator.config.rules.NamingStrategy;
import com.baomidou.mybatisplus.generator.engine.FreemarkerTemplateEngine;

import java.util.ArrayList;
import java.util.List;
import java.util.Scanner;

/**
 * @author xnx
 * @create 2022-11-01 15:44
 */
public class MPGenerator {
    /**
     *
     * 读取控制台内容
     *
     */
    public static String scanner(String tip) {
        Scanner scanner = new Scanner(System.in);
        StringBuilder help = new StringBuilder();
        help.append("请输入" + tip);
        System.out.println(help.toString());
        if (scanner.hasNext()) {
            String ipt = scanner.next();
            if (StringUtils.isNotBlank(ipt)) {
                if ("quit".equals(ipt)) return "";
                return ipt;
            }
        }
        throw new MybatisPlusException("请输入正确的" + tip + "！");
    }

    public static void main(String[] args) {
        // 代码生成器
        AutoGenerator mpg = new AutoGenerator();

        // 1.全局配置
        GlobalConfig gc = new GlobalConfig();
        String projectPath = System.getProperty("user.dir") + "/springbootmp";
        System.out.println(projectPath);

        gc.setOutputDir(projectPath + "/src/main/java");
        gc.setOpen(false);
        gc.setBaseResultMap(true);//生成BaseResultMap
        gc.setActiveRecord(false);// 不需要ActiveRecord特性的请改为false
        gc.setEnableCache(false);// XML 二级缓存
        gc.setBaseResultMap(true);// XML ResultMap
        gc.setBaseColumnList(true);// XML columList
        //gc.setSwagger2(true); //实体属性 Swagger2 注解
        gc.setAuthor("xnx");

        // 自定义文件命名，注意 %s 会自动填充表实体属性！
        gc.setMapperName("%sMapper");
        gc.setXmlName("%sMapper");
        gc.setServiceName("%sService");
        gc.setServiceImplName("%sServiceImpl");
        gc.setControllerName("%sController");

        gc.setIdType(IdType.AUTO);
        mpg.setGlobalConfig(gc);

        // 2.数据源配置
        DataSourceConfig dsc = new DataSourceConfig();
        dsc.setDbType(DbType.MYSQL);
        dsc.setUrl("jdbc:mysql://localhost:3306/t280?useUnicode=true&characterEncoding=UTF-8");
        dsc.setDriverName("com.mysql.jdbc.Driver");
        dsc.setUsername("root");
        dsc.setPassword("123456");
        mpg.setDataSource(dsc);

        // 3.包配置
        PackageConfig pc = new PackageConfig();
        String moduleName = scanner("模块名(quit退出，表示没有模块名)");
        if (StringUtils.isNotBlank(moduleName)) {
            pc.setModuleName(moduleName);
        }
//        设置基包(父包)
        pc.setParent("com.xnx.springbootmp")
                .setMapper("mapper")
                .setService("service")
                .setController("controller")
                .setEntity("model");
        mpg.setPackageInfo(pc);

        // 4.自定义配置
        InjectionConfig cfg = new InjectionConfig() {
            @Override
            public void initMap() {
                // to do nothing
            }
        };

        // 如果模板引擎是 freemarker
        String templatePath = "/templates/mapper.xml.ftl";
        // 自定义输出配置
        List<FileOutConfig> focList = new ArrayList<>();
        // 自定义配置会被优先输出
        focList.add(new FileOutConfig(templatePath) {
            @Override
            public String outputFile(TableInfo tableInfo) {
                // 自定义输出文件名 ， 如果你 Entity 设置了前后缀、此处注意 xml 的名称会跟着发生变化！！
                if (StringUtils.isNotBlank(pc.getModuleName())) {
                    return projectPath + "/src/main/resources/mappers/" + pc.getModuleName() + "/" + tableInfo.getEntityName() + "Mapper" + StringPool.DOT_XML;
                } else {
                    return projectPath + "/src/main/resources/mappers/" + tableInfo.getEntityName() + "Mapper" + StringPool.DOT_XML;
                }
            }
        });
        cfg.setFileOutConfigList(focList);
        mpg.setCfg(cfg);
        // 配置模板
        TemplateConfig templateConfig = new TemplateConfig();
        templateConfig.setXml(null);
        mpg.setTemplate(templateConfig);

        // 5.策略配置
        StrategyConfig strategy = new StrategyConfig();
        // 表名生成策略(下划线转驼峰命名)
        strategy.setNaming(NamingStrategy.underline_to_camel);
        // 列名生成策略(下划线转驼峰命名)
        strategy.setColumnNaming(NamingStrategy.underline_to_camel);
        // 是否启动Lombok配置
        strategy.setEntityLombokModel(true);
        // 是否启动REST风格配置
        strategy.setRestControllerStyle(true);
        // 自定义实体父类strategy.setSuperEntityClass("com.baomidou.mybatisplus.extension.activerecord.Model");
        // 自定义service父接口strategy.setSuperServiceClass("com.baomidou.mybatisplus.extension.service.IService");
        // 自定义service实现类strategy.setSuperServiceImplClass("com.baomidou.mybatisplus.extension.service.impl.ServiceImpl");
        // 自定义mapper接口strategy.setSuperMapperClass("com.baomidou.mybatisplus.core.mapper.BaseMapper");
        strategy.setSuperEntityColumns("id");

        // 写于父类中的公共字段plus
        strategy.setSuperEntityColumns("id");
        strategy.setInclude(scanner("表名，多个英文逗号分割").split(","));
        strategy.setControllerMappingHyphenStyle(true);

        //表名前缀(可变参数)：“t_”或”“t_模块名”，例如：t_user或t_sys_user
        strategy.setTablePrefix("t_", "t_sys_");
        //strategy.setTablePrefix(scanner("请输入表前缀"));
        mpg.setStrategy(strategy);
        mpg.setTemplateEngine(new FreemarkerTemplateEngine());
        // 执行
        mpg.execute();
    }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157

4、生成代码

①MvcBookMapper

package com.xnx.springbootmp.book.mapper;

import com.xnx.springbootmp.book.model.MvcBook;
import com.baomidou.mybatisplus.core.mapper.BaseMapper;
import org.springframework.stereotype.Repository;

/**
 *
 *  Mapper 接口
 *
 *
 * @author xnx
 * @since 2022-11-01
 */
@Repository
public interface MvcBookMapper extends BaseMapper<MvcBook> {

}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

②MvcBook

package com.xnx.springbootmp.book.model;

import com.baomidou.mybatisplus.annotation.TableName;
import com.baomidou.mybatisplus.annotation.IdType;
import com.baomidou.mybatisplus.annotation.TableId;
import java.io.Serializable;
import lombok.Data;
import lombok.EqualsAndHashCode;

/**
 *
 *
 *
 *
 * @author xnx
 * @since 2022-11-01
 */
@Data
@EqualsAndHashCode(callSuper = false)
@TableName("t_mvc_book")
public class MvcBook implements Serializable {

    private static final long serialVersionUID = 1L;

    @TableId(value = "bid", type = IdType.AUTO)
    private Integer bid;

    private String bname;

    private Float price;


}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34

③MvcBookServiceImpl

package com.xnx.springbootmp.book.service.impl;

import com.xnx.springbootmp.book.model.MvcBook;
import com.xnx.springbootmp.book.mapper.MvcBookMapper;
import com.xnx.springbootmp.book.service.MvcBookService;
import com.baomidou.mybatisplus.extension.service.impl.ServiceImpl;
import org.springframework.stereotype.Service;

/**
 *
 *  服务实现类
 *
 *
 * @author xnx
 * @since 2022-11-01
 */
@Service
public class MvcBookServiceImpl extends ServiceImpl<MvcBookMapper, MvcBook> implements MvcBookService {

}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

④MvcBookService

package com.xnx.springbootmp.book.service;

import com.xnx.springbootmp.book.model.MvcBook;
import com.baomidou.mybatisplus.extension.service.IService;

/**
 *
 *  服务类
 *
 *
 * @author xnx
 * @since 2022-11-01
 */
public interface MvcBookService extends IService<MvcBook> {

}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

⑤MvcBookMapper.xml


DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.xnx.springbootmp.book.mapper.MvcBookMapper">


    <resultMap id="BaseResultMap" type="com.xnx.springbootmp.book.model.MvcBook">
        <id column="bid" property="bid" />
        <result column="bname" property="bname" />
        <result column="price" property="price" />
    resultMap>


    <sql id="Base_Column_List">
        bid, bname, price
    sql>

mapper>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

5、MvcBookController

package com.xnx.springbootmp.book.controller;


import com.baomidou.mybatisplus.core.conditions.query.QueryWrapper;
import com.xnx.springbootmp.book.model.MvcBook;
import com.xnx.springbootmp.book.service.MvcBookService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;

import java.util.List;

/**
 *
 *  前端控制器
 *
 *
 * @author xnx
 * @since 2022-11-01
 */
@RestController
@RequestMapping("/book/mvc-book")
public class MvcBookController {
    @Autowired
    private MvcBookService bookService;

//    查询所有
    @GetMapping("/list")
    public List<MvcBook> list(){
        return bookService.list();
    }
//    按条件查询
    @GetMapping("/listByCondition")
    public List<MvcBook> listByCondition(MvcBook book){
//        如果使用的是Mybatis.那么我们需要写sql语句，而mp不需要
        QueryWrapper qw = new QueryWrapper();
        qw.like("bname",book.getBname());
        return bookService.list(qw);
    }

//    查询单个
    @GetMapping("/get")
    public MvcBook get(MvcBook book){
        return bookService.getById(book.getBid());
    }

//    增加
    @PutMapping("/add")
    public boolean add(MvcBook book){
        return bookService.save(book);
    }

//    删除
    @DeleteMapping("/delete")
    public boolean delete(MvcBook book){
        return bookService.removeById(book.getBid());
    }

//    修改
    @PostMapping("/update")
    public boolean update(MvcBook book){
        return bookService.saveOrUpdate(book);
    }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64

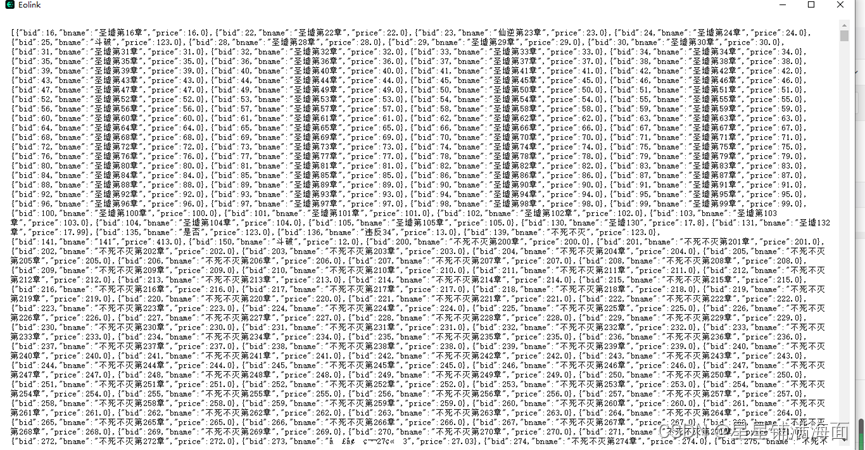

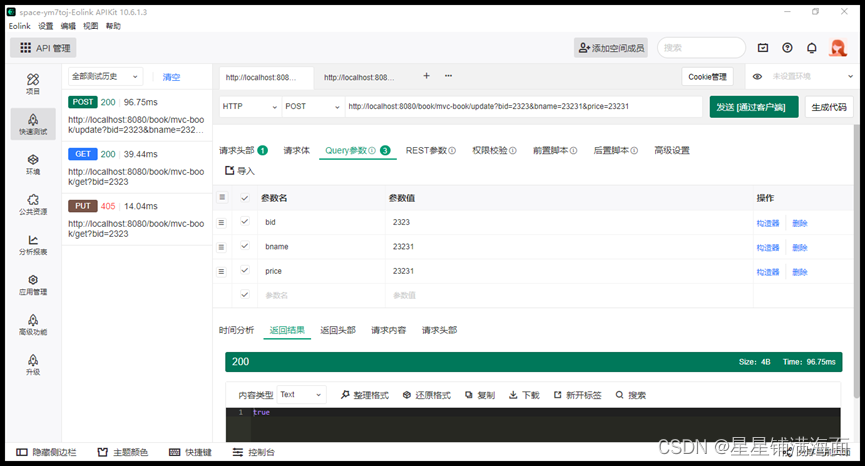

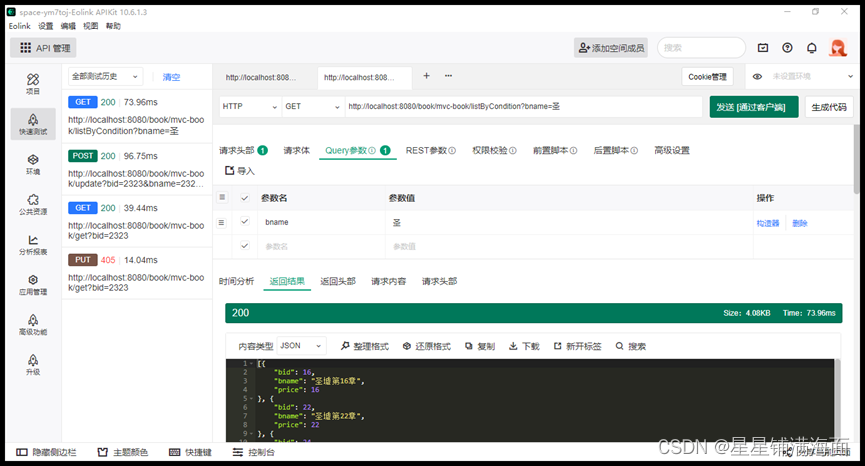

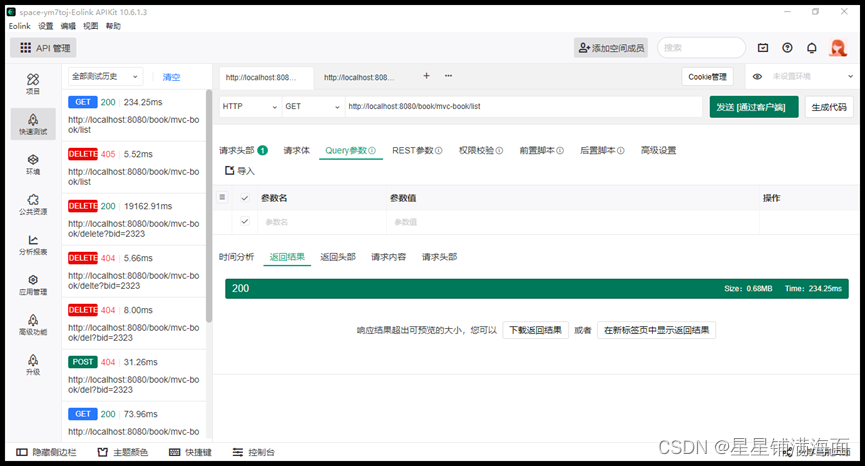

6、测试

在这里插入图片描述

三、Mybatisplus中使用Mybatis实现多表连查的功能

1、MvcBookMapper.xml


DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.xnx.springbootmp.book.mapper.MvcBookMapper">


    <resultMap id="BaseResultMap" type="com.xnx.springbootmp.book.model.MvcBook">
        <id column="bid" property="bid" />
        <result column="bname" property="bname" />
        <result column="price" property="price" />
    resultMap>


    <sql id="Base_Column_List">
        bid, bname, price
    sql>

    <select id="queryUserRole" parameterType="java.util.Map" resultType="java.util.Map">
        select u.username,r.rolename from
        t_shiro_user u,t_shiro_user_role ur,t_shiro_role r
        where u.userid = ur.userid
        and ur.roleid = r.roleid
        <if test="username !=null and username != ''">
            and u.username = #{username}
        if>
    select>

mapper>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

2、MvcBookMapper

package com.xnx.springbootmp.book.mapper;

import com.xnx.springbootmp.book.model.MvcBook;
import com.baomidou.mybatisplus.core.mapper.BaseMapper;
import org.springframework.stereotype.Repository;

import java.util.List;
import java.util.Map;

/**
 *
 *  Mapper 接口
 *
 *
 * @author xnx
 * @since 2022-11-01
 */
@Repository
public interface MvcBookMapper extends BaseMapper<MvcBook> {

    List<Map> queryUserRole(Map map);
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

3、MvcBookService

package com.xnx.springbootmp.book.service;

import com.xnx.springbootmp.book.model.MvcBook;
import com.baomidou.mybatisplus.extension.service.IService;

import java.util.List;
import java.util.Map;

/**
 *
 *  服务类
 *
 *
 * @author xnx
 * @since 2022-11-01
 */
public interface MvcBookService extends IService<MvcBook> {
        List<Map> queryUserRole(Map map);
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

4、MvcBookServiceImpl

package com.xnx.springbootmp.book.service.impl;

import com.xnx.springbootmp.book.model.MvcBook;
import com.xnx.springbootmp.book.mapper.MvcBookMapper;
import com.xnx.springbootmp.book.service.MvcBookService;
import com.baomidou.mybatisplus.extension.service.impl.ServiceImpl;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.List;
import java.util.Map;

/**
 *
 *  服务实现类
 *
 *
 * @author xnx
 * @since 2022-11-01
 */
@Service
public class MvcBookServiceImpl extends ServiceImpl<MvcBookMapper, MvcBook> implements MvcBookService {

    @Autowired
    private MvcBookMapper mvcBookMapper;

    @Override
    public List<Map> queryUserRole(Map map) {
        return mvcBookMapper.queryUserRole(map);
    }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

5、MvcBookController

package com.xnx.springbootmp.book.controller;


import com.baomidou.mybatisplus.core.conditions.query.QueryWrapper;
import com.xnx.springbootmp.book.model.MvcBook;
import com.xnx.springbootmp.book.service.MvcBookService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;

import java.util.HashMap;
import java.util.List;
import java.util.Map;

/**
 *
 *  前端控制器
 *
 *
 * @author xnx
 * @since 2022-11-01
 */
@RestController
@RequestMapping("/book/mvc-book")
public class MvcBookController {
    @Autowired
    private MvcBookService bookService;

//    查询所有
    @GetMapping("/list")
    public List<MvcBook> list(){
        return bookService.list();
    }
//    按条件查询
    @GetMapping("/listByCondition")
    public List<MvcBook> listByCondition(MvcBook book){
//        如果使用的是Mybatis.那么我们需要写sql语句，而mp不需要
        QueryWrapper qw = new QueryWrapper();
        qw.like("bname",book.getBname());
        return bookService.list(qw);
    }

//    查询单个
    @GetMapping("/get")
    public MvcBook get(MvcBook book){
        return bookService.getById(book.getBid());
    }

//    增加
    @PutMapping("/add")
    public boolean add(MvcBook book){
        return bookService.save(book);
    }

//    删除
    @DeleteMapping("/delete")
    public boolean delete(MvcBook book){
        return bookService.removeById(book.getBid());
    }

//    修改
    @PostMapping("/update")
    public boolean update(MvcBook book){
        return bookService.saveOrUpdate(book);
    }

//    多表联查，用户账户对应角色的功能，轮着mybatisplus是一样可以使用mybatis功能
    @GetMapping("/dbcx")
    public List<Map> get(String uname){
//        前端传了一个张三
        Map map = new HashMap();
        map.put("username",uname);
        return bookService.queryUserRole(map);
    }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75

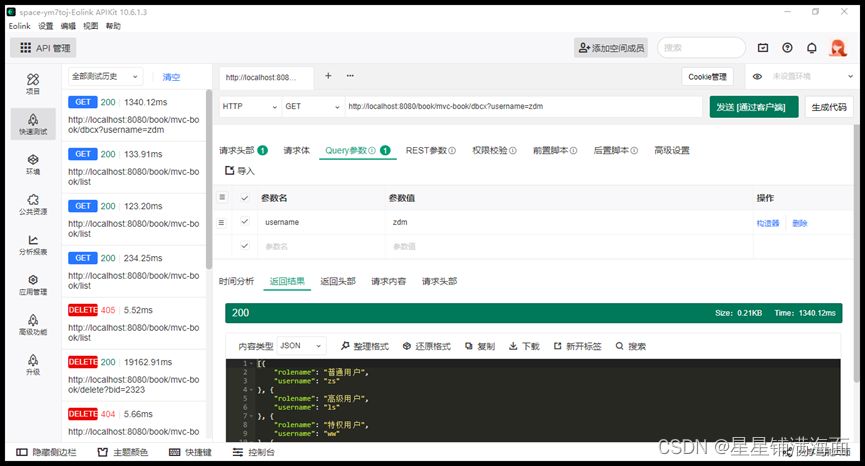

在这里插入图片描述

相关阅读:
使用Blazor WebAssembly整合PocketBase的基础项目模板
 Kotlin 开发Android app(七)上：Kotlin函数fun
小程序真机调试提示系统错误
 Minecraft 1.16.5模组开发(五十三) 多种生物类型(Variant)
世界第一台通用计算机：ENIAC
好奇喵 | Tor浏览器——如何拥有一颗洋葱并使用
 linux每处理器内存分配
 SpringRetry
JavaWeb-服务器&Tomcat
【开源】SpringBoot框架开发房屋出售出租系统
原文地址：https://blog.csdn.net/weixin_67677668/article/details/127634328

ssm和springboot整合

目录

一、整合Mybatis

1、新建一个springboot项目

2、修改pom依赖

3、修改generatorConfig.xml

4、修改application.yml

5、配置逆向生成

6、边写controller层

7、测试

二、整合Mybatisplus

1、新建一个springboot项目

2、application.yml

3、MPGenerator

4、生成代码

①MvcBookMapper

②MvcBook

③MvcBookServiceImpl

④MvcBookService

⑤MvcBookMapper.xml

5、MvcBookController

6、测试

三、Mybatisplus中使用Mybatis实现多表连查的功能

1、MvcBookMapper.xml

2、MvcBookMapper

3、MvcBookService

4、MvcBookServiceImpl

5、MvcBookController
