Zookeeper和Kafka on k8s 部署

这里写目录标题

一、概述
二、Zookeeper on k8s 部署
三、Kafka on k8s 部署

一、概述

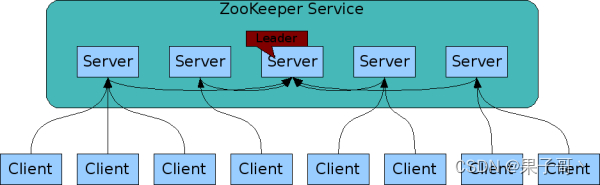

Apache ZooKeeper 是一个集中式服务，用于维护配置信息、命名、提供分布式同步和提供组服务，ZooKeeper 致力于开发和维护一个开源服务器，以实现高度可靠的分布式协调，其实也可以认为就是一个分布式数据库，只是结构比较特殊，是树状结构。官网文档：
https://zookeeper.apache.org/doc/r3.8.0/

在这里插入图片描述

Kafka是最初由 Linkedin 公司开发，是一个分布式、支持分区的（partition）、多副本的（replica），基于 zookeeper 协调的分布式消息系统。官方文档：

https://kafka.apache.org/documentation/

在这里插入图片描述

二、Zookeeper on k8s 部署

在这里插入图片描述
1）添加源
部署包地址：
https://artifacthub.io/packages/helm/zookeeper/zookeeper

helm repo add bitnami https://charts.bitnami.com/bitnami
helm pull bitnami/zookeeper
tar -xf  zookeeper-10.2.1.tgz

2）修改配置
修改zookeeper/values.yaml

image:
  registry: myharbor.com
  repository: bigdata/zookeeper
  tag: 3.8.0-debian-11-r36
...

replicaCount: 3

...

service:
  type: NodePort
  nodePorts:
    #NodePort 默认范围是 30000-32767
    client: "32181"
    tls: "32182"

...

persistence:
  storageClass: "zookeeper-local-storage"
  size: "10Gi"
  # 目录需要提前在宿主机上创建
  local:
    - name: zookeeper-0
      host: "local-168-182-110"
      path: "/opt/bigdata/servers/zookeeper/data/data1"
    - name: zookeeper-1
      host: "local-168-182-111"
      path: "/opt/bigdata/servers/zookeeper/data/data1"
    - name: zookeeper-2
      host: "local-168-182-112"
      path: "/opt/bigdata/servers/zookeeper/data/data1"

...

# Enable Prometheus to access ZooKeeper metrics endpoint
metrics:
  enabled: true

添加zookeeper/templates/pv.yaml

{{- range .Values.persistence.local }}
---
apiVersion: v1
kind: PersistentVolume
metadata:
  name: {{ .name }}
  labels:
    name: {{ .name }}
spec:
  storageClassName: {{ $.Values.persistence.storageClass }}
  capacity:
    storage: {{ $.Values.persistence.size }}
  accessModes:
    - ReadWriteOnce
  local:
    path: {{ .path }}
  nodeAffinity:
    required:
      nodeSelectorTerms:
        - matchExpressions:
            - key: kubernetes.io/hostname
              operator: In
              values:
                - {{ .host }}
---
{{- end }}

添加zookeeper/templates/storage-class.yaml

kind: StorageClass
apiVersion: storage.k8s.io/v1
metadata:
  name: {{ .Values.persistence.storageClass }}
provisioner: kubernetes.io/no-provisioner

3）开始安装

# 先准备好镜像
docker pull docker.io/bitnami/zookeeper:3.8.0-debian-11-r36
docker tag docker.io/bitnami/zookeeper:3.8.0-debian-11-r36 myharbor.com/bigdata/zookeeper:3.8.0-debian-11-r36
docker push myharbor.com/bigdata/zookeeper:3.8.0-debian-11-r36

# 开始安装
helm install zookeeper ./zookeeper -n zookeeper --create-namespace

在这里插入图片描述

查看 pod 状态

kubectl get pods,svc -n zookeeper -o wide

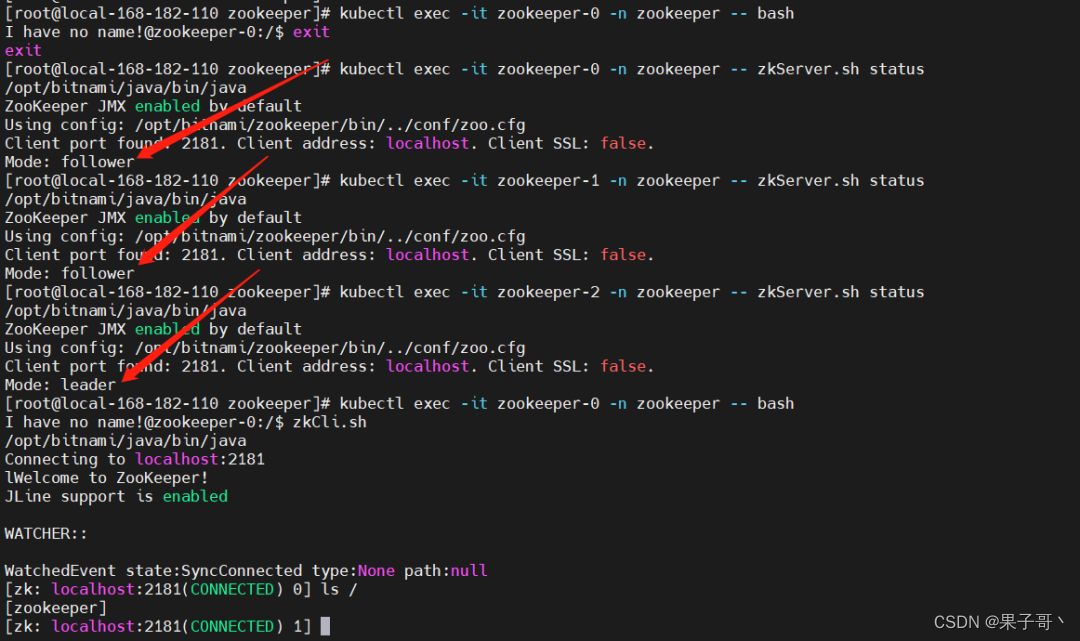

4）测试验证

# 登录zookeeper pod
kubectl exec -it zookeeper-0 -n zookeeper -- zkServer.sh status
kubectl exec -it zookeeper-1 -n zookeeper -- zkServer.sh status
kubectl exec -it zookeeper-2 -n zookeeper -- zkServer.sh status

kubectl exec -it zookeeper-0 -n zookeeper -- bash

在这里插入图片描述

5）Prometheus 监控
Prometheus：https://prometheus.k8s.local/targets?search=zookeeper

可以通过命令查看采集数据

kubectl get --raw http://10.244.0.52:9141/metrics
kubectl get --raw http://10.244.1.101:9141/metrics
kubectl get --raw http://10.244.2.137:9141/metrics

Grafana：https://grafana.k8s.local/
账号：admin，密码通过下面命令获取

kubectl get secret --namespace grafana grafana -o jsonpath="{.data.admin-password}" | base64 --decode ; echo

导入 grafana 模板，集群资源监控：10465
官方模块下载地址：https://grafana.com/grafana/dashboards/
在这里插入图片描述
6）卸载

helm uninstall zookeeper -n zookeeper

kubectl delete pod -n zookeeper `kubectl get pod -n zookeeper|awk 'NR>1{print $1}'` --force
kubectl patch ns zookeeper -p '{"metadata":{"finalizers":null}}'
kubectl delete ns zookeeper --force

三、Kafka on k8s 部署

1）添加源
部署包地址：https://artifacthub.io/packages/helm/bitnami/kafka

helm repo add bitnami https://charts.bitnami.com/bitnami
helm pull bitnami/kafka
tar -xf kafka-18.4.2.tgz

2）修改配置
修改kafka/values.yaml


image:
  registry: myharbor.com
  repository: bigdata/kafka
  tag: 3.2.1-debian-11-r16

...

replicaCount: 3

...

service:
  type: NodePort
  nodePorts:
    client: "30092"
    external: "30094"

...

externalAccess
  enabled: true
  service:
    type: NodePort
     nodePorts:
       - 30001
       - 30002
       - 30003
     useHostIPs: true

...

persistence:
  storageClass: "kafka-local-storage"
  size: "10Gi"
  # 目录需要提前在宿主机上创建
  local:
    - name: kafka-0
      host: "local-168-182-110"
      path: "/opt/bigdata/servers/kafka/data/data1"
    - name: kafka-1
      host: "local-168-182-111"
      path: "/opt/bigdata/servers/kafka/data/data1"
    - name: kafka-2
      host: "local-168-182-112"
      path: "/opt/bigdata/servers/kafka/data/data1"

...

metrics:
  kafka:
    enabled: true
    image:
      registry: myharbor.com
      repository: bigdata/kafka-exporter
      tag: 1.6.0-debian-11-r8
    jmx:
      enabled: true
      image:
      registry: myharbor.com
      repository: bigdata/jmx-exporter
      tag: 0.17.1-debian-11-r1
      annotations:
        prometheus.io/path: "/metrics"

...

zookeeper:
  enabled: false

...

externalZookeeper
  servers:
    - zookeeper-0.zookeeper-headless.zookeeper
    - zookeeper-1.zookeeper-headless.zookeeper
    - zookeeper-2.zookeeper-headless.zookeeper

添加kafka/templates/pv.yaml

{{- range .Values.persistence.local }}
---
apiVersion: v1
kind: PersistentVolume
metadata:
  name: {{ .name }}
  labels:
    name: {{ .name }}
spec:
  storageClassName: {{ $.Values.persistence.storageClass }}
  capacity:
    storage: {{ $.Values.persistence.size }}
  accessModes:
    - ReadWriteOnce
  local:
    path: {{ .path }}
  nodeAffinity:
    required:
      nodeSelectorTerms:
        - matchExpressions:
            - key: kubernetes.io/hostname
              operator: In
              values:
                - {{ .host }}
---
{{- end }}

添加kafka/templates/storage-class.yaml

kind: StorageClass
apiVersion: storage.k8s.io/v1
metadata:
  name: {{ .Values.persistence.storageClass }}
provisioner: kubernetes.io/no-provisioner

3）开始安装

# 先准备好镜像
docker pull docker.io/bitnami/kafka:3.2.1-debian-11-r16
docker tag docker.io/bitnami/kafka:3.2.1-debian-11-r16 myharbor.com/bigdata/kafka:3.2.1-debian-11-r16
docker push myharbor.com/bigdata/kafka:3.2.1-debian-11-r16

# node-export
docker pull docker.io/bitnami/kafka-exporter:1.6.0-debian-11-r8
docker tag docker.io/bitnami/kafka-exporter:1.6.0-debian-11-r8 myharbor.com/bigdata/kafka-exporter:1.6.0-debian-11-r8
docker push myharbor.com/bigdata/kafka-exporter:1.6.0-debian-11-r8

# JXM
docker.io/bitnami/jmx-exporter:0.17.1-debian-11-r1
docker tag docker.io/bitnami/jmx-exporter:0.17.1-debian-11-r1 myharbor.com/bigdata/jmx-exporter:0.17.1-debian-11-r1
docker push myharbor.com/bigdata/jmx-exporter:0.17.1-debian-11-r1

#开始安装
helm install kafka ./kafka -n kafka --create-namespace

在这里插入图片描述
查看 pod 状态

kubectl get pods,svc -n kafka -o wide

4）测试验证

# 登录zookeeper pod
kubectl exec -it kafka-0 -n kafka -- bash

1、创建 Topic（一个副本一个分区）

--create： 指定创建topic动作
--topic：指定新建topic的名称
--bootstrap-server： 指定kafka连接地址
--config：指定当前topic上有效的参数值，参数列表参考文档为: Topic-level configuration
--partitions：指定当前创建的kafka分区数量，默认为1个
--replication-factor：指定每个分区的复制因子个数，默认1个

kafka-topics.sh --create --topic test001 --bootstrap-server kafka.kafka:9092 --partitions 1 --replication-factor 1
# 查看
kafka-topics.sh --describe --bootstrap-server kafka.kafka:9092  --topic test001

2、查看 Topic 列表

kafka-topics.sh --list --bootstrap-server kafka.kafka:9092

3、生产者/消费者测试
【生产者】

kafka-console-producer.sh --broker-list kafka.kafka:9092 --topic test001

{"id":"1","name":"n1","age":"20"}
{"id":"2","name":"n2","age":"21"}
{"id":"3","name":"n3","age":"22"}

【消费者】

# 从头开始消费
kafka-console-consumer.sh --bootstrap-server kafka.kafka:9092 --topic test001 --from-beginning
# 指定从分区的某个位置开始消费，这里只指定了一个分区，可以多写几行或者遍历对应的所有分区
kafka-console-consumer.sh --bootstrap-server kafka.kafka:9092 --topic test001 --partition 0 --offset 100 --group test001

4、查看数据积压

kafka-consumer-groups.sh --bootstrap-server kafka.kafka:9092 --describe --group test001

5、删除 topic

kafka-topics.sh --delete --topic test001 --bootstrap-server kafka.kafka:9092

5）Prometheus 监控
Prometheus：https://prometheus.k8s.local/targets?search=kafka
在这里插入图片描述
可以通过命令查看采集数据

kubectl get --raw http://10.244.2.165:9308/metrics

Grafana：https://grafana.k8s.local/
账号：admin，密码通过下面命令获取

kubectl get secret --namespace grafana grafana -o jsonpath="{.data.admin-password}" | base64 --decode ; echo

导入 grafana 模板，集群资源监控：11962
官方模块下载地址：https://grafana.com/grafana/dashboards/

6）卸载

helm uninstall kafka -n kafka

kubectl delete pod -n kafka `kubectl get pod -n kafka|awk 'NR>1{print $1}'` --force
kubectl patch ns kafka  -p '{"metadata":{"finalizers":null}}'
kubectl delete ns kafka  --force

zookeeper + kafka on k8s 环境部署
