【云原生 | Kubernetes 系列】---Ceph集群安装部署
1. Ceph版本选择
由于15已经在2022年6月1日终止更新了,且一般选择稳定版小版本大于5的.所以选择安装Ceph 16.2.10 Pacific
Name Initial release Latest End of life Quincy 2022-04-19 17.2.3 2024-06-01 Pacific 2021-03-31 16.2.10 2023-06-01 Octopus 2020-03-23 15.2.17 2022-06-01 2. 部署方式
常见的部署方式有以下几种:
- ceph-ansible
- ceph-salt
- ceph-container
- ceph-chef
- cephadm
- ceph-deploy #选用这个安装方式
ceph-deploy是一个官方维护基于python的Ceph集群的部署和管理维护工具.
由于cephadm对15.2之前不支持,选择使用ceph-deploy3. 服务器准备
mon: 8C/8G/200G(不上T) 16C/16G/200G(几十T) 物理机: 48C/96/SSD§*3 千兆万兆都可以
mgr: 4C/8G/200G(不上T) 16C/16G/200G(几十T) 物理机: 36C/64/SSD§*3 千兆万兆都可以
node:
cpu: 1个OSD至少需要1个Core,24核48线程最多放48个磁盘,推荐24个
mem: 1T数据至少1G内存.
磁盘: SSD–>PCIE–>NVME
网卡: 10G–40G–100G操作系统版本:Ubuntu1804
序号 机器名 IP 用途 1 ceph-mon01 192.168.31.81/172.31.31.81 monitor节点,部署节点 2 ceph-mon02 192.168.31.82/172.31.31.82 monitor节点 3 ceph-mon03 192.168.31.83/172.31.31.83 monitor节点 4 ceph-mgr01 192.168.31.84/172.31.31.84 mgr节点 5 ceph-mgr02 192.168.31.85/172.31.31.85 mgr节点 6 ceph-node01 192.168.31.86/172.31.31.86 node节点 7 ceph-node02 192.168.31.87/172.31.31.87 node节点 8 ceph-node03 192.168.31.88/172.31.31.88 node节点 9 ceph-node04 192.168.31.89/172.31.31.89 node节点 4. Ceph部署准备
- 时间同步(时间偏差会造成ceph异常)
*/5 * * * * /usr/sbin/ntpdate time1.aliyun.com &> /dev/null && hwclock -w &> /dev/null- 1
- 添加Ceph镜像仓库
wget -q -O- 'https://mirrors.tuna.tsinghua.edu.cn/ceph/keys/release.asc' | sudo apt-key add - sudo apt-get -y install python apt-transport-https ca-certificates curl software-properties-common sudo echo "deb https://mirrors.tuna.tsinghua.edu.cn/ceph/debian-pacific bionic main" >> /etc/apt/sources.list sudo apt update- 1
- 2
- 3
- 4
- 所有节点,创建cephadmin用户
groupadd -r -g 2022 cephadmin && useradd -r -m -s /bin/bash -u 2022 -g 2022 cephadmin && echo cephadmin:root123 |chpasswd- 1
- 授予cephadmin用户sudo权限
echo "cephadmin ALL=(ALL:ALL) NOPASSWD: ALL" >> /etc/sudoers- 1
- 所有服务器之间设置免密
ssh-keygen ssh-copy-id cephadmin@192.168.31.81 ssh-copy-id cephadmin@172.31.31.81 ssh-copy-id cephadmin@172.31.31.82 ssh-copy-id cephadmin@192.168.31.82 ssh-copy-id cephadmin@192.168.31.83 ssh-copy-id cephadmin@192.168.31.84 ssh-copy-id cephadmin@192.168.31.85 ssh-copy-id cephadmin@192.168.31.86 ssh-copy-id cephadmin@192.168.31.87 ssh-copy-id cephadmin@192.168.31.88 ssh-copy-id cephadmin@192.168.31.89 ssh-copy-id cephadmin@172.31.31.82 ssh-copy-id cephadmin@172.31.31.83 ssh-copy-id cephadmin@172.31.31.84 ssh-copy-id cephadmin@172.31.31.85 ssh-copy-id cephadmin@172.31.31.86 ssh-copy-id cephadmin@172.31.31.87 ssh-copy-id cephadmin@172.31.31.88 ssh-copy-id cephadmin@172.31.31.89- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 机器名解析
127.0.0.1 localhost 172.31.31.81 ceph-mon01 172.31.31.82 ceph-mon02 172.31.31.83 ceph-mon03 172.31.31.84 ceph-mgr01 172.31.31.85 ceph-mgr02 172.31.31.86 ceph-node01 172.31.31.87 ceph-node02 172.31.31.88 ceph-node03 172.31.31.89 ceph-node04- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
5. 安装ceph-deploy
root@ceph-mgr01:~# apt install -y python-pip root@ceph-mgr01:~# pip install ceph-deploy root@ceph-mgr01:~# pip install ceph-deploy==2.0.1 -i https://mirrors.aliyun.com/pypi/simple root@ceph-mgr01:~# ceph-deploy --version 2.0.1- 1
- 2
- 3
- 4
- 5
5.1 ceph-deploy参数
参数 含义 new 启动一个新的集群,并且生成配置文件(CLUSTER.conf和keyring) install 在远端主机上安装包 rgw 安装Ceph RGW守护进程,对象存储网关,对象存储使用 mgr Ceph MGR守护进程,ceph dashboard mon Ceph MON守护进程,ceph 监视器 mds Ceph MDS守护进程,ceph源数据服务器,ceph-fs使用 gatherkeys 从指定主机提取新节点验证的keys disk 管理远程主机磁盘 osd 在远程主机准备数据磁盘,将指定远程主机的磁盘添加到ceph集群作为osd使用. admin 推送认证文件和lient.admin到远程服务器 repo 管理远程主机的仓库 config 复制ceph.conf(从/到)远程主机 uninstall 卸载ceph包 purge 删除远端主机的安装包和所有数据 purgedata 从/var/lib/ceph删除ceph数据,会删除/etc/ceph下内容 calamari 安装并配置一个calamari web节点,calamari是一个web监控平台 forgetkeys 从本地主机删除所有验证的keyring.包括client.admin,monitor,bootstrap等认证文件 pkg 管理远端主机的安装包 6. 安装mon节点
6.1 生成集群配置文件
mkdir ceph-cluster cd ceph-cluster ceph-deploy new --cluster-network 172.31.31.0/24 --public-network 192.168.31.0/24 ceph-mon01 # 这里可能会提示要输入yes- 1
- 2
- 3
- 4
参数 含义 –cluster-network 数据同步使用 –public-network 客户端挂载使用 执行完后生成3个文件
参数 含义 ceph.conf 自动生成的配置文件 ceph-deploy-ceph.log 初始化日志 ceph.mon.keyring 用于ceph mon节点内部通讯认证的秘钥环文件 6.2 初始化node节点
可以单个node初始化
ceph-deploy install --no-adjust-repos --nogpgcheck ceph-node01- 1
也可以多个node同时初始化
ceph-deploy install --no-adjust-repos --nogpgcheck ceph-node01 ceph-node02 ceph-node03 ceph-node04 # 这里可能会提示要输入yes- 1
- 2
参数 含义 –no-adjust-repos 不同步仓库文件 –nogpgcheck 不检查进行校验 6.3 配置mon节点
6.3.1 安装ceph-mon
在mon节点上执行
apt install -y ceph-mon- 1

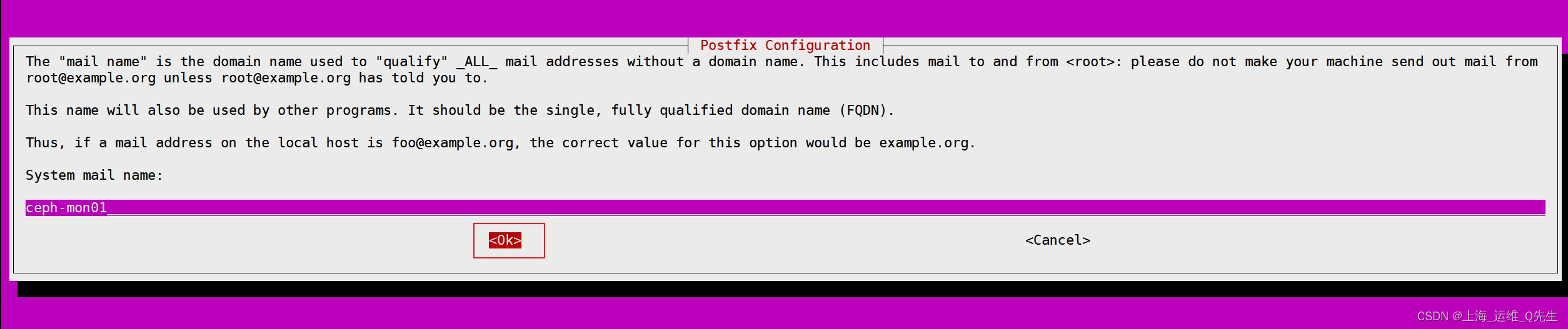

安装过程中会出现
root@ceph-mon01:~# ceph-mon --version ceph version 16.2.10 (45fa1a083152e41a408d15505f594ec5f1b4fe17) pacific (stable)- 1
- 2
6.3.2 初始化ceph-mon
在ceph-deploy节点
初始化mon节点取决于ceph.conf文件的配置.所以再初始化前先确认下文件内容.cat ceph.conf [global] fsid = 86c42734-37fc-4091-b543-be6ff23e5134 public_network = 192.168.31.0/24 cluster_network = 172.31.31.0/24 mon_initial_members = ceph-mon01 mon_host = 192.168.31.81 auth_cluster_required = cephx auth_service_required = cephx auth_client_required = cephx- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
初始化mon节点
ceph-deploy mon create-initial- 1
初始化完后,mon01节点就会启动ceph-mon进程
root@ceph-mon01:~# ps -ef |grep ceph-mon ceph 33457 1 0 20:16 ? 00:00:00 /usr/bin/ceph-mon -f --cluster ceph --id ceph-mon01 --setuser ceph --setgroup ceph root 34130 30233 0 20:20 pts/0 00:00:00 grep --color=auto ceph-mon- 1
- 2
- 3
6.4 秘钥分发
在ceph-deploy节点把配置文件和admin秘钥拷贝至ceph集群需要执行ceph管理命令的节点.从而不需要后期通过ceph命令对ceph集群进行管理配置的时候每次都需要指定ceph-mon节点地址和ceph.client.admin.keyring文件,另外各ceph-mon节点也需要同步ceph的集群配置文件和认证文件
6.4.1 分发秘钥
在所有需要管理ceph的节点都安装
sudo apt install ceph-common -y- 1
再把需要的文件推送给几个节点
ceph-deploy admin ceph-mgr01 ceph-mgr02 ceph-node01 ceph-node02 ceph-node03 ceph-node04- 1
修改秘钥权限
root@ceph-mgr01:~# setfacl -m u:cephadmin:rw /etc/ceph/ceph.client.admin.keyring root@ceph-mgr01:~# ssh ceph-node01 'setfacl -m u:cephadmin:rw /etc/ceph/ceph.client.admin.keyring' root@ceph-mgr01:~# ssh ceph-node02 'setfacl -m u:cephadmin:rw /etc/ceph/ceph.client.admin.keyring' root@ceph-mgr01:~# ssh ceph-node03 'setfacl -m u:cephadmin:rw /etc/ceph/ceph.client.admin.keyring' root@ceph-mgr01:~# ssh ceph-node04 'setfacl -m u:cephadmin:rw /etc/ceph/ceph.client.admin.keyring' root@ceph-mgr01:~# ssh ceph-mgr02 'setfacl -m u:cephadmin:rw /etc/ceph/ceph.client.admin.keyring'- 1
- 2
- 3
- 4
- 5
- 6
6.4.2 分发完成
root@ceph-mgr01:~# ssh ceph-node01 'ls /etc/ceph/' ceph.client.admin.keyring ceph.conf rbdmap tmpHUGujm root@ceph-mgr01:~# ssh ceph-node02 'ls /etc/ceph/' ceph.client.admin.keyring ceph.conf rbdmap tmpZ4VQ0R root@ceph-mgr01:~# ssh ceph-node03 'ls /etc/ceph/' ceph.client.admin.keyring ceph.conf rbdmap tmpx9fb5U root@ceph-mgr01:~# ssh ceph-node04 'ls /etc/ceph/' ceph.client.admin.keyring ceph.conf rbdmap tmpAkZh_I root@ceph-mgr01:~# ls /etc/ceph/ ceph.client.admin.keyring ceph.conf rbdmap tmpYNJpSF- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
7. 配置mgr节点
7.1 安装ceph-mgr
在ceph-mgr01节点上分别安装ceph-mgr包
sudo apt install ceph-mgr -y- 1
7.2 初始化ceph-mgr
ceph-deploy mgr create ceph-mgr01- 1
7.3 确认ceph-mgr安装完毕
可以看到2个mgr都正常运行了
ceph -s cluster: id: 86c42734-37fc-4091-b543-be6ff23e5134 health: HEALTH_WARN client is using insecure global_id reclaim mon is allowing insecure global_id reclaim OSD count 0 < osd_pool_default_size 3 services: mon: 1 daemons, quorum ceph-mon01 (age 49m) mgr: ceph-mgr01(active, since 8m), standbys: ceph-mgr02 osd: 0 osds: 0 up, 0 in data: pools: 0 pools, 0 pgs objects: 0 objects, 0 B usage: 0 B used, 0 B / 0 B avail pgs:- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
8. OSD节点
8.1 准备OSD节点
node节点安装环境
ceph-deploy install ceph-node01 ceph-node02 ceph-node03 ceph-node04- 1
可以指定版本
ceph-deploy install --release pacific ceph-node01- 1
查看node节点的磁盘信息
ceph-deploy disk list ceph-node01- 1
使用ceph-deploy disk zap擦除node节点上磁盘数据
cephadmin@ceph-mgr01:~/ceph-cluster$ ceph-deploy disk zap ceph-node01 /dev/sdb [ceph_deploy.conf][DEBUG ] found configuration file at: /home/cephadmin/.cephdeploy.conf [ceph_deploy.cli][INFO ] Invoked (2.0.1): /usr/local/bin/ceph-deploy disk zap ceph-node01 /dev/sdb [ceph_deploy.cli][INFO ] ceph-deploy options: [ceph_deploy.cli][INFO ] username : None [ceph_deploy.cli][INFO ] verbose : False [ceph_deploy.cli][INFO ] debug : False [ceph_deploy.cli][INFO ] overwrite_conf : False [ceph_deploy.cli][INFO ] subcommand : zap [ceph_deploy.cli][INFO ] quiet : False [ceph_deploy.cli][INFO ] cd_conf : <ceph_deploy.conf.cephdeploy.Conf instance at 0x7facbd1f87d0> [ceph_deploy.cli][INFO ] cluster : ceph [ceph_deploy.cli][INFO ] host : ceph-node01 [ceph_deploy.cli][INFO ] func : <function disk at 0x7facbd2336d0> [ceph_deploy.cli][INFO ] ceph_conf : None [ceph_deploy.cli][INFO ] default_release : False [ceph_deploy.cli][INFO ] disk : ['/dev/sdb'] [ceph_deploy.osd][DEBUG ] zapping /dev/sdb on ceph-node01 [ceph-node01][DEBUG ] connection detected need for sudo [ceph-node01][DEBUG ] connected to host: ceph-node01 [ceph-node01][DEBUG ] detect platform information from remote host [ceph-node01][DEBUG ] detect machine type [ceph-node01][DEBUG ] find the location of an executable [ceph_deploy.osd][INFO ] Distro info: Ubuntu 18.04 bionic [ceph-node01][DEBUG ] zeroing last few blocks of device [ceph-node01][DEBUG ] find the location of an executable [ceph-node01][INFO ] Running command: sudo /usr/sbin/ceph-volume lvm zap /dev/sdb [ceph-node01][WARNIN] --> Zapping: /dev/sdb [ceph-node01][WARNIN] --> --destroy was not specified, but zapping a whole device will remove the partition table [ceph-node01][WARNIN] Running command: /bin/dd if=/dev/zero of=/dev/sdb bs=1M count=10 conv=fsync [ceph-node01][WARNIN] stderr: 10+0 records in [ceph-node01][WARNIN] 10+0 records out [ceph-node01][WARNIN] 10485760 bytes (10 MB, 10 MiB) copied, 0.024098 s, 435 MB/s [ceph-node01][WARNIN] --> Zapping successful for: <Raw Device: /dev/sdb>- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
看到successful即可
依次擦除其余磁盘
ceph-deploy disk zap ceph-node01 /dev/sdb ceph-deploy disk zap ceph-node01 /dev/sdc ceph-deploy disk zap ceph-node01 /dev/sdd ceph-deploy disk zap ceph-node01 /dev/sde ceph-deploy disk zap ceph-node02 /dev/sdb ceph-deploy disk zap ceph-node02 /dev/sdc ceph-deploy disk zap ceph-node02 /dev/sdd ceph-deploy disk zap ceph-node02 /dev/sde ceph-deploy disk zap ceph-node03 /dev/sdb ceph-deploy disk zap ceph-node03 /dev/sdc ceph-deploy disk zap ceph-node03 /dev/sdd ceph-deploy disk zap ceph-node03 /dev/sde ceph-deploy disk zap ceph-node04 /dev/sdb ceph-deploy disk zap ceph-node04 /dev/sdc ceph-deploy disk zap ceph-node04 /dev/sdd ceph-deploy disk zap ceph-node04 /dev/sde- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
8.2 添加OSD
数据分类:
类型 含义 Data ceph保存的对象数据 Block rocks DB数据即元数据 block-wal 数据库的wal日志 8.2.1 元数据和数据全放一起
ceph-deploy osd create ceph-node01 --data /dev/sdb- 1
8.2.2 分开放
一般会将wal放到nvme上,如果都是ssd就没必要拆开放了.
预写日志和数据日志分开,这个用的稍微多一点,ceph-deploy osd create ceph-node01 --data /dev/sdc --block-wal /dev/sde- 1
数据日志和元数据分开
ceph-deploy osd create ceph-node01 --data /dev/sdc --block-db /dev/sdd- 1
全都分开
ceph-deploy osd create ceph-node01 --data /dev/sdc --block-db /dev/sdd --block-wal /dev/sde- 1
8.3 从RADOS移除OSD
cephadmin@ceph-node01:~$ ceph osd crush remove osd.1 removed item id 1 name 'osd.1' from crush map cephadmin@ceph-node01:~$ ceph osd tree ID CLASS WEIGHT TYPE NAME STATUS REWEIGHT PRI-AFF -1 0.00893 root default -3 0.00099 host ceph-node01 0 hdd 0.00099 osd.0 down 0 1.00000 -5 0.00397 host ceph-node02 2 hdd 0.00099 osd.2 up 1.00000 1.00000 3 hdd 0.00099 osd.3 up 1.00000 1.00000 4 hdd 0.00099 osd.4 up 1.00000 1.00000 5 hdd 0.00099 osd.5 up 1.00000 1.00000 -7 0.00397 host ceph-node03 6 hdd 0.00099 osd.6 up 1.00000 1.00000 7 hdd 0.00099 osd.7 up 1.00000 1.00000 8 hdd 0.00099 osd.8 up 1.00000 1.00000 9 hdd 0.00099 osd.9 up 1.00000 1.00000 1 0 osd.1 down 0 1.00000 cephadmin@ceph-node01:~$ ceph osd crush remove osd.0 removed item id 0 name 'osd.0' from crush map cephadmin@ceph-node01:~$ ceph osd tree ID CLASS WEIGHT TYPE NAME STATUS REWEIGHT PRI-AFF -1 0.00793 root default -3 0 host ceph-node01 -5 0.00397 host ceph-node02 2 hdd 0.00099 osd.2 up 1.00000 1.00000 3 hdd 0.00099 osd.3 up 1.00000 1.00000 4 hdd 0.00099 osd.4 up 1.00000 1.00000 5 hdd 0.00099 osd.5 up 1.00000 1.00000 -7 0.00397 host ceph-node03 6 hdd 0.00099 osd.6 up 1.00000 1.00000 7 hdd 0.00099 osd.7 up 1.00000 1.00000 8 hdd 0.00099 osd.8 up 1.00000 1.00000 9 hdd 0.00099 osd.9 up 1.00000 1.00000 0 0 osd.0 down 0 1.00000 1 0 osd.1 down 0 1.00000- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
8.4 创建pool
pool名mypool,32个pg和32个pgp
$ ceph osd pool create mypool 32 32 pool 'mypool' created $ ceph osd pool ls device_health_metrics mypool $ ceph pg ls-by-pool mypool|awk '{print $1,$2,$15}' PG OBJECTS ACTING 2.0 0 [3,6,13]p3 2.1 0 [13,6,3]p13 2.2 0 [5,12,9]p5 2.3 0 [5,13,9]p5 2.4 0 [11,7,2]p11 2.5 0 [8,12,4]p8 2.6 0 [11,6,3]p11 2.7 0 [3,7,12]p3 2.8 0 [3,7,11]p3 2.9 0 [11,4,8]p11 2.a 0 [6,13,3]p6 2.b 0 [8,5,10]p8 2.c 0 [6,12,5]p6 2.d 0 [9,3,13]p9 2.e 0 [10,9,2]p10 2.f 0 [8,4,12]p8 2.10 0 [8,11,5]p8 2.11 0 [4,13,9]p4 2.12 0 [7,11,2]p7 2.13 0 [7,4,13]p7 2.14 0 [2,7,13]p2 2.15 0 [7,11,3]p7 2.16 0 [5,7,10]p5 2.17 0 [5,6,11]p5 2.18 0 [9,2,10]p9 2.19 0 [11,4,7]p11 2.1a 0 [3,8,10]p3 2.1b 0 [6,2,12]p6 2.1c 0 [8,4,12]p8 2.1d 0 [7,3,10]p7 2.1e 0 [13,7,5]p13 2.1f 0 [11,3,8]p11- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
8.5 文件上传
将本地/home/cephadmin/ceph-cluster/ceph.conf上传到mypool中,文件名为ceph.conf
$ sudo rados put ceph.conf /home/cephadmin/ceph-cluster/ceph.conf --pool=mypool $ rados ls --pool=mypool ceph.conf- 1
- 2
- 3
查看文件具体映射关系
$ ceph osd map mypool ceph.conf osdmap e98 pool 'mypool' (2) object 'ceph.conf' -> pg 2.d52b66c4 (2.4) -> up ([11,7,2], p11) acting ([11,7,2], p11)- 1
- 2
映射关系再’mypool’,对象名字叫’ceph.conf’,文件放在pg 2.d52b66c4 (2.4)存储池(2.4 0 [11,7,2]p11),在线的磁盘有up ([11,7,2], p11是主) acting ([11,7,2], p11是主)
8.6 文件下载和删除
下载
$ rados get ceph.conf --pool=mypool /home/cephadmin/test.conf $ cat /home/cephadmin/test.conf [global] fsid = 86c42734-37fc-4091-b543-be6ff23e5134 public_network = 192.168.31.0/24 cluster_network = 172.31.31.0/24 mon_initial_members = ceph-mon01 mon_host = 192.168.31.81 auth_cluster_required = cephx auth_service_required = cephx auth_client_required = cephx- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
删除
$ rados rm ceph.conf --pool=mypool $ rados ls --pool=mypool- 1
- 2
9. Ceph高可用
9.1 安装ceph-mon
在新加节点先安装ceph-mon包
apt install ceph-mon -y- 1
9.1.2 在ceph-deploy上加入新节点
ceph-deploy mon add ceph-mon02 ceph-deploy mon add ceph-mon03- 1
- 2
加入完后再执行ceph -s就能看到mon节点数是3了
ceph -s services: mon: 3 daemons, quorum ceph-mon01,ceph-mon02,ceph-mon03 (age 1.61575s) mgr: ceph-mgr01(active, since 45m), standbys: ceph-mgr02 osd: 14 osds: 12 up (since 39m), 12 in (since 39m)- 1
- 2
- 3
- 4
- 5
查看mon状态:
可以看到有3个节点ceph-mon01,ceph-mon02,ceph-mon03.其中ceph-mon01是leader.
$ ceph quorum_status --format json-pretty { "election_epoch": 12, "quorum": [ 0, 1, 2 ], "quorum_names": [ "ceph-mon01", "ceph-mon02", "ceph-mon03" ], "quorum_leader_name": "ceph-mon01", "quorum_age": 111, "features": { "quorum_con": "4540138297136906239", "quorum_mon": [ "kraken", "luminous", "mimic", "osdmap-prune", "nautilus", "octopus", "pacific", "elector-pinging" ] }, "monmap": { "epoch": 3, "fsid": "86c42734-37fc-4091-b543-be6ff23e5134", "modified": "2022-09-15T05:02:22.038944Z", "created": "2022-09-14T12:15:59.692998Z", "min_mon_release": 16, "min_mon_release_name": "pacific", "election_strategy": 1, "disallowed_leaders: ": "", "stretch_mode": false, "tiebreaker_mon": "", "features": { "persistent": [ "kraken", "luminous", "mimic", "osdmap-prune", "nautilus", "octopus", "pacific", "elector-pinging" ], "optional": [] }, "mons": [ { "rank": 0, "name": "ceph-mon01", "public_addrs": { "addrvec": [ { "type": "v2", "addr": "192.168.31.81:3300", "nonce": 0 }, { "type": "v1", "addr": "192.168.31.81:6789", "nonce": 0 } ] }, "addr": "192.168.31.81:6789/0", "public_addr": "192.168.31.81:6789/0", "priority": 0, "weight": 0, "crush_location": "{}" }, { "rank": 1, "name": "ceph-mon02", "public_addrs": { "addrvec": [ { "type": "v2", "addr": "192.168.31.82:3300", "nonce": 0 }, { "type": "v1", "addr": "192.168.31.82:6789", "nonce": 0 } ] }, "addr": "192.168.31.82:6789/0", "public_addr": "192.168.31.82:6789/0", "priority": 0, "weight": 0, "crush_location": "{}" }, { "rank": 2, "name": "ceph-mon03", "public_addrs": { "addrvec": [ { "type": "v2", "addr": "192.168.31.83:3300", "nonce": 0 }, { "type": "v1", "addr": "192.168.31.83:6789", "nonce": 0 } ] }, "addr": "192.168.31.83:6789/0", "public_addr": "192.168.31.83:6789/0", "priority": 0, "weight": 0, "crush_location": "{}" } ] } }- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
- 42
- 43
- 44
- 45
- 46
- 47
- 48
- 49
- 50
- 51
- 52
- 53
- 54
- 55
- 56
- 57
- 58
- 59
- 60
- 61
- 62
- 63
- 64
- 65
- 66
- 67
- 68
- 69
- 70
- 71
- 72
- 73
- 74
- 75
- 76
- 77
- 78
- 79
- 80
- 81
- 82
- 83
- 84
- 85
- 86
- 87
- 88
- 89
- 90
- 91
- 92
- 93
- 94
- 95
- 96
- 97
- 98
- 99
- 100
- 101
- 102
- 103
- 104
- 105
- 106
- 107
- 108
- 109
- 110
- 111
- 112
- 113
- 114
- 115
- 116
- 117
- 118
- 119
- 120
- 121
- 122
- 123
- 124
- 125
- 126
9.2 安装ceph-mgr
9.2.1 安装ceph-mgr包
在ceph-mgr02节点上分别安装ceph-mgr包
sudo apt install ceph-mgr -y- 1
9.2.2 初始化ceph-mgr
ceph-deploy mgr create ceph-mgr02- 1
9.2.3 cehp-mgr主从关系
可以看到ceph-mgr01是主,ceph-mgr02是standbys
ceph -s mgr: ceph-mgr01(active, since 52m), standbys: ceph-mgr02- 1
- 2
10. Ceph报错
10.1 无法ceph-deploy disk list
报错信息如下:
cephadmin@ceph-mgr01:~/ceph-cluster$ ceph-deploy disk list ceph-node01 [ceph_deploy.conf][DEBUG ] found configuration file at: /home/cephadmin/.cephdeploy.conf [ceph_deploy.cli][INFO ] Invoked (1.5.38): /usr/bin/ceph-deploy disk list ceph-node01 [ceph_deploy.cli][INFO ] ceph-deploy options: [ceph_deploy.cli][INFO ] username : None [ceph_deploy.cli][INFO ] verbose : False [ceph_deploy.cli][INFO ] overwrite_conf : False [ceph_deploy.cli][INFO ] subcommand : list [ceph_deploy.cli][INFO ] quiet : False [ceph_deploy.cli][INFO ] cd_conf :[ceph_deploy.cli][INFO ] cluster : ceph [ceph_deploy.cli][INFO ] func : [ceph_deploy.cli][INFO ] ceph_conf : None [ceph_deploy.cli][INFO ] default_release : False [ceph_deploy.cli][INFO ] disk : [('ceph-node01', None, None)] [ceph-node01][DEBUG ] connection detected need for sudo [ceph-node01][DEBUG ] connected to host: ceph-node01 [ceph-node01][DEBUG ] detect platform information from remote host [ceph-node01][DEBUG ] detect machine type [ceph-node01][DEBUG ] find the location of an executable [ceph_deploy.osd][INFO ] Distro info: Ubuntu 18.04 bionic [ceph_deploy.osd][DEBUG ] Listing disks on ceph-node01... [ceph-node01][DEBUG ] find the location of an executable [ceph_deploy][ERROR ] ExecutableNotFound: Could not locate executable 'ceph-disk' make sure it is installed and available on ceph-node01 - 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
解决过程
将1.5.38的ceph-deploy升级到2.0.1故障就排除了.
root@ceph-mgr01:~# apt install -y python-pip root@ceph-mgr01:~# pip install ceph-deploy root@ceph-mgr01:~# pip install ceph-deploy==2.0.1 -i https://mirrors.aliyun.com/pypi/simple root@ceph-mgr01:~# ceph-deploy --version 2.0.1- 1
- 2
- 3
- 4
- 5
结果
cephadmin@ceph-mgr01:~/ceph-cluster$ ceph-deploy disk list ceph-node01 [ceph_deploy.conf][DEBUG ] found configuration file at: /home/cephadmin/.cephdeploy.conf [ceph_deploy.cli][INFO ] Invoked (2.0.1): /usr/local/bin/ceph-deploy disk list ceph-node01 [ceph_deploy.cli][INFO ] ceph-deploy options: [ceph_deploy.cli][INFO ] username : None [ceph_deploy.cli][INFO ] verbose : False [ceph_deploy.cli][INFO ] debug : False [ceph_deploy.cli][INFO ] overwrite_conf : False [ceph_deploy.cli][INFO ] subcommand : list [ceph_deploy.cli][INFO ] quiet : False [ceph_deploy.cli][INFO ] cd_conf : <ceph_deploy.conf.cephdeploy.Conf instance at 0x7efdde74e7d0> [ceph_deploy.cli][INFO ] cluster : ceph [ceph_deploy.cli][INFO ] host : ['ceph-node01'] [ceph_deploy.cli][INFO ] func : <function disk at 0x7efdde7896d0> [ceph_deploy.cli][INFO ] ceph_conf : None [ceph_deploy.cli][INFO ] default_release : False [ceph-node01][DEBUG ] connection detected need for sudo [ceph-node01][DEBUG ] connected to host: ceph-node01 [ceph-node01][DEBUG ] detect platform information from remote host [ceph-node01][DEBUG ] detect machine type [ceph-node01][DEBUG ] find the location of an executable [ceph-node01][INFO ] Running command: sudo fdisk -l [ceph-node01][INFO ] Disk /dev/nvme0n1: 2 GiB, 2147483648 bytes, 4194304 sectors [ceph-node01][INFO ] Disk /dev/nvme0n2: 2 GiB, 2147483648 bytes, 4194304 sectors [ceph-node01][INFO ] Disk /dev/sda: 40 GiB, 42949672960 bytes, 83886080 sectors [ceph-node01][INFO ] Disk /dev/sdb: 1 GiB, 1073741824 bytes, 2097152 sectors [ceph-node01][INFO ] Disk /dev/sdc: 1 GiB, 1073741824 bytes, 2097152 sectors [ceph-node01][INFO ] Disk /dev/sdd: 1 GiB, 1073741824 bytes, 2097152 sectors [ceph-node01][INFO ] Disk /dev/sde: 1 GiB, 1073741824 bytes, 2097152 sectors [ceph-node01][INFO ] Disk /dev/mapper/ubuntu--vg-ubuntu--lv: 20 GiB, 21474836480 bytes, 41943040 sectors- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
10.2 mon is allowing insecure global_id reclaim去除
告警信息:mon is allowing insecure global_id reclaim
cephadmin@ceph-mgr01:~/ceph-cluster$ ceph -s cluster: id: 86c42734-37fc-4091-b543-be6ff23e5134 health: HEALTH_WARN client is using insecure global_id reclaim mon is allowing insecure global_id reclaim services: mon: 1 daemons, quorum ceph-mon01 (age 4h) mgr: ceph-mgr01(active, since 12h), standbys: ceph-mgr02 osd: 10 osds: 10 up (since 6s), 10 in (since 14s) data: pools: 0 pools, 0 pgs objects: 0 objects, 0 B usage: 1.0 GiB used, 9.9 GiB / 11 GiB avail pgs:- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
告警原因:
mon使用了非安全通信模式
去除方法:
ceph config set mon auth_allow_insecure_global_id_reclaim false ceph -s cluster: id: 86c42734-37fc-4091-b543-be6ff23e5134 health: HEALTH_OK services: mon: 1 daemons, quorum ceph-mon01 (age 4h) mgr: ceph-mgr01(active, since 13h), standbys: ceph-mgr02 osd: 10 osds: 10 up (since 17m), 10 in (since 17m) data: pools: 0 pools, 0 pgs objects: 0 objects, 0 B usage: 1.0 GiB used, 9.9 GiB / 11 GiB avail pgs:- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
10.3 ceph-deploy执行报错
报错内容如下:
[ceph_deploy][ERROR ] ConfigError: Cannot load config: [Errno 2] No such file or directory: 'ceph.conf'; has `ceph-deploy new` been run in this directory?- 1
解决方法:
目录不对,切换到有ceph.conf的目录即可.
-
