基于C++的微流控生物芯片模拟程序设计

目录
微流控生物芯片模拟程序设计文档 1
程序介绍 1
现实背景 1
设计目的 1
程序使用方法 3
testcaseerror.txt测例自行测试，效果为 9

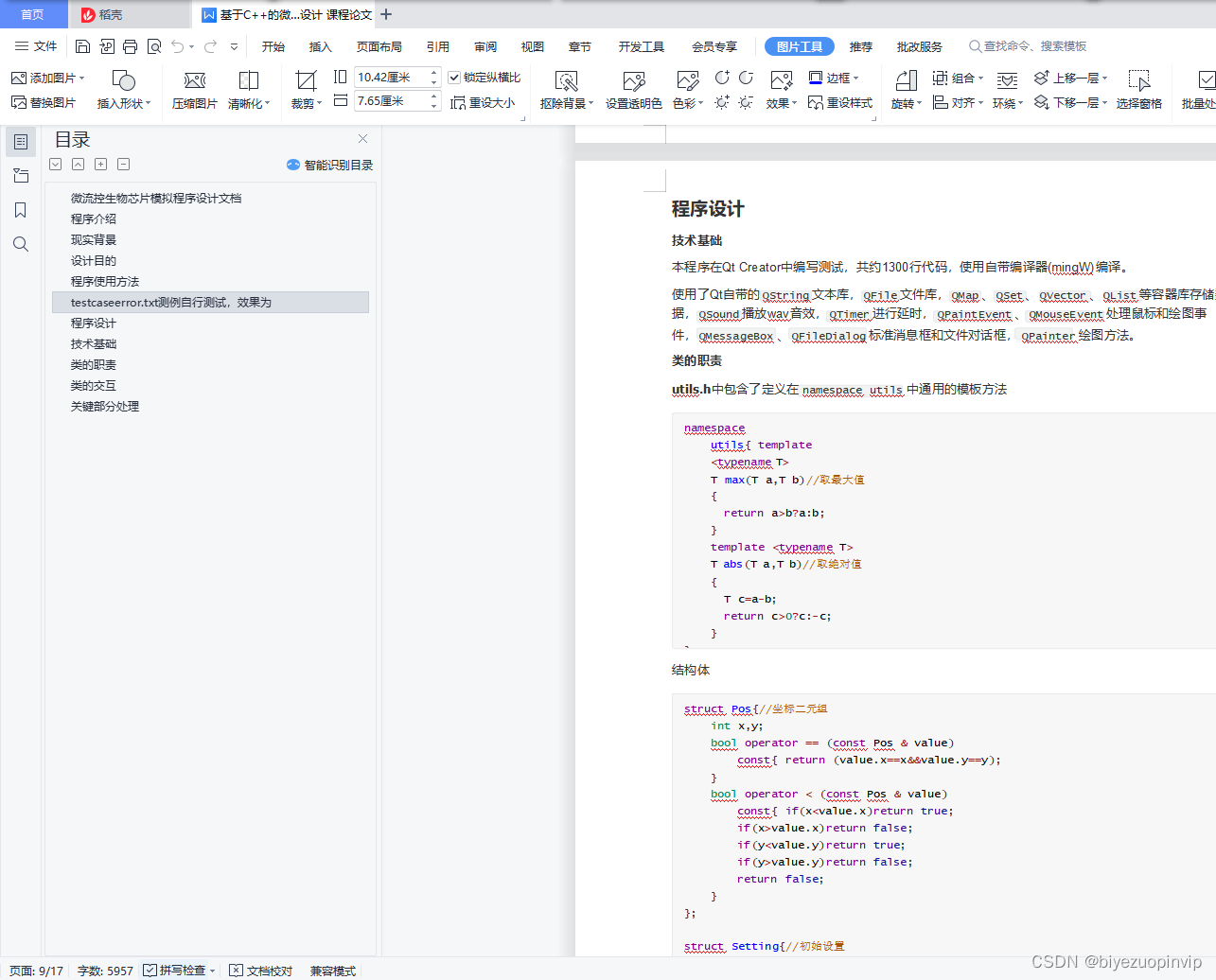

程序设计 11
技术基础 11
类的职责 11
类的交互 14
关键部分处理 14
类的交互
类的组合关系十分明显， Lattice 是 MainWindow 的组件，大部分逻辑处理均在 MainWindow 中完成。
下面从用户操作的正常流程（这里说到正常是立足于用户检验软件模拟效果而并非检验逻辑bug的角 度，如用户并不会在加载文件后重新初始化。实际上本程序在逻辑的自恰性上同样下了不少功夫，除非 用户使用强行修改内存等方法破坏逻辑的流畅性，许多细节的处理是严谨的！笔者也在这方面花了很多 时间和精力）来解析类之间的交互和配合过程。
首先用户点击初始化，触发信号调用槽 void Initiate(); 。这个槽内部新建 InitiateDialog 并阻塞，得到其返回的 Setting 。若用户直接关闭了 InitiateDialog 则维持原来状态，否则根据得到的合法配置构建 Lattice 、调整各个 QAction 的disabled状态、调整窗口大小以适应 Lattice 的大小
（可对照窗口初始大小和初始化后的大小）、改变status和标签显示。
之后用户点击加载文件，弹出 QFileDialog 标准文件选择框。若用户关闭对话框则什么也不做（这样的处理之后不再叙述），若用户选择了文件则尝试以ReadOnly模式打开，若打开失败则弹出
QMessageBox::critical 标准框报错（这样的细节也不再叙述），否则使用
transferOrdertoMovements(QString) 解析每一行，全部解析后使用 processSimulation() 解析出每一时刻的状态，保留尽可能多的时刻（validetime）。这时已构建了 QVector scenes 和QMap drops ，利用Qt的随机数生成指定每个液滴及其污迹的颜色。之后调用
Lattice::load 装备lattice，lattice装备过程改变自身的私有变量，且生成每个液滴污迹在格子内的位置（同样使用随机数生成）。本文转载自http://www.biyezuopin.vip/onews.asp?id=16728使用 jumpto(0) 调到0时刻，以及 setStatus(2) 改变 MainWindow 状
态，这时装载完美结束。

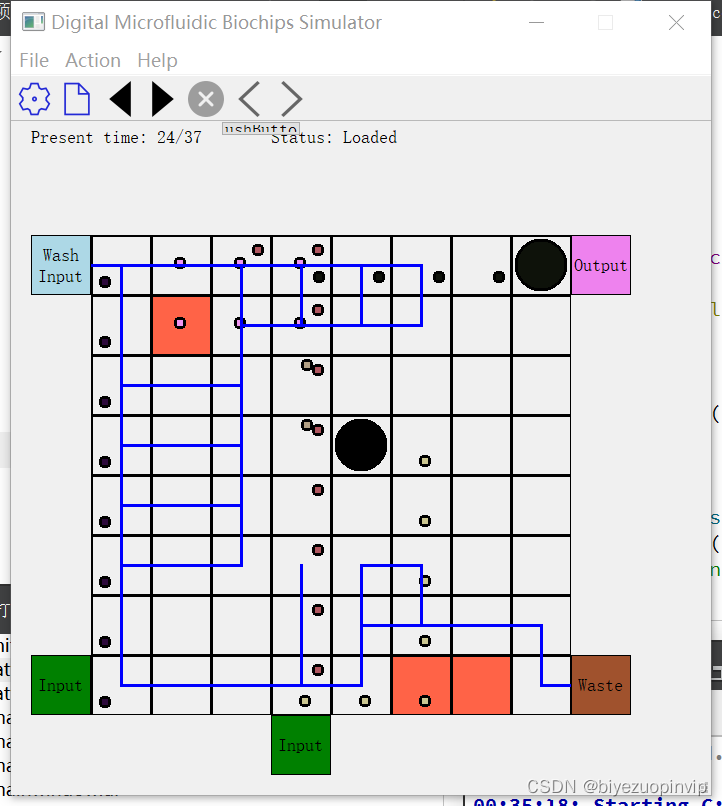

装载完毕后重置、上一步、下一步、播放按钮处于可点击状态。在不开启清洗时，重置、上一步、下一 步是改变 MainWindow 内置记录当前时刻的私有变量 time 并简单的调用 jumpto(time) ，播放则是使用while循环（没有到达最后时刻且没有停止），不断调用下一步并在代码块内部阻塞延时；播放状态 下停止按钮处于可点击的状态，而其余按钮均变灰。

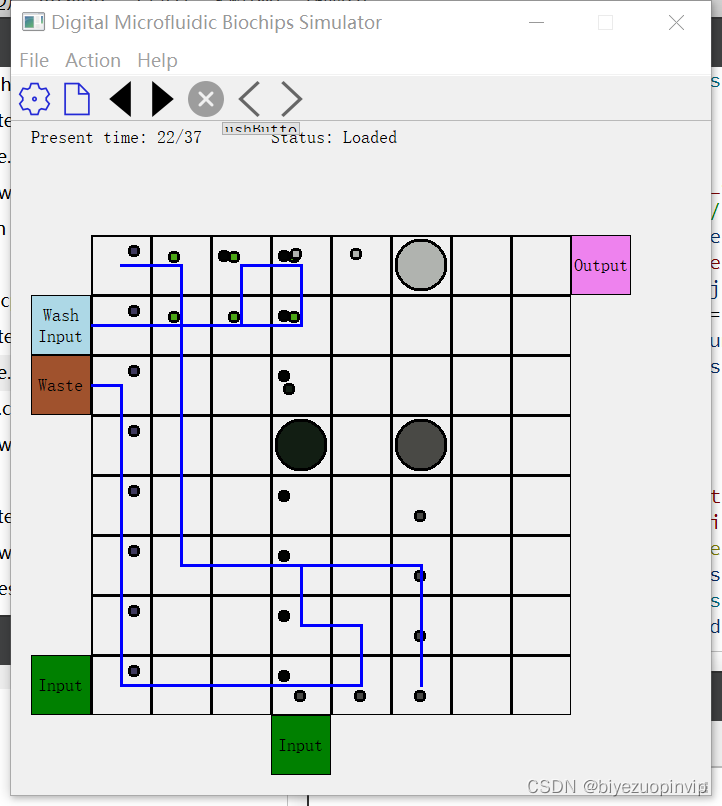

在开启清洗功能时，在上文已经提到本程序采用的策略是每步均尽最大可能清洗。开启清洗功能且不处 于Washing状态时，lattice接收鼠标的右键点击事件并在私有变量 QSet 中进行增减操作（清洗液滴移动的路径规划时会有考虑，同时 paintEvent 会对锁定的格子涂红）。此时改变的是
MainWindow::jumpto(int) 的内在逻辑：从简单的 lattice->getContaminations() —— lattice-

setScene 到 lattice->getContaminations() —— lattice->setScene ——延时300毫秒—— lattice->wash() —— lattice->refresh() ，途中同时改变 MainWindow 自身的状态及标签显示。这里的一个独特的亮点是，在开启清洗过程的状态下可以点击上一步和重置，细节的设定在下一部分详 述。

#include "mainwindow.h"
#include "ui_mainwindow.h"
MainWindow::MainWindow(QWidget *parent) :
    QMainWindow(parent),
    ui(new Ui::MainWindow)
{
    ui->setupUi(this);
    action_startup=new QAction(this);
    action_import=new QAction(this);
    action_about=new QAction(this);
    action_reset=new QAction(this);
    action_play=new QAction(this);
    action_stop=new QAction(this);
    action_last=new QAction(this);
    action_next=new QAction(this);
    action_startup->setText("Initiate");
    action_startup->setIcon(QIcon(":/image/settings.png"));
    action_startup->setToolTip("Initiate the settings");
    action_import->setText("Import file");
    action_import->setIcon(QIcon(":/image/file.png"));
    action_import->setToolTip("Import file as simulation orders");
    action_about->setText("About");
    action_about->setToolTip("Original info and intention about this program");
    action_reset->setText("Reset");
    action_reset->setIcon(QIcon(":/image/reset.png"));
    action_reset->setToolTip("Return to the initial status");
    action_play->setText("Play");
    action_play->setIcon(QIcon(":/image/play.png"));
    action_play->setToolTip("Display the simulation process step by step");
    action_stop->setText("Stop");
    action_stop->setIcon(QIcon(":/image/cancal.png"));
    action_stop->setToolTip("Terminate the simulation process");
    action_last->setText("Last step");
    action_last->setIcon(QIcon(":/image/left.png"));
    action_last->setToolTip("Return to the last step");
    action_next->setText("Next step");
    action_next->setIcon(QIcon(":/image/right.png"));
    action_next->setToolTip("Proceed to the next step");

    ui->menu->addAction(action_startup);
    ui->menu->addAction(action_import);
    ui->mainToolBar->addAction(action_startup);
    ui->mainToolBar->addAction(action_import);
    ui->menu_2->addAction(action_about);
    ui->menuAction->addAction(action_reset);
    ui->menuAction->addAction(action_play);
    ui->menuAction->addAction(action_stop);
    ui->menuAction->addAction(action_last);
    ui->menuAction->addAction(action_next);
    ui->mainToolBar->addAction(action_reset);
    ui->mainToolBar->addAction(action_play);
    ui->mainToolBar->addAction(action_stop);
    ui->mainToolBar->addAction(action_last);
    ui->mainToolBar->addAction(action_next);
    QObject::connect(action_about, &QAction::triggered,this,[=](){
        QMessageBox::about(this,"About DMBS","A rough QT product for course design.");
    });
    this->setFixedSize(400,150);
    this->ui->label->setGeometry(20,0,222,32);
    this->ui->label_2->setGeometry(260,0,182,32);

    this->sound_move=new QSound(":/sound/move.wav",this);
    this->sound_merge=new QSound(":/sound/merge.wav",this);
    this->sound_split1=new QSound(":/sound/split1.wav",this);
    this->sound_split2=new QSound(":/sound/split2.wav",this);

    QObject::connect(action_startup,SIGNAL(triggered()),this,SLOT(Initiate()));
    QObject::connect(action_import,SIGNAL(triggered()),this,SLOT(Load()));
    QObject::connect(action_next,SIGNAL(triggered()),this,SLOT(nextstep()));
    QObject::connect(action_last,SIGNAL(triggered()),this,SLOT(laststep()));
    QObject::connect(action_reset,SIGNAL(triggered()),this,SLOT(reset()));
    QObject::connect(action_play,SIGNAL(triggered()),this,SLOT(play()));
    QObject::connect(action_stop,SIGNAL(triggered()),this,SLOT(stop()));

    label_output=new QLabel(this);
    label_washinput=new QLabel(this);
    label_waste=new QLabel(this);

    label_output->setText("Output");
    label_washinput->setText("Wash\nInput");
    label_waste->setText("Waste");
    label_output->setFrameShape (QFrame::Box);
    label_output->setStyleSheet("border-width: 1px;border-style: solid;border-color:black;background-color:violet;");
    label_output->setAlignment(Qt::AlignCenter);
    label_washinput->setFrameShape (QFrame::Box);
    label_washinput->setStyleSheet("border-width: 1px;border-style: solid;border-color:black;background-color:lightblue;");
    label_washinput->setAlignment(Qt::AlignCenter);
    label_waste->setFrameShape (QFrame::Box);
    label_waste->setStyleSheet("border-width: 1px;border-style: solid;border-color:black;background-color:sienna;");
    label_waste->setAlignment(Qt::AlignCenter);
    this->setStatus(0);
}
void MainWindow::setStatus(int id){
    if(id==0){
        ui->label->setText("Present time: Not Valid");
        ui->label_2->setText("Status: Vacant");
        this->action_startup->setEnabled(true);
        this->action_import->setEnabled(false);
        this->action_reset->setEnabled(false);
        this->action_stop->setEnabled(false);
        this->action_play->setEnabled(false);
        this->action_next->setEnabled(false);
        this->action_last->setEnabled(false);
        label_output->setVisible(false);
        label_washinput->setVisible(false);
        label_waste->setVisible(false);
    }else if(id==1){
        ui->label->setText("Present time: Not Valid");
        ui->label_2->setText("Status: Setted");
        this->action_startup->setEnabled(true);
        this->action_import->setEnabled(true);
        this->action_reset->setEnabled(false);
        this->action_stop->setEnabled(false);
        this->action_play->setEnabled(false);
        this->action_next->setEnabled(false);
        this->action_last->setEnabled(false);
    }else if(id==2){
        ui->label->setText("Present time: "+QString::number(time)+"/"+QString::number(validtime));
        ui->label_2->setText("Status: Loaded");
        this->action_startup->setEnabled(true);
        this->action_import->setEnabled(true);
        this->action_reset->setEnabled(true);
        this->action_stop->setEnabled(false);
        this->action_play->setEnabled(true);
        this->action_next->setEnabled(true);
        this->action_last->setEnabled(true);
    }else if(id==3){
        ui->label_2->setText("Status: Playing");
        this->action_startup->setEnabled(false);
        this->action_import->setEnabled(false);
        this->action_reset->setEnabled(false);
        this->action_stop->setEnabled(true);
        this->action_play->setEnabled(false);
        this->action_next->setEnabled(false);
        this->action_last->setEnabled(false);
    }else if(id==4){
        ui->label_2->setText("Status: Washing");
        this->action_startup->setEnabled(false);
        this->action_import->setEnabled(false);
        this->action_reset->setEnabled(false);
        this->action_stop->setEnabled(false);
        this->action_play->setEnabled(false);
        this->action_next->setEnabled(false);
        this->action_last->setEnabled(false);
    }
}
void MainWindow::Initiate(){
    InitiateDialog *dlg=new InitiateDialog(this);
    dlg->setAttribute(Qt::WA_DeleteOnClose);//设置对话框关闭后，自动销毁
    dlg->setWindowModality(Qt::WindowModal);
    Setting set = dlg->getSetting();
    if(set.w>0&&set.h>0){
        setting=set;
        status=1;
        setStatus(1);
        scenes.clear();
        drops.clear();
        totaltime=0;
        validtime=0;
        for(int i=0;i<200;i++){
            movements[i].clear();
        }
        counter=0;
        time=-1;
        Pos newpos2,newpos3,newpos4;
        QVector<Pos> newpos1;
        for(int i=0;i<label_inputs.size();i++){
            delete label_inputs[i];
        }
        label_inputs.clear();
        for(int i=0;i<setting.in.size();i++){
            newpos1.push_back(getWidgePos(transferPos(setting.in[i])));
            QLabel* qlabel=new QLabel(this);
            qlabel->setText("Input");
            qlabel->setFrameShape (QFrame::Box);
            qlabel->setStyleSheet("border-width: 1px;border-style: solid;border-color:black;background-color:green;");
            qlabel->setAlignment(Qt::AlignCenter);
            label_inputs.push_back(qlabel);
            qlabel->setVisible(false);
            qlabel->setGeometry(newpos1[i].x,newpos1[i].y,60,60);
        }
        newpos2=getWidgePos(transferPos(setting.out));
        newpos3=getWidgePos(transferPos(setting.w_in));
        w_inpos=temppos;
        newpos4=getWidgePos(transferPos(setting.w_out));
        w_outpos=temppos;
        if(lattice!=nullptr)delete lattice;
        lattice=new Lattice(this,set,w_inpos,w_outpos);
        lattice->setVisible(false);
        lattice->setGeometry(80,190,60*setting.w,60*setting.h);
        label_output->setVisible(false);
        label_washinput->setVisible(false);
        label_waste->setVisible(false);

        label_output->setGeometry(newpos2.x,newpos2.y,60,60);
        label_washinput->setGeometry(newpos3.x,newpos3.y,60,60);
        label_waste->setGeometry(newpos4.x,newpos4.y,60,60);
        lattice->show();
        for(int i=0;i<label_inputs.size();i++){
            label_inputs[i]->setVisible(true);
        }
        label_output->setVisible(true);
        if(setting.washable){
            label_washinput->setVisible(true);
            label_waste->setVisible(true);
        }
        this->setFixedSize(utils::max<int>(400,100+60*(setting.w+2)),150+60*(setting.h+2));
    }

}
void MainWindow::Load(){
    QString strFile = QFileDialog::getOpenFileName(this,"Choose a txt file containing orders","C:","text files(*txt)");
    if(strFile.isEmpty()||strFile.isNull())return;
    QFile f(strFile);
    if (!f.open(QIODevice::ReadOnly)){
        QMessageBox::critical(this, "Loading Failed", "Could not open file.");
        return;
    }
    status=2;
    scenes.clear();
    drops.clear();
    totaltime=0;
    validtime=0;
    for(int i=0;i<200;i++){
        movements[i].clear();
    }
    counter=0;
    time=-1;
    QTextStream in(&f);

    while(!in.atEnd()){
        transferOrdertoMovements(in.readLine());
    }
    totaltime++;
    if(processSimulation()){
        QMessageBox::information(this, "Simulating Success", "Total time: "+QString::number(validtime));
    }else{
        QMessageBox::critical(this, "Simulating Terminated", "Valid time: "+QString::number(validtime));
    }
    qsrand(QTime(0,0,0).msecsTo(QTime::currentTime()));
    foreach(Drop *drop,drops){
        drop->color=QColor::fromHsl(qrand()%360,qrand()%256,qrand()%200);
    }
    lattice->load(validtime,scenes,drops);
    time=0;
    jumpto(0);
    setStatus(2);
}
MainWindow::~MainWindow()
{
    delete ui;
}

Pos MainWindow::getWidgePos(Pos pos){
    Pos newpos;
    newpos.x=20+60*pos.x;
    newpos.y=130+60*pos.y;
    return newpos;
}

Pos MainWindow::transferPos(Pos pos){
    Pos newpos;
    if(pos.x==1){
        //L
        newpos.x=pos.x-1;
        newpos.y=pos.y;
        temppos=0;
    }else if(pos.x==setting.w){
        //R
        newpos.x=pos.x+1;
        newpos.y=pos.y;
        temppos=1;
    }else if(pos.y==1){
        //U
        newpos.x=pos.x;
        newpos.y=pos.y-1;
        temppos=2;
    }else{
        //D
        newpos.x=pos.x;
        newpos.y=pos.y+1;
        temppos=3;
    }
    return newpos;
}

void MainWindow::transferOrdertoMovements(QString order){
    order=order.left(order.size()-1);
    QStringList list1=order.split(" ");
    QString keyword=list1.at(0);
    QStringList list2=list1.at(1).split(",");
    int time=list2.at(0).toInt();
    if(keyword=="Input"){
        Movement m;
        m.type=0;
        m.pos={list2.at(1).toInt(),list2.at(2).toInt()};
        movements[time].push_back(m);
        totaltime=utils::max(totaltime,time);
    }else if(keyword=="Output"){
        Movement m;
        m.type=1;
        m.pos={list2.at(1).toInt(),list2.at(2).toInt()};
        movements[time].push_back(m);
        totaltime=utils::max(totaltime,time);
    }else if(keyword=="Move"){
        Movement m;
        m.type=2;
        m.pos={list2.at(1).toInt(),list2.at(2).toInt()};
        m.destination={list2.at(3).toInt(),list2.at(4).toInt()};
        movements[time].push_back(m);
        totaltime=utils::max(totaltime,time);
    }else if(keyword=="Mix"){
        for(int i=1;i<list2.size()/2;i++){
            Movement m;
            m.type=2;
            m.pos={list2.at(2*i-1).toInt(),list2.at(2*i).toInt()};
            m.destination={list2.at(2*i+1).toInt(),list2.at(2*i+2).toInt()};
            movements[time+i-1].push_back(m);
            totaltime=utils::max(totaltime,time+i-1);
        }
    }else if(keyword=="Split"){
        Movement m1,m2;
        m1.type=3;
        m2.type=4;
        Pos pos={list2.at(1).toInt(),list2.at(2).toInt()};
        m1.pos=pos;
        m2.pos=pos;
        m1.upward=(list2.at(1).toInt()==list2.at(3).toInt());
        movements[time].push_back(m1);
        movements[time+1].push_back(m2);
        totaltime=utils::max(totaltime,time+1);
    }else if(keyword=="Merge"){
        Movement m1,m2;
        m1.type=5;
        m2.type=6;
        Pos pos={(list2.at(1).toInt()+list2.at(3).toInt())/2,(list2.at(2).toInt()+list2.at(4).toInt())/2};
        m1.pos=pos;
        m2.pos=pos;
        m1.upward=(list2.at(1).toInt()==list2.at(3).toInt());
        m2.upward=m1.upward;
        movements[time].push_back(m1);
        movements[time+1].push_back(m2);
        totaltime=utils::max(totaltime,time+1);
    }
}

bool MainWindow::processSimulation(){
    //return the validity of the scenes
    Scene empty;
    scenes.push_back(empty);
    for(int i=1;i<=totaltime;i++){
        //generate scene[i] on the fundaion of scene[i-1] and movements[i-1]
        QMap<Pos,Drop*> lastmap;
        foreach(Drop* drop,scenes[i-1].dropstatus.keys()){
            lastmap.insert(scenes[i-1].dropstatus.value(drop).pos,drop);
        }
        Scene newscene=scenes[i-1];
        newscene.newcontaminations.clear();
        //process movements of drops and contaminations
        foreach(Movement move,movements[i-1]){
            if(move.type==0){
                //Input
                bool inputvalid=false;
                foreach(Pos pos,setting.in){
                    if(pos==move.pos){
                        inputvalid=true;
                        break;
                    }
                }
                if(inputvalid){
                    Drop *newdrop=new Drop(this,counter,Qt::black);
                    drops.insert(counter,newdrop);
                    counter++;
                    newscene.dropstatus.insert(newdrop,{move.pos,false,false});
                    newscene.newcontaminations[move.pos].insert(newdrop->id);
                }else{
                    QMessageBox::critical(this, "Simulating Failed", "Input error.");
                    return false;
                }
            }else if(move.type==1){
                //Output
                if(lastmap.contains(move.pos)&&move.pos==setting.out){
                    for(auto it=newscene.dropstatus.begin();it!=newscene.dropstatus.end();it++){
                        if(it.value().pos==move.pos){
                            newscene.dropstatus.erase(it);
                            break;
                        }
                    }
                }else{
                    QMessageBox::critical(this, "Simulating Failed", "Output error.");
                    return false;
                }
            }else if(move.type==2){
                //Move
                if(lastmap.contains(move.pos)&&isadjacent(move.pos,move.destination)){
                    newscene.dropstatus[lastmap.value(move.pos)].pos=move.destination;
                    newscene.newcontaminations[move.destination].insert(lastmap.value(move.pos)->id);
                }else{
                    QMessageBox::critical(this, "Simulating Failed", "Move or mix error.");
                    return false;
                }
            }else if(move.type==3){
                //Split1
                if(lastmap.contains(move.pos)){
                    newscene.dropstatus[lastmap.value(move.pos)].elliptical=true;
                    newscene.dropstatus[lastmap.value(move.pos)].vertical=move.upward;
                }else{
                    QMessageBox::critical(this, "Simulating Failed", "Split error.");
                    return false;
                }
            }else if(move.type==4){
                //Split2
                if(lastmap.contains(move.pos)&&newscene.dropstatus.value(lastmap.value(move.pos)).elliptical){
                    Pos pos1(move.pos),pos2(move.pos);
                    if(newscene.dropstatus.value(lastmap.value(move.pos)).vertical){
                        pos1.y--;
                        pos2.y++;
                    }else{
                        pos1.x--;
                        pos2.x++;
                    }
                    Drop *newdrop1=new Drop(this,counter,Qt::black);
                    drops.insert(counter,newdrop1);
                    counter++;
                    newscene.dropstatus.insert(newdrop1,{pos1,false,false});
                    newscene.newcontaminations[pos1].insert(newdrop1->id);
                    Drop *newdrop2=new Drop(this,counter,Qt::black);
                    drops.insert(counter,newdrop2);
                    counter++;
                    newscene.dropstatus.insert(newdrop2,{pos2,false,false});
                    newscene.newcontaminations[pos2].insert(newdrop2->id);

                    for(auto it=newscene.dropstatus.begin();it!=newscene.dropstatus.end();it++){
                        if(it.value().pos==move.pos){
                            newscene.dropstatus.erase(it);
                            break;
                        }
                    }
                }else{
                    QMessageBox::critical(this, "Simulating Failed", "Split error.");
                    return false;
                }
            }else if(move.type==5){
                //Merge1
                Pos pos1(move.pos),pos2(move.pos);
                if(move.upward){
                    pos1.y--;
                    pos2.y++;
                }else{
                    pos1.x--;
                    pos2.x++;
                }
                if(lastmap.contains(pos1)&&lastmap.contains(pos2)){
                    Drop *newdrop=new Drop(this,counter,Qt::black);
                    drops.insert(counter,newdrop);
                    counter++;
                    newscene.dropstatus.insert(newdrop,{move.pos,true,move.upward});
                    newscene.newcontaminations[move.pos].insert(newdrop->id);
                    for(auto it=newscene.dropstatus.begin();it!=newscene.dropstatus.end();it++){
                        if(it.value().pos==pos1){
                            newscene.dropstatus.erase(it);
                            break;
                        }
                    }
                    for(auto it=newscene.dropstatus.begin();it!=newscene.dropstatus.end();it++){
                        if(it.value().pos==pos2){
                            newscene.dropstatus.erase(it);
                            break;
                        }
                    }
                }else{
                    QMessageBox::critical(this, "Simulating Failed", "Merge error.");
                    return false;
                }
            }else if(move.type==6){
                //Merge2
                if(lastmap.contains(move.pos)&&newscene.dropstatus.value(lastmap.value(move.pos)).elliptical&&newscene.dropstatus.value(lastmap.value(move.pos)).vertical==move.upward){
                    newscene.dropstatus[lastmap.value(move.pos)].elliptical=false;
                }else{
                    QMessageBox::critical(this, "Simulating Failed", "Merge error.");
                    return false;
                }
            }
        }
        //test the validity of this scene
        //in the border
        foreach(Drop* drop,newscene.dropstatus.keys()){
            if(!intheborder(newscene.dropstatus.value(drop).pos)){
                QMessageBox::critical(this, "Simulating Failed", "Border exceeded.");
                return false;
            }
        }
        //static and dynamic constraint
        foreach(Drop* drop,newscene.dropstatus.keys()){
            foreach(Drop* drop1,newscene.dropstatus.keys()){
                if(drop!=drop1){
                    if(newscene.dropstatus.value(drop).elliptical){
                        Pos pos1(newscene.dropstatus.value(drop).pos),pos2(newscene.dropstatus.value(drop).pos);
                        if(newscene.dropstatus.value(drop).vertical){
                            pos1.y--;
                            pos2.y++;
                        }else{
                            pos1.x--;
                            pos2.x++;
                        }
                        if(!farenough(pos1,newscene.dropstatus.value(drop1).pos)){
                            QMessageBox::critical(this, "Simulating Failed", "Static constraint violation.");
                            return false;
                        }
                        if(!farenough(pos2,newscene.dropstatus.value(drop1).pos)){
                            QMessageBox::critical(this, "Simulating Failed", "Static constraint violation.");
                            return false;
                        }
                    }else{
                        if(!farenough(newscene.dropstatus.value(drop).pos,newscene.dropstatus.value(drop1).pos)){
                            QMessageBox::critical(this, "Simulating Failed", "Static constraint violation.");
                            return false;
                        }
                    }
                }

            }
            foreach(Drop* drop2,scenes[i-1].dropstatus.keys()){
                if(drop!=drop2){
                    if(!newscene.dropstatus.value(drop).elliptical){
                        Pos pos=newscene.dropstatus.value(drop).pos;
                        if(!scenes[i-1].dropstatus.value(drop2).elliptical){
                            Pos pos20(newscene.dropstatus.value(drop2).pos);
                            if(!farenough(pos,pos20)){
                                QMessageBox::critical(this, "Simulating Failed", "Static constraint violation.");
                                return false;
                            }
                        }
                    }
                }
            }
        }

        //if valid, add newscene and modify validtime
        scenes.push_back(newscene);
        validtime=i;
    }
    return true;
}

bool MainWindow::isadjacent(Pos pos1,Pos pos2){
    int dx,dy;
    dx=utils::abs(pos1.x,pos2.x);
    dy=utils::abs(pos1.y,pos2.y);
    return (dx==1&&dy==0)||(dx==0&&dy==1);
}
bool MainWindow::farenough(Pos pos1,Pos pos2){
    int dx,dy;
    dx=utils::abs(pos1.x,pos2.x);
    dy=utils::abs(pos1.y,pos2.y);
    return dx>1||dy>1;
}
bool MainWindow::intheborder(Pos pos){
    return pos.x>0&&pos.x<=setting.w&&pos.y>0&&pos.y<=setting.h;
}
void MainWindow::jumpto(int i){
    if(i<0)i=0;
    if(i>validtime)i=validtime;
    if(i==0)action_last->setEnabled(false);
    if(i==validtime){
        action_next->setEnabled(false);
        action_play->setEnabled(false);
    }
    if(status==2){
        if(i!=0)action_last->setEnabled(true);
        if(i!=validtime){
            action_next->setEnabled(true);
            action_play->setEnabled(true);
        }
    }
    ui->label->setText("Present time: "+QString::number(time)+"/"+QString::number(validtime));
    if(setting.washable&&i!=validtime){
        int restore=status;
        if(i!=0)lattice->getContaminations(i);
        lattice->setScene(i);
        QTime t;
        t.start();
        while(t.elapsed()<300)
            QCoreApplication::processEvents();
        status=4;
        setStatus(4);
        lattice->wash();
        lattice->refresh();
        status=restore;
        setStatus(status);
    }else{
        if(i!=0)lattice->getContaminations(i);
        lattice->setScene(i);
    }
    if(i==0)action_last->setEnabled(false);
    if(i==validtime){
        action_next->setEnabled(false);
        action_play->setEnabled(false);
    }
    if(status==2){
        if(i!=0)action_last->setEnabled(true);
        if(i!=validtime){
            action_next->setEnabled(true);
            action_play->setEnabled(true);
        }
    }
}
void MainWindow::nextstep(){
    time++;
    foreach(Movement move,movements[time-1]){
        if(move.type==2){
            sound_move->play();
        }else if(move.type==3){
            sound_split1->play();
        }else if(move.type==4){
            sound_split2->play();
        }else if(move.type==6){
            sound_merge->play();
        }
    }
    jumpto(time);
}
void MainWindow::laststep(){
    time--;
    jumpto(time);
}
void MainWindow::reset(){
    time=0;
    jumpto(0);
}
void MainWindow::play(){
    setStatus(3);
    status=3;
    while(time<validtime&&status==3){
        QTime t;
        t.start();
        while(t.elapsed()<300)
            QCoreApplication::processEvents();
        nextstep();
    }
    stop();
}
void MainWindow::stop(){
    setStatus(2);
    status=2;
    jumpto(time);
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
537
538
539
540
541
542
543
544
545
546
547
548
549
550
551
552
553
554
555
556
557
558
559
560
561
562
563
564
565
566
567
568
569
570
571
572
573
574
575
576
577
578
579
580
581
582
583
584
585
586
587
588
589
590
591
592
593
594
595
596
597
598
599
600
601
602
603
604
605
606
607
608
609
610
611
612
613
614
615
616
617
618
619
620
621
622
623
624
625
626
627
628
629
630
631
632
633
634
635
636
637
638
639
640
641
642
643
644
645
646
647
648
