内存马查杀copagent研究

项目简介

copagent主要用于内存马查杀。

项目编译

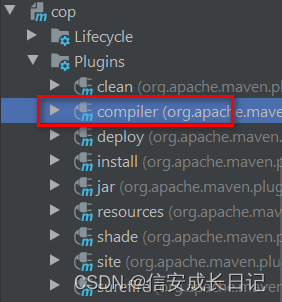

1.生成agent.jar

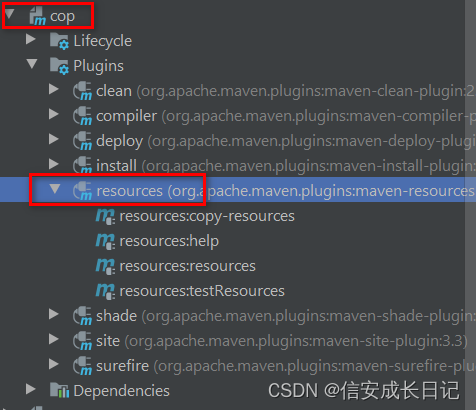

2.将其拷贝进入cop的resources文件夹中

3.生成cop.jar

将刚才的agent.jar，拷贝到resrouces文件夹。

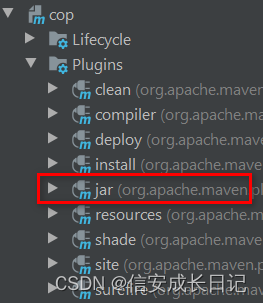

打包jar

模块主要功能介绍

1.cop

注入进程jvm进程

2.agent

扫描进程

模块流程详细分析

cop模块

1.启动cop.jar

1.1 释放agent.jar

1.2.再次启动cop.jar进程，进入到cop模块的注入流程

            //解析参数
            try {
                Options options = new Options();
                options.addOption("h", "help", false, "print options information");
                options.addOption("v", "version", false, "print the version of copagent");
                options.addOption("p", "pid", true, "attach jvm process pid");
                options.addOption("c", "class", true, "class name regex to dump");

                CommandLineParser parser = new DefaultParser();
                CommandLine cmdLine = parser.parse(options, args);

                if (cmdLine.hasOption("version")) {
                    AnsiLog.info("Version   :  " + version_info.get("Project-Version") + "\nBuild Time:  " + version_info.get("Build-Time") + "\n");
                    System.exit(0);
                } else if (cmdLine.hasOption("help")) {
                    new HelpFormatter().printHelp("java -jar copagent.jar", options, true);
                    System.exit(0);
                }
                if(cmdLine.hasOption("class")){
                    filterClassName = cmdLine.getOptionValue("class");
                }
                if (cmdLine.hasOption("pid")) {
                    String input_pid = cmdLine.getOptionValue("pid");
                    pid = Long.parseLong(input_pid);
                    jvm_pid = Long.toString(pid);
                }
                else {
                    AnsiLog.info( AnsiLog.red("Version") + "    : " + AnsiLog.yellow(version_info.get("Project-Version")));
                    AnsiLog.info(AnsiLog.red("Build Time")+ " : " + AnsiLog.yellow(version_info.get("Build-Time")));

                    // select jvm process pid
                    try {
                        pid = ProcessUtils.select(false, -1, null);
                    } catch (InputMismatchException e) {
                        AnsiLog.warn("Please input an integer to select pid.");
                        System.exit(1);
                    }
                    if (pid < 0) {
                        AnsiLog.error("Please select an available pid.");
                        System.exit(1);
                    }
                    jvm_pid = Long.toString(pid);
                }
            } catch (Throwable e) {
                AnsiLog.error("Failed to parse options\n" + e.getMessage());
                System.exit(0);
            }

            // 释放agent.jar流程
            if(! agent_work_directory.exists()){
                if(! PathUtils.createDirectory(agent_work_directory)){
                    AnsiLog.warn("Create directory {} failed, use {}", agent_work_directory.getAbsolutePath(), PathUtils.getTempDirectory().getAbsolutePath());
                    agent_work_directory = PathUtils.getTempDirectory();
                }
            }

            attach_jar_path = new File(agent_work_directory, "agent.jar").getAbsolutePath();

            //从自身jar包资源，释放agent.jar
            if(! new File(attach_jar_path).exists()){
                PathUtils.copyResources("/agent.jar", new File(attach_jar_path));

                if(! new File(attach_jar_path).exists()){
                    AnsiLog.error("Create agent.jar file [{}] failed !", attach_jar_path);
                    System.exit(1);
                }
            }

            /*
             * java <opts> -jar cop.jar <pid> </path/to/agent.jar> <dumpClassName>
             * */
            List<String> opts = new ArrayList<String>();
            opts.add("-jar");
            opts.add(current_jar_path);
            opts.add(jvm_pid);
            opts.add(attach_jar_path);
            opts.add(filterClassName);

            // real start cop.jar process
            ProcessUtils.startProcess(pid, opts);
        }

启动进程参数列表如下：

其中-Xbootclasspath表示搜索类路径，之后会启动agent.jar包，传递pid,需要注入的agent.jar路径，不扫描的排出类，boot_flag表示开启注入功能

0 = "C:\Program Files\Java\jdk1.8.0_301\jre\..\bin\java.exe"
1 = "-Xbootclasspath/a:C:\Program Files\Java\jdk1.8.0_301\jre\..\lib\tools.jar"
2 = "-jar"
3 = "C:\Users\test\Desktop\copagent-master\cop\target\agent.jar"
4 = "12228"
5 = "C:\Users\test\Desktop\copagent-master\cop\target\.copagent\agent.jar"
6 = "[unknown]"
7 = "bootstart_flag"

3.注入agent.jar进入JVM进程，上述步骤

        if(is_boot_start || is_greater_than_jre9 ){
            //注入流程
            jvm_pid = args[0];
            attach_jar_path = args[1];
            if(args.length >= 3){
                filterClassName = args[2];
            }
            AnsiLog.info("Try to attach process " + jvm_pid + ", please wait a moment ...");

            attach(jvm_pid, attach_jar_path, filterClassName);

            AnsiLog.info("Attach process {} finished .", jvm_pid);
            AnsiLog.info("Result store in : {}", new File(agent_work_directory, "result.txt"));
            System.exit(0);
        }else{

注入代码 如下

    public static void attach(String jvm_pid, String agent_jar_path, String filterClass) throws Exception{
    VirtualMachine virtualMachine = null;
    VirtualMachineDescriptor virtualMachineDescriptor = null;
    for (VirtualMachineDescriptor descriptor : VirtualMachine.list()) {
        String pid = descriptor.id();
        if (pid.equals(jvm_pid)) {
            virtualMachineDescriptor = descriptor;
            break;
        }
    }
    try{
        if (null == virtualMachineDescriptor) {
            virtualMachine = VirtualMachine.attach(jvm_pid);
        } else {
            virtualMachine = VirtualMachine.attach(virtualMachineDescriptor);
        }
        Properties targetSystemProperties = virtualMachine.getSystemProperties();
        String targetJavaVersion = JavaVersionUtils.javaVersionStr(targetSystemProperties);
        String currentJavaVersion = JavaVersionUtils.javaVersionStr();
        if (targetJavaVersion != null && currentJavaVersion != null) {
            if (!targetJavaVersion.equals(currentJavaVersion)) {
                AnsiLog.warn("Current VM java version: {} do not match target VM java version: {}, attach may fail.", currentJavaVersion, targetJavaVersion);
                AnsiLog.warn("Target VM JAVA_HOME is {}, copagent JAVA_HOME is {}, try to set the same JAVA_HOME.", targetSystemProperties.getProperty("java.home"), System.getProperty("java.home"));
            }
        }
        virtualMachine.loadAgent(agent_jar_path, filterClass);
    }catch (Throwable t){
        t.printStackTrace();
    } finally {
        if (null != virtualMachine) {
            virtualMachine.detach();
        }
    }
}

通过下列两个API函数来完成java agent的加载

VirtualMachine.attach()

virtualMachine.loadAgent(agent_jar_path, filterClass);
