概述
本章配置GD32F303使用IIC进行驱动SSD1306的12864OLED。

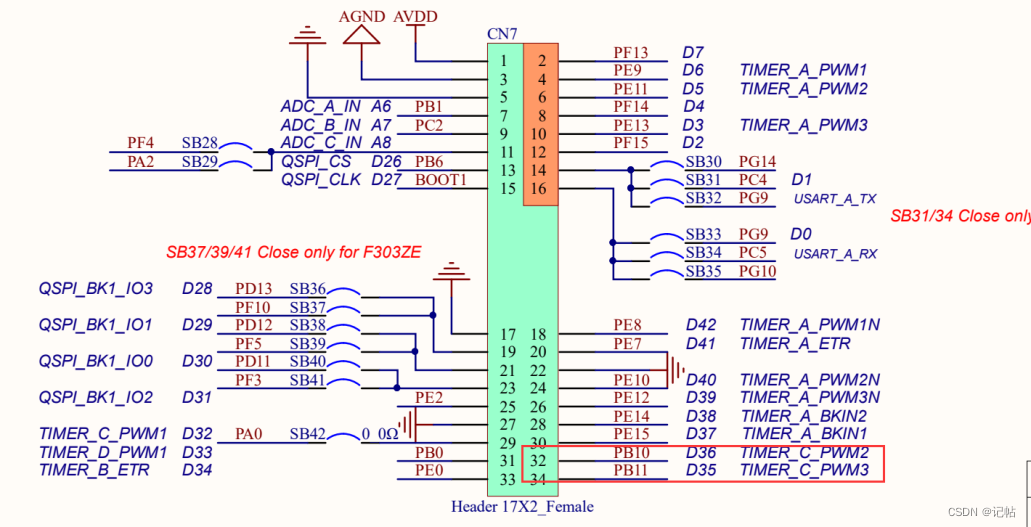

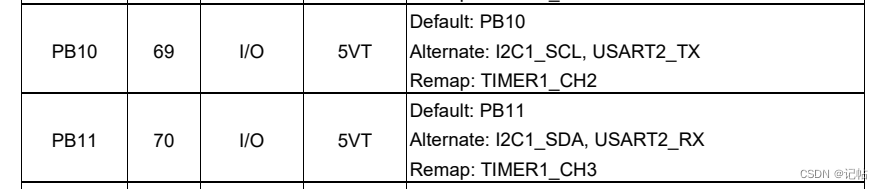

查阅手册可以得知，PB10、PB11为I2C的接口。
需要GD样片的可以加群申请：615061293 。
视频教学
https://www.bilibili.com/video/BV1od4y1u7t7/
GD32F303固件库开发（14）----IIC之配置OLED
csdn课程
课程更加详细。
https://download.csdn.net/course/detail/37144样品申请
https://www.wjx.top/vm/wFGhGPF.aspx#
参考文档
GD官方文档GD32F30x_Firmware_Library_V2.1.4下面IIC的Master_transmitter&slave_receiver
时钟使能
/*! \brief enable the peripheral clock \param[in] none \param[out] none \retval none */ void rcu_config(void) { /* enable GPIOB clock */ rcu_periph_clock_enable(RCU_GPIOB); /* enable I2C1 clock */ rcu_periph_clock_enable(RCU_I2C1); }- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
初始化IO
/*! \brief cofigure the GPIO ports \param[in] none \param[out] none \retval none */ void gpio_config(void) { /* connect PB10 to I2C1_SCL */ /* connect PB11 to I2C1_SDA */ gpio_init(GPIOB, GPIO_MODE_AF_OD, GPIO_OSPEED_50MHZ, GPIO_PIN_10 | GPIO_PIN_11); }- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
IIC初始化
/*! \brief cofigure the I2C0 and I2C1 interfaces \param[in] none \param[out] none \retval none */ void i2c_config(void) { i2c_clock_config(I2C1, 100000, I2C_DTCY_2); /* I2C address configure */ i2c_mode_addr_config(I2C1, I2C_I2CMODE_ENABLE, I2C_ADDFORMAT_7BITS, 0x78); /* enable I2C1 */ i2c_enable(I2C1); /* enable acknowledge */ i2c_ack_config(I2C1, I2C_ACK_ENABLE); }- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
配置IIC接口
/*! \brief cofigure the I2C1 interfaces \param[in] none \param[out] none \retval none */ void i2c_config(void) { /* configure I2C1 clock */ i2c_clock_config(I2C1, 100000, I2C_DTCY_2); /* configure I2C1 address */ i2c_mode_addr_config(I2C1, I2C_I2CMODE_ENABLE, I2C_ADDFORMAT_7BITS, 0x78); /* enable I2C1 */ i2c_enable(I2C1); /* enable acknowledge */ i2c_ack_config(I2C1, I2C_ACK_ENABLE); }- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
修改IIC发送代码
将Master_transmitter&slave_receiver的IIC发送代码进行修改

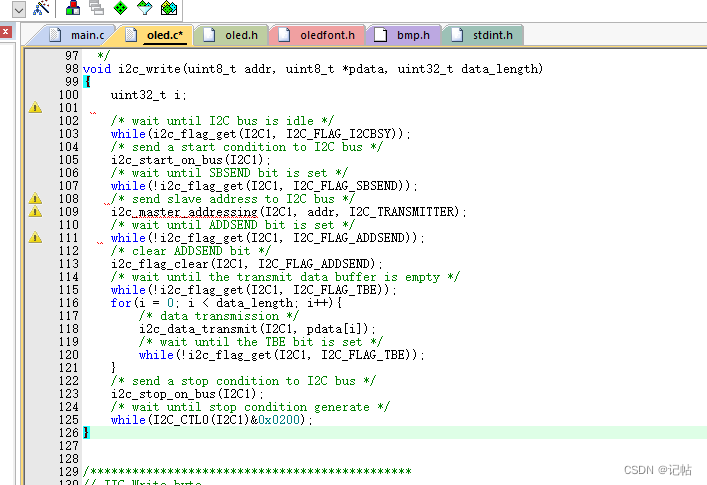

/** * @brief I2C1写函数 * @param addr设备地址 * @param pdata 数据指针 * @param data_length 数据长度 */ void i2c_write(uint8_t addr, uint8_t *pdata, uint32_t data_length) { uint32_t i; /* wait until I2C bus is idle */ while(i2c_flag_get(I2C1, I2C_FLAG_I2CBSY));//等待总线空闲 /* send a start condition to I2C bus */ i2c_start_on_bus(I2C1);//发送start信号 /* wait until SBSEND bit is set */ while(!i2c_flag_get(I2C1, I2C_FLAG_SBSEND)); //起始位是否发送 /* send slave address to I2C bus */ i2c_master_addressing(I2C1, addr, I2C_TRANSMITTER);//设置从机地址和执行发送操作 /* wait until ADDSEND bit is set */ while(!i2c_flag_get(I2C1, I2C_FLAG_ADDSEND));//主机模式下地址是否发送 /* clear ADDSEND bit */ i2c_flag_clear(I2C1, I2C_FLAG_ADDSEND);//清除标志位主机模式下地址是否发送 /* wait until the transmit data buffer is empty */ while(!i2c_flag_get(I2C1, I2C_FLAG_TBE));//发送期间I2C_DATA为空 for(i = 0; i < data_length; i++){ /* data transmission */ i2c_data_transmit(I2C1, pdata[i]);//发送数据 /* wait until the TBE bit is set */ while(!i2c_flag_get(I2C1, I2C_FLAG_TBE));//发送期间I2C_DATA为空 } /* send a stop condition to I2C bus */ i2c_stop_on_bus(I2C1);//在I2C总线上生成停止位 /* wait until stop condition generate */ while(I2C_CTL0(I2C1)&0x0200); //等待直到停止条件生成 }- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
OLED
查看文档可以知道地址为b0111100或者b0111101，当R/W位置写0的时候，才能进行写的操作，那么地址默认为0x78(b01111000)或者0x7A(b01111010)
参考程序
这里使用0.96OLED显示屏_STM32F103C8_IIC_V1.0来进行移植

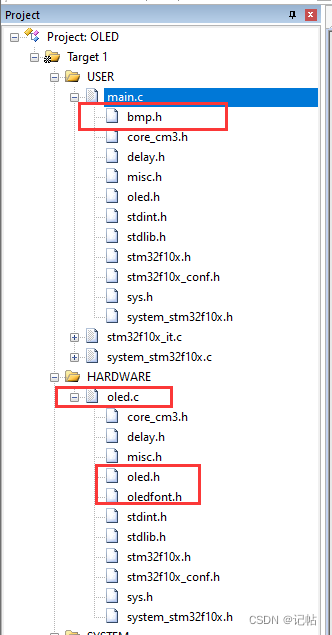

查看工程可以知道主要是有3个文件来进行OLED的驱动，移入OLE.h .c 、oledfont.h 、 bmp.h

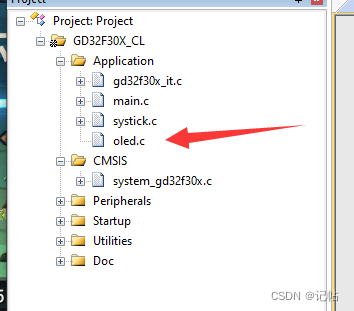

移入文件之后要注意导入C文件。

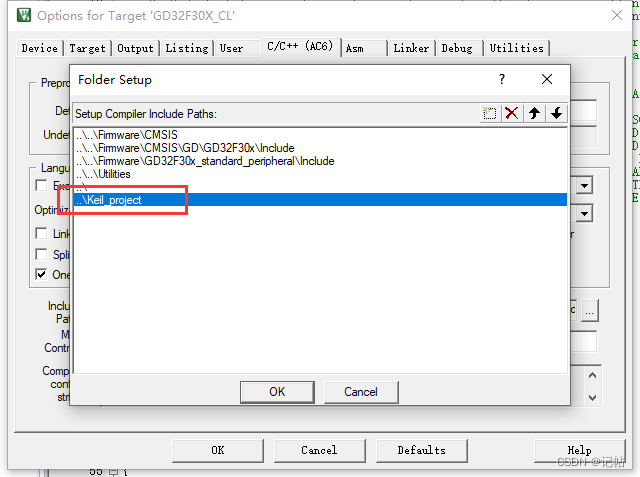

记得添加路径。
删除没有用的头文件
删除sys.h文件
删除delay.h文件
可以查看stdint.h

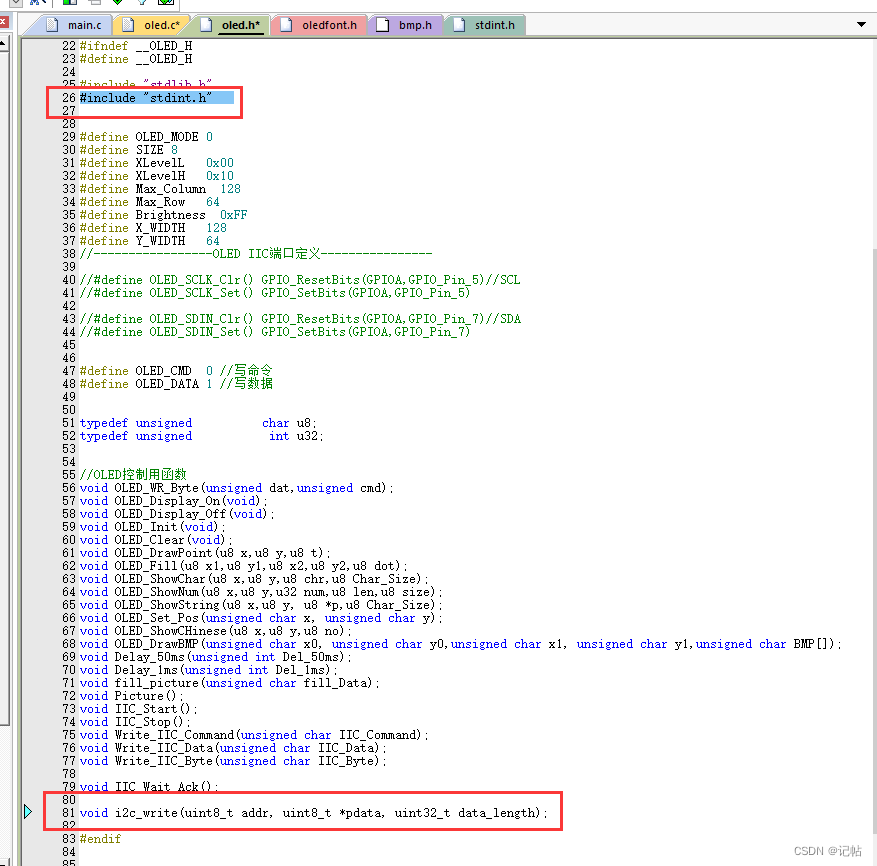

在oled.h中添加u8 u32定义 也可以直接修改typedef unsigned char u8; typedef unsigned int u32;- 1
- 2

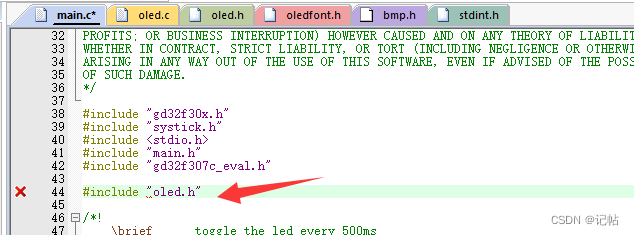

先把oled.h添加主程序中。

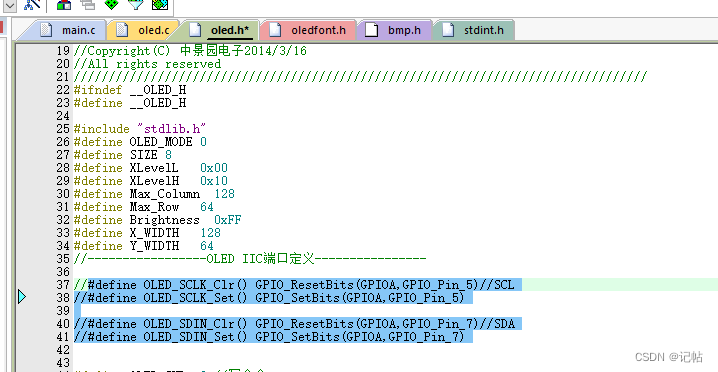

查看oled.h，可以看到IIC定义，同时也是模拟IIC，可以注释掉
查看oled.c，可以看到是模拟iic，这些都可以注释不要，我们使用的是iIC，不是模拟。
将IIC写放入oled.c中。
记得导入#include "gd32f30x_i2c.h"头文件
记得在oled.h中申明

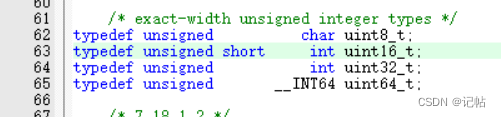

要使用uint8和uint32，导入头文件#include “stdint.h”
IIC写一个字节可以修改为如下所示。
/********************************************** // IIC Write byte **********************************************/ void Write_IIC_Byte(unsigned char IIC_Byte) { // unsigned char i; // unsigned char m,da; // da=IIC_Byte; // OLED_SCLK_Clr(); // for(i=0;i<8;i++) // { // m=da; // // OLED_SCLK_Clr(); // m=m&0x80; // if(m==0x80) // {OLED_SDIN_Set();} // else OLED_SDIN_Clr(); // da=da<<1; // OLED_SCLK_Set(); // OLED_SCLK_Clr(); // } uint8_t byte[1] = {}; byte[0]=IIC_Byte; i2c_write(0x78,byte, 1); }- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
IIC写指令

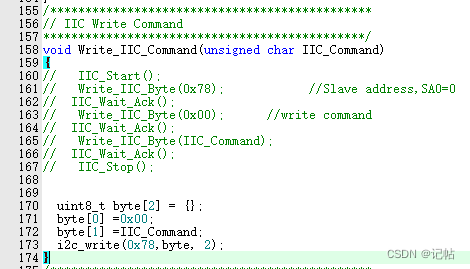

向0x78设备写命令0x00的IIC_Command指令。
/********************************************** // IIC Write Command **********************************************/ void Write_IIC_Command(unsigned char IIC_Command) { // IIC_Start(); // Write_IIC_Byte(0x78); //Slave address,SA0=0 // IIC_Wait_Ack(); // Write_IIC_Byte(0x00); //write command // IIC_Wait_Ack(); // Write_IIC_Byte(IIC_Command); // IIC_Wait_Ack(); // IIC_Stop(); uint8_t byte[2] = {}; byte[0] =0x00; byte[1] =IIC_Command; i2c_write(0x78,byte, 2); }- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20

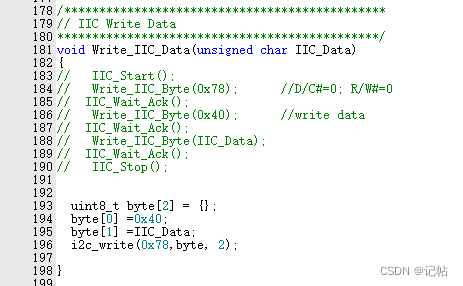

IIC写数据
向0x78设备写数据0x40的IIC_Data指令。
/********************************************** // IIC Write Data **********************************************/ void Write_IIC_Data(unsigned char IIC_Data) { // IIC_Start(); // Write_IIC_Byte(0x78); //D/C#=0; R/W#=0 // IIC_Wait_Ack(); // Write_IIC_Byte(0x40); //write data // IIC_Wait_Ack(); // Write_IIC_Byte(IIC_Data); // IIC_Wait_Ack(); // IIC_Stop(); uint8_t byte[2] = {}; byte[0] =0x40; byte[1] =IIC_Data; i2c_write(0x78,byte, 2); }- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
在oled.c中，OLED_Init初始化可以注释掉gpio初始化
在oled.c中，OLED_Init初始化中有个延时800ms。
导入
#include “systick.h”
可以使用delay_1ms(800);

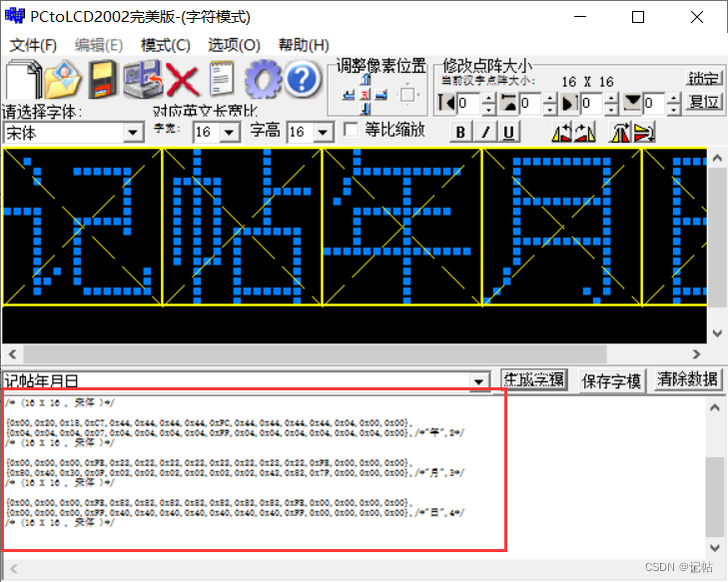

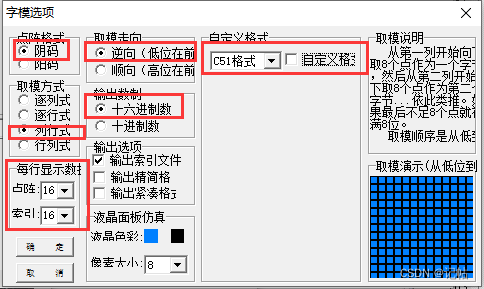

取模
在oledfont.h中放入字库
char Hzk[][32]={ // 记(0) 帖(1) 年(2) 月(3) 日(4) {0x40,0x40,0x42,0xCC,0x00,0x00,0x00,0x84,0x84,0x84,0x84,0x84,0xFC,0x00,0x00,0x00}, {0x00,0x00,0x00,0x7F,0x20,0x10,0x00,0x3F,0x40,0x40,0x40,0x40,0x41,0x40,0x70,0x00},/*"记",0*/ /* (16 X 16 , 宋体 )*/ {0x00,0xF8,0x08,0xFF,0x08,0xF8,0x00,0x00,0x00,0x00,0xFF,0x10,0x10,0x10,0x10,0x00}, {0x00,0x0F,0x00,0xFF,0x08,0x0F,0x00,0xFF,0x41,0x41,0x41,0x41,0x41,0xFF,0x00,0x00},/*"帖",1*/ /* (16 X 16 , 宋体 )*/ {0x00,0x20,0x18,0xC7,0x44,0x44,0x44,0x44,0xFC,0x44,0x44,0x44,0x44,0x04,0x00,0x00}, {0x04,0x04,0x04,0x07,0x04,0x04,0x04,0x04,0xFF,0x04,0x04,0x04,0x04,0x04,0x04,0x00},/*"年",2*/ /* (16 X 16 , 宋体 )*/ {0x00,0x00,0x00,0xFE,0x22,0x22,0x22,0x22,0x22,0x22,0x22,0x22,0xFE,0x00,0x00,0x00}, {0x80,0x40,0x30,0x0F,0x02,0x02,0x02,0x02,0x02,0x02,0x42,0x82,0x7F,0x00,0x00,0x00},/*"月",3*/ /* (16 X 16 , 宋体 )*/ {0x00,0x00,0x00,0xFE,0x82,0x82,0x82,0x82,0x82,0x82,0x82,0xFE,0x00,0x00,0x00,0x00}, {0x00,0x00,0x00,0xFF,0x40,0x40,0x40,0x40,0x40,0x40,0x40,0xFF,0x00,0x00,0x00,0x00},/*"日",4*/ /* (16 X 16 , 宋体 )*/ };- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28

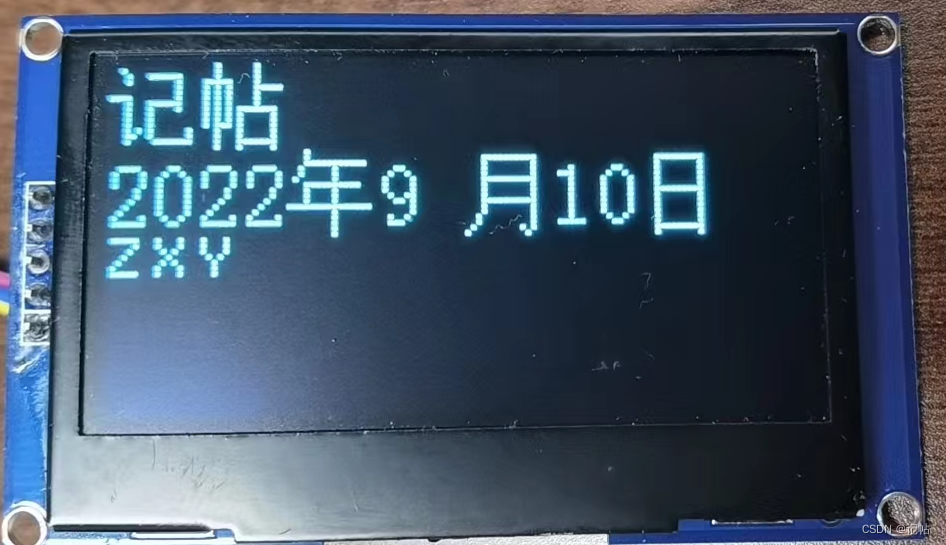

在main.c中添加显示
OLED_Init(); //初始化OLED OLED_Clear() ; OLED_ShowCHinese(0,0,0);//记 OLED_ShowCHinese(16,0,1);//帖 OLED_ShowNum(0,2,2022,4,16);//显示ASCII字符的码值 OLED_ShowCHinese(32,2,2);//年 OLED_ShowNum(48,2,9,1,16);//显示ASCII字符的码值 OLED_ShowCHinese(64,2,3);//月 OLED_ShowNum(80,2,10,2,16);//显示ASCII字符的码值 OLED_ShowCHinese(96,2,4);//日- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12

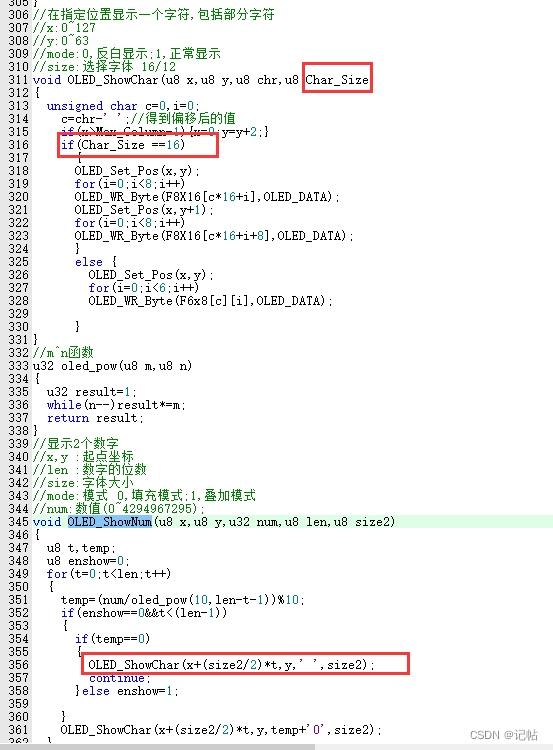

字体大小只有2个
显示字符
OLED_ShowString(40,2,"ZXY",8);- 1
图片放在bmp.h中。#ifndef __BMP_H #define __BMP_H unsigned char BMP1[]={ 0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF, 0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF, 0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF, 0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF, 0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0x1F,0x1F,0x1F,0x7F,0xFF,0xFF, 0xFF,0xFF,0xFF,0x8F,0x8F,0x8F,0x8F,0x8F,0x8F,0x8F,0x8F,0x8F,0x8F,0x8F,0x0F,0x0F, 0x0F,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0x8F,0x8F,0x8F,0x8F,0x8F,0x8F,0x8F,0x8F,0x8F, 0x8F,0x8F,0x8F,0x8F,0x8F,0x8F,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF, 0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xC7,0xC7,0xC7,0xC4,0x04,0x04,0x04,0x07,0xFF, 0xFF,0xFF,0xFF,0x0F,0x0F,0x0F,0x0F,0x8F,0x8F,0x8F,0x8F,0x8F,0x8F,0x8F,0x80,0x80, 0x80,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xE3,0xE3,0xE3,0xE3,0xE3,0xE3, 0xE3,0xE3,0xE3,0xE3,0xE3,0xE3,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF, 0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x1F, 0x1F,0x1F,0xFF,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0x8F,0x8F,0x8F, 0x8F,0x8F,0x8F,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0x0F,0x0F,0x0F, 0x0F,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF, 0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFE,0x06,0x06,0x07,0x0F, 0xFF,0xFF,0xFF,0xF8,0xF8,0xF8,0xF8,0xF8,0xF8,0xF8,0xF8,0xF8,0xF8,0xF8,0x00,0x00, 0x00,0x00,0xF8,0xF8,0xF8,0xF8,0xF8,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0x00,0x00,0x00, 0x00,0xC7,0xC7,0xC7,0xC7,0xC7,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF, 0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00, 0xFF,0x00,0x00,0x00,0xFF,0xFF,0x0F,0x0F,0x0F,0xFF,0xFF,0xFF,0xFF,0xFF,0x00,0x00, 0x00,0x00,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0x03,0x03,0x03,0x03,0xE3,0xE0,0xE0,0xE0, 0xE0,0xE3,0xE3,0x03,0x03,0x03,0x03,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF, 0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xF0,0xF0,0xF0,0xF0, 0xFF,0xF0,0xF0,0xF0,0xFF,0xFF,0xF0,0xF0,0xF0,0xFF,0xFF,0xFF,0xFF,0xFF,0xF0,0xF0, 0xF0,0xF0,0xF0,0xF8,0xF8,0xF8,0xFF,0xFF,0xF0,0xF0,0xF0,0xF0,0xF1,0xF1,0xF1,0xF1, 0xF1,0xF1,0xF1,0xF0,0xF0,0xF0,0xF0,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF, 0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF, 0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF, 0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF, 0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,/*"D:\GD32F303\GD32F30x_Firmware_Library_V2.1.4_iic_oled\记帖.bmp",0*/ /* (64 X 64 )*/ }; #endif- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
- 42
- 43

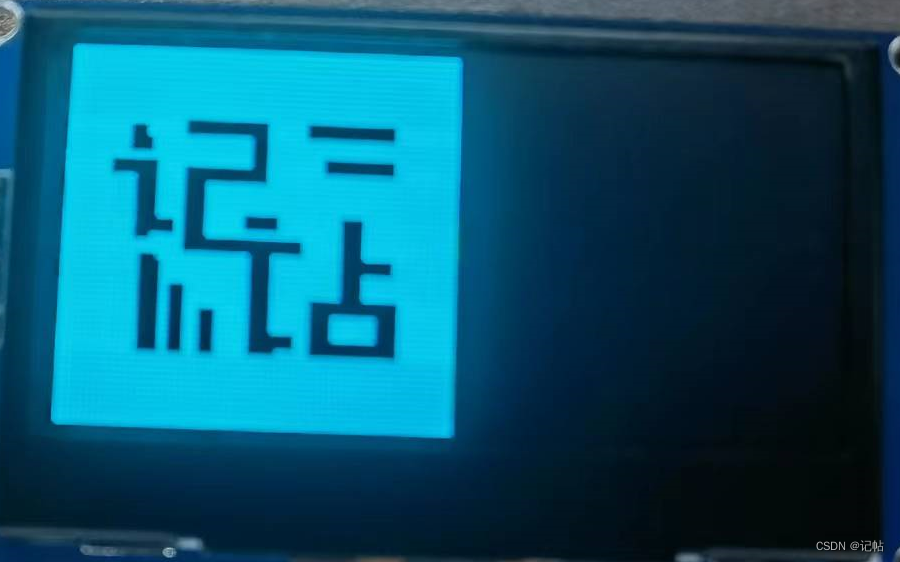

显示图片
delay_1ms(2000); OLED_Clear(); OLED_DrawBMP(0,0,64,8,BMP1); //图片显示(图片显示慎用，生成的字表较大，会占用较多空间，FLASH空间8K以下慎用)- 1
- 2
- 3
OLED.C
