MATLAB | 好看的相关系数矩阵图绘制
又是一个长长的工具类函数，创作编写不易，如果有用的话
点赞,转发走起~绘制超好看的相关系数矩阵图！工具函数由于过长将放在最后展示，以下先展示使用方式和绘制效果：

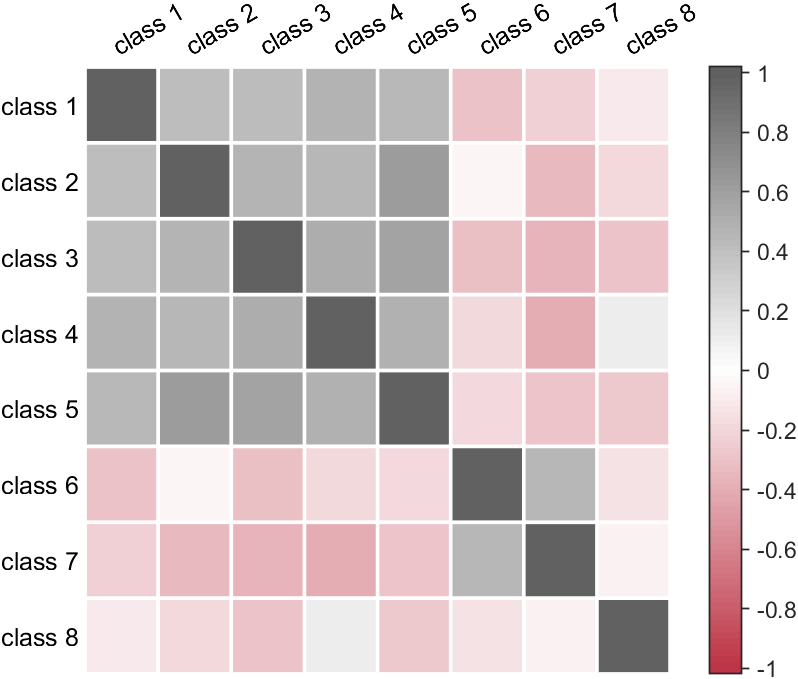

使用效果
使用教程
0 数据准备
数据就多列的数值矩阵即可：
X=[-2.8461 -0.9470 -0.1491 -1.6213 -1.1106 0.6428 2.7456 -1.0897 -0.7024 -0.1509 -1.9612 -0.9706 1.0950 0.3940 1.6108 0.6323 0.3761 -1.1815 -0.3485 -1.2662 -0.8673 -1.6869 -0.8052 1.4172 0.1717 0.0230 -0.1417 -0.0084 -1.2139 -0.6537 0.1804 0.5806 -1.5339 0.0020 -2.4430 -0.5684 0.0198 -0.2628 -0.0488 1.3821 -0.6906 0.6501 -0.2527 0.1571 0.7983 2.0210 -0.5023 -0.3868 0.7227 0.4469 1.1316 0.2165 1.9895 -0.9230 0.2779 0.1402 -1.1487 -0.1272 0.0974 0.7397 -1.1794 1.4483 0.5348 0.9840 2.4263 0.3561 -0.5850 -0.0829 0.9081 0.6718 3.1348 -1.6806 1.4553 -0.7559 1.3223 -0.1616 1.6948 -0.0941 0.2619 0.0846 1.1833 2.0956 -0.4242 -1.1503 0.4986 -0.7468 -1.1212 -1.4685 1.2845 -0.3788 -0.2780 3.2273 0.2187 -1.7527 -0.5731 0.8619 0.9713 0.3849 0.4713 1.3746 1.3742 -0.0587 0.5780 -0.0382 1.4192 0.4118 1.0904 0.6697 1.1387 -1.4548 -1.4595 -0.6207 -0.1758 -0.0541 3.3090 0.4501 1.5922 -2.0072 -0.5666 -1.0384 3.1798 1.2233 2.1071 0.3412 0.6792 -0.4604 0.3374 -0.6348 2.6781 0.9919 2.2081 2.3743 1.0871 0.2585 -0.6621 0.1306 1.6062 3.3028 2.5823 2.1885 2.4703 -1.1143 0.1006 1.9326 -0.0094 2.4318 3.1476 1.9018 2.9599 -0.2546 -1.3590 -2.0736 2.0687 1.5410 1.1177 2.2240 2.3615 -0.5323 -1.0246 -0.2873];- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
为了减少之后代码的篇幅，已将此矩阵存入
XData.mat文件，后文使用如下方式导入数据：load XData.mat- 1
1 基本使用
对，就两行！
load XData.mat CMP=corrMatPlot(X); CMP=CMP.draw();- 1
- 2
- 3
- 4
2 修改标签
理论上方法有三种，以下三种方式等价(推荐第二种)：
load XData.mat CMP=corrMatPlot(X,'Labels',{'welcome','to','follow','my','wechat','official','account','slandarer'}); CMP=CMP.draw();- 1
- 2
- 3
- 4
load XData.mat CMP=corrMatPlot(X); CMP=CMP.setLabelStr({'welcome','to','follow','my','wechat','official','account','slandarer'}); CMP=CMP.draw();- 1
- 2
- 3
- 4
- 5
load XData.mat CMP=corrMatPlot(X); CMP=CMP.draw(); CMP.setLabelStr({'welcome','to','follow','my','wechat','official','account','slandarer'});- 1
- 2
- 3
- 4
- 5
3 修改colormap
上面三种修改方式依旧适用，但为了节省篇幅只介绍最推荐的一种，同时此方法接受三种格式数据，使用
setColorMap函数修改配色：3.1 matlab自带colormap
matlab 自带的
colormap均可用：
load XData.mat CMP=corrMatPlot(X); CMP=CMP.setColorMap(copper); CMP=CMP.draw();- 1
- 2
- 3
- 4
- 5
copper：
pink:
summer:
3.2 mx3大小RGB数组
load XData.mat CMP=corrMatPlot(X); cList=[114,146,184;255,255,255;132,158,119]./255; CMP=CMP.setColorMap(cList); CMP=CMP.draw();- 1
- 2
- 3
- 4
- 5
- 6
3.3 内置colormap
本工具函数类内内置了6种colormap，可以通过：
- obj.setColorMap(n)
的格式使用：
load XData.mat CMP=corrMatPlot(X); CMP=CMP.setColorMap(2); CMP=CMP.draw();- 1
- 2
- 3
- 4
- 5
内置配色1：
内置配色2：
内置配色3：
内置配色4：
内置配色5：
内置配色6：
4 上下三角模式
设置类的
Format属性即可：full完整矩阵图triu上三角矩阵图tril下三角矩阵图
load XData.mat CMP=corrMatPlot(X,'Format','tril'); CMP=CMP.setColorMap(1); CMP=CMP.draw();- 1
- 2
- 3
- 4
- 5
5 系数展示格式
通过调整
Type属性调整格式：sq: 方形(默认)ssq: 含文本方形pie: 饼图circ: 圆形oval: 椭圆形
load XData.mat CMP=corrMatPlot(X,'Type','pie'); CMP=CMP.setColorMap(1); CMP=CMP.draw();- 1
- 2
- 3
- 4
- 5
全部格式展示(上三角)
sq:
ssq:
pie:
circ:
oval:
6 标签格式修改
使用：
- setXLabel
- setYLabel
函数分别修饰X轴Y轴标签,
text对象具有的属性均可被修饰，以下展示修饰字体，字号及颜色：load XData.mat CMP=corrMatPlot(X,'Format','triu','Type','pie'); CMP=CMP.setColorMap(1); CMP=CMP.draw(); CMP.setXLabel('Color',[.8,0,0],'FontName','Cambria','FontSize',15) CMP.setYLabel('Color',[0,0,.8],'FontName','Cambria','FontSize',15)- 1
- 2
- 3
- 4
- 5
- 6
- 7
7 框格式修改
使用
setBox函数修饰框样式,Line对象具有的属性均可被修饰，以下展示加粗并更改颜色：load XData.mat CMP=corrMatPlot(X,'Format','triu','Type','pie'); CMP=CMP.setColorMap(1); CMP=CMP.draw(); CMP.setBox('LineWidth',2,'Color',[.8,0,0])- 1
- 2
- 3
- 4
- 5
- 6
7 内容物修饰
使用
setPatch修改内容物格式，Patch对象具有的属性均可被修饰，以下展示加粗边缘，修改边缘颜色：load XData.mat CMP=corrMatPlot(X,'Format','triu','Type','pie'); CMP=CMP.setColorMap(1); CMP=CMP.draw(); CMP.setPatch('LineWidth',2,'EdgeColor',[0,0,.8])- 1
- 2
- 3
- 4
- 5
- 6
7 数值标签修饰
使用
setCorrTxt函数进行修饰，仅ssq格式的图像可修饰：load XData.mat CMP=corrMatPlot(X,'Format','triu','Type','ssq'); CMP=CMP.setColorMap(1); CMP=CMP.draw(); CMP.setCorrTxt('Color',[0,0,.8],'FontName','Cambria','FontSize',12)- 1
- 2
- 3
- 4
- 5
- 6
工具函数完整代码
classdef corrMatPlot % @author : slandarer % gzh : slandarer随笔 % 使用示例： % ========================================================================= % X=[-2.8461 -0.9470 -0.1491 -1.6213 -1.1106 0.6428 2.7456 -1.0897 % -0.7024 -0.1509 -1.9612 -0.9706 1.0950 0.3940 1.6108 0.6323 % 0.3761 -1.1815 -0.3485 -1.2662 -0.8673 -1.6869 -0.8052 1.4172 % 0.1717 0.0230 -0.1417 -0.0084 -1.2139 -0.6537 0.1804 0.5806 % -1.5339 0.0020 -2.4430 -0.5684 0.0198 -0.2628 -0.0488 1.3821 % -0.6906 0.6501 -0.2527 0.1571 0.7983 2.0210 -0.5023 -0.3868 % 0.7227 0.4469 1.1316 0.2165 1.9895 -0.9230 0.2779 0.1402 % -1.1487 -0.1272 0.0974 0.7397 -1.1794 1.4483 0.5348 0.9840 % 2.4263 0.3561 -0.5850 -0.0829 0.9081 0.6718 3.1348 -1.6806 % 1.4553 -0.7559 1.3223 -0.1616 1.6948 -0.0941 0.2619 0.0846 % 1.1833 2.0956 -0.4242 -1.1503 0.4986 -0.7468 -1.1212 -1.4685 % 1.2845 -0.3788 -0.2780 3.2273 0.2187 -1.7527 -0.5731 0.8619 % 0.9713 0.3849 0.4713 1.3746 1.3742 -0.0587 0.5780 -0.0382 % 1.4192 0.4118 1.0904 0.6697 1.1387 -1.4548 -1.4595 -0.6207 % -0.1758 -0.0541 3.3090 0.4501 1.5922 -2.0072 -0.5666 -1.0384 % 3.1798 1.2233 2.1071 0.3412 0.6792 -0.4604 0.3374 -0.6348 % 2.6781 0.9919 2.2081 2.3743 1.0871 0.2585 -0.6621 0.1306 % 1.6062 3.3028 2.5823 2.1885 2.4703 -1.1143 0.1006 1.9326 % -0.0094 2.4318 3.1476 1.9018 2.9599 -0.2546 -1.3590 -2.0736 % 2.0687 1.5410 1.1177 2.2240 2.3615 -0.5323 -1.0246 -0.2873]; % % CMP=corrMatPlot(X,'Format','triu','Type','pie'); % CMP=CMP.setColorMap(1); % CMP=CMP.draw(); % CMP.setLabelStr({'welcome','to','follow','my','wechat','official','account','slandarer'}) properties ax;drawn=false; arginList={'Labels','colorMap','Format','Type'} Labels={}; colorMap={}; baseCM={[189, 53, 70;255,255,255; 97, 97, 97]./255,... [113,161,195;255,255,255;228,103, 38]./255,... [ 28,127,119;255,255,255;204,157, 80]./255,... [130,130,255;255,255,255;255,133,133]./255,... [209,58,78;253,203,121;254,254,189;198,230,156;63,150,181]./255,... [243,166, 72;255,255,255;133,121,176]./255}; Format='full'% full:完整矩阵 triu:上三角 tril:下三角 Type='sq' % sq : 方形(默认) % ssq : 含文本方形 % pie : 饼图 % circ : 圆形 % oval : 椭圆形 XData;num;corrMat; % ----------------------------------------------------------------- boxHdl;txtHdl; RLabelHdl;CLabelHdl; colorbarHdl matrixHdl end methods function obj=corrMatPlot(varargin) if isa(varargin{1},'matlab.graphics.axis.Axes') obj.ax=varargin{1};varargin(1)=[]; else obj.ax=gca; end % 获取版本信息 tver=version('-release'); verMatlab=str2double(tver(1:4))+(abs(tver(5))-abs('a'))/2; if verMatlab<2017 hold on else hold(obj.ax,'on') end % ------------------------------------------------------------- obj.colorMap=obj.baseCM{1}; obj.XData=varargin{1};varargin(1)=[]; obj.corrMat=corr(obj.XData); obj.num=size(obj.corrMat,1); % 获取其他信息 for i=1:(length(varargin)-1) tid=ismember(obj.arginList,varargin{i}); if any(tid) obj.(obj.arginList{tid})=varargin{i+1}; end end if isempty(obj.Labels) for i=1:obj.num obj.Labels{i}=['class ',num2str(i)]; end end help corrMatPlot end % ========================================================================= function obj=draw(obj) obj.ax.XLim=[.5,obj.num+.8]; obj.ax.YLim=[.5,obj.num+.5]; obj.ax.XTick=[]; obj.ax.YTick=[]; obj.ax.XColor='none'; obj.ax.YColor='none'; obj.ax.PlotBoxAspectRatio=[1,1,1]; % 绘制boxHdl if strcmp(obj.Type(end-1:end),'sq');vb0='off';else,vb0='on';end switch obj.Format case 'full' bX=[repmat([.5,obj.num+.5],[obj.num+1,1]),ones([obj.num+1,1]).*nan]; bY=[repmat((.5:1:obj.num+.5)',[1,2]),ones([obj.num+1,1]).*nan]; bXX=[bX;bY]';bYY=[bY;bX]';bXX=bXX(:);bYY=bYY(:); obj.boxHdl=plot(bXX,bYY,'LineWidth',.8,'Color',[1,1,1].*.85,'Visible',vb0); case 'tril' bX=[.5.*ones([obj.num+1,1]),(0:obj.num)'+1.5,ones([obj.num+1,1]).*nan]; bX(end,2)=bX(end,2)-1; bY=[repmat((obj.num+.5:-1:.5)',[1,2]),ones([obj.num+1,1]).*nan]; bXX=[bX;bY]';bYY=[bY;bX]';bXX=bXX(:);bYY=bYY(:); obj.boxHdl=plot(bXX,bYY,'LineWidth',.8,'Color',[1,1,1].*.85,'Visible',vb0); case 'triu' bX=[(obj.num+.5).*ones([obj.num+1,1]),(obj.num:-1:0)'-.5,ones([obj.num+1,1]).*nan]; bX(end,2)=bX(end,2)+1; bY=[repmat((.5:1:obj.num+.5)',[1,2]),ones([obj.num+1,1]).*nan]; bXX=[bX;bY]';bYY=[bY;bX]';bXX=bXX(:);bYY=bYY(:); obj.boxHdl=plot(bXX,bYY,'LineWidth',.8,'Color',[1,1,1].*.85,'Visible',vb0); end colorFunc=colorFuncFactory(obj.colorMap); colormap(colorFunc(linspace(-1,1,100)));caxis([-1,1]) cb=colorbar(); % 绘制colorbar cb.Limits=[-1.02,1.02]; cb.TickDirection='out'; cb.LineWidth=.8; cb.Ticks=-1:.2:1; cb.FontName='Arial'; cb.FontSize=11; obj.colorbarHdl=cb; for row=1:obj.num for col=1:obj.num tValue=obj.corrMat(row,col); tColor=colorFunc(tValue); tGray=1-rgb2gray(tColor); baseT=linspace(0,2*pi,500); thetaMat=[1,-1;1,1].*sqrt(2)./2; vb1='on'; if strcmp(obj.Format,'triu')&&row>col,vb1='off';end if strcmp(obj.Format,'tril')&&row<col,vb1='off';end switch obj.Type case 'sq' % 方形 baseSqX=[-.5,.5,.5,-.5].*0.95; baseSqY=[-.5,-.5,.5,.5].*0.95; obj.matrixHdl(row,col).f=fill(baseSqX+col,baseSqY+1+obj.num-row,... tColor,'EdgeColor','none','Visible',vb1); case 'ssq' % 含文本方形 baseSqX=[-.5,.5,.5,-.5].*0.95; baseSqY=[-.5,-.5,.5,.5].*0.95; obj.matrixHdl(row,col).f=fill(baseSqX+col,baseSqY+1+obj.num-row,... tColor,'EdgeColor','none','Visible',vb1); obj.matrixHdl(row,col).t=text(col,1+obj.num-row,... sprintf('%.2f',obj.corrMat(row,col)),'FontName','Arial','FontSize',10,... 'HorizontalAlignment','center','Color',tGray,'Visible',vb1); case 'pie' % 饼图 baseCircX=cos(baseT).*.92.*.5; baseCircY=sin(baseT).*.92.*.5; obj.matrixHdl(row,col).c=fill(baseCircX+col,baseCircY+1+obj.num-row,... [1,1,1],'EdgeColor',[1,1,1].*.3,'LineWidth',.8,'Visible',vb1); baseTheta=linspace(pi/2,pi/2+tValue.*2.*pi,200); basePieX=[0,cos(baseTheta).*.92.*.5]; basePieY=[0,sin(baseTheta).*.92.*.5]; obj.matrixHdl(row,col).f=fill(basePieX+col,basePieY+1+obj.num-row,... tColor,'EdgeColor',[1,1,1].*.3,'lineWidth',.8,'Visible',vb1); case 'circ' % 圆形 baseR=(.25+.6.*abs(tValue)).*.5; baseCircX=cos(baseT).*baseR; baseCircY=sin(baseT).*baseR; obj.matrixHdl(row,col).f=fill(baseCircX+col,baseCircY+1+obj.num-row,... tColor,'EdgeColor','none','Visible',vb1); case 'oval' % 椭圆形 baseA=1+(tValue<=0).*tValue; baseB=1-(tValue>=0).*tValue; baseOvalX=cos(baseT).*.98.*.5.*baseA; baseOvalY=sin(baseT).*.98.*.5.*baseB; baseOvalXY=thetaMat*[baseOvalX;baseOvalY]; obj.matrixHdl(row,col).f=fill(baseOvalXY(1,:)+col,baseOvalXY(2,:)+1+obj.num-row,... tColor,'EdgeColor',[1,1,1].*.3,'lineWidth',.8,'Visible',vb1); end end end tfig=obj.ax.Parent; tfig.Position(2)=tfig.Position(2)./2; tfig.Position(4)=tfig.Position(3); tfig.Color=[1,1,1]; for row=1:obj.num obj.RLabelHdl(row)=text(.42+(row-1).*strcmp(obj.Format,'triu'),obj.num+1-row,... obj.Labels{row},'HorizontalAlignment','right',... 'FontName','Arial','FontSize',12); end for col=1:obj.num obj.CLabelHdl(col)=text(col-.1,obj.num+.75-(col-1).*strcmp(obj.Format,'tril'),... obj.Labels{col},'HorizontalAlignment','left',... 'FontName','Arial','FontSize',12,'Rotation',30); end obj.drawn=true; % ------------------------------------------------------------- % 渐变色句柄生成函数 function colorFunc=colorFuncFactory(colorList) x=linspace(-1,1,size(colorList,1)); y1=colorList(:,1);y2=colorList(:,2);y3=colorList(:,3); colorFunc=@(X)[interp1(x,y1,X,'linear')',... interp1(x,y2,X,'linear')',interp1(x,y3,X,'linear')']; end end % ========================================================================= % 预设/设置colormap function obj=setColorMap(obj,CM) if length(CM)==1 obj.colorMap=obj.baseCM{CM}; else obj.colorMap=CM; end if obj.drawn colorFunc=colorFuncFactory(obj.colorMap); colormap(colorFunc(linspace(-1,1,100))); for row=1:obj.num for col=1:obj.num tValue=obj.corrMat(row,col); tColor=colorFunc(tValue); tGray=1-rgb2gray(tColor); set(obj.matrixHdl(row,col).f,'FaceColor',tColor); if strcmp(obj.Type,'ssq') set(obj.matrixHdl(row,col).t,'Color',tGray) end end end end % ------------------------------------------------------------- % 渐变色句柄生成函数 function colorFunc=colorFuncFactory(colorList) x=linspace(-1,1,size(colorList,1)); y1=colorList(:,1);y2=colorList(:,2);y3=colorList(:,3); colorFunc=@(X)[interp1(x,y1,X,'linear')',... interp1(x,y2,X,'linear')',interp1(x,y3,X,'linear')']; end end % XY轴标签设置 function obj=setLabelStr(obj,LB) obj.Labels=LB; if obj.drawn for i=1:obj.num set(obj.RLabelHdl(i),'String',obj.Labels{i}); set(obj.CLabelHdl(i),'String',obj.Labels{i}); end end end function obj=setXLabel(obj,varargin) for i=1:obj.num set(obj.CLabelHdl(i),varargin{:}) end end function obj=setYLabel(obj,varargin) for i=1:obj.num set(obj.RLabelHdl(i),varargin{:}) end end % patch对象设置 function obj=setPatch(obj,varargin) for row=1:obj.num for col=1:obj.num set(obj.matrixHdl(row,col).f,varargin{:}); if strcmp(obj.Type,'pie') set(obj.matrixHdl(row,col).c,varargin{:},'FaceColor',[1,1,1]) end end end end % 设置数值文本 function obj=setCorrTxt(obj,varargin) if strcmp(obj.Type,'ssq') for row=1:obj.num for col=1:obj.num set(obj.matrixHdl(row,col).t,varargin{:}) end end end end % 设置框样式 function obj=setBox(obj,varargin) set(obj.boxHdl,varargin{:},'Visible','on') end end % @author : slandarer % gzh : slandarer随笔 end- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
- 42
- 43
- 44
- 45
- 46
- 47
- 48
- 49
- 50
- 51
- 52
- 53
- 54
- 55
- 56
- 57
- 58
- 59
- 60
- 61
- 62
- 63
- 64
- 65
- 66
- 67
- 68
- 69
- 70
- 71
- 72
- 73
- 74
- 75
- 76
- 77
- 78
- 79
- 80
- 81
- 82
- 83
- 84
- 85
- 86
- 87
- 88
- 89
- 90
- 91
- 92
- 93
- 94
- 95
- 96
- 97
- 98
- 99
- 100
- 101
- 102
- 103
- 104
- 105
- 106
- 107
- 108
- 109
- 110
- 111
- 112
- 113
- 114
- 115
- 116
- 117
- 118
- 119
- 120
- 121
- 122
- 123
- 124
- 125
- 126
- 127
- 128
- 129
- 130
- 131
- 132
- 133
- 134
- 135
- 136
- 137
- 138
- 139
- 140
- 141
- 142
- 143
- 144
- 145
- 146
- 147
- 148
- 149
- 150
- 151
- 152
- 153
- 154
- 155
- 156
- 157
- 158
- 159
- 160
- 161
- 162
- 163
- 164
- 165
- 166
- 167
- 168
- 169
- 170
- 171
- 172
- 173
- 174
- 175
- 176
- 177
- 178
- 179
- 180
- 181
- 182
- 183
- 184
- 185
- 186
- 187
- 188
- 189
- 190
- 191
- 192
- 193
- 194
- 195
- 196
- 197
- 198
- 199
- 200
- 201
- 202
- 203
- 204
- 205
- 206
- 207
- 208
- 209
- 210
- 211
- 212
- 213
- 214
- 215
- 216
- 217
- 218
- 219
- 220
- 221
- 222
- 223
- 224
- 225
- 226
- 227
- 228
- 229
- 230
- 231
- 232
- 233
- 234
- 235
- 236
- 237
- 238
- 239
- 240
- 241
- 242
- 243
- 244
- 245
- 246
- 247
- 248
- 249
- 250
- 251
- 252
- 253
- 254
- 255
- 256
- 257
- 258
- 259
- 260
- 261
- 262
- 263
- 264
- 265
- 266
- 267
- 268
- 269
- 270
- 271
- 272
- 273
- 274
- 275
- 276
- 277
- 278
- 279
- 280
- 281
- 282
- 283
- 284
- 285
- 286
- 287
- 288
- 289
- 290
- 291
- 292
- 293
- 294
- 295
- 296
- 297
- 298
另：试了一下更多组数据绘图，效果还行：
完
未经允许本代码请勿作商业用途，引用的话可以引用我file exchange上的链接，可使用如下格式：
Zhaoxu Liu (2022). corr plot 相关系数矩阵图 (https://www.mathworks.com/matlabcentral/fileexchange/117100-corr-plot), MATLAB Central File Exchange. 检索来源 2022/9/3.
若转载请保留以上file exchange链接及本文链接！！！
以上已经为全部代码，但懒得复制的话:
【相关系数矩阵图】
更新时会跟进更新以下连接：
【链接】：https://pan.baidu.com/s/1URle1b3dwdsE-9gtj5Ru-g?pwd=slan
【提取码】：slan
-
