实测 ubuntu 20.04 使用 lidar_imu_calib 功能包 进行 激光雷达与imu标定

功能包介绍

功能包名称：
lidar_imu_calib

功能包简介：
在基于3D激光雷达开发slam时，我们经常使用imu为匹配算法(icp, ndt)提供先验，所以需要校准lidar和imu之间的变换。对于匹配算法，transfom中的姿态比transform中的位置更重要 , 并且位置通常设置为 0。所以这个功能包只校准激光雷达和 imu 之间转换中的姿态分量。

功能包地址：
https://github.com/chennuo0125-HIT/lidar_imu_calib

功能包下载与编译

安装步骤：

mkdir -p catkin_ws/src
cd catkin_ws/src
git clone https://github.com/chennuo0125-HIT/lidar_imu_calib.git
cd ..
catkin_make -DCATKIN_WHITELIST_PACKAGES="ndt_omp;lidar_imu_calib"
1
2
3
4
5

此时会出现报错问题

报错内容：

/usr/include/pcl-1.10/pcl/common/impl/io.hpp: In function ‘void pcl::copyPointCloud(const pcl::PointCloud<PointT>&, const std::vector<pcl::PointIndices>&, pcl::PointCloud<PointOutT>&)’:
/usr/include/pcl-1.10/pcl/common/impl/io.hpp:272:16: error: use of ‘auto’ in lambda parameter declaration only available with ‘-std=c++14’ or ‘-std=gnu++14’
  272 |       [](const auto& acc, const auto& index) { return index.indices.size() + acc; });
      |                ^~~~
/usr/include/pcl-1.10/pcl/common/impl/io.hpp:272:33: error: use of ‘auto’ in lambda parameter declaration only available with ‘-std=c++14’ or ‘-std=gnu++14’
  272 |       [](const auto& acc, const auto& index) { return index.indices.size() + acc; });
      |                                 ^~~~
/usr/include/pcl-1.10/pcl/common/impl/io.hpp: In lambda function:
/usr/include/pcl-1.10/pcl/common/impl/io.hpp:272:61: error: request for member ‘indices’ in ‘index’, which is of non-class type ‘const int’
  272 |       [](const auto& acc, const auto& index) { return index.indices.size() + acc; });
      |                                                             ^~~~~~~
In file included from /usr/include/pcl-1.10/pcl/io/pcd_io.h:44,
                 from /home/jone/jone_ws/src/lidar_imu_calib/lidar_imu_calib/src/lib/calibExRLidar2Imu.cpp:5:
/usr/include/pcl-1.10/pcl/io/file_io.h: At global scope:
/usr/include/pcl-1.10/pcl/io/file_io.h:235:8: error: ‘enable_if_t’ in namespace ‘std’ does not name a template type; did you mean ‘enable_if’?
  235 |   std::enable_if_t<std::is_floating_point<Type>::value>
      |        ^~~~~~~~~~~
      |        enable_if
In file included from /usr/include/pcl-1.10/pcl/io/pcd_io.h:44,
                 from /home/jone/jone_ws/src/lidar_imu_calib/lidar_imu_calib/src/lib/calibExRLidar2Imu.cpp:5:
/usr/include/pcl-1.10/pcl/io/file_io.h:252:8: error: ‘enable_if_t’ in namespace ‘std’ does not name a template type; did you mean ‘enable_if’?
  252 |   std::enable_if_t<std::is_integral<Type>::value>
      |        ^~~~~~~~~~~
      |        enable_if
/usr/include/pcl-1.10/pcl/io/file_io.h:266:18: error: expected initializer before ‘<’ token
  266 |   copyValueString<std::int8_t> (const pcl::PCLPointCloud2 &cloud,
      |                  ^
/usr/include/pcl-1.10/pcl/io/file_io.h:280:18: error: expected initializer before ‘<’ token
  280 |   copyValueString<std::uint8_t> (const pcl::PCLPointCloud2 &cloud,
      |                  ^
/usr/include/pcl-1.10/pcl/io/file_io.h:304:8: error: ‘enable_if_t’ in namespace ‘std’ does not name a template type; did you mean ‘enable_if’?
  304 |   std::enable_if_t<std::is_floating_point<Type>::value, bool>
      |        ^~~~~~~~~~~
      |        enable_if
/usr/include/pcl-1.10/pcl/io/file_io.h:317:8: error: ‘enable_if_t’ in namespace ‘std’ does not name a template type; did you mean ‘enable_if’?
  317 |   std::enable_if_t<std::is_integral<Type>::value, bool>
      |        ^~~~~~~~~~~
      |        enable_if
^CIn file included from /usr/include/c++/9/algorithm:62,
                 from /usr/include/boost/smart_ptr/shared_ptr.hpp:39,
                 from /usr/include/pcl-1.10/pcl/pcl_macros.h:69,
                 from /usr/include/pcl-1.10/pcl/point_types.h:42,
                 from /home/jone/jone_ws/src/lidar_imu_calib/lidar_imu_calib/include/calibExRLidar2Imu.h:9,
                 from /home/jone/jone_ws/src/lidar_imu_calib/lidar_imu_calib/src/lib/calibExRLidar2Imu.cpp:1:
/usr/include/c++/9/bits/stl_algo.h: In instantiation of ‘_OIter std::transform(_IIter, _IIter, _OIter, _UnaryOperation) [with _IIter = __gnu_cxx::__normal_iterator<const pcl::Vertices*, std::vector<pcl::Vertices> >; _OIter = std::back_insert_iterator<std::vector<pcl::Vertices> >; _UnaryOperation = pcl::PolygonMesh::concatenate(pcl::PolygonMesh&, const pcl::PolygonMesh&)::<lambda(int)>]’:
/usr/include/pcl-1.10/pcl/PolygonMesh.h:55:24:   required from here
/usr/include/c++/9/bits/stl_algo.h:4343:24: error: no match for call to ‘(pcl::PolygonMesh::concatenate(pcl::PolygonMesh&, const pcl::PolygonMesh&)::<lambda(int)>) (const pcl::Vertices&)’
 4343 |  *__result = __unary_op(*__first);
      |              ~~~~~~~~~~^~~~~~~~~~
In file included from /usr/include/pcl-1.10/pcl/common/io.h:50,
                 from /usr/include/pcl-1.10/pcl/filters/filter.h:43,
                 from /usr/include/pcl-1.10/pcl/filters/voxel_grid.h:43,
                 from /home/jone/jone_ws/src/lidar_imu_calib/lidar_imu_calib/include/calibExRLidar2Imu.h:11,
                 from /home/jone/jone_ws/src/lidar_imu_calib/lidar_imu_calib/src/lib/calibExRLidar2Imu.cpp:1:
/usr/include/pcl-1.10/pcl/PolygonMesh.h:45:22: note: candidate: ‘pcl::PolygonMesh::concatenate(pcl::PolygonMesh&, const pcl::PolygonMesh&)::<lambda(int)>’
   45 |                      [point_offset](auto polygon)
      |                      ^
/usr/include/pcl-1.10/pcl/PolygonMesh.h:45:22: note:   no known conversion for argument 1 from ‘const pcl::Vertices’ to ‘int’
In file included from /usr/include/c++/9/numeric:62,
                 from /usr/include/boost/random/discrete_distribution.hpp:18,
                 from /usr/include/boost/random.hpp:63,
                 from /usr/include/pcl-1.10/pcl/filters/boost.h:48,
                 from /usr/include/pcl-1.10/pcl/filters/voxel_grid.h:42,
                 from /home/jone/jone_ws/src/lidar_imu_calib/lidar_imu_calib/include/calibExRLidar2Imu.h:11,
                 from /home/jone/jone_ws/src/lidar_imu_calib/lidar_imu_calib/src/lib/calibExRLidar2Imu.cpp:1:
/usr/include/c++/9/bits/stl_numeric.h: In instantiation of ‘_Tp std::accumulate(_InputIterator, _InputIterator, _Tp, _BinaryOperation) [with _InputIterator = __gnu_cxx::__normal_iterator<const pcl::PCLPointField*, std::vector<pcl::PCLPointField> >; _Tp = std::__cxx11::basic_string<char>; _BinaryOperation = pcl::getFieldsList(const pcl::PCLPointCloud2&)::<lambda(const int&, const int&)>]’:
/usr/include/pcl-1.10/pcl/common/io.h:144:82:   required from here
/usr/include/c++/9/bits/stl_numeric.h:166:22: error: no match for call to ‘(pcl::getFieldsList(const pcl::PCLPointCloud2&)::<lambda(const int&, const int&)>) (std::__cxx11::basic_string<char>&, const pcl::PCLPointField&)’
  166 |  __init = __binary_op(_GLIBCXX_MOVE_IF_20(__init), *__first);
      |           ~~~~~~~~~~~^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70

只截取了其中一段

报错原因：
ubuntu 20.04 的 ros版本是noetic 带的pcl是 pcl-1.10，这个版本和之前的有所不同

这么多错误就一个原因 ： pcl-1.10需要用c++14及以上编译。

报错解决方法：
打开 lidar_imu_calib 文件夹下的 CMakeLists.txt
将第五行

add_compile_options(-std=c++11)
1

换成

add_compile_options(-std=c++14)
1

即可编译成功

使用功能包

接入雷达和imu

找个电源适配器，9-18v给雷达供电。雷达连接其连接器，网口接到ROS的工控机上即可

将工控机的网口配置为

ipv4，方式设置为手动

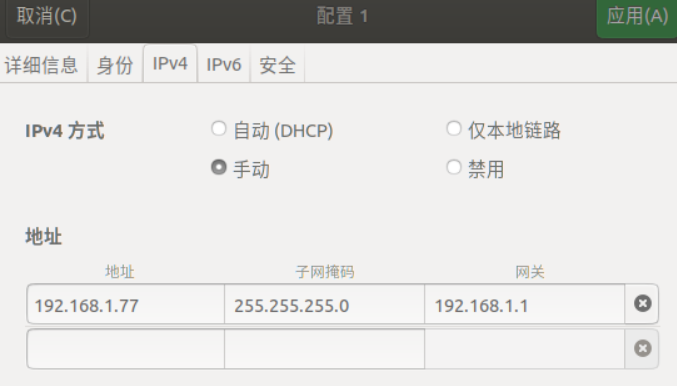

ip地址、掩码以及网关设置成下图

其中地址 不能为 192.168.1.201 ，这个是雷达的地址

运行雷达驱动程序

roslaunch velodyne_pointcloud VLP16_points.launch
1

imu模块的硬件连接很简单，usb给模块供电，并与pc通信，插上后

运行imu驱动程序

roslaunch fdilink_ahrs ahrs_data.launch
1

通过 rostopic list 指令，检查下消息是 否正确

图片中的/imu /velodyne_points就是两个传感器的消息名称

录制 rosbag 文件

通过

rosbag record /imu /velodyne_points
1

来录制两个传感器的消息

执行 lidar_imu_calib 功能包

上面的工作主要是给功能包准备数据，下面即可执行功能包了

首先需要 修改 配置文件
相关的参数没有config文件夹的yaml文件，是直接在其launch文件中设置的

将 /lidar_topic 和 /imu_topic 与/bag_file 修改成自己的

之后便可以运行功能包

roslaunch lidar_imu_calib calib_exR_lidar2imu.launch
1

功能包会显示添加 lidar 消息


最后会显示 lidar的消息数量和imu的数量 形成约束的数量

再等一下就会出现计算的结果
