JAXBContext 为非根节点添加多个属性或多个子节点添加属性

效果如下：

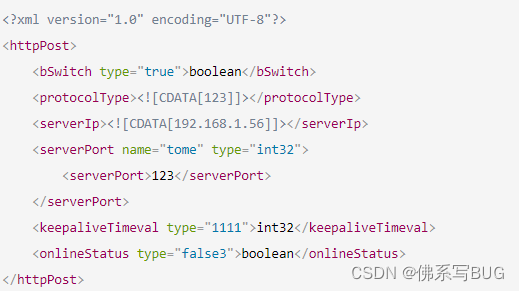

多个子节点添加属性

在这里插入图片描述

同一节点添加多个属性

在这里插入图片描述
@XmlValue 注解同一个类只能出现一次
@XmlJavaTypeAdapter(CdataXmlAdapter.class) 注解处理长字符串，转xml时添加，CdataXmlAdapter为自定义类，具体见：
JAXBContext 实现 XML与bean互相转换

1、多个子节点添加属性

生成xml 如下


<httpPost>
    <bSwitch type="true">booleanbSwitch>
    <protocolType>protocolType>
    <serverIp>serverIp>
    <serverPort name="tome" type="int32">
        <serverPort>123serverPort>
    serverPort>
    <keepaliveTimeval type="1111">int32keepaliveTimeval>
    <onlineStatus type="false3">booleanonlineStatus>
httpPost>
1
2
3
4
5
6
7
8
9
10
11

 public static void main(String[] args) {

        IotTvtHttpPostDataParam httpPost = new IotTvtHttpPostDataParam();

        httpPost.setProtocolType("123");
        httpPost.setServerIp("192.168.1.56");

        IotTvtbSwitchData switchData = new IotTvtbSwitchData();
        switchData.setBSwitch("true");
        switchData.setValue("boolean");
        httpPost.setBSwitch(switchData);

        IotServerPortData serverPortData = new IotServerPortData();
        serverPortData.setServerPort(123);
        serverPortData.setType("int32");
        serverPortData.setName("tome");
        httpPost.setServerPort(serverPortData);

        IotKeepaliveTimevalData keepaliveTimevalData = new IotKeepaliveTimevalData();
        keepaliveTimevalData.setKeepaliveTimeval(1111);
        keepaliveTimevalData.setValue("int32");
        httpPost.setKeepaliveTimeval(keepaliveTimevalData);

        IotOnlineStatusData onlineStatusData = new IotOnlineStatusData();
        onlineStatusData.setOnlineStatus("false3");
        onlineStatusData.setValue("boolean");
        httpPost.setOnlineStatus(onlineStatusData);
		//生成XML
        String toXml = XmlUtil.toXml(httpPost);

        System.out.println();

    }

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34

bean 结构如下：

IotTvtHttpPostDataParam

import lombok.Data;
import javax.xml.bind.annotation.*;
import javax.xml.bind.annotation.adapters.XmlJavaTypeAdapter;
import java.io.Serializable;

@Data
@XmlRootElement(name = "httpPost")
@XmlAccessorType(XmlAccessType.FIELD)
public class IotTvtHttpPostDataParam implements Serializable {


    @XmlElement
    private IotTvtbSwitchData bSwitch;

    @XmlJavaTypeAdapter(CdataXmlAdapter.class)
    private String protocolType;

    @XmlJavaTypeAdapter(CdataXmlAdapter.class)
    private String serverIp;

    @XmlElement
    private IotServerPortData serverPort;

    @XmlElement
    private IotKeepaliveTimevalData keepaliveTimeval;

    @XmlElement
    private IotOnlineStatusData onlineStatus;

}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31

IotTvtbSwitchData


import lombok.Data;

import javax.xml.bind.annotation.*;

@Data
@XmlAccessorType(XmlAccessType.FIELD)
public class IotTvtbSwitchData {

    @XmlAttribute(name = "type")
    private String bSwitch;

    @XmlValue
    private String value;

}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

IotServerPortData

import lombok.Data;
import javax.xml.bind.annotation.XmlAccessType;
import javax.xml.bind.annotation.XmlAccessorType;
import javax.xml.bind.annotation.XmlAttribute;
import javax.xml.bind.annotation.XmlValue;

@Data
@XmlAccessorType(XmlAccessType.FIELD)
public class IotServerPortData {

    private int serverPort;

    @XmlAttribute
    private String name;

    @XmlAttribute
    private String type;
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

IotKeepaliveTimevalData


import lombok.Data;

import javax.xml.bind.annotation.XmlAccessType;
import javax.xml.bind.annotation.XmlAccessorType;
import javax.xml.bind.annotation.XmlAttribute;
import javax.xml.bind.annotation.XmlValue;

@Data
@XmlAccessorType(XmlAccessType.FIELD)
public class IotKeepaliveTimevalData {

    @XmlAttribute(name = "type")
    private int keepaliveTimeval;

    @XmlValue
    private String value;
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

IotOnlineStatusData


import lombok.Data;
import javax.xml.bind.annotation.XmlAccessType;
import javax.xml.bind.annotation.XmlAccessorType;
import javax.xml.bind.annotation.XmlAttribute;
import javax.xml.bind.annotation.XmlValue;

@Data
@XmlAccessorType(XmlAccessType.FIELD)
public class IotOnlineStatusData {

    @XmlAttribute(name = "type")
    private String onlineStatus;

    @XmlValue
    private String value;
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

XmlUtil


import cn.hutool.json.JSONUtil;
import java.io.Reader;
import java.io.StringReader;
import java.io.StringWriter;
import java.lang.reflect.Proxy;
import javax.xml.bind.JAXBContext;
import javax.xml.bind.Marshaller;
import javax.xml.bind.Unmarshaller;
import javax.xml.parsers.SAXParserFactory;
import javax.xml.stream.XMLOutputFactory;
import javax.xml.stream.XMLStreamWriter;
import javax.xml.transform.Source;
import javax.xml.transform.Transformer;
import javax.xml.transform.TransformerFactory;
import javax.xml.transform.sax.SAXSource;
import javax.xml.transform.stream.StreamResult;
import javax.xml.transform.stream.StreamSource;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.xml.sax.InputSource;
import org.xml.sax.XMLReader;

public class XmlUtil {
    private static final Logger log = LoggerFactory.getLogger(XmlUtil.class);

    public XmlUtil() {
    }

    public static <T> T toBean(Class<T> c, String xmlStr) {
        try {
            Reader reader = new StringReader(xmlStr);
            Throwable var3 = null;

            Object var9;
            try {
                JAXBContext jaxbContext = JAXBContext.newInstance(new Class[]{c});
                Unmarshaller unmarshaller = jaxbContext.createUnmarshaller();
                SAXParserFactory sax = SAXParserFactory.newInstance();
                sax.setNamespaceAware(false);
                XMLReader xmlReader = sax.newSAXParser().getXMLReader();
                Source source = new SAXSource(xmlReader, new InputSource(reader));
                var9 = unmarshaller.unmarshal(source);
            } catch (Throwable var19) {
                var3 = var19;
                throw var19;
            } finally {
                if (reader != null) {
                    if (var3 != null) {
                        try {
                            reader.close();
                        } catch (Throwable var18) {
                            var3.addSuppressed(var18);
                        }
                    } else {
                        reader.close();
                    }
                }

            }

            return var9;
        } catch (Exception var21) {
            log.error("toBean Exception: {}", xmlStr, var21);
            return null;
        }
    }

    public static String toXml(Object obj) {
        try {
            StringWriter writer = new StringWriter();
            XMLStreamWriter streamWriter = XMLOutputFactory.newInstance().createXMLStreamWriter(writer);
            XMLStreamWriter cdataStreamWriter = (XMLStreamWriter)Proxy.newProxyInstance(streamWriter.getClass().getClassLoader(), streamWriter.getClass().getInterfaces(), new CdataHandler(streamWriter));
            JAXBContext jc = JAXBContext.newInstance(new Class[]{obj.getClass()});
            Marshaller marshaller = jc.createMarshaller();
            marshaller.setProperty("jaxb.encoding", "UTF-8");
            marshaller.marshal(obj, cdataStreamWriter);
            return indentFormat(writer.toString());
        } catch (Exception var6) {
            log.error("toXml Exception: {}", JSONUtil.toJsonStr(obj), var6);
            return null;
        }
    }

    private static String indentFormat(String xml) {
        try {
            TransformerFactory factory = TransformerFactory.newInstance();
            Transformer transformer = factory.newTransformer();
            transformer.setOutputProperty("indent", "yes");
            transformer.setOutputProperty("omit-xml-declaration", "yes");
            transformer.setOutputProperty("encoding", "UTF-8");
            transformer.setOutputProperty("{http://xml.apache.org/xslt}indent-amount", "4");
            StringWriter formattedStringWriter = new StringWriter();
            transformer.transform(new StreamSource(new StringReader(xml)), new StreamResult(formattedStringWriter));
            return "\n" + formattedStringWriter;
        } catch (Exception var4) {
            log.error("indentFormat Exception", var4);
            return "";
        }
    }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102

2、同一节点添加多个属性

以上面示例为基础进行了部分修改
IotServerPortData类

xml效果如下：

在这里插入图片描述

生成的 XML


<httpPost>
    <bSwitch type="true">booleanbSwitch>
    <protocolType>protocolType>
    <serverIp>serverIp>
    <serverPort title="123" name="tome" type="int32">测试serverPort>
    <keepaliveTimeval type="1111">int32keepaliveTimeval>
    <onlineStatus type="false3">booleanonlineStatus>
httpPost>
1
2
3
4
5
6
7
8
9

IotServerPortData 修改后

import lombok.Data;

import javax.xml.bind.annotation.XmlAccessType;
import javax.xml.bind.annotation.XmlAccessorType;
import javax.xml.bind.annotation.XmlAttribute;
import javax.xml.bind.annotation.XmlValue;
@Data
@XmlAccessorType(XmlAccessType.FIELD)
public class IotServerPortData {

    @XmlAttribute(name = "title")
    private int serverPort;

    @XmlAttribute
    private String name;

    @XmlAttribute
    private String type;

    @XmlValue
    private String value;

}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

main 方法中 IotServerPortData 赋值

IotServerPortData serverPortData = new IotServerPortData();
        serverPortData.setServerPort(123);
        serverPortData.setType("int32");
        serverPortData.setName("tome");
        serverPortData.setValue("测试");
        httpPost.setServerPort(serverPortData);
1
2
3
4
5
6

JAXBContext 实现 XML与bean互相转换
