【MicroPython ESP32】ssd1306 0.96“OLED+气象数据中文显示

【MicroPython ESP32】ssd1306 0.96“OLED+气象数据中文显示

---

• ✨本实例基于Thonny平台开发
• 📌相关篇《【MicroPython ESP32】ssd1306模块基于GB2312字库驱动0.96“I2C屏幕汉字显示示例》
• 🌼效果展示


⚡本篇硬件ESP32所使用的是特定的固件包， 包含GB2312字库驱动，如果硬件所使用的microPython官方的固件并不适合本篇所讲的内容。请参照上面提供的相关篇内容进行了解和固件刷写。

• 📚固件资源和字库

链接：https://pan.baidu.com/s/11tq0UUur2Zspt0VvcBTYpg
提取码：it1b
1
2

📑开启这一篇内容前，说说调试经历，调试过程中遇到了一个很大的坑，折腾了一天。山穷水尽疑无路，人总需要抱一丝希望，万一成功了呢？遇到困难需要变通方法才行，否则容易被困于死胡同，找不到解答。

• 🌿调试bug:ImportError: no module named 'parse'

在引入模块import urequests时，老是出现ImportError: no module named 'parse'，出现这个问题，结果查阅，Python使用import语句访问modules，需要指定从中导入Parse的路径，了解文件夹层次结构非常重要。

• 🔧思路参考：https://www.codenong.com/46211002/

🚩原固件本身始是基于uPyCraft平台开发的使用的，MicroPython设备根目录下带lib文件夹，import urequests模块在MicroPython官方的固件中是已经封装到固件里面的，而这个带字库支持的固件却没有，但是有关代码中应该是又有指定了路径，所以在调用import urequests模块时，不仅需要上传到MicroPython设备上，而且需要指定路径。

📝接线说明

• 🎋所使用的是0.96" I2C OLED屏幕

scl=Pin(22)
sda=Pin(21)
1
2

⛳心知天气API接口

• 📍心知天气：https://www.seniverse.com/


🎉免费版的使用次数足够一般的需求了。

https://api.seniverse.com/v3/weather/now.json?key=your_api_key&location=beijing&language=zh-Hans&unit=c
1

• your_api_key：填写自己申请的Key（在使用我的代码时，请不要使用我保留下来的Key）

• beijing：换成自己的城市（拼音）

def fetchWeather(location):
    result = urequests.get("https://api.seniverse.com/v3/weather/now.json?key=S9hoa4Wza9Hcs2uX_&location=shenzhen&language=zh-Hans&unit=c")
    return result.text
1
2
3

• 填写个人的wifi信息

SSID ="MERCURY_D268G" # 填写个人wifi信息
PASSWORD ="pba5ayzk"
1
2

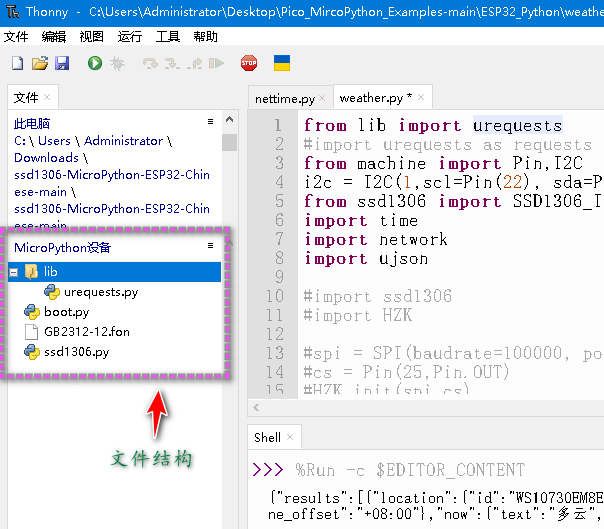

🍁文件结构

• 所需的字库文件，固件资源下载地址：https://github.com/kaixindelele/ssd1306-MicroPython-ESP32-Chinese/(已在上面提供了百度网盘资源)

• urequests.py内容：

import usocket

class Response:

    def __init__(self, f):
        self.raw = f
        self.encoding = "utf-8"
        self._cached = None

    def close(self):
        if self.raw:
            self.raw.close()
            self.raw = None
        self._cached = None

    @property
    def content(self):
        if self._cached is None:
            try:
                self._cached = self.raw.read()
            finally:
                self.raw.close()
                self.raw = None
        return self._cached

    @property
    def text(self):
        return str(self.content, self.encoding)

    def json(self):
        import ujson
        return ujson.loads(self.content)


def request(method, url, data=None, json=None, headers={}, stream=None):
    try:
        proto, dummy, host, path = url.split("/", 3)
    except ValueError:
        proto, dummy, host = url.split("/", 2)
        path = ""
    if proto == "http:":
        port = 80
    elif proto == "https:":
        import ussl
        port = 443
    else:
        raise ValueError("Unsupported protocol: " + proto)

    if ":" in host:
        host, port = host.split(":", 1)
        port = int(port)

    ai = usocket.getaddrinfo(host, port, 0, usocket.SOCK_STREAM)
    ai = ai[0]

    s = usocket.socket(ai[0], ai[1], ai[2])
    try:
        s.connect(ai[-1])
        if proto == "https:":
            s = ussl.wrap_socket(s, server_hostname=host)
        s.write(b"%s /%s HTTP/1.0\r\n" % (method, path))
        if not "Host" in headers:
            s.write(b"Host: %s\r\n" % host)
        # Iterate over keys to avoid tuple alloc
        for k in headers:
            s.write(k)
            s.write(b": ")
            s.write(headers[k])
            s.write(b"\r\n")
        if json is not None:
            assert data is None
            import ujson
            data = ujson.dumps(json)
            s.write(b"Content-Type: application/json\r\n")
        if data:
            s.write(b"Content-Length: %d\r\n" % len(data))
        s.write(b"\r\n")
        if data:
            s.write(data)

        l = s.readline()
        #print(l)
        l = l.split(None, 2)
        status = int(l[1])
        reason = ""
        if len(l) > 2:
            reason = l[2].rstrip()
        while True:
            l = s.readline()
            if not l or l == b"\r\n":
                break
            #print(l)
            if l.startswith(b"Transfer-Encoding:"):
                if b"chunked" in l:
                    raise ValueError("Unsupported " + l)
            elif l.startswith(b"Location:") and 300 < status < 400:
                new_url = (l[10:-2]).decode('utf8')
                return request(method, new_url, data, json, headers, stream)
    except OSError:
        s.close()
        raise

    resp = Response(s)
    resp.status_code = status
    resp.reason = reason
    return resp


def head(url, **kw):
    return request("HEAD", url, **kw)

def get(url, **kw):
    return request("GET", url, **kw)

def post(url, **kw):
    return request("POST", url, **kw)

def put(url, **kw):
    return request("PUT", url, **kw)

def patch(url, **kw):
    return request("PATCH", url, **kw)

def delete(url, **kw):
    return request("DELETE", url, **kw)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126

• ssd1306.py内容

# MicroPython SSD1306 OLED driver, I2C and SPI interfaces

from micropython import const
import framebuf


# register definitions
SET_CONTRAST = const(0x81)
SET_ENTIRE_ON = const(0xA4)
SET_NORM_INV = const(0xA6)
SET_DISP = const(0xAE)
SET_MEM_ADDR = const(0x20)
SET_COL_ADDR = const(0x21)
SET_PAGE_ADDR = const(0x22)
SET_DISP_START_LINE = const(0x40)
SET_SEG_REMAP = const(0xA0)
SET_MUX_RATIO = const(0xA8)
SET_COM_OUT_DIR = const(0xC0)
SET_DISP_OFFSET = const(0xD3)
SET_COM_PIN_CFG = const(0xDA)
SET_DISP_CLK_DIV = const(0xD5)
SET_PRECHARGE = const(0xD9)
SET_VCOM_DESEL = const(0xDB)
SET_CHARGE_PUMP = const(0x8D)

# Subclassing FrameBuffer provides support for graphics primitives
# http://docs.micropython.org/en/latest/pyboard/library/framebuf.html
class SSD1306(framebuf.FrameBuffer):
    def __init__(self, width, height, external_vcc):
        self.width = width
        self.height = height
        self.external_vcc = external_vcc
        self.pages = self.height // 8
        self.buffer = bytearray(self.pages * self.width)
        super().__init__(self.buffer, self.width, self.height, framebuf.MONO_VLSB, self.width)
        self.init_display()

    def init_display(self):
        for cmd in (
            SET_DISP | 0x00,  # off
            # address setting
            SET_MEM_ADDR,
            0x00,  # horizontal
            # resolution and layout
            SET_DISP_START_LINE | 0x00,
            SET_SEG_REMAP | 0x01,  # column addr 127 mapped to SEG0
            SET_MUX_RATIO,
            self.height - 1,
            SET_COM_OUT_DIR | 0x08,  # scan from COM[N] to COM0
            SET_DISP_OFFSET,
            0x00,
            SET_COM_PIN_CFG,
            0x02 if self.width > 2 * self.height else 0x12,
            # timing and driving scheme
            SET_DISP_CLK_DIV,
            0x80,
            SET_PRECHARGE,
            0x22 if self.external_vcc else 0xF1,
            SET_VCOM_DESEL,
            0x30,  # 0.83*Vcc
            # display
            SET_CONTRAST,
            0xFF,  # maximum
            SET_ENTIRE_ON,  # output follows RAM contents
            SET_NORM_INV,  # not inverted
            # charge pump
            SET_CHARGE_PUMP,
            0x10 if self.external_vcc else 0x14,
            SET_DISP | 0x01,
        ):  # on
            self.write_cmd(cmd)
        self.fill(0)
        self.show()

    def poweroff(self):
        self.write_cmd(SET_DISP | 0x00)

    def poweron(self):
        self.write_cmd(SET_DISP | 0x01)

    def contrast(self, contrast):
        self.write_cmd(SET_CONTRAST)
        self.write_cmd(contrast)

    def invert(self, invert):
        self.write_cmd(SET_NORM_INV | (invert & 1))

    def show(self):
        x0 = 0
        x1 = self.width - 1
        if self.width == 64:
            # displays with width of 64 pixels are shifted by 32
            x0 += 32
            x1 += 32
        self.write_cmd(SET_COL_ADDR)
        self.write_cmd(x0)
        self.write_cmd(x1)
        self.write_cmd(SET_PAGE_ADDR)
        self.write_cmd(0)
        self.write_cmd(self.pages - 1)
        self.write_data(self.buffer)


class SSD1306_I2C(SSD1306):
    def __init__(self, width, height, i2c, addr=0x3C, external_vcc=False):
        self.i2c = i2c
        self.addr = addr
        self.temp = bytearray(2)
        self.write_list = [b"\x40", None]  # Co=0, D/C#=1
        super().__init__(width, height, external_vcc)

    def write_cmd(self, cmd):
        self.temp[0] = 0x80  # Co=1, D/C#=0
        self.temp[1] = cmd
        self.i2c.writeto(self.addr, self.temp)

    def write_data(self, buf):
        self.write_list[1] = buf
        self.i2c.writevto(self.addr, self.write_list)


class SSD1306_SPI(SSD1306):
    def __init__(self, width, height, spi, dc, res, cs, external_vcc=False):
        self.rate = 10 * 1024 * 1024
        dc.init(dc.OUT, value=0)
        res.init(res.OUT, value=0)
        cs.init(cs.OUT, value=1)
        self.spi = spi
        self.dc = dc
        self.res = res
        self.cs = cs
        import time

        self.res(1)
        time.sleep_ms(1)
        self.res(0)
        time.sleep_ms(10)
        self.res(1)
        super().__init__(width, height, external_vcc)

    def write_cmd(self, cmd):
        self.spi.init(baudrate=self.rate, polarity=0, phase=0)
        self.cs(1)
        self.dc(0)
        self.cs(0)
        self.spi.write(bytearray([cmd]))
        self.cs(1)

    def write_data(self, buf):
        self.spi.init(baudrate=self.rate, polarity=0, phase=0)
        self.cs(1)
        self.dc(1)
        self.cs(0)
        self.spi.write(buf)
        self.cs(1)


1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157

📝主程序代码

from lib import urequests
#import urequests as requests
from machine import Pin,I2C
i2c = I2C(1,scl=Pin(22), sda=Pin(21),freq=100000)
from ssd1306 import SSD1306_I2C #从ssd1306模块中导入SSD1306_I2C子模块
import time
import network
import ujson

#import ssd1306
#import HZK

#spi = SPI(baudrate=100000, polarity=1, phase=0, sck=Pin(18), mosi=Pin(23), miso=Pin(19))
#cs = Pin(25,Pin.OUT)
#HZK.init(spi,cs)

oled = SSD1306_I2C(128, 64, i2c,addr=0x3c) #OLED显示屏初始化：128*64分辨率,OLED的I2C地址是0x3c

# 心知天气API申请：https://seniverse.yuque.com
# API_KEY = 'S9hoa4Wza9Hcs2uX_'
#接口;https://api.seniverse.com/v3/weather/now.json?key=your_api_key&location=beijing&language=zh-Hans&unit=c
# LOCATION = 'zhuzhou'
# URL = 'https://api.seniverse.com/v3/weather/now.json'
# UNIT = 'c'
# LANGUAGE = 'zh-Hans'

SSID ="MERCURY_D268G" # 填写个人wifi信息
PASSWORD ="pba5ayzk"
wlan=None
s=None
#连接网络

def connectWifi(ssid,passwd):

    global wlan
    wlan=network.WLAN(network.STA_IF)
    wlan.active(True)
    wlan.disconnect()
    wlan.connect(ssid,passwd)

    while(wlan.ifconfig()[0]=='0.0.0.0'):
        time.sleep(1)

    return True

def fetchWeather():
    result = urequests.get("https://api.seniverse.com/v3/weather/now.json?key=S9hoa4Wza9Hcs2uX_&location=shenzhen&language=zh-Hans&unit=c")
    return result.text

if __name__ == '__main__':
    oled.font_load("GB2312-12.fon")# 所使用的字体时12号字体
    oled.fill(0)
    oled.text("ESP32 Weather Clock", 4, 0)
    oled.line(0, 14, 128, 14, 1)#划线
    connectWifi(SSID,PASSWORD)
    result = fetchWeather()
    print(result)
    j=ujson.loads(result)
    print("\r\n\r\n")
    print(j['results'][0]['location']['name'])
    print(j['results'][0]['now']['text'])
    print(j['results'][0]['now']['temperature'])
    addr=j['results'][0]['location']['name']
    weather=j['results'][0]['now']['text']
    temperature=j['results'][0]['now']['temperature']
    oled.text("地点：%s"%addr,35,16)
    oled.text("天气：%s"%weather,35,32)
    oled.text("温度：%s℃"%temperature,35,48)
    oled.show()


1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71

• 📋Shell调试窗口信息

• 本示例参考文章：https://mc.dfrobot.com.cn/thread-26740-1-1.html
