（5）Flink CEP SQL四种匹配模式效果演示

Flink CEP SQL中提供了四种匹配策略：
（1）skip to next row
从匹配成功的事件序列中的第一个事件的下一个事件开始进行下一次匹配
（2）skip past last row
从匹配成功的事件序列中的最后一个事件的下一个事件开始进行下一次匹配
（3）skip to first pattern Item
从匹配成功的事件序列中第一个对应于patternItem的事件开始进行下一次匹配
（4）skip to last pattern Item
从匹配成功的事件序列中最后一个对应于patternItem的事件开始进行下一次匹配

接下来我们代码来演示一下每种策略模式表达的效果：
（1）skip to next row

package com.examples;

import org.apache.flink.configuration.Configuration;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.table.api.*;
import org.apache.flink.table.api.bridge.java.StreamTableEnvironment;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

import java.time.LocalDateTime;
import java.time.format.DateTimeFormatter;

/**
 * Created by lj on 2022-08-08.
 */
public class CEPSQLExampleAfterMatch {
    private static final Logger LOG = LoggerFactory.getLogger(CEPSQLExampleAfterMatch.class);

    public static void main(String[] args) {
        EnvironmentSettings settings = null;
        StreamTableEnvironment tEnv = null;
        try {

            StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();

            settings = EnvironmentSettings.newInstance()
                    .useBlinkPlanner()
                    .inStreamingMode()
                    .build();
            tEnv = StreamTableEnvironment.create(env, settings);
            final DateTimeFormatter dateTimeFormatter = DateTimeFormatter.ofPattern("yyyy-MM-dd HH:mm:ss");
            DataStream<Ticker> dataStream =
                    env.fromElements(
                            new Ticker(2, "Apple", 11, 2, LocalDateTime.parse("2021-12-10 10:00:01", dateTimeFormatter)),
                            new Ticker(3, "Apple", 16, 2, LocalDateTime.parse("2021-12-10 10:00:02", dateTimeFormatter)),
                            new Ticker(4, "Apple", 13, 2, LocalDateTime.parse("2021-12-10 10:00:03", dateTimeFormatter)),
                            new Ticker(5, "Apple", 15, 2, LocalDateTime.parse("2021-12-10 10:00:04", dateTimeFormatter)),
                            new Ticker(6, "Apple", 14, 1, LocalDateTime.parse("2021-12-10 10:00:05", dateTimeFormatter)),
                            new Ticker(7, "Apple", 19, 1, LocalDateTime.parse("2021-12-10 10:00:06", dateTimeFormatter)),
                            new Ticker(8, "Apple", 23, 2, LocalDateTime.parse("2021-12-10 10:00:07", dateTimeFormatter)),
                            new Ticker(9, "Apple", 22, 2, LocalDateTime.parse("2021-12-10 10:00:08", dateTimeFormatter)),
                            new Ticker(10, "Apple", 25, 2, LocalDateTime.parse("2021-12-10 10:00:09", dateTimeFormatter)),
                            new Ticker(11, "Apple", 11, 1, LocalDateTime.parse("2021-12-10 10:00:11", dateTimeFormatter)),
                            new Ticker(12, "Apple", 15, 1, LocalDateTime.parse("2021-12-10 10:00:12", dateTimeFormatter)),
                            new Ticker(13, "Apple", 19, 1, LocalDateTime.parse("2021-12-10 10:00:13", dateTimeFormatter)),
                            new Ticker(14, "Apple", 25, 1, LocalDateTime.parse("2021-12-10 10:00:14", dateTimeFormatter)),
                            new Ticker(15, "Apple", 19, 1, LocalDateTime.parse("2021-12-10 10:00:15", dateTimeFormatter)),
                            new Ticker(16, "Apple", 15, 1, LocalDateTime.parse("2021-12-10 10:00:16", dateTimeFormatter)),
                            new Ticker(17, "Apple", 19, 1, LocalDateTime.parse("2021-12-10 10:00:17", dateTimeFormatter)),
                            new Ticker(18, "Apple", 15, 1, LocalDateTime.parse("2021-12-10 10:00:18", dateTimeFormatter)));

            Table table = tEnv.fromDataStream(dataStream, Schema.newBuilder()
                    .column("id", DataTypes.BIGINT())
                    .column("symbol", DataTypes.STRING())
                    .column("price", DataTypes.BIGINT())
                    .column("tax", DataTypes.BIGINT())
                    .column("rowtime", DataTypes.TIMESTAMP(3))
                    .watermark("rowtime", "rowtime - INTERVAL '1' SECOND")
                    .build());
            tEnv.createTemporaryView("CEP_SQL_1", table);

            String sql = "SELECT * " +
                    "FROM CEP_SQL_1 " +
                    "    MATCH_RECOGNIZE ( " +
                    "        PARTITION BY symbol " +       //按symbol分区，将相同卡号的数据分到同一个计算节点上。
                    "        ORDER BY rowtime " +          //在窗口内，对事件时间进行排序。
                    "        MEASURES " +                   //定义如何根据匹配成功的输入事件构造输出事件
                    "            FIRST(e1.id) as id,"+
                    "            AVG(e1.price) as avgPrice,"+
                    "            FIRST(e1.rowtime) AS e1_start_tstamp, " +
                    "            LAST(e2.rowtime) AS e2_fast_tstamp " +
                    "        ONE ROW PER MATCH " +                                        //匹配成功输出一条
                    "        AFTER MATCH skip to next row " +
                    "        PATTERN ( e1+ e2) WITHIN INTERVAL '2' MINUTE" +
                    "        DEFINE " +                                                     //定义各事件的匹配条件
                    "            e1 AS " +
                    "                e1.price < 19 , " +
                    "            e2 AS " +
                    "                e2.price >= 19 " +
                    "    ) MR";


            TableResult res = tEnv.executeSql(sql);
            res.print();
            tEnv.dropTemporaryView("CEP_SQL_1");

        } catch (Exception e) {
            LOG.error(e.getMessage(), e);
        }
    }


    public static class Ticker {
        public long id;
        public String symbol;
        public long price;
        public long tax;
        public LocalDateTime rowtime;

        public Ticker() {
        }

        public Ticker(long id, String symbol, long price, long item, LocalDateTime rowtime) {
            this.id = id;
            this.symbol = symbol;
            this.price = price;
            this.tax = tax;
            this.rowtime = rowtime;
        }
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112

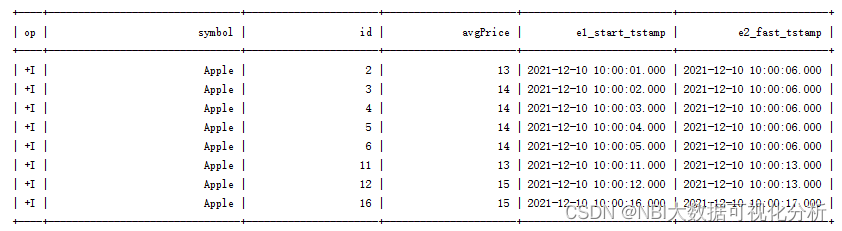

在这里插入图片描述
（2）skip past last row

package com.examples;

import org.apache.flink.configuration.Configuration;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.table.api.*;
import org.apache.flink.table.api.bridge.java.StreamTableEnvironment;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

import java.time.LocalDateTime;
import java.time.format.DateTimeFormatter;

/**
 * Created by lj on 2022-08-08.
 */
public class CEPSQLExampleAfterMatch {
    private static final Logger LOG = LoggerFactory.getLogger(CEPSQLExampleAfterMatch.class);

    public static void main(String[] args) {
        EnvironmentSettings settings = null;
        StreamTableEnvironment tEnv = null;
        try {

            StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();

            settings = EnvironmentSettings.newInstance()
                    .useBlinkPlanner()
                    .inStreamingMode()
                    .build();
            tEnv = StreamTableEnvironment.create(env, settings);
            final DateTimeFormatter dateTimeFormatter = DateTimeFormatter.ofPattern("yyyy-MM-dd HH:mm:ss");
            DataStream<Ticker> dataStream =
                    env.fromElements(
                            new Ticker(2, "Apple", 11, 2, LocalDateTime.parse("2021-12-10 10:00:01", dateTimeFormatter)),
                            new Ticker(3, "Apple", 16, 2, LocalDateTime.parse("2021-12-10 10:00:02", dateTimeFormatter)),
                            new Ticker(4, "Apple", 13, 2, LocalDateTime.parse("2021-12-10 10:00:03", dateTimeFormatter)),
                            new Ticker(5, "Apple", 15, 2, LocalDateTime.parse("2021-12-10 10:00:04", dateTimeFormatter)),
                            new Ticker(6, "Apple", 14, 1, LocalDateTime.parse("2021-12-10 10:00:05", dateTimeFormatter)),
                            new Ticker(7, "Apple", 19, 1, LocalDateTime.parse("2021-12-10 10:00:06", dateTimeFormatter)),
                            new Ticker(8, "Apple", 23, 2, LocalDateTime.parse("2021-12-10 10:00:07", dateTimeFormatter)),
                            new Ticker(9, "Apple", 22, 2, LocalDateTime.parse("2021-12-10 10:00:08", dateTimeFormatter)),
                            new Ticker(10, "Apple", 25, 2, LocalDateTime.parse("2021-12-10 10:00:09", dateTimeFormatter)),
                            new Ticker(11, "Apple", 11, 1, LocalDateTime.parse("2021-12-10 10:00:11", dateTimeFormatter)),
                            new Ticker(12, "Apple", 15, 1, LocalDateTime.parse("2021-12-10 10:00:12", dateTimeFormatter)),
                            new Ticker(13, "Apple", 19, 1, LocalDateTime.parse("2021-12-10 10:00:13", dateTimeFormatter)),
                            new Ticker(14, "Apple", 25, 1, LocalDateTime.parse("2021-12-10 10:00:14", dateTimeFormatter)),
                            new Ticker(15, "Apple", 19, 1, LocalDateTime.parse("2021-12-10 10:00:15", dateTimeFormatter)),
                            new Ticker(16, "Apple", 15, 1, LocalDateTime.parse("2021-12-10 10:00:16", dateTimeFormatter)),
                            new Ticker(17, "Apple", 19, 1, LocalDateTime.parse("2021-12-10 10:00:17", dateTimeFormatter)),
                            new Ticker(18, "Apple", 15, 1, LocalDateTime.parse("2021-12-10 10:00:18", dateTimeFormatter)));

            Table table = tEnv.fromDataStream(dataStream, Schema.newBuilder()
                    .column("id", DataTypes.BIGINT())
                    .column("symbol", DataTypes.STRING())
                    .column("price", DataTypes.BIGINT())
                    .column("tax", DataTypes.BIGINT())
                    .column("rowtime", DataTypes.TIMESTAMP(3))
                    .watermark("rowtime", "rowtime - INTERVAL '1' SECOND")
                    .build());
            tEnv.createTemporaryView("CEP_SQL_2", table);

            String sql = "SELECT * " +
                    "FROM CEP_SQL_2 " +
                    "    MATCH_RECOGNIZE ( " +
                    "        PARTITION BY symbol " +       //按symbol分区，将相同卡号的数据分到同一个计算节点上。
                    "        ORDER BY rowtime " +          //在窗口内，对事件时间进行排序。
                    "        MEASURES " +                   //定义如何根据匹配成功的输入事件构造输出事件
                    "            e1.id as id,"+
                    "            AVG(e1.price) as avgPrice,"+
                    "            FIRST(e1.rowtime) AS e1_start_tstamp, " +
                    "            LAST(e1.rowtime) AS e1_fast_tstamp, " +
                    "            e2.rowtime AS end_tstamp " +
                    "        ONE ROW PER MATCH " +                                        //匹配成功输出一条
                    "        AFTER MATCH skip past last row " +
                    "        PATTERN (e1+ e2) WITHIN INTERVAL '2' MINUTE" +
                    "        DEFINE " +                                                     //定义各事件的匹配条件
                    "            e1 AS " +
                    "                e1.price < 19 , " +
                    "            e2 AS " +
                    "                e2.price >= 19 " +
                    "    ) MR";


            TableResult res = tEnv.executeSql(sql);
            res.print();
            tEnv.dropTemporaryView("CEP_SQL_2");

        } catch (Exception e) {
            LOG.error(e.getMessage(), e);
        }
    }


    public static class Ticker {
        public long id;
        public String symbol;
        public long price;
        public long tax;
        public LocalDateTime rowtime;

        public Ticker() {
        }

        public Ticker(long id, String symbol, long price, long item, LocalDateTime rowtime) {
            this.id = id;
            this.symbol = symbol;
            this.price = price;
            this.tax = tax;
            this.rowtime = rowtime;
        }
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113

在这里插入图片描述
（3）skip to first pattern Item

package com.examples;

import org.apache.flink.configuration.Configuration;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.table.api.*;
import org.apache.flink.table.api.bridge.java.StreamTableEnvironment;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

import java.time.LocalDateTime;
import java.time.format.DateTimeFormatter;

/**
 * Created by lj on 2022-08-08.
 */
public class CEPSQLExampleAfterMatch {
    private static final Logger LOG = LoggerFactory.getLogger(CEPSQLExampleAfterMatch.class);

    public static void main(String[] args) {
        EnvironmentSettings settings = null;
        StreamTableEnvironment tEnv = null;
        try {

            StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();

            settings = EnvironmentSettings.newInstance()
                    .useBlinkPlanner()
                    .inStreamingMode()
                    .build();
            tEnv = StreamTableEnvironment.create(env, settings);
            final DateTimeFormatter dateTimeFormatter = DateTimeFormatter.ofPattern("yyyy-MM-dd HH:mm:ss");
            DataStream<Ticker> dataStream =
                    env.fromElements(
                            new Ticker(2, "Apple", 11, 2, LocalDateTime.parse("2021-12-10 10:00:01", dateTimeFormatter)),
                            new Ticker(3, "Apple", 16, 2, LocalDateTime.parse("2021-12-10 10:00:02", dateTimeFormatter)),
                            new Ticker(4, "Apple", 13, 2, LocalDateTime.parse("2021-12-10 10:00:03", dateTimeFormatter)),
                            new Ticker(5, "Apple", 15, 2, LocalDateTime.parse("2021-12-10 10:00:04", dateTimeFormatter)),
                            new Ticker(6, "Apple", 14, 1, LocalDateTime.parse("2021-12-10 10:00:05", dateTimeFormatter)),
                            new Ticker(7, "Apple", 19, 1, LocalDateTime.parse("2021-12-10 10:00:06", dateTimeFormatter)),
                            new Ticker(8, "Apple", 23, 2, LocalDateTime.parse("2021-12-10 10:00:07", dateTimeFormatter)),
                            new Ticker(9, "Apple", 22, 2, LocalDateTime.parse("2021-12-10 10:00:08", dateTimeFormatter)),
                            new Ticker(10, "Apple", 25, 2, LocalDateTime.parse("2021-12-10 10:00:09", dateTimeFormatter)),
                            new Ticker(11, "Apple", 11, 1, LocalDateTime.parse("2021-12-10 10:00:11", dateTimeFormatter)),
                            new Ticker(12, "Apple", 15, 1, LocalDateTime.parse("2021-12-10 10:00:12", dateTimeFormatter)),
                            new Ticker(13, "Apple", 19, 1, LocalDateTime.parse("2021-12-10 10:00:13", dateTimeFormatter)),
                            new Ticker(14, "Apple", 25, 1, LocalDateTime.parse("2021-12-10 10:00:14", dateTimeFormatter)),
                            new Ticker(15, "Apple", 19, 1, LocalDateTime.parse("2021-12-10 10:00:15", dateTimeFormatter)),
                            new Ticker(16, "Apple", 15, 1, LocalDateTime.parse("2021-12-10 10:00:16", dateTimeFormatter)),
                            new Ticker(17, "Apple", 19, 1, LocalDateTime.parse("2021-12-10 10:00:17", dateTimeFormatter)),
                            new Ticker(18, "Apple", 15, 1, LocalDateTime.parse("2021-12-10 10:00:18", dateTimeFormatter)));

            Table table = tEnv.fromDataStream(dataStream, Schema.newBuilder()
                    .column("id", DataTypes.BIGINT())
                    .column("symbol", DataTypes.STRING())
                    .column("price", DataTypes.BIGINT())
                    .column("tax", DataTypes.BIGINT())
                    .column("rowtime", DataTypes.TIMESTAMP(3))
                    .watermark("rowtime", "rowtime - INTERVAL '1' SECOND")
                    .build());
            tEnv.createTemporaryView("CEP_SQL_3", table);

            String sql = "SELECT * " +
                    "FROM CEP_SQL_3 " +
                    "    MATCH_RECOGNIZE ( " +
                    "        PARTITION BY symbol " +       //按symbol分区，将相同卡号的数据分到同一个计算节点上。
                    "        ORDER BY rowtime " +          //在窗口内，对事件时间进行排序。
                    "        MEASURES " +                   //定义如何根据匹配成功的输入事件构造输出事件
                    "            FIRST(e1.id) as id,"+
                    "            AVG(e1.price) as avgPrice,"+
                    "            FIRST(e1.rowtime) AS e1_start_tstamp, " +
                    "            LAST(e1.rowtime) AS e1_fast_tstamp, " +
                    "            e2.rowtime AS end_tstamp " +
                    "        ONE ROW PER MATCH " +                                        //匹配成功输出一条
                    "        AFTER MATCH skip to first e1 " +
                    "        PATTERN (e0 e1+ e2) WITHIN INTERVAL '2' MINUTE" +
                    "        DEFINE " +                                                     //定义各事件的匹配条件
                    "            e1 AS " +
                    "                e1.price < 19 , " +
                    "            e2 AS " +
                    "                e2.price >= 19 " +
                    "    ) MR";


            TableResult res = tEnv.executeSql(sql);
            res.print();
            tEnv.dropTemporaryView("CEP_SQL_3");

        } catch (Exception e) {
            LOG.error(e.getMessage(), e);
        }
    }


    public static class Ticker {
        public long id;
        public String symbol;
        public long price;
        public long tax;
        public LocalDateTime rowtime;

        public Ticker() {
        }

        public Ticker(long id, String symbol, long price, long item, LocalDateTime rowtime) {
            this.id = id;
            this.symbol = symbol;
            this.price = price;
            this.tax = tax;
            this.rowtime = rowtime;
        }
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113

在这里插入图片描述
（4）skip to last pattern Item

package com.examples;

import org.apache.flink.configuration.Configuration;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.table.api.*;
import org.apache.flink.table.api.bridge.java.StreamTableEnvironment;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

import java.time.LocalDateTime;
import java.time.format.DateTimeFormatter;

/**
 * Created by lj on 2022-08-08.
 */
public class CEPSQLExampleAfterMatch {
    private static final Logger LOG = LoggerFactory.getLogger(CEPSQLExampleAfterMatch.class);

    public static void main(String[] args) {
        EnvironmentSettings settings = null;
        StreamTableEnvironment tEnv = null;
        try {

            StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();

            settings = EnvironmentSettings.newInstance()
                    .useBlinkPlanner()
                    .inStreamingMode()
                    .build();
            tEnv = StreamTableEnvironment.create(env, settings);
            final DateTimeFormatter dateTimeFormatter = DateTimeFormatter.ofPattern("yyyy-MM-dd HH:mm:ss");
            DataStream<Ticker> dataStream =
                    env.fromElements(
                            new Ticker(2, "Apple", 11, 2, LocalDateTime.parse("2021-12-10 10:00:01", dateTimeFormatter)),
                            new Ticker(3, "Apple", 16, 2, LocalDateTime.parse("2021-12-10 10:00:02", dateTimeFormatter)),
                            new Ticker(4, "Apple", 13, 2, LocalDateTime.parse("2021-12-10 10:00:03", dateTimeFormatter)),
                            new Ticker(5, "Apple", 15, 2, LocalDateTime.parse("2021-12-10 10:00:04", dateTimeFormatter)),
                            new Ticker(6, "Apple", 14, 1, LocalDateTime.parse("2021-12-10 10:00:05", dateTimeFormatter)),
                            new Ticker(7, "Apple", 19, 1, LocalDateTime.parse("2021-12-10 10:00:06", dateTimeFormatter)),
                            new Ticker(8, "Apple", 23, 2, LocalDateTime.parse("2021-12-10 10:00:07", dateTimeFormatter)),
                            new Ticker(9, "Apple", 22, 2, LocalDateTime.parse("2021-12-10 10:00:08", dateTimeFormatter)),
                            new Ticker(10, "Apple", 25, 2, LocalDateTime.parse("2021-12-10 10:00:09", dateTimeFormatter)),
                            new Ticker(11, "Apple", 11, 1, LocalDateTime.parse("2021-12-10 10:00:11", dateTimeFormatter)),
                            new Ticker(12, "Apple", 15, 1, LocalDateTime.parse("2021-12-10 10:00:12", dateTimeFormatter)),
                            new Ticker(13, "Apple", 19, 1, LocalDateTime.parse("2021-12-10 10:00:13", dateTimeFormatter)),
                            new Ticker(14, "Apple", 25, 1, LocalDateTime.parse("2021-12-10 10:00:14", dateTimeFormatter)),
                            new Ticker(15, "Apple", 19, 1, LocalDateTime.parse("2021-12-10 10:00:15", dateTimeFormatter)),
                            new Ticker(16, "Apple", 15, 1, LocalDateTime.parse("2021-12-10 10:00:16", dateTimeFormatter)),
                            new Ticker(17, "Apple", 19, 1, LocalDateTime.parse("2021-12-10 10:00:17", dateTimeFormatter)),
                            new Ticker(18, "Apple", 15, 1, LocalDateTime.parse("2021-12-10 10:00:18", dateTimeFormatter)));

            Table table = tEnv.fromDataStream(dataStream, Schema.newBuilder()
                    .column("id", DataTypes.BIGINT())
                    .column("symbol", DataTypes.STRING())
                    .column("price", DataTypes.BIGINT())
                    .column("tax", DataTypes.BIGINT())
                    .column("rowtime", DataTypes.TIMESTAMP(3))
                    .watermark("rowtime", "rowtime - INTERVAL '1' SECOND")
                    .build());
            tEnv.createTemporaryView("CEP_SQL_4", table);

            String sql = "SELECT * " +
                    "FROM CEP_SQL_4 " +
                    "    MATCH_RECOGNIZE ( " +
                    "        PARTITION BY symbol " +       //按symbol分区，将相同卡号的数据分到同一个计算节点上。
                    "        ORDER BY rowtime " +          //在窗口内，对事件时间进行排序。
                    "        MEASURES " +                   //定义如何根据匹配成功的输入事件构造输出事件
                    "            e1.id as id,"+
                    "            AVG(e1.price) as avgPrice,"+
                    "            FIRST(e1.rowtime) AS e1_start_tstamp, " +
                    "            LAST(e1.rowtime) AS e1_fast_tstamp, " +
                    "            e2.rowtime AS end_tstamp " +
                    "        ONE ROW PER MATCH " +                                        //匹配成功输出一条
                    "        AFTER MATCH skip to last e1 " +
                    "        PATTERN (e0 e1+ e2) WITHIN INTERVAL '2' MINUTE" +
                    "        DEFINE " +                                                     //定义各事件的匹配条件
                    "            e1 AS " +
                    "                e1.price < 19 , " +
                    "            e2 AS " +
                    "                e2.price >= 19 " +
                    "    ) MR";


            TableResult res = tEnv.executeSql(sql);
            res.print();
            tEnv.dropTemporaryView("CEP_SQL_4");

        } catch (Exception e) {
            LOG.error(e.getMessage(), e);
        }
    }


    public static class Ticker {
        public long id;
        public String symbol;
        public long price;
        public long tax;
        public LocalDateTime rowtime;

        public Ticker() {
        }

        public Ticker(long id, String symbol, long price, long item, LocalDateTime rowtime) {
            this.id = id;
            this.symbol = symbol;
            this.price = price;
            this.tax = tax;
            this.rowtime = rowtime;
        }
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113

在这里插入图片描述

相关阅读:
R语言的各种统计分布函数
 ptmalloc源码分析 - 多线程争抢竞技场Arena的实现（04）
SpringMVC-Rest风格
 国标码流总结
 Markdown 常用图例（流程图时序图甘特图）
2.1-梯度下降
 嵌入式养成计划-38----C++--匿名对象--友元--常成员函数和常对象--运算符重载
 【Unity入门计划】Unity2D动画(2)-脚本与混合树实现玩家角色动画过渡
 2022最全Spring面试题70道
 【Nodejs】使用Nodejs搭建HTTP服务，并实现公网远程访问
原文地址：https://blog.csdn.net/qq_35655841/article/details/126505759
