vue拖拉拽生成表单

很久没有写总结了 今天总结一下近期用到的拖拉拽 何为拖拉拽 就是随便拖拉 然后生成代码和页面  也简称低代码平台 有一些比较大的公司 都会用到这些 话不多少  一步一步的走下去吧

先看下基础页面吧

首先是基于element from

依赖下载

1.

npm i element-ui -S

2.

npm install vuedraggable --save

3.

npm install js-beautify

4.

npm install file-saver

５.

npm install clipboard --save

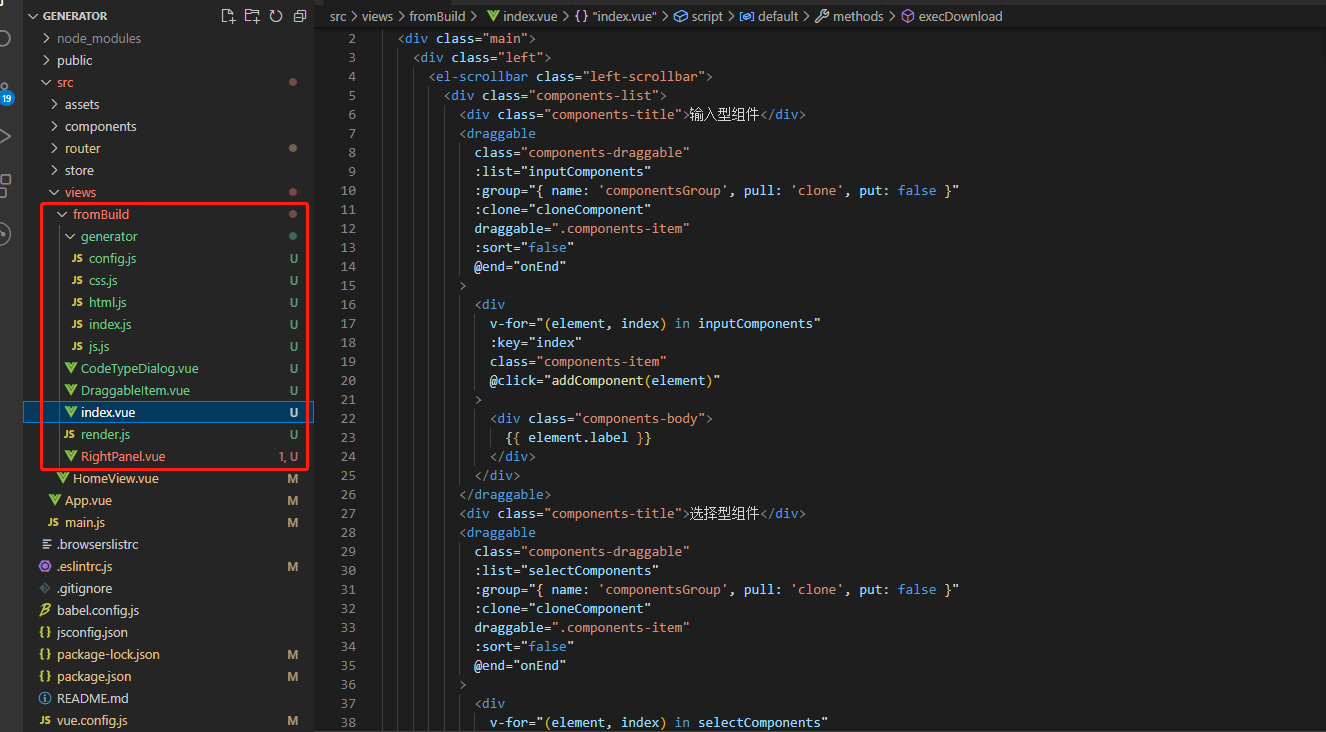

然后看下目录吧

 接着分拆目录

1.index.vue

<template>
  <div class="main">
    <div class="left">
      <el-scrollbar class="left-scrollbar">
        <div class="components-list">
          <div class="components-title">输入型组件</div>
          <draggable
            class="components-draggable"
            :list="inputComponents"
            :group="{ name: 'componentsGroup', pull: 'clone', put: false }"
            :clone="cloneComponent"
            draggable=".components-item"
            :sort="false"
            @end="onEnd"
          >
            <div
              v-for="(element, index) in inputComponents"
              :key="index"
              class="components-item"
              @click="addComponent(element)"
            >
              <div class="components-body">
                {{ element.label }}
              </div>
            </div>
          </draggable>
          <div class="components-title">选择型组件</div>
          <draggable
            class="components-draggable"
            :list="selectComponents"
            :group="{ name: 'componentsGroup', pull: 'clone', put: false }"
            :clone="cloneComponent"
            draggable=".components-item"
            :sort="false"
            @end="onEnd"
          >
            <div
              v-for="(element, index) in selectComponents"
              :key="index"
              class="components-item"
              @click="addComponent(element)"
            >
              <div class="components-body">
                {{ element.label }}
              </div>
            </div>
          </draggable>
          <div class="components-title">布局型组件</div>
          <draggable
            class="components-draggable"
            :list="layoutComponents"
            :group="{ name: 'componentsGroup', pull: 'clone', put: false }"
            :clone="cloneComponent"
            draggable=".components-item"
            :sort="false"
            @end="onEnd"
          >
            <div
              v-for="(element, index) in layoutComponents"
              :key="index"
              class="components-item"
              @click="addComponent(element)"
            >
              <div class="components-body">
                {{ element.label }}
              </div>
            </div>
          </draggable>
        </div>
      </el-scrollbar>
    </div>
    <div class="center">
      <div class="options">
        <span @click="download">导出文件</span>
        <span @click="copy">复制代码</span>
        <span @click="empty">清空</span>
      </div>
      <div class="centerMain">
        <el-scrollbar class="center-scrollbar">
          <el-row class="center-board-row" :gutter="formConf.gutter">
            <el-form
              :size="formConf.size"
              :label-position="formConf.labelPosition"
              :disabled="formConf.disabled"
              :label-width="formConf.labelWidth + 'px'"
            >
              <draggable
                class="drawing-board"
                :list="drawingList"
                :animation="340"
                group="componentsGroup"
              >
                <draggable-item
                  v-for="(element, index) in drawingList"
                  :key="element.renderKey"
                  :drawing-list="drawingList"
                  :element="element"
                  :index="index"
                  :active-id="activeId"
                  :form-conf="formConf"
                  @activeItem="activeFormItem"
                  @copyItem="drawingItemCopy"
                  @deleteItem="drawingItemDelete"
                />
              </draggable>
              <div v-show="!drawingList.length" class="empty-info">
                从左侧拖入或点选组件进行表单设计
              </div>
            </el-form>
          </el-row>
        </el-scrollbar>
      </div>
    </div>
    <div class="right">
      <right-panel
        :active-data="activeData"
        :form-conf="formConf"
        :show-field="!!drawingList.length"
        @tag-change="tagChange"
      />
    </div>
    <code-type-dialog
      :visible.sync="dialogVisible"
      title="选择生成类型"
      :show-file-name="showFileName"
      @confirm="generate"
    />
    <input id="copyNode" type="hidden">
  </div>
</template>
<script>
import ClipboardJS from 'clipboard'
import draggable from "vuedraggable";
import beautifier from 'js-beautify'
import saveAs from "file-saver"
import DraggableItem from "./DraggableItem.vue";
import RightPanel from "./RightPanel.vue"
import CodeTypeDialog from "./CodeTypeDialog"
import { beautifierConf } from './generator/index'
import { makeUpHtml, vueTemplate, vueScript, cssStyle } from './generator/html.js'
import { makeUpJs } from './generator/js.js'
import { makeUpCss } from './generator/css.js'
import {
  inputComponents,
  selectComponents,
  layoutComponents,
  formConf,
  drawingList,
} from "./generator/config";
let oldActiveId;
let tempActiveData;
export default {
  components: {
    draggable,
    DraggableItem,
    RightPanel,
    CodeTypeDialog
  },
  data() {
    return {
      idGlobal: 100,
      inputComponents,
      selectComponents,
      layoutComponents,
      formConf,
      drawingList,
      activeId: drawingList[0].formId,
      activeData: drawingList[0],
      dialogVisible:false,
      showFileName:false,
      generateConf: null,

      labelWidth: 100,
      drawingData: {},
      drawerVisible: false,
      formData: {},
    };
  },
  methods: {
    activeFormItem(element) {
      this.activeData = element;
      this.activeId = element.formId;
    },
    onEnd(obj, a) {
      if (obj.from !== obj.to) {
        this.activeData = tempActiveData;
        this.activeId = this.idGlobal;
      }
    },
    drawingItemDelete(index, parent) {
      parent.splice(index, 1);
      this.$nextTick(() => {
        const len = this.drawingList.length;
        if (len) {
          this.activeFormItem(this.drawingList[len - 1]);
        }
      });
    },
    addComponent(item) {
      const clone = this.cloneComponent(item);
      console.log(clone,88)
      this.drawingList.push(clone);
      this.activeFormItem(clone);
    },
    drawingItemCopy(item, parent) {
      let clone = JSON.parse(JSON.stringify(item));
      clone = this.createIdAndKey(clone);
      parent.push(clone);
      this.activeFormItem(clone);
    },
    createIdAndKey(item) {
      item.formId = ++this.idGlobal;
      item.renderKey = +new Date();
      if (item.layout === "colFormItem") {
        item.vModel = `field${this.idGlobal}`;
      } else if (item.layout === "rowFormItem") {
        item.componentName = `row${this.idGlobal}`;
      }
      if (Array.isArray(item.children)) {
        item.children = item.children.map((childItem) =>
          this.createIdAndKey(childItem)
        );
      }
      return item;
    },
    cloneComponent(origin) {
      console.log(origin);
      const clone = JSON.parse(JSON.stringify(origin));
      clone.formId = ++this.idGlobal;
      clone.span = formConf.span;
      clone.renderKey = +new Date(); // 改变renderKey后可以实现强制更新组件
      if (!clone.layout) clone.layout = "colFormItem";
      if (clone.layout === "colFormItem") {
        clone.vModel = `field${this.idGlobal}`;
        clone.placeholder !== undefined && (clone.placeholder += clone.label);
        tempActiveData = clone;
      } else if (clone.layout === "rowFormItem") {
        delete clone.label;
        clone.componentName = `row${this.idGlobal}`;
        clone.gutter = this.formConf.gutter;
        tempActiveData = clone;
      }
      return tempActiveData;
    },
    empty(){
      this.$confirm('确定要清空所有组件吗？', '提示', { type: 'warning' }).then(
        () => {
          this.drawingList = []
        }
      )
    },
    tagChange(newTag) {
      newTag = this.cloneComponent(newTag)
      newTag.vModel = this.activeData.vModel
      newTag.formId = this.activeId
      newTag.span = this.activeData.span
      delete this.activeData.tag
      delete this.activeData.tagIcon
      delete this.activeData.document
      Object.keys(newTag).forEach(key => {
        if (this.activeData[key] !== undefined
          && typeof this.activeData[key] === typeof newTag[key]) {
          newTag[key] = this.activeData[key]
        }
      })
      this.activeData = newTag
      this.updateDrawingList(newTag, this.drawingList)
    },
    updateDrawingList(newTag, list) {
      const index = list.findIndex(item => item.formId === this.activeId)
      if (index > -1) {
        list.splice(index, 1, newTag)
      } else {
        list.forEach(item => {
          if (Array.isArray(item.children)) this.updateDrawingList(newTag, item.children)
        })
      }
    },
    AssembleFormData() {
      this.formData = {
        fields: JSON.parse(JSON.stringify(this.drawingList)),
        ...this.formConf
      }
    },
    generateCode() {
      const { type } = this.generateConf
      this.AssembleFormData()
      const script = vueScript(makeUpJs(this.formData, type))
      const html = vueTemplate(makeUpHtml(this.formData, type))
      const css = cssStyle(makeUpCss(this.formData))
      return beautifier.html(html + script + css, beautifierConf.html)
    },
    execDownload(data) {
      const codeStr = this.generateCode()
      const blob = new Blob([codeStr], { type: 'text/plain;charset=utf-8' })
      saveAs(blob, data.fileName)
    },
    execCopy(data) {
      document.getElementById('copyNode').click()
    },
    download() {
      this.dialogVisible = true
      this.showFileName = true
      this.operationType = 'download'
    },
    copy() {
      this.dialogVisible = true
      this.showFileName = false
      this.operationType = 'copy'
    },
    generate(data) {
      const func = this[`exec${this.titleCase(this.operationType)}`]
      this.generateConf = data
      func && func(data)
    },
    titleCase(str) {
      return str.replace(/( |^)[a-z]/g, L => L.toUpperCase())
    }
  },
  mounted(){
    const clipboard = new ClipboardJS('#copyNode', {
      text: trigger => {
        const codeStr = this.generateCode()
        this.$notify({
          title: '成功',
          message: '代码已复制到剪切板，可粘贴。',
          type: 'success'
        })
        return codeStr
      }
    })
    clipboard.on('error', e => {
      this.$message.error('代码复制失败')
    })
  }
};
</script>
<style lang="scss">
* {
  padding: 0;
  margin: 0;
}
$selectedColor: #f6f7ff;
$lighterBlue: #409EFF;
.main {
  display: flex;
  .left {
    border: 1px solid #ccc;
    width: 20%;
    height: 100vh;
    padding: 10px;
    box-sizing: border-box;
    .components-title {
      margin-bottom: 20px;
    }
    .components-draggable {
      margin-bottom: 20px;
      display: flex;
      flex-wrap: wrap;
      text-align: center;
      .components-item {
        width: 48%;
        margin: 2% 1%;
        .components-body {
          background: #f6f7ff;
          line-height: 40px;
          font-size: 14px;
          cursor: move;
          &:hover {
            border: 1px dashed #787be8;
            color: #787be8;
          }
        }
      }
    }
  }
  .center {
    width: 56%;
    margin: 0 2%;
    border: 1px solid #ccc;
    box-sizing: border-box;
    .options {
      display: flex;
      border-bottom: 1px solid #ccc;
      padding: 10px;
      span {
        margin-right: 20px;
        cursor: pointer;
      }
    }

    .centerMain {
      overflow-x: auto;
      height: calc(100vh - 42px);
      .center-scrollbar {
        height: calc(100vh - 42px);
        overflow: hidden;
        padding: 10px;
        box-sizing: border-box;
        .empty-info {
          text-align: center;
          // line-height: calc(100vh - 100px);
        }
      }
    }
    .drawing-item,
    .drawing-row-item {
      &:hover {
        & > .el-form-item {
          background: $selectedColor;
          border-radius: 6px;
        }
        & > .drawing-item-copy,
        & > .drawing-item-delete {
          display: initial;
        }
      }
      & > .drawing-item-copy,
      & > .drawing-item-delete {
        display: none;
        position: absolute;
        top: -10px;
        width: 22px;
        height: 22px;
        line-height: 22px;
        text-align: center;
        border-radius: 50%;
        font-size: 12px;
        border: 1px solid;
        cursor: pointer;
        z-index: 1;
      }
      & > .drawing-item-copy {
        right: 56px;
        border-color: $lighterBlue;
        color: $lighterBlue;
        background: #fff;
        &:hover {
          background: $lighterBlue;
          color: #fff;
        }
      }
      & > .drawing-item-delete {
        right: 24px;
        border-color: #f56c6c;
        color: #f56c6c;
        background: #fff;
        &:hover {
          background: #f56c6c;
          color: #fff;
        }
      }
    }
  }
  .right {
    width: 20%;
  }
  .center-board-row {
  padding: 12px 12px 15px 12px;
  box-sizing: border-box;
  & > .el-form {
    // 69 = 12+15+42
    height: calc(100vh - 69px);
  }
}
.drawing-board {
  height: calc(100vh - 69px);
  position: relative;
  .components-body {
    padding: 0;
    margin: 0;
    font-size: 0;
  }
  .sortable-ghost {
    position: relative;
    display: block;
    overflow: hidden;
    &::before {
      content: " ";
      position: absolute;
      left: 0;
      right: 0;
      top: 0;
      height: 3px;
      background: rgb(89, 89, 223);
      z-index: 2;
    }
  }
  .components-item.sortable-ghost {
    width: 100%;
    height: 60px;
    background-color: $selectedColor;
  }
  .active-from-item {
    & > .el-form-item{
      background: $selectedColor;
      border-radius: 6px;
    }
    & > .drawing-item-copy, & > .drawing-item-delete{
      display: initial;
    }
    & > .component-name{
      color: $lighterBlue;
    }
  }
  .el-form-item{
    margin-bottom: 15px;
  }
}
.drawing-item{
  position: relative;
  cursor: move;
  &.unfocus-bordered:not(.activeFromItem) > div:first-child  {
    border: 1px dashed #ccc;
  }
  .el-form-item{
    padding: 12px 10px;
  }
}
.drawing-row-item{
  position: relative;
  cursor: move;
  box-sizing: border-box;
  border: 1px dashed #ccc;
  border-radius: 3px;
  padding: 0 2px;
  margin-bottom: 15px;
  .drawing-row-item {
    margin-bottom: 2px;
  }
  .el-col{
    margin-top: 22px;
  }
  .el-form-item{
    margin-bottom: 0;
  }
  .drag-wrapper{
    min-height: 80px;
  }
  &.active-from-item{
    border: 1px dashed $lighterBlue;
  }
  .component-name{
    position: absolute;
    top: 0;
    left: 0;
    font-size: 12px;
    color: #bbb;
    display: inline-block;
    padding: 0 6px;
  }
}
.drawing-item, .drawing-row-item{
  &:hover {
    & > .el-form-item{
      background: $selectedColor;
      border-radius: 6px;
    }
    & > .drawing-item-copy, & > .drawing-item-delete{
      display: initial;
    }
  }
  & > .drawing-item-copy, & > .drawing-item-delete{
    display: none;
    position: absolute;
    top: -10px;
    width: 22px;
    height: 22px;
    line-height: 22px;
    text-align: center;
    border-radius: 50%;
    font-size: 12px;
    border: 1px solid;
    cursor: pointer;
    z-index: 1;
  }
  & > .drawing-item-copy{
    right: 56px;
    border-color: $lighterBlue;
    color: $lighterBlue;
    background: #fff;
    &:hover{
      background: $lighterBlue;
      color: #fff;
    }
  }
  & > .drawing-item-delete{
    right: 24px;
    border-color: #F56C6C;
    color: #F56C6C;
    background: #fff;
    &:hover{
      background: #F56C6C;
      color: #fff;
    }
  }
}
}
</style>

2.DraggableItem.vue

<script>
import draggable from 'vuedraggable'
// import render from '@/utils/generator/render'
import render from './render'

const components = {
  itemBtns(h, element, index, parent) {
    const { copyItem, deleteItem } = this.$listeners
    return [
      <span class="drawing-item-copy" title="复制" onClick={event => {
        copyItem(element, parent); event.stopPropagation()
      }}>
        <i class="el-icon-copy-document" />
      </span>,
      <span class="drawing-item-delete" title="删除" onClick={event => {
        deleteItem(index, parent); event.stopPropagation()
      }}>
        <i class="el-icon-delete" />
      </span>
    ]
  }
}
const layouts = {
  colFormItem(h, element, index, parent) {
    const { activeItem } = this.$listeners
    let className = this.activeId === element.formId ? 'drawing-item active-from-item' : 'drawing-item'
    if (this.formConf.unFocusedComponentBorder) className += ' unfocus-bordered'
    return (
      <el-col span={element.span} class={className}
        nativeOnClick={event => { activeItem(element); event.stopPropagation() }}>
        <el-form-item label-width={element.labelWidth ? `${element.labelWidth}px` : null}
          label={element.label} required={element.required}>
          <render key={element.renderKey} conf={element} onInput={ event => {
            this.$set(element, 'defaultValue', event)
          }} />
        </el-form-item>
        {components.itemBtns.apply(this, arguments)}
      </el-col>
    )
  },
  rowFormItem(h, element, index, parent) {
    const { activeItem } = this.$listeners
    const className = this.activeId === element.formId ? 'drawing-row-item active-from-item' : 'drawing-row-item'
    let child = renderChildren.apply(this, arguments)
    if (element.type === 'flex') {
      child = <el-row type={element.type} justify={element.justify} align={element.align}>
              {child}
            </el-row>
    }
    return (
      <el-col span={element.span}>
        <el-row gutter={element.gutter} class={className}
          nativeOnClick={event => { activeItem(element); event.stopPropagation() }}>
          <span class="component-name">{element.componentName}</span>
          <draggable list={element.children} animation={340} group="componentsGroup" class="drag-wrapper">
            {child}
          </draggable>
          {components.itemBtns.apply(this, arguments)}
        </el-row>
      </el-col>
    )
  }
}

function renderChildren(h, element, index, parent) {
  if (!Array.isArray(element.children)) return null
  return element.children.map((el, i) => {
    const layout = layouts[el.layout]
    if (layout) {
      return layout.call(this, h, el, i, element.children)
    }
    return layoutIsNotFound()
  })
}

function layoutIsNotFound() {
  throw new Error(`没有与${this.element.layout}匹配的layout`)
}

export default {
  components: {
    render,
    draggable
  },
  props: [
    'element',
    'index',
    'drawingList',
    'activeId',
    'formConf'
  ],
  render(h) {
    const layout = layouts[this.element.layout]

    if (layout) {
      return layout.call(this, h, this.element, this.index, this.drawingList)
    }
    return layoutIsNotFound()
  },
  created(){
    console.log(this.drawingList,"987")
  }
}
</script>

3.RightPanel.vue

<template>
  <div class="right-board">
    <el-tabs v-model="currentTab" class="center-tabs">
      <el-tab-pane label="组件属性" name="field" />
      <el-tab-pane label="表单属性" name="form" />
    </el-tabs>
    <div class="field-box">
      <a class="document-link" target="_blank" :href="documentLink" title="查看组件文档">
        <i class="el-icon-link" />
      </a>
      <el-scrollbar class="right-scrollbar">
        <!-- 组件属性 -->
        <el-form v-show="currentTab==='field' && showField" size="small" label-width="90px">
          <el-form-item v-if="activeData.changeTag" label="组件类型">
            <el-select
              v-model="activeData.tagIcon"
              placeholder="请选择组件类型"
              :style="{width: '100%'}"
              @change="tagChange"
            >
              <el-option-group v-for="group in tagList" :key="group.label" :label="group.label">
                <el-option
                  v-for="item in group.options"
                  :key="item.label"
                  :label="item.label"
                  :value="item.tagIcon"
                >
                  <span> {{ item.label }}</span>
                </el-option>
              </el-option-group>
            </el-select>
          </el-form-item>
          <el-form-item v-if="activeData.vModel!==undefined" label="字段名">
            <el-input v-model="activeData.vModel" placeholder="请输入字段名（v-model）" />
          </el-form-item>
          <el-form-item v-if="activeData.componentName!==undefined" label="组件名">
            {{ activeData.componentName }}
          </el-form-item>
          <el-form-item v-if="activeData.label!==undefined" label="标题">
            <el-input v-model="activeData.label" placeholder="请输入标题" />
          </el-form-item>
          <el-form-item v-if="activeData.placeholder!==undefined" label="占位提示">
            <el-input v-model="activeData.placeholder" placeholder="请输入占位提示" />
          </el-form-item>
          <el-form-item v-if="activeData['start-placeholder']!==undefined" label="开始占位">
            <el-input v-model="activeData['start-placeholder']" placeholder="请输入占位提示" />
          </el-form-item>
          <el-form-item v-if="activeData['end-placeholder']!==undefined" label="结束占位">
            <el-input v-model="activeData['end-placeholder']" placeholder="请输入占位提示" />
          </el-form-item>
          <el-form-item v-if="activeData.span!==undefined" label="表单栅格">
            <el-slider v-model="activeData.span" :max="24" :min="1" :marks="{12:''}" @change="spanChange" />
          </el-form-item>
          <el-form-item v-if="activeData.layout==='rowFormItem'" label="栅格间隔">
            <el-input-number v-model="activeData.gutter" :min="0" placeholder="栅格间隔" />
          </el-form-item>
          <el-form-item v-if="activeData.layout==='rowFormItem'" label="布局模式">
            <el-radio-group v-model="activeData.type">
              <el-radio-button label="default" />
              <el-radio-button label="flex" />
            </el-radio-group>
          </el-form-item>
          <el-form-item v-if="activeData.justify!==undefined&&activeData.type==='flex'" label="水平排列">
            <el-select v-model="activeData.justify" placeholder="请选择水平排列" :style="{width: '100%'}">
              <el-option
                v-for="(item, index) in justifyOptions"
                :key="index"
                :label="item.label"
                :value="item.value"
              />
            </el-select>
          </el-form-item>
          <el-form-item v-if="activeData.align!==undefined&&activeData.type==='flex'" label="垂直排列">
            <el-radio-group v-model="activeData.align">
              <el-radio-button label="top" />
              <el-radio-button label="middle" />
              <el-radio-button label="bottom" />
            </el-radio-group>
          </el-form-item>
          <el-form-item v-if="activeData.labelWidth!==undefined" label="标签宽度">
            <el-input v-model.number="activeData.labelWidth" type="number" placeholder="请输入标签宽度" />
          </el-form-item>
          <el-form-item v-if="activeData.style&&activeData.style.width!==undefined" label="组件宽度">
            <el-input v-model="activeData.style.width" placeholder="请输入组件宽度" clearable />
          </el-form-item>
          <el-form-item v-if="activeData.vModel!==undefined" label="默认值">
            <el-input
              :value="setDefaultValue(activeData.defaultValue)"
              placeholder="请输入默认值"
              @input="onDefaultValueInput"
            />
          </el-form-item>
          <el-form-item v-if="activeData.tag==='el-checkbox-group'" label="至少应选">
            <el-input-number
              :value="activeData.min"
              :min="0"
              placeholder="至少应选"
              @input="$set(activeData, 'min', $event?$event:undefined)"
            />
          </el-form-item>
          <el-form-item v-if="activeData.tag==='el-checkbox-group'" label="最多可选">
            <el-input-number
              :value="activeData.max"
              :min="0"
              placeholder="最多可选"
              @input="$set(activeData, 'max', $event?$event:undefined)"
            />
          </el-form-item>
          <el-form-item v-if="activeData.prepend!==undefined" label="前缀">
            <el-input v-model="activeData.prepend" placeholder="请输入前缀" />
          </el-form-item>
          <el-form-item v-if="activeData.append!==undefined" label="后缀">
            <el-input v-model="activeData.append" placeholder="请输入后缀" />
          </el-form-item>
          <el-form-item v-if="activeData['prefix-icon']!==undefined" label="前图标">
            <el-input v-model="activeData['prefix-icon']" placeholder="请输入前图标名称">
              <el-button slot="append" icon="el-icon-thumb" @click="openIconsDialog('prefix-icon')">
                选择
              </el-button>
            </el-input>
          </el-form-item>
          <el-form-item v-if="activeData['suffix-icon'] !== undefined" label="后图标">
            <el-input v-model="activeData['suffix-icon']" placeholder="请输入后图标名称">
              <el-button slot="append" icon="el-icon-thumb" @click="openIconsDialog('suffix-icon')">
                选择
              </el-button>
            </el-input>
          </el-form-item>
          <el-form-item v-if="activeData.tag === 'el-cascader'" label="选项分隔符">
            <el-input v-model="activeData.separator" placeholder="请输入选项分隔符" />
          </el-form-item>
          <el-form-item v-if="activeData.autosize !== undefined" label="最小行数">
            <el-input-number v-model="activeData.autosize.minRows" :min="1" placeholder="最小行数" />
          </el-form-item>
          <el-form-item v-if="activeData.autosize !== undefined" label="最大行数">
            <el-input-number v-model="activeData.autosize.maxRows" :min="1" placeholder="最大行数" />
          </el-form-item>
          <el-form-item v-if="activeData.min !== undefined" label="最小值">
            <el-input-number v-model="activeData.min" placeholder="最小值" />
          </el-form-item>
          <el-form-item v-if="activeData.max !== undefined" label="最大值">
            <el-input-number v-model="activeData.max" placeholder="最大值" />
          </el-form-item>
          <el-form-item v-if="activeData.step !== undefined" label="步长">
            <el-input-number v-model="activeData.step" placeholder="步数" />
          </el-form-item>
          <el-form-item v-if="activeData.tag === 'el-input-number'" label="精度">
            <el-input-number v-model="activeData.precision" :min="0" placeholder="精度" />
          </el-form-item>
          <el-form-item v-if="activeData.tag === 'el-input-number'" label="按钮位置">
            <el-radio-group v-model="activeData['controls-position']">
              <el-radio-button label="">
                默认
              </el-radio-button>
              <el-radio-button label="right">
                右侧
              </el-radio-button>
            </el-radio-group>
          </el-form-item>
          <el-form-item v-if="activeData.maxlength !== undefined" label="最多输入">
            <el-input v-model="activeData.maxlength" placeholder="请输入字符长度">
              <template slot="append">
                个字符
              </template>
            </el-input>
          </el-form-item>
          <el-form-item v-if="activeData['active-text'] !== undefined" label="开启提示">
            <el-input v-model="activeData['active-text']" placeholder="请输入开启提示" />
          </el-form-item>
          <el-form-item v-if="activeData['inactive-text'] !== undefined" label="关闭提示">
            <el-input v-model="activeData['inactive-text']" placeholder="请输入关闭提示" />
          </el-form-item>
          <el-form-item v-if="activeData['active-value'] !== undefined" label="开启值">
            <el-input
              :value="setDefaultValue(activeData['active-value'])"
              placeholder="请输入开启值"
              @input="onSwitchValueInput($event, 'active-value')"
            />
          </el-form-item>
          <el-form-item v-if="activeData['inactive-value'] !== undefined" label="关闭值">
            <el-input
              :value="setDefaultValue(activeData['inactive-value'])"
              placeholder="请输入关闭值"
              @input="onSwitchValueInput($event, 'inactive-value')"
            />
          </el-form-item>
          <el-form-item
            v-if="activeData.type !== undefined && 'el-date-picker' === activeData.tag"
            label="时间类型"
          >
            <el-select
              v-model="activeData.type"
              placeholder="请选择时间类型"
              :style="{ width: '100%' }"
              @change="dateTypeChange"
            >
              <el-option
                v-for="(item, index) in dateOptions"
                :key="index"
                :label="item.label"
                :value="item.value"
              />
            </el-select>
          </el-form-item>
          <el-form-item v-if="activeData.name !== undefined" label="文件字段名">
            <el-input v-model="activeData.name" placeholder="请输入上传文件字段名" />
          </el-form-item>
          <el-form-item v-if="activeData.accept !== undefined" label="文件类型">
            <el-select
              v-model="activeData.accept"
              placeholder="请选择文件类型"
              :style="{ width: '100%' }"
              clearable
            >
              <el-option label="图片" value="image/*" />
              <el-option label="视频" value="video/*" />
              <el-option label="音频" value="audio/*" />
              <el-option label="excel" value=".xls,.xlsx" />
              <el-option label="word" value=".doc,.docx" />
              <el-option label="pdf" value=".pdf" />
              <el-option label="txt" value=".txt" />
            </el-select>
          </el-form-item>
          <el-form-item v-if="activeData.fileSize !== undefined" label="文件大小">
            <el-input v-model.number="activeData.fileSize" placeholder="请输入文件大小">
              <el-select slot="append" v-model="activeData.sizeUnit" :style="{ width: '66px' }">
                <el-option label="KB" value="KB" />
                <el-option label="MB" value="MB" />
                <el-option label="GB" value="GB" />
              </el-select>
            </el-input>
          </el-form-item>
          <el-form-item v-if="activeData.action !== undefined" label="上传地址">
            <el-input v-model="activeData.action" placeholder="请输入上传地址" clearable />
          </el-form-item>
          <el-form-item v-if="activeData['list-type'] !== undefined" label="列表类型">
            <el-radio-group v-model="activeData['list-type']" size="small">
              <el-radio-button label="text">
                text
              </el-radio-button>
              <el-radio-button label="picture">
              </el-radio-button>
              <el-radio-button label="picture-card">
                picture-card
              </el-radio-button>
            </el-radio-group>
          </el-form-item>
          <el-form-item
            v-if="activeData.buttonText !== undefined"
            v-show="'picture-card' !== activeData['list-type']"
            label="按钮文字"
          >
            <el-input v-model="activeData.buttonText" placeholder="请输入按钮文字" />
          </el-form-item>
          <el-form-item v-if="activeData['range-separator'] !== undefined" label="分隔符">
            <el-input v-model="activeData['range-separator']" placeholder="请输入分隔符" />
          </el-form-item>
          <el-form-item v-if="activeData['picker-options'] !== undefined" label="时间段">
            <el-input
              v-model="activeData['picker-options'].selectableRange"
              placeholder="请输入时间段"
            />
          </el-form-item>
          <el-form-item v-if="activeData.format !== undefined" label="时间格式">
            <el-input
              :value="activeData.format"
              placeholder="请输入时间格式"
              @input="setTimeValue($event)"
            />
          </el-form-item>
          <template v-if="['el-checkbox-group', 'el-radio-group', 'el-select'].indexOf(activeData.tag) > -1">
            <el-divider>选项</el-divider>
            <draggable
              :list="activeData.options"
              :animation="340"
              group="selectItem"
              handle=".option-drag"
            >
              <div v-for="(item, index) in activeData.options" :key="index" class="select-item">
                <div class="select-line-icon option-drag">
                  <i class="el-icon-s-operation" />
                </div>
                <el-input v-model="item.label" placeholder="选项名" size="small" />
                <el-input
                  placeholder="选项值"
                  size="small"
                  :value="item.value"
                  @input="setOptionValue(item, $event)"
                />
                <div class="close-btn select-line-icon" @click="activeData.options.splice(index, 1)">
                  <i class="el-icon-remove-outline" />
                </div>
              </div>
            </draggable>
            <div style="margin-left: 20px;">
              <el-button
                style="padding-bottom: 0"
                icon="el-icon-circle-plus-outline"
                type="text"
                @click="addSelectItem"
              >
                添加选项
              </el-button>
            </div>
            <el-divider />
          </template>

          <template v-if="['el-cascader'].indexOf(activeData.tag) > -1">
            <el-divider>选项</el-divider>
            <el-form-item label="数据类型">
              <el-radio-group v-model="activeData.dataType" size="small">
                <el-radio-button label="dynamic">
                  动态数据
                </el-radio-button>
                <el-radio-button label="static">
                  静态数据
                </el-radio-button>
              </el-radio-group>
            </el-form-item>

            <template v-if="activeData.dataType === 'dynamic'">
              <el-form-item label="标签键名">
                <el-input v-model="activeData.labelKey" placeholder="请输入标签键名" />
              </el-form-item>
              <el-form-item label="值键名">
                <el-input v-model="activeData.valueKey" placeholder="请输入值键名" />
              </el-form-item>
              <el-form-item label="子级键名">
                <el-input v-model="activeData.childrenKey" placeholder="请输入子级键名" />
              </el-form-item>
            </template>

            <el-tree
              v-if="activeData.dataType === 'static'"
              draggable
              :data="activeData.options"
              node-key="id"
              :expand-on-click-node="false"
              :render-content="renderContent"
            />
            <div v-if="activeData.dataType === 'static'" style="margin-left: 20px">
              <el-button
                style="padding-bottom: 0"
                icon="el-icon-circle-plus-outline"
                type="text"
                @click="addTreeItem"
              >
                添加父级
              </el-button>
            </div>
            <el-divider />
          </template>

          <el-form-item v-if="activeData.optionType !== undefined" label="选项样式">
            <el-radio-group v-model="activeData.optionType">
              <el-radio-button label="default">
                默认
              </el-radio-button>
              <el-radio-button label="button">
                按钮
              </el-radio-button>
            </el-radio-group>
          </el-form-item>
          <el-form-item v-if="activeData['active-color'] !== undefined" label="开启颜色">
            <el-color-picker v-model="activeData['active-color']" />
          </el-form-item>
          <el-form-item v-if="activeData['inactive-color'] !== undefined" label="关闭颜色">
            <el-color-picker v-model="activeData['inactive-color']" />
          </el-form-item>

          <el-form-item v-if="activeData['allow-half'] !== undefined" label="允许半选">
            <el-switch v-model="activeData['allow-half']" />
          </el-form-item>
          <el-form-item v-if="activeData['show-text'] !== undefined" label="辅助文字">
            <el-switch v-model="activeData['show-text']" @change="rateTextChange" />
          </el-form-item>
          <el-form-item v-if="activeData['show-score'] !== undefined" label="显示分数">
            <el-switch v-model="activeData['show-score']" @change="rateScoreChange" />
          </el-form-item>
          <el-form-item v-if="activeData['show-stops'] !== undefined" label="显示间断点">
            <el-switch v-model="activeData['show-stops']" />
          </el-form-item>
          <el-form-item v-if="activeData.range !== undefined" label="范围选择">
            <el-switch v-model="activeData.range" @change="rangeChange" />
          </el-form-item>
          <el-form-item
            v-if="activeData.border !== undefined && activeData.optionType === 'default'"
            label="是否带边框"
          >
            <el-switch v-model="activeData.border" />
          </el-form-item>
          <el-form-item v-if="activeData.tag === 'el-color-picker'" label="颜色格式">
            <el-select
              v-model="activeData['color-format']"
              placeholder="请选择颜色格式"
              :style="{ width: '100%' }"
              @change="colorFormatChange"
            >
              <el-option
                v-for="(item, index) in colorFormatOptions"
                :key="index"
                :label="item.label"
                :value="item.value"
              />
            </el-select>
          </el-form-item>
          <el-form-item
            v-if="activeData.size !== undefined &&
              (activeData.optionType === 'button' ||
                activeData.border ||
                activeData.tag === 'el-color-picker')"
            label="选项尺寸"
          >
            <el-radio-group v-model="activeData.size">
              <el-radio-button label="medium">
                中等
              </el-radio-button>
              <el-radio-button label="small">
                较小
              </el-radio-button>
              <el-radio-button label="mini">
                迷你
              </el-radio-button>
            </el-radio-group>
          </el-form-item>
          <el-form-item v-if="activeData['show-word-limit'] !== undefined" label="输入统计">
            <el-switch v-model="activeData['show-word-limit']" />
          </el-form-item>
          <el-form-item v-if="activeData.tag === 'el-input-number'" label="严格步数">
            <el-switch v-model="activeData['step-strictly']" />
          </el-form-item>
          <el-form-item v-if="activeData.tag === 'el-cascader'" label="是否多选">
            <el-switch v-model="activeData.props.props.multiple" />
          </el-form-item>
          <el-form-item v-if="activeData.tag === 'el-cascader'" label="展示全路径">
            <el-switch v-model="activeData['show-all-levels']" />
          </el-form-item>
          <el-form-item v-if="activeData.tag === 'el-cascader'" label="可否筛选">
            <el-switch v-model="activeData.filterable" />
          </el-form-item>
          <el-form-item v-if="activeData.clearable !== undefined" label="能否清空">
            <el-switch v-model="activeData.clearable" />
          </el-form-item>
          <el-form-item v-if="activeData.showTip !== undefined" label="显示提示">
            <el-switch v-model="activeData.showTip" />
          </el-form-item>
          <el-form-item v-if="activeData.multiple !== undefined" label="多选文件">
            <el-switch v-model="activeData.multiple" />
          </el-form-item>
          <el-form-item v-if="activeData['auto-upload'] !== undefined" label="自动上传">
            <el-switch v-model="activeData['auto-upload']" />
          </el-form-item>
          <el-form-item v-if="activeData.readonly !== undefined" label="是否只读">
            <el-switch v-model="activeData.readonly" />
          </el-form-item>
          <el-form-item v-if="activeData.disabled !== undefined" label="是否禁用">
            <el-switch v-model="activeData.disabled" />
          </el-form-item>
          <el-form-item v-if="activeData.tag === 'el-select'" label="是否可搜索">
            <el-switch v-model="activeData.filterable" />
          </el-form-item>
          <el-form-item v-if="activeData.tag === 'el-select'" label="是否多选">
            <el-switch v-model="activeData.multiple" @change="multipleChange" />
          </el-form-item>
          <el-form-item v-if="activeData.required !== undefined" label="是否必填">
            <el-switch v-model="activeData.required" />
          </el-form-item>

          <template v-if="activeData.layoutTree">
            <el-divider>布局结构树</el-divider>
            <el-tree
              :data="[activeData]"
              :props="layoutTreeProps"
              node-key="renderKey"
              default-expand-all
              draggable
            >
              <span slot-scope="{ node, data }">
                <span class="node-label">
                  {{ node.label }}
                </span>
              </span>
            </el-tree>
          </template>

          <template v-if="activeData.layout === 'colFormItem' && activeData.tag !== 'el-button'">
            <el-divider>正则校验</el-divider>
            <div
              v-for="(item, index) in activeData.regList"
              :key="index"
              class="reg-item"
            >
              <span class="close-btn" @click="activeData.regList.splice(index, 1)">
                <i class="el-icon-close" />
              </span>
              <el-form-item label="表达式">
                <el-input v-model="item.pattern" placeholder="请输入正则" />
              </el-form-item>
              <el-form-item label="错误提示" style="margin-bottom:0">
                <el-input v-model="item.message" placeholder="请输入错误提示" />
              </el-form-item>
            </div>
            <div style="margin-left: 20px">
              <el-button icon="el-icon-circle-plus-outline" type="text" @click="addReg">
                添加规则
              </el-button>
            </div>
          </template>
        </el-form>
        <!-- 表单属性 -->
        <el-form v-show="currentTab === 'form'" size="small" label-width="90px">
          <el-form-item label="表单名">
            <el-input v-model="formConf.formRef" placeholder="请输入表单名（ref）" />
          </el-form-item>
          <el-form-item label="表单模型">
            <el-input v-model="formConf.formModel" placeholder="请输入数据模型" />
          </el-form-item>
          <el-form-item label="校验模型">
            <el-input v-model="formConf.formRules" placeholder="请输入校验模型" />
          </el-form-item>
          <el-form-item label="表单尺寸">
            <el-radio-group v-model="formConf.size">
              <el-radio-button label="medium">
                中等
              </el-radio-button>
              <el-radio-button label="small">
                较小
              </el-radio-button>
              <el-radio-button label="mini">
                迷你
              </el-radio-button>
            </el-radio-group>
          </el-form-item>
          <el-form-item label="标签对齐">
            <el-radio-group v-model="formConf.labelPosition">
              <el-radio-button label="left">
                左对齐
              </el-radio-button>
              <el-radio-button label="right">
                右对齐
              </el-radio-button>
              <el-radio-button label="top">
                顶部对齐
              </el-radio-button>
            </el-radio-group>
          </el-form-item>
          <el-form-item label="标签宽度">
            <el-input-number v-model="formConf.labelWidth" placeholder="标签宽度" />
          </el-form-item>
          <el-form-item label="栅格间隔">
            <el-input-number v-model="formConf.gutter" :min="0" placeholder="栅格间隔" />
          </el-form-item>
          <el-form-item label="禁用表单">
            <el-switch v-model="formConf.disabled" />
          </el-form-item>
          <el-form-item label="表单按钮">
            <el-switch v-model="formConf.formBtns" />
          </el-form-item>
          <el-form-item label="显示未选中组件边框">
            <el-switch v-model="formConf.unFocusedComponentBorder" />
          </el-form-item>
        </el-form>
      </el-scrollbar>
    </div>

    <!-- <treeNode-dialog :visible.sync="dialogVisible" title="添加选项" @commit="addNode" /> -->
    <!-- <icons-dialog :visible.sync="iconsVisible" :current="activeData[currentIconModel]" @select="setIcon" /> -->
  </div>
</template>

<script>
import { isArray } from 'util'
import draggable from 'vuedraggable'
import { isNumberStr } from './generator/index'
import {
  inputComponents,
  selectComponents,
  layoutComponents
} from './generator/config'

const dateTimeFormat = {
  date: 'yyyy-MM-dd',
  week: 'yyyy 第 WW 周',
  month: 'yyyy-MM',
  year: 'yyyy',
  datetime: 'yyyy-MM-dd HH:mm:ss',
  daterange: 'yyyy-MM-dd',
  monthrange: 'yyyy-MM',
  datetimerange: 'yyyy-MM-dd HH:mm:ss'
}

export default {
  components: {
    draggable,
  },
  props: ['showField', 'activeData', 'formConf'],
  data() {
    return {
      currentTab: 'field',
      currentNode: null,
      dialogVisible: false,
      iconsVisible: false,
      currentIconModel: null,
      dateTypeOptions: [
        {
          label: '日(date)',
          value: 'date'
        },
        {
          label: '周(week)',
          value: 'week'
        },
        {
          label: '月(month)',
          value: 'month'
        },
        {
          label: '年(year)',
          value: 'year'
        },
        {
          label: '日期时间(datetime)',
          value: 'datetime'
        }
      ],
      dateRangeTypeOptions: [
        {
          label: '日期范围(daterange)',
          value: 'daterange'
        },
        {
          label: '月范围(monthrange)',
          value: 'monthrange'
        },
        {
          label: '日期时间范围(datetimerange)',
          value: 'datetimerange'
        }
      ],
      colorFormatOptions: [
        {
          label: 'hex',
          value: 'hex'
        },
        {
          label: 'rgb',
          value: 'rgb'
        },
        {
          label: 'rgba',
          value: 'rgba'
        },
        {
          label: 'hsv',
          value: 'hsv'
        },
        {
          label: 'hsl',
          value: 'hsl'
        }
      ],
      justifyOptions: [
        {
          label: 'start',
          value: 'start'
        },
        {
          label: 'end',
          value: 'end'
        },
        {
          label: 'center',
          value: 'center'
        },
        {
          label: 'space-around',
          value: 'space-around'
        },
        {
          label: 'space-between',
          value: 'space-between'
        }
      ],
      layoutTreeProps: {
        label(data, node) {
          return data.componentName || `${data.label}: ${data.vModel}`
        }
      }
    }
  },
  computed: {
    documentLink() {
      return (
        this.activeData.document
        || 'https://element.eleme.cn/#/zh-CN/component/installation'
      )
    },
    dateOptions() {
      if (
        this.activeData.type !== undefined
        && this.activeData.tag === 'el-date-picker'
      ) {
        if (this.activeData['start-placeholder'] === undefined) {
          return this.dateTypeOptions
        }
        return this.dateRangeTypeOptions
      }
      return []
    },
    tagList() {
      return [
        {
          label: '输入型组件',
          options: inputComponents
        },
        {
          label: '选择型组件',
          options: selectComponents
        }
      ]
    }
  },
  methods: {
    addReg() {
      this.activeData.regList.push({
        pattern: '',
        message: ''
      })
    },
    addSelectItem() {
      this.activeData.options.push({
        label: '',
        value: ''
      })
    },
    addTreeItem() {
      ++this.idGlobal
      this.dialogVisible = true
      this.currentNode = this.activeData.options
    },
    renderContent(h, { node, data, store }) {
      return (
        <div class="custom-tree-node">
          <span>{node.label}</span>
          <span class="node-operation">
            <i on-click={() => this.append(data)}
              class="el-icon-plus"
              title="添加"
            ></i>
            <i on-click={() => this.remove(node, data)}
              class="el-icon-delete"
              title="删除"
            ></i>
          </span>
        </div>
      )
    },
    append(data) {
      if (!data.children) {
        this.$set(data, 'children', [])
      }
      this.dialogVisible = true
      this.currentNode = data.children
    },
    remove(node, data) {
      const { parent } = node
      const children = parent.data.children || parent.data
      const index = children.findIndex(d => d.id === data.id)
      children.splice(index, 1)
    },
    addNode(data) {
      this.currentNode.push(data)
    },
    setOptionValue(item, val) {
      item.value = isNumberStr(val) ? +val : val
    },
    setDefaultValue(val) {
      if (Array.isArray(val)) {
        return val.join(',')
      }
      if (['string', 'number'].indexOf(val) > -1) {
        return val
      }
      if (typeof val === 'boolean') {
        return `${val}`
      }
      return val
    },
    onDefaultValueInput(str) {
      if (isArray(this.activeData.defaultValue)) {
        // 数组
        this.$set(
          this.activeData,
          'defaultValue',
          str.split(',').map(val => (isNumberStr(val) ? +val : val))
        )
      } else if (['true', 'false'].indexOf(str) > -1) {
        // 布尔
        this.$set(this.activeData, 'defaultValue', JSON.parse(str))
      } else {
        // 字符串和数字
        this.$set(
          this.activeData,
          'defaultValue',
          isNumberStr(str) ? +str : str
        )
      }
    },
    onSwitchValueInput(val, name) {
      if (['true', 'false'].indexOf(val) > -1) {
        this.$set(this.activeData, name, JSON.parse(val))
      } else {
        this.$set(this.activeData, name, isNumberStr(val) ? +val : val)
      }
    },
    setTimeValue(val, type) {
      const valueFormat = type === 'week' ? dateTimeFormat.date : val
      this.$set(this.activeData, 'defaultValue', null)
      this.$set(this.activeData, 'value-format', valueFormat)
      this.$set(this.activeData, 'format', val)
    },
    spanChange(val) {
      this.formConf.span = val
    },
    multipleChange(val) {
      this.$set(this.activeData, 'defaultValue', val ? [] : '')
    },
    dateTypeChange(val) {
      this.setTimeValue(dateTimeFormat[val], val)
    },
    rangeChange(val) {
      this.$set(
        this.activeData,
        'defaultValue',
        val ? [this.activeData.min, this.activeData.max] : this.activeData.min
      )
    },
    rateTextChange(val) {
      if (val) this.activeData['show-score'] = false
    },
    rateScoreChange(val) {
      if (val) this.activeData['show-text'] = false
    },
    colorFormatChange(val) {
      this.activeData.defaultValue = null
      this.activeData['show-alpha'] = val.indexOf('a') > -1
      this.activeData.renderKey = +new Date() // 更新renderKey,重新渲染该组件
    },
    openIconsDialog(model) {
      this.iconsVisible = true
      this.currentIconModel = model
    },
    setIcon(val) {
      this.activeData[this.currentIconModel] = val
    },
    tagChange(tagIcon) {
      let target = inputComponents.find(item => item.tagIcon === tagIcon)
      if (!target) target = selectComponents.find(item => item.tagIcon === tagIcon)
      this.$emit('tag-change', target)
    }
  }
}
</script>

<style lang="scss" scoped>
.right-board {
  width: 350px;
  position: absolute;
  right: 0;
  top: 0;
  padding-top: 3px;
  .field-box {
    position: relative;
    height: calc(100vh - 42px);
    box-sizing: border-box;
    overflow: hidden;
  }
  .el-scrollbar {
    height: 100%;
  }
}
.select-item {
  display: flex;
  border: 1px dashed #fff;
  box-sizing: border-box;
  & .close-btn {
    cursor: pointer;
    color: #f56c6c;
  }
  & .el-input + .el-input {
    margin-left: 4px;
  }
}
.select-item + .select-item {
  margin-top: 4px;
}
.select-item.sortable-chosen {
  border: 1px dashed #409eff;
}
.select-line-icon {
  line-height: 32px;
  font-size: 22px;
  padding: 0 4px;
  color: #777;
}
.option-drag {
  cursor: move;
}
.time-range {
  .el-date-editor {
    width: 227px;
  }
  ::v-deep .el-icon-time {
    display: none;
  }
}
.document-link {
  position: absolute;
  display: block;
  width: 26px;
  height: 26px;
  top: 0;
  left: 0;
  cursor: pointer;
  background: #409eff;
  z-index: 1;
  border-radius: 0 0 6px 0;
  text-align: center;
  line-height: 26px;
  color: #fff;
  font-size: 18px;
}
.node-label{
  font-size: 14px;
}
.node-icon{
  color: #bebfc3;
}
</style>

4.CodeTypeDialog.vue

<template>
  <div>
    <el-dialog
      v-bind="$attrs"
      width="500px"
      :close-on-click-modal="false"
      :modal-append-to-body="false"
      v-on="$listeners"
      @open="onOpen"
      @close="onClose"
    >
      <el-row :gutter="15">
        <el-form
          ref="elForm"
          :model="formData"
          :rules="rules"
          size="medium"
          label-width="100px"
        >
          <el-col :span="24">
            <el-form-item label="生成类型" prop="type">
              <el-radio-group v-model="formData.type">
                <el-radio-button
                  v-for="(item, index) in typeOptions"
                  :key="index"
                  :label="item.value"
                  :disabled="item.disabled"
                >
                  {{ item.label }}
                </el-radio-button>
              </el-radio-group>
            </el-form-item>
            <el-form-item v-if="showFileName" label="文件名" prop="fileName">
              <el-input v-model="formData.fileName" placeholder="请输入文件名" clearable />
            </el-form-item>
          </el-col>
        </el-form>
      </el-row>

      <div slot="footer">
        <el-button @click="close">
          取消
        </el-button>
        <el-button type="primary" @click="handleConfirm">
          确定
        </el-button>
      </div>
    </el-dialog>
  </div>
</template>
<script>
export default {
  inheritAttrs: false,
  props: ['showFileName'],
  data() {
    return {
      formData: {
        fileName: undefined,
        type: 'file'
      },
      rules: {
        fileName: [{
          required: true,
          message: '请输入文件名',
          trigger: 'blur'
        }],
        type: [{
          required: true,
          message: '生成类型不能为空',
          trigger: 'change'
        }]
      },
      typeOptions: [{
        label: '页面',
        value: 'file'
      }, {
        label: '弹窗',
        value: 'dialog'
      }]
    }
  },
  computed: {
  },
  watch: {},
  mounted() {},
  methods: {
    onOpen() {
      if (this.showFileName) {
        this.formData.fileName = `${+new Date()}.vue`
      }
    },
    onClose() {
    },
    close(e) {
      this.$emit('update:visible', false)
    },
    handleConfirm() {
      this.$refs.elForm.validate(valid => {
        if (!valid) return
        this.$emit('confirm', { ...this.formData })
        this.close()
      })
    }
  }
}
</script>

5.render.js

function makeMap(str, expectsLowerCase) {
    const map = Object.create(null)
    const list = str.split(',')
    for (let i = 0; i < list.length; i++) {
      map[list[i]] = true
    }
    return expectsLowerCase
      ? val => map[val.toLowerCase()]
      : val => map[val]
  }
// 参考https://github.com/vuejs/vue/blob/v2.6.10/src/platforms/web/server/util.js
const isAttr = makeMap(
  'accept,accept-charset,accesskey,action,align,alt,async,autocomplete,'
  + 'autofocus,autoplay,autosave,bgcolor,border,buffered,challenge,charset,'
  + 'checked,cite,class,code,codebase,color,cols,colspan,content,http-equiv,'
  + 'name,contenteditable,contextmenu,controls,coords,data,datetime,default,'
  + 'defer,dir,dirname,disabled,download,draggable,dropzone,enctype,method,for,'
  + 'form,formaction,headers,height,hidden,high,href,hreflang,http-equiv,'
  + 'icon,id,ismap,itemprop,keytype,kind,label,lang,language,list,loop,low,'
  + 'manifest,max,maxlength,media,method,GET,POST,min,multiple,email,file,'
  + 'muted,name,novalidate,open,optimum,pattern,ping,placeholder,poster,'
  + 'preload,radiogroup,readonly,rel,required,reversed,rows,rowspan,sandbox,'
  + 'scope,scoped,seamless,selected,shape,size,type,text,password,sizes,span,'
  + 'spellcheck,src,srcdoc,srclang,srcset,start,step,style,summary,tabindex,'
  + 'target,title,type,usemap,value,width,wrap'
)

function vModel(self, dataObject, defaultValue) {
  dataObject.props.value = defaultValue

  dataObject.on.input = val => {
    self.$emit('input', val)
  }
}

const componentChild = {
  'el-button': {
    default(h, conf, key) {
      return conf[key]
    },
  },
  'el-input': {
    prepend(h, conf, key) {
      return <template slot="prepend">{conf[key]}</template>
    },
    append(h, conf, key) {
      return <template slot="append">{conf[key]}</template>
    }
  },
  'el-select': {
    options(h, conf, key) {
      const list = []
      conf.options.forEach(item => {
        list.push(<el-option label={item.label} value={item.value} disabled={item.disabled}></el-option>)
      })
      return list
    }
  },
  'el-radio-group': {
    options(h, conf, key) {
      const list = []
      conf.options.forEach(item => {
        if (conf.optionType === 'button') list.push(<el-radio-button label={item.value}>{item.label}</el-radio-button>)
        else list.push(<el-radio label={item.value} border={conf.border}>{item.label}</el-radio>)
      })
      return list
    }
  },
  'el-checkbox-group': {
    options(h, conf, key) {
      const list = []
      conf.options.forEach(item => {
        if (conf.optionType === 'button') {
          list.push(<el-checkbox-button label={item.value}>{item.label}</el-checkbox-button>)
        } else {
          list.push(<el-checkbox label={item.value} border={conf.border}>{item.label}</el-checkbox>)
        }
      })
      return list
    }
  },
  'el-upload': {
    'list-type': (h, conf, key) => {
      const list = []
      if (conf['list-type'] === 'picture-card') {
        list.push(<i class="el-icon-plus"></i>)
      } else {
        list.push(<el-button size="small" type="primary" icon="el-icon-upload">{conf.buttonText}</el-button>)
      }
      if (conf.showTip) {
        list.push(<div slot="tip" class="el-upload__tip">只能上传不超过 {conf.fileSize}{conf.sizeUnit} 的{conf.accept}文件</div>)
      }
      return list
    }
  }
}

export default {
  render(h) {
    const dataObject = {
      attrs: {},
      props: {},
      on: {},
      style: {}
    }
    const confClone = JSON.parse(JSON.stringify(this.conf))
    const children = []

    const childObjs = componentChild[confClone.tag]
    if (childObjs) {
      Object.keys(childObjs).forEach(key => {
        const childFunc = childObjs[key]
        if (confClone[key]) {
          children.push(childFunc(h, confClone, key))
        }
      })
    }

    Object.keys(confClone).forEach(key => {
      const val = confClone[key]
      if (key === 'vModel') {
        vModel(this, dataObject, confClone.defaultValue)
      } else if (dataObject[key]) {
        dataObject[key] = val
      } else if (!isAttr(key)) {
        dataObject.props[key] = val
      } else {
        dataObject.attrs[key] = val
      }
    })
    return h(this.conf.tag, dataObject, children)
  },
  props: ['conf']
}

6.generator/config.js

export const formConf = {
    formRef: 'elForm',
    formModel: 'formData',
    size: 'medium',
    labelPosition: 'right',
    labelWidth: 100,
    formRules: 'rules',
    gutter: 15,
    disabled: false,
    span: 24,
    formBtns: true
  }

  export const inputComponents = [
    {
      label: '单行文本',
      tag: 'el-input',
      tagIcon: 'input',
      placeholder: '请输入',
      defaultValue: undefined,
      span: 24,
      labelWidth: null,
      style: { width: '100%' },
      clearable: true,
      prepend: '',
      append: '',
      'prefix-icon': '',
      'suffix-icon': '',
      maxlength: null,
      'show-word-limit': false,
      readonly: false,
      disabled: false,
      required: true,
      regList: [],
      changeTag: true,
      document: 'https://element.eleme.cn/#/zh-CN/component/input'
    },
    {
      label: '多行文本',
      tag: 'el-input',
      tagIcon: 'textarea',
      type: 'textarea',
      placeholder: '请输入',
      defaultValue: undefined,
      span: 24,
      labelWidth: null,
      autosize: {
        minRows: 4,
        maxRows: 4
      },
      style: { width: '100%' },
      maxlength: null,
      'show-word-limit': false,
      readonly: false,
      disabled: false,
      required: true,
      regList: [],
      changeTag: true,
      document: 'https://element.eleme.cn/#/zh-CN/component/input'
    },
    {
      label: '密码',
      tag: 'el-input',
      tagIcon: 'password',
      placeholder: '请输入',
      defaultValue: undefined,
      span: 24,
      'show-password': true,
      labelWidth: null,
      style: { width: '100%' },
      clearable: true,
      prepend: '',
      append: '',
      'prefix-icon': '',
      'suffix-icon': '',
      maxlength: null,
      'show-word-limit': false,
      readonly: false,
      disabled: false,
      required: true,
      regList: [],
      changeTag: true,
      document: 'https://element.eleme.cn/#/zh-CN/component/input'
    },
    {
      label: '计数器',
      tag: 'el-input-number',
      tagIcon: 'number',
      placeholder: '',
      defaultValue: undefined,
      span: 24,
      labelWidth: null,
      min: undefined,
      max: undefined,
      step: undefined,
      'step-strictly': false,
      precision: undefined,
      'controls-position': '',
      disabled: false,
      required: true,
      regList: [],
      changeTag: true,
      document: 'https://element.eleme.cn/#/zh-CN/component/input-number'
    }
  ]

  export const selectComponents = [
    {
      label: '下拉选择',
      tag: 'el-select',
      tagIcon: 'select',
      placeholder: '请选择',
      defaultValue: undefined,
      span: 24,
      labelWidth: null,
      style: { width: '100%' },
      clearable: true,
      disabled: false,
      required: true,
      filterable: false,
      multiple: false,
      options: [{
        label: '选项一',
        value: 1
      }, {
        label: '选项二',
        value: 2
      }],
      regList: [],
      changeTag: true,
      document: 'https://element.eleme.cn/#/zh-CN/component/select'
    },
    {
      label: '级联选择',
      tag: 'el-cascader',
      tagIcon: 'cascader',
      placeholder: '请选择',
      defaultValue: [],
      span: 24,
      labelWidth: null,
      style: { width: '100%' },
      props: {
        props: {
          multiple: false
        }
      },
      'show-all-levels': true,
      disabled: false,
      clearable: true,
      filterable: false,
      required: true,
      options: [{
        id: 1,
        value: 1,
        label: '选项1',
        children: [{
          id: 2,
          value: 2,
          label: '选项1-1'
        }]
      }],
      dataType: 'dynamic',
      labelKey: 'label',
      valueKey: 'value',
      childrenKey: 'children',
      separator: '/',
      regList: [],
      changeTag: true,
      document: 'https://element.eleme.cn/#/zh-CN/component/cascader'
    },
    {
      label: '单选框组',
      tag: 'el-radio-group',
      tagIcon: 'radio',
      defaultValue: undefined,
      span: 24,
      labelWidth: null,
      style: {},
      optionType: 'default',
      border: false,
      size: 'medium',
      disabled: false,
      required: true,
      options: [{
        label: '选项一',
        value: 1
      }, {
        label: '选项二',
        value: 2
      }],
      regList: [],
      changeTag: true,
      document: 'https://element.eleme.cn/#/zh-CN/component/radio'
    },
    {
      label: '多选框组',
      tag: 'el-checkbox-group',
      tagIcon: 'checkbox',
      defaultValue: [],
      span: 24,
      labelWidth: null,
      style: {},
      optionType: 'default',
      border: false,
      size: 'medium',
      disabled: false,
      required: true,
      options: [{
        label: '选项一',
        value: 1
      }, {
        label: '选项二',
        value: 2
      }],
      regList: [],
      changeTag: true,
      document: 'https://element.eleme.cn/#/zh-CN/component/checkbox'
    },
    {
      label: '开关',
      tag: 'el-switch',
      tagIcon: 'switch',
      defaultValue: false,
      span: 24,
      labelWidth: null,
      style: {},
      disabled: false,
      required: true,
      'active-text': '',
      'inactive-text': '',
      'active-color': null,
      'inactive-color': null,
      'active-value': true,
      'inactive-value': false,
      regList: [],
      changeTag: true,
      document: 'https://element.eleme.cn/#/zh-CN/component/switch'
    },
    {
      label: '滑块',
      tag: 'el-slider',
      tagIcon: 'slider',
      defaultValue: null,
      span: 24,
      labelWidth: null,
      disabled: false,
      required: true,
      min: 0,
      max: 100,
      step: 1,
      'show-stops': false,
      range: false,
      regList: [],
      changeTag: true,
      document: 'https://element.eleme.cn/#/zh-CN/component/slider'
    },
    {
      label: '时间选择',
      tag: 'el-time-picker',
      tagIcon: 'time',
      placeholder: '请选择',
      defaultValue: null,
      span: 24,
      labelWidth: null,
      style: { width: '100%' },
      disabled: false,
      clearable: true,
      required: true,
      'picker-options': {
        selectableRange: '00:00:00-23:59:59'
      },
      format: 'HH:mm:ss',
      'value-format': 'HH:mm:ss',
      regList: [],
      changeTag: true,
      document: 'https://element.eleme.cn/#/zh-CN/component/time-picker'
    },
    {
      label: '时间范围',
      tag: 'el-time-picker',
      tagIcon: 'time-range',
      defaultValue: null,
      span: 24,
      labelWidth: null,
      style: { width: '100%' },
      disabled: false,
      clearable: true,
      required: true,
      'is-range': true,
      'range-separator': '至',
      'start-placeholder': '开始时间',
      'end-placeholder': '结束时间',
      format: 'HH:mm:ss',
      'value-format': 'HH:mm:ss',
      regList: [],
      changeTag: true,
      document: 'https://element.eleme.cn/#/zh-CN/component/time-picker'
    },
    {
      label: '日期选择',
      tag: 'el-date-picker',
      tagIcon: 'date',
      placeholder: '请选择',
      defaultValue: null,
      type: 'date',
      span: 24,
      labelWidth: null,
      style: { width: '100%' },
      disabled: false,
      clearable: true,
      required: true,
      format: 'yyyy-MM-dd',
      'value-format': 'yyyy-MM-dd',
      readonly: false,
      regList: [],
      changeTag: true,
      document: 'https://element.eleme.cn/#/zh-CN/component/date-picker'
    },
    {
      label: '日期范围',
      tag: 'el-date-picker',
      tagIcon: 'date-range',
      defaultValue: null,
      span: 24,
      labelWidth: null,
      style: { width: '100%' },
      type: 'daterange',
      'range-separator': '至',
      'start-placeholder': '开始日期',
      'end-placeholder': '结束日期',
      disabled: false,
      clearable: true,
      required: true,
      format: 'yyyy-MM-dd',
      'value-format': 'yyyy-MM-dd',
      readonly: false,
      regList: [],
      changeTag: true,
      document: 'https://element.eleme.cn/#/zh-CN/component/date-picker'
    },
    {
      label: '评分',
      tag: 'el-rate',
      tagIcon: 'rate',
      defaultValue: 0,
      span: 24,
      labelWidth: null,
      style: {},
      max: 5,
      'allow-half': false,
      'show-text': false,
      'show-score': false,
      disabled: false,
      required: true,
      regList: [],
      changeTag: true,
      document: 'https://element.eleme.cn/#/zh-CN/component/rate'
    },
    {
      label: '颜色选择',
      tag: 'el-color-picker',
      tagIcon: 'color',
      defaultValue: null,
      labelWidth: null,
      'show-alpha': false,
      'color-format': '',
      disabled: false,
      required: true,
      size: 'medium',
      regList: [],
      changeTag: true,
      document: 'https://element.eleme.cn/#/zh-CN/component/color-picker'
    },
    {
      label: '上传',
      tag: 'el-upload',
      tagIcon: 'upload',
      action: 'https://jsonplaceholder.typicode.com/posts/',
      defaultValue: null,
      labelWidth: null,
      disabled: false,
      required: true,
      accept: '',
      name: 'file',
      'auto-upload': true,
      showTip: false,
      buttonText: '点击上传',
      fileSize: 2,
      sizeUnit: 'MB',
      'list-type': 'text',
      multiple: false,
      regList: [],
      changeTag: true,
      document: 'https://element.eleme.cn/#/zh-CN/component/upload'
    }
  ]

  export const layoutComponents = [
    {
      layout: 'rowFormItem',
      tagIcon: 'row',
      type: 'default',
      justify: 'start',
      align: 'top',
      label: '行容器',
      layoutTree: true,
      children: [],
      document: 'https://element.eleme.cn/#/zh-CN/component/layout'
    },
    {
      layout: 'colFormItem',
      label: '按钮',
      changeTag: true,
      labelWidth: null,
      tag: 'el-button',
      tagIcon: 'button',
      span: 24,
      default: '主要按钮',
      type: 'primary',
      icon: 'el-icon-search',
      size: 'medium',
      disabled: false,
      document: 'https://element.eleme.cn/#/zh-CN/component/button'
    }
  ]

  // 组件rule的触发方式，无触发方式的组件不生成rule
  export const trigger = {
    'el-input': 'blur',
    'el-input-number': 'blur',
    'el-select': 'change',
    'el-radio-group': 'change',
    'el-checkbox-group': 'change',
    'el-cascader': 'change',
    'el-time-picker': 'change',
    'el-date-picker': 'change',
    'el-rate': 'change'
  }


  export const  drawingList = [
    {
      layout: 'colFormItem',
      tagIcon: 'input',
      label: '手机号',
      vModel: 'mobile',
      formId: 6,
      tag: 'el-input',
      placeholder: '请输入手机号',
      defaultValue: '',
      span: 24,
      style: { width: '100%' },
      clearable: true,
      prepend: '',
      append: '',
      'prefix-icon': 'el-icon-mobile',
      'suffix-icon': '',
      maxlength: 11,
      'show-word-limit': true,
      readonly: false,
      disabled: false,
      required: true,
      changeTag: true,
      regList: [{
        pattern: '/^1(3|4|5|7|8|9)\\d{9}$/',
        message: '手机号格式错误'
      }]
    }
  ]

7.generator/index.js

export const exportDefault = 'export default '
// 首字母大小
export function titleCase(str) {
    return str.replace(/( |^)[a-z]/g, L => L.toUpperCase())
}
export const beautifierConf = {
    html: {
      indent_size: '2',
      indent_char: ' ',
      max_preserve_newlines: '-1',
      preserve_newlines: false,
      keep_array_indentation: false,
      break_chained_methods: false,
      indent_scripts: 'separate',
      brace_style: 'end-expand',
      space_before_conditional: true,
      unescape_strings: false,
      jslint_happy: false,
      end_with_newline: true,
      wrap_line_length: '110',
      indent_inner_html: true,
      comma_first: false,
      e4x: true,
      indent_empty_lines: true
    },
    js: {
      indent_size: '2',
      indent_char: ' ',
      max_preserve_newlines: '-1',
      preserve_newlines: false,
      keep_array_indentation: false,
      break_chained_methods: false,
      indent_scripts: 'normal',
      brace_style: 'end-expand',
      space_before_conditional: true,
      unescape_strings: false,
      jslint_happy: true,
      end_with_newline: true,
      wrap_line_length: '110',
      indent_inner_html: true,
      comma_first: false,
      e4x: true,
      indent_empty_lines: true
    }
  }
  export function isNumberStr(str) {
    return /^[+-]?(0|([1-9]\d*))(\.\d+)?$/g.test(str)
  }

8.generator/html.js

/* eslint-disable max-len */
import { trigger } from './config'

let confGlobal
let someSpanIsNot24

export function dialogWrapper(str) {
  return `<el-dialog v-bind="$attrs" v-on="$listeners" @open="onOpen" @close="onClose" title="Dialog Title">
    ${str}
    <div slot="footer">
      <el-button @click="close">取消</el-button>
      <el-button type="primary" @click="handleConfirm">确定</el-button>
    </div>
  </el-dialog>`
}

export function vueTemplate(str) {
  return `<template>
    <div>
      ${str}
    </div>
  </template>`
}

export function vueScript(str) {
  return `<script>
    ${str}
  </script>`
}

export function cssStyle(cssStr) {
  return `<style>
    ${cssStr}
  </style>`
}

function buildFormTemplate(conf, child, type) {
  let labelPosition = ''
  if (conf.labelPosition !== 'right') {
    labelPosition = `label-position="${conf.labelPosition}"`
  }
  const disabled = conf.disabled ? `:disabled="${conf.disabled}"` : ''
  let str = `<el-form ref="${conf.formRef}" :model="${conf.formModel}" :rules="${conf.formRules}" size="${conf.size}" ${disabled} label-width="${conf.labelWidth}px" ${labelPosition}>
      ${child}
      ${buildFromBtns(conf, type)}
    </el-form>`
  if (someSpanIsNot24) {
    str = `<el-row :gutter="${conf.gutter}">
        ${str}
      </el-row>`
  }
  return str
}

function buildFromBtns(conf, type) {
  let str = ''
  if (conf.formBtns && type === 'file') {
    str = `<el-form-item size="large">
          <el-button type="primary" @click="submitForm">提交</el-button>
          <el-button @click="resetForm">重置</el-button>
        </el-form-item>`
    if (someSpanIsNot24) {
      str = `<el-col :span="24">
          ${str}
        </el-col>`
    }
  }
  return str
}

// span不为24的用el-col包裹
function colWrapper(element, str) {
  if (someSpanIsNot24 || element.span !== 24) {
    return `<el-col :span="${element.span}">
      ${str}
    </el-col>`
  }
  return str
}

const layouts = {
  colFormItem(element) {
    let labelWidth = ''
    if (element.labelWidth && element.labelWidth !== confGlobal.labelWidth) {
      labelWidth = `label-width="${element.labelWidth}px"`
    }
    const required = !trigger[element.tag] && element.required ? 'required' : ''
    const tagDom = tags[element.tag] ? tags[element.tag](element) : null
    let str = `<el-form-item ${labelWidth} label="${element.label}" prop="${element.vModel}" ${required}>
        ${tagDom}
      </el-form-item>`
    str = colWrapper(element, str)
    return str
  },
  rowFormItem(element) {
    const type = element.type === 'default' ? '' : `type="${element.type}"`
    const justify = element.type === 'default' ? '' : `justify="${element.justify}"`
    const align = element.type === 'default' ? '' : `align="${element.align}"`
    const gutter = element.gutter ? `gutter="${element.gutter}"` : ''
    const children = element.children.map(el => layouts[el.layout](el))
    let str = `<el-row ${type} ${justify} ${align} ${gutter}>
      ${children.join('\n')}
    </el-row>`
    str = colWrapper(element, str)
    return str
  }
}

const tags = {
  'el-button': el => {
    const {
      tag, disabled
    } = attrBuilder(el)
    const type = el.type ? `type="${el.type}"` : ''
    const icon = el.icon ? `icon="${el.icon}"` : ''
    const size = el.size ? `size="${el.size}"` : ''
    let child = buildElButtonChild(el)

    if (child) child = `\n${child}\n` // 换行
    return `<${el.tag} ${type} ${icon} ${size} ${disabled}>${child}</${el.tag}>`
  },
  'el-input': el => {
    const {
      disabled, vModel, clearable, placeholder, width
    } = attrBuilder(el)
    const maxlength = el.maxlength ? `:maxlength="${el.maxlength}"` : ''
    const showWordLimit = el['show-word-limit'] ? 'show-word-limit' : ''
    const readonly = el.readonly ? 'readonly' : ''
    const prefixIcon = el['prefix-icon'] ? `prefix-icon='${el['prefix-icon']}'` : ''
    const suffixIcon = el['suffix-icon'] ? `suffix-icon='${el['suffix-icon']}'` : ''
    const showPassword = el['show-password'] ? 'show-password' : ''
    const type = el.type ? `type="${el.type}"` : ''
    const autosize = el.autosize && el.autosize.minRows
      ? `:autosize="{minRows: ${el.autosize.minRows}, maxRows: ${el.autosize.maxRows}}"`
      : ''
    let child = buildElInputChild(el)

    if (child) child = `\n${child}\n` // 换行
    return `<${el.tag} ${vModel} ${type} ${placeholder} ${maxlength} ${showWordLimit} ${readonly} ${disabled} ${clearable} ${prefixIcon} ${suffixIcon} ${showPassword} ${autosize} ${width}>${child}</${el.tag}>`
  },
  'el-input-number': el => {
    const { disabled, vModel, placeholder } = attrBuilder(el)
    const controlsPosition = el['controls-position'] ? `controls-position=${el['controls-position']}` : ''
    const min = el.min ? `:min='${el.min}'` : ''
    const max = el.max ? `:max='${el.max}'` : ''
    const step = el.step ? `:step='${el.step}'` : ''
    const stepStrictly = el['step-strictly'] ? 'step-strictly' : ''
    const precision = el.precision ? `:precision='${el.precision}'` : ''

    return `<${el.tag} ${vModel} ${placeholder} ${step} ${stepStrictly} ${precision} ${controlsPosition} ${min} ${max} ${disabled}></${el.tag}>`
  },
  'el-select': el => {
    const {
      disabled, vModel, clearable, placeholder, width
    } = attrBuilder(el)
    const filterable = el.filterable ? 'filterable' : ''
    const multiple = el.multiple ? 'multiple' : ''
    let child = buildElSelectChild(el)

    if (child) child = `\n${child}\n` // 换行
    return `<${el.tag} ${vModel} ${placeholder} ${disabled} ${multiple} ${filterable} ${clearable} ${width}>${child}</${el.tag}>`
  },
  'el-radio-group': el => {
    const { disabled, vModel } = attrBuilder(el)
    const size = `size="${el.size}"`
    let child = buildElRadioGroupChild(el)

    if (child) child = `\n${child}\n` // 换行
    return `<${el.tag} ${vModel} ${size} ${disabled}>${child}</${el.tag}>`
  },
  'el-checkbox-group': el => {
    const { disabled, vModel } = attrBuilder(el)
    const size = `size="${el.size}"`
    const min = el.min ? `:min="${el.min}"` : ''
    const max = el.max ? `:max="${el.max}"` : ''
    let child = buildElCheckboxGroupChild(el)

    if (child) child = `\n${child}\n` // 换行
    return `<${el.tag} ${vModel} ${min} ${max} ${size} ${disabled}>${child}</${el.tag}>`
  },
  'el-switch': el => {
    const { disabled, vModel } = attrBuilder(el)
    const activeText = el['active-text'] ? `active-text="${el['active-text']}"` : ''
    const inactiveText = el['inactive-text'] ? `inactive-text="${el['inactive-text']}"` : ''
    const activeColor = el['active-color'] ? `active-color="${el['active-color']}"` : ''
    const inactiveColor = el['inactive-color'] ? `inactive-color="${el['inactive-color']}"` : ''
    const activeValue = el['active-value'] !== true ? `:active-value='${JSON.stringify(el['active-value'])}'` : ''
    const inactiveValue = el['inactive-value'] !== false ? `:inactive-value='${JSON.stringify(el['inactive-value'])}'` : ''

    return `<${el.tag} ${vModel} ${activeText} ${inactiveText} ${activeColor} ${inactiveColor} ${activeValue} ${inactiveValue} ${disabled}></${el.tag}>`
  },
  'el-cascader': el => {
    const {
      disabled, vModel, clearable, placeholder, width
    } = attrBuilder(el)
    const options = el.options ? `:options="${el.vModel}Options"` : ''
    const props = el.props ? `:props="${el.vModel}Props"` : ''
    const showAllLevels = el['show-all-levels'] ? '' : ':show-all-levels="false"'
    const filterable = el.filterable ? 'filterable' : ''
    const separator = el.separator === '/' ? '' : `separator="${el.separator}"`

    return `<${el.tag} ${vModel} ${options} ${props} ${width} ${showAllLevels} ${placeholder} ${separator} ${filterable} ${clearable} ${disabled}></${el.tag}>`
  },
  'el-slider': el => {
    const { disabled, vModel } = attrBuilder(el)
    const min = el.min ? `:min='${el.min}'` : ''
    const max = el.max ? `:max='${el.max}'` : ''
    const step = el.step ? `:step='${el.step}'` : ''
    const range = el.range ? 'range' : ''
    const showStops = el['show-stops'] ? `:show-stops="${el['show-stops']}"` : ''

    return `<${el.tag} ${min} ${max} ${step} ${vModel} ${range} ${showStops} ${disabled}></${el.tag}>`
  },
  'el-time-picker': el => {
    const {
      disabled, vModel, clearable, placeholder, width
    } = attrBuilder(el)
    const startPlaceholder = el['start-placeholder'] ? `start-placeholder="${el['start-placeholder']}"` : ''
    const endPlaceholder = el['end-placeholder'] ? `end-placeholder="${el['end-placeholder']}"` : ''
    const rangeSeparator = el['range-separator'] ? `range-separator="${el['range-separator']}"` : ''
    const isRange = el['is-range'] ? 'is-range' : ''
    const format = el.format ? `format="${el.format}"` : ''
    const valueFormat = el['value-format'] ? `value-format="${el['value-format']}"` : ''
    const pickerOptions = el['picker-options'] ? `:picker-options='${JSON.stringify(el['picker-options'])}'` : ''

    return `<${el.tag} ${vModel} ${isRange} ${format} ${valueFormat} ${pickerOptions} ${width} ${placeholder} ${startPlaceholder} ${endPlaceholder} ${rangeSeparator} ${clearable} ${disabled}></${el.tag}>`
  },
  'el-date-picker': el => {
    const {
      disabled, vModel, clearable, placeholder, width
    } = attrBuilder(el)
    const startPlaceholder = el['start-placeholder'] ? `start-placeholder="${el['start-placeholder']}"` : ''
    const endPlaceholder = el['end-placeholder'] ? `end-placeholder="${el['end-placeholder']}"` : ''
    const rangeSeparator = el['range-separator'] ? `range-separator="${el['range-separator']}"` : ''
    const format = el.format ? `format="${el.format}"` : ''
    const valueFormat = el['value-format'] ? `value-format="${el['value-format']}"` : ''
    const type = el.type === 'date' ? '' : `type="${el.type}"`
    const readonly = el.readonly ? 'readonly' : ''

    return `<${el.tag} ${type} ${vModel} ${format} ${valueFormat} ${width} ${placeholder} ${startPlaceholder} ${endPlaceholder} ${rangeSeparator} ${clearable} ${readonly} ${disabled}></${el.tag}>`
  },
  'el-rate': el => {
    const { disabled, vModel } = attrBuilder(el)
    const max = el.max ? `:max='${el.max}'` : ''
    const allowHalf = el['allow-half'] ? 'allow-half' : ''
    const showText = el['show-text'] ? 'show-text' : ''
    const showScore = el['show-score'] ? 'show-score' : ''

    return `<${el.tag} ${vModel} ${allowHalf} ${showText} ${showScore} ${disabled}></${el.tag}>`
  },
  'el-color-picker': el => {
    const { disabled, vModel } = attrBuilder(el)
    const size = `size="${el.size}"`
    const showAlpha = el['show-alpha'] ? 'show-alpha' : ''
    const colorFormat = el['color-format'] ? `color-format="${el['color-format']}"` : ''

    return `<${el.tag} ${vModel} ${size} ${showAlpha} ${colorFormat} ${disabled}></${el.tag}>`
  },
  'el-upload': el => {
    const disabled = el.disabled ? ':disabled=\'true\'' : ''
    const action = el.action ? `:action="${el.vModel}Action"` : ''
    const multiple = el.multiple ? 'multiple' : ''
    const listType = el['list-type'] !== 'text' ? `list-type="${el['list-type']}"` : ''
    const accept = el.accept ? `accept="${el.accept}"` : ''
    const name = el.name !== 'file' ? `name="${el.name}"` : ''
    const autoUpload = el['auto-upload'] === false ? ':auto-upload="false"' : ''
    const beforeUpload = `:before-upload="${el.vModel}BeforeUpload"`
    const fileList = `:file-list="${el.vModel}fileList"`
    const ref = `ref="${el.vModel}"`
    let child = buildElUploadChild(el)

    if (child) child = `\n${child}\n` // 换行
    return `<${el.tag} ${ref} ${fileList} ${action} ${autoUpload} ${multiple} ${beforeUpload} ${listType} ${accept} ${name} ${disabled}>${child}</${el.tag}>`
  }
}

function attrBuilder(el) {
  return {
    vModel: `v-model="${confGlobal.formModel}.${el.vModel}"`,
    clearable: el.clearable ? 'clearable' : '',
    placeholder: el.placeholder ? `placeholder="${el.placeholder}"` : '',
    width: el.style && el.style.width ? ':style="{width: \'100%\'}"' : '',
    disabled: el.disabled ? ':disabled=\'true\'' : ''
  }
}

// el-buttin 子级
function buildElButtonChild(conf) {
  const children = []
  if (conf.default) {
    children.push(conf.default)
  }
  return children.join('\n')
}

// el-input innerHTML
function buildElInputChild(conf) {
  const children = []
  if (conf.prepend) {
    children.push(`<template slot="prepend">${conf.prepend}</template>`)
  }
  if (conf.append) {
    children.push(`<template slot="append">${conf.append}</template>`)
  }
  return children.join('\n')
}

function buildElSelectChild(conf) {
  const children = []
  if (conf.options && conf.options.length) {
    children.push(`<el-option v-for="(item, index) in ${conf.vModel}Options" :key="index" :label="item.label" :value="item.value" :disabled="item.disabled"></el-option>`)
  }
  return children.join('\n')
}

function buildElRadioGroupChild(conf) {
  const children = []
  if (conf.options && conf.options.length) {
    const tag = conf.optionType === 'button' ? 'el-radio-button' : 'el-radio'
    const border = conf.border ? 'border' : ''
    children.push(`<${tag} v-for="(item, index) in ${conf.vModel}Options" :key="index" :label="item.value" :disabled="item.disabled" ${border}>{{item.label}}</${tag}>`)
  }
  return children.join('\n')
}

function buildElCheckboxGroupChild(conf) {
  const children = []
  if (conf.options && conf.options.length) {
    const tag = conf.optionType === 'button' ? 'el-checkbox-button' : 'el-checkbox'
    const border = conf.border ? 'border' : ''
    children.push(`<${tag} v-for="(item, index) in ${conf.vModel}Options" :key="index" :label="item.value" :disabled="item.disabled" ${border}>{{item.label}}</${tag}>`)
  }
  return children.join('\n')
}

function buildElUploadChild(conf) {
  const list = []
  if (conf['list-type'] === 'picture-card') list.push('')
  else list.push(`<el-button size="small" type="primary" icon="el-icon-upload">${conf.buttonText}</el-button>`)
  if (conf.showTip) list.push(`<div slot="tip" class="el-upload__tip">只能上传不超过 ${conf.fileSize}${conf.sizeUnit} 的${conf.accept}文件</div>`)
  return list.join('\n')
}

export function makeUpHtml(conf, type) {
  const htmlList = []
  confGlobal = conf
  someSpanIsNot24 = conf.fields.some(item => item.span !== 24)
  conf.fields.forEach(el => {
    htmlList.push(layouts[el.layout](el))
  })
  const htmlStr = htmlList.join('\n')

  let temp = buildFormTemplate(conf, htmlStr, type)
  if (type === 'dialog') {
    temp = dialogWrapper(temp)
  }
  confGlobal = null
  return temp
}

9.generator/css.js

const styles = {
    'el-rate': '.el-rate{display: inline-block; vertical-align: text-top;}',
    'el-upload': '.el-upload__tip{line-height: 1.2;}'
  }

  function addCss(cssList, el) {
    const css = styles[el.tag]
    css && cssList.indexOf(css) === -1 && cssList.push(css)
    if (el.children) {
      el.children.forEach(el2 => addCss(cssList, el2))
    }
  }

  export function makeUpCss(conf) {
    const cssList = []
    conf.fields.forEach(el => addCss(cssList, el))
    return cssList.join('\n')
  }

10.generator/js.js

import { isArray } from 'util'
import { exportDefault, titleCase } from './index'
import { trigger } from './config'

const units = {
  KB: '1024',
  MB: '1024 / 1024',
  GB: '1024 / 1024 / 1024'
}
let confGlobal
const inheritAttrs = {
  file: '',
  dialog: 'inheritAttrs: false,'
}


export function makeUpJs(conf, type) {
  confGlobal = conf = JSON.parse(JSON.stringify(conf))
  const dataList = []
  const ruleList = []
  const optionsList = []
  const propsList = []
  const methodList = mixinMethod(type)
  const uploadVarList = []

  conf.fields.forEach(el => {
    buildAttributes(el, dataList, ruleList, optionsList, methodList, propsList, uploadVarList)
  })

  const script = buildexport(
    conf,
    type,
    dataList.join('\n'),
    ruleList.join('\n'),
    optionsList.join('\n'),
    uploadVarList.join('\n'),
    propsList.join('\n'),
    methodList.join('\n')
  )
  confGlobal = null
  return script
}

function buildAttributes(el, dataList, ruleList, optionsList, methodList, propsList, uploadVarList) {
  buildData(el, dataList)
  buildRules(el, ruleList)

  if (el.options && el.options.length) {
    buildOptions(el, optionsList)
    if (el.dataType === 'dynamic') {
      const model = `${el.vModel}Options`
      const options = titleCase(model)
      buildOptionMethod(`get${options}`, model, methodList)
    }
  }

  if (el.props && el.props.props) {
    buildProps(el, propsList)
  }

  if (el.action && el.tag === 'el-upload') {
    uploadVarList.push(
      `${el.vModel}Action: '${el.action}',
      ${el.vModel}fileList: [],`
    )
    methodList.push(buildBeforeUpload(el))
    if (!el['auto-upload']) {
      methodList.push(buildSubmitUpload(el))
    }
  }

  if (el.children) {
    el.children.forEach(el2 => {
      buildAttributes(el2, dataList, ruleList, optionsList, methodList, propsList, uploadVarList)
    })
  }
}

function mixinMethod(type) {
  const list = []; const
    minxins = {
      file: confGlobal.formBtns ? {
        submitForm: `submitForm() {
        this.$refs['${confGlobal.formRef}'].validate(valid => {
          if(!valid) return
          // TODO 提交表单
        })
      },`,
        resetForm: `resetForm() {
        this.$refs['${confGlobal.formRef}'].resetFields()
      },`
      } : null,
      dialog: {
        onOpen: 'onOpen() {},',
        onClose: `onClose() {
        this.$refs['${confGlobal.formRef}'].resetFields()
      },`,
        close: `close() {
        this.$emit('update:visible', false)
      },`,
        handleConfirm: `handleConfirm() {
        this.$refs['${confGlobal.formRef}'].validate(valid => {
          if(!valid) return
          this.close()
        })
      },`
      }
    }

  const methods = minxins[type]
  if (methods) {
    Object.keys(methods).forEach(key => {
      list.push(methods[key])
    })
  }

  return list
}

function buildData(conf, dataList) {
  if (conf.vModel === undefined) return
  let defaultValue
  if (typeof (conf.defaultValue) === 'string' && !conf.multiple) {
    defaultValue = `'${conf.defaultValue}'`
  } else {
    defaultValue = `${JSON.stringify(conf.defaultValue)}`
  }
  dataList.push(`${conf.vModel}: ${defaultValue},`)
}

function buildRules(conf, ruleList) {
  if (conf.vModel === undefined) return
  const rules = []
  if (trigger[conf.tag]) {
    if (conf.required) {
      const type = isArray(conf.defaultValue) ? 'type: \'array\',' : ''
      let message = isArray(conf.defaultValue) ? `请至少选择一个${conf.vModel}` : conf.placeholder
      if (message === undefined) message = `${conf.label}不能为空`
      rules.push(`{ required: true, ${type} message: '${message}', trigger: '${trigger[conf.tag]}' }`)
    }
    if (conf.regList && isArray(conf.regList)) {
      conf.regList.forEach(item => {
        if (item.pattern) {
          rules.push(`{ pattern: ${eval(item.pattern)}, message: '${item.message}', trigger: '${trigger[conf.tag]}' }`)
        }
      })
    }
    ruleList.push(`${conf.vModel}: [${rules.join(',')}],`)
  }
}

function buildOptions(conf, optionsList) {
  if (conf.vModel === undefined) return
  if (conf.dataType === 'dynamic') { conf.options = [] }
  const str = `${conf.vModel}Options: ${JSON.stringify(conf.options)},`
  optionsList.push(str)
}

function buildProps(conf, propsList) {
  if (conf.dataType === 'dynamic') {
    conf.valueKey !== 'value' && (conf.props.props.value = conf.valueKey)
    conf.labelKey !== 'label' && (conf.props.props.label = conf.labelKey)
    conf.childrenKey !== 'children' && (conf.props.props.children = conf.childrenKey)
  }
  const str = `${conf.vModel}Props: ${JSON.stringify(conf.props.props)},`
  propsList.push(str)
}

function buildBeforeUpload(conf) {
  const unitNum = units[conf.sizeUnit]; let rightSizeCode = ''; let acceptCode = ''; const
    returnList = []
  if (conf.fileSize) {
    rightSizeCode = `let isRightSize = file.size / ${unitNum} < ${conf.fileSize}
    if(!isRightSize){
      this.$message.error('文件大小超过 ${conf.fileSize}${conf.sizeUnit}')
    }`
    returnList.push('isRightSize')
  }
  if (conf.accept) {
    acceptCode = `let isAccept = new RegExp('${conf.accept}').test(file.type)
    if(!isAccept){
      this.$message.error('应该选择${conf.accept}类型的文件')
    }`
    returnList.push('isAccept')
  }
  const str = `${conf.vModel}BeforeUpload(file) {
    ${rightSizeCode}
    ${acceptCode}
    return ${returnList.join('&&')}
  },`
  return returnList.length ? str : ''
}

function buildSubmitUpload(conf) {
  const str = `submitUpload() {
    this.$refs['${conf.vModel}'].submit()
  },`
  return str
}

function buildOptionMethod(methodName, model, methodList) {
  const str = `${methodName}() {
    // TODO 发起请求获取数据
    this.${model}
  },`
  methodList.push(str)
}

function buildexport(conf, type, data, rules, selectOptions, uploadVar, props, methods) {
  const str = `${exportDefault}{
  ${inheritAttrs[type]}
  components: {},
  props: [],
  data () {
    return {
      ${conf.formModel}: {
        ${data}
      },
      ${conf.formRules}: {
        ${rules}
      },
      ${uploadVar}
      ${selectOptions}
      ${props}
    }
  },
  computed: {},
  watch: {},
  created () {},
  mounted () {},
  methods: {
    ${methods}
  }
}`
  return str
}

基本就是这样 傻瓜式粘贴就能看到效果了 有兴趣的小伙伴可以试试 想要源码的可以私信我或加wx备注来意 wx号: Darren_jm
