微服务环境搭建

我们本次是使用的电商项目中的商品微服务、订单微服务为案例进行讲解。

1 案例准备

1.1 技术选型

maven：3.5.0+

数据库：MySQL 5.7 以上

持久层: Mybatis-plus 《Mybatis Mapper Mybatis-plus》

其他: SpringCloud Alibaba 技术栈 druid

1.2 模块设计

day0818-springcloud 父工程 ----jar的版本管理公共jar的引入

springcloud-common 公共模块【实体类】《实体类，公共依赖，工具类。》

springcloud-product 商品微服务【端口: 8080~8089 搭建集群】

springcloud-order 订单微服务【端口: 8090~8099 搭建集群】

其中pom.xml(day0818-springcloud）文件中


"1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0modelVersion>
    <modules>
        <module>springcloud-commonmodule>
        <module>springcloud-ordermodule>
        <module>springcloud-productmodule>
    modules>
    <parent>
        <groupId>org.springframework.bootgroupId>
        <artifactId>spring-boot-starter-parentartifactId>
        <version>2.3.12.RELEASEversion>
        <relativePath/>
    parent>
    <groupId>com.lqhgroupId>
    <artifactId>day0818-springcloudartifactId>
    <version>0.0.1-SNAPSHOTversion>
    <name>day0818-springcloudname>
    <description>day0818-springclouddescription>

    <packaging>pompackaging>


    <properties>
        <java.version>1.8java.version>
        <project.build.sourceEncoding>UTF-8project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF- 8project.reporting.outputEncoding>
        <spring-cloud.version>Hoxton.SR8spring-cloud.version>
        <spring-cloud-alibaba.version>2.2.3.RELEASEspring-cloud-alibaba.version>
    properties>


    <dependencyManagement>
        <dependencies>

            <dependency>
                <groupId>org.springframework.cloudgroupId>
                <artifactId>spring-cloud-dependenciesartifactId>
                <version>${spring-cloud.version}version>
                <type>pomtype>
                <scope>importscope>
            dependency>

            <dependency>
                <groupId>com.alibaba.cloudgroupId>
                <artifactId>spring-cloud-alibaba-dependenciesartifactId>
                <version>${spring-cloud-alibaba.version}version>
                <type>pomtype>
                <scope>importscope>
            dependency>
        dependencies>
    dependencyManagement>

    <dependencies>
        <dependency>
            <groupId>mysqlgroupId>
            <artifactId>mysql-connector-javaartifactId>
        dependency>

        <dependency>
            <groupId>com.baomidougroupId>
            <artifactId>mybatis-plus-boot-starterartifactId>
            <version>3.5.2version>
        dependency>
    dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.bootgroupId>
                <artifactId>spring-boot-maven-pluginartifactId>
            plugin>
        plugins>
    build>

project>

版本对应：

1 创建基础模块(Maven工程)

1.1springcloud-common

1 创建 springcloud-common 模块，在pom.xml中添加依赖


"1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>day0818-springcloudartifactId>
        <groupId>com.lqhgroupId>
        <version>0.0.1-SNAPSHOTversion>
    parent>
    <modelVersion>4.0.0modelVersion>

    <artifactId>springcloud-commonartifactId>

    <properties>
        <maven.compiler.source>8maven.compiler.source>
        <maven.compiler.target>8maven.compiler.target>
        <project.build.sourceEncoding>UTF-8project.build.sourceEncoding>
    properties>


    <dependencies>
        <dependency>
            <groupId>org.projectlombokgroupId>
            <artifactId>lombokartifactId>
        dependency>

        <dependency>
            <groupId>com.baomidougroupId>
            <artifactId>mybatis-plus-boot-starterartifactId>
            <version>3.5.2version>
        dependency>
    dependencies>

project>

2 创建实体类

Order


package com.lqh.entity;

import com.baomidou.mybatisplus.annotation.IdType;
import com.baomidou.mybatisplus.annotation.TableId;
import com.baomidou.mybatisplus.annotation.TableName;
import lombok.Data;

@Data
@TableName("shop_order")
public class Order {
    @TableId(type = IdType.AUTO)
    private Long oid; //订单id
    private Integer uid;//用户id
    private String username;//用户名
    private Integer pid;//商品id
    private String pname;//商品名称
    private Double pprice;//商品价格
    private Integer number;//购买数量
}

Product


package com.lqh.entity;

import com.baomidou.mybatisplus.annotation.IdType;
import com.baomidou.mybatisplus.annotation.TableId;
import com.baomidou.mybatisplus.annotation.TableName;
import lombok.Data;

@Data
@TableName(value="shop_product")
public class Product {
    @TableId(type= IdType.AUTO)
    private Integer pid;
    private String pname;//商品名称
    private Double pprice;//商品价格
    private Integer stock;//库存
}

1.2 创建商品微服务springcloud-product

1 创建一个名为springcloud-product 的模块，并添加springboot依赖 pom.xml


"1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>day0818-springcloudartifactId>
        <groupId>com.lqhgroupId>
        <version>0.0.1-SNAPSHOTversion>
    parent>
    <modelVersion>4.0.0modelVersion>

    <artifactId>springcloud-productartifactId>

    <properties>
        <maven.compiler.source>8maven.compiler.source>
        <maven.compiler.target>8maven.compiler.target>
        <project.build.sourceEncoding>UTF-8project.build.sourceEncoding>
    properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.bootgroupId>
            <artifactId>spring-boot-starter-webartifactId>
        dependency>
        <dependency>
            <groupId>com.lqhgroupId>
            <artifactId>springcloud-commonartifactId>
            <version>0.0.1-SNAPSHOTversion>
            <scope>compilescope>
        dependency>

        <dependency>
            <groupId>com.alibaba.cloudgroupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discoveryartifactId>
        dependency>
    dependencies>

project>

2 创建工程的主类 ProductApp


package com.lqh;

import org.mybatis.spring.annotation.MapperScan;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

/**
 * @author: Li Qinghua
 * @create: 2022-08-18 13:50
 **/
@SpringBootApplication
public class ProductApp {
    public static void main(String[] args) {
        SpringApplication.run(ProductApp.class,args);
    }
}

3 创建配置文件application.yml


server:
  port: 8081
spring:
  datasource:
    url: jdbc:mysql://localhost:3306/springcloud?serverTimezone=Asia/Shanghai
    driver-class-name: com.mysql.cj.jdbc.Driver
    username: root
    password: 123456
  cloud:
    nacos:
      discovery:
        server-addr: localhost:8848
        enabled: true
  application:
    name: product
mybatis-plus:
  configuration:
    log-impl: org.apache.ibatis.logging.stdout.StdOutImpl

4 创建ProductDao接口


package com.lqh.dao;

import com.baomidou.mybatisplus.core.mapper.BaseMapper;
import com.lqh.entity.Product;
import org.apache.ibatis.annotations.Mapper;

@Mapper
public interface ProductDao extends BaseMapper {
}

5 创建ProductService接口


package com.lqh.server;

import com.lqh.entity.Product;

public interface ProductServer {


    Product getProduct(Integer pid);
}

6 创建ProductServiceImpl实现类


package com.lqh.server.impl;

import com.lqh.dao.ProductDao;
import com.lqh.entity.Product;
import com.lqh.server.ProductServer;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

/**
 * @author: Li Qinghua
 * @create: 2022-08-18 13:30
 **/
@Service
public class ProductServerImpl implements ProductServer {

    @Autowired
    private ProductDao productDao;

    @Override
    public Product getProduct(Integer pid) {
        Product product = productDao.selectById(pid);
        return product;
    }
}

7 创建ProductController类


package com.lqh.controller;

import com.lqh.entity.Product;
import com.lqh.server.ProductServer;
import com.lqh.utils.CommonResult;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

/**
 * @author: Li Qinghua
 * @create: 2022-08-18 13:29
 **/

@RestController
@RequestMapping("/product")
public class ProductController {

    @Autowired
    private ProductServer productServer;

    @GetMapping("/search/{pid}")
    public Product searchProduct(@PathVariable Integer pid){

        Product product = productServer.getProduct(pid);
        if(product!=null){
            return product;
        }else return null;

    }

}

8 启动工程，等到数据库表创建完毕之后，加入测试数据

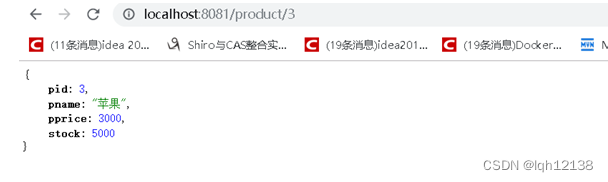

9.通过浏览器访问服务

1.3创建订单微服务 springcloud-order

1 创建一个名为 springcloud-order 的模块,并添加springboot依赖 pom.xml


"1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>day0818-springcloudartifactId>
        <groupId>com.lqhgroupId>
        <version>0.0.1-SNAPSHOTversion>
    parent>
    <modelVersion>4.0.0modelVersion>

    <artifactId>springcloud-orderartifactId>

    <properties>
        <maven.compiler.source>8maven.compiler.source>
        <maven.compiler.target>8maven.compiler.target>
        <project.build.sourceEncoding>UTF-8project.build.sourceEncoding>
    properties>


    <dependencies>
        <dependency>
            <groupId>org.springframework.bootgroupId>
            <artifactId>spring-boot-starter-webartifactId>
        dependency>
        <dependency>
            <groupId>com.alibabagroupId>
            <artifactId>fastjsonartifactId>
            <version>2.0.5version>
        dependency>
        <dependency>
            <groupId>com.lqhgroupId>
            <artifactId>springcloud-commonartifactId>
            <version>0.0.1-SNAPSHOTversion>
            <scope>compilescope>
        dependency>

        <dependency>
            <groupId>com.alibaba.cloudgroupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discoveryartifactId>
        dependency>
        <dependency>
            <groupId>org.springframework.cloudgroupId>
            <artifactId>spring-cloud-starter-openfeignartifactId>
        dependency>
    dependencies>
project>

2 创建启动类


package com.lqh;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.loadbalancer.LoadBalanced;
import org.springframework.cloud.openfeign.EnableFeignClients;
import org.springframework.context.annotation.Bean;
import org.springframework.web.client.RestTemplate;

/**
 * @author: Li Qinghua
 * @create: 2022-08-18 14:02
 **/
@SpringBootApplication
@EnableFeignClients
public class OrderApp {
    public static void main(String[] args) {
        SpringApplication.run(OrderApp.class,args);
    }


}

3 创建配置文件application.yml


server:
  port: 8092
spring:
  datasource:
    url: jdbc:mysql://localhost:3306/springcloud?serverTimezone=Asia/Shanghai
    driver-class-name: com.mysql.cj.jdbc.Driver
    username: root
    password: 123456
  cloud:
    nacos:
      discovery:
        server-addr: localhost:8848
        enabled: true
  application:
    name: order
mybatis-plus:
  configuration:
    log-impl: org.apache.ibatis.logging.stdout.StdOutImpl

4 创建OrderDao接口


package com.lqh.dao;

import com.baomidou.mybatisplus.core.mapper.BaseMapper;
import com.lqh.entity.Order;
import org.apache.ibatis.annotations.Mapper;

@Mapper
public interface OrderDao extends BaseMapper {
}

5 创建OrderService接口


package com.lqh.server;

import com.lqh.entity.Order;

/**
 * @author: Li Qinghua
 * @create: 2022-08-18 14:11
 **/

public interface OrderServer {
    Order saveProductOrder(Integer pid, Integer num);
}

6 创建OrderServiceImpl实现类


package com.lqh.server.impl;

import com.lqh.dao.OrderDao;
import com.lqh.entity.Order;
import com.lqh.entity.Product;
import com.lqh.server.OrderServer;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import org.springframework.web.client.RestTemplate;

/**
 * @author: Li Qinghua
 * @create: 2022-08-18 14:11
 **/

@Service
public class OrderServerImpl implements OrderServer {

    @Autowired
    private OrderDao orderDao;
    @Autowired
    private RestTemplate restTemplate;

    @Override
    public Order saveProductOrder(Integer pid, Integer num) {

        Order order=new Order();

        order.setUid(1);
        order.setUsername("zhangsan");
        Product product = restTemplate.getForObject("http://localhost:8081/product/search/" + pid, Product.class);

        order.setPid(product.getPid());
        System.out.println(product);
        order.setPname(product.getPname());
        order.setPprice(product.getPprice());
        order.setNumber(num);


        orderDao.insert(order);

        return order;
    }
}

7 创建OrderController类


package com.lqh.controller;

import com.lqh.entity.Order;
import com.lqh.server.OrderServer;
import com.lqh.utils.CommonResult;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.cloud.context.config.annotation.RefreshScope;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

/**
 * @author: Li Qinghua
 * @create: 2022-08-18 14:10
 **/

@RestController
@RequestMapping("/order")
@RefreshScope
public class OrderController {

    @Autowired
    private OrderServer orderServer;


    @GetMapping("/save/{pid}/{num}")
    public CommonResult saveOrder(@PathVariable Integer pid,@PathVariable Integer num){

        Order order = orderServer.saveProductOrder(pid, num);
        if(order!=null){
            return new CommonResult(200,"订单保存成功",order);
        }

        return new CommonResult(500,"订单保存失败",null);
    }

}

8 启动工程并在浏览器上测试

相关阅读:
Java中三种I/O模型 BIO,NIO,AIO
第十节：继承【java】
硬件工程师必备的35个资料网站
 飞书API 2-2：如何使用 API 建多维表
 Redis高可用之战：主从架构
 夏季预防声带息肉的方法有哪些？
自定义windows右键菜单，软件卸载后右键菜单残留打开方式残留解决方法
 技能学习链接
 [AndroidStudio]_[初级]_[修改虚拟设备镜像文件的存放位置]
分布式医疗大数据存储方案研究综述
原文地址：https://blog.csdn.net/m0_58212960/article/details/126450573
