Spark源码(创建与yarn集群交互的client并运行)-第一期

决定从这一期开始写基于yarn模式部署的spark(基于Spark3.0.0)集群，将用户编写的代码(以WordCount为例子)提交到该集群上运行的一系列流程。

object Spark03_WordCount {

  def main(args: Array[String]): Unit = {
    val sparConf: SparkConf = new SparkConf().setMaster("local").setAppName("WordCount")
    val sc = new SparkContext(sparConf)

    // 1. 读取文件，获取一行一行的数据
    //    hello world
    val lines: RDD[String] = sc.textFile("datas\\wc\\*")

    // 2. 将一行数据进行拆分，形成一个一个的单词（分词）
    //    扁平化：将整体拆分成个体的操作
    //   "hello world" => hello, world, hello, world
    val words: RDD[String] = lines.flatMap(_.split(" "))

    val wordToOne: RDD[(String, Int)] = words.map(
      word => (word, 1)
    )

    //    wordToOne.reduceByKey((x, y) => {
    //      x + y
    //    })
    val wordToCount: RDD[(String, Int)] = wordToOne.reduceByKey(_ + _)


    // 5. 将转换结果采集到控制台打印出来
    val array: Array[(String, Int)] = wordToCount.collect()
    array.foreach(println)

    // 关闭连接
    sc.stop()
  }

}

比如我们要在命令行提交指令，一般会输入如下命令：

bin/spark-submit \
--class com.wy.bigdata.spark.core.wc.Spark03_WordCount \
--master spark://hadoop102:7077 \
./examples/jars/spark-examples_2.12-3.0.0.jar

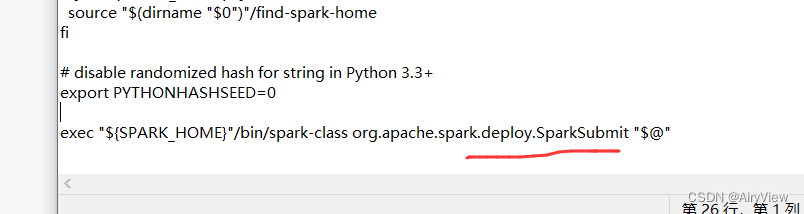

那么我们打开bin目录下的spark-submit文件看看究竟：

所以说起始入口为org.apache.spark.deploy.SparkSubmit，那么我们就从它开始分析吧。

1.SparkSubmit#main

  override def main(args: Array[String]): Unit = {
    val submit = new SparkSubmit() {
      self =>

      override protected def parseArguments(args: Array[String]): SparkSubmitArguments = {
        new SparkSubmitArguments(args) {
          override protected def logInfo(msg: => String): Unit = self.logInfo(msg)

          override protected def logWarning(msg: => String): Unit = self.logWarning(msg)

          override protected def logError(msg: => String): Unit = self.logError(msg)
        }
      }

      override protected def logInfo(msg: => String): Unit = printMessage(msg)

      override protected def logWarning(msg: => String): Unit = printMessage(s"Warning: $msg")

      override protected def logError(msg: => String): Unit = printMessage(s"Error: $msg")

      override def doSubmit(args: Array[String]): Unit = {
        try {
          super.doSubmit(args)
        } catch {
          case e: SparkUserAppException =>
            exitFn(e.exitCode)
        }
      }

    }

    submit.doSubmit(args)
  }

2.SparkSubmit#doSubmit

 点击super.doSubmit(args)进入

  def doSubmit(args: Array[String]): Unit = {
    // Initialize logging if it hasn't been done yet. Keep track of whether logging needs to
    // be reset before the application starts.
    val uninitLog = initializeLogIfNecessary(true, silent = true)

    val appArgs = parseArguments(args)
    if (appArgs.verbose) {
      logInfo(appArgs.toString)
    }
    appArgs.action match {
      case SparkSubmitAction.SUBMIT => submit(appArgs, uninitLog)
      case SparkSubmitAction.KILL => kill(appArgs)
      case SparkSubmitAction.REQUEST_STATUS => requestStatus(appArgs)
      case SparkSubmitAction.PRINT_VERSION => printVersion()
    }
  }

①parseArguments(args)

解析命令行参数

②appArgs.action match

匹配是那种行为，我们这里是SUBMIT(为什么是SUBMIT，后面分析会提到的)，所以执行submit(appArgs, uninitLog)

3.SparkSubmit#parseArguments->new SparkSubmitArguments(args)

private[deploy] class SparkSubmitArguments(args: Seq[String], env: Map[String, String] = sys.env)
  extends SparkSubmitArgumentsParser with Logging {
  var master: String = null
  var deployMode: String = null
  var executorMemory: String = null
  var executorCores: String = null
  var totalExecutorCores: String = null
  var propertiesFile: String = null
  var driverMemory: String = null
  var driverExtraClassPath: String = null
  var driverExtraLibraryPath: String = null
  var driverExtraJavaOptions: String = null
  var queue: String = null
  var numExecutors: String = null
  var files: String = null
  var archives: String = null
  var mainClass: String = null
  var primaryResource: String = null
  var name: String = null
  var childArgs: ArrayBuffer[String] = new ArrayBuffer[String]()
  var jars: String = null
  var packages: String = null
  var repositories: String = null
  var ivyRepoPath: String = null
  var ivySettingsPath: Option[String] = None
  var packagesExclusions: String = null
  var verbose: Boolean = false
  var isPython: Boolean = false
  var pyFiles: String = null
  var isR: Boolean = false
  var action: SparkSubmitAction = null
  val sparkProperties: HashMap[String, String] = new HashMap[String, String]()
  var proxyUser: String = null
  var principal: String = null
  var keytab: String = null
  private var dynamicAllocationEnabled: Boolean = false

  // Standalone cluster mode only
  var supervise: Boolean = false
  var driverCores: String = null
  var submissionToKill: String = null
  var submissionToRequestStatusFor: String = null
  var useRest: Boolean = false // used internally

  /** Default properties present in the currently defined defaults file. */
  lazy val defaultSparkProperties: HashMap[String, String] = {
    val defaultProperties = new HashMap[String, String]()
    if (verbose) {
      logInfo(s"Using properties file: $propertiesFile")
    }
    Option(propertiesFile).foreach { filename =>
      val properties = Utils.getPropertiesFromFile(filename)
      properties.foreach { case (k, v) =>
        defaultProperties(k) = v
      }
      // Property files may contain sensitive information, so redact before printing
      if (verbose) {
        Utils.redact(properties).foreach { case (k, v) =>
          logInfo(s"Adding default property: $k=$v")
        }
      }
    }
    defaultProperties
  }

  // Set parameters from command line arguments
  parse(args.asJava)

  // Populate `sparkProperties` map from properties file
  mergeDefaultSparkProperties()
  // Remove keys that don't start with "spark." from `sparkProperties`.
  ignoreNonSparkProperties()
  // Use `sparkProperties` map along with env vars to fill in any missing parameters
  loadEnvironmentArguments()

  useRest = sparkProperties.getOrElse("spark.master.rest.enabled", "false").toBoolean

  validateArguments()
······

 4.SparkSubmit#submit->SparkSubmit#doRunMain->SparkSubmit#runMain

  private def runMain(args: SparkSubmitArguments, uninitLog: Boolean): Unit = {
    val (childArgs, childClasspath, sparkConf, childMainClass) = prepareSubmitEnvironment(args)
    // Let the main class re-initialize the logging system once it starts.
    if (uninitLog) {
      Logging.uninitialize()
    }

    if (args.verbose) {
      logInfo(s"Main class:\n$childMainClass")
      logInfo(s"Arguments:\n${childArgs.mkString("\n")}")
      // sysProps may contain sensitive information, so redact before printing
      logInfo(s"Spark config:\n${Utils.redact(sparkConf.getAll.toMap).mkString("\n")}")
      logInfo(s"Classpath elements:\n${childClasspath.mkString("\n")}")
      logInfo("\n")
    }
    val loader = getSubmitClassLoader(sparkConf)
    for (jar <- childClasspath) {
      addJarToClasspath(jar, loader)
    }

    var mainClass: Class[_] = null

    try {
      mainClass = Utils.classForName(childMainClass)
    } catch {
      case e: ClassNotFoundException =>
        logError(s"Failed to load class $childMainClass.")
        if (childMainClass.contains("thriftserver")) {
          logInfo(s"Failed to load main class $childMainClass.")
          logInfo("You need to build Spark with -Phive and -Phive-thriftserver.")
        }
        throw new SparkUserAppException(CLASS_NOT_FOUND_EXIT_STATUS)
      case e: NoClassDefFoundError =>
        logError(s"Failed to load $childMainClass: ${e.getMessage()}")
        if (e.getMessage.contains("org/apache/hadoop/hive")) {
          logInfo(s"Failed to load hive class.")
          logInfo("You need to build Spark with -Phive and -Phive-thriftserver.")
        }
        throw new SparkUserAppException(CLASS_NOT_FOUND_EXIT_STATUS)
    }

    val app: SparkApplication = if (classOf[SparkApplication].isAssignableFrom(mainClass)) {
      mainClass.getConstructor().newInstance().asInstanceOf[SparkApplication]
    } else {
      new JavaMainApplication(mainClass)
    }

    @tailrec
    def findCause(t: Throwable): Throwable = t match {
      case e: UndeclaredThrowableException =>
        if (e.getCause() != null) findCause(e.getCause()) else e
      case e: InvocationTargetException =>
        if (e.getCause() != null) findCause(e.getCause()) else e
      case e: Throwable =>
        e
    }

    try {
      app.start(childArgs.toArray, sparkConf)
    } catch {
      case t: Throwable =>
        throw findCause(t)
    }
  }

①prepareSubmitEnvironment(args)

准备提交的环境

②getSubmitClassLoader(sparkConf)

获取提交的类加载器

③Utils.classForName(childMainClass)

根据类的名称得到一个类的信息(反射)

④classOf[SparkApplication].isAssignableFrom(mainClass)

如果该类是SparkApplication的子类或者子接口就会通过构造器创建实例并转换成SparkApplication，不是就new一个JavaMainApplication，很明显经过上面的分析，该类是YarnClusterApplication继承了SparkApplication

⑤app.start(childArgs.toArray, sparkConf)

调用start启动，也就是调用YarnClusterApplication中的start方法

5.YarnClusterApplication#start

  override def start(args: Array[String], conf: SparkConf): Unit = {
    // SparkSubmit would use yarn cache to distribute files & jars in yarn mode,
    // so remove them from sparkConf here for yarn mode.
    conf.remove(JARS)
    conf.remove(FILES)

    new Client(new ClientArguments(args), conf, null).run()
  }

①conf.remove(JARS) conf.remove(FILES)

SparkSubmit会使用yarn缓存在yarn模式下分发file和jar，所以在yarn模式下从sparkConf中删除它们。

②new Client(new ClientArguments(args), conf, null).run()

创建一个与yarn集群交互的client并运行

总览

本期涉及到的源码流程图如下：
