• 【云原生 | Kubernetes 系列】Ingress

    Ingress

    Ingress 是对集群中服务的外部访问进行管理的 API 对象，典型的访问方式是 HTTP。
    Ingress 可以提供负载均衡、SSL 终结和基于名称的虚拟托管。
    Ingress 可为 Service 提供外部可访问的 URL、负载均衡流量、终止 SSL/TLS，以及基于名称的虚拟托管。 Ingress 控制器 通常负责通过负载均衡器来实现 Ingress，尽管它也可以配置边缘路由器或其他前端来帮助处理流量。
    Ingress 不会公开任意端口或协议。 将 HTTP 和 HTTPS 以外的服务公开到 Internet 时，通常使用 Service.Type=NodePort 或 Service.Type=LoadBalancer 类型的 Service。

    官方文档:
    https://kubernetes.io/zh-cn/docs/concepts/services-networking/ingress/
    https://kubernetes.io/zh-cn/docs/concepts/services-networking/ingress-controllers/
    https://github.com/kubernetes/ingress-nginx/blob/main/README.md#readme

    1. K8s Service类型

    1. ClusterIP: 内部使用
    2. NodePort: 把Cluster映射到node监听
    3. LoadBalancer: 公有云
    4. ExternalName:将k8s集群外部的服务映射到k8s内部,从而让集群内部的pod能够通过固定的servicename 去访问外部的服务.

    1.1 使用Service映射域名

    apiVersion: v1
kind: Service
metadata:
  name: my-external-name
  namespace: linux
spec:
  type: ExternalName
  externalName: www.baidu.com

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8

    测试效果

    root@k8s-master-01:/opt/k8s-data/yaml/Ingress-case# kubectl exec -it linux-nginx-deployment-5cd9566d7f-xcdfb -n linux sh
kubectl exec [POD] [COMMAND] is DEPRECATED and will be removed in a future version. Use kubectl exec [POD] -- [COMMAND] instead.
/ # ping linux-tomcat-app1-service
PING linux-tomcat-app1-service (10.200.60.176): 56 data bytes
64 bytes from 10.200.60.176: seq=0 ttl=64 time=0.038 ms
64 bytes from 10.200.60.176: seq=1 ttl=64 time=0.081 ms
^C
--- linux-tomcat-app1-service ping statistics ---
2 packets transmitted, 2 packets received, 0% packet loss
round-trip min/avg/max = 0.038/0.059/0.081 ms
/ # ping linux-tomcat-app1-service.linux.svc.magedu.local
PING linux-tomcat-app1-service.linux.svc.magedu.local (10.200.60.176): 56 data bytes
64 bytes from 10.200.60.176: seq=0 ttl=64 time=0.027 ms
64 bytes from 10.200.60.176: seq=1 ttl=64 time=0.078 ms
^C
--- linux-tomcat-app1-service.linux.svc.magedu.local ping statistics ---
2 packets transmitted, 2 packets received, 0% packet loss
round-trip min/avg/max = 0.027/0.052/0.078 ms
[root@centos /]# nslookup my-external-name
Server:		10.200.0.2
Address:	10.200.0.2#53

my-external-name.linux.svc.magedu.local	canonical name = www.baidu.com.
www.baidu.com	canonical name = www.a.shifen.com.
Name:	www.a.shifen.com
Address: 180.101.49.12
Name:	www.a.shifen.com
Address: 180.101.49.11

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28

    1.2 使用Service映射ip

    将ip地址到externalName

    apiVersion: v1
kind: Service
metadata:
  name: redis-production-server-name
  namespace: linux
spec:
  ports:
    - port: 6379
---
kind: Endpoints
apiVersion: v1
metadata:
  name: redis-production-server-name
  namespace: linux
subsets:
  - addresses:
      - ip: 192.168.31.104
    ports:
      - port: 6379


    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20

    测试效果

    root@k8s-master-01:/opt/k8s-data/yaml/Ingress-case# kubectl get svc -n linux
NAME                           TYPE           CLUSTER-IP       EXTERNAL-IP     PORT(S)                      AGE
linux-nginx-service            NodePort       10.200.58.155    <none>          80:30004/TCP,443:30443/TCP   25h
linux-tomcat-app1-service      NodePort       10.200.60.176    <none>          80:30005/TCP                 25h
my-external-name               ExternalName   <none>           www.baidu.com   <none>                       98m
redis-production-server-name   ClusterIP      10.200.175.195   <none>          6379/TCP                     20s
root@k8s-master-01:/opt/k8s-data/yaml/Ingress-case# kubectl describe svc redis-production-server-name -n linux
Name:              redis-production-server-name
Namespace:         linux
Labels:            <none>
Annotations:       <none>
Selector:          <none>
Type:              ClusterIP
IP Family Policy:  SingleStack
IP Families:       IPv4
IP:                10.200.175.195
IPs:               10.200.175.195
Port:              <unset>  6379/TCP
TargetPort:        6379/TCP
Endpoints:         192.168.31.104:6379
Session Affinity:  None
Events:            <none>


root@k8s-master-01:/opt/k8s-data/yaml/Ingress-case# kubectl exec -it centos bash -n linux
kubectl exec [POD] [COMMAND] is DEPRECATED and will be removed in a future version. Use kubectl exec [POD] -- [COMMAND] instead.
[root@centos /]# redis-cli -h redis-production-server-name
redis-production-server-name:6379> info
# Server
redis_version:4.0.9
redis_git_sha1:00000000
redis_git_dirty:0
redis_build_id:9435c3c2879311f3
redis_mode:standalone
os:Linux 4.15.0-189-generic x86_64
arch_bits:64
multiplexing_api:epoll
atomicvar_api:atomic-builtin
gcc_version:7.4.0
process_id:1640426
run_id:a0c068b33f0664054b11f54231d417abd2fce01f
tcp_port:6379

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33
    • 34
    • 35
    • 36
    • 37
    • 38
    • 39
    • 40
    • 41
    • 42

    2. Ingress实验环境准备

    2.1 Ingress创建

    apiVersion: v1
kind: Namespace
metadata:
  name: ingress-nginx
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx

---
# Source: ingress-nginx/templates/controller-serviceaccount.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
  labels:
    helm.sh/chart: ingress-nginx-4.0.1
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 1.0.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: controller
  name: ingress-nginx
  namespace: ingress-nginx
automountServiceAccountToken: true
---
# Source: ingress-nginx/templates/controller-configmap.yaml
apiVersion: v1
kind: ConfigMap
metadata:
  labels:
    helm.sh/chart: ingress-nginx-4.0.1
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 1.0.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: controller
  name: ingress-nginx-controller
  namespace: ingress-nginx
data:
---
# Source: ingress-nginx/templates/clusterrole.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  labels:
    helm.sh/chart: ingress-nginx-4.0.1
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 1.0.0
    app.kubernetes.io/managed-by: Helm
  name: ingress-nginx
rules:
  - apiGroups:
      - ''
    resources:
      - configmaps
      - endpoints
      - nodes
      - pods
      - secrets
    verbs:
      - list
      - watch
  - apiGroups:
      - ''
    resources:
      - nodes
    verbs:
      - get
  - apiGroups:
      - ''
    resources:
      - services
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - networking.k8s.io
    resources:
      - ingresses
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - ''
    resources:
      - events
    verbs:
      - create
      - patch
  - apiGroups:
      - networking.k8s.io
    resources:
      - ingresses/status
    verbs:
      - update
  - apiGroups:
      - networking.k8s.io
    resources:
      - ingressclasses
    verbs:
      - get
      - list
      - watch
---
# Source: ingress-nginx/templates/clusterrolebinding.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  labels:
    helm.sh/chart: ingress-nginx-4.0.1
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 1.0.0
    app.kubernetes.io/managed-by: Helm
  name: ingress-nginx
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: ingress-nginx
subjects:
  - kind: ServiceAccount
    name: ingress-nginx
    namespace: ingress-nginx
---
# Source: ingress-nginx/templates/controller-role.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  labels:
    helm.sh/chart: ingress-nginx-4.0.1
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 1.0.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: controller
  name: ingress-nginx
  namespace: ingress-nginx
rules:
  - apiGroups:
      - ''
    resources:
      - namespaces
    verbs:
      - get
  - apiGroups:
      - ''
    resources:
      - configmaps
      - pods
      - secrets
      - endpoints
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - ''
    resources:
      - services
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - networking.k8s.io
    resources:
      - ingresses
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - networking.k8s.io
    resources:
      - ingresses/status
    verbs:
      - update
  - apiGroups:
      - networking.k8s.io
    resources:
      - ingressclasses
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - ''
    resources:
      - configmaps
    resourceNames:
      - ingress-controller-leader
    verbs:
      - get
      - update
  - apiGroups:
      - ''
    resources:
      - configmaps
    verbs:
      - create
  - apiGroups:
      - ''
    resources:
      - events
    verbs:
      - create
      - patch
---
# Source: ingress-nginx/templates/controller-rolebinding.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  labels:
    helm.sh/chart: ingress-nginx-4.0.1
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 1.0.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: controller
  name: ingress-nginx
  namespace: ingress-nginx
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: ingress-nginx
subjects:
  - kind: ServiceAccount
    name: ingress-nginx
    namespace: ingress-nginx
---
# Source: ingress-nginx/templates/controller-service-webhook.yaml
apiVersion: v1
kind: Service
metadata:
  labels:
    helm.sh/chart: ingress-nginx-4.0.1
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 1.0.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: controller
  name: ingress-nginx-controller-admission
  namespace: ingress-nginx
spec:
  type: ClusterIP
  ports:
    - name: https-webhook
      port: 443
      targetPort: webhook
      appProtocol: https
  selector:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/component: controller
---
# Source: ingress-nginx/templates/controller-deployment.yaml
apiVersion: apps/v1
kind: DaemonSet
metadata:
  labels:
    helm.sh/chart: ingress-nginx-4.0.1
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 1.0.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: controller
  name: ingress-nginx-controller
  namespace: ingress-nginx
spec:
  selector:
    matchLabels:
      app.kubernetes.io/name: ingress-nginx
      app.kubernetes.io/instance: ingress-nginx
      app.kubernetes.io/component: controller
  revisionHistoryLimit: 10
  minReadySeconds: 0
  template:
    metadata:
      labels:
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/component: controller
    spec:
      hostNetwork: true
      dnsPolicy: ClusterFirst
      containers:
        - name: controller
          image: registry.cn-beijing.aliyuncs.com/kole_chang/controller:v1.0.0
          imagePullPolicy: IfNotPresent
          lifecycle:
            preStop:
              exec:
                command:
                  - /wait-shutdown
          args:
            - /nginx-ingress-controller
            - --election-id=ingress-controller-leader
            - --controller-class=k8s.io/ingress-nginx
            - --configmap=$(POD_NAMESPACE)/ingress-nginx-controller
            - --validating-webhook=:8443
            - --validating-webhook-certificate=/usr/local/certificates/cert
            - --validating-webhook-key=/usr/local/certificates/key
            - --watch-ingress-without-class=true
          securityContext:
            capabilities:
              drop:
                - ALL
              add:
                - NET_BIND_SERVICE
            runAsUser: 101
            allowPrivilegeEscalation: true
          env:
            - name: POD_NAME
              valueFrom:
                fieldRef:
                  fieldPath: metadata.name
            - name: POD_NAMESPACE
              valueFrom:
                fieldRef:
                  fieldPath: metadata.namespace
            - name: LD_PRELOAD
              value: /usr/local/lib/libmimalloc.so
          livenessProbe:
            failureThreshold: 5
            httpGet:
              path: /healthz
              port: 10254
              scheme: HTTP
            initialDelaySeconds: 10
            periodSeconds: 10
            successThreshold: 1
            timeoutSeconds: 1
          readinessProbe:
            failureThreshold: 3
            httpGet:
              path: /healthz
              port: 10254
              scheme: HTTP
            initialDelaySeconds: 10
            periodSeconds: 10
            successThreshold: 1
            timeoutSeconds: 1
          ports:
            - name: http
              containerPort: 80
              protocol: TCP
            - name: https
              containerPort: 443
              protocol: TCP
            - name: webhook
              containerPort: 8443
              protocol: TCP
          volumeMounts:
            - name: webhook-cert
              mountPath: /usr/local/certificates/
              readOnly: true
          resources:
            requests:
              cpu: 100m
              memory: 90Mi
      nodeSelector:
        kubernetes.io/os: linux
      serviceAccountName: ingress-nginx
      terminationGracePeriodSeconds: 300
      volumes:
        - name: webhook-cert
          secret:
            secretName: ingress-nginx-admission
---
# Source: ingress-nginx/templates/controller-ingressclass.yaml
# We don't support namespaced ingressClass yet
# So a ClusterRole and a ClusterRoleBinding is required
apiVersion: networking.k8s.io/v1
kind: IngressClass
metadata:
  labels:
    helm.sh/chart: ingress-nginx-4.0.1
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 1.0.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: controller
  name: nginx
  namespace: ingress-nginx
spec:
  controller: k8s.io/ingress-nginx
---
# Source: ingress-nginx/templates/admission-webhooks/validating-webhook.yaml
# before changing this value, check the required kubernetes version
# https://kubernetes.io/docs/reference/access-authn-authz/extensible-admission-controllers/#prerequisites
apiVersion: admissionregistration.k8s.io/v1
kind: ValidatingWebhookConfiguration
metadata:
  labels:
    helm.sh/chart: ingress-nginx-4.0.1
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 1.0.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: admission-webhook
  name: ingress-nginx-admission
webhooks:
  - name: validate.nginx.ingress.kubernetes.io
    matchPolicy: Equivalent
    rules:
      - apiGroups:
          - networking.k8s.io
        apiVersions:
          - v1
        operations:
          - CREATE
          - UPDATE
        resources:
          - ingresses
    failurePolicy: Fail
    sideEffects: None
    admissionReviewVersions:
      - v1
    clientConfig:
      service:
        namespace: ingress-nginx
        name: ingress-nginx-controller-admission
        path: /networking/v1/ingresses
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/serviceaccount.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
  name: ingress-nginx-admission
  namespace: ingress-nginx
  annotations:
    helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade
    helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
  labels:
    helm.sh/chart: ingress-nginx-4.0.1
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 1.0.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: admission-webhook
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/clusterrole.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: ingress-nginx-admission
  annotations:
    helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade
    helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
  labels:
    helm.sh/chart: ingress-nginx-4.0.1
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 1.0.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: admission-webhook
rules:
  - apiGroups:
      - admissionregistration.k8s.io
    resources:
      - validatingwebhookconfigurations
    verbs:
      - get
      - update
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/clusterrolebinding.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: ingress-nginx-admission
  annotations:
    helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade
    helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
  labels:
    helm.sh/chart: ingress-nginx-4.0.1
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 1.0.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: admission-webhook
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: ingress-nginx-admission
subjects:
  - kind: ServiceAccount
    name: ingress-nginx-admission
    namespace: ingress-nginx
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/role.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  name: ingress-nginx-admission
  namespace: ingress-nginx
  annotations:
    helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade
    helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
  labels:
    helm.sh/chart: ingress-nginx-4.0.1
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 1.0.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: admission-webhook
rules:
  - apiGroups:
      - ''
    resources:
      - secrets
    verbs:
      - get
      - create
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/rolebinding.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  name: ingress-nginx-admission
  namespace: ingress-nginx
  annotations:
    helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade
    helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
  labels:
    helm.sh/chart: ingress-nginx-4.0.1
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 1.0.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: admission-webhook
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: ingress-nginx-admission
subjects:
  - kind: ServiceAccount
    name: ingress-nginx-admission
    namespace: ingress-nginx
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/job-createSecret.yaml
apiVersion: batch/v1
kind: Job
metadata:
  name: ingress-nginx-admission-create
  namespace: ingress-nginx
  annotations:
    helm.sh/hook: pre-install,pre-upgrade
    helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
  labels:
    helm.sh/chart: ingress-nginx-4.0.1
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 1.0.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: admission-webhook
spec:
  template:
    metadata:
      name: ingress-nginx-admission-create
      labels:
        helm.sh/chart: ingress-nginx-4.0.1
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/version: 1.0.0
        app.kubernetes.io/managed-by: Helm
        app.kubernetes.io/component: admission-webhook
    spec:
      containers:
        - name: create
          image: registry.cn-beijing.aliyuncs.com/kole_chang/kube-webhook-certgen:v1.0
          imagePullPolicy: IfNotPresent
          args:
            - create
            - --host=ingress-nginx-controller-admission,ingress-nginx-controller-admission.$(POD_NAMESPACE).svc
            - --namespace=$(POD_NAMESPACE)
            - --secret-name=ingress-nginx-admission
          env:
            - name: POD_NAMESPACE
              valueFrom:
                fieldRef:
                  fieldPath: metadata.namespace
      restartPolicy: OnFailure
      serviceAccountName: ingress-nginx-admission
      nodeSelector:
        kubernetes.io/os: linux
      securityContext:
        runAsNonRoot: true
        runAsUser: 2000
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/job-patchWebhook.yaml
apiVersion: batch/v1
kind: Job
metadata:
  name: ingress-nginx-admission-patch
  namespace: ingress-nginx
  annotations:
    helm.sh/hook: post-install,post-upgrade
    helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
  labels:
    helm.sh/chart: ingress-nginx-4.0.1
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 1.0.0
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: admission-webhook
spec:
  template:
    metadata:
      name: ingress-nginx-admission-patch
      labels:
        helm.sh/chart: ingress-nginx-4.0.1
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/version: 1.0.0
        app.kubernetes.io/managed-by: Helm
        app.kubernetes.io/component: admission-webhook
    spec:
      containers:
        - name: patch
          image: registry.cn-beijing.aliyuncs.com/kole_chang/kube-webhook-certgen:v1.0
          imagePullPolicy: IfNotPresent
          args:
            - patch
            - --webhook-name=ingress-nginx-admission
            - --namespace=$(POD_NAMESPACE)
            - --patch-mutating=false
            - --secret-name=ingress-nginx-admission
            - --patch-failure-policy=Fail
          env:
            - name: POD_NAMESPACE
              valueFrom:
                fieldRef:
                  fieldPath: metadata.namespace
      restartPolicy: OnFailure
      serviceAccountName: ingress-nginx-admission
      nodeSelector:
        kubernetes.io/os: linux
      securityContext:
        runAsNonRoot: true
        runAsUser: 2000


    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33
    • 34
    • 35
    • 36
    • 37
    • 38
    • 39
    • 40
    • 41
    • 42
    • 43
    • 44
    • 45
    • 46
    • 47
    • 48
    • 49
    • 50
    • 51
    • 52
    • 53
    • 54
    • 55
    • 56
    • 57
    • 58
    • 59
    • 60
    • 61
    • 62
    • 63
    • 64
    • 65
    • 66
    • 67
    • 68
    • 69
    • 70
    • 71
    • 72
    • 73
    • 74
    • 75
    • 76
    • 77
    • 78
    • 79
    • 80
    • 81
    • 82
    • 83
    • 84
    • 85
    • 86
    • 87
    • 88
    • 89
    • 90
    • 91
    • 92
    • 93
    • 94
    • 95
    • 96
    • 97
    • 98
    • 99
    • 100
    • 101
    • 102
    • 103
    • 104
    • 105
    • 106
    • 107
    • 108
    • 109
    • 110
    • 111
    • 112
    • 113
    • 114
    • 115
    • 116
    • 117
    • 118
    • 119
    • 120
    • 121
    • 122
    • 123
    • 124
    • 125
    • 126
    • 127
    • 128
    • 129
    • 130
    • 131
    • 132
    • 133
    • 134
    • 135
    • 136
    • 137
    • 138
    • 139
    • 140
    • 141
    • 142
    • 143
    • 144
    • 145
    • 146
    • 147
    • 148
    • 149
    • 150
    • 151
    • 152
    • 153
    • 154
    • 155
    • 156
    • 157
    • 158
    • 159
    • 160
    • 161
    • 162
    • 163
    • 164
    • 165
    • 166
    • 167
    • 168
    • 169
    • 170
    • 171
    • 172
    • 173
    • 174
    • 175
    • 176
    • 177
    • 178
    • 179
    • 180
    • 181
    • 182
    • 183
    • 184
    • 185
    • 186
    • 187
    • 188
    • 189
    • 190
    • 191
    • 192
    • 193
    • 194
    • 195
    • 196
    • 197
    • 198
    • 199
    • 200
    • 201
    • 202
    • 203
    • 204
    • 205
    • 206
    • 207
    • 208
    • 209
    • 210
    • 211
    • 212
    • 213
    • 214
    • 215
    • 216
    • 217
    • 218
    • 219
    • 220
    • 221
    • 222
    • 223
    • 224
    • 225
    • 226
    • 227
    • 228
    • 229
    • 230
    • 231
    • 232
    • 233
    • 234
    • 235
    • 236
    • 237
    • 238
    • 239
    • 240
    • 241
    • 242
    • 243
    • 244
    • 245
    • 246
    • 247
    • 248
    • 249
    • 250
    • 251
    • 252
    • 253
    • 254
    • 255
    • 256
    • 257
    • 258
    • 259
    • 260
    • 261
    • 262
    • 263
    • 264
    • 265
    • 266
    • 267
    • 268
    • 269
    • 270
    • 271
    • 272
    • 273
    • 274
    • 275
    • 276
    • 277
    • 278
    • 279
    • 280
    • 281
    • 282
    • 283
    • 284
    • 285
    • 286
    • 287
    • 288
    • 289
    • 290
    • 291
    • 292
    • 293
    • 294
    • 295
    • 296
    • 297
    • 298
    • 299
    • 300
    • 301
    • 302
    • 303
    • 304
    • 305
    • 306
    • 307
    • 308
    • 309
    • 310
    • 311
    • 312
    • 313
    • 314
    • 315
    • 316
    • 317
    • 318
    • 319
    • 320
    • 321
    • 322
    • 323
    • 324
    • 325
    • 326
    • 327
    • 328
    • 329
    • 330
    • 331
    • 332
    • 333
    • 334
    • 335
    • 336
    • 337
    • 338
    • 339
    • 340
    • 341
    • 342
    • 343
    • 344
    • 345
    • 346
    • 347
    • 348
    • 349
    • 350
    • 351
    • 352
    • 353
    • 354
    • 355
    • 356
    • 357
    • 358
    • 359
    • 360
    • 361
    • 362
    • 363
    • 364
    • 365
    • 366
    • 367
    • 368
    • 369
    • 370
    • 371
    • 372
    • 373
    • 374
    • 375
    • 376
    • 377
    • 378
    • 379
    • 380
    • 381
    • 382
    • 383
    • 384
    • 385
    • 386
    • 387
    • 388
    • 389
    • 390
    • 391
    • 392
    • 393
    • 394
    • 395
    • 396
    • 397
    • 398
    • 399
    • 400
    • 401
    • 402
    • 403
    • 404
    • 405
    • 406
    • 407
    • 408
    • 409
    • 410
    • 411
    • 412
    • 413
    • 414
    • 415
    • 416
    • 417
    • 418
    • 419
    • 420
    • 421
    • 422
    • 423
    • 424
    • 425
    • 426
    • 427
    • 428
    • 429
    • 430
    • 431
    • 432
    • 433
    • 434
    • 435
    • 436
    • 437
    • 438
    • 439
    • 440
    • 441
    • 442
    • 443
    • 444
    • 445
    • 446
    • 447
    • 448
    • 449
    • 450
    • 451
    • 452
    • 453
    • 454
    • 455
    • 456
    • 457
    • 458
    • 459
    • 460
    • 461
    • 462
    • 463
    • 464
    • 465
    • 466
    • 467
    • 468
    • 469
    • 470
    • 471
    • 472
    • 473
    • 474
    • 475
    • 476
    • 477
    • 478
    • 479
    • 480
    • 481
    • 482
    • 483
    • 484
    • 485
    • 486
    • 487
    • 488
    • 489
    • 490
    • 491
    • 492
    • 493
    • 494
    • 495
    • 496
    • 497
    • 498
    • 499
    • 500
    • 501
    • 502
    • 503
    • 504
    • 505
    • 506
    • 507
    • 508
    • 509
    • 510
    • 511
    • 512
    • 513
    • 514
    • 515
    • 516
    • 517
    • 518
    • 519
    • 520
    • 521
    • 522
    • 523
    • 524
    • 525
    • 526
    • 527
    • 528
    • 529
    • 530
    • 531
    • 532
    • 533
    • 534
    • 535
    • 536
    • 537
    • 538
    • 539
    • 540
    • 541
    • 542
    • 543
    • 544
    • 545
    • 546
    • 547
    • 548
    • 549
    • 550
    • 551
    • 552
    • 553
    • 554
    • 555
    • 556
    • 557
    • 558
    • 559
    • 560
    • 561
    • 562
    • 563
    • 564
    • 565
    • 566
    • 567
    • 568
    • 569
    • 570
    • 571
    • 572
    • 573
    • 574
    • 575
    • 576
    • 577
    • 578
    • 579
    • 580
    • 581
    • 582
    • 583
    • 584
    • 585
    • 586
    • 587
    • 588
    • 589
    • 590
    • 591
    • 592
    • 593
    • 594
    • 595
    • 596
    • 597
    • 598
    • 599
    • 600
    • 601
    • 602
    • 603
    • 604
    • 605
    • 606
    • 607
    • 608
    • 609
    • 610
    • 611
    • 612
    • 613
    • 614
    • 615
    • 616
    • 617
    • 618
    • 619
    • 620
    • 621
    • 622
    • 623
    • 624
    • 625
    • 626
    • 627
    • 628
    • 629
    • 630
    • 631
    • 632
    • 633
    • 634
    • 635
    • 636
    • 637
    • 638
    • 639
    • 640
    • 641
    • 642
    • 643

    创建Ingress

    root@k8s-master-01:/opt/k8s-data/yaml/Ingress-case# kubectl apply -f 1.0.ingress-control-k8s-v1.22.yaml
namespace/ingress-nginx created
serviceaccount/ingress-nginx created
configmap/ingress-nginx-controller created
clusterrole.rbac.authorization.k8s.io/ingress-nginx created
clusterrolebinding.rbac.authorization.k8s.io/ingress-nginx created
role.rbac.authorization.k8s.io/ingress-nginx created
rolebinding.rbac.authorization.k8s.io/ingress-nginx created
service/ingress-nginx-controller-admission created
daemonset.apps/ingress-nginx-controller created
ingressclass.networking.k8s.io/nginx created
validatingwebhookconfiguration.admissionregistration.k8s.io/ingress-nginx-admission created
serviceaccount/ingress-nginx-admission created
clusterrole.rbac.authorization.k8s.io/ingress-nginx-admission created
clusterrolebinding.rbac.authorization.k8s.io/ingress-nginx-admission created
role.rbac.authorization.k8s.io/ingress-nginx-admission created
rolebinding.rbac.authorization.k8s.io/ingress-nginx-admission created
job.batch/ingress-nginx-admission-create created
job.batch/ingress-nginx-admission-patch created

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19

    2.2 tomcat 准备

    tomcat yaml如下

    root@k8s-master-01:/opt/k8s-data/yaml/Ingress-case# cat tomcat-app1.yaml
kind: Deployment
#apiVersion: extensions/v1beta1
apiVersion: apps/v1
metadata:
  labels:
    app: wework-tomcat-app1-deployment-label
  name: wework-tomcat-app1-deployment
  namespace: wework
spec:
  replicas: 1
  selector:
    matchLabels:
      app: wework-tomcat-app1-selector
  template:
    metadata:
      labels:
        app: wework-tomcat-app1-selector
    spec:
      containers:
      - name: wework-tomcat-app1-container
        image: tomcat:7.0.94-alpine
        #command: ["/apps/tomcat/bin/run_tomcat.sh"]
        #imagePullPolicy: IfNotPresent
        imagePullPolicy: Always
        ports:
        - containerPort: 8080
          protocol: TCP
          name: http
        env:
        - name: "password"
          value: "123456"
        - name: "name"
          value: "qiuqin"
        - name: "age"
          value: "18"
        resources:
          limits:
            cpu: 1
            memory: "512Mi"
          requests:
            cpu: 500m
            memory: "512Mi"
---
kind: Service
apiVersion: v1
metadata:
  labels:
    app: wework-tomcat-app1-service-label
  name: wework-tomcat-app1-service
  namespace: wework
spec:
  type: NodePort
  ports:
  - name: http
    port: 80
    protocol: TCP
    targetPort: 8080
    nodePort: 40003
  selector:
    app: wework-tomcat-app1-selector
root@k8s-master-01:/opt/k8s-data/yaml/Ingress-case# cat tomcat-app2.yaml
kind: Deployment
#apiVersion: extensions/v1beta1
apiVersion: apps/v1
metadata:
  labels:
    app: wework-tomcat-app2-deployment-label
  name: wework-tomcat-app2-deployment
  namespace: wework
spec:
  replicas: 1
  selector:
    matchLabels:
      app: wework-tomcat-app2-selector
  template:
    metadata:
      labels:
        app: wework-tomcat-app2-selector
    spec:
      containers:
      - name: wework-tomcat-app2-container
        image: tomcat:7.0.94-alpine
        #command: ["/apps/tomcat/bin/run_tomcat.sh"]
        #imagePullPolicy: IfNotPresent
        imagePullPolicy: Always
        ports:
        - containerPort: 8080
          protocol: TCP
          name: http
        env:
        - name: "password"
          value: "123456"
        - name: "name"
          value: "qiuqin"
        - name: "age"
          value: "18"
        resources:
          limits:
            cpu: 1
            memory: "512Mi"
          requests:
            cpu: 500m
            memory: "512Mi"
---
kind: Service
apiVersion: v1
metadata:
  labels:
    app: wework-tomcat-app2-service-label
  name: wework-tomcat-app2-service
  namespace: wework
spec:
  type: NodePort
  ports:
  - name: http
    port: 80
    protocol: TCP
    targetPort: 8080
    nodePort: 40004
  selector:
    app: wework-tomcat-app2-selector

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33
    • 34
    • 35
    • 36
    • 37
    • 38
    • 39
    • 40
    • 41
    • 42
    • 43
    • 44
    • 45
    • 46
    • 47
    • 48
    • 49
    • 50
    • 51
    • 52
    • 53
    • 54
    • 55
    • 56
    • 57
    • 58
    • 59
    • 60
    • 61
    • 62
    • 63
    • 64
    • 65
    • 66
    • 67
    • 68
    • 69
    • 70
    • 71
    • 72
    • 73
    • 74
    • 75
    • 76
    • 77
    • 78
    • 79
    • 80
    • 81
    • 82
    • 83
    • 84
    • 85
    • 86
    • 87
    • 88
    • 89
    • 90
    • 91
    • 92
    • 93
    • 94
    • 95
    • 96
    • 97
    • 98
    • 99
    • 100
    • 101
    • 102
    • 103
    • 104
    • 105
    • 106
    • 107
    • 108
    • 109
    • 110
    • 111
    • 112
    • 113
    • 114
    • 115
    • 116
    • 117
    • 118
    • 119
    • 120
    • 121
    • 122

    创建tomcat

    root@k8s-master-01:/opt/k8s-data/yaml/Ingress-case# kubectl apply -f tomcat-app1.yaml
deployment.apps/wework-tomcat-app1-deployment created
service/wework-tomcat-app1-service configured
root@k8s-master-01:/opt/k8s-data/yaml/Ingress-case# kubectl apply -f tomcat-app2.yaml
deployment.apps/wework-tomcat-app2-deployment created
service/wework-tomcat-app2-service created

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6

    测试连接tomcat

    root@haproxy-1:~# curl 192.168.31.113:40003/app1/
App1 tomcat
root@haproxy-1:~# curl 192.168.31.113:40004/app2/
app2 tomcat

    • 1
    • 2
    • 3
    • 4

    3. Ingress实验

    3.1 单tomcat主机配置

    apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: nginx-web
  namespace: wework
  annotations:
    kubernetes.io/ingress.class: "nginx" ##指定Ingress Controller的类型
    nginx.ingress.kubernetes.io/use-regex: "true" ##指定后面rules定义的path可以使用正则表达式
    nginx.ingress.kubernetes.io/proxy-connect-timeout: "600" ##连接超时时间,默认为5s
    nginx.ingress.kubernetes.io/proxy-send-timeout: "600" ##后端服务器回转数据超时时间,默认为60s
    nginx.ingress.kubernetes.io/proxy-read-timeout: "600" ##后端服务器响应超时时间,默认为60s
    nginx.ingress.kubernetes.io/proxy-body-size: "50m" ##客户端上传文件，最大大小，默认为20m
    #nginx.ingress.kubernetes.io/rewrite-target: / ##URL重写
    nginx.ingress.kubernetes.io/app-root: /index.html

spec:
  rules:
  - host: www.pana.com
    http:
      paths:
      - pathType: Prefix
        path: "/"
        backend:
          service:
            name: wework-tomcat-app1-service
            port:
              number: 80

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27

    生效配置

    root@k8s-master-01:/opt/k8s-data/yaml/Ingress-case# kubectl apply -f 2.1.ingress_single-host.yaml
ingress.networking.k8s.io/nginx-web created
root@k8s-master-01:/opt/k8s-data/yaml/Ingress-case# kubectl get ingress -n wework
NAME        CLASS    HOSTS          ADDRESS                                                                                     PORTS   AGE
nginx-web   <none>   www.pana.com   192.168.31.101,192.168.31.102,192.168.31.103,192.168.31.111,192.168.31.112,192.168.31.113   80      2m43s
root@k8s-master-01:/opt/k8s-data/yaml/Ingress-case#

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6

    请添加图片描述

    3.2 多个tomcat主机配置

    通过不同的域名进行匹配

    kind: Ingress
metadata:
  name: nginx-web
  namespace: wework
  annotations:
    kubernetes.io/ingress.class: "nginx" ##指定Ingress Controller的类型
    nginx.ingress.kubernetes.io/use-regex: "true" ##指定后面rules定义的path可以使用正则表达式
    nginx.ingress.kubernetes.io/proxy-connect-timeout: "600" ##连接超时时间,默认为5s
    nginx.ingress.kubernetes.io/proxy-send-timeout: "600" ##后端服务器回转数据超时时间,默认为60s
    nginx.ingress.kubernetes.io/proxy-read-timeout: "600" ##后端服务器响应超时时间,默认为60s
    nginx.ingress.kubernetes.io/proxy-body-size: "10m" ##客户端上传文件，最大大小，默认为20m
    #nginx.ingress.kubernetes.io/rewrite-target: / ##URL重写
    nginx.ingress.kubernetes.io/app-root: /index.html

spec:
  rules:
  - host: www.pana.com
    http:
      paths:
      - pathType: Prefix
        path: "/"
        backend:
          service:
            name: wework-tomcat-app1-service
            port:
              number: 80


  - host: api.pana.com
    http:
      paths:
      - pathType: Prefix
        path: "/"
        backend:
          service:
            name: wework-tomcat-app2-service
            port:
              number: 80

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33
    • 34
    • 35
    • 36
    • 37
    • 38

    生效配置

    root@k8s-master-01:/opt/k8s-data/yaml/Ingress-case# kubectl apply -f 2.2.ingress_multi-host.yaml
ingress.networking.k8s.io/nginx-web created
root@k8s-master-01:/opt/k8s-data/yaml/Ingress-case# kubectl get ingress -n wework
NAME        CLASS    HOSTS                       ADDRESS                                                                                     PORTS   AGE
nginx-web   <none>   www.pana.com,api.pana.com   192.168.31.101,192.168.31.102,192.168.31.103,192.168.31.111,192.168.31.112,192.168.31.113   80      3m48s

    • 1
    • 2
    • 3
    • 4
    • 5

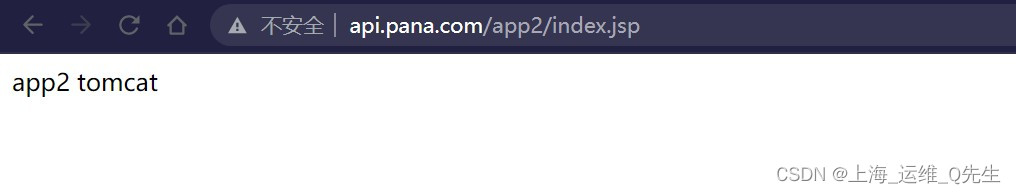

    请添加图片描述
    请添加图片描述

    3.3 根据url匹配service

    使用同一个域名,根据不同的location进行匹配

    kind: Ingress
metadata:
  name: nginx-web
  namespace: wework
  annotations:
    kubernetes.io/ingress.class: "nginx" ##指定Ingress Controller的类型
    nginx.ingress.kubernetes.io/use-regex: "true" ##指定后面rules定义的path可以使用正则表达式
    nginx.ingress.kubernetes.io/proxy-connect-timeout: "600" ##连接超时时间,默认为5s
    nginx.ingress.kubernetes.io/proxy-send-timeout: "600" ##后端服务器回转数据超时时间,默认为60s
    nginx.ingress.kubernetes.io/proxy-read-timeout: "600" ##后端服务器响应超时时间,默认为60s
    nginx.ingress.kubernetes.io/proxy-body-size: "10m" ##客户端上传文件，最大大小，默认为20m
    #nginx.ingress.kubernetes.io/rewrite-target: / ##URL重写
    nginx.ingress.kubernetes.io/app-root: /index.html

spec:
  rules:
  - host: www.pana.com
    http:
      paths:
      - pathType: Prefix
        path: "/app1"
        backend:
          service:
            name: wework-tomcat-app1-service
            port:
              number: 80
      - pathType: Prefix
        path: "/app2"
        backend:
          service:
            name: wework-tomcat-app2-service
            port:
              number: 80

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33

    配置生效

    root@k8s-master-01:/opt/k8s-data/yaml/Ingress-case# kubectl apply -f 2.2.ingress_multi-host.yaml
ingress.networking.k8s.io/nginx-web configured
root@k8s-master-01:/opt/k8s-data/yaml/Ingress-case# kubectl get ingress -n wework
NAME        CLASS    HOSTS          ADDRESS                                                                                     PORTS   AGE
nginx-web   <none>   www.pana.com   192.168.31.101,192.168.31.102,192.168.31.103,192.168.31.111,192.168.31.112,192.168.31.113   80      17m

    • 1
    • 2
    • 3
    • 4
    • 5

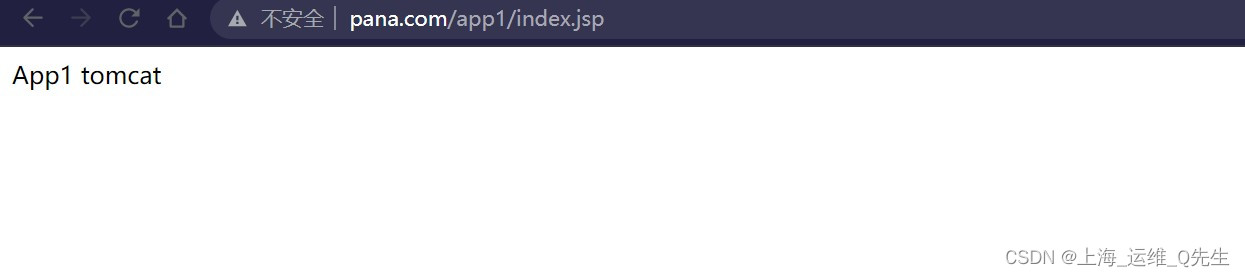

    请添加图片描述

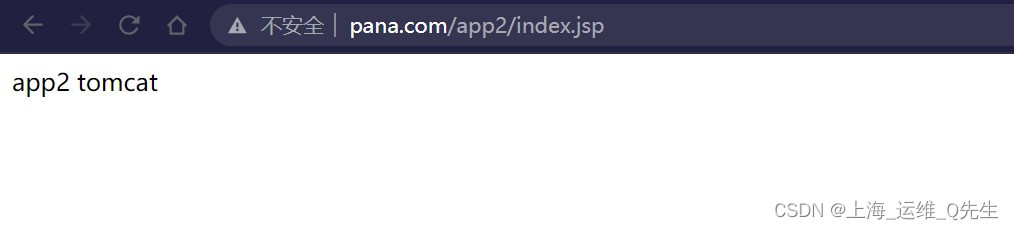

    请添加图片描述

    3.4 Ingress挂载SSL证书

    上传证书

    kubectl create secret generic tls-secret --from-file=tls.crt=server.crt --from-file=tls.key=server.key -n wework

    • 1

    确认secret是否创建成功

    root@k8s-master-01:/opt/k8s-data/yaml/Ingress-case# kubectl create secret generic tls-secret --from-file=tls.crt=server.crt --from-file=tls.key=server.key -n wework
secret/tls-secret created
root@k8s-master-01:/opt/k8s-data/yaml/Ingress-case# kubectl describe secret tls-secret -n wework
Name:         tls-secret
Namespace:    wework
Labels:       <none>
Annotations:  <none>

Type:  Opaque

Data
====
tls.crt:  5604 bytes
tls.key:  1679 bytes

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14

    3.4.1 单域名SSL证书挂载

    apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: nginx-web
  namespace: wework
  annotations:
    kubernetes.io/ingress.class: "nginx" ##指定Ingress Controller的类型
    nginx.ingress.kubernetes.io/ssl-redirect: 'true' #SSL重定向，即将http请求强制重定向至https，等于nginx中的全站https
spec:
  tls:
  - hosts:
    - ttt.panasonic.cn
    secretName: tls-secret

  rules:
  - host: ttt.panasonic.cn
    http:
      paths:
      - pathType: Prefix
        path: "/"
        backend:
          service:
            name: wework-tomcat-app1-service
            port:
              number: 80

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25

    生效配置

    root@k8s-master-01:/opt/k8s-data/yaml/Ingress-case# kubectl apply -f 4.1.ingress-https-magedu_single-host.yaml
ingress.networking.k8s.io/nginx-web created
root@k8s-master-01:/opt/k8s-data/yaml/Ingress-case# kubectl get ingress -n wework
NAME        CLASS    HOSTS              ADDRESS   PORTS     AGE
nginx-web   <none>   ttt.panasonic.cn             80, 443   11s

    • 1
    • 2
    • 3
    • 4
    • 5

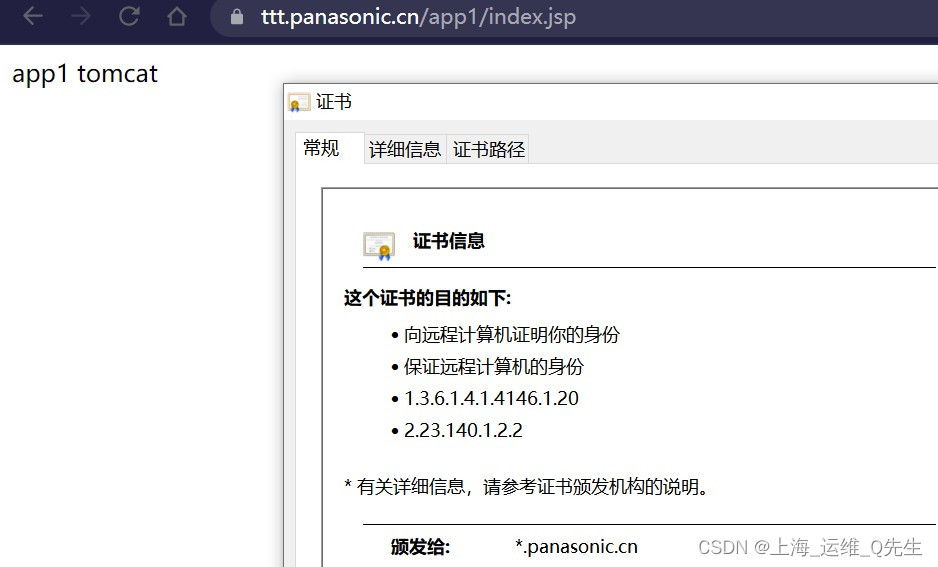

    证书被正常挂载
    请添加图片描述

    3.4.2 多域名SSL证书挂载

    apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: nginx-web
  namespace: wework
  annotations:
    kubernetes.io/ingress.class: "nginx" ##指定Ingress Controller的类型
    nginx.ingress.kubernetes.io/ssl-redirect: 'true' #SSL重定向，即将http请求强制重定向至https，等于nginx中的全站https
spec:
  tls:
  - hosts:
    - ttt.panasonic.cn
    - aaa.panasonic.cn
    secretName: tls-secret

  rules:
  - host: ttt.panasonic.cn
    http:
      paths:
      - pathType: Prefix
        path: "/"
        backend:
          service:
            name: wework-tomcat-app1-service
            port:
              number: 80
  - host: aaa.panasonic.cn
    http:
      paths:
      - pathType: Prefix
        path: "/"
        backend:
          service:
            name: wework-tomcat-app2-service
            port:
              number: 80

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33
    • 34
    • 35
    • 36

    应用配置

    root@k8s-master-01:/opt/k8s-data/yaml/Ingress-case# kubectl apply -f 4.1.ingress-https-magedu_single-host.yaml
ingress.networking.k8s.io/nginx-web configured

    • 1
    • 2

    测试效果
    请添加图片描述
    请添加图片描述

  • 相关阅读:
    关于前后端分离的项目打包方案docker
    一步一图带你深入理解 Linux 物理内存管理
    LFSR和PRBS是什么关系？prbs怎么产生？
    Centos7安装RabbitMQ
    【云原生 | Kubernetes篇】自建高可用k8s集群优化
    浅谈降维实操，一种用于处理特征的方式——后附Python代码
    【博客476】gossip协议 && 利用alertmanaer,consul使用的gossip开源库实现gossip demo
    QLayout布局间消除间隙和QLayout边缘空白调整
    简易学生成绩管理信息系统（纯Python版）
    自动化测试框架-----unittest篇
  • 原文地址：https://blog.csdn.net/qq_29974229/article/details/126418560
