教小白搭建Hive分区分桶表

1、表说明

Hive表分为内部表、外部表，内部表全生命周期由hive管理，外部表在被删除时，文件不会被删除，关键字external，这里主要是内部表

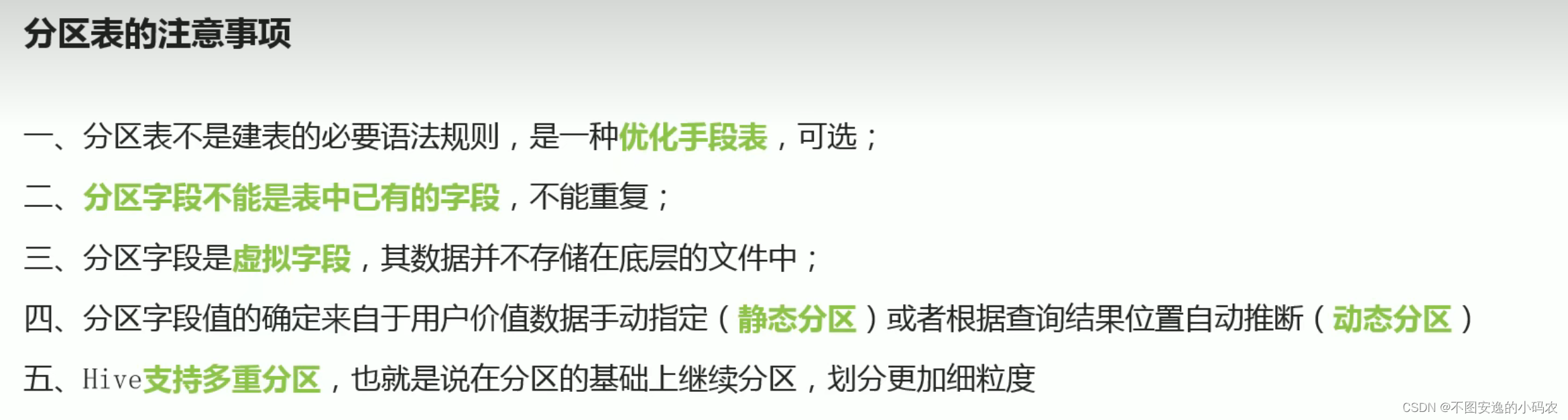

分区表：避免全表扫描，提高查询效率，分区字段不饿能是表中已经存在的字段

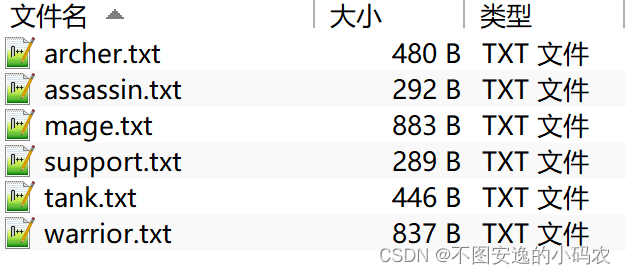

映射文件：

其中射手表示例如下

 2、普通表搭建

create table hornor_1(id int,name string,max_shanghai int,
max_fangyu int,max_juli int,max_xueliang int,category string,
roles string,other string)
row format delimited
fields terminated by "\t";

将文件移至表文件夹中，local关键字表示数据保存在本地即node1上，如果保存在HDFS上可以省略LOCAL关键字

load data local inpath "/export/hivedata/archer.txt" into table hornor_1;
load data local inpath "/export/hivedata/assassin.txt" into table hornor_1;
load data local inpath "/export/hivedata/mage.txt" into table hornor_1;
load data local inpath "/export/hivedata/support.txt" into table hornor_1;
load data local inpath "/export/hivedata/tank.txt" into table hornor_1;
load data local inpath "/export/hivedata/warrior.txt" into table hornor_1;

查询

select * from hornor_1;

select * from hornor_1 where roles="archer" and max_fangyu < 1000;

在HDFS上存储情况如图所示

 3、静态分区表

//静态分区建表
create table hornor_2(id int,name string,max_shanghai int,
max_fangyu int,max_juli int,max_xueliang int,category string,
roles string,other string)
partitioned by (role string)
row format delimited
fields terminated by "\t";

分区字段role，根据分区字段加载数据

load data local inpath "/export/hivedata/archer.txt" into table hornor_2 partition (role='sheshou');
load data local inpath "/export/hivedata/assassin.txt" into table hornor_2 partition (role='cike');
load data local inpath "/export/hivedata/mage.txt" into table hornor_2 partition (role='fashi');
load data local inpath "/export/hivedata/support.txt" into table hornor_2 partition (role='fuzhu');
load data local inpath "/export/hivedata/tank.txt" into table hornor_2 partition (role='tanke');
load data local inpath "/export/hivedata/warrior.txt" into table hornor_2 partition (role='zhanshi');

查询

###直接去分区里查询
select * from hornor_1 where role="sheshou" and max_fangyu < 1000;

在HDFS上存储情况如图所示

4、动态分区

如果要分区的类型有点多，一直要手打输入文件，很麻烦，所以需要动态分区

//开启动态分区功能
set hive.exec.dynamic.partition = true;

//允许所有分区都是动态的，关闭严格模式，不然至少一个静态分区
set hive.exec.dynamic.partition.mode = nostrict;

1）完成一张普通表的搭建，即本文中的hornor_1表

2）动态分区表的建表语句同静态分区建表语句一致

create table hornor_dynamic(id int,name string,max_shanghai int,
max_fangyu int,max_juli int,max_xueliang int,category string,
roles string,other string)
partitioned by (role string)
row format delimited fields terminated by "\t";

3）利用insert....select

//先完成普通表的搭建，再利用insert into ...select

insert into table hornor_dynamic partition (role)select tmp.*,tmp.roles from hornor_1 tmp;

4）查询

select * from hornor_dynamic ;

5、分桶表

文件样式

 1）创建普通表

//创建普通表
create table ittest.t_usa_covid19(
    count_date string,
    county string,
    state string,
    fips int,
    cases int,
    deaths int
)row format delimited fields terminated by ",";

加载文件

两种方式
在node1的/export/hivedata/目录下执行以下命令，路径根据自己调整
hadoop fs -put us-covid19-counties.dat /user/hive/warehouse/ittest.db/t_usa_covid19

load data local inpath "/export/hivedata/us-covid19-counties.dat" into table t_usa_covid19

查看普通表新建是否成功

select * from t_usa_covid19;

创建分桶表

//创建分桶表
create table ittest.t_usa_covid19_bucket(
    count_date string,
    county string,
    state string,
    fips int,
    cases int,
    deaths int
)clustered by (state)into 5 buckets ;

把普通表的数据插入分桶表

insert into t_usa_covid19_bucket select * from t_usa_covid19;

查看分桶表的数据是否插入成功

select * from t_usa_covid19_bucket;

分桶表优点：

1）根据分桶字段查询，减少全表扫描

2）JOIN时提高MR效率，减少笛卡尔积数量

 3）高效抽样
