@Import

@import代码形式

对于import注解，用springBoot的SpringBootapplication的自动配置原理写一下，因为比较方便，有现成的@import。

一般我们回答springboot的自动装配原理一般会将注解，会说@SpringBootapplication里面有三个注解，最重要的是@EnableAutoConfiguration，而@EnableAutoConfiguration里面有@Import(AutoConfigurationImportSelector.class)，找到AutoConfigurationImportSelector这个类的getCandidateConfigurations方法就能将Spring.factories下的enableautoConfiguration读进来。但是怎么找到getCandidateConfigurations方法呢？我们换一个角度去看这个问题。从configurationClassPostProcessor下看。

首先会进入到doProcessConfigurationClass处理的注解类下，有个方法处理@import的，processImports方法。

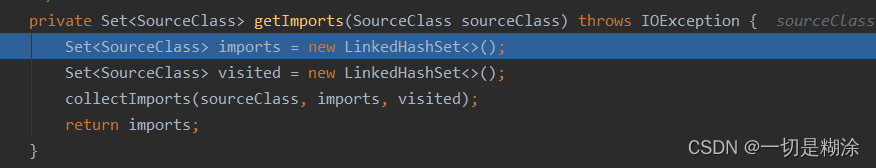

这里面的参数也比较重要，首先看下getImports参数方法。

这里定义了两个集合，然后调用了collectImports(sourceClass, imports, visited);方法。

这里的最下面的if判断，如果遍历的注释没有@import注解，那么就需要进入递归的逻辑里面去了，因为有可能在@a下的@b下才有@import，而这个时候只能找到@b，不能找到@import。在@springbootApplication里，实际上里面有三个注解，这个三个注解并没有@import，实际上在@enableautoConfiguration里面有@import注解，所以这里需要递归处理不带@import的注解。
这里实际上在getImports的imports集合返回了2个，在enableAutoConfiguration注解下有个autoConfigurationPackage注解，里面也有个@import，这里我们忽略掉。

然后执行processImports(configClass, sourceClass, getImports(sourceClass), true);方法。

	private void processImports(ConfigurationClass configClass, SourceClass currentSourceClass,
			Collection<SourceClass> importCandidates, boolean checkForCircularImports) {

		if (importCandidates.isEmpty()) {
			return;
		}

		if (checkForCircularImports && isChainedImportOnStack(configClass)) {
			this.problemReporter.error(new CircularImportProblem(configClass, this.importStack));
		}
		else {
			this.importStack.push(configClass);
			try {
				for (SourceClass candidate : importCandidates) {
					if (candidate.isAssignable(ImportSelector.class)) {
						// Candidate class is an ImportSelector -> delegate to it to determine imports
						Class<?> candidateClass = candidate.loadClass();
						ImportSelector selector = BeanUtils.instantiateClass(candidateClass, ImportSelector.class);
						ParserStrategyUtils.invokeAwareMethods(
								selector, this.environment, this.resourceLoader, this.registry);
						if (selector instanceof DeferredImportSelector) {
							this.deferredImportSelectorHandler.handle(configClass, (DeferredImportSelector) selector);
						}
						else {
							String[] importClassNames = selector.selectImports(currentSourceClass.getMetadata());
							Collection<SourceClass> importSourceClasses = asSourceClasses(importClassNames);
							processImports(configClass, currentSourceClass, importSourceClasses, false);
						}
					}
					else if (candidate.isAssignable(ImportBeanDefinitionRegistrar.class)) {
						// Candidate class is an ImportBeanDefinitionRegistrar ->
						// delegate to it to register additional bean definitions
						Class<?> candidateClass = candidate.loadClass();
						ImportBeanDefinitionRegistrar registrar =
								BeanUtils.instantiateClass(candidateClass, ImportBeanDefinitionRegistrar.class);
						ParserStrategyUtils.invokeAwareMethods(
								registrar, this.environment, this.resourceLoader, this.registry);
						configClass.addImportBeanDefinitionRegistrar(registrar, currentSourceClass.getMetadata());
					}
					else {
						// Candidate class not an ImportSelector or ImportBeanDefinitionRegistrar ->
						// process it as an @Configuration class
						this.importStack.registerImport(
								currentSourceClass.getMetadata(), candidate.getMetadata().getClassName());
						processConfigurationClass(candidate.asConfigClass(configClass));
					}
				}
			}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49

在processImports方法中，我们注意到实际上import有不同类型，这里需要区别对待，而在 @EnableAutoConfiguration下的@import的类为DeferredImportSelector，而DeferredImportSelector继承了ImportSelector。所以这里走延迟导入，实例化创建了对象，并加入到deferredImportSelectors集合中去。延迟处理是在@configuration完成之后再处理这个方法。
继续回到doProcessConfigurationClass方法中来，处理完毕processImports。由于我们采用了延迟处理的方案，所以需要全部走完这个方法，一直返回到parse还没有分annotation、abstractBeanDefinition时。

public void parse(Set<BeanDefinitionHolder> configCandidates) {
		for (BeanDefinitionHolder holder : configCandidates) {
			BeanDefinition bd = holder.getBeanDefinition();
			try {
				if (bd instanceof AnnotatedBeanDefinition) {
					parse(((AnnotatedBeanDefinition) bd).getMetadata(), holder.getBeanName());
				}
				else if (bd instanceof AbstractBeanDefinition && ((AbstractBeanDefinition) bd).hasBeanClass()) {
					parse(((AbstractBeanDefinition) bd).getBeanClass(), holder.getBeanName());
				}
				else {
					parse(bd.getBeanClassName(), holder.getBeanName());
				}
			}
			catch (BeanDefinitionStoreException ex) {
				throw ex;
			}
			catch (Throwable ex) {
				throw new BeanDefinitionStoreException(
						"Failed to parse configuration class [" + bd.getBeanClassName() + "]", ex);
			}
		}

		this.deferredImportSelectorHandler.process();
	}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25

看上面方法最后一行this.deferredImportSelectorHandler.process();这里就是对加入到延迟处理集合中的方法进行处理了。看下process方法。

		public void process() {
			List<DeferredImportSelectorHolder> deferredImports = this.deferredImportSelectors;
			this.deferredImportSelectors = null;
			try {
				if (deferredImports != null) {
					DeferredImportSelectorGroupingHandler handler = new DeferredImportSelectorGroupingHandler();
					deferredImports.sort(DEFERRED_IMPORT_COMPARATOR);
					deferredImports.forEach(handler::register);
					handler.processGroupImports();
				}
			}
			finally {
				this.deferredImportSelectors = new ArrayList<>();
			}
		}

	}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

进入到processGroupImports处理方法下，在进入getImports是核心处理方法。

		public Iterable<Group.Entry> getImports() {
			for (DeferredImportSelectorHolder deferredImport : this.deferredImports) {
				this.group.process(deferredImport.getConfigurationClass().getMetadata(),
						deferredImport.getImportSelector());
			}
			return this.group.selectImports();
		}
	}
1
2
3
4
5
6
7
8

进入到process方法。

		public void process(AnnotationMetadata annotationMetadata, DeferredImportSelector deferredImportSelector) {
			Assert.state(deferredImportSelector instanceof AutoConfigurationImportSelector,
					() -> String.format("Only %s implementations are supported, got %s",
							AutoConfigurationImportSelector.class.getSimpleName(),
							deferredImportSelector.getClass().getName()));
			AutoConfigurationEntry autoConfigurationEntry = ((AutoConfigurationImportSelector) deferredImportSelector)
					.getAutoConfigurationEntry(getAutoConfigurationMetadata(), annotationMetadata);
			this.autoConfigurationEntries.add(autoConfigurationEntry);
			for (String importClassName : autoConfigurationEntry.getConfigurations()) {
				this.entries.putIfAbsent(importClassName, annotationMetadata);
			}
		}
1
2
3
4
5
6
7
8
9
10
11
12

进入到getAutoConfigurationEntry方法中。

	protected AutoConfigurationEntry getAutoConfigurationEntry(AutoConfigurationMetadata autoConfigurationMetadata,
			AnnotationMetadata annotationMetadata) {
		if (!isEnabled(annotationMetadata)) {
			return EMPTY_ENTRY;
		}
		AnnotationAttributes attributes = getAttributes(annotationMetadata);
		List<String> configurations = getCandidateConfigurations(annotationMetadata, attributes);
		configurations = removeDuplicates(configurations);
		Set<String> exclusions = getExclusions(annotationMetadata, attributes);
		checkExcludedClasses(configurations, exclusions);
		configurations.removeAll(exclusions);
		configurations = filter(configurations, autoConfigurationMetadata);
		fireAutoConfigurationImportEvents(configurations, exclusions);
		return new AutoConfigurationEntry(configurations, exclusions);
	}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

注意，process方法与getAutoConfigurationEntry已经在AutoConfigurationImportSelector类了，在getAutoConfigurationEntry中有一个方法getCandidateConfigurations，这就是我们需要的配置。

		List<String> configurations = SpringFactoriesLoader.loadFactoryNames(getSpringFactoriesLoaderFactoryClass(),
				getBeanClassLoader());
		Assert.notEmpty(configurations, "No auto configuration classes found in META-INF/spring.factories. If you "
				+ "are using a custom packaging, make sure that file is correct.");
		return configurations;
	}
1
2
3
4
5
6

进入loadFactoryNames方法，

    public static List<String> loadFactoryNames(Class<?> factoryClass, @Nullable ClassLoader classLoader) {
        String factoryClassName = factoryClass.getName();
        return (List)loadSpringFactories(classLoader).getOrDefault(factoryClassName, Collections.emptyList());
    }
1
2
3
4

进入到loadSpringFactories方法

 private static Map<String, List<String>> loadSpringFactories(@Nullable ClassLoader classLoader) {
        MultiValueMap<String, String> result = (MultiValueMap)cache.get(classLoader);
        if (result != null) {
            return result;
        } else {
            try {
                Enumeration<URL> urls = classLoader != null ? classLoader.getResources("META-INF/spring.factories") : ClassLoader.getSystemResources("META-INF/spring.factories");
                LinkedMultiValueMap result = new LinkedMultiValueMap();

                while(urls.hasMoreElements()) {
                    URL url = (URL)urls.nextElement();
                    UrlResource resource = new UrlResource(url);
                    Properties properties = PropertiesLoaderUtils.loadProperties(resource);
                    Iterator var6 = properties.entrySet().iterator();

                    while(var6.hasNext()) {
                        Entry<?, ?> entry = (Entry)var6.next();
                        String factoryClassName = ((String)entry.getKey()).trim();
                        String[] var9 = StringUtils.commaDelimitedListToStringArray((String)entry.getValue());
                        int var10 = var9.length;

                        for(int var11 = 0; var11 < var10; ++var11) {
                            String factoryName = var9[var11];
                            result.add(factoryClassName, factoryName.trim());
                        }
                    }
                }

                cache.put(classLoader, result);
                return result;
            } catch (IOException var13) {
                throw new IllegalArgumentException("Unable to load factories from location [META-INF/spring.factories]", var13);
            }
        }
    }
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35

上面这个方法就能将所有的beanFactories文件都加载回来，包含enableautoConfiguration。然后返回到getOrDefault，这个时候完成对enableautoConfiguration的识别。回到 getAutoConfigurationEntry方法里，去除掉一些不用的，最后包含20多个。

好了，@import结束。

@import总结

在BFPP下的，configurationClassPostProcessor包含了@import注解的解析，从启动类里面一个个挨个查找，最后找到@import的tutoConfigurationImportSelector的类，在这个类进行解析的时候，有个延迟处理的属性，在延迟处理时，有个getImports方法，这个方法有个getAutoConfigurationEntry，entry对象会调用getCandidateConfigurations方法，这个方法就会把enableconfiguration整个都加载回来，完成自动装配的环节。
