【Python】利用tkinter开发AI对战井字棋游戏
1 前言
在学习tkinter时打算开发一款井字棋游戏，之前试过利用pygame开发【利用pygame开发井字棋博客】。但是这个项目没有嵌入AI智能对战，只能由两个玩家操作。正好借此机会利用tkinter开发对战界面，并嵌入AI对战。

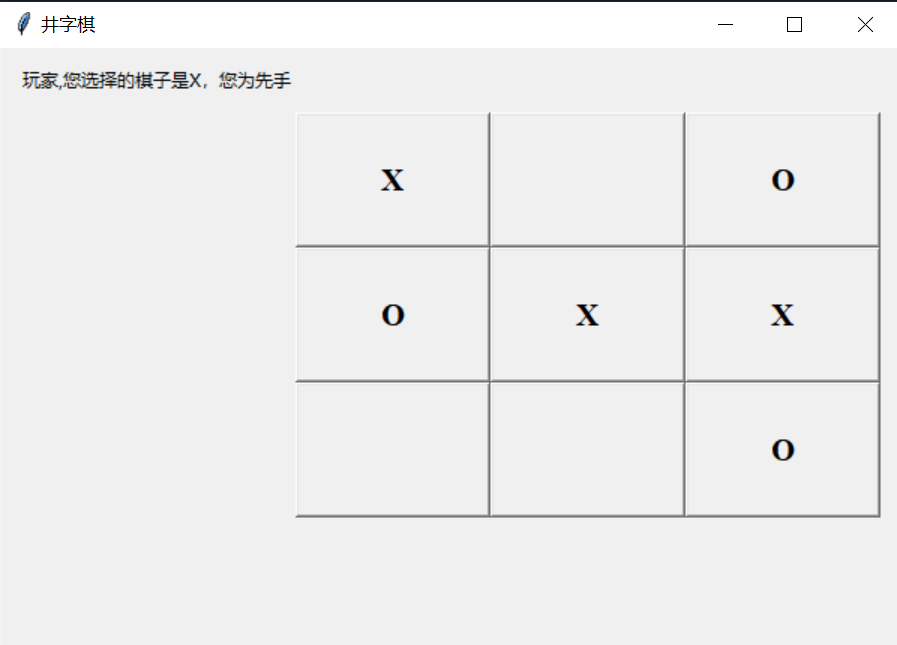

游戏界面如下：
为了读者对游戏由更好的了解，这里放操作视频：
20220813_105943
为方便游玩，我利用pyinstaller打包了代码至exe文件可以让所有用户安装游玩！exe下载地址：软件下载
若仅仅想获取代码，本文的代码就是全部代码，可放心使用！2 代码分模块介绍
2.1 导入需要的库
分别是tkinter 、random
from tkinter import * import tkinter.messagebox as msq import random- 1
- 2
- 3
2.2 定义全局变量
这里定义了窗体大小，窗体标题以及九个可落子位置的序号和变量值。
def __init__(self, master=None): self.root = master # 定义内部变量root self.root.title("井字棋") self.root.geometry('%dx%d' % (600, 400)) # 设置窗口大小 self.panels = ["panel"]*10 self.count = 0 self.digits = [1, 2, 3, 4, 5, 6, 7, 8, 9] self.mark = "" self.btn_text1 = StringVar() self.btn_text2 = StringVar() self.btn_text3 = StringVar() self.btn_text4 = StringVar() self.btn_text5 = StringVar() self.btn_text6 = StringVar() self.btn_text7 = StringVar() self.btn_text8 = StringVar() self.btn_text9 = StringVar() self.computerLetter = "O" self.createPage()- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
2.2 定义玩家类
def read_name(self): return [0,"玩家"] def read_choose(self): return "X"- 1
- 2
- 3
- 4
- 5
2.3 定义页面类
利用gird对页面进行合理的分布，下子的方框实则是button，利用command对button进行动态改变
def createPage(self): self.page = Frame(self.root) # 创建Frame self.page.pack() Label(self.page, text="{0},您选择的棋子是{1}，您为先手".format(self.read_name()[1], self.read_choose())).grid(row=0, stick=W, pady=10) button1 = Button(self.page, textvariable=self.btn_text1, width=10, font=('Times 16 bold'), height=3, command=lambda:self.update_btn_text(1)) button1.grid(row=1, column=1) button2 = Button(self.page, textvariable=self.btn_text2, width=10, height=3, font=('Times 16 bold'), command=lambda:self.update_btn_text(2)) button2.grid(row=1, column=2) button3 = Button(self.page, textvariable=self.btn_text3, width=10, height=3, font=('Times 16 bold'), command=lambda:self.update_btn_text(3)) button3.grid(row=1, column=3) button4 = Button(self.page, textvariable=self.btn_text4, width=10, height=3, font=('Times 16 bold'), command=lambda:self.update_btn_text(4)) button4.grid(row=2, column=1) button5 = Button(self.page, textvariable=self.btn_text5, width=10, height=3, font=('Times 16 bold'), command=lambda:self.update_btn_text(5)) button5.grid(row=2, column=2) button6 = Button(self.page, textvariable=self.btn_text6, width=10, height=3, font=('Times 16 bold'), command=lambda:self.update_btn_text(6)) button6.grid(row=2, column=3) button7 = Button(self.page, textvariable=self.btn_text7, width=10, height=3, font=('Times 16 bold'), command=lambda:self.update_btn_text(7)) button7.grid(row=3, column=1) button8 = Button(self.page, textvariable=self.btn_text8, width=10, height=3, font=('Times 16 bold'), command=lambda:self.update_btn_text(8)) button8.grid(row=3, column=2) button9 = Button(self.page, textvariable=self.btn_text9, width=10, height=3, font=('Times 16 bold'), command=lambda:self.update_btn_text(9)) button9.grid(row=3, column=3)- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
2.4 定义页面变化类以及玩家与AI轮流转换下子权限
def update_btn_text(self, digit): playerLetter = self.read_choose() if playerLetter == "X": self.computerLetter == "O" else: self.computerLetter = "X" if digit == 1 and digit in self.digits: self.digits.remove(digit) self.panels[digit] = playerLetter self.btn_text1.set(playerLetter) if (self.win(self.panels, playerLetter)): self.page.destroy() msq.showinfo("RESULT", "{},你获胜！".format(self.read_name()[1])) else: self.computer_move(self.panels, self.digits, self.computerLetter, playerLetter) if digit == 2 and digit in self.digits: self.digits.remove(digit) self.panels[digit] = playerLetter self.btn_text2.set(playerLetter) if (self.win(self.panels, playerLetter)): self.page.destroy() msq.showinfo("RESULT", "{},你获胜！".format(self.read_name()[1])) else: self.computer_move(self.panels, self.digits, self.computerLetter, playerLetter) if digit == 3 and digit in self.digits: self.digits.remove(digit) self.panels[digit] = playerLetter self.btn_text3.set(playerLetter) if (self.win(self.panels, playerLetter)): self.page.destroy() msq.showinfo("RESULT", "{},你获胜！".format(self.read_name()[1])) else: self.computer_move(self.panels, self.digits, self.computerLetter, playerLetter) if digit == 4 and digit in self.digits: self.digits.remove(digit) self.panels[digit] = playerLetter self.btn_text4.set(playerLetter) if (self.win(self.panels, playerLetter)): self.page.destroy() msq.showinfo("RESULT", "{},你获胜！".format(self.read_name()[1])) else: self.computer_move(self.panels, self.digits, self.computerLetter, playerLetter) if digit == 5 and digit in self.digits: self.digits.remove(digit) self.panels[digit] = playerLetter self.btn_text5.set(playerLetter) if (self.win(self.panels, playerLetter)): self.page.destroy() msq.showinfo("RESULT", "{},你获胜！".format(self.read_name()[1])) else: self.computer_move(self.panels, self.digits, self.computerLetter, playerLetter) if digit == 6 and digit in self.digits: self.digits.remove(digit) self.panels[digit] = playerLetter self.btn_text6.set(playerLetter) if (self.win(self.panels, playerLetter)): self.page.destroy() msq.showinfo("RESULT", "{},你获胜！".format(self.read_name()[1])) else: self.computer_move(self.panels, self.digits, self.computerLetter, playerLetter) if digit == 7 and digit in self.digits: self.digits.remove(digit) self.panels[digit] = playerLetter self.btn_text7.set(playerLetter) if (self.win(self.panels, playerLetter)): self.page.destroy() msq.showinfo("RESULT", "{},你获胜！".format(self.read_name()[1])) else: self.computer_move(self.panels, self.digits, self.computerLetter, playerLetter) if digit == 8 and digit in self.digits: self.digits.remove(digit) self.panels[digit] = playerLetter self.btn_text8.set(playerLetter) if (self.win(self.panels, playerLetter)): self.page.destroy() msq.showinfo("RESULT", "{},你获胜！".format(self.read_name()[1])) else: self.computer_move(self.panels, self.digits, self.computerLetter, playerLetter) if digit == 9 and digit in self.digits: self.digits.remove(digit) self.panels[digit] = playerLetter self.btn_text9.set(playerLetter) if (self.win(self.panels, playerLetter)): self.page.destroy() msq.showinfo("RESULT", "{},你获胜！".format(self.read_name()[1])) else: self.computer_move(self.panels, self.digits, self.computerLetter, playerLetter) if (len(self.digits) == 1 and self.win(self.panels, 'X') == False and self.win(self.panels, 'O') == False): self.page.destroy() msq.showinfo("RESULT", "平局")- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
- 42
- 43
- 44
- 45
- 46
- 47
- 48
- 49
- 50
- 51
- 52
- 53
- 54
- 55
- 56
- 57
- 58
- 59
- 60
- 61
- 62
- 63
- 64
- 65
- 66
- 67
- 68
- 69
- 70
- 71
- 72
- 73
- 74
- 75
- 76
- 77
- 78
- 79
- 80
- 81
- 82
- 83
- 84
- 85
- 86
- 87
- 88
- 89
- 90
- 91
- 92
- 93
- 94
- 95
- 96
- 97
- 98
- 99
2.5 定义判断胜负类
def win(self, panels, sign): return ((panels[1] == panels[2] == panels[3] == sign) or (panels[1] == panels[4] == panels[7] == sign) or (panels[1] == panels[5] == panels[9] == sign) or (panels[2] == panels[5] == panels[8] == sign) or (panels[3] == panels[6] == panels[9] == sign) or (panels[3] == panels[5] == panels[7] == sign) or (panels[4] == panels[5] == panels[6] == sign) or (panels[7] == panels[8] == panels[9] == sign))- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
2.6 定义智能AI下子类
def computer_move(self, panels, digits, computerLetter ,playerLetter): panelscopy = panels.copy() next_step1 = 0 for i in digits: panelscopy[i] = computerLetter if (self.win(panelscopy, computerLetter)): next_step1 = i break panelscopy = panels.copy() panelscopy = panels.copy() for i in digits: panelscopy[i] = playerLetter if (self.win(panelscopy, playerLetter)): next_step2 = i break else: next_step2 = random.choice(digits) panelscopy = panels.copy() if next_step1 == 0: next_step = next_step2 elif next_step1 != 0: next_step = next_step1 digits.remove(next_step) panels[next_step] = computerLetter if next_step == 1: self.btn_text1.set(computerLetter) elif next_step == 2: self.btn_text2.set(computerLetter) elif next_step == 3: self.btn_text3.set(computerLetter) elif next_step == 4: self.btn_text4.set(computerLetter) elif next_step == 5: self.btn_text5.set(computerLetter) elif next_step == 6: self.btn_text6.set(computerLetter) elif next_step == 7: self.btn_text7.set(computerLetter) elif next_step == 8: self.btn_text8.set(computerLetter) elif next_step == 9: self.btn_text9.set(computerLetter) if (self.win(panels, computerLetter)): self.page.destroy() msq.showinfo("RESULT", "AI获胜")- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
- 42
- 43
- 44
- 45
- 46
3 整体代码展示（可直接使用！）
# -*- coding: utf-8 -*- from tkinter import * import tkinter.messagebox as msq import random class fupage2_play(object): def __init__(self, master=None): self.root = master # 定义内部变量root self.root.title("井字棋") self.root.geometry('%dx%d' % (600, 400)) # 设置窗口大小 self.panels = ["panel"]*10 self.count = 0 self.digits = [1, 2, 3, 4, 5, 6, 7, 8, 9] self.mark = "" self.btn_text1 = StringVar() self.btn_text2 = StringVar() self.btn_text3 = StringVar() self.btn_text4 = StringVar() self.btn_text5 = StringVar() self.btn_text6 = StringVar() self.btn_text7 = StringVar() self.btn_text8 = StringVar() self.btn_text9 = StringVar() self.computerLetter = "O" self.createPage() def read_name(self): return [0,"玩家"] def read_choose(self): return "X" def createPage(self): self.page = Frame(self.root) # 创建Frame self.page.pack() Label(self.page, text="{0},您选择的棋子是{1}，您为先手".format(self.read_name()[1], self.read_choose())).grid(row=0, stick=W, pady=10) button1 = Button(self.page, textvariable=self.btn_text1, width=10, font=('Times 16 bold'), height=3, command=lambda:self.update_btn_text(1)) button1.grid(row=1, column=1) button2 = Button(self.page, textvariable=self.btn_text2, width=10, height=3, font=('Times 16 bold'), command=lambda:self.update_btn_text(2)) button2.grid(row=1, column=2) button3 = Button(self.page, textvariable=self.btn_text3, width=10, height=3, font=('Times 16 bold'), command=lambda:self.update_btn_text(3)) button3.grid(row=1, column=3) button4 = Button(self.page, textvariable=self.btn_text4, width=10, height=3, font=('Times 16 bold'), command=lambda:self.update_btn_text(4)) button4.grid(row=2, column=1) button5 = Button(self.page, textvariable=self.btn_text5, width=10, height=3, font=('Times 16 bold'), command=lambda:self.update_btn_text(5)) button5.grid(row=2, column=2) button6 = Button(self.page, textvariable=self.btn_text6, width=10, height=3, font=('Times 16 bold'), command=lambda:self.update_btn_text(6)) button6.grid(row=2, column=3) button7 = Button(self.page, textvariable=self.btn_text7, width=10, height=3, font=('Times 16 bold'), command=lambda:self.update_btn_text(7)) button7.grid(row=3, column=1) button8 = Button(self.page, textvariable=self.btn_text8, width=10, height=3, font=('Times 16 bold'), command=lambda:self.update_btn_text(8)) button8.grid(row=3, column=2) button9 = Button(self.page, textvariable=self.btn_text9, width=10, height=3, font=('Times 16 bold'), command=lambda:self.update_btn_text(9)) button9.grid(row=3, column=3) def update_btn_text(self, digit): playerLetter = self.read_choose() if playerLetter == "X": self.computerLetter == "O" else: self.computerLetter = "X" if digit == 1 and digit in self.digits: self.digits.remove(digit) self.panels[digit] = playerLetter self.btn_text1.set(playerLetter) if (self.win(self.panels, playerLetter)): self.page.destroy() msq.showinfo("RESULT", "{},你获胜！".format(self.read_name()[1])) else: self.computer_move(self.panels, self.digits, self.computerLetter, playerLetter) if digit == 2 and digit in self.digits: self.digits.remove(digit) self.panels[digit] = playerLetter self.btn_text2.set(playerLetter) if (self.win(self.panels, playerLetter)): self.page.destroy() msq.showinfo("RESULT", "{},你获胜！".format(self.read_name()[1])) else: self.computer_move(self.panels, self.digits, self.computerLetter, playerLetter) if digit == 3 and digit in self.digits: self.digits.remove(digit) self.panels[digit] = playerLetter self.btn_text3.set(playerLetter) if (self.win(self.panels, playerLetter)): self.page.destroy() msq.showinfo("RESULT", "{},你获胜！".format(self.read_name()[1])) else: self.computer_move(self.panels, self.digits, self.computerLetter, playerLetter) if digit == 4 and digit in self.digits: self.digits.remove(digit) self.panels[digit] = playerLetter self.btn_text4.set(playerLetter) if (self.win(self.panels, playerLetter)): self.page.destroy() msq.showinfo("RESULT", "{},你获胜！".format(self.read_name()[1])) else: self.computer_move(self.panels, self.digits, self.computerLetter, playerLetter) if digit == 5 and digit in self.digits: self.digits.remove(digit) self.panels[digit] = playerLetter self.btn_text5.set(playerLetter) if (self.win(self.panels, playerLetter)): self.page.destroy() msq.showinfo("RESULT", "{},你获胜！".format(self.read_name()[1])) else: self.computer_move(self.panels, self.digits, self.computerLetter, playerLetter) if digit == 6 and digit in self.digits: self.digits.remove(digit) self.panels[digit] = playerLetter self.btn_text6.set(playerLetter) if (self.win(self.panels, playerLetter)): self.page.destroy() msq.showinfo("RESULT", "{},你获胜！".format(self.read_name()[1])) else: self.computer_move(self.panels, self.digits, self.computerLetter, playerLetter) if digit == 7 and digit in self.digits: self.digits.remove(digit) self.panels[digit] = playerLetter self.btn_text7.set(playerLetter) if (self.win(self.panels, playerLetter)): self.page.destroy() msq.showinfo("RESULT", "{},你获胜！".format(self.read_name()[1])) else: self.computer_move(self.panels, self.digits, self.computerLetter, playerLetter) if digit == 8 and digit in self.digits: self.digits.remove(digit) self.panels[digit] = playerLetter self.btn_text8.set(playerLetter) if (self.win(self.panels, playerLetter)): self.page.destroy() msq.showinfo("RESULT", "{},你获胜！".format(self.read_name()[1])) else: self.computer_move(self.panels, self.digits, self.computerLetter, playerLetter) if digit == 9 and digit in self.digits: self.digits.remove(digit) self.panels[digit] = playerLetter self.btn_text9.set(playerLetter) if (self.win(self.panels, playerLetter)): self.page.destroy() msq.showinfo("RESULT", "{},你获胜！".format(self.read_name()[1])) else: self.computer_move(self.panels, self.digits, self.computerLetter, playerLetter) if (len(self.digits) == 1 and self.win(self.panels, 'X') == False and self.win(self.panels, 'O') == False): self.page.destroy() msq.showinfo("RESULT", "平局") def win(self, panels, sign): return ((panels[1] == panels[2] == panels[3] == sign) or (panels[1] == panels[4] == panels[7] == sign) or (panels[1] == panels[5] == panels[9] == sign) or (panels[2] == panels[5] == panels[8] == sign) or (panels[3] == panels[6] == panels[9] == sign) or (panels[3] == panels[5] == panels[7] == sign) or (panels[4] == panels[5] == panels[6] == sign) or (panels[7] == panels[8] == panels[9] == sign)) def computer_move(self, panels, digits, computerLetter ,playerLetter): panelscopy = panels.copy() next_step1 = 0 for i in digits: panelscopy[i] = computerLetter if (self.win(panelscopy, computerLetter)): next_step1 = i break panelscopy = panels.copy() panelscopy = panels.copy() for i in digits: panelscopy[i] = playerLetter if (self.win(panelscopy, playerLetter)): next_step2 = i break else: next_step2 = random.choice(digits) panelscopy = panels.copy() if next_step1 == 0: next_step = next_step2 elif next_step1 != 0: next_step = next_step1 digits.remove(next_step) panels[next_step] = computerLetter if next_step == 1: self.btn_text1.set(computerLetter) elif next_step == 2: self.btn_text2.set(computerLetter) elif next_step == 3: self.btn_text3.set(computerLetter) elif next_step == 4: self.btn_text4.set(computerLetter) elif next_step == 5: self.btn_text5.set(computerLetter) elif next_step == 6: self.btn_text6.set(computerLetter) elif next_step == 7: self.btn_text7.set(computerLetter) elif next_step == 8: self.btn_text8.set(computerLetter) elif next_step == 9: self.btn_text9.set(computerLetter) if (self.win(panels, computerLetter)): self.page.destroy() msq.showinfo("RESULT", "AI获胜") if __name__ == "__main__": root = Tk() root.title('井字棋') fupage2_play(root) root.mainloop()- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
- 42
- 43
- 44
- 45
- 46
- 47
- 48
- 49
- 50
- 51
- 52
- 53
- 54
- 55
- 56
- 57
- 58
- 59
- 60
- 61
- 62
- 63
- 64
- 65
- 66
- 67
- 68
- 69
- 70
- 71
- 72
- 73
- 74
- 75
- 76
- 77
- 78
- 79
- 80
- 81
- 82
- 83
- 84
- 85
- 86
- 87
- 88
- 89
- 90
- 91
- 92
- 93
- 94
- 95
- 96
- 97
- 98
- 99
- 100
- 101
- 102
- 103
- 104
- 105
- 106
- 107
- 108
- 109
- 110
- 111
- 112
- 113
- 114
- 115
- 116
- 117
- 118
- 119
- 120
- 121
- 122
- 123
- 124
- 125
- 126
- 127
- 128
- 129
- 130
- 131
- 132
- 133
- 134
- 135
- 136
- 137
- 138
- 139
- 140
- 141
- 142
- 143
- 144
- 145
- 146
- 147
- 148
- 149
- 150
- 151
- 152
- 153
- 154
- 155
- 156
- 157
- 158
- 159
- 160
- 161
- 162
- 163
- 164
- 165
- 166
- 167
- 168
- 169
- 170
- 171
- 172
- 173
- 174
- 175
- 176
- 177
- 178
- 179
- 180
- 181
- 182
- 183
- 184
- 185
- 186
- 187
- 188
- 189
- 190
- 191
- 192
- 193
- 194
- 195
- 196
- 197
- 198
- 199
- 200
- 201
- 202
- 203
- 204
- 205
- 206
- 207
- 208
- 209
- 210
- 211
- 212
- 213
- 214
- 215
- 216
- 217
- 218
- 219
- 220
- 221
- 222
- 223
- 224
- 225
最后展现界面：
-
