46. Room

46.1 Room三角色介绍

→ → Room 是SQLite数据库的抽象

流畅易用的访问数据库。

Entity ：Student
DAO ：DAO
DB：StudentDatabase

注解

46.2 Room三角色编写

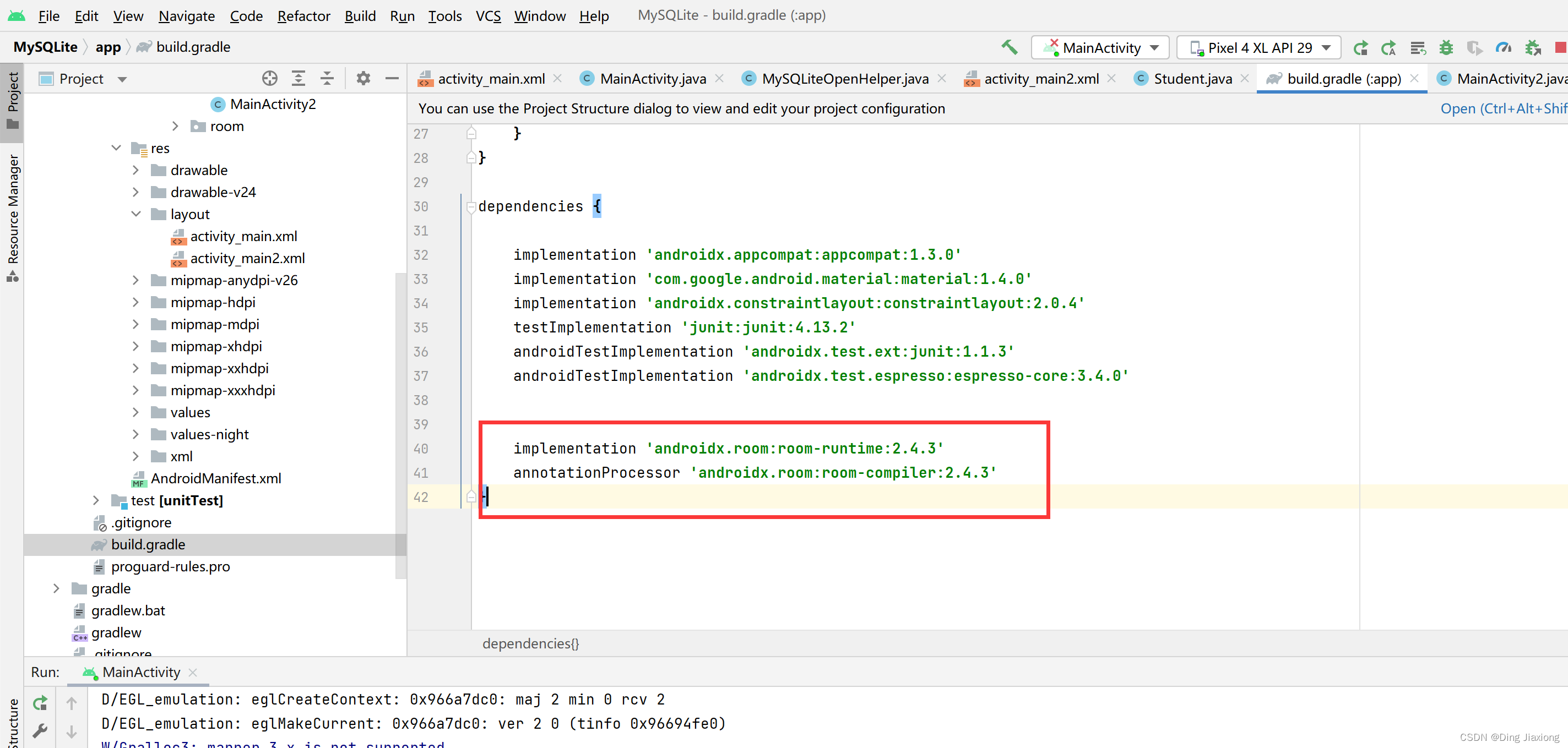

引入依赖

implementation 'androidx.room:room-runtime:2.4.3'
annotationProcessor 'androidx.room:room-compiler:2.4.3'
1
2

在这里插入图片描述

同步

编写三角色

Student.java

package com.dingjiaxiong.room;


import androidx.room.Entity;
import androidx.room.PrimaryKey;

@Entity
public class Student {

    @PrimaryKey(autoGenerate = true)
    private int id;

    private String name;

    private int age;

    @Override
    public String toString() {
        return "Student{" +
                "id=" + id +
                ", name='" + name + '\'' +
                ", age=" + age +
                '}';
    }

    public Student(int id, String name, int age) {
        this.id = id;
        this.name = name;
        this.age = age;
    }

    public int getId() {
        return id;
    }

    public void setId(int id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public int getAge() {
        return age;
    }

    public void setAge(int age) {
        this.age = age;
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55

StudentDAO.java

package com.dingjiaxiong.room;

import androidx.room.Dao;
import androidx.room.Delete;
import androidx.room.Insert;
import androidx.room.Query;
import androidx.room.Update;

import java.util.List;

@Dao
public interface StudentDAO {

    //增
    @Insert
    void insertStudents(Student ... students);

    //改
    @Update
    void updateStudents(Student ... students);

    //删
    @Query("DELETE FROM Student")
    void deleteAllStudents();

    //查
    @Query("SELECT * FROM Student ORDER BY ID DESC")
    List<Student> getAllStudent();
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29

StudentDatabase.java

package com.dingjiaxiong.room;


import android.content.Context;

import androidx.room.Database;
import androidx.room.Room;
import androidx.room.RoomDatabase;

//数据库 关联
@Database(entities = {Student.class},version = 1,exportSchema = false)
public abstract class StudentDatabase extends RoomDatabase {


    public abstract StudentDAO getStudentDao();

    private static StudentDatabase INSTANCE;
    public static synchronized StudentDatabase getInstance(Context context){
        if(INSTANCE == null){
            INSTANCE = Room.databaseBuilder(
                    context.getApplicationContext(),StudentDatabase.class,"student_database")
                    //默认异步线程
                    // .allowMainThreadQueries()
                    .build();
        }

        return INSTANCE;
    }



}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

46.3 Room实战

用户只需要拿DAO

布局


<LinearLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity2"
    android:orientation="vertical">

    <Button
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="插入"
        android:onClick="insertAction"
        />

    <Button
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="修改"
        android:onClick="updateAction"
        />

    <Button
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="删除"
        android:onClick="deleteAction"
        />

    <Button
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="查询"
        android:onClick="queryAction"
        />

    <Button
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="全部删除"
        android:onClick="deleteAllAction"
        />


LinearLayout>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47

Student.java

package com.dingjiaxiong.room;


import androidx.room.Entity;
import androidx.room.PrimaryKey;

// 一张表（主键唯一 主键自动增长， name，age）
@Entity
public class Student {

    // 主键唯一  主键自动增长
    @PrimaryKey(autoGenerate = true)
    private int id;

    private String name;

    private int age;

    /*public Student() {
    }*/

    public Student(String name, int age) {
        this.name = name;
        this.age = age;
    }

    public int getId() {
        return id;
    }

    public void setId(int id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public int getAge() {
        return age;
    }

    public void setAge(int age) {
        this.age = age;
    }

    @Override
    public String toString() {
        return "Student{" +
                "id=" + id +
                ", name='" + name + '\'' +
                ", age=" + age +
                '}';
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59

StudentDatabase.java

package com.dingjiaxiong.room;


import android.content.Context;

import androidx.room.Database;
import androidx.room.Room;
import androidx.room.RoomDatabase;

//数据库 关联
@Database(entities = {Student.class},version = 1,exportSchema = false)
public abstract class StudentDatabase extends RoomDatabase {


    public abstract StudentDao getStudentDao();

    private static StudentDatabase INSTANCE;
    public static synchronized StudentDatabase getInstance(Context context){
        if(INSTANCE == null){
            INSTANCE = Room.databaseBuilder(
                    context.getApplicationContext(),StudentDatabase.class,"student_database")
                    //默认异步线程
                    .allowMainThreadQueries()
                    .build();
        }

        return INSTANCE;
    }



}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

StudentDao.java

package com.dingjiaxiong.room;

import androidx.room.Dao;
import androidx.room.Delete;
import androidx.room.Insert;
import androidx.room.Query;
import androidx.room.Update;

import java.util.List;

@Dao // Database access object == 对表进行 增删改查
public interface StudentDao {

    // 增
    @Insert
    void insertStudents(Student ... students);

    // 改
    @Update
    void updateStudents(Student... students);

    // 删  条件
    @Delete
    void deleteStudents(Student... students);

    // 删除 所有      @Delete 单个条件删除用的
    @Query("DELETE FROM Student")
    void deleteAllStudents();

    // 查询 所有  倒序 查询
    @Query("SELECT * FROM Student ORDER BY ID DESC")
    List<Student> getAllStudent();
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33

DBEngine.java

package com.dingjiaxiong.room.manager;

import android.content.Context;
import android.os.AsyncTask;
import android.util.Log;

import com.dingjiaxiong.room.Student;
import com.dingjiaxiong.room.StudentDao;
import com.dingjiaxiong.room.StudentDatabase;

import java.util.List;

// DB的引擎
public class DBEngine {

    // 只需要拿到dao，就能够对数据库 增删改查了
    private StudentDao studentDao;

    public DBEngine(Context context) {
        StudentDatabase studentDatabase = StudentDatabase.getInstance(context);
        studentDao = studentDatabase.getStudentDao();
    }

    // dao 增删改查

    // insert 插入
    public void insertStudents(Student... students) {
        new InsertAsyncTask(studentDao).execute(students);
    }

    // update 更新
    public void updateStudents(Student... students) {
        new UpdateAsyncTask(studentDao).execute(students);
    }

    // delete 删除 条件
    public void deleteStudents(Student... students) {
        new DeleteAsyncTask(studentDao).execute(students);
    }

    // delete 全部删除
    public void deleteAllStudents() {
        new DeleteAllAsyncTask(studentDao).execute();
    }

    // 查询全部
    public void queryAllStudents() {
        new QueryAllAsyncTask(studentDao).execute();
    }

    // 如果我们想玩数据库 默认是异步线程  ============  异步操作

    // insert 插入
    static class InsertAsyncTask extends AsyncTask<Student, Void, Void> {

        private StudentDao dao;

        public InsertAsyncTask(StudentDao studentDao) {
            dao = studentDao;
        }

        @Override
        protected Void doInBackground(Student... students) {
            dao.insertStudents(students);
            return null;
        }
    }

    // update 更新
    static class UpdateAsyncTask extends AsyncTask<Student, Void, Void> {

        private StudentDao dao;

        public UpdateAsyncTask(StudentDao studentDao) {
            dao = studentDao;
        }

        @Override
        protected Void doInBackground(Student... students) {
            dao.updateStudents(students);
            return null;
        }
    }

    // delete 删除 条件
    static class DeleteAsyncTask extends AsyncTask<Student, Void, Void> {

        private StudentDao dao;

        public DeleteAsyncTask(StudentDao studentDao) {
            dao = studentDao;
        }

        @Override
        protected Void doInBackground(Student... students) { // 既然传递了 student 进来，就是条件删除
            dao.deleteStudents(students);
            return null;
        }
    }

    // 删除 全部删除
    static class DeleteAllAsyncTask extends AsyncTask<Void, Void, Void> {

        private StudentDao dao;

        public DeleteAllAsyncTask(StudentDao studentDao) {
            dao = studentDao;
        }


        @Override
        protected Void doInBackground(Void... voids) {
            dao.deleteAllStudents();
            return null;
        }
    }

    // 全部 查询
    private static class QueryAllAsyncTask extends AsyncTask<Void, Void, Void> {

        private StudentDao dao;

        public QueryAllAsyncTask(StudentDao studentDao) {
            dao = studentDao;
        }

        @Override
        protected Void doInBackground(Void... voids) {
            List<Student> allStudent = dao.getAllStudent();

            // 遍历全部查询的结构
            for (Student student : allStudent) {
                Log.e("Derry", "doInBackground: 全部 查询 每一项：" + student.toString() );
            }

            return null;
        }
    }

}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140

MainActivity2.java

package com.dingjiaxiong.mysqlite;

import androidx.appcompat.app.AppCompatActivity;

import android.os.Bundle;
import android.view.View;

import com.dingjiaxiong.room.Student;
import com.dingjiaxiong.room.manager.DBEngine;


// Room 的学习
public class MainActivity2 extends AppCompatActivity {

    private DBEngine dbEngine;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main2);

        dbEngine = new DBEngine(this);
    }

    /**
     * 插入
     * @param view
     */
    public void insertAction(View view) {
        Student student1 = new Student("张三", 20);
        Student student2 = new Student("李四", 23);
        Student student3 = new Student("王五", 27);
        dbEngine.insertStudents(student1, student2, student3);
    }

    /**
     * 修改  下标为 3   修改成："李元霸", 40
     * @param view
     */
    public void updateAction(View view) {
        Student student = new Student("李元霸", 40);
        student.setId(3);
        dbEngine.updateStudents(student);
    }

    /**
     * 删除 条件 下标为 3
     * @param view
     */
    public void deleteAction(View view) {
        Student student = new Student(null, 0);
        student.setId(3);
        dbEngine.deleteStudents(student);
    }

    /**
     * 查询
     * @param view
     */
    public void queryAction(View view) {
        dbEngine.queryAllStudents();
    }

    /**
     * 全部 删除
     * @param view
     */
    public void deleteAllAction(View view) {
        dbEngine.deleteAllStudents();
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71

运行

在这里插入图片描述

相关阅读:
web前端要接触的技术领域与关键要素
 Hadoop HA高可用集群模式搭建指南
 2023 年的 DBA 有哪些变化？
msvcp120.dll丢失的解决方法，有效的两种msvcp120.dll修复方法分享
 《向量数据库指南》——Range Search 使用方法和参数检查
 含免费次数的API接口资源分享
 java计算机毕业设计评标专家管理信息系统源码+数据库+系统+lw文档+mybatis+运行部署
 【杂七杂八】Huawei Gt runner手表系统降级
 git修改远程仓库地址
 CVPR 2022 | UniDet：通用的多数据集目标检测
原文地址：https://blog.csdn.net/weixin_44226181/article/details/126314420
