YOLOV5 tensorRT部署以及问题解决办法

TensorRT部署yolov5s参考博文：https://blog.csdn.net/weixin_39588099/article/details/119994675

所有步骤几乎一样，需要记录几点：
1、CMakeList.txt修改

cmake_minimum_required(VERSION 2.6)
project(yolov5)
set(OpenCV_DIR "F:\\yolov5_tensorRT\\opencv\\build")  #1
set(OpenCV_INCLUDE_DIRS "F:\\yolov5_tensorRT\\opencv\\build\\include")  #2
set(OpenCV_LIBS "F:\\yolov5_tensorRT\\opencv\\build\\x64\\vc15\\lib\\opencv_world454d.lib") #3
set(TRT_DIR "F:\\yolov5_tensorRT\\TensorRT-8.0.3.4")  #4

add_definitions(-std=c++11)
add_definitions(-DAPI_EXPORTS)
option(CUDA_USE_STATIC_CUDA_RUNTIME OFF)
set(CMAKE_CXX_STANDARD 11)
set(CMAKE_BUILD_TYPE Debug)

set(THREADS_PREFER_PTHREAD_FLAG ON)
find_package(Threads)

# setup CUDA
find_package(CUDA REQUIRED)
message(STATUS "    libraries: ${CUDA_LIBRARIES}")
message(STATUS "    include path: ${CUDA_INCLUDE_DIRS}")

include_directories(${CUDA_INCLUDE_DIRS})

####
enable_language(CUDA)  # add this line, then no need to setup cuda path in vs
####
include_directories(${PROJECT_SOURCE_DIR}/include)
include_directories(${TRT_DIR}\\include)
include_directories(F:\\yolov5_tensorRT\\tensorrtx\\include) #5


#find_package(OpenCV)
include_directories(${OpenCV_INCLUDE_DIRS})
include_directories(${OpenCV_INCLUDE_DIRS}\\opencv2) #6


# -D_MWAITXINTRIN_H_INCLUDED for solving error: identifier "__builtin_ia32_mwaitx" is undefined
set(CMAKE_CXX_FLAGS "${CMAKE_CXX_FLAGS} -std=c++11 -Wall -Ofast -D_MWAITXINTRIN_H_INCLUDED")

# setup opencv
find_package(OpenCV QUIET
    NO_MODULE
    NO_DEFAULT_PATH
    NO_CMAKE_PATH
    NO_CMAKE_ENVIRONMENT_PATH
    NO_SYSTEM_ENVIRONMENT_PATH
    NO_CMAKE_PACKAGE_REGISTRY
    NO_CMAKE_BUILDS_PATH
    NO_CMAKE_SYSTEM_PATH
    NO_CMAKE_SYSTEM_PACKAGE_REGISTRY
)

message(STATUS "OpenCV library status:")
message(STATUS "    version: ${OpenCV_VERSION}")
message(STATUS "    libraries: ${OpenCV_LIBS}")
message(STATUS "    include path: ${OpenCV_INCLUDE_DIRS}")

include_directories(${OpenCV_INCLUDE_DIRS})
link_directories(${TRT_DIR}\\lib) #7
link_directories(${OpenCV_DIR}\\x64\\vc15\\lib) #8

add_executable(yolov5 preprocess.cu preprocess.h ${PROJECT_SOURCE_DIR}/calibrator.cpp yolov5 ${PROJECT_SOURCE_DIR}/yolov5.cpp ${PROJECT_SOURCE_DIR}/yololayer.cu ${PROJECT_SOURCE_DIR}/yololayer.h)   #4
target_link_libraries(yolov5 "nvinfer" "nvinfer_plugin")   #9
target_link_libraries(yolov5 ${OpenCV_LIBS})          #10
target_link_libraries(yolov5 ${CUDA_LIBRARIES})   #11
target_link_libraries(yolov5 Threads::Threads)       #12
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66

2、在路径F:\yolov5_tensorRT\tensorrtx\yolov5添加preprocess.cu和preprocess.h文件
下载链接：https://download.csdn.net/download/zhouzongzong/86340827

3、Cmake生成文件后编译出现错误解决办法：解决方案：
设置项目属性，在预定义处理器中添加定义NOMINMAX来禁止使用Visual C++的min/max宏定义。
vs工程属性中进行修改，“属性——c++——预处理器——预处理器定义”中加入NOMINMAX即可。

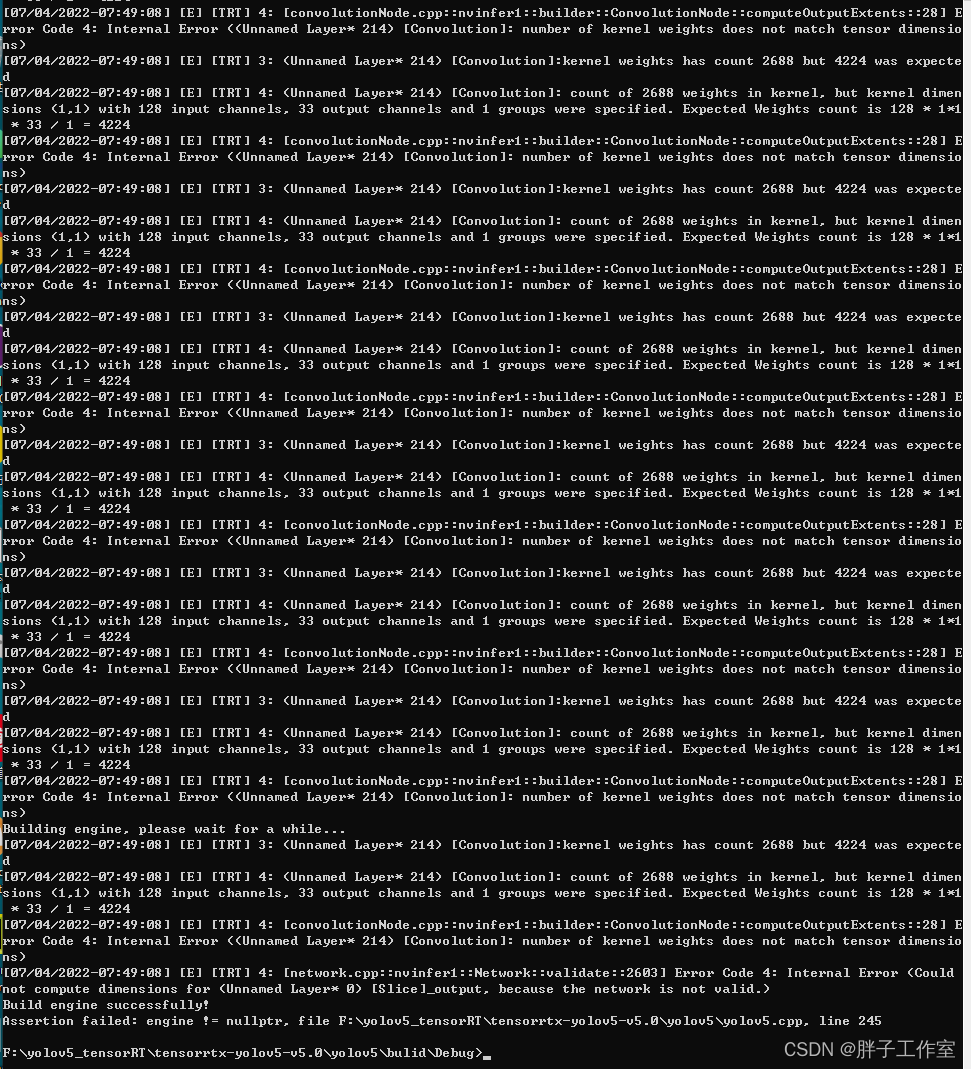

4、重要的一点：生成引擎文件yolov5s.engine时候出现以下错误

需要更改cmake结果文件中的CLASS_NUM，和生成yolov5s.wts的python训练时候一致
结果展示：

[TRT] TensorRT was linked against cuBLAS/cuBLAS LT 11.5.1 but loaded cuBLAS/cuBLAS LT 11.4.2

其中版本问题解决方案可以参考博文：
https://blog.csdn.net/u013171226/article/details/119353781
更改后：
