1.shiro的底层原理分析

1.1认证原理

（1）通过ini配置文件创建securityManager

（2）调用subject.login方法主体提交认证，提交的token

（3）securityManager进行认证，securityManager最终由ModularRealmAuthenticator进行认证。

（4）ModularRealmAuthenticator调用IniRealm(给realm传入token) 去ini配置文件中查询用户信息

（5）IniRealm根据输入的token（UsernamePasswordToken，即这里的token是用户从页面输入的信息）从 shiro-first.ini查询用户信息（这里是测试阶段，后面都是查询的数据库，注入service，调用dao），根据账号查询用户信息（账号和密码）

         如果查询到用户信息，就给ModularRealmAuthenticator返回用户信息（账号和密码）

         如果查询不到，就给ModularRealmAuthenticator返回null

（6）ModularRealmAuthenticator接收IniRealm返回Authentication认证信息

         如果返回的认证信息是null，ModularRealmAuthenticator抛出异常（org.apache.shiro.authc.UnknownAccountException）

         如果返回的认证信息不是null（说明inirealm找到了用户），对IniRealm返回用户密码 （在ini文件中存在）和 token中的密码 进行对比，如果不一致抛出异常（org.apache.shiro.authc.IncorrectCredentialsException）

小结：

        ModularRealmAuthenticator作用进行认证，需要调用realm查询用户信息（在数据库中存在用户信息）

        ModularRealmAuthenticator进行密码对比（认证过程）。

        realm：需要根据token中的身份信息去查询数据库（入门程序使用ini配置文件），如果查到用户返回认证信息，如果查询不到返回null。

1.2 授权原理

（1）对subject进行授权，调用方法isPermitted（"permission串"）

（2）SecurityManager执行授权，通过ModularRealmAuthorizer执行授权

（3）ModularRealmAuthorizer执行realm（自定义的CustomRealm）从数据库查询权限数据

         调用realm的授权方法：doGetAuthorizationInfo

（4）realm从数据库查询权限数据，返回ModularRealmAuthorizer

（5）ModularRealmAuthorizer调用PermissionResolver进行权限串比对

（6）如果比对后，isPermitted中"permission串"在realm查询到权限数据中，说明用户访问permission串有权限，否则 没有权限，抛出异常。

 1.3 授权方式

有三种方式：

（1） 编程式：通过写if/else 授权代码块完成：（这种比较少用，一般在项目中采用后两种）

Subject subject = SecurityUtils.getSubject();

if(subject.hasRole(“admin”)) {

//有权限

} else {

//无权限

}

（2） 注解式：通过在执行的Java方法上放置相应的注解完成：

@RequiresPermissions(value = {"user:query"},logical = Logical.OR)//使用shiro注解
    public String query(){
        return "user:query";
    }

（3） JSP/GSP 标签：在JSP/GSP 页面通过相应的标签完成：

        在jsp页面导入shiro的标签既可以使用shiro的标签来进行权限的判断：

        Jsp页面添加：

<%@ taglib uri="http://shiro.apache.org/tags" prefix="shiro" %>

1.4 shiro过滤器

 anon：/admins/**=anon，没有参数，表示可以匿名使用。

 authc：/admins/user/**=authc，没有参数，表示需要认证(登录)才能使用，FormAuthenticationFilter是表单认证，通过记住我认证通过的不可以访问；

 perms：/admins/user/**=perms[user:add:*]，参数可以写多个，多个时必须加上引号，并且参数之间用逗号分割，例如/admins/user/**=perms["user:add:*,user:modify:*"]，当有多个参数时必须每个参数都通过才通过，想当于isPermitedAll()方法；

 user：/admins/user/**=user，没有参数，表示必须存在用户, 身份认证通过或通过记住我认证通过的可以访问，当登入操作时不做检查；

 logout：/logout=logout，没有参数，表示退出登录，清楚session。

2.Realm对应操作

        通过分析源码 ，最终认证交于realm完成认证功能，返回一个info, 如果info不为null,则进行密码比对。如果希望用数据库中的账号和密码完成认证功能，则只需要我们自定义一个类并继承AuthenticatingRealm。

2.1 自定义Realm认证

public class MyRealm extends AuthenticatingRealm {
    private UserService userService=new UserService();
    //该方法用于完成认证的功能
    protected AuthenticationInfo doGetAuthenticationInfo(AuthenticationToken authenticationToken) throws AuthenticationException {
        //1.根据token获取账号
        String username = (String) authenticationToken.getPrincipal();
        //2.根据账号查询用户信息
        User user = userService.findByUsername(username);
        if(user!=null){
            //从数据库中获取的密码
            SimpleAuthenticationInfo info = new SimpleAuthenticationInfo(user,user.getPassword(),this.getName());
            return info;
        }
        return null;
    }
}

2.2 加密

        shiro它提供了很多中加密器。其中使用最多就是HashedCredentialsMatcher。它的底层使用的是Md5加密。了解一下MD5加密：

public class Test03 {
    public static void main(String[] args) {
        //source:需要加密的明文
        Md5Hash md5Hash = new Md5Hash("123456");
        System.out.println(md5Hash);//e10adc3949ba59abbe56e057f20f883e密文---默认md5加密是不可逆的。但是网上由一些破解软件

        //salt:盐
        Md5Hash md5Hash1=new Md5Hash("123456","abc?!");
        System.out.println(md5Hash1);

        //设置n次加密
        Md5Hash md5Hash2 = new Md5Hash("123456","abc?!",1024);

    }
}

2.3 shiro使用密码加密器

2.3.1 测试类

public class Test01 {
    public static void main(String[] args) {
        //1.获取SecurityManager对象
        DefaultSecurityManager securityManager=new DefaultSecurityManager();
//        //2.读取ini文件
//        IniRealm iniRealm=new IniRealm("classpath:shiro.ini");

        //创建Realm对象
        MyRealm myRealm=new MyRealm();

        //为realm指定加密器
        HashedCredentialsMatcher credentialsMatcher=new HashedCredentialsMatcher();
        credentialsMatcher.setHashAlgorithmName("MD5");//指定加密算法
        credentialsMatcher.setHashIterations(1024);//加密次数
        myRealm.setCredentialsMatcher(credentialsMatcher);

        //3。设置securityManager的realm
        securityManager.setRealm(myRealm);
        //4.设置securityManager上下文生效
        SecurityUtils.setSecurityManager(securityManager);

        //5.获取subject的主体对象
        Subject subject=SecurityUtils.getSubject();
        try{
            //UsernamePasswordToken作用是封装你输入的账号和密码 是客户自己输入的 用来进行比较与realm
            UsernamePasswordToken token=new UsernamePasswordToken("hh","123456");
            //抛出异常 比对shiro中realm和自己的对比，如果一致则登录成功，不一致则登录失败
            subject.login(token);
            System.out.println("登陆成功");
        }catch(Exception e){
            e.printStackTrace();
            System.out.println("登陆失败");
        }
    }
}

2.3.2 修改realm代码

public class MyRealm extends AuthenticatingRealm {
    private UserService userService=new UserService();
    //该方法用于完成认证的功能
    @Override
    protected AuthenticationInfo doGetAuthenticationInfo(AuthenticationToken authenticationToken) throws AuthenticationException {
        //根据token获取账号
        String username = (String) authenticationToken.getPrincipal();
        //根据账号查询用户信息
        User user=userService.findByUsername(username);
        if(user!=null){
            ByteSource credentialsSat = ByteSource.Util.bytes(user.getSalt());
            System.out.println(user.getSalt());
            //从数据库中获取的密码
            SimpleAuthenticationInfo info=new SimpleAuthenticationInfo(user,user.getPassword(),credentialsSat,this.getName());
            //注意返回信息，若没有则会报错
            return info;
        }
        return null;
    }
}

2.3.3 对应service

public class UserService {
    public User findByUsername(String username) {
        if("admin".equals(username)){
            return new User(1,username,"小馒头","e18be766ad36f52ea76b2b2c9ad04f8e","abc");
        }else if("wd".equals(username)){
            return  new User(2,username,"孟一","55c23df0ffd3d32d68e83d47f21f7002","efg");
        }
        return null;
    }
}

2.4 自定义realm的授权功能

2.4.1 授权功能

public class MyRealm extends AuthorizingRealm {

    private UserService userService = new UserService();
    //授权部分
    //什么时候执行该方法：当你进行权限校验时会执行该方法
    @Override
    protected AuthorizationInfo doGetAuthorizationInfo(PrincipalCollection principalCollection) {
        User user = (User) principalCollection.getPrimaryPrincipal();
        //根据账号查询该用户具有哪些权限
        List list = userService.findPermissionByUsername(user.getName());
        if(list!=null&&list.size()>0){
            SimpleAuthorizationInfo simpleAuthorizationInfo=new SimpleAuthorizationInfo();
            simpleAuthorizationInfo.addStringPermissions(list);
            return simpleAuthorizationInfo;
        }
        return null;
    }

    //认证部分
    @Override
    protected AuthenticationInfo doGetAuthenticationInfo(AuthenticationToken authenticationToken) throws AuthenticationException {
        //1.根据token获得账号
        String username = (String) authenticationToken.getPrincipal();
        //2.根据账号查看用户信息
        User user = userService.findByUsername(username);

        if(user!=null){
            //从数据获取的密码
            ByteSource credentialsSalt = ByteSource.Util.bytes(user.getSalt());
            SimpleAuthenticationInfo info=new SimpleAuthenticationInfo(user,user.getPassword(),credentialsSalt,this.getName());
            return info;
        }
        return null;
    }
}

2.4.2 测试类

public class Test02 {
    public static void main(String[] args) {
        //1.获取SecurityManager对象
        DefaultSecurityManager securityManager=new DefaultSecurityManager();
//        //2.读取ini文件
//        IniRealm iniRealm=new IniRealm("classpath:shiro.ini");

        //创建Realm对象
        MyRealm myRealm=new MyRealm();

        //为realm指定加密器
        HashedCredentialsMatcher credentialsMatcher=new HashedCredentialsMatcher();
        credentialsMatcher.setHashAlgorithmName("MD5");//指定加密算法
        credentialsMatcher.setHashIterations(1024);//加密次数
        myRealm.setCredentialsMatcher(credentialsMatcher);

        //3。设置securityManager的realm
        securityManager.setRealm(myRealm);
        //4.设置securityManager上下文生效
        SecurityUtils.setSecurityManager(securityManager);

        //5.获取subject的主体对象
        Subject subject=SecurityUtils.getSubject();
        try{
            //UsernamePasswordToken作用是封装你输入的账号和密码 是客户自己输入的 用来进行比较与realm
            UsernamePasswordToken token=new UsernamePasswordToken("wd","123456");
            //抛出异常 比对shiro中realm和自己的对比，如果一致则登录成功，不一致则登录失败
            subject.login(token);
            System.out.println(subject.isPermitted("user:query"));
            System.out.println(subject.isPermitted("user:update"));
        }catch(Exception e){
            System.out.println("登陆失败");
        }
    }
}

2.4.3 对应service类

public class UserService {
    public User findByUsername(String username) {
        if("admin".equals(username)){
            return new User(1,username,"小馒头","e18be766ad36f52ea76b2b2c9ad04f8e","abc");
        }else if("wd".equals(username)){
            return  new User(2,username,"孟一","55c23df0ffd3d32d68e83d47f21f7002","efg");
        }
        return null;
    }

    public List findPermissionByUsername(String username){
        List list=new ArrayList<>();
        if("admin".equals(username)){
            list.add("user:query");
            list.add("user:update");
            list.add("user:insert");
            list.add("user:delete");
        }else if("wd".equals(username)){
            list.add("user:query");
            list.add("user:insert");
        }
        return list;
    }
}

2.4.4 实体类

@Data
@NoArgsConstructor
@AllArgsConstructor
public class User {
    private Integer id;
    private String name;
    private String realname;
    private String password;
    private  String salt;

}

3.ssm整合shiro

（1）创建一个maven的web工程。

（2）ssm整合到web工程----省略

pom依赖

spring配置文件

web.xml配置文件

（3）整合shiro

3.1 引入shiro的依赖



      org.apache.shiro
      shiro-spring
      1.9.0


3.2  修改spring.xml配置文件

<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:mvc="http://www.springframework.org/schema/mvc" xmlns:tx="http://www.springframework.org/schema/tx"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context https://www.springframework.org/schema/context/spring-context.xsd http://www.springframework.org/schema/mvc https://www.springframework.org/schema/mvc/spring-mvc.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd">


    <context:component-scan base-package="com.qy151wd.service,com.qy151wd.controller"/>

    <mvc:annotation-driven/>

    <mvc:default-servlet-handler/>



    <bean id="ds" class="com.alibaba.druid.pool.DruidDataSource">

        <property name="driverClassName" value="com.mysql.cj.jdbc.Driver"/>
        <property name="url" value="jdbc:mysql://localhost:3306/project?serverTimezone=Asia/Shanghai"/>
        <property name="username" value="root"/>
        <property name="password" value="123456"/>

        <property name="initialSize" value="5"/>

        <property name="minIdle" value="5"/>

        <property name="maxActive" value="10"/>

        <property name="maxWait" value="3000"/>
    bean>


    <bean id="sessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <property name="dataSource" ref="ds"/>

        <property name="mapperLocations" value="classpath:mapper/*.xml"/>
    bean>


    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">

        <property name="sqlSessionFactoryBeanName" value="sessionFactory"/>

        <property name="basePackage" value="com.qy151wd.dao"/>
    bean>


    <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="ds"/>
    bean>

    <tx:annotation-driven transaction-manager="transactionManager"/>




    <bean id="securityManager" class="org.apache.shiro.web.mgt.DefaultWebSecurityManager">
        <property name="realm" ref="realm"/>
    bean>

    <bean id="realm" class="com.qy151wd.realm.MyRealm">
        <property name="credentialsMatcher" ref="credentialsMatcher"/>
    bean>


    <bean id="credentialsMatcher" class="org.apache.shiro.authc.credential.HashedCredentialsMatcher">
        <property name="hashAlgorithmName" value="MD5"/>
        <property name="hashIterations" value="1024"/>
    bean>


    <bean id="lifecycleBeanPostProcessor"
          class="org.apache.shiro.spring.LifecycleBeanPostProcessor" />
    <bean
            class="org.springframework.aop.framework.autoproxy.DefaultAdvisorAutoProxyCreator"
            depends-on="lifecycleBeanPostProcessor" />
    <bean
            class="org.apache.shiro.spring.security.interceptor.AuthorizationAttributeSourceAdvisor">
        <property name="securityManager" ref="securityManager" />
    bean>


    <bean id="shiroFilter" class="org.apache.shiro.spring.web.ShiroFilterFactoryBean">
        <property name="securityManager" ref="securityManager"/>

        <property name="filterChainDefinitions">
            <value>
                /login/upLogin=anon
                /**=authc
            value>
        property>
        <property name="filters">
            <map>
                <entry key="authc">
                    <bean class="com.qy151wd.filter.LoginFilter"/>
                entry>
            map>
        property>
    bean>

beans>

3.3 修改web.xml文件

<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee
                  http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
         version="4.0">

    <servlet>
        <servlet-name>dispatcherServletservlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServletservlet-class>

        <init-param>
            <param-name>contextConfigLocationparam-name>
            <param-value>classpath:spring.xmlparam-value>
        init-param>

        <load-on-startup>1load-on-startup>
    servlet>

    <servlet-mapping>
        <servlet-name>dispatcherServletservlet-name>
        <url-pattern>/url-pattern>
    servlet-mapping>

    <filter>
        <filter-name>encodeFilterfilter-name>
        <filter-class>org.springframework.web.filter.CharacterEncodingFilterfilter-class>
        <init-param>
            <param-name>encodingparam-name>
            <param-value>UTF-8param-value>
        init-param>
        <init-param>
            <param-name>forceRequestEncodingparam-name>
            <param-value>trueparam-value>
        init-param>
        <init-param>
            <param-name>forceResponseEncodingparam-name>
            <param-value>trueparam-value>
        init-param>
    filter>

    <filter-mapping>
        <filter-name>encodeFilterfilter-name>
        <url-pattern>/*url-pattern>
    filter-mapping>

    <filter>
        <filter-name>shiroFilterfilter-name>
        <filter-class>org.springframework.web.filter.DelegatingFilterProxyfilter-class>

        <init-param>
            <param-name>targetFilterLifecycleparam-name>
            <param-value>trueparam-value>
        init-param>
    filter>

    <filter-mapping>
        <filter-name>shiroFilterfilter-name>
        <url-pattern>/*url-pattern>
    filter-mapping>

web-app>

3.4 权限问题

进入主页后，不同的用户可以看到不同的内容

 可以在jsp中获取当前登录者的账号

上面只是在网页中根据不同用户显示不同的菜单，这种方式只能防君子不能防小人。

  3.4.1 拦截器

获取请求路径 然后根据你的路径判断当前用户是否具有该权限。

public class LoginFilter extends FormAuthenticationFilter {
    //当没有登录时会经过该方法。如果想让他返回json数据那么必须重写该方法

    @Override
    protected boolean onAccessDenied(ServletRequest request, ServletResponse response) throws Exception {
        response.setContentType("application/json;charset=utf-8");
        PrintWriter writer=response.getWriter();
        CommonResult commonResult=new CommonResult(4001,"未登录",null);
        ObjectMapper objectMapper=new ObjectMapper();
        String json = objectMapper.writeValueAsString(commonResult);
        writer.print(json);//响应给客户json数据
        writer.flush();
        writer.close();
        return false;
    }
}

3.4.2 spring整合shiro时提供了一个注解

可以加载相应方法上

1.开启shiro注解

              class="org.apache.shiro.spring.LifecycleBeanPostProcessor" />
                class="org.springframework.aop.framework.autoproxy.DefaultAdvisorAutoProxyCreator"
            depends-on="lifecycleBeanPostProcessor" />
                class="org.apache.shiro.spring.security.interceptor.AuthorizationAttributeSourceAdvisor">



2.使用shiro注解
  @RequiresPermissions(value = {"/user/query","/user/aaa"},logical= Logical.OR)

3.4.3 全局变量

@ControllerAdvice
public class MyException {
    @ExceptionHandler(value = UnauthorizedException.class)
    @ResponseBody
    public CommonResult auth(UnauthorizedException e){
        e.printStackTrace();
        return new CommonResult(4002,"权限不足",null);
    }
}

4.ssm整合shiro完成前后端分离

        所谓前后端完全分离:后端响应的都是json数据，而不再是网页。

1. 登录成功或者失败应该返回json数据
2. 当未登录时返回的也是json数据
3. 访问未授权的资源，也要分会json。

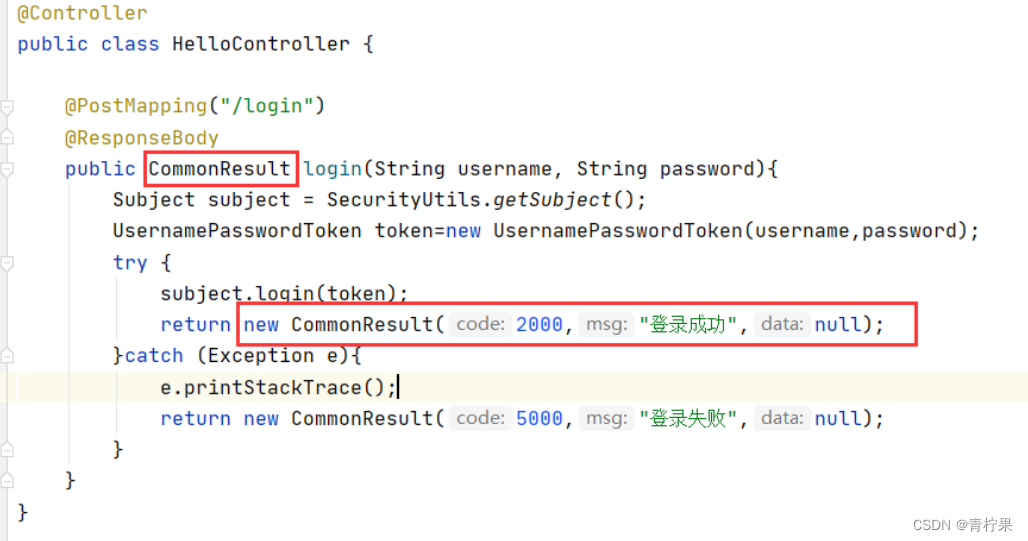

4.1 登录成功或者失败应该返回json数据

修改登录接口



4.2 当未登录时返回的也是json数据

创建一个过滤器，继承登录校验的某个接口。

public class LoginFilter extends FormAuthenticationFilter {
    //当没有登录时会经过该方法。如果想让他返回json数据那么必须重写该方法

    @Override
    protected boolean onAccessDenied(ServletRequest request, ServletResponse response) throws Exception {
        response.setContentType("application/json;charset=utf-8");
        PrintWriter writer=response.getWriter();
        CommonResult commonResult=new CommonResult(4001,"未登录",null);
        ObjectMapper objectMapper=new ObjectMapper();
        String json = objectMapper.writeValueAsString(commonResult);
        writer.print(json);//响应给客户json数据
        writer.flush();
        writer.close();
        return false;
    }
}

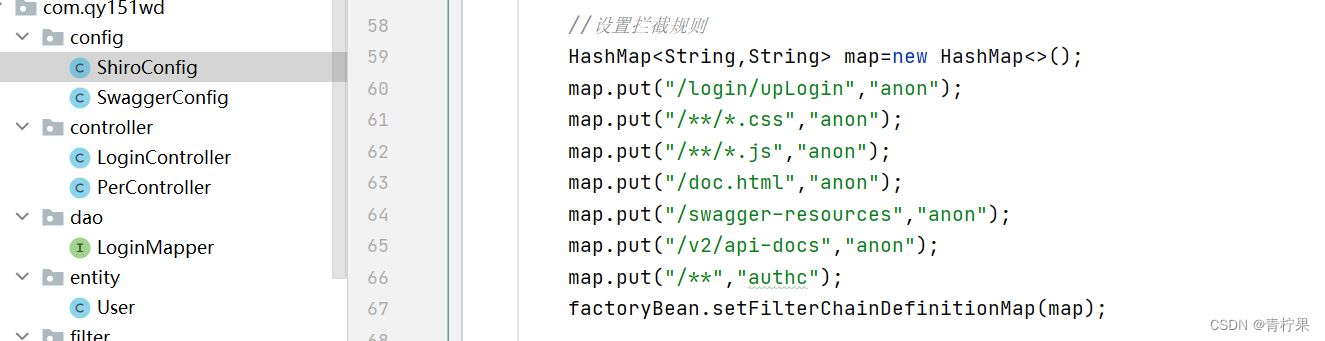

注册过滤器 ：注意路径

 4.3 如果没有权限应该返回json数据

5.关于ssm，shiro整合的例子

5.1 整体框架了解

5.2 controller层

5.2.1 LoginController

@RestController
@RequestMapping("/login")
public class LoginController {
    @Autowired
    private LoginService loginService;

    @GetMapping("/upLogin")
    public CommonResult upLogin(String username,String password){
        Subject subject = SecurityUtils.getSubject();
        UsernamePasswordToken token=new UsernamePasswordToken(username,password);
        try{
            subject.login(token);
            return new CommonResult(200,"登陆成功",null);
        }catch (Exception e){
            e.printStackTrace();
            return new CommonResult(500,"登陆失败",null);
        }

    }
}

5.2.2 PerController

@RestController
@RequestMapping("/permission")
public class PerController {
    //默认spring框架不识别该注解。需要springmvc配置文件中开启该注解
    @GetMapping("/query")
    @RequiresPermissions(value = {"user:query"},logical = Logical.OR)//使用shiro注解,此处user:query与数据库形式一致
    public String query(){
        return "user:query";
    }

    @GetMapping("/update")
    @RequiresPermissions(value = {"user:update"})
    public String update(){
        return "user:update";
    }

    @GetMapping("/insert")
    @RequiresPermissions(value = {"user:insert"})
    public String insert(){
        return "user:insert";
    }

    @GetMapping("/delete")
    @RequiresPermissions(value = {"user:delete"})
    public String delete(){
        return "user:delete";
    }

    @GetMapping("/export")
    @RequiresPermissions(value = {"user:export"})
    public String export(){
        return "user:export";
    }
}

5.3 dao包

5.3.1 LoginMapper

public interface LoginMapper {

    public User findByName(String username);

    public List findPrimaryById(Integer userid);
}

5.4 entity类

5.4.1 User

@Data
@AllArgsConstructor
@NoArgsConstructor
public class User {
    private Integer userid;

    private String username;

    private String userpwd;

    private String sex;

    private String address;

    private String salt;
}

5.5 filter

5.5.1 LoginFilter

public class LoginFilter extends FormAuthenticationFilter {
    //当没有登录时会经过该方法。如果想让他返回json数据那么必须重写该方法

    @Override
    protected boolean onAccessDenied(ServletRequest request, ServletResponse response) throws Exception {
        response.setContentType("application/json;charset=utf-8");
        PrintWriter writer=response.getWriter();
        CommonResult commonResult=new CommonResult(4001,"未登录",null);
        ObjectMapper objectMapper=new ObjectMapper();
        String json = objectMapper.writeValueAsString(commonResult);
        writer.print(json);//响应给客户json数据
        writer.flush();
        writer.close();
        return false;
    }
}

5.6 handle

5.6.1 MyException

@ControllerAdvice
public class MyException {
    @ExceptionHandler(value = UnauthorizedException.class)
    @ResponseBody
    public CommonResult auth(UnauthorizedException e){
        e.printStackTrace();
        return new CommonResult(4002,"权限不足",null);
    }
}

5.7 realm

5.7.1 MyRealm

public class MyRealm extends AuthorizingRealm {
    @Autowired
    private LoginService loginService;
    //授权
    protected AuthorizationInfo doGetAuthorizationInfo(PrincipalCollection principalCollection) {
        User user = (User) principalCollection.getPrimaryPrincipal();
        //根据该账号查询用户有哪些权限
        List primary = loginService.findPrimaryById(user.getUserid());
        System.out.println(primary);
        if(primary!=null&&primary.size()>0){
            SimpleAuthorizationInfo info=new SimpleAuthorizationInfo();
            info.addStringPermissions(primary);
            return info;
        }
        return null;
    }
    //认证
    protected AuthenticationInfo doGetAuthenticationInfo(AuthenticationToken authenticationToken) throws AuthenticationException {

        String  user = (String) authenticationToken.getPrincipal();
        User byName = loginService.findByName(user);
        if(byName!=null){
            ByteSource source = ByteSource.Util.bytes(byName.getSalt());
            SimpleAuthenticationInfo info=new SimpleAuthenticationInfo(byName,byName.getUserpwd(),source,this.getName());
            return info;
        }

        return null;
    }
}

5.8 service

5.8.1 LoginService

public interface LoginService {

    public User findByName(String username);

    public List findPrimaryById(Integer userid);
}

5.8.2 LoginServiceImpl

@Service
public class LoginServiceImpl implements LoginService {
    @Autowired
    private LoginMapper loginMapper;

    public User findByName(String username) {
        User name = loginMapper.findByName(username);
        return name;
    }

    public List findPrimaryById(Integer userid) {
        List list = loginMapper.findPrimaryById(userid);
        return list;
    }
}

5.9 util

5.9.1 CommonResult

@Data
@AllArgsConstructor
@NoArgsConstructor
public class CommonResult {
    private Integer code;
    private String msg;
    private Object data;
}

5.10 mapper

5.10.1 loginMapper.xml

mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.qy151wd.dao.LoginMapper">
    <sql id="userContent">
        userid,username,userpwd,sex,address,salt
    sql>
    <select id="findByName" parameterType="string" resultType="com.qy151wd.entity.User">
        select <include refid="userContent"/> from user where username=#{username}
    select>

    <update id="updateById">
        update user
            <set>
                <if test="username!=null and username!=''">
                    username=#{username},
                if>
                <if test="userpwd!=null and userpwd!=''">
                    userpwd=#{userpwd},
                if>
                <if test="sex!=null and sex!=''">
                    sex=#{sex},
                if>
                <if test="address!=null and address!=''">
                    address=#{address},
                if>
                <if test="salt!=null and salt!=''">
                    salt=#{salt},
                if>
            set>
            where userid=#{userid}
    update>

    <insert id="insertUser">
        insert into user(userid,username,userpwd,sex,address,salt)
            values (null,#{username},#{userpwd},#{sex},#{address},#{salt})
    insert>

    <delete id="deleteById">
        delete from user where userid=#{userid}
    delete>

    <select id="findPrimaryById" resultType="string">
        select percode from
            user_role ur join role_permission rp on ur.roleid=rp.roleid
                         join permission p on p.perid=rp.perid
                            where ur.userid=#{userid};
    select>
mapper>

5.11 spring.xml

<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:mvc="http://www.springframework.org/schema/mvc" xmlns:tx="http://www.springframework.org/schema/tx"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context https://www.springframework.org/schema/context/spring-context.xsd http://www.springframework.org/schema/mvc https://www.springframework.org/schema/mvc/spring-mvc.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd">


    <context:component-scan base-package="com.qy151wd.service,com.qy151wd.controller"/>

    <mvc:annotation-driven/>

    <mvc:default-servlet-handler/>



    <bean id="ds" class="com.alibaba.druid.pool.DruidDataSource">

        <property name="driverClassName" value="com.mysql.cj.jdbc.Driver"/>
        <property name="url" value="jdbc:mysql://localhost:3306/project?serverTimezone=Asia/Shanghai"/>
        <property name="username" value="root"/>
        <property name="password" value="123456"/>

        <property name="initialSize" value="5"/>

        <property name="minIdle" value="5"/>

        <property name="maxActive" value="10"/>

        <property name="maxWait" value="3000"/>
    bean>


    <bean id="sessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <property name="dataSource" ref="ds"/>

        <property name="mapperLocations" value="classpath:mapper/*.xml"/>
    bean>


    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">

        <property name="sqlSessionFactoryBeanName" value="sessionFactory"/>

        <property name="basePackage" value="com.qy151wd.dao"/>
    bean>


    <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="ds"/>
    bean>

    <tx:annotation-driven transaction-manager="transactionManager"/>




    <bean id="securityManager" class="org.apache.shiro.web.mgt.DefaultWebSecurityManager">
        <property name="realm" ref="realm"/>
    bean>

    <bean id="realm" class="com.qy151wd.realm.MyRealm">
        <property name="credentialsMatcher" ref="credentialsMatcher"/>
    bean>


    <bean id="credentialsMatcher" class="org.apache.shiro.authc.credential.HashedCredentialsMatcher">
        <property name="hashAlgorithmName" value="MD5"/>
        <property name="hashIterations" value="1024"/>
    bean>


    <bean id="lifecycleBeanPostProcessor"
          class="org.apache.shiro.spring.LifecycleBeanPostProcessor" />
    <bean
            class="org.springframework.aop.framework.autoproxy.DefaultAdvisorAutoProxyCreator"
            depends-on="lifecycleBeanPostProcessor" />
    <bean
            class="org.apache.shiro.spring.security.interceptor.AuthorizationAttributeSourceAdvisor">
        <property name="securityManager" ref="securityManager" />
    bean>


    <bean id="shiroFilter" class="org.apache.shiro.spring.web.ShiroFilterFactoryBean">
        <property name="securityManager" ref="securityManager"/>

        <property name="filterChainDefinitions">
            <value>
                /login/upLogin=anon
                /**=authc
            value>
        property>
        <property name="filters">
            <map>
                <entry key="authc">
                    <bean class="com.qy151wd.filter.LoginFilter"/>
                entry>
            map>
        property>
    bean>

beans>

5.12 web.xml

<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee
                  http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
         version="4.0">

    <servlet>
        <servlet-name>dispatcherServletservlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServletservlet-class>

        <init-param>
            <param-name>contextConfigLocationparam-name>
            <param-value>classpath:spring.xmlparam-value>
        init-param>

        <load-on-startup>1load-on-startup>
    servlet>

    <servlet-mapping>
        <servlet-name>dispatcherServletservlet-name>
        <url-pattern>/url-pattern>
    servlet-mapping>

    <filter>
        <filter-name>encodeFilterfilter-name>
        <filter-class>org.springframework.web.filter.CharacterEncodingFilterfilter-class>
        <init-param>
            <param-name>encodingparam-name>
            <param-value>UTF-8param-value>
        init-param>
        <init-param>
            <param-name>forceRequestEncodingparam-name>
            <param-value>trueparam-value>
        init-param>
        <init-param>
            <param-name>forceResponseEncodingparam-name>
            <param-value>trueparam-value>
        init-param>
    filter>

    <filter-mapping>
        <filter-name>encodeFilterfilter-name>
        <url-pattern>/*url-pattern>
    filter-mapping>

    <filter>
        <filter-name>shiroFilterfilter-name>
        <filter-class>org.springframework.web.filter.DelegatingFilterProxyfilter-class>

        <init-param>
            <param-name>targetFilterLifecycleparam-name>
            <param-value>trueparam-value>
        init-param>
    filter>

    <filter-mapping>
        <filter-name>shiroFilterfilter-name>
        <url-pattern>/*url-pattern>
    filter-mapping>

web-app>

5.13 依赖

 <dependencies>

    <dependency>
      <groupId>org.springframeworkgroupId>
      <artifactId>spring-webmvcartifactId>
      <version>5.2.15.RELEASEversion>
    dependency>


    <dependency>
      <groupId>org.mybatisgroupId>
      <artifactId>mybatisartifactId>
      <version>3.5.6version>
    dependency>


    <dependency>
      <groupId>org.mybatisgroupId>
      <artifactId>mybatis-springartifactId>
      <version>2.0.6version>
    dependency>


    <dependency>
      <groupId>mysqlgroupId>
      <artifactId>mysql-connector-javaartifactId>
      <version>8.0.28version>
    dependency>


    <dependency>
      <groupId>com.alibabagroupId>
      <artifactId>druidartifactId>
      <version>1.2.1version>
    dependency>


    <dependency>
      <groupId>org.projectlombokgroupId>
      <artifactId>lombokartifactId>
      <version>1.18.24version>
    dependency>


    <dependency>
      <groupId>com.fasterxml.jackson.coregroupId>
      <artifactId>jackson-databindartifactId>
      <version>2.13.2.2version>
    dependency>


    <dependency>
      <groupId>javax.servletgroupId>
      <artifactId>javax.servlet-apiartifactId>
      <version>4.0.1version>
    dependency>

    <dependency>
      <groupId>org.springframeworkgroupId>
      <artifactId>spring-jdbcartifactId>
      <version>5.2.15.RELEASEversion>
    dependency>
    <dependency>
      <groupId>org.springframeworkgroupId>
      <artifactId>spring-txartifactId>
      <version>5.2.15.RELEASEversion>
    dependency>
    <dependency>
      <groupId>org.springframeworkgroupId>
      <artifactId>spring-aspectsartifactId>
      <version>5.2.15.RELEASEversion>
    dependency>

    <dependency>
      <groupId>org.mybatis.generatorgroupId>
      <artifactId>mybatis-generator-coreartifactId>
      <version>1.4.0version>
    dependency>


    <dependency>
      <groupId>log4jgroupId>
      <artifactId>log4jartifactId>
      <version>1.2.17version>
    dependency>



    <dependency>
      <groupId>org.apache.shirogroupId>
      <artifactId>shiro-springartifactId>
      <version>1.9.0version>
    dependency>



  dependencies>

6.springBoot整合shiro

6.1 依赖

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0modelVersion>
    <parent>
        <groupId>org.springframework.bootgroupId>
        <artifactId>spring-boot-starter-parentartifactId>
        <version>2.3.12.RELEASEversion>
        <relativePath/>
    parent>
    <groupId>com.qy151wdgroupId>
    <artifactId>springboot_shiroartifactId>
    <version>0.0.1-SNAPSHOTversion>
    <name>springboot_shironame>
    <description>Demo project for Spring Bootdescription>
    <properties>
        <java.version>1.8java.version>
    properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.bootgroupId>
            <artifactId>spring-boot-starter-webartifactId>
        dependency>

        <dependency>
            <groupId>mysqlgroupId>
            <artifactId>mysql-connector-javaartifactId>
            <scope>runtimescope>
        dependency>
        <dependency>
            <groupId>org.projectlombokgroupId>
            <artifactId>lombokartifactId>
            <optional>trueoptional>
        dependency>

        <dependency>
            <groupId>com.baomidougroupId>
            <artifactId>mybatis-plus-boot-starterartifactId>
            <version>3.5.1version>
        dependency>

        <dependency>
            <groupId>org.apache.shirogroupId>
            <artifactId>shiro-spring-boot-starterartifactId>
            <version>1.7.0version>
        dependency>


        <dependency>
            <groupId>org.springframework.bootgroupId>
            <artifactId>spring-boot-starter-testartifactId>
            <scope>testscope>
        dependency>


        <dependency>
            <groupId>com.spring4allgroupId>
            <artifactId>swagger-spring-boot-starterartifactId>
            <version>1.9.1.RELEASEversion>
        dependency>
        <dependency>
            <groupId>com.github.xiaoymingroupId>
            <artifactId>swagger-bootstrap-uiartifactId>
            <version>1.7.8version>
        dependency>

    dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.bootgroupId>
                <artifactId>spring-boot-maven-pluginartifactId>
                <configuration>
                    <excludes>
                        <exclude>
                            <groupId>org.projectlombokgroupId>
                            <artifactId>lombokartifactId>
                        exclude>
                    excludes>
                configuration>
            plugin>
        plugins>
    build>

project>

6.2 application配置文件

#数据源
spring.datasource.url=jdbc:mysql://localhost:3306/project?serverTimezone=Asia/Shanghai
spring.datasource.username=root
spring.datasource.password=123456
spring.datasource.driver-class-name=com.mysql.cj.jdbc.Driver

#端口号
server.port=8808

#sql日志
mybatis-plus.configuration.log-impl=org.apache.ibatis.logging.stdout.StdOutImpl

6.3 创建shiro配置类

@Configuration
public class ShiroConfig {
    @Bean
    public DefaultWebSecurityManager securityManager(){
        DefaultWebSecurityManager securityManager=new DefaultWebSecurityManager();
        securityManager.setRealm(realm());
        return securityManager;

    }

    @Bean
    public Realm realm(){
        MyRealm myRealm=new MyRealm();
        myRealm.setCredentialsMatcher(credentialsMatcher());
        return myRealm;
    }

    @Bean
    public CredentialsMatcher credentialsMatcher(){
        HashedCredentialsMatcher credentialsMatcher=new HashedCredentialsMatcher();
        credentialsMatcher.setHashAlgorithmName("MD5");
        credentialsMatcher.setHashIterations(1024);
        return credentialsMatcher;
    }

    @Bean(value = "shiroFilter")
    public ShiroFilterFactoryBean filterFactoryBean(){
        ShiroFilterFactoryBean factoryBean = new ShiroFilterFactoryBean();
        factoryBean.setSecurityManager(securityManager());

        //设置拦截规则
        HashMap map=new HashMap<>();
        map.put("/login/upLogin","anon");
        map.put("/**/*.css","anon");
        map.put("/**/*.js","anon");
        map.put("/doc.html","anon");
        map.put("/swagger-resources","anon");
        map.put("/v2/api-docs","anon");
        map.put("/**","authc");
        factoryBean.setFilterChainDefinitionMap(map);

        //设置自定义认证过滤器
        HashMap filterMap=new HashMap();
        filterMap.put("authc",new LoginFilter());
        factoryBean.setFilters(filterMap);

        return factoryBean;
    }

    @Bean //注册filter
    public FilterRegistrationBean filterRegistrationBean(){
        FilterRegistrationBean filterRegistrationBean=new FilterRegistrationBean<>();
        filterRegistrationBean.setName("shiroFilter");
        filterRegistrationBean.setFilter(new DelegatingFilterProxy());
        filterRegistrationBean.addUrlPatterns("/*");
        return filterRegistrationBean;
    }

    //开始shiro注解
    @Bean
    public AuthorizationAttributeSourceAdvisor authorizationAttributeSourceAdvisor() {
        AuthorizationAttributeSourceAdvisor authorizationAttributeSourceAdvisor = new AuthorizationAttributeSourceAdvisor();
        authorizationAttributeSourceAdvisor.setSecurityManager(securityManager());
        return authorizationAttributeSourceAdvisor;
    }
    @Bean
    public DefaultAdvisorAutoProxyCreator getDefaultAdvisorAutoProxyCreator() {
        DefaultAdvisorAutoProxyCreator advisorAutoProxyCreator=new DefaultAdvisorAutoProxyCreator();
        advisorAutoProxyCreator.setProxyTargetClass(true);
        return advisorAutoProxyCreator;
    }
}

注意： （此处不进行修改会报错）

6.4 创建controller service dao entity（与ssm一致）

6.5 创建realm

public class MyRealm extends AuthorizingRealm {
    @Autowired
    private LoginService loginService;
    //授权
    protected AuthorizationInfo doGetAuthorizationInfo(PrincipalCollection principalCollection) {
        User user = (User) principalCollection.getPrimaryPrincipal();
        //根据该账号查询用户有哪些权限
        List primary = loginService.findPrimaryById(user.getUserid());
        System.out.println(primary);
        if(primary!=null&&primary.size()>0){
            SimpleAuthorizationInfo info=new SimpleAuthorizationInfo();
            info.addStringPermissions(primary);
            return info;
        }
        return null;
    }
    //认证
    protected AuthenticationInfo doGetAuthenticationInfo(AuthenticationToken authenticationToken) throws AuthenticationException {

        String  user = (String) authenticationToken.getPrincipal();
        User byName = loginService.findByName(user);
        if(byName!=null){
            ByteSource source = ByteSource.Util.bytes(byName.getSalt());
            SimpleAuthenticationInfo info=new SimpleAuthenticationInfo(byName,byName.getUserpwd(),source,this.getName());
            return info;
        }

        return null;
    }
}

开启shiro注解

//开始shiro注解
    @Bean
    public AuthorizationAttributeSourceAdvisor authorizationAttributeSourceAdvisor() {
        AuthorizationAttributeSourceAdvisor authorizationAttributeSourceAdvisor = new AuthorizationAttributeSourceAdvisor();
        authorizationAttributeSourceAdvisor.setSecurityManager(securityManager());
        return authorizationAttributeSourceAdvisor;
    }
    @Bean
    public DefaultAdvisorAutoProxyCreator getDefaultAdvisorAutoProxyCreator() {
        DefaultAdvisorAutoProxyCreator advisorAutoProxyCreator=new DefaultAdvisorAutoProxyCreator();
        advisorAutoProxyCreator.setProxyTargetClass(true);
        return advisorAutoProxyCreator;
    }

 6.6 使用swagger进行登录测试和权限测试

doc.html无法访问以及样式无效。 shiro拦截规则拦截了 .

6.6.1 引入swigger依赖

上边所给的依赖已经引入

    com.spring4all
    swagger-spring-boot-starter
    1.9.1.RELEASE


    com.github.xiaoymin
    swagger-bootstrap-ui
    1.7.8

6.6.2 配置swigger

@Configuration
public class SwaggerConfig {
    @Bean//swagger中所有的功能都封装在Docket类中
    public Docket docket(){
        Docket docket=new Docket(DocumentationType.SWAGGER_2)
                .host("localhost:8808")
                .apiInfo(apiInfo())//设置api文档信息
                .select()
                .apis(RequestHandlerSelectors.basePackage("com.qy151wd.controller"))
                .build();

        return docket;
    }


    //定义自己接口文档信息
    private ApiInfo apiInfo(){
        Contact DEFAULT_CONTACT = new Contact("小可", "http://www.baidu.com", "2215854752@qq.com");
        ApiInfo apiInfo = new ApiInfo("萌萌的小项目", "适合小新手", "V1.0", "http://www.jd.com",
                DEFAULT_CONTACT, "牛牛公司", "http://www.taobao.com", new ArrayList());
        return apiInfo;
    }
}

6.6.3 释放swigger资源

上述配置shiro也已经释放此处的静态swigger资源

6.6.4 开启swigger注解

 6.6.5 测试

在页面上输入localhost:对应端口号/doc.html，可直接查看，结果为
