HCIP VLAN实验

LSW1:
sys sw1
vlan batch 2 to 6

LSW2:
sys sw2
vlan batch 2 to 6

LSW3:
sys sw3
vlan batch 2 3 4 5 6

LSW1:
int g 0/0/1
port link-type access
port default vlan 2
int g 0/0/2
port link-type hybrid
port hybride pvid vlan 3
port hybrid untagged vlan 3 4 5 6

LSW1:
int g 0/0/3
port link-type trunk
port trunk allow-pass vlan all

int g 0/0/4
port 1 h
port hybrid tagged vlan 2
port hybrid untagged vlan 3 4 5 6

LSW2:
int g 0/0/1
p 1 a
p d v 2
int g 0/0/2
p 1 h
p h p v 4
p h u v 3 4 5
int g 0/0/3
p l t
p t a v a
int g 0/0/4
p 1 t
p t a v a

LSW3:
int g 0/0/1
p 1 h
p h p v 5
p h u
p h u v 3 4 5
int g 0/0/2
p 1 h
p h p v 6
p h u v 3 6
int g 0/0/3
p 1 t
p t a v a


IP地址配置

R1:
int g 0/0/0.1
ip ad 192.168.1.1 24
dot1q termination vid 2
arp broadcast enable
int g 0/0/0
ip ad 192.168.2.1 24
dhcp enable
ip pool aa
network 192.168.1.0 mask 24
gateway-list 192.168.1.1
dns-list 114.114.114.114
ip pool bb
network 192.168.2.0 mask 24
gateway-list 192.168.2.1
dns-list 114.114.114.114
int g 0/0/0.1
dhcp select global
int g 0/0/0
dhcp select global

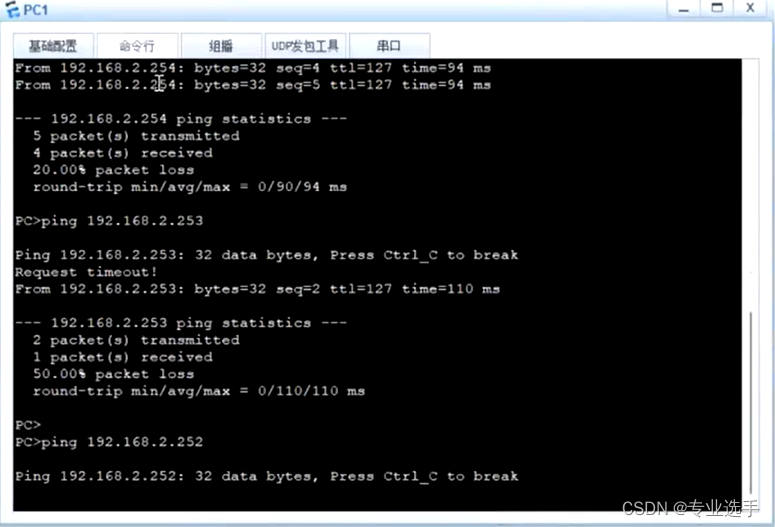

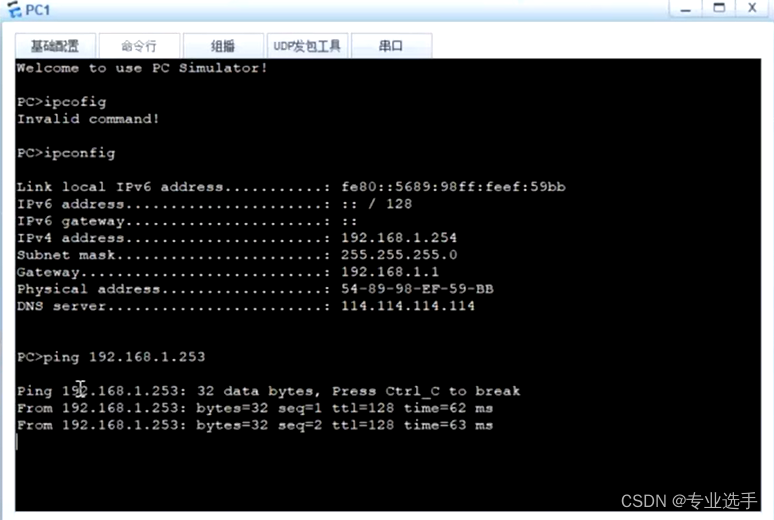

实验完成
