• spidev的使用（SPI用户态API）

    参考资料:

    内核驱动:drivers\spi\spidev.c
    内核提供的测试程序:tools\spi\spidev_fdx.c
    内核文档:Documentation\spi\spidev

    一、spidev驱动程序分析

    内核驱动：drivers\spi\spidev.c

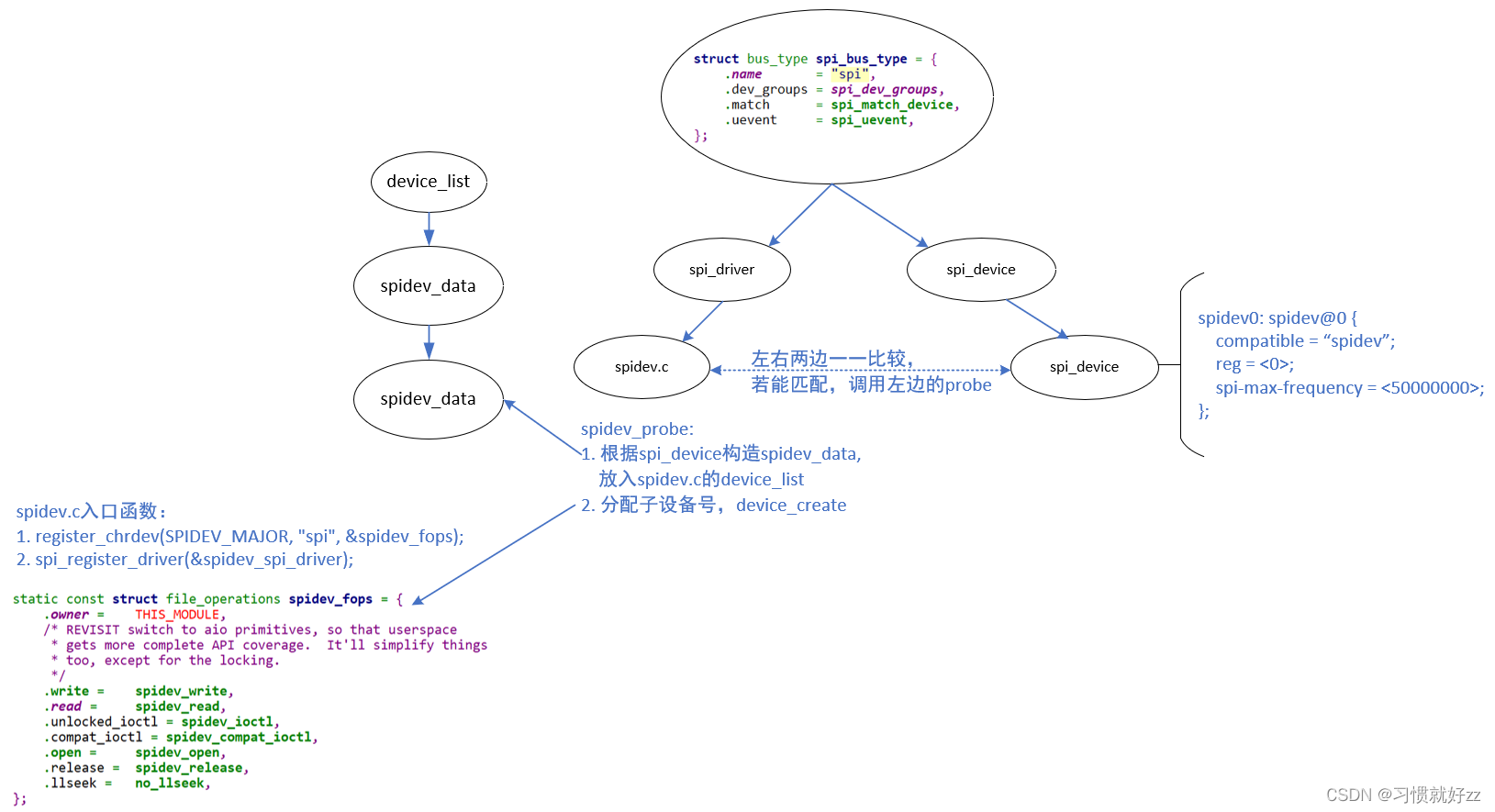

    1.1 驱动框架

    在这里插入图片描述
    设备树示例：

    spidev0: spidev@0 {
	compatible = "spidev";
	reg = <0>;
	spi-max-frequency = <50000000>;
};

    • 1
    • 2
    • 3
    • 4
    • 5

    设备树里某个spi设备节点的compatible属性等于下列值，就会跟spidev驱动匹配：

    • “rohm,dh2228fv”
    • “lineartechnology,ltc2488”
    • “spidev”
      匹配后，spidev.c的spidev_probe会被调用，它会：
    • 分配一个spidev_data结构体，用来记录对于的spi_device
    • spidev_data会被记录在一个链表里
    • 分配一个此设备号，以后可以根据这个次设备号在链表里找到spidev_data
    • device_create:这会生产一个设备节点/dev/spidevB.D，B表示总线号，D表示它是这个SPI Master下第几个设备
      以后，我们就可以通过/dev/spidevB.D来访问spidev驱动程序

    1.2 驱动程序分析：

    static struct spi_driver spidev_spi_driver = {
    .driver = {
        .name =     "spidev",
        .of_match_table = of_match_ptr(spidev_dt_ids),
        .acpi_match_table = ACPI_PTR(spidev_acpi_ids),
    },
    .probe =    spidev_probe,
    .remove =   spidev_remove,
};

static int __init spidev_init(void)
{
    int status;

    BUILD_BUG_ON(N_SPI_MINORS > 256);
    status = register_chrdev(SPIDEV_MAJOR, "spi", &spidev_fops);	//注册spidev_fops
		//...
    spidev_class = class_create(THIS_MODULE, "spidev");		//创建spidev类
		//...
    status = spi_register_driver(&spidev_spi_driver);		//注册spi_driver
		//...
    return status;
}
module_init(spidev_init);


static int spidev_probe(struct spi_device *spi)
{
	struct spidev_data	*spidev;
	int			status;
	unsigned long		minor;

	//....
	spidev_probe_acpi(spi);

	/* Allocate driver data */
	spidev = kzalloc(sizeof(*spidev), GFP_KERNEL);		//分配结构体
	//...

	/* Initialize the driver data */
	spidev->spi = spi;						//1. spidev_data里记录spi_device结构体
	//...
	mutex_lock(&device_list_lock);
	minor = find_first_zero_bit(minors, N_SPI_MINORS);		//2. 找到一个空闲的次设备号
	if (minor < N_SPI_MINORS) {
		struct device *dev;

		spidev->devt = MKDEV(SPIDEV_MAJOR, minor);
		dev = device_create(spidev_class, &spi->dev, spidev->devt,		//3. 创建一个设备，通过/dev/spidevx.x
				    spidev, "spidev%d.%d",
				    spi->master->bus_num, spi->chip_select);		//spi的第几个spi_master设备，spi的片选信号信息
		status = PTR_ERR_OR_ZERO(dev);
	} else {
		//....
	}
	if (status == 0) {
		set_bit(minor, minors);
		list_add(&spidev->device_entry, &device_list);		//4. 这个spidev_data会放入device_list链表中
		//app调用/dev/spidevx.x时，通过次设备号找到spidev_data结构体，从而找到spi_device。
	}
	mutex_unlock(&device_list_lock);

	spidev->speed_hz = spi->max_speed_hz;

	//....

	return status;
}

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33
    • 34
    • 35
    • 36
    • 37
    • 38
    • 39
    • 40
    • 41
    • 42
    • 43
    • 44
    • 45
    • 46
    • 47
    • 48
    • 49
    • 50
    • 51
    • 52
    • 53
    • 54
    • 55
    • 56
    • 57
    • 58
    • 59
    • 60
    • 61
    • 62
    • 63
    • 64
    • 65
    • 66
    • 67
    • 68

    spidev.c通过file_operation向App提供接口：

    static const struct file_operations spidev_fops = {
	.owner =	THIS_MODULE,
	/* REVISIT switch to aio primitives, so that userspace
	 * gets more complete API coverage.  It'll simplify things
	 * too, except for the locking.
	 */
	.write =	spidev_write,		//读写的单工模式
	.read =		spidev_read,
	.unlocked_ioctl = spidev_ioctl,		//设置频率、模式，进行双工传输（同时读写）
	.compat_ioctl = spidev_compat_ioctl,
	.open =		spidev_open,
	.release =	spidev_release,
	.llseek =	no_llseek,
};

static int spidev_open(struct inode *inode, struct file *filp)
{
	struct spidev_data	*spidev;
	int			status = -ENXIO;

	mutex_lock(&device_list_lock);
	//1. 在链表中寻找和inode下的注册的次设备号的
	list_for_each_entry(spidev, &device_list, device_entry) {
		if (spidev->devt == inode->i_rdev) {
			status = 0;
			break;
		}
	}
	//...

	spidev->users++;
	filp->private_data = spidev;		//2.把找到的spidev_data保存在私有数据中
	nonseekable_open(inode, filp);
	//....
}


    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33
    • 34
    • 35
    • 36

    1.2.1 读函数

    static ssize_t
spidev_read(struct file *filp, char __user *buf, size_t count, loff_t *f_pos)
{
	struct spidev_data	*spidev;
	ssize_t			status = 0;
	//...
	spidev = filp->private_data;		//从私有数据中获取spidev_data数据

	mutex_lock(&spidev->buf_lock);
	status = spidev_sync_read(spidev, count);		//1.读数据
	if (status > 0) {
		unsigned long	missing;

		missing = copy_to_user(buf, spidev->rx_buffer, status);		//2.copy_to_user
		if (missing == status)
			status = -EFAULT;
		else
			status = status - missing;
	}
	mutex_unlock(&spidev->buf_lock);

	return status;
}

static inline ssize_t
spidev_sync_read(struct spidev_data *spidev, size_t len)
{
	struct spi_transfer	t = {
			.rx_buf		= spidev->rx_buffer,		//2.指定了rx_buffer
			.len		= len,
			.speed_hz	= spidev->speed_hz,
		};
	struct spi_message	m;			//1.构造一个message
	//3. 发起传输
	spi_message_init(&m);			//初始化spi_message
	spi_message_add_tail(&t, &m);	//把transfer放入message中
	return spidev_sync(spidev, &m);		//发起传输
}



    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33
    • 34
    • 35
    • 36
    • 37
    • 38
    • 39
    • 40

    1.2.2 写函数

    static ssize_t
spidev_write(struct file *filp, const char __user *buf,
		size_t count, loff_t *f_pos)
{
	struct spidev_data	*spidev;
	ssize_t			status = 0;
	unsigned long		missing;

	/* chipselect only toggles at start or end of operation */
	if (count > bufsiz)
		return -EMSGSIZE;

	spidev = filp->private_data;

	mutex_lock(&spidev->buf_lock);
	missing = copy_from_user(spidev->tx_buffer, buf, count);
	if (missing == 0)
		status = spidev_sync_write(spidev, count);		//调用函数去写操作
	else
		status = -EFAULT;
	mutex_unlock(&spidev->buf_lock);

	return status;
}

static inline ssize_t
spidev_sync_write(struct spidev_data *spidev, size_t len)
{
	struct spi_transfer	t = {
			.tx_buf		= spidev->tx_buffer,		//2.指定tx_buffer
			.len		= len,		//指定长度
			.speed_hz	= spidev->speed_hz,
		};
	struct spi_message	m;		//1.构造一个消息
	//3.初始化消息，把t放到message的尾部
	spi_message_init(&m);
	spi_message_add_tail(&t, &m);
	return spidev_sync(spidev, &m);	//4.进行SPI的同步操作
}


    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33
    • 34
    • 35
    • 36
    • 37
    • 38
    • 39
    • 40

    1.2.3 通过ioctl读写参数

    static long
spidev_ioctl(struct file *filp, unsigned int cmd, unsigned long arg)
{
	int			retval = 0;
	struct spidev_data	*spidev;
	struct spi_device	*spi;
	u32			tmp;
	unsigned		n_ioc;
	struct spi_ioc_transfer	*ioc;

	/* Check type and command number */
	if (_IOC_TYPE(cmd) != SPI_IOC_MAGIC)
		return -ENOTTY;

	/* guard against device removal before, or while,
	 * we issue this ioctl.
	 */
	spidev = filp->private_data;
	spin_lock_irq(&spidev->spi_lock);
	spi = spi_dev_get(spidev->spi);
	spin_unlock_irq(&spidev->spi_lock);

	if (spi == NULL)
		return -ESHUTDOWN;

	/* use the buffer lock here for triple duty:
	 *  - prevent I/O (from us) so calling spi_setup() is safe;
	 *  - prevent concurrent SPI_IOC_WR_* from morphing
	 *    data fields while SPI_IOC_RD_* reads them;
	 *  - SPI_IOC_MESSAGE needs the buffer locked "normally".
	 */
	mutex_lock(&spidev->buf_lock);

	switch (cmd) {
	/* read requests */
	case SPI_IOC_RD_MODE:
		retval = put_user(spi->mode & SPI_MODE_MASK,
					(__u8 __user *)arg);
		break;
	case SPI_IOC_RD_MODE32:
		retval = put_user(spi->mode & SPI_MODE_MASK,
					(__u32 __user *)arg);
		break;
	case SPI_IOC_RD_LSB_FIRST:
		retval = put_user((spi->mode & SPI_LSB_FIRST) ?  1 : 0,
					(__u8 __user *)arg);
		break;
	case SPI_IOC_RD_BITS_PER_WORD:
		retval = put_user(spi->bits_per_word, (__u8 __user *)arg);
		break;
	case SPI_IOC_RD_MAX_SPEED_HZ:
		retval = put_user(spidev->speed_hz, (__u32 __user *)arg);
		break;

	/* write requests */
	case SPI_IOC_WR_MODE:
	case SPI_IOC_WR_MODE32:
		if (cmd == SPI_IOC_WR_MODE)
			retval = get_user(tmp, (u8 __user *)arg);
		else
			retval = get_user(tmp, (u32 __user *)arg);
		if (retval == 0) {
			u32	save = spi->mode;

			if (tmp & ~SPI_MODE_MASK) {
				retval = -EINVAL;
				break;
			}

			tmp |= spi->mode & ~SPI_MODE_MASK;
			spi->mode = (u16)tmp;
			retval = spi_setup(spi);
			if (retval < 0)
				spi->mode = save;
			else
				dev_dbg(&spi->dev, "spi mode %x\n", tmp);
		}
		break;
	case SPI_IOC_WR_LSB_FIRST:
		retval = get_user(tmp, (__u8 __user *)arg);
		if (retval == 0) {
			u32	save = spi->mode;

			if (tmp)
				spi->mode |= SPI_LSB_FIRST;
			else
				spi->mode &= ~SPI_LSB_FIRST;
			retval = spi_setup(spi);
			if (retval < 0)
				spi->mode = save;
			else
				dev_dbg(&spi->dev, "%csb first\n",
						tmp ? 'l' : 'm');
		}
		break;
	case SPI_IOC_WR_BITS_PER_WORD:
		retval = get_user(tmp, (__u8 __user *)arg);
		if (retval == 0) {
			u8	save = spi->bits_per_word;

			spi->bits_per_word = tmp;
			retval = spi_setup(spi);
			if (retval < 0)
				spi->bits_per_word = save;
			else
				dev_dbg(&spi->dev, "%d bits per word\n", tmp);
		}
		break;
	case SPI_IOC_WR_MAX_SPEED_HZ:
		retval = get_user(tmp, (__u32 __user *)arg);
		if (retval == 0) {
			u32	save = spi->max_speed_hz;

			spi->max_speed_hz = tmp;
			retval = spi_setup(spi);
			if (retval >= 0)
				spidev->speed_hz = tmp;
			else
				dev_dbg(&spi->dev, "%d Hz (max)\n", tmp);
			spi->max_speed_hz = save;
		}
		break;

	default:
		/* segmented and/or full-duplex I/O request */
		/* Check message and copy into scratch area */
		ioc = spidev_get_ioc_message(cmd,
				(struct spi_ioc_transfer __user *)arg, &n_ioc);
		if (IS_ERR(ioc)) {
			retval = PTR_ERR(ioc);
			break;
		}
		if (!ioc)
			break;	/* n_ioc is also 0 */

		/* translate to spi_message, execute */
		retval = spidev_message(spidev, ioc, n_ioc);
		kfree(ioc);
		break;
	}

	mutex_unlock(&spidev->buf_lock);
	spi_dev_put(spi);
	return retval;
}

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33
    • 34
    • 35
    • 36
    • 37
    • 38
    • 39
    • 40
    • 41
    • 42
    • 43
    • 44
    • 45
    • 46
    • 47
    • 48
    • 49
    • 50
    • 51
    • 52
    • 53
    • 54
    • 55
    • 56
    • 57
    • 58
    • 59
    • 60
    • 61
    • 62
    • 63
    • 64
    • 65
    • 66
    • 67
    • 68
    • 69
    • 70
    • 71
    • 72
    • 73
    • 74
    • 75
    • 76
    • 77
    • 78
    • 79
    • 80
    • 81
    • 82
    • 83
    • 84
    • 85
    • 86
    • 87
    • 88
    • 89
    • 90
    • 91
    • 92
    • 93
    • 94
    • 95
    • 96
    • 97
    • 98
    • 99
    • 100
    • 101
    • 102
    • 103
    • 104
    • 105
    • 106
    • 107
    • 108
    • 109
    • 110
    • 111
    • 112
    • 113
    • 114
    • 115
    • 116
    • 117
    • 118
    • 119
    • 120
    • 121
    • 122
    • 123
    • 124
    • 125
    • 126
    • 127
    • 128
    • 129
    • 130
    • 131
    • 132
    • 133
    • 134
    • 135
    • 136
    • 137
    • 138
    • 139
    • 140
    • 141
    • 142
    • 143
    • 144
    • 145

    二、spidev应用程序分析

    内核提供的测试程序：tools\spi\spidev_fdx.c

    2.1 使用方法

    spidev_fdx [-h] [-m N] [ -r N] /dev/spidevB.D

    • -h:打印用法
    • -m N：先写1个字节0xaa，再读N个字节，注意：不是同时写同时读
    • -r N：读N个字节

    2.2 代码分析

    2.2.1 显示设备属性：

    static void dumpstat(const char *name, int fd)
{
	__u8	lsb, bits;
	__u32	mode, speed;

	if (ioctl(fd, SPI_IOC_RD_MODE32, &mode) < 0) {
		perror("SPI rd_mode");
		return;
	}
	if (ioctl(fd, SPI_IOC_RD_LSB_FIRST, &lsb) < 0) {
		perror("SPI rd_lsb_fist");
		return;
	}
	if (ioctl(fd, SPI_IOC_RD_BITS_PER_WORD, &bits) < 0) {
		perror("SPI bits_per_word");
		return;
	}
	if (ioctl(fd, SPI_IOC_RD_MAX_SPEED_HZ, &speed) < 0) {
		perror("SPI max_speed_hz");
		return;
	}

	printf("%s: spi mode 0x%x, %d bits %sper word, %d Hz max\n",
			name, mode, bits, lsb ? "(lsb first) " : "", speed);
}

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25

    2.2.2 读数据

    static void do_read(int fd, int len)
{
	unsigned char	buf[32], *bp;
	int		status;

	/* read at least 2 bytes, no more than 32 */
	if (len < 2)
		len = 2;
	else if (len > sizeof(buf))
		len = sizeof(buf);
	memset(buf, 0, sizeof buf);

	status = read(fd, buf, len);		//读取数据
	if (status < 0) {
		perror("read");
		return;
	}
	if (status != len) {
		fprintf(stderr, "short read\n");
		return;
	}

	printf("read(%2d, %2d): %02x %02x,", len, status,
		buf[0], buf[1]);
	status -= 2;
	bp = buf + 2;
	while (status-- > 0)
		printf(" %02x", *bp++);
	printf("\n");
}

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30

    2.2.3 先读再写

    static void do_msg(int fd, int len)
{
	struct spi_ioc_transfer	xfer[2];
	unsigned char		buf[32], *bp;
	int			status;

	memset(xfer, 0, sizeof xfer);
	memset(buf, 0, sizeof buf);

	if (len > sizeof buf)
		len = sizeof buf;
//1.先写
	buf[0] = 0xaa;
	xfer[0].tx_buf = (unsigned long)buf;
	xfer[0].len = 1;
//2.后读
	xfer[1].rx_buf = (unsigned long) buf;
	xfer[1].len = len;

	status = ioctl(fd, SPI_IOC_MESSAGE(2), xfer);
	if (status < 0) {
		perror("SPI_IOC_MESSAGE");
		return;
	}

	printf("response(%2d, %2d): ", len, status);
	for (bp = buf; len; len--)
		printf(" %02x", *bp++);
	printf("\n");
}

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30

    2.2.4 同时读写

    static void do_msg(int fd, int len)
{
	struct spi_ioc_transfer	xfer[2];
	unsigned char		buf[32], *bp;
	unsigned char		buf_rx[32], *bp;
	int			status;

	memset(xfer, 0, sizeof xfer);
	memset(buf, 0, sizeof buf);

	if (len > sizeof buf)
		len = sizeof buf;
//设置同一个xfer的tx_buf,rx_buf即可同时读写
	buf[0] = 0xaa;
	xfer[0].tx_buf = (unsigned long)buf;
	xfer[0].rx_buf = (unsigned long)buf_rx;
	xfer[0].len = 1en;

	status = ioctl(fd, SPI_IOC_MESSAGE(1), xfer);
	if (status < 0) {
		perror("SPI_IOC_MESSAGE");
		return;
	}

	printf("response(%2d, %2d): ", len, status);
	for (bp = buf; len; len--)
		printf(" %02x", *bp++);
	printf("\n");
}

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29

    三、spidev的缺点

    使用read、write函数时，只能读、写，之二十半双工方式
    使用ioctl可以达到全双工的读写
    但是spidev有2个缺点：

    • 不支持中断
    • 只支持同步操作，不支持异步操作：就是read/write/ioctl这些函数只能执行完毕才可返回
  • 相关阅读:
    Debezium系列之：debezium把sqlserver数据库多张表的数据发送到一个kafka topic
    Unity关于GL绘制和Gizmos绘制的Matrix问题。
    让测试人头疼的这几件“小事”
    Nginx配置微服务避免actuator暴露
    GIT使用踩坑！！！我的妈妈呀，烦死了烦死了烦死了！！！
    ST表(RMQ问题)
    骑士CMS01 74cms v4.2.111 后台getshell漏洞复现
    C 语言宏 + 内联汇编实现 MIPS 系统调用
    数据标准的制定落地
    设计模式之代理模式
  • 原文地址：https://blog.csdn.net/ch122633/article/details/125946596
