我们都知道，路由指的是组件和路径的一种映射关系。Router-view也被称为路由的出口,今天我们就探讨下如何去使用路由出口。

也就是:

路径--------------------------------------------------------------->页面

可以把router-view理解成一类代码存放的位置。

一.基本的路由配置(没用子集)

我们都知道所有的组成注册最终在app.vue注册完毕。

通过代码来分析:

import Vue from 'vue'
import VueRouter from 'vue-router'

Vue.use(VueRouter)

const routes = [
  {
    path: '/',
    name: '首页',
    // route level code-splitting
    // this generates a separate chunk (about.[hash].js) for this route
    // which is lazy-loaded when the route is visited.
    component: () =>
      import(/* webpackChunkName: "about" */ '../views/shouye.vue')
  },
  {
    path: '/1',
    name: 'About1',
    // route level code-splitting
    // this generates a separate chunk (about.[hash].js) for this route
    // which is lazy-loaded when the route is visited.
    component: () =>
      import(/* webpackChunkName: "about" */ '../views/About.vue')
  },
  {
    path: '/2',
    name: 'About2',
    // route level code-splitting
    // this generates a separate chunk (about.[hash].js) for this route
    // which is lazy-loaded when the route is visited.
    component: () =>
      import(/* webpackChunkName: "about" */ '../views/About1.vue')
  },
  {
    path: '/3',
    name: 'About3',
    // route level code-splitting
    // this generates a separate chunk (about.[hash].js) for this route
    // which is lazy-loaded when the route is visited.
    component: () =>
      import(/* webpackChunkName: "about" */ '../views/About2.vue')
  },
  {
    path: '/4',
    name: 'About4',
    // route level code-splitting
    // this generates a separate chunk (about.[hash].js) for this route
    // which is lazy-loaded when the route is visited.
    component: () =>
      import(/* webpackChunkName: "about" */ '../views/Aboutf.vue')
  }
]

const router = new VueRouter({
  mode: 'history',
  base: process.env.BASE_URL,
  routes
})

export default router
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60

在这里通过path路径来匹配组件。

打开页面之后。

页面是空白的什么都没有。

为什么会出现这种状况呢？这里就和router-view有关了。

原因很简单,所对应的组件没有位置可放。

解决方法:

1
2
3
4
5

在App.vue加个路由组件存放的位置即可。

为什么不在其它的组件里面放router-view？

因为App.vue是根组件,最开始的页面就显示在这里。

加完之后

默认根组件显示的内容就显示出来了。

我们在换个路径/1

也是可以正常显示的。

二.有子集的路由配置

代码：

import Vue from 'vue'
import VueRouter from 'vue-router'
import a from '@/views/a.vue'

Vue.use(VueRouter)

const routes = [
  {
    path: '/',
    name: '首页',
    // route level code-splitting
    // this generates a separate chunk (about.[hash].js) for this route
    // which is lazy-loaded when the route is visited.
    component: () =>
      import(/* webpackChunkName: "about" */ '../views/shouye.vue'),
    children: [
      {
        path: 'a',
        component: a
      }
    ]
  },
  {
    path: '/1',
    name: 'About1',
    // route level code-splitting
    // this generates a separate chunk (about.[hash].js) for this route
    // which is lazy-loaded when the route is visited.
    component: () =>
      import(/* webpackChunkName: "about" */ '../views/About.vue')
  },
  {
    path: '/2',
    name: 'About2',
    // route level code-splitting
    // this generates a separate chunk (about.[hash].js) for this route
    // which is lazy-loaded when the route is visited.
    component: () =>
      import(/* webpackChunkName: "about" */ '../views/About1.vue')
  },
  {
    path: '/3',
    name: 'About3',
    // route level code-splitting
    // this generates a separate chunk (about.[hash].js) for this route
    // which is lazy-loaded when the route is visited.
    component: () =>
      import(/* webpackChunkName: "about" */ '../views/About2.vue')
  },
  {
    path: '/4',
    name: 'About4',
    // route level code-splitting
    // this generates a separate chunk (about.[hash].js) for this route
    // which is lazy-loaded when the route is visited.
    component: () =>
      import(/* webpackChunkName: "about" */ '../views/Aboutf.vue')
  }
]

const router = new VueRouter({
  mode: 'history',
  base: process.env.BASE_URL,
  routes
})

export default router
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67

可以看出在首页下,又放了一个a页面。

可以看出是无法访问的。

原因还是没有router-view，此时的router-view加在哪里呢？

加在当前一级路由里面。

代码：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

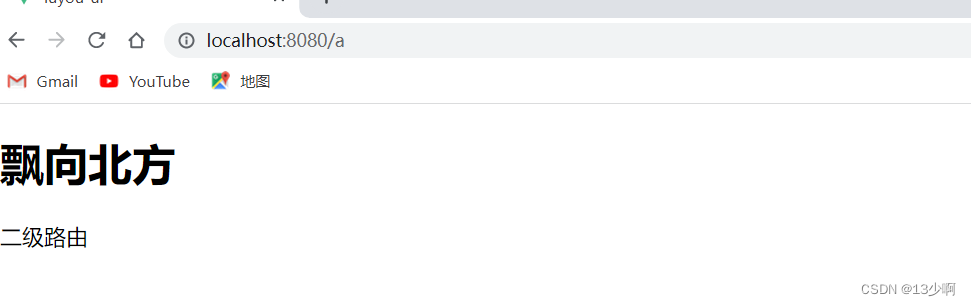

可以访问了

我们在再一级路由shouye下在加上一个二级路由。

代码:

import Vue from 'vue'
import VueRouter from 'vue-router'
import a from '@/views/a.vue'
import aa from '@/views/aa.vue'

Vue.use(VueRouter)

const routes = [
  {
    path: '/',
    name: '首页',
    // route level code-splitting
    // this generates a separate chunk (about.[hash].js) for this route
    // which is lazy-loaded when the route is visited.
    component: () =>
      import(/* webpackChunkName: "about" */ '../views/shouye.vue'),
    children: [
      {
        path: 'a',
        component: a
      },
      {
        path: 'aa',
        component: aa
      }
    ]
  },
  {
    path: '/1',
    name: 'About1',
    // route level code-splitting
    // this generates a separate chunk (about.[hash].js) for this route
    // which is lazy-loaded when the route is visited.
    component: () =>
      import(/* webpackChunkName: "about" */ '../views/About.vue')
  },
  {
    path: '/2',
    name: 'About2',
    // route level code-splitting
    // this generates a separate chunk (about.[hash].js) for this route
    // which is lazy-loaded when the route is visited.
    component: () =>
      import(/* webpackChunkName: "about" */ '../views/About1.vue')
  },
  {
    path: '/3',
    name: 'About3',
    // route level code-splitting
    // this generates a separate chunk (about.[hash].js) for this route
    // which is lazy-loaded when the route is visited.
    component: () =>
      import(/* webpackChunkName: "about" */ '../views/About2.vue')
  },
  {
    path: '/4',
    name: 'About4',
    // route level code-splitting
    // this generates a separate chunk (about.[hash].js) for this route
    // which is lazy-loaded when the route is visited.
    component: () =>
      import(/* webpackChunkName: "about" */ '../views/Aboutf.vue')
  }
]

const router = new VueRouter({
  mode: 'history',
  base: process.env.BASE_URL,
  routes
})

export default router
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72

此时a页面消失了,但是aa页面是可以访问到的。

三.实战练习

需求:左侧是侧边栏,右面是显示的内容。

代码:

router/index.js路由的配置

import Vue from 'vue'
import VueRouter from 'vue-router'
import a from '@/views/a.vue'
import aa from '@/views/aa.vue'
import a3 from '@/views/a3.vue'
import af from '@/views/af.vue'

Vue.use(VueRouter)

const routes = [
  {
    path: '/',
    name: '首页',
    // route level code-splitting
    // this generates a separate chunk (about.[hash].js) for this route
    // which is lazy-loaded when the route is visited.
    component: () =>
      import(/* webpackChunkName: "about" */ '../views/shouye.vue'),
    children: [
      {
        path: '1',
        component: a
      },
      {
        path: '2',
        component: aa
      },
      {
        path: '3',
        component: a3
      },
      {
        path: 'f',
        component: af
      }
    ]
  }
]

const router = new VueRouter({
  mode: 'history',
  base: process.env.BASE_URL,
  routes
})

export default router
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46

shouye.vue

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64

sideBar/index

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53

效果:

四.路由的懒加载

通过上述导入组件的过程你会发现，导入组件的方式有两种。

第一种：

import Vue from 'vue'
import VueRouter from 'vue-router'
import a from '@/views/a.vue'
import aa from '@/views/aa.vue'
import a3 from '@/views/a3.vue'
import af from '@/views/af.vue'

Vue.use(VueRouter)

const routes = [
  {
    path: '/',
    name: '首页',
    // route level code-splitting
    // this generates a separate chunk (about.[hash].js) for this route
    // which is lazy-loaded when the route is visited.
    component: () =>
      import(/* webpackChunkName: "about" */ '../views/shouye.vue'),
    children: [
      {
        path: '1',
        component: a
      },
      {
        path: '2',
        component: aa
      },
      {
        path: '3',
        component: a3
      },
      {
        path: 'f',
        component: af
      }
    ]
  }
]
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38

一级路由的导入方式:

 import(/* webpackChunkName: "about" */ '../views/shouye.vue'),
1

二级路由的导入方式：

import af from '@/views/af.vue'
1

在性能方面,懒加载会更好一些。

五.总结

1.router-view是路由的出口,没有它页面则没法进行显示。

2.二级路由的出口对应在一级路由里面进行配置。

3.一个router-view只能存储一个组件,当路径发生改变,之前的会消失。

4.图示
