Jenkins–部署–3.1–代码提交自动触发jenkins–方式1

---

1、介绍

使用 Generic Webhook Trigger方式

2、配置

2.1、创建流水线任务

autoPush
1

脚本内容

pipeline {
	//运行在任意的可用节点上
	agent any
	stages {
		stage('阶段1') {
			steps("步骤名称：拉取代码"){
				echo '打印：拉取代码'
			}
		}
	}
}
1
2
3
4
5
6
7
8
9
10
11

2.2、配置触发器

2.3、gitlab 配置钩子

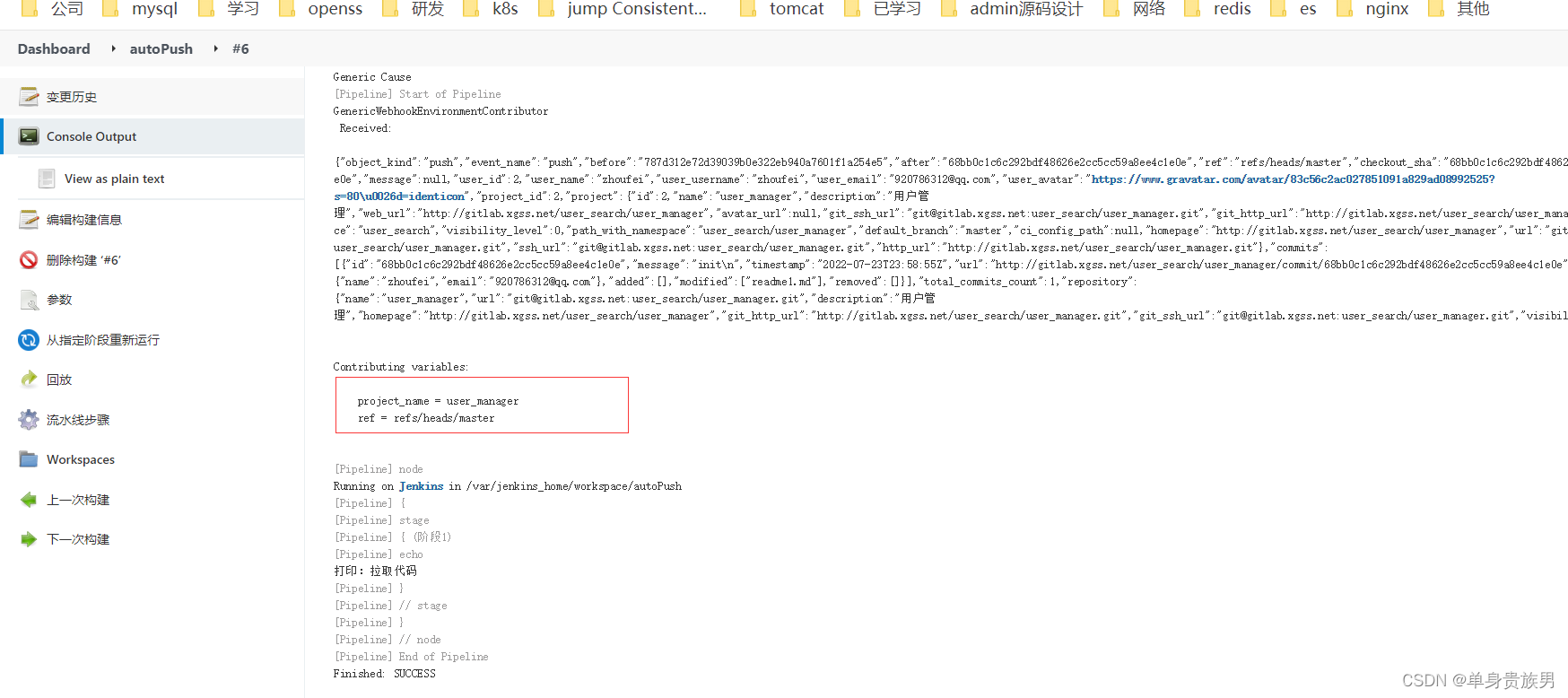

2.4、测试

提交代码后

3、配置匹配规则

3.1、输出的请求参数

{
  "object_kind": "push",
  "event_name": "push",
  "before": "d70bf1526bf3290df712fc63c40d371857e36685",
  "after": "67f35f0361f320fb35aa7079447778e3aec24aab",
  "ref": "refs/heads/master",
  "checkout_sha": "67f35f0361f320fb35aa7079447778e3aec24aab",
  "message": null,
  "user_id": 2,
  "user_name": "zhoufei",
  "user_username": "zhoufei",
  "user_email": "920786312@qq.com",
  "user_avatar": "https://www.gravatar.com/avatar/83c56c2ac027851091a829ad08992525?s=80&d=identicon",
  "project_id": 2,
  "project": {
    "id": 2,
    "name": "user_manager",
    "description": "用户管理",
    "web_url": "http://gitlab.xgss.net/user_search/user_manager",
    "avatar_url": null,
    "git_ssh_url": "git@gitlab.xgss.net:user_search/user_manager.git",
    "git_http_url": "http://gitlab.xgss.net/user_search/user_manager.git",
    "namespace": "user_search",
    "visibility_level": 0,
    "path_with_namespace": "user_search/user_manager",
    "default_branch": "master",
    "ci_config_path": null,
    "homepage": "http://gitlab.xgss.net/user_search/user_manager",
    "url": "git@gitlab.xgss.net:user_search/user_manager.git",
    "ssh_url": "git@gitlab.xgss.net:user_search/user_manager.git",
    "http_url": "http://gitlab.xgss.net/user_search/user_manager.git"
  },
  "commits": [
    {
      "id": "67f35f0361f320fb35aa7079447778e3aec24aab",
      "message": "init\n",
      "timestamp": "2022-07-23T12:32:10Z",
      "url": "http://gitlab.xgss.net/user_search/user_manager/commit/67f35f0361f320fb35aa7079447778e3aec24aab",
      "author": {
        "name": "zhoufei",
        "email": "920786312@qq.com"
      },
      "added": [
        "readme25.md"
      ],
      "modified": [],
      "removed": []
    }
  ],
  "total_commits_count": 1,
  "repository": {
    "name": "user_manager",
    "url": "git@gitlab.xgss.net:user_search/user_manager.git",
    "description": "用户管理",
    "homepage": "http://gitlab.xgss.net/user_search/user_manager",
    "git_http_url": "http://gitlab.xgss.net/user_search/user_manager.git",
    "git_ssh_url": "git@gitlab.xgss.net:user_search/user_manager.git",
    "visibility_level": 0
  }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60

3.2、匹配参数语法

3.2.1、取值语法

1. $开头表示：是一个变量
2. .表示：根节点
3. $key，如果取出的value还是json那么则以点为分隔符继续写key的名字

3.2.2、举例

# 取出 "user_name": "zhoufei" 这一行中的value
.user_name

# 取出 "name": "user_manager" 这一行中的value
.project.name
1
2
3
4
5

3.3、配置匹配参数

3.3.1、匹配参数

ref
$.ref

project_name
$.project.name

1
2
3
4
5
6

新增一个变量

再新增一个变量

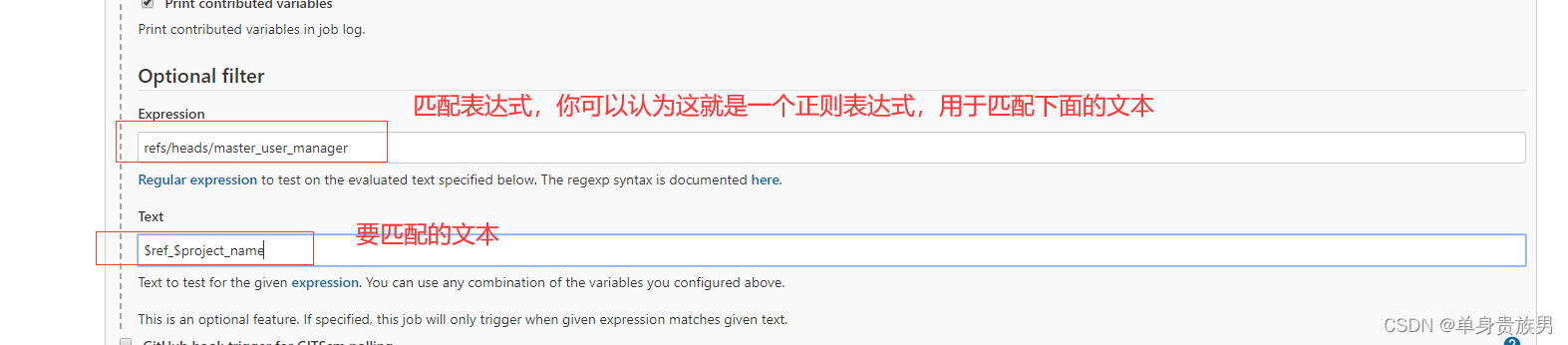

3.3.2、匹配规则

refs/heads/master_user_manager
$ref_$project_name
1
2

1. Expression：写匹配规则，支持正则
2. Text：要匹配的文本内容
   1. KaTeX parse error: Expected group after '_' at position 4: ref_̲project_name：对应内容是refs/heads/master_user_manager，也就是Expression要匹配的内容
3. 只有匹配成功，才回走流水线脚本

4、测试

提交代码
