环境说明：

主机名：cmcc01为例

操作系统：centos7

部署服务：

       clickhouserver

       clickhouserver2

单节点服务多实例部署

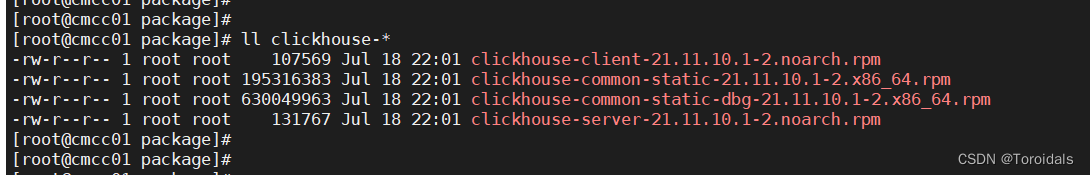

1.下载并上传clickhouse 至服务节点

  官网：https://packages.clickhouse.com/rpm/stable/

 2.安装clickhouse：

# 安装必要环境
yum install -y yum-utils expect autoconf

# 安装clickhouse
rpm -ivh clickhouse-*

   安装过程中会提示输入密码，需要记住

3.修改配置文件： vim /etc/clickhouse-server/config.xml

  提示前面数字为行号，非配置信息

# 修改配置
104     <tcp_port>9998tcp_port>

# 添加主机配置，注意：cmcc01 为我的hostname，此处填写你的
158     <interserver_http_host>cmcc01interserver_http_host>

# 添加监听配置，运行远程登录
180     <listen_host>::listen_host>

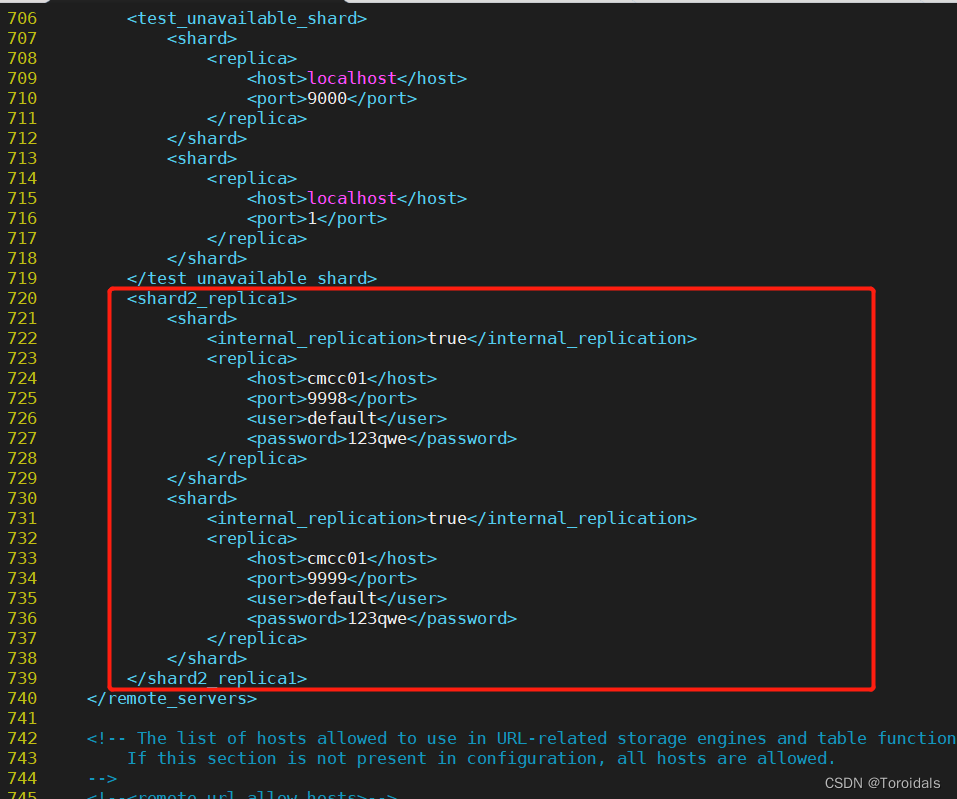

# 添加集群配置
 720         <shard2_replica1>
 721             <shard>
 722                 <internal_replication>trueinternal_replication>
 723                 <replica>
 724                     <host>cmcc01host>
 725                     <port>9998port>
 726                     <user>defaultuser>
 727                     <password>123qwepassword>
 728                 replica>
 729             shard>
 730             <shard>
 731                 <internal_replication>trueinternal_replication>
 732                 <replica>
 733                     <host>cmcc01host>
 734                     <port>9999port>
 735                     <user>defaultuser>
 736                     <password>123qwepassword>
 737                 replica>
 738             shard>
 739         shard2_replica1>


# 添加zookeeper配置
 786     <zookeeper>
 787         <node>
 788             <host>cmcc01host>
 789             <port>2181port>
 790         node>
 791         <node>
 792             <host>cmcc01host>
 793             <port>2182port>
 794         node>
 795         <node>
 796             <host>cmcc01host>
 797             <port>2183port>
 798         node>
 799     zookeeper>

# 配置层次分片副本
 813     <macros>
 814         <layer>01layer>
 815         <shard>01shard>
 816         <replica>shard2_replica1-01replica>
 817     macros>



4.复制配置文件

cp /etc/clickhouse-server/config.xml /etc/clickhouse-server/config2.xml

 修改配置信息

vim /etc/clickhouse-server/config2.xml

# 修改以下内容
<log>/var/log/clickhouse-server/clickhouse-server2.loglog>
<errorlog>/var/log/clickhouse-server/clickhouse-server2.err.logerrorlog>

<http_port>8124http_port>

<tcp_port>9999tcp_port>

<mysql_port>9014mysql_port>

<postgresql_port>9015postgresql_port>

<interserver_http_port>9019interserver_http_port>

<path>/var/lib/clickhouse2/path>

<tmp_path>/var/lib/clickhouse2/tmp/tmp_path>

<user_files_path>/var/lib/clickhouse2/user_files/user_files_path>

<local_directory>
    <path>/var/lib/clickhouse2/access/path>
local_directory>

<macros>
    <layer>01layer>
    <shard>02shard>
    <replica>shard2_replica1-01replica>
macros>

 提示：我的用户都设置为一样所有公用一个配置文件，如需每个主机设置不同的用户需要修改配置，并cp的user.xml

<users_xml>
    <path>users2.xmlpath>
users_xml>

 5.复制启动服务文件

# 复制启动文件
cp /etc/systemd/system/clickhouse-server.service /etc/systemd/system/clickhouse-server2.service

# 修改启动文件
vi /etc/systemd/system/clickhouse-server2.service

ExecStart=/usr/bin/clickhouse-server --config=/etc/clickhouse-server/config2.xml --pid-file=/run/clickhouse-server/clickhouse-server2.pid

 6.启动服务

# 复制文件
cp /var/log/clickhouse-server/clickhouse-server.log /var/log/clickhouse-server/clickhouse-server2.log
cp /var/log/clickhouse-server/clickhouse-server.err.log /var/log/clickhouse-server/clickhouse-server2.err.log
cp -r /var/lib/clickhouse /var/lib/clickhouse2

# 修改所属用户
chown clickhouse:clickhouse /var/log/clickhouse-server/clickhouse-server2.log
chown clickhouse:clickhouse /var/log/clickhouse-server/clickhouse-server2.err.log
chown clickhouse:clickhouse -R /var/lib/clickhouse2

# 启动服务
systemctl start clickhouse-server
systemctl start clickhouse-server2

# 查看服务状态
systemctl status clickhouse-server
systemctl status clickhouse-server2

注意：如启动报错，或者启动不了服务先检查以下文件权限是否正确，所有文件的所属用户是否为clickhouse

/var/log/clickhouse-server/clickhouse-server2.log
/var/log/clickhouse-server/clickhouse-server2.err.log
/var/lib/clickhouse2
/etc/clickhouse-server/config2.xml

权限参照原目录文件，所属用户必须要clickhouse

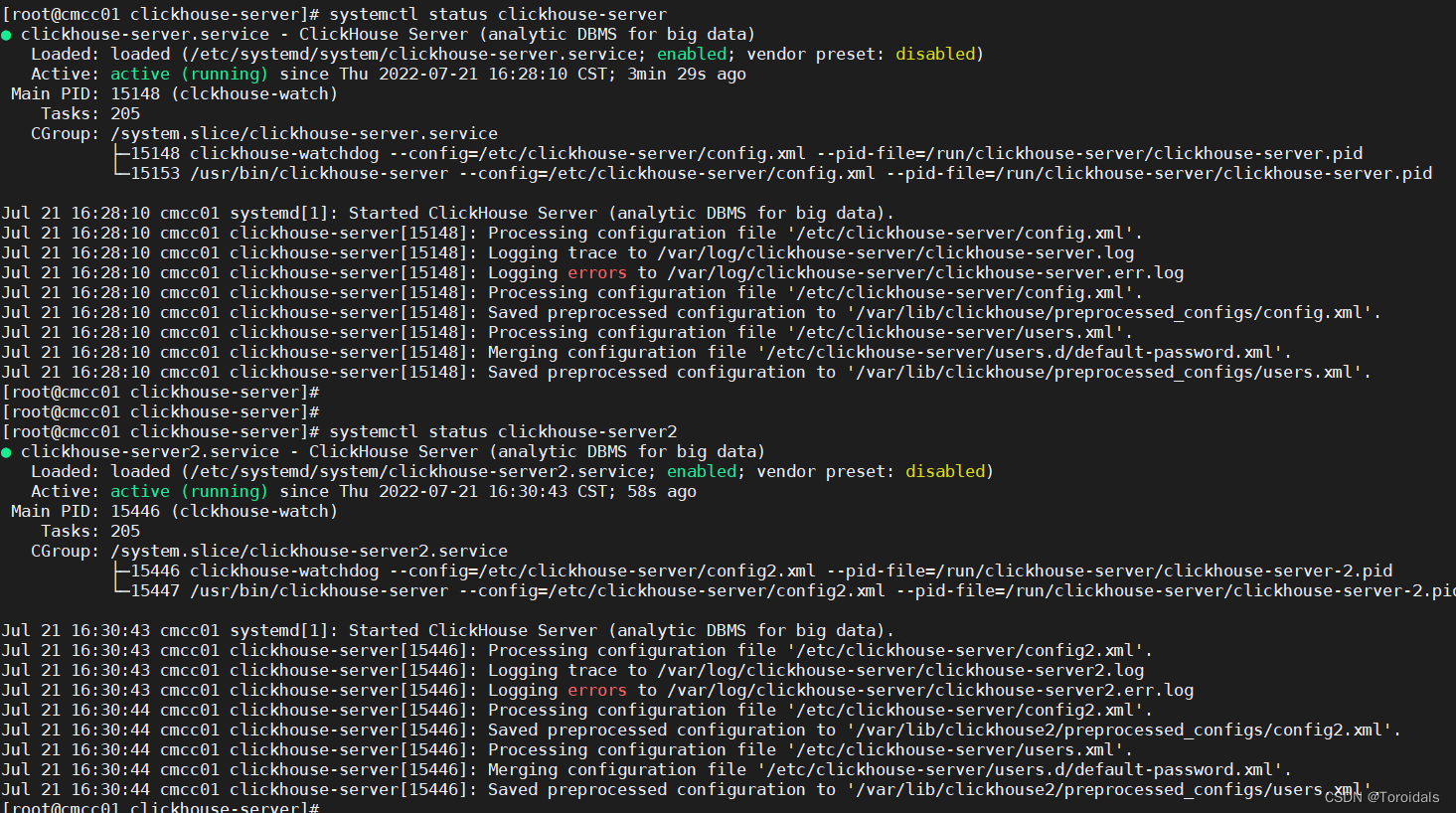

启动成功后的状态

7.登录clickhouse

# 登录服务1 clickhouse
clickhouse-client --host cmcc01 --port 9998 -u default --password 123qwe --multiline

# 创建测试数据库
create database test on CLUSTER shard2_replica1;

# 创建测试本地表
CREATE TABLE test.student_test on CLUSTER shard2_replica1
(
    id    int,
    name  String,
    age   int,
    grade String
)
    ENGINE = ReplicatedReplacingMergeTree('/clickhouse/tables/test/student_test/{layer}-{shard}', '{replica}')
        PARTITION BY grade
        ORDER BY id
        SETTINGS index_granularity = 8192;

# 创建分布式表
CREATE TABLE test.student_test_all on CLUSTER shard2_replica1 as test.student_test ENGINE = Distributed('shard2_replica1', 'test', 'student_test', rand());

# 插入数据
insert into test.student_test values (1, '李四', 21, '1班'),(2, '王五', 21, '1班')(3, '张三', 21, '2班');

# 查询本地表
cmcc01.hand.com :) select * from  test.student_test;

SELECT *
FROM test.student_test

Query id: 04702719-3beb-4a9b-8ba7-33e77f0e5961

┌─id─┬─name─┬─age─┬─grade─┐
│  1 │ 李四 │  21 │ 1班   │
│  2 │ 王五 │  21 │ 1班   │
└────┴──────┴─────┴───────┘
┌─id─┬─name─┬─age─┬─grade─┐
│  3 │ 张三 │  21 │ 2班   │
└────┴──────┴─────┴───────┘

3 rows in set. Elapsed: 0.005 sec.

cmcc01.hand.com :)

# 查询分布式表
select * from  test.student_test_all;


# 登录服务2 clickhouse
clickhouse-client --host cmcc01 --port 9999 -u default --password 123qwe --multiline

# 查询本地表,正常是没有数据的
select * from  test.student_test;


# 查询分布式表，是有数据的和 9998的保持一致
select * from  test.student_test_all;



至此安装部署测试完成
