<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<!--websocket-->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-websocket</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-thymeleaf</artifactId>
</dependency>
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>fastjson</artifactId>
</dependency>
@Slf4j
//@Configuration
@Component
//开启websocket支持
@EnableWebSocket
@ServerEndpoint("/websocket")
public class WebsocketConfig
{
/*注解 作用 备注
@ServerEndpoint 用于声明websocket响应类,有点像@RequestMapping @ServerEndpoint("/websocket")
@OnOpen websocket连接时触发 参数有:Session session, EndpointConfig config
@OnMessage 有消息时触发 参数很多,一会再说
@OnClose 连接关闭时触发 参数有:Session session, CloseReason closeReason
@OnError 有异常时触发 参数有:Session session, Throwable throwable*/
/**
* 必须要有的
*
* @return
*/
@Bean
public ServerEndpointExporter serverEndpointExporter()
{
return new ServerEndpointExporter();
}
/**
* websocket 配置信息
*
* @return
*/
@Bean
public ServletServerContainerFactoryBean createWebSocketContainer()
{
ServletServerContainerFactoryBean bean = new ServletServerContainerFactoryBean();
//文本缓冲区大小
bean.setMaxTextMessageBufferSize(8192);
//字节缓冲区大小
bean.setMaxBinaryMessageBufferSize(8192);
return bean;
}
//使用 ConcurrentHashMap, 保证线程安全, static全局共享 session
//这里之所以static,是因为这个类不是单例的!!
//他虽然有@Controller注解,但是不适用Ioc容器中拿对象,每一次请求过来都是一个新的对象
//存放 session
private final static Map<String, Session> sessions = new ConcurrentHashMap<>();
//onopen 在连接创建(用户进入聊天室)时触发
@OnOpen
public void openSession(Session session, EndpointConfig config)
{
//将session存起来, 用于服务器向浏览器发送消息
sessions.put(session.getId(), session);
sendAll("[" + session.getId() + "]进入房间");
}
//响应字符串
@OnMessage
public void onMessage(Session session, String message)
{
sendAll("[" + session.getId() + "]" + message);
//使用 fastjson 解析 json 字符串
final Message data = JSONObject.parseObject(message, Message.class);
//响应的信息
final Message response = Message.builder()
.operation(data.getOperation()) //将请求的 operation 放入
.build();
//根据不同的 operation 执行不同的操作
switch (data.getOperation()) {
//进入聊天室后保存用户名
case "tip":
session.getUserProperties().put("username", data.getMsg());
sessions.put(session.getId(), session);
response.setMsg("[" + data.getMsg() + "]进入房间");
sendAll(JSONObject.toJSONString(response));
break;
//发送消息
case "msg":
final String username = (String) session.getUserProperties().get("username");
response.setMsg("[" + username + "]" + data.getMsg());
sendAll(JSONObject.toJSONString(response));
break;
}
}
//响应字节流
@OnMessage
public void onMessage(Session session, byte[] message) throws IOException {
final Message response = new Message();
final String username = (String) session.getUserProperties().get("username");
final File file = (File) session.getUserProperties().get("file");
log.info(file.getCanonicalPath());
if (saveFile(file, message)) {
response.setOperation("file-upload-success");
response.setMsg("[" + username + "]上传了一个文件【" + file.getName() + "】");
sendAll(JSONObject.toJSONString(response));
}
else {
response.setOperation("file-upload-fail");
response.setMsg("文件【" + file.getName() + "】上传失败");
sendTo(session, JSONObject.toJSONString(response));
}
}
/*细心的小伙伴可能发现,我有两个 @OnMessage,
这是因为websocket能发送三种请求(我知道的三种),
一种是字符串,一种是字节流(用于上传文件),一种是ping-pong(乒乓机制),因为js不好发送ping请求,我这里就只有响应字符串和字节流两种方法。*/
/*接下来的篇幅将只演示字符串的,字节流咱再另一篇说,不然太多了看的头痛*/
//onclose 在连接断开(用户离开聊天室)时触发
@OnClose
public void closeSession(Session session, CloseReason closeReason)
{
//记得移除相对应的session
sessions.remove(session.getId());
sendAll("[" + session.getId() + "]离开了房间");
}
@OnError
public void sessionError(Session session, Throwable throwable)
{
//通常有异常会关闭session
try {
session.close();
}
catch (IOException e) {
e.printStackTrace();
}
}
/*1、再OnOpen中将session存起来,并通知其他用户,有人来啦。
2、有消息来的时候,再OnMessage中,通知其他用户
3、OnClose中,通知其他用户,别人溜了
4、OnError中,有异常就关闭websocket*/
private void sendAll(String message)
{
for (Session s : sessions.values()) {
//获得session发送消息的对象
//Basic是同步, 会阻塞
//Async是异步, 这个会有多线程并发导致异常, 发送消息太快也会有并发异常, 需要有 消息队列 来辅助使用
final RemoteEndpoint.Basic remote = s.getBasicRemote();
try {
//发送消息
remote.sendText(message);
}
catch (IOException e) {
e.printStackTrace();
}
}
}
private void sendTo(Session session, String message)
{
final RemoteEndpoint.Basic remote = session.getBasicRemote();
try {
//发送消息
remote.sendText(message);
}
catch (IOException e) {
e.printStackTrace();
}
}
private boolean saveFile(File file, byte[] message)
{
try (OutputStream os = new FileOutputStream(file)) {
os.write(message, 0, message.length);
return true;
}
catch (IOException e) {
e.printStackTrace();
return false;
}
}
}

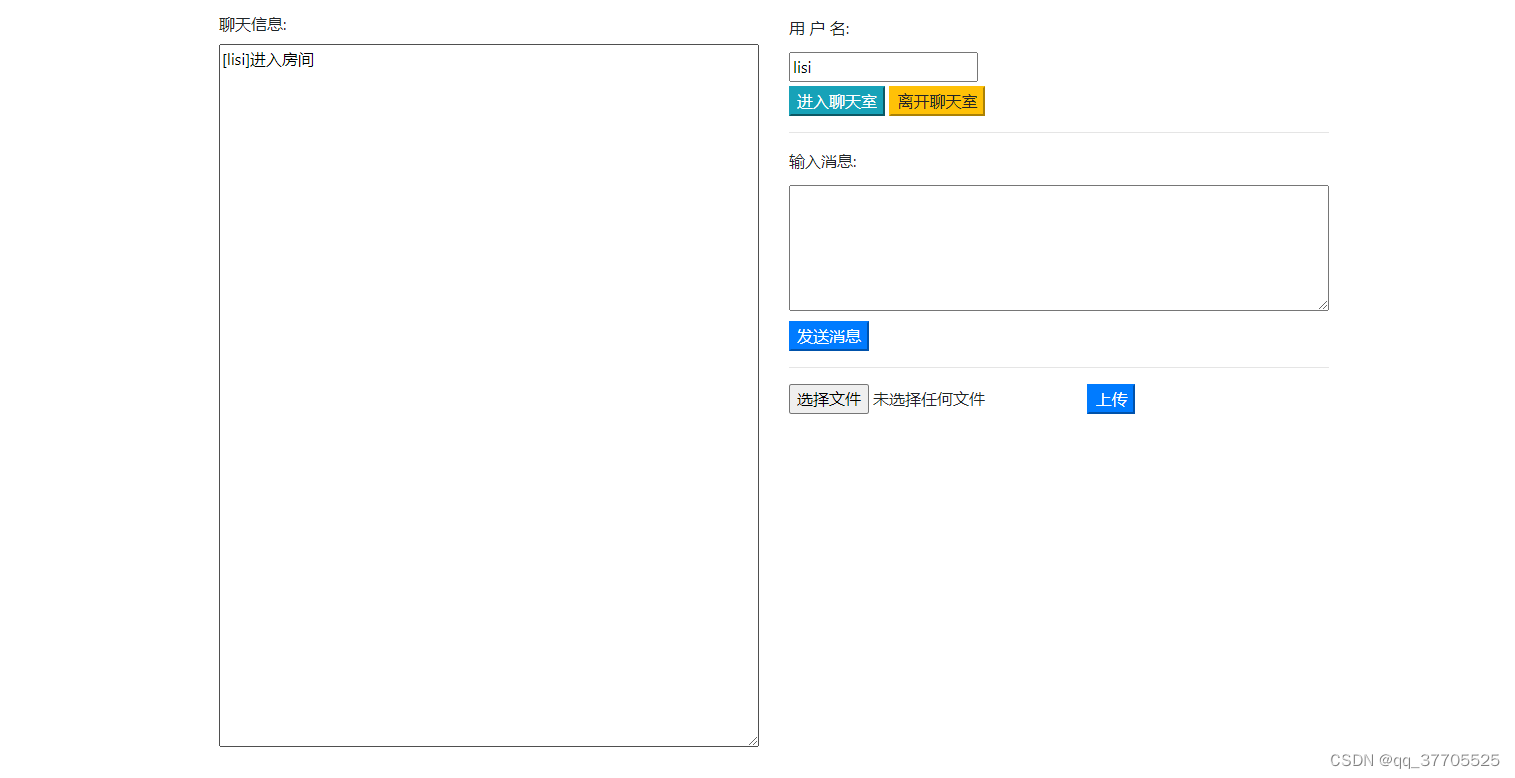

<!DOCTYPE html>
<html xmlns:th="http://www.thymeleaf.org" lang="en">
<head>
<meta charset="UTF-8">
<title>websocket-demo</title>
<link rel="stylesheet" href="https://cdn.bootcdn.net/ajax/libs/twitter-bootstrap/4.2.1/css/bootstrap.min.css">
</head>
<body>
<div class="container py-3">
<div class="row">
<div class="col-6">
<div>
<label for="messageArea">聊天信息:</label>
</div>
<div>
<textarea id="messageArea" readonly class="w-100" style="height: 75vh;"></textarea>
</div>
</div>
<div class="col">
<div class="my-1">
<label for="messageArea">用 户 名:</label>
</div>
<div class="my-1">
<input type="text" id="username" autocomplete="off">
</div>
<div class="my-1">
<button class="btn-info" id="joinRoomBtn">进入聊天室</button>
<button class="btn-warning" id="leaveRoomBtn">离开聊天室</button>
</div>
<hr/>
<div class="my-1">
<label for="sendMessage">输入消息:</label>
</div>
<div>
<textarea id="sendMessage" rows="5" class="w-100" style="max-height: 50vh"></textarea>
</div>
<div class="my-1">
<button class="btn-primary" id="sendBtn">发送消息</button>
</div>
<hr/>
<div class="my-1">
<input id="file" type="file" value="选择文件"/>
<button id="fileBtn" class="btn-primary">上传</button>
</div>
</div>
</div>
</div>
<script src="https://s3.pstatp.com/cdn/expire-1-M/jquery/3.3.1/jquery.min.js"></script>
<script>
let webSocket;
//ip和端口号用自己项目的
//{websocket}: 其实是刚刚那个@ServerEndpoint("/websocket")中定义的
let url = 'ws://127.0.0.1:8080/websocket';
let file;
$('#username').keyup(function (e) {
let keycode = e.which;
if (keycode == 13) {
$('#joinRoomBtn').click();
}
});
//进入聊天室
$('#joinRoomBtn').click(function () {
let username = $('#username').val();
webSocket = new WebSocket(url);
webSocket.onopen = function () {
console.log('webSocket连接创建。。。');
sendMessage('tip', username);
}
webSocket.onclose = function () {
console.log('webSocket已断开。。。');
$('#messageArea').append('websocket已断开\n');
}
webSocket.onmessage = function (event) {
//这个 data 和刚刚的 Message 一样
let data = {
operation: '',
msg: ''
};
data = JSON.parse(event.data);
switch (data.operation) {
case "tip":
$('#messageArea').append(data.msg + '\n');
break;
case "msg": //显示消息
$('#messageArea').append(data.msg + '\n');
break;
case "filename":
$('#messageArea').append(data.msg + '\n');
sendFile(file);
break;
case "file-upload-success":
$('#messageArea').append(data.msg + '\n');
break;
case "file-upload-fail":
$('#messageArea').append(data.msg + '\n');
break;
}
}
webSocket.onerror = function (event) {
console.log(event)
console.log('webSocket连接异常。。。');
}
});
//退出聊天室
$('#leaveRoomBtn').click(function () {
if (webSocket) {
//关闭连接
webSocket.close();
}
});
//发送消息
$('#sendBtn').click(function () {
var msg = $('#sendMessage').val();
if (msg.trim().length === 0) {
alert('请输入内容');
return;
}
sendMessage('msg', $('#sendMessage').val());
$('#sendMessage').val('');
});
//上传文件
// https://www.cnblogs.com/myfjd/archive/2012/03/22/2411374.html
$('#fileBtn').click(function () {
let files = [];
files = $('#file')[0].files;
if (files.length === 0) {
alert('请选择文件');
return;
}
//发送文件名
file = files[0];
sendMessage('filename', file.name);
});
//发送消息
function sendMessage(operation, msg) {
//这个 data 和刚刚的 Message 一样
let data = {
operation: operation,
msg: msg,
};
//将 data 转成 json 字符串
webSocket.send(JSON.stringify(data));
}
//发送文件
function sendFile(file){
//挖个坑先
let blob = file;
//文件读取对象
let reader = new FileReader();
//文件加载后的回调函数
reader.onload = ev => {
let buffer = ev.target.result;
webSocket.send(buffer);
}
//二进制加载文件
reader.readAsArrayBuffer(blob);
}
</script>
</body>
</html>
