1 前言

本章测试spi tf卡示例，实现txt文件的读写。

2 源码

源码路径：
https://gitee.com/CMIOT-XinShengTech/CMIOT.CM32M4xxR_Library/tree/main/Projects/CM32M4xxR_LQFP128_STB/Examples/SPI/SPI_SD_CARD

注意一下，这里用的是CM32M4xxR_LQFP128_STB，而开发板是CM32M433R-START，对比了一下两者代码，差异不大，其中uart串口打印log使用不同口，START用的是uart4，而LQFP128_STB是uart5。
如果你在创建项目使用的是CM32M433R-START，则可以忽略这个串口差异。如果你用CM32M4xxR_LQFP128_STB，那需要使用uart5，对应的口是pin8、9。
详见https://gitee.com/CMIOT-XinShengTech/CMIOT.CM32M4xxR_Library/blob/main/Projects/CM32M4xxR_LQFP128_STB/BSP/Include/log.h。

使用CM32M4xxR_LQFP128_STB创建时可以选择spi相关的示例，然后将sdcard的main文件内容复制过去即可。

此外还要复制一下FatFs_User和FatFs文件夹到Application同级目录下。

3 添加头文件

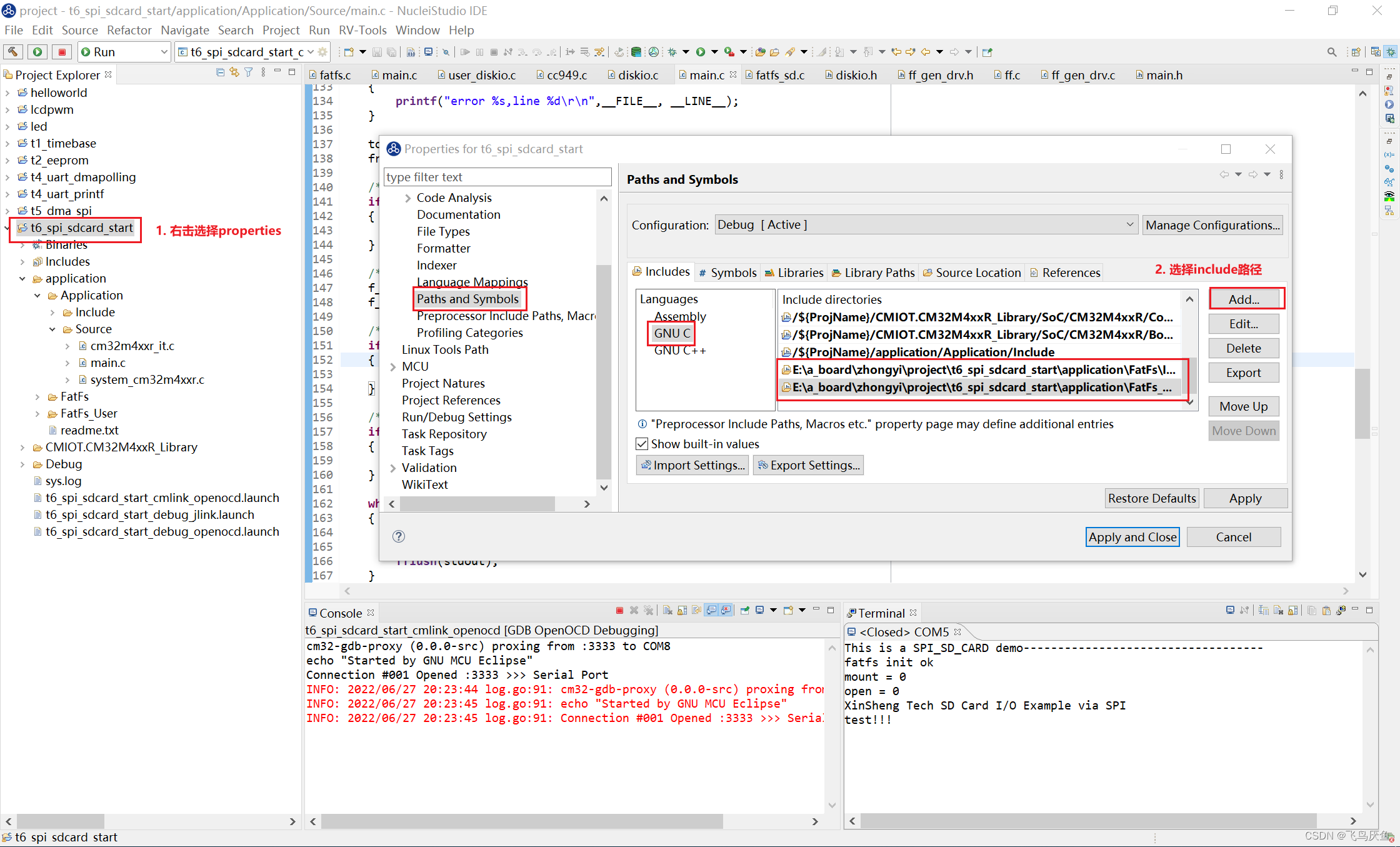

根据上图添加头文件，即可完成编译，否则会报h文件找不到。

4 硬件

spi sdcard示例使用的是spi1。
注意不要将线接错了，如果接错了f_open会返回错误状态，比如返回3则是The physical drive cannot work。
详见ff.h中的FRESULT。

5 代码

代码就是spi sdcard示例，只是加了两个返回值判断便于分析错误。

main.c

#include <main.h>
#include <stdio.h>
#include "log.h"
#include "fatfs.h"
#include "user_diskio.h" /* defines USER_Driver as external */

/** @addtogroup CM32M4xxR_StdPeriph_Examples
 * @{
 */


/** @addtogroup SPI_CRC
 * @{
 */


#define BufferSize	(32)
#define SPICRC

volatile SPI_InitType SPI_InitStructure;
void RCC_Configuration(void);
void GPIO_Configuration(void);

volatile FATFS fs;
volatile FATFS *pfs;
volatile FIL fil;
volatile FRESULT fres;
volatile DWORD fre_clust;
volatile uint32_t totalSpace, freeSpace;
volatile char buffer[100];


volatile char USERPath[4];   /* USER logical drive path */


/**
 * @brief  Main function.
 */
int main(void)
{
    /*!< At this stage the microcontroller clock setting is already configured,
        this is done through SystemInit() function which is called from startup
        file (startup_cm32m4xxr.s) before to branch to application main.
        To reconfigure the default setting of SystemInit() function, refer to
        system_cm32m4xxr.c file
      */
	log_init();
	log_info("This is a SPI_SD_CARD demo-----------------------------------\r\n");
	SysTick_Config(144000000/100);
    /* System clocks configuration ---------------------------------------------*/
    RCC_Configuration();

    /* GPIO configuration ------------------------------------------------------*/
    GPIO_Configuration();

    /* SPI1 configuration ------------------------------------------------------*/
    SPI_InitStructure.DataDirection = SPI_DIR_DOUBLELINE_FULLDUPLEX;
    SPI_InitStructure.SpiMode       = SPI_MODE_MASTER;
    SPI_InitStructure.DataLen       = SPI_DATA_SIZE_8BITS;
    SPI_InitStructure.CLKPOL        = SPI_CLKPOL_LOW;
    SPI_InitStructure.CLKPHA        = SPI_CLKPHA_FIRST_EDGE;
    SPI_InitStructure.NSS           = SPI_NSS_SOFT;
    SPI_InitStructure.BaudRatePres  = SPI_BR_PRESCALER_16;
    SPI_InitStructure.FirstBit      = SPI_FB_MSB;
    SPI_InitStructure.CRCPoly       = 0x0007;
    SPI_Init(SPI1, (SPI_InitType*)&SPI_InitStructure);

    /* Enable SPI1 */
    SPI_Enable(SPI1, ENABLE);

    uint8_t ret = 1;
    ret = FATFS_LinkDriver((Diskio_drvTypeDef*)&USER_Driver, (char*)USERPath);
    if(ret == 0)
    	printf("fatfs init ok\r\n");
    else
    	printf("fatfs init error\r\n");

    delay_ms(500);

    ret = f_mount((FATFS*)&fs, "", 0);
    printf("mount = %d\r\n",ret);
    if( ret != FR_OK)
    {
    	printf("error %s,line %d\r\n",__FILE__, __LINE__);
    }

    /* Open file to write */
    ret = f_open((FIL*)&fil, "first.txt", FA_OPEN_APPEND | FA_READ | FA_WRITE);
    printf("open = %d\r\n",ret);
    if(ret != FR_OK)
    {
    	printf("error %s,line %d\r\n",__FILE__, __LINE__);
    }

    /* Check freeSpace space */
   	if(f_getfree("", (DWORD*)&fre_clust, (FATFS **)&pfs) != FR_OK)
    {
    	printf("error %s,line %d\r\n",__FILE__, __LINE__);
    }

    totalSpace = (uint32_t)((pfs->n_fatent - 2) * pfs->csize * 0.5);
    freeSpace = (uint32_t)(fre_clust * pfs->csize * 0.5);

    /* free space is less than 1kb */
    if(freeSpace < 1)
    {
    	printf("error %s,line %d\r\n",__FILE__, __LINE__);
    }

    /* Writing text */
    f_puts("XinSheng Tech SD Card I/O Example via SPI\n", (FIL*)&fil);
    f_puts("test!!!\n", (FIL*)&fil);

    /* Close file */
    if(f_close((FIL*)&fil) != FR_OK)
    {
    	printf("error %s,line %d\r\n",__FILE__, __LINE__);
    }

    /* Open file to read */
    if(f_open((FIL*)&fil, "first.txt", FA_READ) != FR_OK)
    {
    	printf("error %s,line %d\r\n",__FILE__, __LINE__);
    }

    while(f_gets((char*)buffer, sizeof(buffer), (FIL*)&fil))
    {
    	/* SWV output */
    	printf("%s", buffer);
    	fflush(stdout);
    }

    /* Close file */
    if(f_close((FIL*)&fil) != FR_OK)
    {
    	printf("error %s,line %d\r\n",__FILE__, __LINE__);
    }

    /* Unmount SDCARD */
    if(f_mount(NULL, "", 1) != FR_OK)
    {
    	printf("error %s,line %d\r\n",__FILE__, __LINE__);
    }
    while (1)
    {
    }
}

/**
 * @brief  Configures the different system clocks.
 */
void RCC_Configuration(void)
{
    /* Enable peripheral clocks --------------------------------------------------*/
    /* GPIOA, GPIOB and SPI1 clock enable */
    RCC_EnableAPB2PeriphClk(RCC_APB2_PERIPH_GPIOA | RCC_APB2_PERIPH_GPIOB | RCC_APB2_PERIPH_SPI1, ENABLE);

    /* SPI2 Periph clock enable */
    RCC_EnableAPB1PeriphClk(RCC_APB1_PERIPH_SPI2, ENABLE);
}

/**
 * @brief  Configures the different GPIO ports.
 */
void GPIO_Configuration(void)
{
    GPIO_InitType GPIO_InitStructure;

    /* Configure SPI1 pins: SCK, MISO and MOSI ---------------------------------*/
    /* Confugure SCK and MOSI pins as Alternate Function Push Pull */
    GPIO_InitStructure.Pin        = GPIO_PIN_5 | GPIO_PIN_7;
    GPIO_InitStructure.GPIO_Speed = GPIO_Speed_2MHz;
    GPIO_InitStructure.GPIO_Mode  = GPIO_Mode_AF_PP;
    GPIO_Init(GPIOA, &GPIO_InitStructure);

    /* Confugure MISO pin as Input Floating  */
    GPIO_InitStructure.Pin       = GPIO_PIN_6;
    GPIO_InitStructure.GPIO_Mode = GPIO_Mode_IN_FLOATING;
    GPIO_Init(GPIOA, &GPIO_InitStructure);

    /* Confugure NSS pin as Output Push Pull */
    GPIO_InitStructure.Pin       = GPIO_PIN_4;
    GPIO_InitStructure.GPIO_Mode = GPIO_Mode_Out_PP;
    GPIO_Init(GPIOA, &GPIO_InitStructure);
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185

6 结果

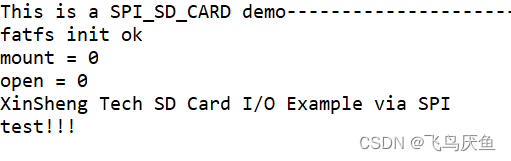

从log来看文件读取成功，从sd卡中读取到确认写入成功。
