• 10_Spring Boot 集成Dubbo + Mybatis + Redis

      该实例目的是为了让同学们快速学会使用SpringBoot集成搭建SpringMVC、Spring、MyBatis及Redis

     创建新的数据库springboot，指定数据库字符编码为utf-8

    1. SET NAMES utf8mb4;
    2. SET FOREIGN_KEY_CHECKS = 0;
    3.
    4. -- ----------------------------
    5. -- Table structure for t_student
    6. -- ----------------------------
    7. DROP TABLE IF EXISTS `t_student`;
    8. CREATE TABLE `t_student`  (
    9.   `id` int NOT NULL AUTO_INCREMENT,
    10.   `name` varchar(20) CHARACTER SET utf8 COLLATE utf8_bin NULL DEFAULT NULL,
    11.   `age` int NULL DEFAULT NULL,
    12.   PRIMARY KEY (`id`) USING BTREE
    13. ) ENGINE = InnoDB AUTO_INCREMENT = 8 CHARACTER SET = utf8 COLLATE = utf8_bin ROW_FORMAT = Dynamic;
    14.
    15. -- ----------------------------
    16. -- Records of t_student
    17. -- ----------------------------
    18. INSERT INTO `t_student` VALUES (1, 'zhangsan', 25);
    19. INSERT INTO `t_student` VALUES (2, 'lisi', 28);
    20. INSERT INTO `t_student` VALUES (3, 'wangwu', 23);
    21. INSERT INTO `t_student` VALUES (4, 'Tom', 21);
    22. INSERT INTO `t_student` VALUES (5, 'Jck', 55);
    23. INSERT INTO `t_student` VALUES (6, 'Lucy', 27);
    24. INSERT INTO `t_student` VALUES (7, 'zhaoliu', 75);
    25.
    26. SET FOREIGN_KEY_CHECKS = 1;

    一、开发Dubbo服务接口-公共接口

    按照Dubbo官方开发建议，创建一个接口项目，该项目只定义接口和model类

    项目名称：009-springboot-ssm-dubbo-exterface

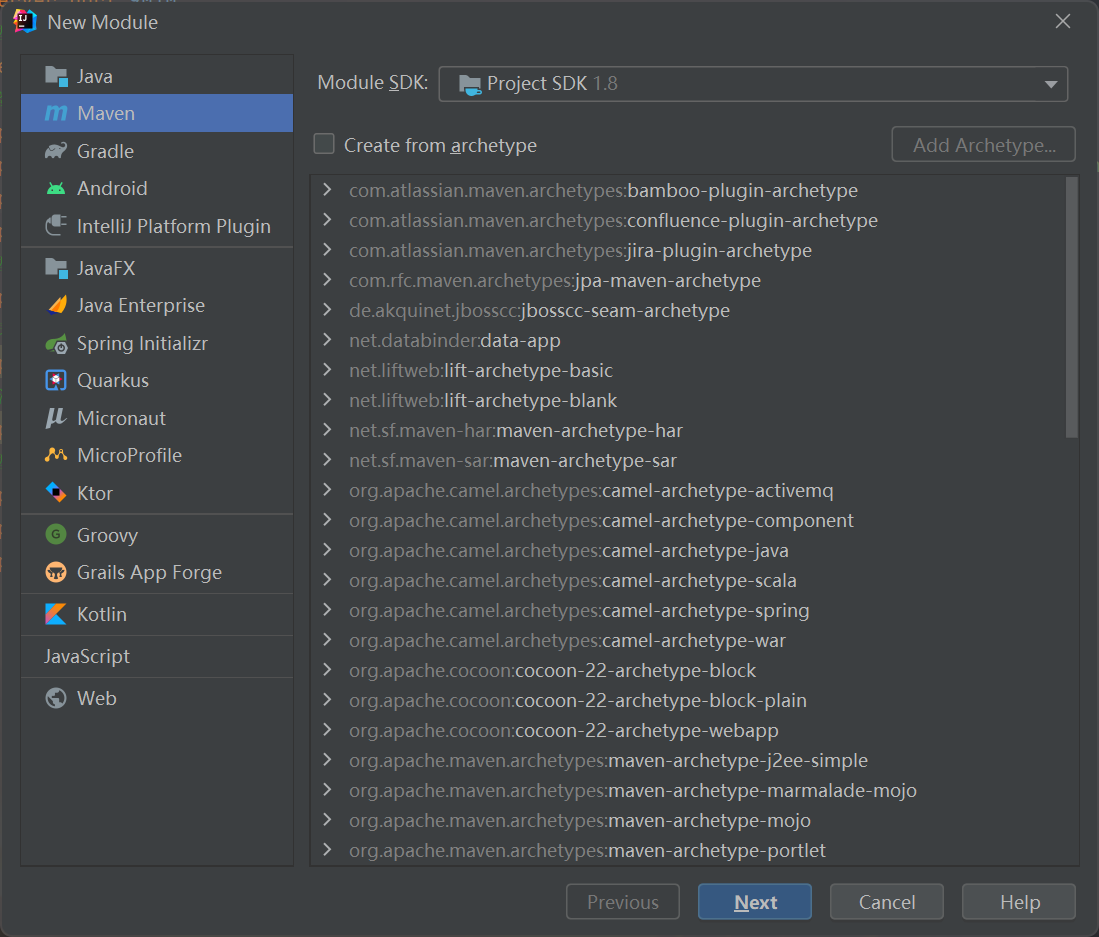

    A. 创建Maven Java工程，Dubbo接口工程

    B. 创建StudentService业务接口类

    1. /*
    2.  * ClassName:StudentService
    3.  * Package:com.abc.springboot.com.suke.springboot.service
    4.  * Description:<br/>
    5.  * */
    6. public interface StudentService {
    7.
    8.     /*
    9.      * 获取学生总人数
    10.      *
    11.      * @return
    12.      * */
    13.     Long queryAllStudentCount();
    14. }

    C. 创建model类Student

    1. public class Student implements Serializable {
    2.     private Integer id;
    3.
    4.     private String name;
    5.
    6.     private Integer age;
    7.
    8.     public Integer getId() {
    9.         return id;
    10.     }
    11.
    12.     public void setId(Integer id) {
    13.         this.id = id;
    14.     }
    15.
    16.     public String getName() {
    17.         return name;
    18.     }
    19.
    20.     public void setName(String name) {
    21.         this.name = name;
    22.     }
    23.
    24.     public Integer getAge() {
    25.         return age;
    26.     }
    27.
    28.     public void setAge(Integer age) {
    29.         this.age = age;
    30.     }
    31. }

    二、开发Dubbo服务提供者

    项目名称：010-springboot-ssm-dubbo-provider

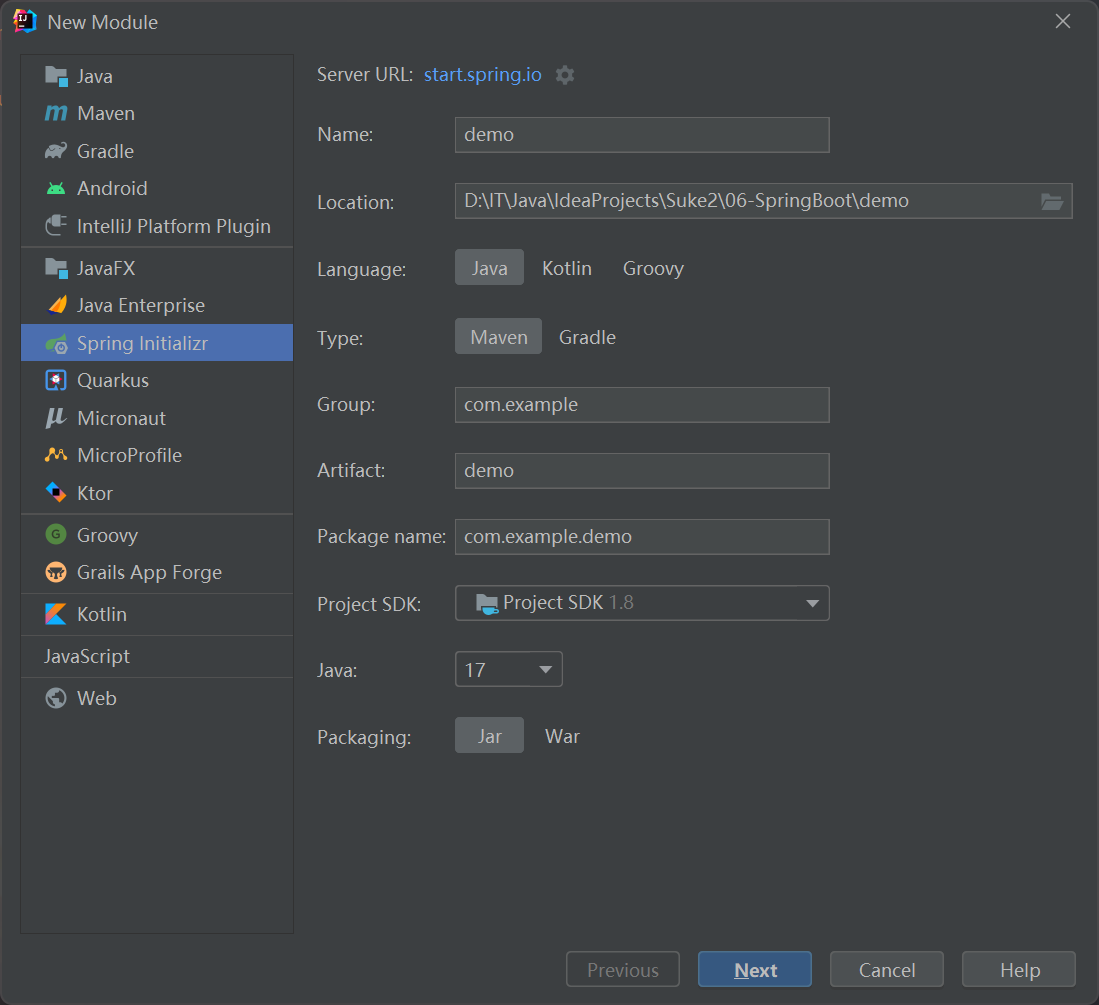

    A. 创建 SpringBoot Web项目

    B. 给Dubbo服务提供者添加依赖

    1.         <!--SpringBoot集成Dubbo起步依赖-->
    2.         <dependency>
    3.             <groupId>com.alibaba.spring.boot</groupId>
    4.             <artifactId>dubbo-spring-boot-starter</artifactId>
    5.             <version>2.0.0</version>
    6.         </dependency>
    7.
    8.         <!--zookeeper注册中心-->
    9.         <dependency>
    10.             <groupId>com.101tec</groupId>
    11.             <artifactId>zkclient</artifactId>
    12.             <version>0.10</version>
    13.             <exclusions>
    14.                 <exclusion>
    15.                     <groupId>log4j</groupId>
    16.                     <artifactId>log4j</artifactId>
    17.                 </exclusion>
    18.                 <exclusion>
    19.                     <groupId>org.slf4j</groupId>
    20.                     <artifactId>slf4j-log4j12</artifactId>
    21.                 </exclusion>
    22.             </exclusions>
    23.         </dependency>
    24.
    25.         <!--MyBatis集成SpringBoot框架起步依赖-->
    26.         <dependency>
    27.             <groupId>org.mybatis.spring.boot</groupId>
    28.             <artifactId>mybatis-spring-boot-starter</artifactId>
    29.             <version>2.0.0</version>
    30.         </dependency>
    31.
    32.         <!--连接MySQL数据库驱动-->
    33.         <dependency>
    34.             <groupId>mysql</groupId>
    35.             <artifactId>mysql-connector-java</artifactId>
    36.         </dependency>
    37.
    38.         <!--SpringBoot集成Redis起步依赖-->
    39.         <dependency>
    40.             <groupId>org.springframework.boot</groupId>
    41.             <artifactId>spring-boot-starter-data-redis</artifactId>
    42.         </dependency>
    43.
    44.         <!--dubbo接口工程-->
    45.         <dependency>
    46.             <groupId>com.suke.springboot</groupId>
    47.             <artifactId>009-springboot-ssm-dubbo-exterface</artifactId>
    48.             <version>1.0-SNAPSHOT</version>
    49.         </dependency>

    C. 手动指定资源配置文件路径

    在pom文件中的build标签中添加

    1.         <!--手动指定资源配置文件路径-->
    2.         <!--目的：将数据持久层映射文件编译到classpath中-->
    3.         <resources>
    4.             <resource>
    5.                 <directory>src/main/java</directory>
    6.                 <includes>
    7.                     <include>**/*.xml</include>
    8.                 </includes>
    9.             </resource>
    10.         </resources>

    D. 配置MyBatis逆向工程

    （1）添加插件

    1.        <plugins>
    2.             <plugin>
    3.                 <groupId>org.springframework.boot</groupId>
    4.                 <artifactId>spring-boot-maven-plugin</artifactId>
    5.             </plugin>
    6.
    7.             <!--mybatis代码自动生成插件-->
    8.             <plugin>
    9.                 <groupId>org.mybatis.generator</groupId>
    10.                 <artifactId>mybatis-generator-maven-plugin</artifactId>
    11.                 <version>1.3.7</version>
    12.                 <configuration>
    13.                     <!--配置文件的位置-->
    14.                     <configurationFile>GeneratorMapper.xml</configurationFile>
    15.                     <verbose>true</verbose>
    16.                     <overwrite>true</overwrite>
    17.                 </configuration>
    18.             </plugin>
    19.         </plugins>

    （2）将配置文件存放到项目根据目录

    ​​​​​​（3）GeneratorMapper.xml内容如下

    1. <?xml version="1.0" encoding="UTF-8"?>
    2. <!DOCTYPE generatorConfiguration
    3.         PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
    4.         "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd">
    5. <generatorConfiguration>
    6.     <!-- 指定连接数据库的 JDBC 驱动包所在位置，指定到你本机的完整路径 -->
    7.     <classPathEntry
    8.             location="D:\IT\Java\maven_repository\mysql\mysql-connector-java\8.0.19\mysql-connector-java-8.0.19.jar"/>
    9.     <!-- 配置 table 表信息内容体，targetRuntime 指定采用 MyBatis3 的版本 -->
    10.     <context id="tables" targetRuntime="MyBatis3">
    11.         <!-- 抑制生成注释，由于生成的注释都是英文的，可以不让它生成 -->
    12.         <commentGenerator>
    13.             <property name="suppressAllComments" value="true"/>
    14.         </commentGenerator>
    15.         <!-- 配置数据库连接信息 -->
    16.         <jdbcConnection driverClass="com.mysql.cj.jdbc.Driver"
    17.                         connectionURL="jdbc:mysql://localhost:3306/springboot?characterEncoding=utf8&amp;
    18. 			useSSL=false&amp;serverTimezone=UTC&amp;rewriteBatchedStatements=true"
    19.                         userId="root"
    20.                         password="root">
    21.         </jdbcConnection>
    22.         <!-- 生成 com.suke.springboot.model 类，targetPackage 指定 com.suke.springboot.model 类的包名， targetProject 指定
    23.         生成的 com.suke.springboot.model 放在 eclipse 的哪个工程下面-->
    24.         <javaModelGenerator targetPackage="com.suke.springboot.com.suke.springboot.model"
    25.                             targetProject="src/main/java">
    26.             <property name="enableSubPackages" value="false"/>
    27.             <property name="trimStrings" value="false"/>
    28.         </javaModelGenerator>
    29.         <!-- 生成 MyBatis 的 Mapper.xml 文件，targetPackage 指定 mapper.xml 文件的
    30.         包名， targetProject 指定生成的 mapper.xml 放在 eclipse 的哪个工程下面 -->
    31.         <sqlMapGenerator targetPackage="com.suke.springboot.mapper"
    32.                          targetProject="src/main/java">
    33.             <property name="enableSubPackages" value="false"/>
    34.         </sqlMapGenerator>
    35.         <!-- 生成 MyBatis 的 Mapper 接口类文件,targetPackage 指定 Mapper 接口类的包
    36.         名， targetProject 指定生成的 Mapper 接口放在 eclipse 的哪个工程下面 -->
    37.         <javaClientGenerator type="XMLMAPPER"
    38.                              targetPackage="com.suke.springboot.mapper"
    39.                              targetProject="src/main/java">
    40.             <property name="enableSubPackages" value="false"/>
    41.         </javaClientGenerator>
    42.
    43.         <!-- 数据库表名及对应的 Java 模型类名 -->
    44.         <!-- 指定数据库表
    45.          schema：表示数据库名称-->
    46.         <table tableName="tb_student" domainObjectName="Student"
    47.                enableCountByExample="false"
    48.                enableUpdateByExample="false"
    49.                enableDeleteByExample="false"
    50.                enableSelectByExample="false"
    51.                selectByExampleQueryId="false"/>
    52.     </context>
    53. </generatorConfiguration>

    （4）​​​​​​​点击插件生成

    E. ​​​​​​​实体bean必须实现序列化

    F. ​​​​​​​配置010-springboot-ssm-dubbo-provider核心配置文件

    1. #配置内嵌Tomcat端口号
    2. server.port=9010
    3. #配置项目上下文根
    4. server.servlet.context-path=/010-springboot-ssm-dubbo-provider
    5. #数据库的配置
    6. spring.datasource.driver-class-name=com.mysql.cj.jdbc.Driver
    7. spring.datasource.url=jdbc:mysql://localhost:3306/springboot?useUnicode=true&characterEncoding=utf-8&useSSL=false&serverTimezone=GMT%2B8
    8. spring.datasource.username=root
    9. spring.datasource.password=root
    10. #配置dubbo服务提供者
    11. spring.application.name=010-springboot-ssm-dubbo-provider
    12. #表示是服务提供者
    13. spring.dubbo.server=true
    14. #注册中心地址
    15. spring.dubbo.registry=zookeeper://192.168.60.130:2181
    16. #配置redis连接信息
    17. spring.redis.host=192.168.60.130
    18. spring.redis.port=6379
    19. spring.redis.password=123456

    G. ​​​​​​​StudentServiceImpl业务接口实现类

    1. /*
    2.  * ClassName:StudentServiceImpl
    3.  * Package:com.suke.springboot.service
    4.  * Description:<br/>
    5.  * */
    6. @Service(interfaceClass = StudentService.class, timeout = 20000, retries = 3, version = "1.0.0")
    7. @Component //将接口实现类交给spring容器进行管理
    8. public class StudentServiceImpl implements StudentService {
    9.
    10.     @Autowired
    11.     private StudentMapper studentMapper;
    12.
    13.     @Autowired
    14.     private RedisTemplate redisTemplate;
    15.
    16.     @Override
    17.     public Long queryAllStudentCount() {
    18.         //设置key键，序列化，与功能无关
    19.         redisTemplate.setKeySerializer(new StringRedisSerializer());
    20.         //从redis缓存中获取总人数
    21.         Long allStudentCount = (Long) redisTemplate.opsForValue().get("allStudentCount");
    22.         //判断学生总人数是否为空
    23.         if (allStudentCount == null) {
    24.             //设置同步代码块
    25.             synchronized (this) {
    26.                 //再次从redis缓存中获取学生总人数
    27.                 allStudentCount = (Long) redisTemplate.opsForValue().get("allStudentCount");
    28.                 //双重检测判断缓存中是否有数据
    29.                 if (allStudentCount == null) {
    30.                     System.out.println("----查询数据库-----");
    31.                     //从数据库查询
    32.                     allStudentCount = studentMapper.selectAllStudentCount();
    33.                     //将值再存放到redis缓存中
    34.                     redisTemplate.opsForValue().set("allStudentCount", allStudentCount, 20, TimeUnit.SECONDS);
    35.                 } else {
    36.                     System.out.println("-----缓存命中-------");
    37.                 }
    38.             }
    39.         } else {
    40.             System.out.println("-----缓存命中-------");
    41.         }
    42.         return allStudentCount;
    43.     }
    44. }

    H. ​​​​​​​StudentMapper接口

    1. //@Mapper
    2. @Repository
    3. public interface StudentMapper {
    4.
    5.     /*
    6.      * 获取学生总人数
    7.      * */
    8.     Long selectAllStudentCount();
    9. }

    I. ​​​​​​​StudentMapper.XML配置文件

    1. <?xml version="1.0" encoding="UTF-8"?>
    2. <!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
    3. <mapper namespace="com.suke.springboot.mapper.StudentMapper">
    4.     <resultMap id="BaseResultMap" type="com.suke.springboot.model.Student">
    5.         <id column="id" jdbcType="INTEGER" property="id"/>
    6.         <result column="name" jdbcType="VARCHAR" property="name"/>
    7.         <result column="age" jdbcType="INTEGER" property="age"/>
    8.     </resultMap>
    9.     <sql id="Base_Column_List">
    10.         id
    11.         , name, age
    12.     </sql>
    13.     <select id="selectByPrimaryKey" parameterType="java.lang.Integer" resultMap="BaseResultMap">
    14.         select
    15.         <include refid="Base_Column_List"/>
    16.         from tb_student
    17.         where id = #{id,jdbcType=INTEGER}
    18.     </select>
    19.     <delete id="deleteByPrimaryKey" parameterType="java.lang.Integer">
    20.         delete
    21.         from tb_student
    22.         where id = #{id,jdbcType=INTEGER}
    23.     </delete>
    24.     <insert id="insert" parameterType="com.suke.springboot.model.Student">
    25.         insert into tb_student (id, name, age)
    26.         values (#{id,jdbcType=INTEGER}, #{name,jdbcType=VARCHAR}, #{age,jdbcType=INTEGER})
    27.     </insert>
    28.     <insert id="insertSelective" parameterType="com.suke.springboot.model.Student">
    29.         insert into tb_student
    30.         <trim prefix="(" suffix=")" suffixOverrides=",">
    31.             <if test="id != null">
    32.                 id,
    33.             </if>
    34.             <if test="name != null">
    35.                 name,
    36.             </if>
    37.             <if test="age != null">
    38.                 age,
    39.             </if>
    40.         </trim>
    41.         <trim prefix="values (" suffix=")" suffixOverrides=",">
    42.             <if test="id != null">
    43.                 #{id,jdbcType=INTEGER},
    44.             </if>
    45.             <if test="name != null">
    46.                 #{name,jdbcType=VARCHAR},
    47.             </if>
    48.             <if test="age != null">
    49.                 #{age,jdbcType=INTEGER},
    50.             </if>
    51.         </trim>
    52.     </insert>
    53.     <update id="updateByPrimaryKeySelective" parameterType="com.suke.springboot.model.Student">
    54.         update tb_student
    55.         <set>
    56.             <if test="name != null">
    57.                 name = #{name,jdbcType=VARCHAR},
    58.             </if>
    59.             <if test="age != null">
    60.                 age = #{age,jdbcType=INTEGER},
    61.             </if>
    62.         </set>
    63.         where id = #{id,jdbcType=INTEGER}
    64.     </update>
    65.     <update id="updateByPrimaryKey" parameterType="com.suke.springboot.model.Student">
    66.         update tb_student
    67.         set name = #{name,jdbcType=VARCHAR},
    68.             age  = #{age,jdbcType=INTEGER}
    69.         where id = #{id,jdbcType=INTEGER}
    70.     </update>
    71.
    72.     <select id="selectAllStudentCount" resultType="long">
    73.         select count(*)
    74.         from tb_student
    75.     </select>
    76. </mapper>

    J. ​​​​​​​配置010-springboot-ssm-dubbo-provider启动类

    1. @SpringBootApplication
    2. @EnableDubboConfiguration//开启Dubbo配置支持
    3. @MapperScan("com.suke.springboot.mapper")//扫描数据持久层
    4. public class Application {
    5.
    6.     public static void main(String[] args) {
    7.         SpringApplication.run(Application.class, args);
    8.     }
    9.
    10. }

    三、开发Dubbo服务消费者

    项目名称：011-springboot-ssm-dubbo-consumer

    A. 创建SpringBoot Web项目

    ​​​​​​​B. 给Dubbo服务消费者添加依赖​​​​​​​

    1.         <!--SpringBoot集成Dubbo起步依赖-->
    2.         <dependency>
    3.             <groupId>com.alibaba.spring.boot</groupId>
    4.             <artifactId>dubbo-spring-boot-starter</artifactId>
    5.             <version>2.0.0</version>
    6.         </dependency>
    7.
    8.         <!--zookeeper注册中心-->
    9.         <dependency>
    10.             <groupId>com.101tec</groupId>
    11.             <artifactId>zkclient</artifactId>
    12.             <version>0.10</version>
    13.             <exclusions>
    14.                 <exclusion>
    15.                     <groupId>log4j</groupId>
    16.                     <artifactId>log4j</artifactId>
    17.                 </exclusion>
    18.                 <exclusion>
    19.                     <groupId>org.slf4j</groupId>
    20.                     <artifactId>slf4j-log4j12</artifactId>
    21.                 </exclusion>
    22.             </exclusions>
    23.         </dependency>
    24.
    25.         <!--dubbo接口工程-->
    26.         <dependency>
    27.             <groupId>com.suke.springboot</groupId>
    28.             <artifactId>009-springboot-ssm-dubbo-exterface</artifactId>
    29.             <version>1.0-SNAPSHOT</version>
    30.         </dependency>

    C. 配置011-springboot-ssm-dubbo-consumer核心配置文件

    1. #配置内嵌Tomcat端口号
    2. server.port=9011
    3. #配置项目上下文根
    4. server.servlet.context-path=/011-springboot-ssm-dubbo-consumer
    5. #配置zookeeper注册中心
    6. spring.application.name=011-springboot-ssm-dubbo-consumer
    7. spring.dubbo.registry=zookeeper://192.168.60.130:2181

    ​​​​​​​D. StudentController控制层

    1. /*
    2.  * ClassName:StudentController
    3.  * Package:com.suke.springboot.web
    4.  * Description:<br/>
    5.  * */
    6. @RestController
    7. public class StudentController {
    8.
    9.     @Reference(interfaceClass = StudentService.class, version = "1.0.0", timeout = 20000, retries = 3, check = false)
    10.     StudentService studentService;
    11.
    12.     @GetMapping(value = "/springBoot/student/count")
    13.     public Object studentCount(HttpServletRequest request) {
    14.
    15.         //创建线程池
    16.         ExecutorService executorService = Executors.newFixedThreadPool(16);
    17.         //模拟千人并发
    18.         for (int i = 0; i < 1000; i++) {
    19.             executorService.submit(new Runnable() {
    20.                 @Override
    21.                 public void run() {
    22.                     studentService.queryAllStudentCount();
    23.                 }
    24.             });
    25.         }
    26.         return "学生总人数：" + 7;
    27.     }
    28. }

    E. 配置011-springboot-ssm-dubbo-consumer启动类

    1. @SpringBootApplication
    2. @EnableDubboConfiguration   //开启dubbo支持配置
    3. public class Application {
    4.
    5.     public static void main(String[] args) {
    6.         SpringApplication.run(Application.class, args);
    7.     }
    8.
    9. }

    F. 启动项目和服务

    （1）启动redis服务

    01-Centos7安装Redis和启动Redishttps://blog.csdn.net/qq_45037155/article/details/124679838

    03-Redis客户端连接Redis服务器（redis.conf 文件配置没有生效导致redis运行报错Error: Connection reset by peer）https://blog.csdn.net/qq_45037155/article/details/124683432

    1. [root@Suke /]# cd /usr/local/redis-4.0.6/src/
    2.
    3. [root@Suke src]# ./redis-server ../redis.conf &

    （2）启动Zookeeper服务

    Zookeeper启动https://blog.csdn.net/qq_45037155/article/details/124959703

    ./zkServer.sh start
    1. [root@Suke ~]# cd /usr/local/apache-zookeeper-3.5.5-bin/bin/
    2. [root@Suke bin]# ./zkServer.sh help
    3. ZooKeeper JMX enabled by default
    4. Using config: /usr/local/apache-zookeeper-3.5.5-bin/bin/../conf/zoo.cfg
    5. Usage: ./zkServer.sh [--config <conf-dir>] {start|start-foreground|stop|restart|status|print-cmd}
    6. [root@Suke bin]# ./zkServer.sh start
    7. ZooKeeper JMX enabled by default
    8. Using config: /usr/local/apache-zookeeper-3.5.5-bin/bin/../conf/zoo.cfg
    9. Starting zookeeper ... STARTED

    （3）​​​​​​​启动010-springboot-ssm-dubbo-provider

    （4）​​​​​​​启动011-springboot-ssm-dubbo-consumer

    G. ​​​​​​​启动浏览器进行测试

    （1）浏览器访问结果

    （2）RedisDesktopManager访问结果

    （3）控制台访问结果

  • 相关阅读:
    软件测试/测试开发丨接口自动化测试学习笔记，多环境自动切换
    1.12 字典（Python）
    MySQL 事件调度
    黑马课程 Mybatis依赖出现报红
    【SpringMVC】SSM整合
    MySQL学习——在用Connector/NET处理BLOB数据
    Android聚合SDK母包反编译出包教程
    IPv6进阶：IPv6 过渡技术之 GRE 隧道
    【windows】网络设置了代理，怎么关闭
    服务注册中心Eureka
  • 原文地址：https://blog.csdn.net/qq_45037155/article/details/125481250
