1.前言

  目前市场上三维比较火的实现方案主要有两种，b/s 的方案主要是 Cesium，c/s 的方案主要是 ue（skyline 和 unity 也占一部分份额）。他们分别对应的是 WebGL 和 OpenGL，其最终都是通过 Shader 来实现的，通过图形学来实现的，所以又回到了代码界永远不变的真理，不论什么语言，修炼内功才是王道，修炼数据结构与算法才是王道。b/s 的好处显而易见，不用客户端怎么配置，但是缺点是对于大数据量的加载，存在性能瓶颈。而 c/s 的方案，主要是为了快，但是需要一堆环境配置。所以就可以解释了，为什么 UE 占主流，因为 UE 是C++ 写的，它的速度可比用 C# 写的 skyline 和 unity 快多了。

2.本篇的由来

  本篇博文起源于我们加载 terrain 文件时遇到的一个问题，terrain文件不能正常解析。最开始是加载 terrain 会导致影像图层也出不来了，后来是影像出来了，但是地形一直出不来。因此，我们决定看一看源码，就有了这一篇博文。

3.terrain文件的加载

  这是我们这一篇的核心，因为这里面的代码量非常大，涉及的细节非常多，所以，最终我们要通过图形化的方式，来对这一过程进行逐步解析。我们首先来看一下terrain 文件的加载，代码非常简单：

 var terrain=new Cesium.CesiumTerrainProvider({
   url:"http://localhost:8090/geoserver/terrain/globe",//有水面
   requestVertexNormals : false,
   requestWaterMask : true,
 });
 viewer.terrainProvider=terrain;
1
2
3
4
5
6

  接着，一步步的向下跟踪，我们就得到了这样一张总体调用流程图：

  由此，我们就得出了这样一个结论：Cesium 中的渲染，是由 startRenderLoop 这个函数来开启的，而 requestAnnimationFrame 的作用就是每一帧都去调用 render 函数，且 requestAnnimationFrame 能够保证渲染刷新的频率和浏览器的频率保持一致，当页面切换到后台时，就会停止渲染以提升性能。而 render 函数最终调用的地方则是 Scene.render ，这是整个渲染机制的控制中枢。我们来看看这个控制中枢都干了些什么：
  1.更新环境

scene.updateEnvironment();
1

  2.更新和执行渲染命令

scene.updateAndExecuteCommands();
1

  3.数据优化

scene.resolveFramebuffers();
1

  4.结束当前帧

scene.globe.endFrame();
Context.endFrame();
1
2

  看到这里，应该会发现，逻辑还是十分清晰的吧。但是细心的读者，应该会发现，第2步执行渲染命令，为什么会在第3步解析当前帧数据之前？第2步还没有数据呢，要渲染什么数据呢？我在这里先给出结论，后面我们会详细展开，结论就是：Cesium渲染的是上一帧的数据，因为上一帧的数据解析完成后，并没有真正的去执行，只是转为了 Shader 命令并加入到了渲染的队列中去，真正的去执行 Shader 命令，是在下一帧进行的。所以，Cesium 的渲染是具有滞后性的。

3.1 更新环境

  这一步的代码并不复杂，主要是为了更新天体和地球环境的影响。比如大气、天空、太阳、月亮，以及是否使用 WebVR 等，我们来看一下这个函数。

Scene.prototype.updateEnvironment = function () {
  var frameState = this._frameState;
  var view = this._view;

  // Update celestial and terrestrial environment effects.
  var environmentState = this._environmentState;
  var renderPass = frameState.passes.render;
  var offscreenPass = frameState.passes.offscreen;
  var skyAtmosphere = this.skyAtmosphere;
  var globe = this.globe;
  var globeTranslucencyState = this._globeTranslucencyState;

  if (
    !renderPass ||
    (this._mode !== SceneMode.SCENE2D &&
      view.camera.frustum instanceof OrthographicFrustum) ||
    !globeTranslucencyState.environmentVisible
  ) {
    environmentState.skyAtmosphereCommand = undefined;
    environmentState.skyBoxCommand = undefined;
    environmentState.sunDrawCommand = undefined;
    environmentState.sunComputeCommand = undefined;
    environmentState.moonCommand = undefined;
  } else {
    if (defined(skyAtmosphere)) {
      if (defined(globe)) {
        skyAtmosphere.setDynamicAtmosphereColor(
          globe.enableLighting && globe.dynamicAtmosphereLighting,
          globe.dynamicAtmosphereLightingFromSun
        );
        environmentState.isReadyForAtmosphere =
          environmentState.isReadyForAtmosphere ||
          globe._surface._tilesToRender.length > 0;
      }
      environmentState.skyAtmosphereCommand = skyAtmosphere.update(
        frameState,
        globe
      );
      if (defined(environmentState.skyAtmosphereCommand)) {
        this.updateDerivedCommands(environmentState.skyAtmosphereCommand);
      }
    } else {
      environmentState.skyAtmosphereCommand = undefined;
    }

    environmentState.skyBoxCommand = defined(this.skyBox)
      ? this.skyBox.update(frameState, this._hdr)
      : undefined;
    var sunCommands = defined(this.sun)
      ? this.sun.update(frameState, view.passState, this._hdr)
      : undefined;
    environmentState.sunDrawCommand = defined(sunCommands)
      ? sunCommands.drawCommand
      : undefined;
    environmentState.sunComputeCommand = defined(sunCommands)
      ? sunCommands.computeCommand
      : undefined;
    environmentState.moonCommand = defined(this.moon)
      ? this.moon.update(frameState)
      : undefined;
  }

  var clearGlobeDepth = (environmentState.clearGlobeDepth =
    defined(globe) &&
    globe.show &&
    (!globe.depthTestAgainstTerrain || this.mode === SceneMode.SCENE2D));
  var useDepthPlane = (environmentState.useDepthPlane =
    clearGlobeDepth &&
    this.mode === SceneMode.SCENE3D &&
    globeTranslucencyState.useDepthPlane);
  if (useDepthPlane) {
    // Update the depth plane that is rendered in 3D when the primitives are
    // not depth tested against terrain so primitives on the backface
    // of the globe are not picked.
    this._depthPlane.update(frameState);
  }

  environmentState.renderTranslucentDepthForPick = false;
  environmentState.useWebVR =
    this._useWebVR && this.mode !== SceneMode.SCENE2D && !offscreenPass;

  var occluder =
    frameState.mode === SceneMode.SCENE3D &&
    !globeTranslucencyState.sunVisibleThroughGlobe
      ? frameState.occluder
      : undefined;
  var cullingVolume = frameState.cullingVolume;

  // get user culling volume minus the far plane.
  var planes = scratchCullingVolume.planes;
  for (var k = 0; k < 5; ++k) {
    planes[k] = cullingVolume.planes[k];
  }
  cullingVolume = scratchCullingVolume;

  // Determine visibility of celestial and terrestrial environment effects.
  environmentState.isSkyAtmosphereVisible =
    defined(environmentState.skyAtmosphereCommand) &&
    environmentState.isReadyForAtmosphere;
  environmentState.isSunVisible = this.isVisible(
    environmentState.sunDrawCommand,
    cullingVolume,
    occluder
  );
  environmentState.isMoonVisible = this.isVisible(
    environmentState.moonCommand,
    cullingVolume,
    occluder
  );

  var envMaps = this.specularEnvironmentMaps;
  var envMapAtlas = this._specularEnvironmentMapAtlas;
  if (
    defined(envMaps) &&
    (!defined(envMapAtlas) || envMapAtlas.url !== envMaps)
  ) {
    envMapAtlas = envMapAtlas && envMapAtlas.destroy();
    this._specularEnvironmentMapAtlas = new OctahedralProjectedCubeMap(envMaps);
  } else if (!defined(envMaps) && defined(envMapAtlas)) {
    envMapAtlas.destroy();
    this._specularEnvironmentMapAtlas = undefined;
  }

  if (defined(this._specularEnvironmentMapAtlas)) {
    this._specularEnvironmentMapAtlas.update(frameState);
  }
};
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127

3.2 更新和执行渲染命令

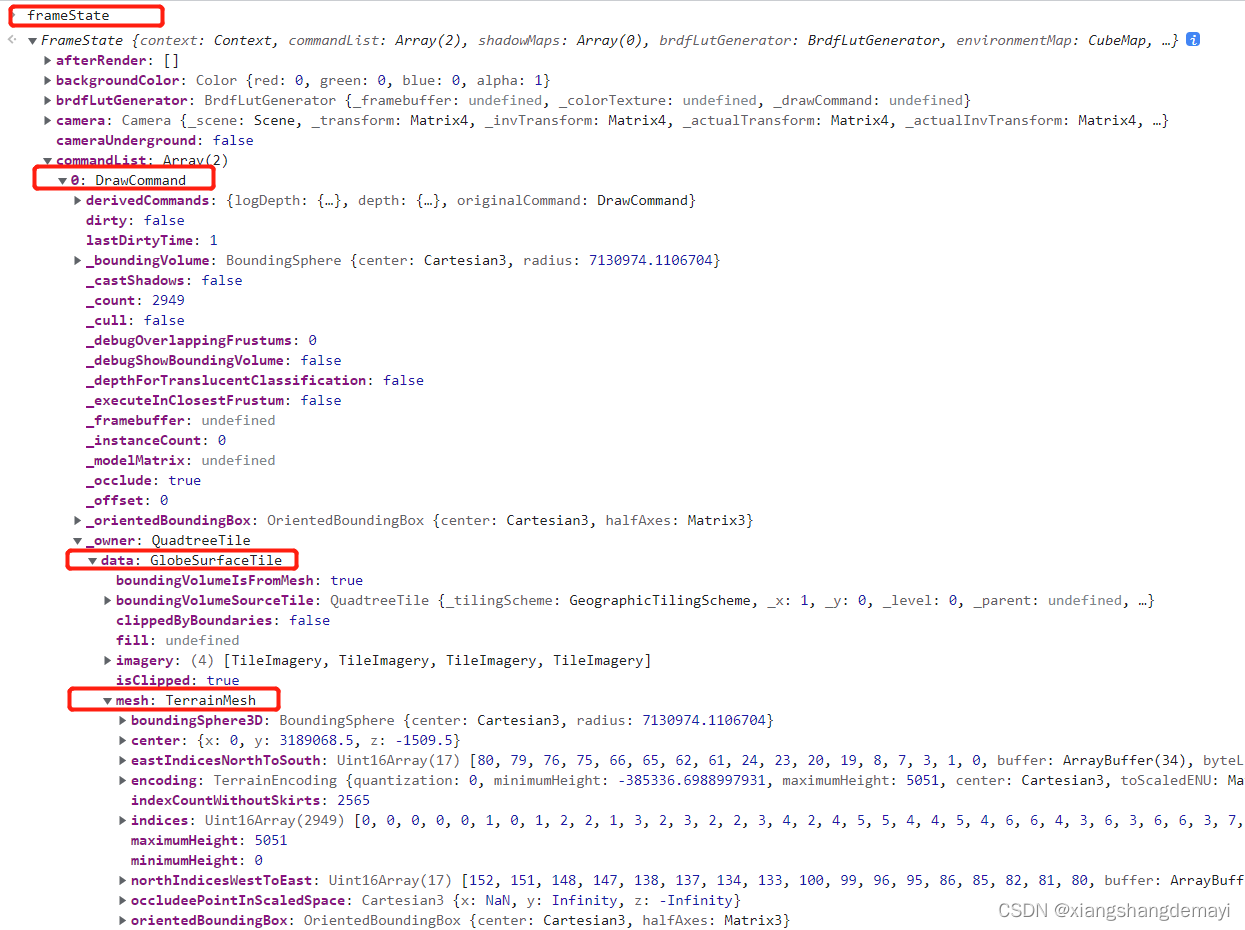

  这一步的代码量是很大的，但主要的核心思想就是会去执行当前帧对象 frameState 的 commandList 中的多个或一个 DrawCommand。这一步的执行过程我们可以用这样一张图来表示:

  通过上图我们可以发现，最终是在 Context.prototype.draw() 函数中去执行 beginDraw() 和 continueDraw() 方法来实现执行 WebGL 和 Shader 命令的。
  然后在执行到 updateAndRenderPrimitives(); 时又会去走另外一个分支，此时，上面这样图就变成了这样：

  发现了什么？这里会根据当前帧对象 frameState 去选择要渲染哪些切片，然后再去创建命令。这两部分别对应的是图中加黑的两行，即 selectTilesForRendering(this, frameState); 和 createRenderCommandsForSelectedTiles(this, frameState); 然而，这样还没完，在执行 selectTilesForRendering(this, frameState); 时，还会去走一个分支，上面这样图的左边就会变成：

  所以，当 tile 可见时，就会被加入到渲染队列中去，等待后面的渲染，否则就会进入加载队列等待加载。

3.3 数据优化

  这一步主要是判断是否使用 OIT（半透明渲染算法）、全球深度和后期处理，来进行一系列的优化，代码也不复杂，我们来看一下。

Scene.prototype.resolveFramebuffers = function (passState) {
  var context = this._context;
  var environmentState = this._environmentState;
  var view = this._view;
  var globeDepth = view.globeDepth;

  var useOIT = environmentState.useOIT;
  var useGlobeDepthFramebuffer = environmentState.useGlobeDepthFramebuffer;
  var usePostProcess = environmentState.usePostProcess;

  var defaultFramebuffer = environmentState.originalFramebuffer;
  var globeFramebuffer = useGlobeDepthFramebuffer
    ? globeDepth.framebuffer
    : undefined;
  var sceneFramebuffer = view.sceneFramebuffer.getFramebuffer();
  var idFramebuffer = view.sceneFramebuffer.getIdFramebuffer();

  if (environmentState.separatePrimitiveFramebuffer) {
    // Merge primitive framebuffer into globe framebuffer
    globeDepth.executeMergeColor(context, passState);
  }

  if (useOIT) {
    passState.framebuffer = usePostProcess
      ? sceneFramebuffer
      : defaultFramebuffer;
    view.oit.execute(context, passState);
  }

  var translucentTileClassification = view.translucentTileClassification;
  if (
    translucentTileClassification.hasTranslucentDepth &&
    translucentTileClassification.isSupported()
  ) {
    translucentTileClassification.execute(this, passState);
  }

  if (usePostProcess) {
    var inputFramebuffer = sceneFramebuffer;
    if (useGlobeDepthFramebuffer && !useOIT) {
      inputFramebuffer = globeFramebuffer;
    }

    var postProcess = this.postProcessStages;
    var colorTexture = inputFramebuffer.getColorTexture(0);
    var idTexture = idFramebuffer.getColorTexture(0);
    var depthTexture = defaultValue(globeFramebuffer, sceneFramebuffer)
      .depthStencilTexture;
    postProcess.execute(context, colorTexture, depthTexture, idTexture);
    postProcess.copy(context, defaultFramebuffer);
  }

  if (!useOIT && !usePostProcess && useGlobeDepthFramebuffer) {
    passState.framebuffer = defaultFramebuffer;
    globeDepth.executeCopyColor(context, passState);
  }
};
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57

这一步让人难以理解的是，干的工作都是优化，但是函数名翻译过来却叫做解析当前帧数据，这就令人费解了，因为真正的解析 terrain 数据，是在下一步干的，真是令人百思不得其解。

3.4 结束当前帧

  这一步是重点中的重点，因为会在这一步去解析 terrain 文件，在此之前，我们先来看下这一步调用的流程图：

  可以看到这一步可以简单概括为三行代码，处理切片加载队列、更新高度、更新切片加载过程。但是图中的第一行代码又进行了其他的一系列操作，其中就有我们非常关心的 terrain 文件的解析，所以，这张图就变成了这样：

  可以看到最后一步就是去创建 terrain 数据对象，这种数据类型是 Cesium 定义的，类型就叫做 QuantizedMesh。那么重点就来了，我们就是要看看它到底是怎么解析的，直接上代码：

function createQuantizedMeshTerrainData(provider, buffer, level, x, y, layer) {
  var littleEndianExtensionSize = layer.littleEndianExtensionSize;
  var pos = 0;
  var cartesian3Elements = 3;
  var boundingSphereElements = cartesian3Elements + 1;
  var cartesian3Length = Float64Array.BYTES_PER_ELEMENT * cartesian3Elements;
  var boundingSphereLength =
    Float64Array.BYTES_PER_ELEMENT * boundingSphereElements;
  var encodedVertexElements = 3;
  var encodedVertexLength =
    Uint16Array.BYTES_PER_ELEMENT * encodedVertexElements;
  var triangleElements = 3;
  var bytesPerIndex = Uint16Array.BYTES_PER_ELEMENT;
  var triangleLength = bytesPerIndex * triangleElements;

  var view = new DataView(buffer);
  //中心
  var center = new Cartesian3(
    view.getFloat64(pos, true),
    view.getFloat64(pos + 8, true),
    view.getFloat64(pos + 16, true)
  );
  pos += cartesian3Length;
  //最大高度最小高度
  var minimumHeight = view.getFloat32(pos, true);
  pos += Float32Array.BYTES_PER_ELEMENT;
  var maximumHeight = view.getFloat32(pos, true);
  pos += Float32Array.BYTES_PER_ELEMENT;

  //外接球面
  var boundingSphere = new BoundingSphere(
    new Cartesian3(
      view.getFloat64(pos, true),
      view.getFloat64(pos + 8, true),
      view.getFloat64(pos + 16, true)
    ),
    view.getFloat64(pos + cartesian3Length, true)
  );
  pos += boundingSphereLength;
  //水平遮挡点
  var horizonOcclusionPoint = new Cartesian3(
    view.getFloat64(pos, true),
    view.getFloat64(pos + 8, true),
    view.getFloat64(pos + 16, true)
  );
  pos += cartesian3Length;
  //顶点数量
  var vertexCount = view.getUint32(pos, true);
  pos += Uint32Array.BYTES_PER_ELEMENT;
  var encodedVertexBuffer = new Uint16Array(buffer, pos, vertexCount * 3);
  pos += vertexCount * encodedVertexLength;

  if (vertexCount > 64 * 1024) {
    // More than 64k vertices, so indices are 32-bit.
    bytesPerIndex = Uint32Array.BYTES_PER_ELEMENT;
    triangleLength = bytesPerIndex * triangleElements;
  }

  // Decode the vertex buffer.
  var uBuffer = encodedVertexBuffer.subarray(0, vertexCount);
  var vBuffer = encodedVertexBuffer.subarray(vertexCount, 2 * vertexCount);
  var heightBuffer = encodedVertexBuffer.subarray(
    vertexCount * 2,
    3 * vertexCount
  );

  AttributeCompression.zigZagDeltaDecode(uBuffer, vBuffer, heightBuffer);

  // skip over any additional padding that was added for 2/4 byte alignment
  if (pos % bytesPerIndex !== 0) {
    pos += bytesPerIndex - (pos % bytesPerIndex);
  }
  //三角形的数量
  var triangleCount = view.getUint32(pos, true);
  pos += Uint32Array.BYTES_PER_ELEMENT;
  var indices = IndexDatatype.createTypedArrayFromArrayBuffer(
    vertexCount,
    buffer,
    pos,
    triangleCount * triangleElements
  );
  pos += triangleCount * triangleLength;

  // High water mark decoding based on decompressIndices_ in webgl-loader's loader.js.
  // https://code.google.com/p/webgl-loader/source/browse/trunk/samples/loader.js?r=99#55
  // Copyright 2012 Google Inc., Apache 2.0 license.
  var highest = 0;
  var length = indices.length;
  for (var i = 0; i < length; ++i) {
    var code = indices[i];
    indices[i] = highest - code;
    if (code === 0) {
      ++highest;
    }
  }
  //东南西北顶点的解析
  var westVertexCount = view.getUint32(pos, true);
  pos += Uint32Array.BYTES_PER_ELEMENT;
  var westIndices = IndexDatatype.createTypedArrayFromArrayBuffer(
    vertexCount,
    buffer,
    pos,
    westVertexCount
  );
  pos += westVertexCount * bytesPerIndex;

  var southVertexCount = view.getUint32(pos, true);
  pos += Uint32Array.BYTES_PER_ELEMENT;
  var southIndices = IndexDatatype.createTypedArrayFromArrayBuffer(
    vertexCount,
    buffer,
    pos,
    southVertexCount
  );
  pos += southVertexCount * bytesPerIndex;

  var eastVertexCount = view.getUint32(pos, true);
  pos += Uint32Array.BYTES_PER_ELEMENT;
  var eastIndices = IndexDatatype.createTypedArrayFromArrayBuffer(
    vertexCount,
    buffer,
    pos,
    eastVertexCount
  );
  pos += eastVertexCount * bytesPerIndex;

  var northVertexCount = view.getUint32(pos, true);
  pos += Uint32Array.BYTES_PER_ELEMENT;
  var northIndices = IndexDatatype.createTypedArrayFromArrayBuffer(
    vertexCount,
    buffer,
    pos,
    northVertexCount
  );
  pos += northVertexCount * bytesPerIndex;

  var encodedNormalBuffer;
  var waterMaskBuffer;

  while (pos < view.byteLength) {
    var extensionId = view.getUint8(pos, true);
    pos += Uint8Array.BYTES_PER_ELEMENT;
    var extensionLength = view.getUint32(pos, littleEndianExtensionSize);
    pos += Uint32Array.BYTES_PER_ELEMENT;
    console.log( level, x, y,"extensionid="+extensionId+",extensionLength="+extensionLength+",byteLength="+view.byteLength);
    if (
      extensionId === QuantizedMeshExtensionIds.OCT_VERTEX_NORMALS &&
      provider._requestVertexNormals
    ) {
      //数据中有光照并且也请求了光照
      encodedNormalBuffer = new Uint8Array(buffer, pos, vertexCount * 2);
    } else if (
      extensionId === QuantizedMeshExtensionIds.WATER_MASK &&
      provider._requestWaterMask
    ) {
      //数据中有水面并且也请求了水面
      waterMaskBuffer = new Uint8Array(buffer, pos, extensionLength);
    } else if (
      extensionId === QuantizedMeshExtensionIds.METADATA &&
      provider._requestMetadata
    ) {
      //数据中有元数据并且也请求了元数据
      var stringLength = view.getUint32(pos, true);
      console.log("metadata_length="+stringLength);
      if (stringLength > 0) {
        var metadata = getJsonFromTypedArray(
          new Uint8Array(buffer),
          pos + Uint32Array.BYTES_PER_ELEMENT,
          stringLength
        );
        var availableTiles = metadata.available;

        // console.log("availableTiles="+availableTiles);

        if(level==0 &&  x==1 &&  y==0){
          if(sessionStorage.getItem("str010")){
            availableTiles=JSON.parse(sessionStorage.getItem("str010"))
          }else{
            sessionStorage.setItem("str010",JSON.stringify(availableTiles));
          }
        }
        if(level==0 &&  x==0 &&  y==0){
          if(sessionStorage.getItem("str000")){
            availableTiles=JSON.parse(sessionStorage.getItem("str000"))
          }else{
            sessionStorage.setItem("str000",JSON.stringify(availableTiles));
          }

        }

        // if(level % 10 !=0) availableTiles=undefined;
        if (defined(availableTiles)) {
          for (var offset = 0; offset < availableTiles.length; ++offset) {
            var availableLevel = level + offset + 1;
            var rangesAtLevel = availableTiles[offset];
            var yTiles = provider._tilingScheme.getNumberOfYTilesAtLevel(
              availableLevel
            );

            for (
              var rangeIndex = 0;
              rangeIndex < rangesAtLevel.length;
              ++rangeIndex
            ) {
              var range = rangesAtLevel[rangeIndex];
              var yStart = yTiles - range.endY - 1;
              var yEnd = yTiles - range.startY - 1;
              provider.availability.addAvailableTileRange(
                availableLevel,
                range.startX,
                yStart,
                range.endX,
                yEnd
              );
              layer.availability.addAvailableTileRange(
                availableLevel,
                range.startX,
                yStart,
                range.endX,
                yEnd
              );
            }
          }
        }
      }
      layer.availabilityTilesLoaded.addAvailableTileRange(level, x, y, x, y);
    }
    pos += extensionLength;
  }
  //裙摆高度
  var skirtHeight = provider.getLevelMaximumGeometricError(level) * 5.0;

  // The skirt is not included in the OBB computation. If this ever
  // causes any rendering artifacts (cracks), they are expected to be
  // minor and in the corners of the screen. It's possible that this
  // might need to be changed - just change to `minimumHeight - skirtHeight`
  // A similar change might also be needed in `upsampleQuantizedTerrainMesh.js`.
  var rectangle = provider._tilingScheme.tileXYToRectangle(x, y, level);
  var orientedBoundingBox = OrientedBoundingBox.fromRectangle(
    rectangle,
    minimumHeight,
    maximumHeight,
    provider._tilingScheme.ellipsoid
  );

  return new QuantizedMeshTerrainData({
    center: center,
    minimumHeight: minimumHeight,
    maximumHeight: maximumHeight,
    boundingSphere: boundingSphere,
    orientedBoundingBox: orientedBoundingBox,
    horizonOcclusionPoint: horizonOcclusionPoint,
    quantizedVertices: encodedVertexBuffer,
    encodedNormals: encodedNormalBuffer,
    indices: indices,
    westIndices: westIndices,
    southIndices: southIndices,
    eastIndices: eastIndices,
    northIndices: northIndices,
    westSkirtHeight: skirtHeight,
    southSkirtHeight: skirtHeight,
    eastSkirtHeight: skirtHeight,
    northSkirtHeight: skirtHeight,
    childTileMask: provider.availability.computeChildMaskForTile(level, x, y),
    waterMask: waterMaskBuffer,
    credits: provider._tileCredits,
  });
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268

  重要的地方都加上中文注释了，仔细看上面的代码，可以发现其中包括水面、光照、元数据等的解析，都是在一个 while 循环中完成的。至此，我们的数据也就解析完了。
  最后我们来看看贯穿了所有过程的 frameState 对象，他怎么引用的：

  用一句话总结就是 frameState 对象中的 commandList 中的 Command 对象引用了 tile 对象，这样我们的整个从数据解析到渲染的过程就都串联起来了。

4. 总结

  本文通过梳理 terrain 文件的加载、解析、渲染过程，基本理清了整个 Cesium 的渲染过程，只是最后的 WebGL 和 Shader 命令没有进行深入，留待后续完善。这一块需要计算题图形学的知识，现在三维方面，不论是 UE 还是 Cesium ,都要计算机图形学的相关知识储备才能进行深入探讨。本文是作者看了好多天源码整理出来的，由于个人水平有限，其中难免有一些理解不足之处，欢迎读者指正。
