画一棵树

从一个树枝开始，分叉向两端（或者更多端），然后继续从新的树枝进行分叉，…

while True:
    树枝 = 树枝.分叉
1
2

如果不限制，树可以一直这么长下去…

最后会长成这样：（限制了分叉层数）

对颜色等参数进行一些改变，就可以得到不同的树：

好了，我们已经知道树的生长原理了，现在让我们把这个过程画出来。

turtle 海龟绘图

turtle是Python内置的一个画图库，使用tkinter实现基本图形界面。

它的方法就是用一只海龟作为画笔在屏幕绘图。

更多方法参考标准库中turtle一节。

这里用一个画正方形的例子演示turtle用法：

import turtle       # 首先导入turtle库

p = turtle.Turtle() # 初始化画笔p
p.speed(1)          # 设置速度为1，最慢。
for i in range(4):
    p.forward(300)  # 画笔向前移动300像素点
    p.right(90)     # 画笔角度右转90度。

turtle.mainloop()   #启动绘图。
1
2
3
4
5
6
7
8
9

（注：画笔初始方向朝右）

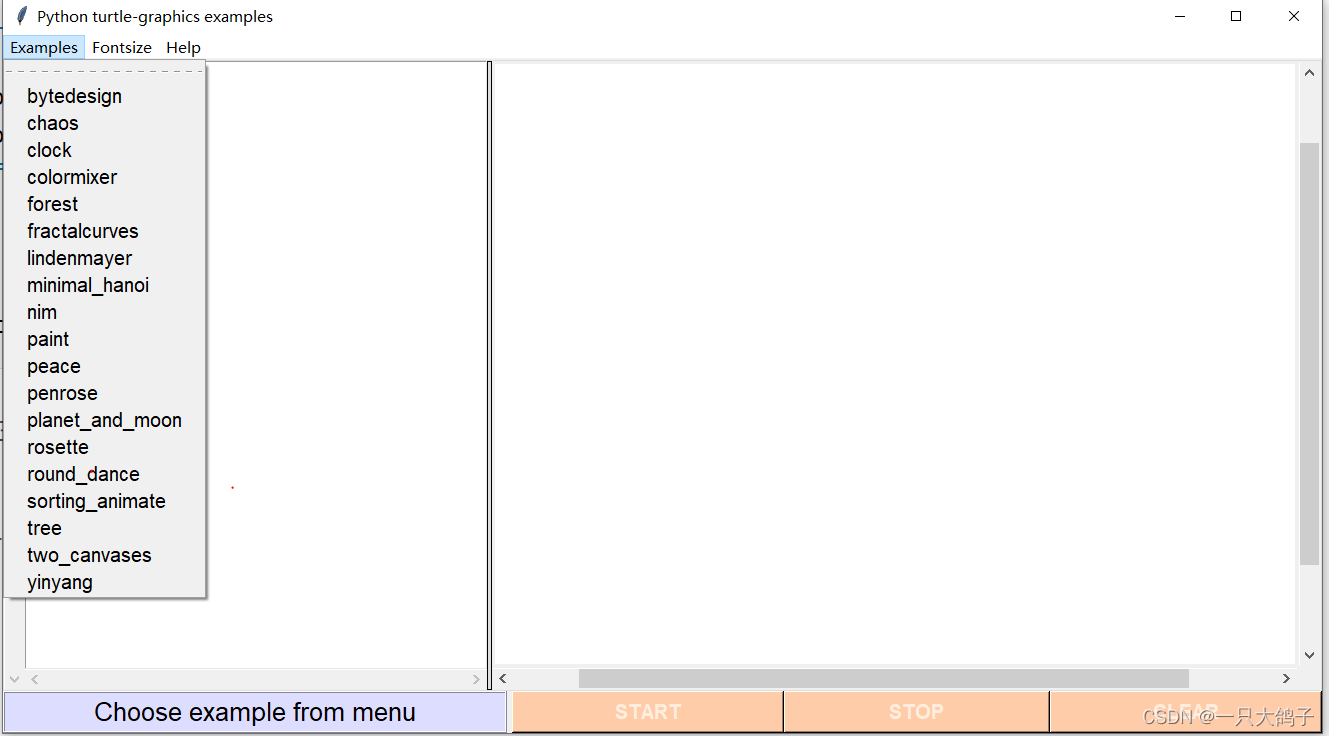

turtle自带了一些示例，我们可以在命令行输入python -m turtledemo 查看
示例包括特殊图形、噪声、时钟、混色器、森林、分形曲线、nim游戏、画笔、彩虹、penrose、星球、球、三角、排序模拟、树、上下画布、太极图。

里面有很多例子，可以选择。左边可以查看代码，右边点击START运行。

tree

以tree为例，

下面tree的生成使用了广度优先。把当前层的树枝画完，并且把下一层的放入列表，然后递归处理下一层。

from turtle import Turtle, mainloop
from time import perf_counter as clock

def tree(plist, l, a, f):
    """ plist 笔的列表
    l 树枝长度
    a 树枝转弯角度
    f 树枝长度衰减因子
    from level to level."""
    if l > 3:
        lst = []
        for p in plist:
            p.forward(l)
            q = p.clone()
            p.left(a) #左转
            q.right(a) #右转
            lst.append(p)
            lst.append(q)
        tree(lst, l*f, a, f)


def maketree():
    p = Turtle()
    p.setundobuffer(None)
    p.hideturtle()
    p.speed(1)
    p.getscreen().tracer(10,0)
    p.left(90) #初始朝右，左转90度朝上
    p.penup()
    p.forward(-210)
    p.pendown()
    tree([p], 200, 65, 0.635)


def main():
    a=clock()
    maketree()
    b=clock()
    return "done: %.2f sec." % (b-a)

if __name__ == "__main__":
    msg = main()
    print(msg)
    mainloop()


1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46

forest

文章开始画的树示是例中的forest.

也使用了广度优先。代码比较长，就不全放了。只看关键的树的生成：

def tree(tlist, size, level, widthfactor, branchlists, angledist=10, sizedist=5):
    # benutzt Liste von turtles und Liste von Zweiglisten,
    # fuer jede turtle eine!
    if level > 0:
        lst = []
        brs = []
        for t, branchlist in list(zip(tlist,branchlists)):
            t.pensize( size * widthfactor )
            t.pencolor( 255 - (180 - 11 * level + symRandom(15)),
                        180 - 11 * level + symRandom(15),
                        0 )
            t.pendown()
            randomfd(t, size, level, angledist )
            yield 1
            for angle, sizefactor in branchlist:
                t.left(angle)
                lst.append(t.clone())
                brs.append(randomize(branchlist, angledist, sizedist))
                t.right(angle)
        for x in tree(lst, size*sizefactor, level-1, widthfactor, brs,
                      angledist, sizedist):
            yield None
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22

原始的代码比较难懂，因为他用了yield来方便后面的交替画树。（带有yield的函数实际上是一个生成器。后面再说生成器。）

我们把yield去掉，改成常规的递归调用。这就是一个典型的广度优先遍历。和上面的tree基本一样。

def tree(tlist, size, level, widthfactor, branchlists, angledist=10, sizedist=5):
    if level > 0:
        lst = []
        brs = []
        for t, branchlist in list(zip(tlist,branchlists)):
            t.pensize( size * widthfactor )
            t.pencolor( 255 - (180 - 11 * level + symRandom(15)),
                        180 - 11 * level + symRandom(15),
                        0 )
            t.pendown()
            #树枝进行生长
            randomfd(t, size, level, angledist)
            for angle, sizefactor in branchlist:
                t.left(angle)
                lst.append(t.clone()) #做出选择，并保存
                brs.append(randomize(branchlist, angledist, sizedist))
                t.right(angle)  #back 回撤选择
        #递归处理下一层
        tree(lst, size*sizefactor, level-1, widthfactor, brs,
                      angledist, sizedist)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

微调：

我们对原始代码的pensize, pencolor中的参数进行调整，就可以改变树的颜色和粗细。

RGB颜色对照表 (oschina.net)

用下面方法可以创建一棵树。可以调整参数，创建n棵数。

pen.hideturtle()
start(pen, 20, -208)
#参数： 笔(Turtle对象)，线条宽度，树的层数，宽度因子，[[(树枝改变角度，宽度衰减因子)]]
t = tree( [pen], 80, level, 0.1, [[ (45,0.69), (0,0.65), (-45,0.71) ]] )
1
2
3
4

附录：

完整代码：
tree.py

from turtle import Turtle, mainloop
from time import perf_counter as clock

def tree(plist, l, a, f):
    """ plist 笔的列表
    l 树枝长度
    a 树枝转弯角度
    f 树枝长度衰减因子
    from level to level."""
    if l > 3:
        lst = []
        for p in plist:
            p.forward(l)
            q = p.clone()
            p.left(a) #左转
            q.right(a) #右转
            lst.append(p)
            lst.append(q)
        tree(lst, l*f, a, f)


def maketree():
    p = Turtle()
    p.setundobuffer(None)
    p.hideturtle()
    p.speed(1)
    p.getscreen().tracer(10,0)
    p.left(90) #初始朝右，左转90度朝上
    p.penup()
    p.forward(-210)
    p.pendown()
    tree([p], 200, 65, 0.635)


def main():
    a=clock()
    maketree()
    b=clock()
    return "done: %.2f sec." % (b-a)

if __name__ == "__main__":
    msg = main()
    print(msg)
    mainloop()

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45

forest.py

#!/usr/bin/env python3
"""     turtlegraphics-example-suite:

             tdemo_forest.py

Displays a 'forest' of 3 breadth-first-trees
similar to the one in tree.
For further remarks see tree.py

This example is a 'breadth-first'-rewrite of
a Logo program written by Erich Neuwirth. See
http://homepage.univie.ac.at/erich.neuwirth/
"""
from turtle import Turtle, colormode, tracer, mainloop
from random import randrange
from time import perf_counter as clock

def symRandom(n):
    return randrange(-n,n+1)

def randomize( branchlist, angledist, sizedist ):
    return [ (angle+symRandom(angledist),
              sizefactor*1.01**symRandom(sizedist))
                     for angle, sizefactor in branchlist ]

def randomfd( t, distance, parts, angledist ):
    for i in range(parts):
        t.left(symRandom(angledist))
        t.forward( (1.0 * distance)/parts )

def tree(tlist, size, level, widthfactor, branchlists, angledist=10, sizedist=5):
    # benutzt Liste von turtles und Liste von Zweiglisten,
    # fuer jede turtle eine!
    if level > 0:
        lst = []
        brs = []
        for t, branchlist in list(zip(tlist,branchlists)):
            t.pensize( size * widthfactor )
            t.pencolor( 255 - (180 - 11 * level + symRandom(15)),
                        180 - 11 * level + symRandom(15),
                        0 )
            t.pendown()
            randomfd(t, size, level, angledist )
            yield 1
            for angle, sizefactor in branchlist:
                t.left(angle)
                lst.append(t.clone())
                brs.append(randomize(branchlist, angledist, sizedist))
                t.right(angle)
        for x in tree(lst, size*sizefactor, level-1, widthfactor, brs,
                      angledist, sizedist):
            yield None


def start(t,x,y):
    colormode(255)
    t.reset()
    t.speed(0)
    t.hideturtle()
    t.left(90)
    t.penup()
    t.setpos(x,y)
    t.pendown()

def doit1(level, pen):
    pen.hideturtle()
    start(pen, 20, -208)
    t = tree( [pen], 80, level, 0.1, [[ (45,0.69), (0,0.65), (-45,0.71) ]] )
    return t

def doit2(level, pen):
    pen.hideturtle()
    start(pen, -135, -130)
    t = tree( [pen], 120, level, 0.1, [[ (45,0.69), (-45,0.71) ]] )
    return t

def doit3(level, pen):
    pen.hideturtle()
    start(pen, 190, -90)
    t = tree( [pen], 100, level, 0.1, [[ (45,0.7), (0,0.72), (-45,0.65) ]] )
    return t

# Hier 3 Baumgeneratoren:
def main():
    p = Turtle()
    p.ht()
    tracer(75,0)
    u = doit1(6, Turtle(undobuffersize=1))
    s = doit2(7, Turtle(undobuffersize=1))
    t = doit3(5, Turtle(undobuffersize=1))
    a = clock()
    while True:
        done = 0
        for b in u,s,t:
            try:
                b.__next__()
            except:
                done += 1
        if done == 3:
            break

    tracer(1,10)
    b = clock()
    return "runtime: %.2f sec." % (b-a)

if __name__ == '__main__':
    run_time = main()
    print(run_time)
    mainloop()

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110

修改后的forest，去掉了yield

#!/usr/bin/env python3
"""     turtlegraphics-example-suite:

             tdemo_forest.py

Displays a 'forest' of 3 breadth-first-trees
similar to the one in tree.
For further remarks see tree.py

This example is a 'breadth-first'-rewrite of
a Logo program written by Erich Neuwirth. See
http://homepage.univie.ac.at/erich.neuwirth/
"""
from turtle import Turtle, colormode, tracer, mainloop
from random import randrange
from time import perf_counter as clock


def symRandom(n):
    return randrange(-n, n + 1)


def randomize(branchlist, angledist, sizedist):
    return [(angle + symRandom(angledist),
             sizefactor * 1.01 ** symRandom(sizedist))
            for angle, sizefactor in branchlist]


def randomfd(t, distance, parts, angledist):
    for i in range(parts):
        t.left(symRandom(angledist))
        t.forward((1.0 * distance) / parts)


def tree(tlist, size, level, widthfactor, branchlists, angledist=10, sizedist=5):
    if level > 0:
        lst = []
        brs = []
        for t, branchlist in list(zip(tlist, branchlists)):
            t.pensize(size * widthfactor)
            t.pencolor(255 - (180 - 11 * level + symRandom(15)),
                       180 - 11 * level + symRandom(15),
                       0)
            t.pendown()
            # 树枝进行生长
            randomfd(t, size, level, angledist)
            for angle, sizefactor in branchlist:
                t.left(angle)
                lst.append(t.clone())  # 做出选择，并保存
                brs.append(randomize(branchlist, angledist, sizedist))
                t.right(angle)  # back 回撤选择
        # 递归处理下一层
        tree(lst, size * sizefactor, level - 1, widthfactor, brs,
             angledist, sizedist)


def start(t, x, y):
    colormode(255)
    t.reset()
    t.speed(0)
    t.hideturtle()
    t.left(90)
    t.penup()
    t.setpos(x, y)
    t.pendown()


def doit1(level, pen):
    pen.hideturtle()
    start(pen, 20, -208)
    t = tree([pen], 80, level, 0.1, [[(45, 0.69), (0, 0.65), (-45, 0.71)]])
    return t


def doit2(level, pen):
    pen.hideturtle()
    start(pen, -135, -130)
    t = tree([pen], 120, level, 0.1, [[(45, 0.69), (-45, 0.71)]])
    return t


def doit3(level, pen):
    pen.hideturtle()
    start(pen, 190, -90)
    t = tree([pen], 100, level, 0.1, [[(45, 0.7), (0, 0.72), (-45, 0.65)]])
    return t


# Hier 3 Baumgeneratoren:
def main():
    a = clock()
    p = Turtle()
    p.ht()
    tracer(75, 0)
    u = doit1(6, Turtle(undobuffersize=1))
    s = doit2(7, Turtle(undobuffersize=1))
    t = doit3(5, Turtle(undobuffersize=1))
    b = clock()
    return "runtime: %.2f sec." % (b - a)


if __name__ == '__main__':
    run_time = main()
    print(run_time)
    mainloop()

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
