• 日志采集/分析

    目录

    EFK

    这是一个日志收集系统，日志收集属于可观测性体系

    可观测性体系

    • 监控

      • 基础设施的维度
        • USE方法
          • CPU：
            • 利用率
            • 负载
          • 内存：
            • 利用率
            • 饱和度
            • 错误率
          • 网卡：
            • 利用率
            • 饱和度
            • 错误率
      • 应用程序的维度
        • RED方法

    • 日志

      • 操作系统维度
      • 应用维度
        • 通过日志的错误进一步完善监控
        • 通过日志排查问题
        • 行为分析

    • 链路追踪

    1. 日志系统

    1. ELK
      • ElasticSearch ：日志存储系统
      • LogStash：日志采集器
      • Kibana：日志查询分析系统

    ELK现在用的少，原因是

    1. jruby（java+ruby）
    2. 语法复杂：重量级日志采集
    3. 性能差

    1. EFK

      • ElasticSearch
      • Fluneted：日志采集器
      • Kibana

    2. PLG

      • Promtail :日志采集器
      • Loki：日志存储系统
      • Grafana：日志查询分析系统

    我们这里部署的架构是

    ilogtail ---> kafka ---> logstash ---> elasticsearch ---> kibana

    使用ilogtail采集日志写入到kafka消息队列里，再由logstash从消息队列里读取日志写入到 es，最后再由kibana做展示

    至于第三个环节为什么是logstash而不是ilogtail是因为，ilogtail要往es里面写日志会需要配置es的认证密码，但我们是没有给es配置用户名和密码的，所以采用logstash

    2. 部署ElasticSearch

    2.1 创建handless服务

    		[root@master EFK]# vim es-svc.yaml
    		kind: Service
    		apiVersion: v1
    		metadata:
    		  name: elasticsearch
    		  namespace: logging
    		  labels:
    		    app: elasticsearch
    		spec:
    		  selector:
    		    app: elasticsearch
    		  clusterIP: None
    		  ports:
    		  - port: 9200
    		    name: rest
    		  - port: 9300
    		    name: inter-node

    2.2 创建sts

    		[root@master EFK]# vim es-sts.yaml
    		apiVersion: apps/v1
    		kind: StatefulSet
    		metadata:
    		  name: es
    		  namespace: logging
    		spec:
    		  serviceName: elasticsearch
    		  replicas: 1
    		  selector:
    		    matchLabels:
    		      app: elasticsearch
    		  template:
    		    metadata:
    		      labels:
    		        app: elasticsearch
    		    spec:
    		      initContainers:
    		        - name: initc1
    		          image: busybox
    		          command: ["sysctl","-w","vm.max_map_count=262144"]
    		          securityContext:
    		            privileged: true
    		        - name: initc2
    		          image: busybox
    		          command: ["sh","-c","ulimit -n 65536"]
    		          securityContext:
    		            privileged: true
    		        - name: initc3
    		          image: busybox
    		          command: ["sh","-c","chmod 777 /data"]
    		          volumeMounts:
    		          - name: data
    		            mountPath: /data
    		      containers:
    		        - name: elasticsearch
    		          image: swr.cn-east-3.myhuaweicloud.com/hcie_openeuler/elasticsearch:7.17.1
    		          resources:
    		            limits:
    		              cpu: 1000m
    		            requests:
    		              cpu: 100m
    		          ports:
    		            - containerPort: 9200
    		              name: rest
    		              protocol: TCP
    		            - containerPort: 9300
    		              name: inter-node
    		              protocol: TCP
    		          volumeMounts:
    		            - name: data
    		              mountPath: /usr/share/elasticsearch/data
    		          env:
    		            - name: cluster.name
    		              value: k8s-logs
    		            - name: node.name
    		              valueFrom:
    		                fieldRef:
    		                  fieldPath: metadata.name
    		            - name: cluster.initial_master_nodes
    		              value: "es-0"
    		            - name: discovery.zen.minimum_master_nodes
    		              value: "2"
    		            - name: discovery.seed_hosts
    		              value: "elasticsearch"
    		            - name: ES_JAVA_OPTS
    		              value: "-Xms512m -Xmx512m"
    		            - name: network.host
    		              value: "0.0.0.0"
    		  volumeClaimTemplates:
    		    - metadata:
    		        name: data
    		        labels:
    		          app: elasticsearch
    		      spec:
    		        accessModes: ["ReadWriteOnce"]
    		        resources:
    		          requests:
    		            storage: 10Gi

    应用yaml文件

    		[root@master EFK]# kubectl create ns logging
    		[root@master EFK]# kubectl apply -f .
    		service/elasticsearch create
    		statefulset.apps/es create
    		[root@master EFK]# kubectl get pods -n logging
    		NAME   READY   STATUS    RESTARTS   AGE
    		es-0   1/1     Running   0          46s

    pod显示running就是部署好了

    3. 部署kibana

    我直接将所有需要的资源放在一个yaml文件里面

    		apiVersion: v1
    		kind: ConfigMap
    		metadata:
    		  namespace: logging
    		  name: kibana-config
    		  labels:
    		    app: kibana
    		data:
    		  kibana.yml: |
    		    server.name: kibana
    		    server.host: "0.0.0.0"
    		    i18n.locale: zh-CN
    		    elasticsearch:
    		      hosts: ${ELASTICSEARCH_HOSTS}
    		 ---
    		apiVersion: v1
    		kind: Service
    		metadata:
    		  name: kibana
    		  namespace: logging
    		  labels:
    		    app: kibana
    		spec:
    		  ports:
    		  - port: 5601
    		  type: NodePort
    		  selector:
    		    app: kibana

    		---
    		apiVersion: apps/v1
    		kind: Deployment
    		metadata:
    		  name: kibana
    		  namespace: logging
    		  labels:
    		    app: kibana
    		spec:
    		  selector:
    		    matchLabels:
    		      app: kibana
    		  template:
    		    metadata:
    		      labels:
    		        app: kibana
    		    spec:
    		      containers:
    		      - name: kibana
    		        image: swr.cn-east-3.myhuaweicloud.com/hcie_openeuler/kibana:7.17.1
    		        imagePullPolicy: IfNotPresent
    		        resources:
    		          limits:
    		            cpu: 1
    		          requests:
    		            cpu: 1
    		        env:
    		        - name: ELASTICSEARCH_URL
    		          value: http://elasticsearch:9200    # 写handless的名字
    		        - name: ELASTICSEARCH_HOSTS
    		          value: http://elasticsearch:9200    # 写handless的名字
    		        ports:
    		        - containerPort: 5601
    		        volumeMounts:
    		        - name: config
    		          mountPath: /usr/share/kibana/config/kibana.yml
    		          readOnly: true
    		          subPath: kibana.yml
    		      volumes:
    		      - name: config
    		        configMap:
    		          name: kibana-config

    查看端口并访问

    		[root@master EFK]# kubectl get svc
    		NAME            TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)             AGE
    		elasticsearch   ClusterIP   None                    9200/TCP,9300/TCP   17m
    		kibana          NodePort    10.104.94.122           5601:30980/TCP      4m30s

    kibana的nodeport端口是30980，我们来访问

    这样就算部署好了，接下来需要部署日志采集工具

    4. 部署ilogtail（docker-compose）

    因为Fluentd配置复杂，所以我这里采用ilogtail来采集日志

    • ilogtail配置简单
    • 阿里开源，界面中文

    我们先使用docker-compose的方式部署，最后整个平台搭建起来之后我们再将ilogtail部署到k8s集群里

    4.1 编写docker-compose

    		[root@master ilogtail]# vim docker-compose.yaml
    		version: "3"
    		services:
    		  ilogtail:
    		    container_name: ilogtail
    		    image: sls-opensource-registry.cn-shanghai.cr.aliyuncs.com/ilogtail-community-edition/ilogtail:2.0.4
    		    network_mode: host
    		    volumes:
    		      - /:/logtail_host:ro
    		      - /var/run:/var/run
    		      - ./checkpoing:/usr/local/ilogtail/checkpoint
    		      - ./config:/usr/local/ilogtail/config/local
    • /：我们将宿主机的整个 / ，目录挂载到容器里面，方便容器读取日志
    • checkpoint：这个相当于一个指针，指向当前读取到哪一行日志了，如果ilogtail被重启了它可以根据这个checkpoint来回到上一次读取的地方
    • config：这个就是放采集的配置文件的

    启动容器

    		[root@master ilogtail]# docker-compose up -d
    		[root@master ilogtail]# docker ps |grep ilogtail
    		eac545d4da87        sls-opensource-registry.cn-shanghai.cr.aliyuncs.com/ilogtail-community-edition/ilogtail:2.0.4   "/usr/local/ilogtail…"   10 seconds ago      Up 9 seconds                            ilogtail

    这样容器就启动了

    4.2 配置ilogtail采集

    		[root@master ilogtail]# cd config/
    		[root@master config]# vim sample-stdout.yaml
    		enable: true
    		inputs:
    		  - Type: input_file          # 文件输入类型
    		    FilePaths:
    		      - /logtail_host/var/log/messages
    		flushers:
    		  - Type: flusher_stdout    # 标准输出流输出类型
    		    OnlyStdout: true
    		[root@master config]# docker restart ilogtail

    • /logtail_host/var/log/messages：这里是这个地址的原因是我们将宿主机的/，挂载到了容器内的logtail_host，所以我们宿主机产生的日志会在容器的/logtail_host/var/log/messages这个目录下

    • 配置文件写好之后我们还需要重启容器让他读取配置，所以有一个restart

    4.3 查看容器采集的日志

    		[root@master config]# docker logs ilogtail

    		2024-06-30 11:16:25 {"content":"Jun 30 19:16:22 master dockerd[1467]: time=\"2024-06-30T19:16:22.251108165+08:00\" level=info msg=\"handled exit event processID=9a8df40981b3609897794e50aeb2bde805eab8a75334266d7b5c2899f61d486e containerID=61770e8f88e3c6a63e88f2a09d2683c6ccce1e13f6d4a5b6f79cc4d49094bab4 pid=125402\" module=libcontainerd namespace=moby","__time__":"1719746182"}
    		2024-06-30 11:16:25 {"content":"Jun 30 19:16:23 master kubelet[1468]: E0630 19:16:23.594557    1468 kubelet_volumes.go:245] \"There were many similar errors. Turn up verbosity to see them.\" err=\"orphaned pod \\\"9d5ae64f-1341-4c15-b70f-1c8f71efc20e\\\" found, but error not a directory occurred when trying to remove the volumes dir\" numErrs=2","__time__":"1719746184"}

    可以看到，宿主机的日志已经被成功采集了，宿主机的日志会被封装到content里，如果没有看到输出的日志的话，需要进入到容器内部查看一个叫做ilogtail.LOG的文件，而不能使用docker logs ilogtail

    4.4 采集容器标准输出日志(可选)

    		[root@master config]# cp sample-stdout.yaml docker-stdout.yaml
    		# 为了避免同时输出到标准输出而导致的日志杂乱，我们临时将sample-stdout关掉
    		[root@master config]# cat sample-stdout.yaml
    		enable: false                 # 将这里改为false
    		inputs:
    		  - Type: input_file          # 文件输入类型
    		    FilePaths:
    		      - /logtail_host/var/log/messages
    		flushers:
    		  - Type: flusher_stdout    # 标准输出流输出类型
    		    OnlyStdout: true
    		[root@master config]# cat docker-stdout.yaml
    		enable: true
    		inputs:
    		  - Type: service_docker_stdout
    		    Stdout: true                 # 采集标准输出
    		    Stderr: false                # 不采集错误输出
    		flushers:
    		  - Type: flusher_stdout
    		    OnlyStdout: true
    		[root@master config]# docker restart ilogtail
    		ilogtail

    4.5 查看采集的容器日志

    		2024-06-30 11:24:13 {"content":"2024-06-30 11:24:10 {\"content\":\"2024-06-30 11:24:07 {\\\"content\\\":\\\"2024-06-30 11:24:04.965 [INFO][66] felix/summary.go 100: Summarising 12 dataplane reconciliation loops over 1m3.4s: avg=3ms longest=12ms ()\\\",\\\"_time_\\\":\\\"2024-06-30T11:24:04.965893702Z\\\",\\\"_source_\\\":\\\"stdout\\\",\\\"_container_ip_\\\":\\\"192.168.200.200\\\",\\\"_image_name_\\\":\\\"calico/node:v3.23.5\\\",\\\"_container_name_\\\":\\\"calico-node\\\",\\\"_pod_name_\\\":\\\"calico-node-hgqzr\\\",\\\"_namespace_\\\":\\\"kube-system\\\",\\\"_pod_uid_\\\":\\\"4d0d950c-346a-4f81-817c-c19526700542\\\",\\\"__time__\\\":\\\"1719746645\\\"}\",\"_time_\":\"2024-06-30T11:24:07.968118197Z\",\"_source_\":\"stdout\",\"_container_ip_\":\"192.168.200.200\",\"_image_name_\":\"sls-opensource-registry.cn-shanghai.cr.aliyuncs.com/ilogtail-community-edition/ilogtail:2.0.4\",\"_container_name_\":\"ilogtail\",\"__time__\":\"1719746647\"}","_time_":"2024-06-30T11:24:10.971474647Z","_source_":"stdout","_container_ip_":"192.168.200.200","_image_name_":"sls-opensource-registry.cn-shanghai.cr.aliyuncs.com/ilogtail-community-edition/ilogtail:2.0.4","_container_name_":"ilogtail","__time__":"1719746650"}

    能够正常看见日志就说明日志采集没有问题，接下来我们部署kafka，用来接收ilogtail的日志，注意将日志采集关掉，不然你的虚拟机磁盘很快就会满

    5. 部署kafka

    kafka作为消息队列，会有消费者和生产者，生产者在这里就是ilogtail，也就是将日志写入到kafka，消费者就是logstash，从kafka里面读取日志写入到es

    5.1 kafka介绍

    Apache kafka是分布式的，基于发布/订阅的容错消息系统，主要特性如下

    • 高吞吐，低延迟：可以做到每秒百万级的吞吐量，并且延迟低(其他的消息队列基本也都可以)

    • 持久性，可靠性：消息会被持久化到本地磁盘，支持数据备份防止数据丢失，并且可以配置消息有效期，以便消费者可以多次消费

    • kafka官方不支持docker部署，我们可以使用第三方的镜像

    5.2 部署kafka(docker-compose)

    		version: '3'
    		services:
    		  zookeeper:
    		    image: quay.io/3330878296/zookeeper:3.8
    		    network_mode: host
    		    container_name: zookeeper-test
    		    volumes:
    		      - zookeeper_vol:/data
    		      - zookeeper_vol:/datalog
    		      - zookeeper_vol:/logs
    		  kafka:
    		    image: quay.io/3330878296/kafka:2.13-2.8.1
    		    network_mode: host
    		    container_name: kafka
    		    environment:
    		      KAFKA_ADVERTISED_HOST_NAME: "192.168.200.200"
    		      KAFKA_ZOOKEEPER_CONNECT: "192.168.200.200:2181"
    		      KAFKA_LOG_DIRS: "/kafka/logs"
    		    volumes:
    		      - kafka_vol:/kafka
    		    depends_on:
    		      - zookeeper
    		volumes:
    		  zookeeper_vol: {}
    		  kafka_vol: {}
    • KAFKA_LOG_DIRS: "/kafka/logs"：这个地方需要注意，在kafka的名词里面，他把数据叫做日志，这个地方看似是定义的日志目录，其实是kafka的数据目录

    5.3 部署kafdrop(kafka的web界面)

    		[root@master kafka]# docker run -d --rm -p 9000:9000 \
    		    -e KAFKA_BROKERCONNECT=192.168.200.200:9092 \
    		    -e SERVER_SERVLET_CONTEXTPATH="/" \
    		    quay.io/3330878296/kafdrop

    部署好之后就可以使用web界面查看了，部署web界面的原因是我们将日志写入到kafka之后可以直接使用web界面查看也没有写入进去，比kafka命令行更加的直观

    在浏览器输入ip:9000

    5.4 ilogtail将日志写入到kafka

    		[root@master config]# cd /root/ilogtail/config
    		[root@master config]# cp sample-stdout.yaml kafka.yaml
    		[root@master config]# vim kafka.yaml
    		enable: true
    		inputs:
    		  - Type: input_file
    		    FilePaths:
    		      - /logtail_host/var/log/messages
    		flushers:
    		  - Type: flusher_kafka_v2
    		    Brokers:
    		      - 192.168.200.200:9092
    		    Topic: KafkaTopic
    		[root@master config]# docker restart ilogtail
    		ilogtail

    这个时候我们再回到web界面就会出现一个topic

    点进去可以查看有哪些日志被写入进去了

    能看见日志就没问题了，接下来部署logstash

    6. 部署logstash

    logstash会从kafka读取消息然后写入到es里面去

    6.1 部署logstash(docker-compose)

    		[root@master ~]# mkdir logstash
    		[root@master ~]# cd logstash
    		[root@master logstash]# vim docker-compose.yaml
    		version: '3'
    		services:
    		  logstash:
    		    image: quay.io/3330878296/logstash:8.10.1
    		    container_name: logstash
    		    network_mode: host
    		    environment:
    		      LS_JAVA_OPTS: "-Xmx1g -Xms1g"
    		    volumes:
    		      - /etc/localtime:/etc/localtime:ro
    		      - /apps/logstash/config/logstash.yml:/usr/share/logstash/config/logstash.yml
    		      - /apps/logstash/pipeline:/usr/share/logstash/pipeline
    		      - /var/log:/var/log
    • config里面放的是logstash本身的配置文件
    • pipeline里面放的是采集/输出日志的规则

    docker-compose写好之后先不要着急启动，因为我们给他挂载的配置文件还没有启动

    现在编写配置文件

    		[root@master logstash]# mkdir /apps/logstash/{config,pipeline}
    		[root@master logstash]# cd /apps/logstash/config/
    		[root@master config]# vim logstash.yml
    		pipeline.workers: 2
    		pipeline.batch.size: 10
    		pipeline.batch.delay: 5
    		config.reload.automatic: true
    		config.reload.interval: 60s

    写好这个文件之后我们启动这个logstash容器

    		[root@master logstash]# /root/logstash
    		[root@master logstash]# docker-compose up -d
    		[root@master logstash]# docker ps |grep logstash
    		60dfde4df40d        quay.io/3330878296/logstash:8.10.1                                                              "/usr/local/bin/dock…"   2 minutes ago       Up 2 minutes                                 logstash

    启动之后就没问题了

    6.2 输出日志到es

    Logstash官方文档地址

    我们要使用logstash输出日志到es的话就需要到pipeline里面去写一些规则

    		[root@master EFK]# cd /apps/logstash/pipeline/
    		[root@master pipeline]# vim logstash.conf
    		input {
    		  kafka {
    		    # 指定kafka地址
    		    bootstrap_servers => "192.168.200.200:9092"
    		    # 从哪些topic获取数据,要写已经存在topic
    		    topics => ["KafkaTopic"]
    		    # 从哪个地方开始读取，earliest是从头开始读取
    		    auto_offset_reset => "earliest"
    		    codec => "json"
    		    # 当一个logstash中有多个input插件时,建议每个插件定义一个id
    		    # id => "kubernetes"
    		    # group_id => "kubernetes"
    		  }
    		}


    		filter {
    		  json {
    		    source => "event.original"
    		  }
    		  mutate {
    		    remove_field => ["event.original","event"]
    		  }
    		}

    		output {
    		  elasticsearch {
    		    hosts => ["http://192.168.200.200:9200"]

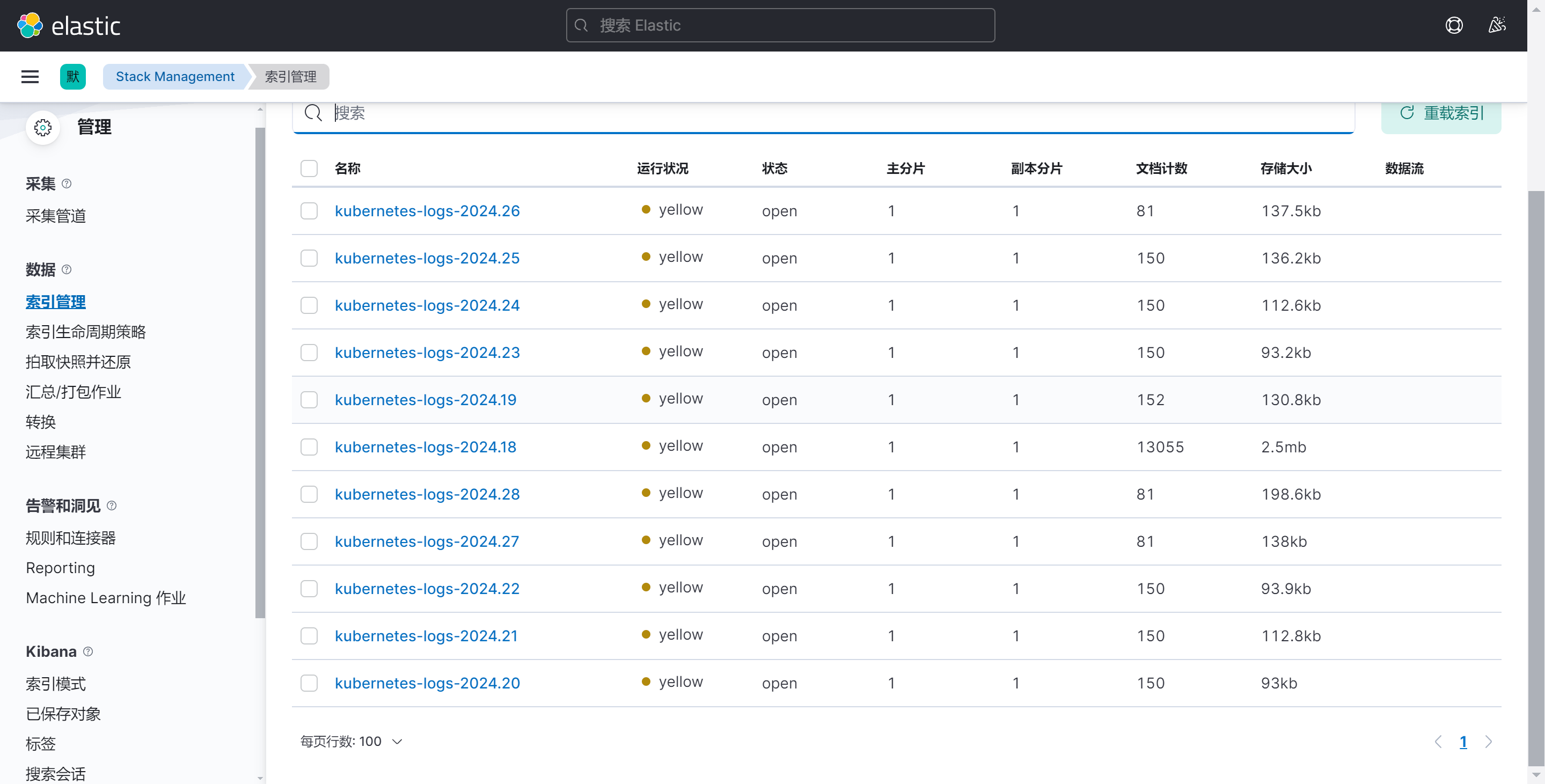

    		    index => "kubernetes-logs-%{+YYYY.MM.dd}"
    		  }
    		}
    • ​ hosts => ["http://192.168.200.200:9200"]：这个地方的9200，因为我们的logstash是用docker部署的，但是es是部署在k8s集群内部的，所以这个地方9200端口是通不了的，所以我们需要给k8s的es创建一个nodeport类型的svc，来让docker可以访问到
    		[root@master EFK]# kubectl expose pod es-0 --type NodePort --port 9200 --target-port 9200
    		service/es-0 exposed
    		[root@master EFK]# kubectl get svc
    		NAME            TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)             AGE
    		elasticsearch   ClusterIP   None                    9200/TCP,9300/TCP   3h38m
    		es-0            NodePort    10.97.238.173           9200:32615/TCP      2s
    		kibana          NodePort    10.106.1.52             5601:30396/TCP      3h38m

    这里他将9200映射到了本地的32615端口，所以我们将logstash的地址改到32615

    		output {
    		  elasticsearch {
    		    hosts => ["http://192.168.200.200:32615"]
    		    index => "kubernetes-logs-%{+YYYY.MM.dd}"
    		  }
    		}

    然后重启logstash

    		[root@master pipeline]# docker restart logstash

    6.3 到kibana查看

    6.3.1 查看索引

    1. 点击stack management

    2. 点击索引管理，会看到有索引存在就是正常

    3. 点击索引模式，创建索引

    1. 进入discover

    7. 将ilogtail部署到k8s

    我们刚刚是将ilogtail使用的单机docker部署，无法采集到其他节点上的容器,主机日志，所以我们可以将ilogtail采用DaemonSet的方式部署到k8s集群内的每个节点上，这样每个节点的日志都可以被采集到

    如果已经使用docker部署，就先将docker部署的ilogtail停掉

    		[root@master ilogtail]# ls
    		checkpoing  config  docker-compose.yaml
    		[root@master ilogtail]# docker-compose down

    7.1 下载配置示例

    ilogtail文档

    7.1.1 创建命名空间

    		[root@master EFK]# kubectl create ns ilogtail
    		namespace/ilogtail created

    7.1.2 创建ConfigMap

    		apiVersion: v1
    		kind: ConfigMap
    		metadata:
    		  name: ilogtail-user-cm
    		  namespace: ilogtail
    		data:
    		  nginx_stdout.yaml: |
    		    enable: true
    		    inputs:
    		      - Type: service_docker_stdout
    		        Stderr: false
    		        Stdout: true                # only collect stdout
    		        IncludeK8sLabel:
    		          app: nginx                # choose containers with this label
    		          #processors:
    		          #  - Type: processor_regex       # structure log
    		          #    SourceKey: content
    		          #    Regex: '([\d\.:]+) - (\S+) \[(\S+) \S+\] \"(\S+) (\S+) ([^\\"]+)\" (\d+) (\d+) \"([^\\"]*)\" \"([^\\"]*)\" \"([^\\"]*)\"'
    		          #    Keys:
    		          #      - remote_addr
    		          #      - remote_user
    		          #      - time_local
    		          #      - method
    		          #      - url
    		          #      - protocol
    		          #      - status
    		          #      - body_bytes_sent
    		          #      - http_referer
    		          #      - http_user_agent
    		          #      - http_x_forwarded_for
    		    flushers:
    		      - Type: flusher_kafka_v2
    		        Brokers:
    		          - 192.168.200.200:9092
    		        Topic: nginx
    		        OnlyStdout: true

    这个configmap是从官方下载了，我进行了一些修改

    		[root@master EFK]# kubectl apply -f ilogtail-user-configmap.yaml
    		configmap/ilogtail-user-cm created

    7.1.2 创建DaemonSet

    		apiVersion: apps/v1
    		kind: DaemonSet
    		metadata:
    		  name: ilogtail-ds
    		  namespace: ilogtail
    		  labels:
    		    k8s-app: logtail-ds
    		spec:
    		  selector:
    		    matchLabels:
    		      k8s-app: logtail-ds
    		  template:
    		    metadata:
    		      labels:
    		        k8s-app: logtail-ds
    		    spec:
    		      tolerations:
    		        - operator: Exists                    # deploy on all nodes
    		      containers:
    		        - name: logtail
    		          env:
    		            - name: ALIYUN_LOG_ENV_TAGS       # add log tags from env
    		              value: _node_name_|_node_ip_
    		            - name: _node_name_
    		              valueFrom:
    		                fieldRef:
    		                  apiVersion: v1
    		                  fieldPath: spec.nodeName
    		            - name: _node_ip_
    		              valueFrom:
    		                fieldRef:
    		                  apiVersion: v1
    		                  fieldPath: status.hostIP
    		            - name: cpu_usage_limit           # iLogtail's self monitor cpu limit
    		              value: "1"
    		            - name: mem_usage_limit           # iLogtail's self monitor mem limit
    		              value: "512"
    		            - name: default_access_key_id     # accesskey id if you want to flush to SLS
    		              valueFrom:
    		                secretKeyRef:
    		                  name: ilogtail-secret
    		                  key: access_key_id
    		                  optional: true
    		            - name: default_access_key        # accesskey secret if you want to flush to SLS
    		              valueFrom:
    		                secretKeyRef:
    		                  name: ilogtail-secret
    		                  key: access_key
    		                  optional: true
    		          image: >-
    		            sls-opensource-registry.cn-shanghai.cr.aliyuncs.com/ilogtail-community-edition/ilogtail:2.0.4
    		           imagePullPolicy: IfNotPresent
    		          resources:
    		            limits:
    		              cpu: 1000m
    		              memory: 1Gi
    		            requests:
    		              cpu: 400m
    		              memory: 384Mi
    		          volumeMounts:
    		            - mountPath: /var/run                       # for container runtime socket
    		              name: run
    		            - mountPath: /logtail_host                  # for log access on the node
    		              mountPropagation: HostToContainer
    		              name: root
    		              readOnly: true
    		            - mountPath: /usr/local/ilogtail/checkpoint # for checkpoint between container restart
    		              name: checkpoint
    		            - mountPath: /usr/local/ilogtail/config/local # mount config dir
    		              name: user-config
    		              readOnly: true
    		      dnsPolicy: ClusterFirstWithHostNet
    		      hostNetwork: true
    		      volumes:
    		        - hostPath:
    		            path: /var/run
    		            type: Directory
    		          name: run
    		        - hostPath:
    		            path: /
    		            type: Directory
    		          name: root
    		        - hostPath:
    		            path: /etc/ilogtail-ilogtail-ds/checkpoint
    		            type: DirectoryOrCreate
    		          name: checkpoint
    		        - configMap:
    		            defaultMode: 420
    		            name: ilogtail-user-cm
    		          name: user-config

    这个里面基本不需要改什么

    		[root@master EFK]# kubectl apply -f ilogtail-ds.yaml
    		daemonset.apps/ilogtail-ds created
    		[root@master EFK]# kubectl get pods -n ilogtail
    		NAME                READY   STATUS    RESTARTS   AGE
    		ilogtail-ds-bd6ll   1/1     Running   0          83s

    因为我的k8s就是一个单节点，所以只有一个pod被启动

    7.2 采集数据

    在configmap里面我们定义的是采集带有app: nginx这个标签的pod，所以我们现在来创建这个一个nginx的pod

    		[root@master tmp]# kubectl create deployment nginx --image quay.io/3330878296/nginx
    		[root@master tmp]# kubectl get pods -o wide
    		NAME                      READY   STATUS    RESTARTS      AGE   IP               NODE     NOMINATED NODE   READINESS GATES
    		es-0                      1/1     Running   1 (28m ago)   15h   10.251.205.147   master
    		kibana-5bbb9b5d5f-jvghq   1/1     Running   1 (28m ago)   15h   10.251.205.165   master
    		nginx-cb7755f57-7q7xn     1/1     Running   0             13s   10.251.205.152   master

    这个nginx的ip是10.251.205.152，我们来访问一下

    		[root@master tmp]# curl -I  10.251.205.152
    		HTTP/1.1 200 OK
    		Server: nginx/1.27.0
    		Date: Mon, 01 Jul 2024 01:48:09 GMT
    		Content-Type: text/html
    		Content-Length: 615
    		Last-Modified: Tue, 28 May 2024 13:22:30 GMT
    		Connection: keep-alive
    		ETag: "6655da96-267"
    		Accept-Ranges: bytes

    7.3 回到kafdrop查看topic

    我们访问nginx之后按照正常情况下来说的话，ilogtail会采集日志写入到kafka并创建一个nginx的topic，我们现在来看看也没有

    有这个nginx就没有问题了，说明日志可以被正常采集到并写入，要将nginx写入到es的话可以在/apps/logstash/pipeline/这个目录下面写一个新的配置文件

    		[root@master pipeline]# ls
    		logstash.conf  nginx.conf
    		[root@master pipeline]# cat nginx.conf
    		input {
    		  kafka {
    		    # 指定kafka地址
    		    bootstrap_servers => "192.168.200.200:9092"
    		    # 从哪些topic获取数据,要写已经存在topic
    		    topics => ["nginx"]
    		    # 从哪个地方开始读取，earliest是从头开始读取
    		    auto_offset_reset => "earliest"
    		    codec => "json"
    		    # 当一个logstash中有多个input插件时,建议每个插件定义一个id
    		    # id => "kubernetes"
    		    # group_id => "kubernetes"
    		  }
    		}


    		filter {
    		  json {
    		    source => "event.original"
    		  }
    		  mutate {
    		    remove_field => ["event.original","event"]
    		  }
    		}

    		output {
    		  elasticsearch {
    		    hosts => ["http://192.168.200.200:32615"]
    		    index => "kubernetes-nginx-logs-%{+YYYY.MM.dd}"
    		  }
    		}
    		[root@master pipeline]# docker restart logstash
    		logstash

    由于当时写的时候没有发现索引的名字不是以年月日为标识的，是后来看的时候才发现这个问题的，文中的错误已改正，图片没有换，这里再补一张正确的图

  • 相关阅读:
    Word控件Spire.Doc 【表单域】教程(六)：C#在word文档中插入和删除TOC
    STM32L471xx 系列芯片介绍-（M4内核，自单精度浮点运算FPU，自带128kB的SRAM，再带硬件日期计时电路，30nA低功耗待机）
    ES6 入门教程 13 Symbol 13.2 Symbol.prototype.description & 13.3 作为属性名的 Symbol
    Vue常见指令补充（附加案例）
    三、一起来学习Java 基础语法
    DC电源模块的开发周期
    C字符串函数&&内存函数的模拟实现和理解
    如何下载GitHub上的代码
    softmax回归
    通过maven基于springboot项目构建脚手架archetype
  • 原文地址：https://www.cnblogs.com/fsdstudy/p/18277099
