计算机毕业设计Hadoop+Spark+Hive知识图谱租房推荐系统 租房数据分析 租房爬虫 租房可视化 租房大数据 大数据毕业设计 大数据毕设 机器学习

毕 业 设 计（论 文）

摘  要

本设计是一个基于爬虫技术的房地产数据采集与可视化分析应用程序。该程序首先通过爬虫采集网上所有房地产的房源数据，并对采集到的数据进行清洗；将这些房源大致分类，以对所有数据的概括总结。通过上述分析，可以了解到目前市面上房地产各项基本特征及房源分布情况，为众多的购房者进行购房决策提供了参考。

本系统主要是由大数据系统、可视化前端系统、web后台管理系统、租房推荐系统、租房小程序/APP端组成。大屏统计端使用hadoop+spark完成，数据采集使用java离线分析端、网页用户端以及后台管理使用Springboot+mybatis框架开发，在可视化阶段采用Echarts来提供可交互的直观数据可视化图表。本系统采用的数据库是MySQL数据库，其目的是用来存储利用爬虫爬取到的大量租房信息数据集和数据处理之后的分析结果，在通过Spark并行计算进行数据抽取，多维分析，查询统计等操作来完成数据分析部分。完整基于大数据的租房数据分析推荐可视化与管理一体的系统开发。

关键词： 租房数据分析、大数据开发、java开发

Abstract

This design is a real estate data acquisition and visualization analysis application based on crawler technology. Firstly, the program collects all the housing data of real estate on the Internet through crawler, and cleans the collected data. These listings are roughly categorized to provide a summary of all the data. Through the above analysis, we can understand the basic characteristics of real estate on the market and the distribution of housing supply, which provides a reference for many home buyers to make purchase decisions.

The system is mainly composed of big data system, visual front-end system, Web background management system, rental recommendation system, rental small program /APP end. The large-screen statistical end is completed by Hadoop + Spark, data collection is developed by Java offline analysis end, web client end and background management using Springboot+ Mybatis framework. In the visualization stage, Echarts is used to provide interactive intuitive data visualization charts. The database used in this system is MySQL database, which is used to store a large number of rental information data sets obtained by crawler and the analysis results after data processing. Data analysis is completed through Spark parallel computing for data extraction, multidimensional analysis, query statistics and other operations. The development of a system integrating the analysis, recommendation, visualization and management of rental data based on big data.

Keywords: rental data analysis, big data development, Java development

目录

摘  要

Abstract

1 引 言

1.1大数据的发展

1.2 系统研究背景与意义

1.3 研究内容

2 系统分析

2.1 大数据分析较传统分析的优势

2.2 可行性分析

2.2.1 技术可行性

2.2.2 经济可行性

2.2.3 操作可行性

2.4 功能需求分析

3 开发技术介绍

3.1 硬件开发平台

3.1.1 计算机配置介绍

3.2 软件开发平台

3.2.1 WebMagic爬虫技术

3.2.2 MySQL数据库

3.2.3 Spark分析介绍

3.2.4 Spring Boot介绍

3.2.5 Vue开发

4 总体设计

4.1 大数据系统的设计

4.1.1 整体模块设计

4.1.2 数据采集功能设计

4.2 数据库设计

5 系统详细实现

5.1 数据采集功能实现

5.2 系统功能的实现

5.2.1 Spark框架进行数据分析

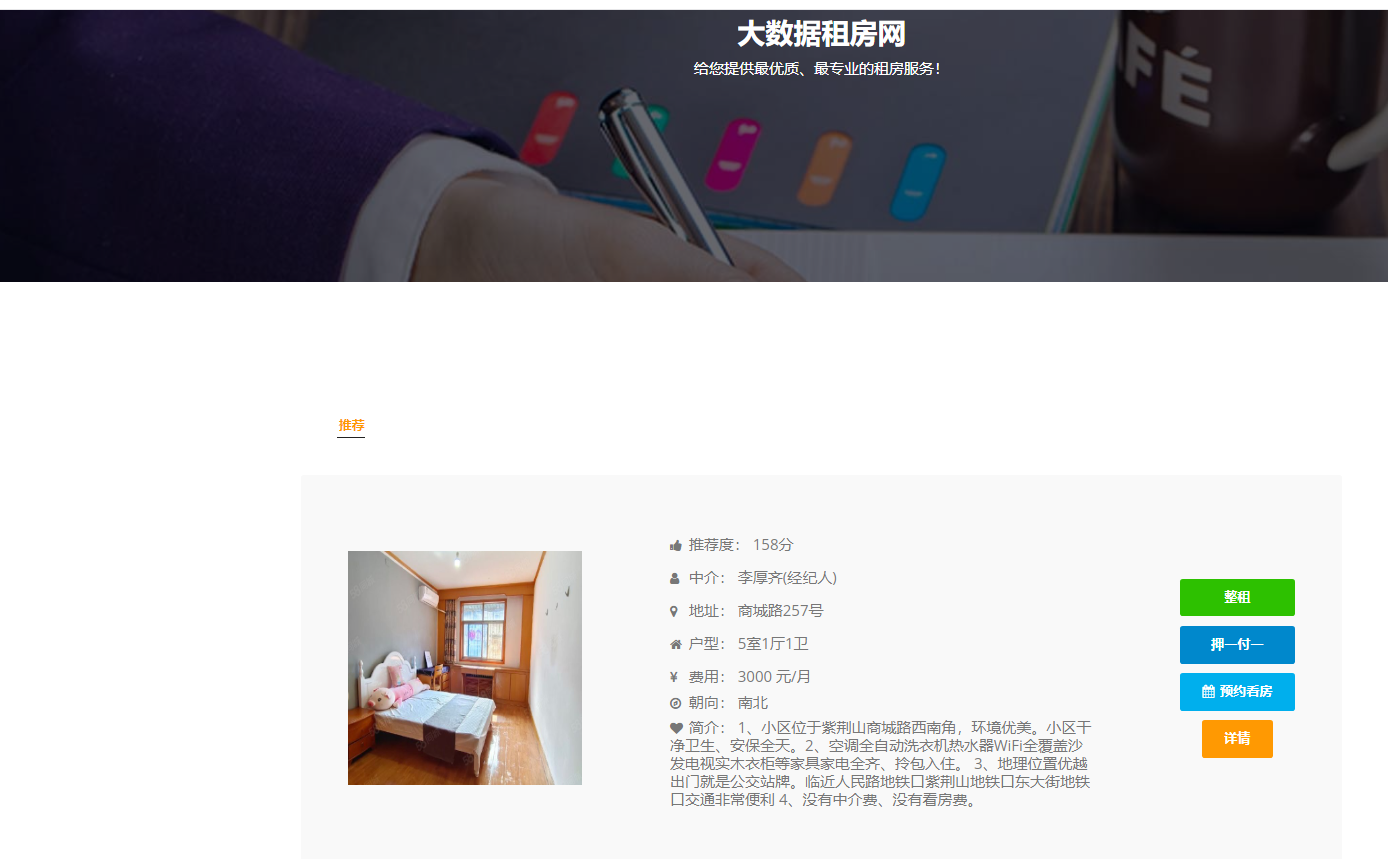

5.2.2 租房推荐页面的实现

5.2.3 web后端与可视化的实现

租房数据分析可视化流程

前台登录访问流程

系统管理界面

租房数据分析系统可视化界面

6 系统测试

6.1 系统测试工作概要

6.2 测试的意义

6.3 测试方法

7 总 结

致 谢

参考文献

核心算法代码分享如下：

from flask import Flask, request
import json
from flask_mysqldb import MySQL

# 创建应用对象
app = Flask(__name__)
app.config['MYSQL_HOST'] = 'bigdata'
app.config['MYSQL_USER'] = 'root'
app.config['MYSQL_PASSWORD'] = '123456'
app.config['MYSQL_DB'] = 'beike_hive'
mysql = MySQL(app)  # this is the instantiation


@app.route('/tables01')
def tables01():
    cur = mysql.connection.cursor()
    cur.execute('''SELECT * FROM table01''')
    #row_headers = [x[0] for x in cur.description]  # this will extract row headers
    row_headers = ['area','bads','goods']  # this will extract row headers
    rv = cur.fetchall()
    json_data = []
    #print(json_data)
    for result in rv:
        json_data.append(dict(zip(row_headers, result)))
    return json.dumps(json_data, ensure_ascii=False)

@app.route('/tables02')
def tables02():
    cur = mysql.connection.cursor()
    cur.execute('''SELECT * FROM table02''')
    #row_headers = [x[0] for x in cur.description]  # this will extract row headers
    row_headers = ['area','avg_pay']  # this will extract row headers
    rv = cur.fetchall()
    json_data = []
    #print(json_data)
    for result in rv:
        json_data.append(dict(zip(row_headers, result)))
    return json.dumps(json_data, ensure_ascii=False)

@app.route('/tables03')
def tables03():
    cur = mysql.connection.cursor()
    cur.execute('''SELECT * FROM table03 order by num desc''')
    #row_headers = [x[0] for x in cur.description]  # this will extract row headers
    row_headers = ['house_estate','num']  # this will extract row headers
    rv = cur.fetchall()
    json_data = []
    #print(json_data)
    for result in rv:
        json_data.append(dict(zip(row_headers, result)))
    return json.dumps(json_data, ensure_ascii=False)

@app.route('/tables04')
def tables04():
    cur = mysql.connection.cursor()
    cur.execute('''
    select * from (
SELECT ctime,num,CAST(replace(ctime,'小时前','') AS UNSIGNED) ctime2 FROM table04  where ctime  like '%小时前%'
                                                      union all
SELECT ctime,num,CAST(replace(ctime,'天前','')*24 AS UNSIGNED) ctime2 FROM table04  where ctime  like '%天前%'
)t order by t.ctime2 desc;
    ''')
    #row_headers = [x[0] for x in cur.description]  # this will extract row headers
    row_headers = ['ctime','num','ctime2']  # this will extract row headers
    rv = cur.fetchall()
    json_data = []
    #print(json_data)
    for result in rv:
        json_data.append(dict(zip(row_headers, result)))
    return json.dumps(json_data, ensure_ascii=False)

# @app.route("/getmapcountryshowdata")
# def getmapcountryshowdata():
#     filepath = r"D:\\hadoop_spark_hive_mooc2024\\server\\data\\maps\\china.json"
#     with open(filepath, "r", encoding='utf-8') as f:
#         data = json.load(f)
#         return json.dumps(data, ensure_ascii=False)


@app.route('/tables05')
def tables05():
    cur = mysql.connection.cursor()
    cur.execute('''SELECT * FROM table05''')
    #row_headers = [x[0] for x in cur.description]  # this will extract row headers
    row_headers = ['agent_name','hot']  # this will extract row headers
    rv = cur.fetchall()
    json_data = []
    #print(json_data)
    for result in rv:
        json_data.append(dict(zip(row_headers, result)))
    return json.dumps(json_data, ensure_ascii=False)

@app.route('/tables06')
def tables06():
    cur = mysql.connection.cursor()
    cur.execute('''SELECT * FROM table06''')
    #row_headers = [x[0] for x in cur.description]  # this will extract row headers
    row_headers = ['house_type','num']  # this will extract row headers
    rv = cur.fetchall()
    json_data = []
    #print(json_data)
    for result in rv:
        json_data.append(dict(zip(row_headers, result)))
    return json.dumps(json_data, ensure_ascii=False)

@app.route('/tables07')
def tables07():
    cur = mysql.connection.cursor()
    cur.execute('''SELECT * FROM table07''')
    #row_headers = [x[0] for x in cur.description]  # this will extract row headers
    row_headers = ['house_decora','num']  # this will extract row headers
    rv = cur.fetchall()
    json_data = []
    #print(json_data)
    for result in rv:
        json_data.append(dict(zip(row_headers, result)))
    return json.dumps(json_data, ensure_ascii=False)

@app.route('/tables08')
def tables08():
    cur = mysql.connection.cursor()
    cur.execute('''SELECT * FROM table08''')
    #row_headers = [x[0] for x in cur.description]  # this will extract row headers
    row_headers = ['house_pay_way','num']  # this will extract row headers
    rv = cur.fetchall()
    json_data = []
    #print(json_data)
    for result in rv:
        json_data.append(dict(zip(row_headers, result)))
    return json.dumps(json_data, ensure_ascii=False)

@app.route('/tables09')
def tables09():
    cur = mysql.connection.cursor()
    #cur.execute('''SELECT SUBSTRING(address) address,num FROM table09''')
    cur.execute('''SELECT SUBSTRING(address,-5) address,num FROM table09''')
    #row_headers = [x[0] for x in cur.description]  # this will extract row headers
    row_headers = ['address','num']  # this will extract row headers
    rv = cur.fetchall()
    json_data = []
    #print(json_data)
    for result in rv:
        json_data.append(dict(zip(row_headers, result)))
    return json.dumps(json_data, ensure_ascii=False)


if __name__ == "__main__":
    app.run(debug=False)
