Ubuntu22.04 交叉编译GCC13.2.0 for Rv1126

一、安装Ubuntu22.04

sudo apt install vim net-tools openssh-server

二、安装必要项

sudo apt update
sudo apt upgrade
sudo apt install build-essential gawk git texinfo bison flex

三、下载必备软件包

1.glibc

https://ftp.gnu.org/gnu/glibc/glibc-2.38.tar.gz

 2.gcc

https://ftp.gnu.org/gnu/gcc/gcc-13.2.0/gcc-13.2.0.tar.gz

3.binutils

 https://ftp.gnu.org/gnu/binutils/binutils-2.41.tar.xz

4.Linux kernel

https://mirrors.edge.kernel.org/pub/linux/kernel/v6.x/linux-6.6.tar.gz

下载完成后存在在/opt目录下

四、在/opt目录下创建编译文件夹,且解压文件

mkdir build-gcc
mkdir build-glibc
mkdir build-utils
mkdir packet #gcc 打包目录

五、下载gcc依赖包

cd /opt/gcc-13.2.0/
./contrib/download_prerequisites

这里主要下载的是gmp、mpfr、mpc、isl等库

六、安装内核头文件

cd /opt/linux-6.6
make ARCH=arm INSTALL_HDR_PATH=/opt/packet/arm-linux-gnueabihf headers_install

rv1126 是32位的板子，故ARCH=arm，如需要64位的板子则：

make ARCH=arm64 INSTALL_HDR_PATH=/opt/packet/arm-linux-gnueabihf headers_install

七、编译binutils

cd /opt/build-utils
../binutils-2.41/configure --prefix=/opt/packet --target=arm-linux-gnueabihf --with-arch=armv7l --with-fpu=vfp --with-float=hard --disable-multilib
make
make install

rv1126的板子是armv7l, 故 --with-arch=armv7l

八、部分编译gcc

cd /opt/build-gcc
#../gcc-13.2.0/configure --prefix=/opt/packet --target=arm-linux-gnueabihf --enable-languages=c,c++,fortran  --with-fpu=vfp --with-float=hard --disable-multilib

../gcc-13.2.0/configure --prefix=/opt/packet --target=arm-linux-gnueabihf --enable-languages=c,c++ --with-fpu=vfp --with-float=hard --disable-multilib --enable-libstdcxx  --enable-libgm2 --enable-libssp  --enable-shared

make -j8 all-gcc
make install-gcc

九、部分编译glibc

cd /opt/build-glibc

export PATH=$PATH:/opt/packet/bin

../glibc-2.38/configure \
                        --prefix=/opt/packet/arm-linux-gnueabihf \
                        --build=$MACHTYPE \
                        --host=arm-linux-gnueabihf \
                        --target=arm-linux-gnueabihf \
                        --with-arch=armv7l \
                        --with-fpu=vfp \
                        --with-float=hard \
                        --with-headers=/opt/packet/arm-linux-gnueabihf/include \
                        --disable-multilib \
                        libc_cv_forced_unwind=yes

make install-bootstrap-headers=yes install-headers

make -j8 csu/subdir_lib

install csu/crt1.o csu/crti.o csu/crtn.o /opt/packet/arm-linux-gnueabihf/lib

arm-linux-gnueabihf-gcc -nostdlib -nostartfiles -shared -x c /dev/null -o /opt/packet/arm-linux-gnueabihf/lib/libc.so

touch /opt/packet/arm-linux-gnueabihf/include/gnu/stubs.h

十、接着部分编译gcc

cd /opt/build-gcc
make -j8 all-target-libgcc
make install-target-libgcc

十一、全编译glibc

cd /opt/build-glibc

export PATH=$PATH:/opt/packet/bin

make -j8

make install

十二、全编译gcc

cd /opt/build-gcc
make -j8 all-target-libgcc
make install-target-libgcc

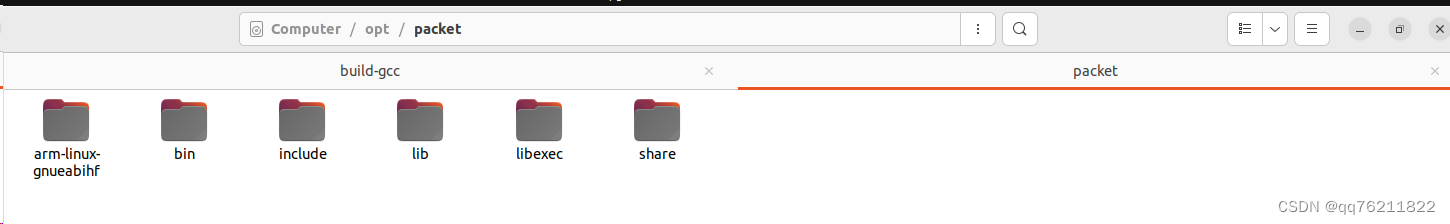

查看文件

十三、测试

1.创建build.sh

#!/bin/bash

/opt/packet/bin/arm-linux-gnueabihf-g++ test.cpp -o ./test -lpthread

 2.创建test.cpp

#include
#include
#include
#include
#include
#include
using namespace std;

std::mutex g_mutex;
std::vector<int>g_vData;

void process()
{
    int n = 0;
    while(true){
    	g_mutex.lock();
    	g_vData.push_back(n++);
    	g_mutex.unlock();
    }
}

void Process1()
{
	while(true){
		g_mutex.lock();
		if(g_vData.size() > 0){
			std::vector<int>::iterator iter = g_vData.begin();
			printf("%d\n", *iter);
			g_vData.erase(iter);
		}

	    	g_mutex.unlock();
	}
}


int main()
{
	printf("hello\n");
	std::thread* pthread = new std::thread(process);
	std::thread* pthread1 = new std::thread(Process1);
	sleep(-1);
	return 0;
}

3.执行

sudo chmod 777 ./build.sh
./build.sh

4.将test这个执行程序拷贝到arm板
