nginx学习(4)Nginx 配置高可用集群（主从配置）

Nginx 配置高可用集群

Nginx的高可用集群是指由两台或多台Nginx服务器组成的集群系统，通过负载均衡和故障转移等技术，实现高可用性和可伸缩性的目标。

在这种集群系统中，每个Nginx服务器都配置为主节点（master）或从节点（slave）。主节点负责处理业务逻辑，而从节点则通过心跳检查等方式与主节点保持通信，并随时准备接管业务逻辑。

当主节点出现故障时，从节点会通过心跳检查机制检测到，并立即接管主节点的业务逻辑，从而保证服务的连续性和可用性。这种集群系统可以有效解决单点故障的问题，提高系统的可用性和稳定性。

在配置Nginx的高可用集群时，需要考虑到负载均衡、故障转移、状态监控等多个方面，以保证系统的正常运行和可靠性。同时，也需要对每个服务器的硬件配置、网络环境、负载情况等进行合理的规划和调整，以保证整个集群的性能和效率。
1
2
3
4
5
6
7

1、准备

需要两台服务器

    server 172.31.0.99;
    server 172.31.0.100;
1
2

1.1在两台服务器安装 nginx

安装详情见 nginx学习(1)： 链接: link
1.2第一台用默认的配置80端口，第二台用81端口

    server {
        listen       80;
        #server_name  localhost;
       server_name  172.31.0.99 ;

        #charset koi8-r;

        #access_log  logs/host.access.log  main;

        location / {
            root   html;
           #proxy_pass http://myserver;
            index  index.html index.htm;
        }
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

    server {
        listen       81;
        #server_name  localhost;
       server_name  172.31.0.100 ;

        #charset koi8-r;

        #access_log  logs/host.access.log  main;

        location / {
            root   html;
           #proxy_pass http://myserver;
            index  index.html index.htm;
        }
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

测试：

http://172.31.0.99/

http://172.31.0.100:81/

2、安装keepalived

在两台服务器安装keepalived

yum install keepalived -y
# 查看版本：
rpm -q -a keepalived
1
2
3

主服务器配置：

! Configuration File for keepalived

global_defs {
   notification_email {
     acassen@firewall.loc
     failover@firewall.loc
     sysadmin@firewall.loc
   }
   notification_email_from Alexandre.Cassen@firewall.loc
   smtp_server 192.168.200.1
   smtp_connect_timeout 30
   router_id LVS_DEVEL
   vrrp_skip_check_adv_addr
   vrrp_strict
   vrrp_garp_interval 0
   vrrp_gna_interval 0
}

vrrp_script chk_http_port {
	 script "/usr/local/src/nginx_check.sh"
	 interval 2 #（检测脚本执行的间隔）
	 weight 2
}


vrrp_instance VI_1 {
	 state MASTER # 备份服务器上将 MASTER 改为 BACKUP
	 interface ens33 //网卡
	 virtual_router_id 51 # 主、备机的 virtual_router_id 必须相同
	 priority 100 # 主、备机取不同的优先级，主机值较大，备份机值较小
	 advert_int 1
	 authentication {
		 auth_type PASS
		 auth_pass 1111
	 }
	 virtual_ipaddress {
		192.168.19.50 # VRRP H 虚拟地址（非真实物理地址）
	 }

#vrrp_instance VI_1 {
#    state MASTER
#    interface eth0
#    virtual_router_id 51
#    priority 100
#    advert_int 1
#    authentication {
#        auth_type PASS
#        auth_pass 1111
#    }
#    virtual_ipaddress {
#        192.168.200.16
#        192.168.200.17
#        192.168.200.18
#    }
#}

virtual_server 192.168.200.100 443 {
    delay_loop 6
    lb_algo rr
    lb_kind NAT
    persistence_timeout 50
    protocol TCP

    real_server 192.168.201.100 443 {
        weight 1
        SSL_GET {
            url {
              path /
              digest ff20ad2481f97b1754ef3e12ecd3a9cc
            }
            url {
              path /mrtg/
              digest 9b3a0c85a887a256d6939da88aabd8cd
            }
            connect_timeout 3
            nb_get_retry 3
            delay_before_retry 3
        }
    }
}

virtual_server 10.10.10.2 1358 {
    delay_loop 6
    lb_algo rr
    lb_kind NAT
    persistence_timeout 50
    protocol TCP

    sorry_server 192.168.200.200 1358

    real_server 192.168.200.2 1358 {
        weight 1
        HTTP_GET {
            url {
              path /testurl/test.jsp
              digest 640205b7b0fc66c1ea91c463fac6334d
            }
            url {
              path /testurl2/test.jsp
              digest 640205b7b0fc66c1ea91c463fac6334d
            }
            url {
              path /testurl3/test.jsp
              digest 640205b7b0fc66c1ea91c463fac6334d
            }
            connect_timeout 3
            nb_get_retry 3
            delay_before_retry 3
        }
    }

    real_server 192.168.200.3 1358 {
        weight 1
        HTTP_GET {
            url {
              path /testurl/test.jsp
              digest 640205b7b0fc66c1ea91c463fac6334c
            }
            url {
              path /testurl2/test.jsp
              digest 640205b7b0fc66c1ea91c463fac6334c
            }
            connect_timeout 3
            nb_get_retry 3
            delay_before_retry 3
        }
    }
}

virtual_server 10.10.10.3 1358 {
    delay_loop 3
    lb_algo rr
    lb_kind NAT
    persistence_timeout 50
    protocol TCP

    real_server 192.168.200.4 1358 {
        weight 1
        HTTP_GET {
            url {
              path /testurl/test.jsp
              digest 640205b7b0fc66c1ea91c463fac6334d
            }
            url {
              path /testurl2/test.jsp
              digest 640205b7b0fc66c1ea91c463fac6334d
            }
            url {
              path /testurl3/test.jsp
              digest 640205b7b0fc66c1ea91c463fac6334d
            }
            connect_timeout 3
            nb_get_retry 3
            delay_before_retry 3
        }
    }

    real_server 192.168.200.5 1358 {
        weight 1
        HTTP_GET {
            url {
              path /testurl/test.jsp
              digest 640205b7b0fc66c1ea91c463fac6334d
            }
            url {
              path /testurl2/test.jsp
              digest 640205b7b0fc66c1ea91c463fac6334d
            }
            url {
              path /testurl3/test.jsp
              digest 640205b7b0fc66c1ea91c463fac6334d
            }
            connect_timeout 3
            nb_get_retry 3
            delay_before_retry 3
        }
    }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179

从服务器配置：

! Configuration File for keepalived

global_defs {
   notification_email {
     acassen@firewall.loc
     failover@firewall.loc
     sysadmin@firewall.loc
   }
   notification_email_from Alexandre.Cassen@firewall.loc
   smtp_server 192.168.200.1
   smtp_connect_timeout 30
   router_id LVS_DEVEL
   vrrp_skip_check_adv_addr
   vrrp_strict
   vrrp_garp_interval 0
   vrrp_gna_interval 0
}


vrrp_script chk_http_port {
	 script "/usr/local/src/nginx_check.sh"
	 interval 2 #（检测脚本执行的间隔）
	 weight 2

}

vrrp_instance VI_1 {
	 state BACKUP # 备份服务器上将 MASTER 改为 BACKUP
	 interface ens33 //网卡
	 virtual_router_id 51 # 主、备机的 virtual_router_id 必须相同
	 priority 90 # 主、备机取不同的优先级，主机值较大，备份机值较小
	 advert_int 1
	 authentication {
		 auth_type PASS
		 auth_pass 1111
	 }
	 virtual_ipaddress {
		192.168.19.50 # VRRP H 虚拟地址（非真实物理地址）
	 }
}

#vrrp_instance VI_1 {
#    state MASTER
#    interface eth0
#    virtual_router_id 51
#    priority 100
#    advert_int 1
#    authentication {
#        auth_type PASS
#        auth_pass 1111
#    }
#    virtual_ipaddress {
#        192.168.200.16
#        192.168.200.17
#        192.168.200.18
#    }
#}

virtual_server 192.168.200.100 443 {
    delay_loop 6
    lb_algo rr
    lb_kind NAT
    persistence_timeout 50
    protocol TCP

    real_server 192.168.201.100 443 {
        weight 1
        SSL_GET {
            url {
              path /
              digest ff20ad2481f97b1754ef3e12ecd3a9cc
            }
            url {
              path /mrtg/
              digest 9b3a0c85a887a256d6939da88aabd8cd
            }
            connect_timeout 3
            nb_get_retry 3
            delay_before_retry 3
        }
    }
}

virtual_server 10.10.10.2 1358 {
    delay_loop 6
    lb_algo rr
    lb_kind NAT
    persistence_timeout 50
    protocol TCP

    sorry_server 192.168.200.200 1358

    real_server 192.168.200.2 1358 {
        weight 1
        HTTP_GET {
            url {
              path /testurl/test.jsp
              digest 640205b7b0fc66c1ea91c463fac6334d
            }
            url {
              path /testurl2/test.jsp
              digest 640205b7b0fc66c1ea91c463fac6334d
            }
            url {
              path /testurl3/test.jsp
              digest 640205b7b0fc66c1ea91c463fac6334d
            }
            connect_timeout 3
            nb_get_retry 3
            delay_before_retry 3
        }
    }

    real_server 192.168.200.3 1358 {
        weight 1
        HTTP_GET {
            url {
              path /testurl/test.jsp
              digest 640205b7b0fc66c1ea91c463fac6334c
            }
            url {
              path /testurl2/test.jsp
              digest 640205b7b0fc66c1ea91c463fac6334c
            }
            connect_timeout 3
            nb_get_retry 3
            delay_before_retry 3
        }
    }
}

virtual_server 10.10.10.3 1358 {
    delay_loop 3
    lb_algo rr
    lb_kind NAT
    persistence_timeout 50
    protocol TCP

    real_server 192.168.200.4 1358 {
        weight 1
        HTTP_GET {
            url {
              path /testurl/test.jsp
              digest 640205b7b0fc66c1ea91c463fac6334d
            }
            url {
              path /testurl2/test.jsp
              digest 640205b7b0fc66c1ea91c463fac6334d
            }
            url {
              path /testurl3/test.jsp
              digest 640205b7b0fc66c1ea91c463fac6334d
            }
            connect_timeout 3
            nb_get_retry 3
            delay_before_retry 3
        }
    }

    real_server 192.168.200.5 1358 {
        weight 1
        HTTP_GET {
            url {
              path /testurl/test.jsp
              digest 640205b7b0fc66c1ea91c463fac6334d
            }
            url {
              path /testurl2/test.jsp
              digest 640205b7b0fc66c1ea91c463fac6334d
            }
            url {
              path /testurl3/test.jsp
              digest 640205b7b0fc66c1ea91c463fac6334d
            }
            connect_timeout 3
            nb_get_retry 3
            delay_before_retry 3
        }
    }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181

接着重启nginx，启动keepalived
（主服务器：）

接着重启nginx，启动keepalived
（从服务器：）

3、访问测试：

1、使用 ip a 查看主服务器的虚拟IP，进行访问

http://172.31.0.152/，成功访问！

成功访问！

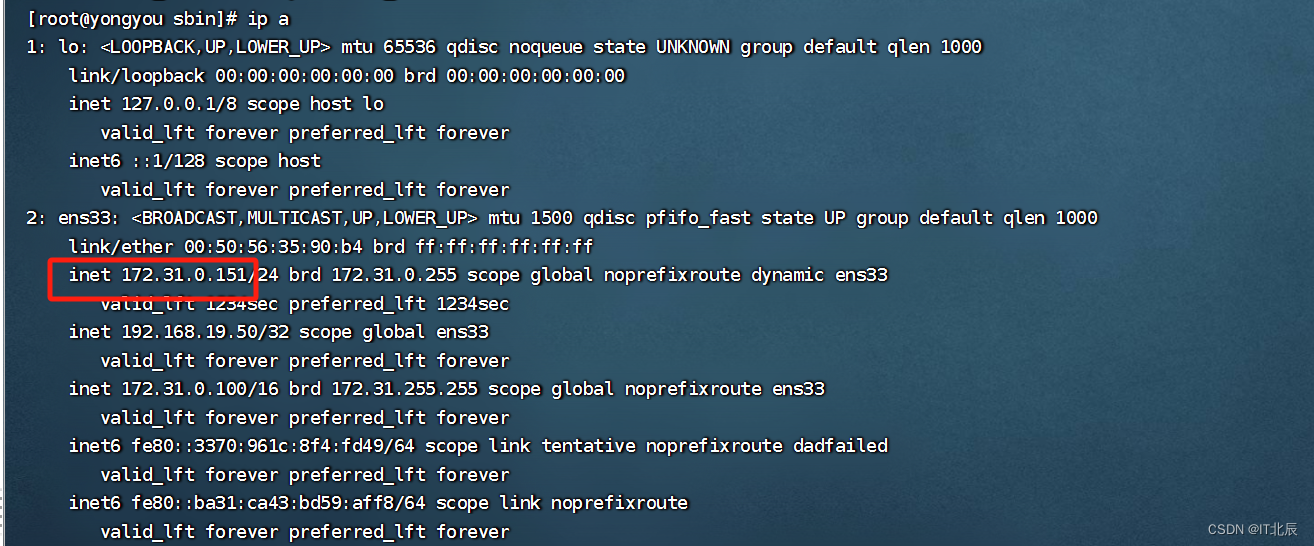

1、使用 ip a 查看从服务器的虚拟IP，进行访问

http://172.31.0.151:81/

成功访问！
