Spring3新特性：graalvm打包Springboot+Mybatis

问题1

org.apache.catalina.LifecycleException: An invalid Lifecycle transition was attempted ([before_stop]) for component
用不了反射，所以需要这个文件去

package org.wxy.example.sqlite.config;

import java.lang.reflect.Constructor;
import java.lang.reflect.Field;
import java.lang.reflect.Method;
import java.util.Arrays;
import java.util.List;
import java.util.Set;
import cn.hutool.core.util.ClassUtil;
import jakarta.annotation.PostConstruct;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.scheduling.concurrent.ThreadPoolTaskExecutor;
import org.springframework.stereotype.Component;




/**
 * 反射将所有项目类扫描加入到服务, 大力出奇迹的操作,感觉不太合适,不过先让服务跑起来
 *
 * @author PC
 *
 */
@Component
public class ClassReflectConfig {

	static boolean begin = true;

//	@Value("${scanclass}")
	private Boolean scanclass=true;

	@Autowired
	private ThreadPoolTaskExecutor executorService;

	@PostConstruct
	public void init() {

		if (scanclass) {
			System.err.println("配置文件下 scanclass 开启了生成反射类");
		} else {
			System.err.println("配置文件下 scanclass 关闭了生成反射类");
		}

		synchronized (ClassReflectConfig.class) {
			if (begin && scanclass) {
				begin = false;
				executorService.submit(() -> {
					{
						// 扫描系统第二级开始的包
						String packageName = ClassReflectConfig.class.getPackageName();
						String proPackageName = packageName.substring(0,
								packageName.indexOf(".", packageName.indexOf(".") + 1));

						// 可以在这个地方,添加除了服务以外其他的包,将会加入反射,以供graalvm生成配置
						List<String> asList = Arrays.asList(proPackageName);

						for (String spn : asList) {
							try {
								Set<Class<?>> doScan = ClassUtil.scanPackage(spn);
								for (Class clazz : doScan) {
									handlerClass(clazz);
								}
							} catch (Throwable e) {
								e.printStackTrace();
							}
						}
					}
				});
			}
		}


	}

	private void handlerClass(Class clazz) {
		if (clazz.equals(ClassReflectConfig.class)) {
			// 跳过自己,避免形成循环
			return;
		}

		executorService.submit(() -> {
			try {
				System.err.println("反射注入:" + clazz.getName());
				// 生成所有的构造器
				Constructor[] declaredConstructors = clazz.getDeclaredConstructors();
				// 找到无参构造器然后实例化
				Constructor declaredConstructor = clazz.getDeclaredConstructor();
				declaredConstructor.setAccessible(true);
				Object newInstance = declaredConstructor.newInstance();
				Method[] methods = clazz.getDeclaredMethods();
				for (Method method : methods) {
					try {
						// 实例化成功,那么调用一下
						method.setAccessible(true);
						// graalvm必须需要声明方法
						method.invoke(newInstance);
					} catch (Throwable e) {
					}
				}
				Field[] fields = clazz.getDeclaredFields();
				for (Field field : fields) {
					try {
						field.setAccessible(true);
						field.getType();
						String name = field.getName();
						field.get(newInstance);

					} catch (Throwable e) {
					}
				}
				System.err.println("反射注入完成:" + clazz.getName());
			} catch (Throwable e) {
			}
		});
	}

}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119

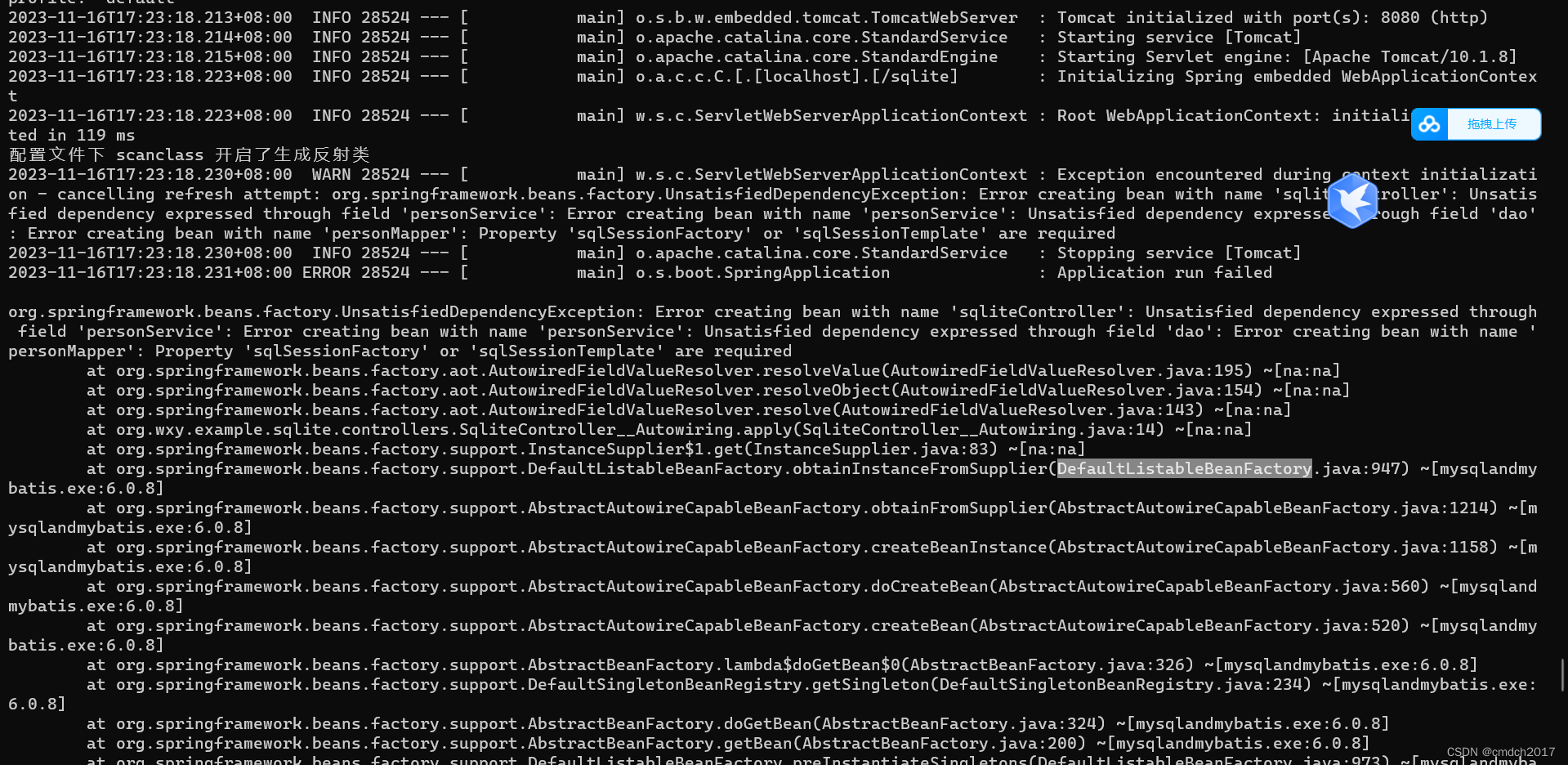

之后报错信息

org.springframework.beans.factory.UnsatisfiedDependencyException: Error creating bean with name 'sqliteController': Unsatisfied dependency expressed through field 'personService': Error creating bean with name 'personService': Unsatisfied dependency expressed through field 'dao': Error creating bean with name 'personMapper': Property 'sqlSessionFactory' or 'sqlSessionTemplate' are required
        at org.springframework.beans.factory.aot.AutowiredFieldValueResolver.resolveValue(AutowiredFieldValueResolver.java:195) ~[na:na]
        at org.springframework.beans.factory.aot.AutowiredFieldValueResolver.resolveObject(AutowiredFieldValueResolver.java:154) ~[na:na]
        at org.springframework.beans.factory.aot.AutowiredFieldValueResolver.resolve(AutowiredFieldValueResolver.java:143) ~[na:na]
        at org.wxy.example.sqlite.controllers.SqliteController__Autowiring.apply(SqliteController__Autowiring.java:14) ~[na:na]
        at org.springframework.beans.factory.support.InstanceSupplier$1.get(InstanceSupplier.java:83) ~[na:na]
        at org.springframework.beans.factory.support.DefaultListableBeanFactory.obtainInstanceFromSupplier(DefaultListableBeanFactory.java:947) ~[mysqlandmybatis.exe:6.0.8]
1
2
3
4
5
6
7

在这里插入图片描述

问题2

无法读取外部 DTD ‘mybatis-3-mapper.dtd’, 因为 accessExternalDTD 属性设置的限制导致不允许 ‘http’ 访问。

允许对 ‘http’ 的访问：
如果你确定从 ‘http’ 地址下载 DTD 文件是安全的，可以配置解析器以允许对 ‘http’ 的访问。在 Java 中，可以使用以下代码：

System.setProperty("javax.xml.accessExternalDTD", "all");

1
2

问题3

exe文件闪退日志
用powerShell打开

问题4

说不支持http协议

  <build>
    <plugins>
      <plugin>
        <groupId>org.graalvm.buildtoolsgroupId>
        <artifactId>native-maven-pluginartifactId>
        <configuration>
          <buildArgs combine.children="append">
            <buildArg>--enable-url-protocols=httpbuildArg>
          buildArgs>
        configuration>
      plugin>
      <plugin>
        <groupId>org.springframework.bootgroupId>
        <artifactId>spring-boot-maven-pluginartifactId>
      plugin>
    plugins>
  build>


  <repositories>
    <repository>
      <id>sonatype-oss-snapshotsid>
      <name>Sonatype OSS Snapshots Repositoryname>
      <url>https://oss.sonatype.org/content/repositories/snapshotsurl>
    repository>
  repositories>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

问题5

暂不支持mybatis-plus
