C++ Qt 学习（三）：无边框窗口设计

1. 无边框窗口

1.1 主窗口实现

• MainWidget.h

#pragma once

#include
#include "CTitleBar.h"
#include "CFrameLessWidgetBase.h"

// 主窗口 MainWidget 继承自无边框窗口公用类 CFrameLessWidgetBase
class MainWidget : public CFrameLessWidgetBase {
    Q_OBJECT

public:
    MainWidget(QWidget *parent = Q_NULLPTR);

private slots:
    void on_closeSlot();

private:
    void initUI();

private:
    CTitleBar* m_pTitleBar = nullptr;
};
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22

• MainWidget.cpp

#include "MainWidget.h"
#include
#include

MainWidget::MainWidget(QWidget *parent) : CFrameLessWidgetBase(parent) {
    initUI();
}

void MainWidget::on_closeSlot() {
    // 显示一个警告对话框，询问用户是否要退出
    // 参数：创建对话框的父窗口，对话框标题，对话框内容，对话框按钮组合，默认值
    QMessageBox::StandardButton _exit = QMessageBox::warning(this, u8"提示", u8"确定要退出吗",
        QMessageBox::Yes | QMessageBox::No, QMessageBox::Yes);

    if (_exit == QMessageBox::Yes) {
        close();
    }
}

void MainWidget::initUI() {
    // 创建标题栏和主窗口
    m_pTitleBar = new CTitleBar(this);
    QWidget* w = new QWidget(this);
    w->setMinimumSize(800, 600);  // 初始化主窗口大小

    // 将标题栏和主窗口放入垂直布局中
    QVBoxLayout* pVlay = new QVBoxLayout(this);
    pVlay->addWidget(m_pTitleBar);
    pVlay->addWidget(w);

    pVlay->setContentsMargins(0, 0, 0, 0);
    setLayout(pVlay);

    // 将标题栏中的关闭信号与主窗口关闭的槽函数建立连接
    connect(m_pTitleBar, &CTitleBar::sig_close, this, &MainWidget::on_closeSlot);
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36

1.2 标题栏实现

• CTitleBar.h

#pragma once
#include
#include
#include

class CTitleBar : public QWidget {
    Q_OBJECT

public:
    CTitleBar(QWidget* p = nullptr);
    ~CTitleBar();

private:
    void initUI();

private:
    // 鼠标拖动标题栏事件
    void mousePressEvent(QMouseEvent* event) override;
    // 鼠标双击标题栏事件
    void mouseDoubleClickEvent(QMouseEvent* event) override;

private slots:
    void onClicked();

signals:
    void sig_close();

private:
    QLabel* m_pLogo;
    QLabel* m_pTitleTextLabel;

    QPushButton* m_pSetBtn;
    QPushButton* m_pMinBtn;
    QPushButton* m_pMaxBtn;
    QPushButton* m_pCloseBtn;
};
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36

• CTitleBar.cpp

#include "CTitleBar.h"
#include

// 告诉编译器在链接时将 "user32.lib" 库文件加入到项目中
#pragma comment(lib, "user32.lib")
// 包含使用 Qt 框架与 Windows API 进行交互所需的定义和函数
#include

CTitleBar::CTitleBar(QWidget* p): QWidget(p) {
    // 设置标题栏部件在关闭时自动删除的属性
    this->setAttribute(Qt::WA_DeleteOnClose);

    initUI();
}

CTitleBar::~CTitleBar() {}

void CTitleBar::initUI() {
    setAttribute(Qt::WA_StyledBackground); // 禁止父窗口影响子窗口样式
    this->setFixedHeight(32 + 5 * 2);
    this->setStyleSheet("background-color:rgb(54,54,54)");

    // 创建 logo 控件
    m_pLogo = new QLabel(this);
    m_pLogo->setFixedSize(32, 32);
    m_pLogo->setStyleSheet("background-image:url(:/LessWidgetPro/resources/titlebar/title_icon.png);border:none");

    // 创建 标题 控件
    m_pTitleTextLabel = new QLabel(this);
    m_pTitleTextLabel->setText(u8"我是标题");
    m_pTitleTextLabel->setFixedWidth(120);
    m_pTitleTextLabel->setStyleSheet("QLabel{font-family: Microsoft YaHei; \
        font-size:18px; \
        color:#BDC8E2;background-color:rgb(54,54,54);}");

    // 创建 设置 控件
    m_pSetBtn = new QPushButton(this);
    m_pSetBtn->setFixedSize(32, 32);
    m_pSetBtn->setStyleSheet("QPushButton{background-image:url(:/LessWidgetPro/resources/titlebar/set.svg);border:none}" \
        "QPushButton:hover{" \
        "background-color:rgb(99, 99, 99);" \
        "background-image:url(:/LessWidgetPro/resources/titlebar/set_hover.svg);border:none;}");

    // 创建 最小化 控件
    m_pMinBtn = new QPushButton(this);
    m_pMinBtn->setFixedSize(32, 32);
    m_pMinBtn->setStyleSheet("QPushButton{background-image:url(:/LessWidgetPro/resources/titlebar/min.svg);border:none}" \
        "QPushButton:hover{" \
        "background-color:rgb(99, 99, 99);" \
        "background-image:url(:/LessWidgetPro/resources/titlebar/min_hover.svg);border:none;}");

    // 创建 最大化 控件
    m_pMaxBtn = new QPushButton(this);
    m_pMaxBtn->setFixedSize(32, 32);
    m_pMaxBtn->setStyleSheet("QPushButton{background-image:url(:/LessWidgetPro/resources/titlebar/normal.svg);border:none}" \
        "QPushButton:hover{" \
        "background-color:rgb(99, 99, 99);" \
        "background-image:url(:/LessWidgetPro/resources/titlebar/normal_hover.svg);border:none;}");

    // 创建 关闭 控件
    m_pCloseBtn = new QPushButton(this);
    m_pCloseBtn->setFixedSize(32, 32);
    m_pCloseBtn->setStyleSheet("QPushButton{background-image:url(:/LessWidgetPro/resources/titlebar/close.svg);border:none}" \
        "QPushButton:hover{" \
        "background-color:rgb(99, 99, 99);" \
        "background-image:url(:/LessWidgetPro/resources/titlebar/close_hover.svg);border:none;}");

    // 创建水平布局将上述控件放进去
    QHBoxLayout* pHlay = new QHBoxLayout(this);

    pHlay->addWidget(m_pLogo);
    pHlay->addWidget(m_pTitleTextLabel);
    pHlay->addStretch();

    pHlay->addWidget(m_pSetBtn);
    QSpacerItem* pItem1 = new QSpacerItem(20, 20, QSizePolicy::Fixed, QSizePolicy::Fixed);
    pHlay->addSpacerItem(pItem1); // 弹簧每次使用时得 new 出来，不能重复使用

    pHlay->addWidget(m_pMinBtn);
    QSpacerItem* pItem2 = new QSpacerItem(18, 20, QSizePolicy::Fixed, QSizePolicy::Fixed);
    pHlay->addSpacerItem(pItem2); // 弹簧每次使用时得 new 出来，不能重复使用

    pHlay->addWidget(m_pMaxBtn);
    QSpacerItem* pItem3 = new QSpacerItem(18, 20, QSizePolicy::Fixed, QSizePolicy::Fixed);
    pHlay->addSpacerItem(pItem3); // 弹簧每次使用时得 new 出来，不能重复使用

    pHlay->addWidget(m_pCloseBtn);

    pHlay->setContentsMargins(5, 5, 5, 5);

    connect(m_pMinBtn, &QPushButton::clicked, this, &CTitleBar::onClicked);
    connect(m_pMaxBtn, &QPushButton::clicked, this, &CTitleBar::onClicked);
    connect(m_pCloseBtn, &QPushButton::clicked, this, &CTitleBar::onClicked);
}

// 处理鼠标按下事件的函数
void CTitleBar::mousePressEvent(QMouseEvent* event) {
    if (ReleaseCapture()) {
        QWidget* pWindow = this->window();
        // 判断该窗口是否是顶级窗口（即主窗口）
        if (pWindow->isTopLevel()) {
            // 发送WM_SYSCOMMAND消息，参数为SC_MOVE + HTCAPTION，目的是模拟鼠标拖动窗口
            SendMessage(HWND(pWindow->winId()), WM_SYSCOMMAND, SC_MOVE + HTCAPTION, 0);
        }
    }
}

// 当鼠标双击标题栏时，会触发与 m_pMaxBtn 按钮关联的点击事件
void CTitleBar::mouseDoubleClickEvent(QMouseEvent* event) {
    emit m_pMaxBtn->clicked();
}

// 处理标题栏上按钮的点击事件
void CTitleBar::onClicked() {
    // 使用 sender() 函数获取发送信号的对象指针，并强转为 QPushButton* 类型
    QPushButton* pButton = qobject_cast<QPushButton*>(sender());
    QWidget* pWindow = this->window(); // 获取当前窗口的指针

    if (pButton == m_pMinBtn) {
        pWindow->showMinimized(); // 将窗口最小化
    } else if (pButton == m_pMaxBtn) {
        if (pWindow->isMaximized()) {
            pWindow->showNormal(); // 如果已经最大化，则先还原窗口
            m_pMaxBtn->setStyleSheet("QPushButton{background-image:url(:/LessWidgetPro/resources/titlebar/normal.svg);border:none}" \
                "QPushButton:hover{" \
                "background-color:rgb(99, 99, 99);" \
                "background-image:url(:/LessWidgetPro/resources/titlebar/normal_hover.svg);border:none;}");
        } else {
            pWindow->showMaximized(); // 如果未最大化，则将窗口最大化
            m_pMaxBtn->setStyleSheet("QPushButton{background-image:url(:/LessWidgetPro/resources/titlebar/max.svg);border:none}" \
                "QPushButton:hover{" \
                "background-color:rgb(99, 99, 99);" \
                "background-image:url(:/LessWidgetPro/resources/titlebar/max_hover.svg);border:none;}");
        }
    } else if (pButton == m_pCloseBtn) {
        emit sig_close(); // 通知其他部分执行关闭窗口的操作
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138

1.3 无边框窗口公用类实现

• CFrameLessWidgetBase.h

#pragma once
#include

class CFrameLessWidgetBase : public QWidget {
public:
    CFrameLessWidgetBase(QWidget* p = nullptr);
    ~CFrameLessWidgetBase() {}

protected:
    // 参数：指定事件类型的标识符，传递原始操作系统事件消息，存储和返回处理结果
    bool nativeEvent(const QByteArray& eventType, void* message, long* result) override;

private:
    int m_nBorderWidth = 5;
};
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

• CFrameLessWidgetBase.cpp

#include "CFrameLessWidgetBase.h"
#include
#include
#include

#pragma comment(lib, "user32.lib")
#pragma comment(lib,"dwmapi.lib")

CFrameLessWidgetBase::CFrameLessWidgetBase(QWidget* p) :QWidget(p) {
    this->setWindowFlags(Qt::FramelessWindowHint | Qt::WindowMinMaxButtonsHint);
    // Qt::WA_Hover 表示窗口具有悬停功能，可以在鼠标悬停时触发相应的事件
    setAttribute(Qt::WA_Hover);
}

// 根据鼠标在窗口的位置判断其是否在边框区域，并设置相应的 result 值以实现窗口的拖动或调整大小操作
bool CFrameLessWidgetBase::nativeEvent(const QByteArray& eventType, void* message, long* result) {
    MSG* param = static_cast<MSG*>(message);

    switch (param->message) {
        case WM_NCHITTEST: {
            // 获取鼠标在窗口上的坐标 (nX 和 nY)
            int nX = GET_X_LPARAM(param->lParam) - this->geometry().x();
            int nY = GET_Y_LPARAM(param->lParam) - this->geometry().y();

            // 判断鼠标是否在内部区域
            if (nX > m_nBorderWidth && nX < this->width() - m_nBorderWidth &&
                nY > m_nBorderWidth && nY < this->height() - m_nBorderWidth)
            {
                if (childAt(nX, nY) != nullptr) // 如果在内部区域且有子部件
                    return QWidget::nativeEvent(eventType, message, result);
            }

            // 如果鼠标在边界区域，则根据具体位置设置 result 的值，以实现不同的窗口行为
            if ((nX > 0) && (nX < m_nBorderWidth))
                // 鼠标在左边界，则 *result 被设置为 HTLEFT，表示拖动窗口左边界
                *result = HTLEFT;

            if ((nX > this->width() - m_nBorderWidth) && (nX < this->width()))
                *result = HTRIGHT;

            if ((nY > 0) && (nY < m_nBorderWidth))
                *result = HTTOP;

            if ((nY > this->height() - m_nBorderWidth) && (nY < this->height()))
                *result = HTBOTTOM;

            if ((nX > 0) && (nX < m_nBorderWidth) && (nY > 0)
                && (nY < m_nBorderWidth))
                *result = HTTOPLEFT;

            if ((nX > this->width() - m_nBorderWidth) && (nX < this->width())
                && (nY > 0) && (nY < m_nBorderWidth))
                *result = HTTOPRIGHT;

            if ((nX > 0) && (nX < m_nBorderWidth)
                && (nY > this->height() - m_nBorderWidth) && (nY < this->height()))
                *result = HTBOTTOMLEFT;

            if ((nX > this->width() - m_nBorderWidth) && (nX < this->width())
                && (nY > this->height() - m_nBorderWidth) && (nY < this->height()))
                *result = HTBOTTOMRIGHT;

            return true;
        }
    }

    return false;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68

2. Qt 实现窗口阴影

• CLoginDlg.cpp

#include "CLoginDlg.h"
#include "CLoginRealWidget.h"
#include   // 添加窗口阴影
#include
#include

CLoginDlg::CLoginDlg(QWidget *parent) : QDialog(parent) {
    // 设置主窗口透明
    this->setAttribute(Qt::WA_TranslucentBackground, true);
    // 设置主窗口无边框
    this->setWindowFlags(Qt::Window | Qt::FramelessWindowHint | Qt::WindowMinMaxButtonsHint);

    QVBoxLayout* pMainLay = new QVBoxLayout(this);
    CLoginRealWidget* pRealWidget = new CLoginRealWidget(this);
    pMainLay->addWidget(pRealWidget);
    pMainLay->setContentsMargins(30, 30, 30, 30);
    setLayout(pMainLay);

    // 给顶层 widget 设置背景颜色，不然看不见，因为底层 widget 已经透明了
    pRealWidget->setStyleSheet("background-color:rgb(255, 254, 253)");

    // 创建窗口阴影并设置属性，最后添加给顶层 widget
    QGraphicsDropShadowEffect* shadow = new QGraphicsDropShadowEffect(this);
    shadow->setOffset(0, 0);                 // 设置阴影距离
    shadow->setColor(QColor("#686868"));     // 设置阴影颜色 686868
    shadow->setBlurRadius(30);               // 设置阴影区域
    pRealWidget->setGraphicsEffect(shadow);  // 给顶层 QWidget 设置阴影
}

CLoginDlg::~CLoginDlg() {}

void CLoginDlg::mousePressEvent(QMouseEvent* event) {
    this->windowPos = this->pos();       // 获得部件当前位置
    this->mousePos = event->globalPos(); // 获取鼠标当前的全局位置
    this->dPos = mousePos - windowPos;   // 鼠标按下后，部件所在的新位置相对于按下前位置的偏移量
}

void CLoginDlg::mouseMoveEvent(QMouseEvent* event) {
    // 根据鼠标当前的全局位置和之前保存的偏移量，计算部件应该移动到的新位置，并将部件移动到新位置
    this->move(event->globalPos() - this->dPos);
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41

3. Qt 实现圆角窗口

3.1 方式一：绘制法

• MainWidget.h

#pragma once
#include

class MainWidget : public QWidget {
    Q_OBJECT

public:
    MainWidget(QWidget *parent = Q_NULLPTR);

private:
    void paintEvent(QPaintEvent* event) override;
};
1
2
3
4
5
6
7
8
9
10
11
12

• MainWidget.cpp

#include "MainWidget.h"
#include

MainWidget::MainWidget(QWidget *parent) : QWidget(parent) {
    resize(600, 400);

    // 设置窗口背景透明
    setAttribute(Qt::WA_TranslucentBackground);
    // 设置窗口无边框
    setWindowFlags(Qt::FramelessWindowHint | Qt::WindowMinMaxButtonsHint);
}

void MainWidget::paintEvent(QPaintEvent* event) {
    QPainter painter(this);
    // 设置抗锯齿渲染方式，使绘制的图形边缘更加平滑
    painter.setRenderHint(QPainter::Antialiasing);
    // 设置画刷，使用颜色（R=168, G=68, B=68）作为填充色
    painter.setBrush(QBrush(QColor(168, 68, 68)));
    // 设置画笔，将其设置为透明，即不绘制边框
    painter.setPen(Qt::transparent);
    // 获取当前窗口部件的矩形区域
    QRect rect = this->rect();
    // 绘制一个具有圆角的矩形，圆角 15px
    painter.drawRoundedRect(rect, 15, 15);
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25

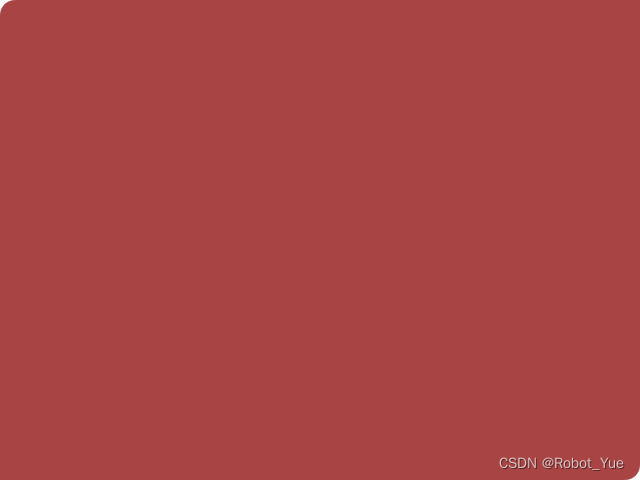

3.2 方式二：qss（推荐，更灵活）

• MainWidget.cpp

#include "MainWidget.h"
#include
#include

MainWidget::MainWidget(QWidget *parent) : QWidget(parent) {
    // 设置窗口背景透明
    setAttribute(Qt::WA_TranslucentBackground);
    // 设置窗口无边框
    setWindowFlags(Qt::FramelessWindowHint | Qt::WindowMinMaxButtonsHint);

    // 设置左上、右下圆角，大小 15px
    this->setStyleSheet("QWidget{background-color:#A84444;  \
        border-top-left-radius:15px;   \
        border-bottom-right-radius:15px; \
    }");
}

void MainWidget::paintEvent(QPaintEvent*) {
    QStyleOption opt;    // 用于存储窗口部件的绘制选项
    opt.init(this);      // 初始化 opt，将其与当前窗口部件相关联，以便获取窗口部件的状态和外观选项
    QPainter p(this);    // 创建一个QPainter对象，并将其与当前窗口部件相关联，以便于进行绘图操作
    // 使用 QStyle 对象的 drawPrimitive 方法来绘制窗口部件的外观
    style()->drawPrimitive(QStyle::PE_Widget, &opt, &p, this);
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

4. 实现 WPS tab 页面

4.1 主窗口实现

• WPSDemo.h

#pragma once

#include
#include "ui_WPSDemo.h"

class WPSDemo : public QWidget {
    Q_OBJECT

public:
    WPSDemo(QWidget *parent = Q_NULLPTR);

protected:
    bool nativeEvent(const QByteArray& eventType, void* message, long* result) override;

private slots:
    void on_close();

private:
    Ui::WPSDemoClass ui;
    int m_BorderWidth = 5; // 表示鼠标位于边框缩放范围的宽度
};
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

• WPSDemo.cpp

#include "WPSDemo.h"
#include "tabbrowser.h"
#include

#ifdef Q_OS_WIN
#include
#include
#include
#endif

#pragma comment(lib, "user32.lib")
#pragma comment(lib,"dwmapi.lib")

WPSDemo::WPSDemo(QWidget *parent) : QWidget(parent) {
    ui.setupUi(this);
    setWindowFlags(Qt::FramelessWindowHint);
    setStyleSheet("background-color:#E3E4E7");

    CTabBrowser* pTab = new CTabBrowser(this);

    QHBoxLayout* pHLay = new QHBoxLayout(this);
    pHLay->addWidget(pTab);
    pHLay->setContentsMargins(6, 6, 6, 6);
    setLayout(pHLay);

    connect(pTab, &CTabBrowser::sig_close, this, &WPSDemo::on_close);
}

void WPSDemo::on_close() {
    // 其它业务逻辑

    close();
}

bool WPSDemo::nativeEvent(const QByteArray& eventType, void* message, long* result) {
    Q_UNUSED(eventType)
    MSG* param = static_cast<MSG*>(message);

	switch (param->message) {
        case WM_NCHITTEST: {
            int nX = GET_X_LPARAM(param->lParam) - this->geometry().x();
            int nY = GET_Y_LPARAM(param->lParam) - this->geometry().y();

            // 如果鼠标位于子控件上，则不进行处理
            if (childAt(nX, nY) != nullptr)
                return QWidget::nativeEvent(eventType, message, result);

            // 鼠标区域位于窗体边框，进行缩放
            if ((nX > 0) && (nX < m_BorderWidth))
                *result = HTLEFT;

            if ((nX > this->width() - m_BorderWidth) && (nX < this->width()))
                *result = HTRIGHT;

            if ((nY > 0) && (nY < m_BorderWidth))
                *result = HTTOP;

            if ((nY > this->height() - m_BorderWidth) && (nY < this->height()))
                *result = HTBOTTOM;

            if ((nX > 0) && (nX < m_BorderWidth) && (nY > 0)
                && (nY < m_BorderWidth))
                *result = HTTOPLEFT;

            if ((nX > this->width() - m_BorderWidth) && (nX < this->width())
                && (nY > 0) && (nY < m_BorderWidth))
                *result = HTTOPRIGHT;

            if ((nX > 0) && (nX < m_BorderWidth)
                && (nY > this->height() - m_BorderWidth) && (nY < this->height()))
                *result = HTBOTTOMLEFT;

            if ((nX > this->width() - m_BorderWidth) && (nX < this->width())
                && (nY > this->height() - m_BorderWidth) && (nY < this->height()))
                *result = HTBOTTOMRIGHT;

            return true;
        }
    }

    return QWidget::nativeEvent(eventType, message, result);
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82

4.2 标签栏实现

• CTabTitleWidget.h

#pragma once
#include
#include

class CTabTitleWidget : public QWidget {
    Q_OBJECT

public:
    CTabTitleWidget(QWidget* parent = nullptr);
    ~CTabTitleWidget();

    void setEmptyWidgetWidth(int w);

protected:
    void paintEvent(QPaintEvent* event) override;
    void mousePressEvent(QMouseEvent* event) override;
    void mouseDoubleClickEvent(QMouseEvent* event);

signals:
    void sig_close();
    void sig_addtab();

private slots:
    void on_Clicked();

private:
    QPushButton* m_pAddBtn = nullptr;
    QWidget*     m_pEmptyWidget = nullptr;
    QPushButton* m_pUserBtn = nullptr;
    QPushButton* m_pMinBtn = nullptr;
    QPushButton* m_pMaxBtn = nullptr;
    QPushButton* m_pCloseBtn = nullptr;
};
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33

• CTabTitleWidget.cpp

#include "CTabTitleWidget.h"
#include
#include
#include
#include

#ifdef Q_OS_WIN
#include
#pragma comment(lib, "user32.lib")
#endif

CTabTitleWidget::CTabTitleWidget(QWidget* parent) {
    setStyleSheet("background-color:#E3E4E7");
    m_pAddBtn = new QPushButton(this);
    m_pAddBtn->setFlat(true);
    m_pAddBtn->setFixedSize(32, 32);
    m_pAddBtn->setStyleSheet("background-image:url(:/WPSDemo/resources/add.svg)");

    m_pEmptyWidget = new QWidget(this);

    m_pUserBtn = new QPushButton(this);
    m_pUserBtn->setFlat(true);
    m_pUserBtn->setFixedSize(32, 32);
    m_pUserBtn->setStyleSheet("background-image:url(:/WPSDemo/resources/user)");

    m_pMinBtn = new QPushButton(this);
    m_pMinBtn->setFlat(true);
    m_pMinBtn->setFixedSize(32, 32);
    m_pMinBtn->setStyleSheet("background-image:url(:/WPSDemo/resources/min.svg)");

    m_pMaxBtn = new QPushButton(this);
    m_pMaxBtn->setFlat(true);
    m_pMaxBtn->setFixedSize(32, 32);
    m_pMaxBtn->setStyleSheet("background-image:url(:/WPSDemo/resources/max.svg)");

    m_pCloseBtn = new QPushButton(this);
    m_pCloseBtn->setFlat(true);
    m_pCloseBtn->setFixedSize(32, 32);
    m_pCloseBtn->setStyleSheet("background-image:url(:/WPSDemo/resources/close.svg)");

    QHBoxLayout* pHLay = new QHBoxLayout(this);
    pHLay->addWidget(m_pAddBtn);
    pHLay->addWidget(m_pEmptyWidget);
    this->setSizePolicy(QSizePolicy::Maximum, QSizePolicy::Expanding);
    pHLay->addWidget(m_pUserBtn);
    pHLay->addSpacing(8);
    pHLay->addWidget(m_pMinBtn);
    pHLay->addWidget(m_pMaxBtn);
    pHLay->addWidget(m_pCloseBtn);
    pHLay->setContentsMargins(1, 0, 1, 3);
    setLayout(pHLay);

    connect(m_pAddBtn, &QPushButton::clicked, this, &CTabTitleWidget::on_Clicked);
    connect(m_pMinBtn, &QPushButton::clicked, this, &CTabTitleWidget::on_Clicked);
    connect(m_pMaxBtn, &QPushButton::clicked, this, &CTabTitleWidget::on_Clicked);
    connect(m_pCloseBtn, &QPushButton::clicked, this, &CTabTitleWidget::on_Clicked);
}

CTabTitleWidget::~CTabTitleWidget() {}

void CTabTitleWidget::setEmptyWidgetWidth(int w) {
    m_pEmptyWidget->setMinimumWidth(w);
}

void CTabTitleWidget::paintEvent(QPaintEvent* event) {
    QStyleOption opt;
    opt.init(this);
    QPainter p(this);
    style()->drawPrimitive(QStyle::PE_Widget, &opt, &p, this);
    QWidget::paintEvent(event);
}

void CTabTitleWidget::mousePressEvent(QMouseEvent* event) {
    if (ReleaseCapture()) {
        QWidget* pWindow = this->window();
        if (pWindow->isTopLevel()) {
            SendMessage(HWND(pWindow->winId()), WM_SYSCOMMAND, SC_MOVE + HTCAPTION, 0);
        }
    }
    event->ignore();
}

void CTabTitleWidget::mouseDoubleClickEvent(QMouseEvent* event) {
    emit m_pMaxBtn->clicked();
}

void CTabTitleWidget::on_Clicked() {
    QPushButton* pButton = qobject_cast<QPushButton*>(sender());

    QWidget* pWindow = this->window();

    if (pWindow->isTopLevel()) {
        if (pButton == m_pAddBtn) {
            emit sig_addtab();
        } else if (pButton == m_pMinBtn) {
            pWindow->showMinimized();
        } else if (pButton == m_pMaxBtn) {
            pWindow->isMaximized() ? pWindow->showNormal() : pWindow->showMaximized();
        } else if (pButton == m_pCloseBtn) {
            emit sig_close();
        }
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103

4.3 标签栏右键导航菜单实现

• tabbrowser.h

#pragma once

#include
#include
#include "CTabTitleWidget.h"

class CTabBrowser : public QTabWidget {
    Q_OBJECT

public:
    explicit CTabBrowser(QWidget *parent = 0);

    // tab 操作标志
    enum TAB_FLAG {
        NEW,
        CLOSE,
        NORMAL,
        SPECIAL
    };

protected:
    void resizeEvent(QResizeEvent *e) override;

private:
    void initTabWidget();
    void setTabBarFlag(TAB_FLAG flag);
    void createTabMenu();

private slots:
    void on_newTab();
    void on_closeTab(int index);
    void onMenuShow(const QPoint& pos);
    void on_closeAllTab();

signals:
    void sig_close();

private:
    CTabTitleWidget* m_pRightWidget = nullptr;
    QMenu* m_pTabMenu = nullptr;
};
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41

• tabbrowser.cpp

#include "tabbrowser.h"
#include
#include
#include
#include
#include

QString qss0 = "QTabBar::tab{ \
            font: 75 12pt Arial; \
            text-align:left; \
            width:184px; \
            height:32; \
            background:#FFFFFF; \
            border:2px solid #FFFFFF; \
            border-bottom-color:#FFFFFF; \
            border-top-left-radius:4px; \
            border-top-right-radius:4px; \
            padding:2px; \
            margin-top:0px; \
            margin-right:1px; \
            margin-left:1px;  \
            margin-bottom:0px;} \
        QTabBar::tab:selected{  \
            color:#333333; /*文字颜色*/  \
            background-color:#FFFFFF;} \
        QTabBar::tab:!selected{ \
            color:#B2B2B2; \
            border-color:#FFFFFF;} \
        QTabBar::scroller{width: 0px;}";

QString qss1 = "QTabBar::tab{ \
            font: 75 12pt Arial; \
            text-align:left; \
            width:184px; \
            height:32; \
            background:#FFFFFF; \
            border:2px solid #FFFFFF; \
            border-bottom-color:#FFFFFF; \
            border-top-left-radius:4px; \
            border-top-right-radius:4px; \
            padding:2px; \
            margin-top:0px; \
            margin-right:1px; \
            margin-left:1px;  \
            margin-bottom:0px;} \
        QTabBar::tab:selected{  \
            color:#333333; /*文字颜色*/  \
            background-color:#FFFFFF;} \
        QTabBar::tab:!selected{ \
            color:#B2B2B2; \
            border-color:#FFFFFF;} \
        QTabBar::scroller{width: 36px;}";

CTabBrowser::CTabBrowser(QWidget *parent) : QTabWidget(parent) {
    this->addTab(new QWidget,u8"稻壳");

    this->setUsesScrollButtons(true);  // 滚动鼠标可切换 tab
    this->setTabsClosable(true);       // 显示 tab 右侧的关闭按钮
    this->setMovable(true);            // tab 可移动位置

    initTabWidget();
    setTabBarFlag(NORMAL);

    this->setStyleSheet(qss0);

    connect(this, &QTabWidget::tabCloseRequested,this, &CTabBrowser::on_closeTab);
}

void CTabBrowser::resizeEvent(QResizeEvent *e) {
    setTabBarFlag(NORMAL);
    QTabWidget::resizeEvent(e);
}

void CTabBrowser::createTabMenu() {
    m_pTabMenu = new QMenu(this);

    QAction* pAcSave = new QAction(QIcon(":/WPSDemo/resources/save.png"), u8"保存", m_pTabMenu);
    m_pTabMenu->addAction(pAcSave);

    connect(pAcSave, &QAction::triggered, [=] {
        QMessageBox::information(this, u8"提示", u8"你点击了 保存");
        });

    QAction* pAcSaveAs = new QAction(QString(u8"另存为"), m_pTabMenu);
    m_pTabMenu->addAction(pAcSaveAs);

    m_pTabMenu->addSeparator();

    QAction* pAcShareDoc = new QAction(QIcon(":/WPSDemo/resources/share.png"), QString(u8"分享文档"), m_pTabMenu);
    m_pTabMenu->addAction(pAcShareDoc);

    QAction* pAcSendToDevice = new QAction(QString(u8"发送到设备"), m_pTabMenu);
    m_pTabMenu->addAction(pAcSendToDevice);

    m_pTabMenu->addSeparator();

    QAction* pAcNewName = new QAction(QString(u8"重命名"), m_pTabMenu);
    m_pTabMenu->addAction(pAcNewName);

    QAction* pAcSaveToWPSCloud = new QAction(QString(u8"保存到WPS云文档"), m_pTabMenu);
    m_pTabMenu->addAction(pAcSaveToWPSCloud);

    QAction* pAcCloseAll = new QAction(QString(u8"关闭所有文件"), m_pTabMenu);
    m_pTabMenu->addAction(pAcCloseAll);
    connect(pAcCloseAll, &QAction::triggered, this, &CTabBrowser::on_closeAllTab);
}

void CTabBrowser::setTabBarFlag(TAB_FLAG flag) {
    int w = this->width();

    int tabsWidth = 0;  // 所有 tab 的总宽度
    int tabsHeight = tabBar()->height();
    int tabs = this->count();

    if (flag == NEW || flag == NORMAL) {
        for (int i = 0; i < tabs; ++i) {
            tabsWidth += tabBar()->tabRect(i).width();
        }
    } else {
        for (int i = 0; i < tabs - 1; ++i) {
            tabsWidth += tabBar()->tabRect(i).width();
        }
    } if (w > tabsWidth) {
        m_pRightWidget->setEmptyWidgetWidth(w - tabsWidth - 32 * 5 - 15);
        this->setStyleSheet(qss0);
    } else {
        // 当所有 tab 的宽度大于整个 tabWidget 的宽时
        m_pRightWidget->setEmptyWidgetWidth(150);
        this->setStyleSheet(qss1);
    }
}

void CTabBrowser::initTabWidget() {
    // 修改菜单策略
    this->setContextMenuPolicy(Qt::CustomContextMenu);
    connect(this, &QTabWidget::customContextMenuRequested, this, &CTabBrowser::onMenuShow);
    createTabMenu();

    m_pRightWidget = new CTabTitleWidget(this);

    this->setCornerWidget(m_pRightWidget, Qt::TopRightCorner);
    connect(m_pRightWidget, &CTabTitleWidget::sig_addtab, this, &CTabBrowser::on_newTab);
    connect(m_pRightWidget, &CTabTitleWidget::sig_close, this, &CTabBrowser::sig_close);
}

// 新建tab
void CTabBrowser::on_newTab() {
	int nCount = count();
	QString  title = QString::number(nCount);
    title = "Page" + title;

    this->addTab(new QWidget, title);

    if (!tabsClosable()) {
        setTabsClosable(true);
    }

    setTabBarFlag(NEW);
}

void CTabBrowser::on_closeTab(int index) {
    widget(index)->deleteLater();
    setTabBarFlag(CLOSE);

    // 当只剩下 1 个 tab时
    if (count() == 1) {
        setTabsClosable(false);
        setTabBarFlag(SPECIAL);
    }
}

void CTabBrowser::onMenuShow(const QPoint& pos) {
    int index = this->tabBar()->tabAt(pos);

#ifdef _DEBUG
    qDebug() << u8"当前tab为:" << QString::number(index);
    this->setCurrentIndex(index);
#endif

    if (index != -1) {
        m_pTabMenu->exec(QCursor::pos());
    }
}

void CTabBrowser::on_closeAllTab() {}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
