Qt Creater 设计的登录注册界面使用SQLite数据库

案例截图

登录页面

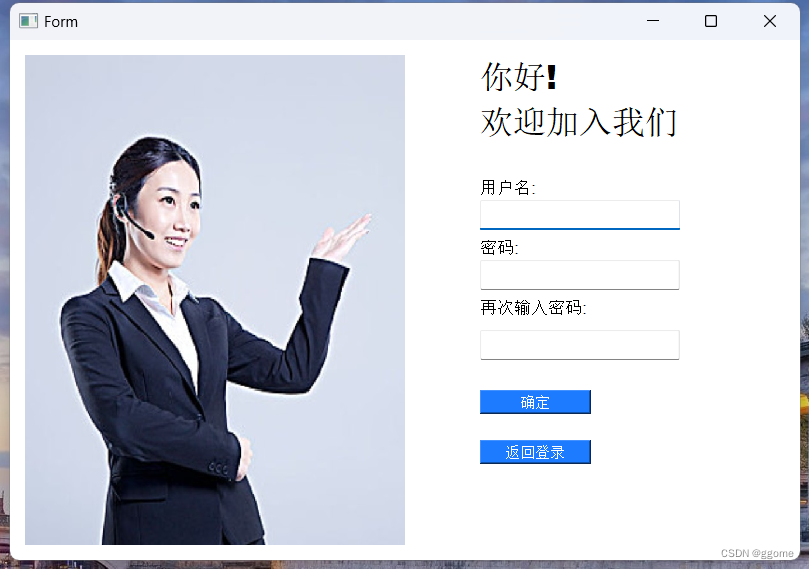

注册页面

项目目录结构截图

目录结构

代码

main.cpp

#include "mainwindow.h"

#include

int main(int argc, char *argv[])
{
    QApplication a(argc, argv);
    MainWindow w;
    //第一个是去掉原边框及标题栏，第二个是保留最小化及还原功能，主要是为了还原，最小化下面实现了
    w.setWindowFlags(Qt::FramelessWindowHint | Qt::WindowMinimizeButtonHint);
    w.show();
    return a.exec();
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14

mainwindow.cpp

#include "mainwindow.h"
#include "ui_mainwindow.h"
#include "signup.h"
#include

MainWindow::MainWindow(QWidget *parent)
    : QMainWindow(parent)
    , ui(new Ui::MainWindow)
{
    ui->setupUi(this);
    //设置图片
    QPixmap *pix = new QPixmap(":/images/blue.png");
    QSize sz = ui->label_image->size();
    ui->label_image->setPixmap(pix->scaled(sz));

    //设置图片阴影效果
    QGraphicsDropShadowEffect *shadow = new QGraphicsDropShadowEffect(this);
    shadow->setOffset(-3, 0);
    shadow->setColor(QColor(136,136,136));
    shadow->setBlurRadius(30);
    ui->label_image->setGraphicsEffect(shadow);
}

MainWindow::~MainWindow()
{
    delete ui;
}

void sqlite_Init()
{

    QSqlDatabase db = QSqlDatabase::addDatabase("QSQLITE");
    db.setDatabaseName("user.db");
    if(!db.open())
    {
        qDebug()<<"open error";
    }
    //create excle
    QString createsql=QString("create table if not exists user(id integer primary key autoincrement,"
                                "username ntext unique not NULL,"
                                "password ntext not NULL)");
    QSqlQuery query;
    if(!query.exec(createsql)){
        qDebug()<<"table create error";
    }
    else{
        qDebug()<<"table create success";
    }
}

void MainWindow::on_btn_signin_clicked()
{
    sqlite_Init();
    QString username = ui->lineEdit_username->text();
    QString password = ui->lineEdit_password->text();
    QString sql=QString("select * from user where username='%1' and password='%2'").arg(username,password);
    //创建执行语句对象
    QSqlQuery query(sql);
    //判断执行结果
    if(!query.next())
    {
        qDebug()<<"Login error";
        QMessageBox::information(this,"登录认证","登录失败,账户或者密码错误");
    }
    else
    {
        qDebug()<<"Login success";
        QMessageBox::information(this,"登录认证","登录成功");
        //登录成功后可以跳转到其他页面
        QWidget *w = new QWidget;
        w->show();
        this->close();
    }
}


void MainWindow::on_btn_signup_clicked()
{
    this->close();
    Signup *s = new Signup;
    s->show();
}


void MainWindow::on_btn_close_clicked()
{
    this->close();
}


1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90

signup.cpp

#include "signup.h"
#include "ui_signup.h"
#include "mainwindow.h"

Signup::Signup(QWidget *parent) :
    QWidget(parent),
    ui(new Ui::Signup)
{
    ui->setupUi(this);
    //设置图片
    QPixmap *pix = new QPixmap(":/images/women.png");
    QSize sz = ui->label_image->size();
    ui->label_image->setPixmap(pix->scaled(sz));
}

Signup::~Signup()
{
    delete ui;
}

void Signup::on_btn_return_clicked()
{
    MainWindow *w = new MainWindow;
    w->show();
    this->close();
}


void Signup::on_btn_sure_clicked()
{
    sqlite_Init();
    QString username = ui->lineEdit_username->text();
    QString password = ui->lineEdit_passwd->text();
    QString surepass = ui->lineEdit_surepasswd->text();
    //判断密码是否一致
    if(password == surepass)
    {
        QString sql=QString("insert into user(username,password) values('%1','%2');")
                          .arg(username).arg(password);
        //创建执行语句对象
        QSqlQuery query;
        //判断执行结果
        if(!query.exec(sql))
        {
            qDebug()<<"insert into error";
            QMessageBox::information(this,"注册认证","插入失败！");
        }
        else
        {
            qDebug()<<"insert into success";
            QMessageBox::information(this,"注册认证","插入成功！");
            MainWindow *w = new MainWindow;
            w->show();
            this->close();
        }

    }else{
        QMessageBox::information(this,"注册认证","两次密码输入不一致");
    }
}


1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62

页面UI

mainwindow.ui


<ui version="4.0">
 <class>MainWindowclass>
 <widget class="QMainWindow" name="MainWindow">
  <property name="geometry">
   <rect>
    <x>0x>
    <y>0y>
    <width>780width>
    <height>520height>
   rect>
  property>
  <property name="windowTitle">
   <string>MainWindowstring>
  property>
  <property name="styleSheet">
   <string notr="true">background-color: rgb(255, 255, 255);string>
  property>
  <widget class="QWidget" name="centralwidget">
   <widget class="QLabel" name="label_image">
    <property name="geometry">
     <rect>
      <x>385x>
      <y>10y>
      <width>380width>
      <height>500height>
     rect>
    property>
    <property name="text">
     <string/>
    property>
   widget>
   <widget class="QLabel" name="label">
    <property name="geometry">
     <rect>
      <x>10x>
      <y>10y>
      <width>200width>
      <height>20height>
     rect>
    property>
    <property name="text">
     <string>切换页面string>
    property>
   widget>
   <widget class="QLabel" name="label_2">
    <property name="geometry">
     <rect>
      <x>60x>
      <y>80y>
      <width>200width>
      <height>40height>
     rect>
    property>
    <property name="styleSheet">
     <string notr="true">font: 87 20pt "仿宋";string>
    property>
    <property name="text">
     <string>现在登录string>
    property>
   widget>
   <widget class="QPushButton" name="btn_signin">
    <property name="geometry">
     <rect>
      <x>70x>
      <y>400y>
      <width>80width>
      <height>24height>
     rect>
    property>
    <property name="styleSheet">
     <string notr="true">background-color: qlineargradient(spread:pad, x1:0.52, y1:1, x2:0.54, y2:0,
stop:0.0112994 rgba(64, 145, 252, 255),
stop:1 rgba(255, 255, 255, 255));
color: rgb(255, 255, 255);

border:0px groove gray;border-radius:
7px;padding:2px 4px;
font: 14pt "Candara";string>
    property>
    <property name="text">
     <string>登陆string>
    property>
   widget>
   <widget class="QPushButton" name="btn_signup">
    <property name="geometry">
     <rect>
      <x>210x>
      <y>400y>
      <width>80width>
      <height>24height>
     rect>
    property>
    <property name="styleSheet">
     <string notr="true">background-color: qlineargradient(spread:pad, x1:0.52, y1:1, x2:0.54, y2:0,
stop:0.0112994 rgba(64, 145, 252, 255),
stop:1 rgba(255, 255, 255, 255));
color: rgb(255, 255, 255);

border:0px groove gray;border-radius:
7px;padding:2px 4px;
font: 14pt "Candara";string>
    property>
    <property name="text">
     <string>注册string>
    property>
   widget>
   <widget class="QLineEdit" name="lineEdit_username">
    <property name="geometry">
     <rect>
      <x>60x>
      <y>230y>
      <width>240width>
      <height>40height>
     rect>
    property>
    <property name="styleSheet">
     <string notr="true">background-color: rgb(247, 247, 247);
border:1px groove gray;border-radius:
7px;padding:2px 4px;
font: 10pt "Candara";string>
    property>
    <property name="placeholderText">
     <string>输入账号string>
    property>
   widget>
   <widget class="QLineEdit" name="lineEdit_password">
    <property name="geometry">
     <rect>
      <x>60x>
      <y>300y>
      <width>240width>
      <height>40height>
     rect>
    property>
    <property name="styleSheet">
     <string notr="true">background-color: rgb(247, 247, 247);
border:1px groove gray;border-radius:
7px;padding:2px 4px;
font: 10pt "Candara";string>
    property>
    <property name="placeholderText">
     <string>输入密码string>
    property>
   widget>
   <widget class="QPushButton" name="btn_close">
    <property name="geometry">
     <rect>
      <x>725x>
      <y>15y>
      <width>36width>
      <height>36height>
     rect>
    property>
    <property name="styleSheet">
     <string notr="true">background-color:transparent;
image: url(:/images/exit.png);string>
    property>
    <property name="text">
     <string/>
    property>
   widget>
  widget>
 widget>
 <resources/>
 <connections/>
ui>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168

signup.ui


<ui version="4.0">
 <class>Signupclass>
 <widget class="QWidget" name="Signup">
  <property name="geometry">
   <rect>
    <x>0x>
    <y>0y>
    <width>790width>
    <height>520height>
   rect>
  property>
  <property name="windowTitle">
   <string>Formstring>
  property>
  <property name="styleSheet">
   <string notr="true">background-color: rgb(255, 255, 255);string>
  property>
  <widget class="QLabel" name="label_image">
   <property name="geometry">
    <rect>
     <x>15x>
     <y>15y>
     <width>380width>
     <height>490height>
    rect>
   property>
   <property name="text">
    <string/>
   property>
  widget>
  <widget class="QLabel" name="label_2">
   <property name="geometry">
    <rect>
     <x>470x>
     <y>20y>
     <width>131width>
     <height>31height>
    rect>
   property>
   <property name="styleSheet">
    <string notr="true">font: 87 20pt "Arial Black";string>
   property>
   <property name="text">
    <string>你好!string>
   property>
  widget>
  <widget class="QLabel" name="label_3">
   <property name="geometry">
    <rect>
     <x>470x>
     <y>60y>
     <width>261width>
     <height>41height>
    rect>
   property>
   <property name="styleSheet">
    <string notr="true">font: 87 20pt "Arial Black";string>
   property>
   <property name="text">
    <string>欢迎加入我们string>
   property>
  widget>
  <widget class="QLabel" name="label_4">
   <property name="geometry">
    <rect>
     <x>470x>
     <y>140y>
     <width>131width>
     <height>16height>
    rect>
   property>
   <property name="styleSheet">
    <string notr="true">font: 10pt "Arial";string>
   property>
   <property name="text">
    <string>用户名:string>
   property>
  widget>
  <widget class="QLabel" name="label_5">
   <property name="geometry">
    <rect>
     <x>470x>
     <y>200y>
     <width>131width>
     <height>16height>
    rect>
   property>
   <property name="styleSheet">
    <string notr="true">font: 10pt "Arial";string>
   property>
   <property name="text">
    <string>密码:string>
   property>
  widget>
  <widget class="QLabel" name="label_6">
   <property name="geometry">
    <rect>
     <x>470x>
     <y>260y>
     <width>131width>
     <height>16height>
    rect>
   property>
   <property name="styleSheet">
    <string notr="true">font: 10pt "Arial";string>
   property>
   <property name="text">
    <string>再次输入密码:string>
   property>
  widget>
  <widget class="QLineEdit" name="lineEdit_username">
   <property name="geometry">
    <rect>
     <x>470x>
     <y>160y>
     <width>200width>
     <height>30height>
    rect>
   property>
  widget>
  <widget class="QLineEdit" name="lineEdit_passwd">
   <property name="geometry">
    <rect>
     <x>470x>
     <y>220y>
     <width>200width>
     <height>30height>
    rect>
   property>
  widget>
  <widget class="QLineEdit" name="lineEdit_surepasswd">
   <property name="geometry">
    <rect>
     <x>470x>
     <y>290y>
     <width>200width>
     <height>30height>
    rect>
   property>
  widget>
  <widget class="QPushButton" name="btn_sure">
   <property name="geometry">
    <rect>
     <x>470x>
     <y>350y>
     <width>111width>
     <height>24height>
    rect>
   property>
   <property name="styleSheet">
    <string notr="true">background-color: rgb(29, 123, 255);
color: rgb(255, 255, 255);
font: 25 9pt "Bahnschrift Light";string>
   property>
   <property name="text">
    <string>确定string>
   property>
  widget>
  <widget class="QPushButton" name="btn_return">
   <property name="geometry">
    <rect>
     <x>470x>
     <y>400y>
     <width>111width>
     <height>24height>
    rect>
   property>
   <property name="styleSheet">
    <string notr="true">background-color: rgb(29, 123, 255);
color: rgb(255, 255, 255);
font: 25 9pt "Bahnschrift Light";string>
   property>
   <property name="text">
    <string>返回登录string>
   property>
  widget>
 widget>
 <resources/>
 <connections/>
ui>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182

头文件

mainwindow.h

#ifndef MAINWINDOW_H
#define MAINWINDOW_H

#include

#include
#include
#include
#include

void sqlite_Init();

QT_BEGIN_NAMESPACE
namespace Ui { class MainWindow; }
QT_END_NAMESPACE

class MainWindow : public QMainWindow
{
    Q_OBJECT

public:
    MainWindow(QWidget *parent = nullptr);
    ~MainWindow();

private slots:
    void on_btn_signin_clicked();

    void on_btn_signup_clicked();

    void on_btn_close_clicked();

private:
    Ui::MainWindow *ui;
};
#endif // MAINWINDOW_H

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36

signup.h

#ifndef SIGNUP_H
#define SIGNUP_H

#include

namespace Ui {
class Signup;
}

class Signup : public QWidget
{
    Q_OBJECT

public:
    explicit Signup(QWidget *parent = nullptr);
    ~Signup();

private slots:
    void on_btn_return_clicked();

    void on_btn_sure_clicked();

private:
    Ui::Signup *ui;
};

#endif // SIGNUP_H

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

项目文件 Login.pro

QT       += core gui sql

greaterThan(QT_MAJOR_VERSION, 4): QT += widgets

CONFIG += c++17

# You can make your code fail to compile if it uses deprecated APIs.
# In order to do so, uncomment the following line.
#DEFINES += QT_DISABLE_DEPRECATED_BEFORE=0x060000    # disables all the APIs deprecated before Qt 6.0.0

SOURCES += \
    main.cpp \
    mainwindow.cpp \
    signup.cpp

HEADERS += \
    mainwindow.h \
    signup.h

FORMS += \
    mainwindow.ui \
    signup.ui

# Default rules for deployment.
qnx: target.path = /tmp/$${TARGET}/bin
else: unix:!android: target.path = /opt/$${TARGET}/bin
!isEmpty(target.path): INSTALLS += target

RESOURCES += \
    images.qrc

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31

图片资源

登录页面图
按钮
close按钮
注册页面图
women

相关阅读:
PHP将数组导出为CSV文件
 C++知识点总结(23)：高级模拟算法真题 ★★★★☆《遥控汽车》《乒乓球比赛》
内卷时代！程序员如何突破35岁的宿命？
Pinctrl子系统_03_Pinctrl子系统使用示例
 Linux——线程池
 狂砸40亿美元，亚马逊向OpenAI竞争对手Anthropic投资
 Go 语言学习总结（10）—— Go 初学者必知的十个命令
 【RocketMq 系列】RocketMq 入门教程
 PHP 安装
 外汇天眼：澳大利亚拟规范数字资产中介与交易所！
原文地址：https://blog.csdn.net/gixome/article/details/133993314

Qt Creater 设计的登录注册界面 使用SQLite数据库

Qt Creater 设计的登录注册界面 使用SQLite数据库

案例截图

登录页面

注册页面

项目目录结构截图

代码

main.cpp

mainwindow.cpp

signup.cpp

页面UI

mainwindow.ui

signup.ui

头文件

mainwindow.h

signup.h

项目文件 Login.pro

图片资源

Qt Creater 设计的登录注册界面使用SQLite数据库

Qt Creater 设计的登录注册界面使用SQLite数据库
