    ECBSR（Edge-oriented Convolution Block for Real-timeMM21_ECBSR）

    1. 作者目的是开发一个高效的适合移动端的超分网络。

    多分支结构，以及dense connections 可以丰富特征提取和表示， 虽然不会引入太多 FLOPs， 但是会牺牲并行化速度，以及受到DDR 低带宽的影响。

    另外一些 delite conv等其他卷积方法也有被提出来提高 网络性能，但是在GPU，NPU上可能没有被很好的优化。

    因此作者计划　使用平坦　的网络结构　和　常规的卷积方法。

    2. 作者决定使用plain net ，但是效果不好，因此利用重参数化方法，丰富特征表示。

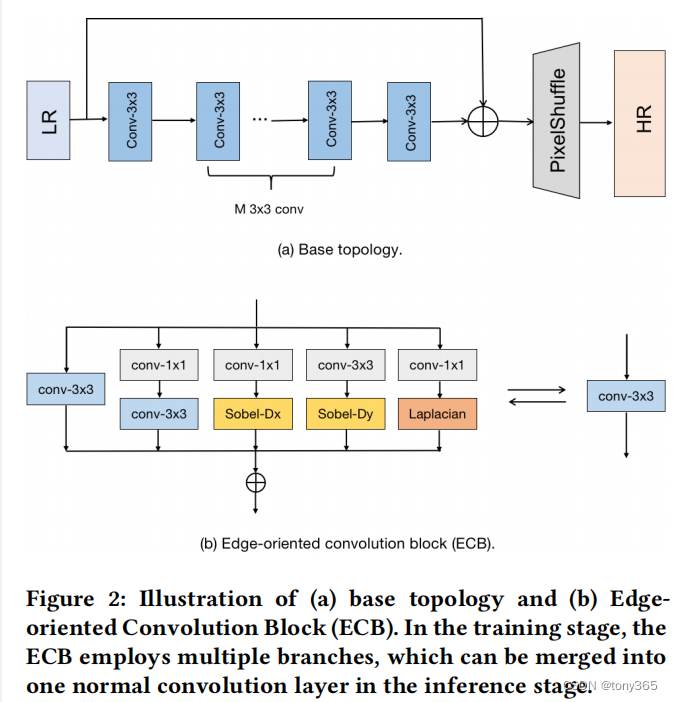

    主要结构如下图所示，

    1. 一个单独的conv-3x3

    2. conv-1x1 + conv-3x3: expanding-and-squeezing

    3. conv-1x1 + sobelx

    4. conv-1x1 + sobely(图中和代码不一致)

      在这里插入图片描述

    5. conv-1x1 + laplasian 显示提取图像的边缘特征

      在这里插入图片描述

    训练的时候网络右五个分支组成，在inference的时候可以利用re-parameteize技术合并为一个conv-3x3,这样推理的速度和效率都得到提高，精度基本上没有损失。

    在这里插入图片描述

    3. re-parameterization for efficient inference

    整体网络结构：ecb模块 和 一个pixel shuffle

    ## parameters for ecbsr
scale: 2
colors: 1
m_ecbsr: 4
c_ecbsr: 16
idt_ecbsr: 0
act_type: 'prelu'
pretrain: null

1 + 4 个 conv
1 个 pixel shuffle
class ECBSR(nn.Module):
    def __init__(self, module_nums, channel_nums, with_idt, act_type, scale, colors):
        super(ECBSR, self).__init__()
        self.module_nums = module_nums
        self.channel_nums = channel_nums
        self.scale = scale
        self.colors = colors
        self.with_idt = with_idt
        self.act_type = act_type
        self.backbone = None
        self.upsampler = None

        backbone = []
        backbone += [ECB(self.colors, self.channel_nums, depth_multiplier=2.0, act_type=self.act_type, with_idt = self.with_idt)]
        for i in range(self.module_nums):
            backbone += [ECB(self.channel_nums, self.channel_nums, depth_multiplier=2.0, act_type=self.act_type, with_idt = self.with_idt)]
        backbone += [ECB(self.channel_nums, self.colors*self.scale*self.scale, depth_multiplier=2.0, act_type='linear', with_idt = self.with_idt)]

        self.backbone = nn.Sequential(*backbone)
        self.upsampler = nn.PixelShuffle(self.scale)

    def forward(self, x):
        y = self.backbone(x) + x
        y = self.upsampler(y)
        return y

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33
    • 34
    • 35
    • 36

    ecb模块:包括五个卷积分支的定义

    class ECB(nn.Module):
    def __init__(self, inp_planes, out_planes, depth_multiplier, act_type='prelu', with_idt = False):
        super(ECB, self).__init__()

        self.depth_multiplier = depth_multiplier
        self.inp_planes = inp_planes
        self.out_planes = out_planes
        self.act_type = act_type

        if with_idt and (self.inp_planes == self.out_planes):
            self.with_idt = True
        else:
            self.with_idt = False

        self.conv3x3 = torch.nn.Conv2d(self.inp_planes, self.out_planes, kernel_size=3, padding=1)
        self.conv1x1_3x3 = SeqConv3x3('conv1x1-conv3x3', self.inp_planes, self.out_planes, self.depth_multiplier)
        self.conv1x1_sbx = SeqConv3x3('conv1x1-sobelx', self.inp_planes, self.out_planes, -1)
        self.conv1x1_sby = SeqConv3x3('conv1x1-sobely', self.inp_planes, self.out_planes, -1)
        self.conv1x1_lpl = SeqConv3x3('conv1x1-laplacian', self.inp_planes, self.out_planes, -1)

        if self.act_type == 'prelu':
            self.act = nn.PReLU(num_parameters=self.out_planes)
        elif self.act_type == 'relu':
            self.act = nn.ReLU(inplace=True)
        elif self.act_type == 'rrelu':
            self.act = nn.RReLU(lower=-0.05, upper=0.05)
        elif self.act_type == 'softplus':
            self.act = nn.Softplus()
        elif self.act_type == 'linear':
            pass
        else:
            raise ValueError('The type of activation if not support!')

    def forward(self, x):
        if self.training:
            y = self.conv3x3(x) + \
                self.conv1x1_3x3(x) + \
                self.conv1x1_sbx(x) + \
                self.conv1x1_sby(x) + \
                self.conv1x1_lpl(x)
            if self.with_idt:
                y += x
        else:
            RK, RB = self.rep_params()
            y = F.conv2d(input=x, weight=RK, bias=RB, stride=1, padding=1)
        if self.act_type != 'linear':
            y = self.act(y)
        return y

    def rep_params(self):
        K0, B0 = self.conv3x3.weight, self.conv3x3.bias
        K1, B1 = self.conv1x1_3x3.rep_params()
        K2, B2 = self.conv1x1_sbx.rep_params()
        K3, B3 = self.conv1x1_sby.rep_params()
        K4, B4 = self.conv1x1_lpl.rep_params()
        RK, RB = (K0+K1+K2+K3+K4), (B0+B1+B2+B3+B4)

        if self.with_idt:
            device = RK.get_device()
            if device < 0:
                device = None
            K_idt = torch.zeros(self.out_planes, self.out_planes, 3, 3, device=device)
            for i in range(self.out_planes):
                K_idt[i, i, 1, 1] = 1.0
            B_idt = 0.0
            RK, RB = RK + K_idt, RB + B_idt
        return RK, RB

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33
    • 34
    • 35
    • 36
    • 37
    • 38
    • 39
    • 40
    • 41
    • 42
    • 43
    • 44
    • 45
    • 46
    • 47
    • 48
    • 49
    • 50
    • 51
    • 52
    • 53
    • 54
    • 55
    • 56
    • 57
    • 58
    • 59
    • 60
    • 61
    • 62
    • 63
    • 64
    • 65
    • 66
    • 67

    关于重参数化具体实现

    class SeqConv3x3(nn.Module):
    def __init__(self, seq_type, inp_planes, out_planes, depth_multiplier):
        super(SeqConv3x3, self).__init__()

        self.type = seq_type
        self.inp_planes = inp_planes
        self.out_planes = out_planes

        if self.type == 'conv1x1-conv3x3':
            self.mid_planes = int(out_planes * depth_multiplier)
            conv0 = torch.nn.Conv2d(self.inp_planes, self.mid_planes, kernel_size=1, padding=0)
            self.k0 = conv0.weight
            self.b0 = conv0.bias

            conv1 = torch.nn.Conv2d(self.mid_planes, self.out_planes, kernel_size=3)
            self.k1 = conv1.weight
            self.b1 = conv1.bias

        elif self.type == 'conv1x1-sobelx':
            conv0 = torch.nn.Conv2d(self.inp_planes, self.out_planes, kernel_size=1, padding=0)
            self.k0 = conv0.weight
            self.b0 = conv0.bias

            # init scale & bias
            scale = torch.randn(size=(self.out_planes, 1, 1, 1)) * 1e-3
            self.scale = nn.Parameter(scale)
            # bias = 0.0
            # bias = [bias for c in range(self.out_planes)]
            # bias = torch.FloatTensor(bias)
            bias = torch.randn(self.out_planes) * 1e-3
            bias = torch.reshape(bias, (self.out_planes,))
            self.bias = nn.Parameter(bias)
            # init mask
            self.mask = torch.zeros((self.out_planes, 1, 3, 3), dtype=torch.float32)
            for i in range(self.out_planes):
                self.mask[i, 0, 0, 0] = 1.0
                self.mask[i, 0, 1, 0] = 2.0
                self.mask[i, 0, 2, 0] = 1.0
                self.mask[i, 0, 0, 2] = -1.0
                self.mask[i, 0, 1, 2] = -2.0
                self.mask[i, 0, 2, 2] = -1.0
            self.mask = nn.Parameter(data=self.mask, requires_grad=False)

        elif self.type == 'conv1x1-sobely':
            conv0 = torch.nn.Conv2d(self.inp_planes, self.out_planes, kernel_size=1, padding=0)
            self.k0 = conv0.weight
            self.b0 = conv0.bias

            # init scale & bias
            scale = torch.randn(size=(self.out_planes, 1, 1, 1)) * 1e-3
            self.scale = nn.Parameter(torch.FloatTensor(scale))
            # bias = 0.0
            # bias = [bias for c in range(self.out_planes)]
            # bias = torch.FloatTensor(bias)
            bias = torch.randn(self.out_planes) * 1e-3
            bias = torch.reshape(bias, (self.out_planes,))
            self.bias = nn.Parameter(torch.FloatTensor(bias))
            # init mask
            self.mask = torch.zeros((self.out_planes, 1, 3, 3), dtype=torch.float32)
            for i in range(self.out_planes):
                self.mask[i, 0, 0, 0] = 1.0
                self.mask[i, 0, 0, 1] = 2.0
                self.mask[i, 0, 0, 2] = 1.0
                self.mask[i, 0, 2, 0] = -1.0
                self.mask[i, 0, 2, 1] = -2.0
                self.mask[i, 0, 2, 2] = -1.0
            self.mask = nn.Parameter(data=self.mask, requires_grad=False)

        elif self.type == 'conv1x1-laplacian':
            conv0 = torch.nn.Conv2d(self.inp_planes, self.out_planes, kernel_size=1, padding=0)
            self.k0 = conv0.weight
            self.b0 = conv0.bias

            # init scale & bias
            scale = torch.randn(size=(self.out_planes, 1, 1, 1)) * 1e-3
            self.scale = nn.Parameter(torch.FloatTensor(scale))
            # bias = 0.0
            # bias = [bias for c in range(self.out_planes)]
            # bias = torch.FloatTensor(bias)
            bias = torch.randn(self.out_planes) * 1e-3
            bias = torch.reshape(bias, (self.out_planes,))
            self.bias = nn.Parameter(torch.FloatTensor(bias))
            # init mask
            self.mask = torch.zeros((self.out_planes, 1, 3, 3), dtype=torch.float32)
            for i in range(self.out_planes):
                self.mask[i, 0, 0, 1] = 1.0
                self.mask[i, 0, 1, 0] = 1.0
                self.mask[i, 0, 1, 2] = 1.0
                self.mask[i, 0, 2, 1] = 1.0
                self.mask[i, 0, 1, 1] = -4.0
            self.mask = nn.Parameter(data=self.mask, requires_grad=False)
        else:
            raise ValueError('the type of seqconv is not supported!')

    def forward(self, x):
        if self.type == 'conv1x1-conv3x3':
            # conv-1x1
            y0 = F.conv2d(input=x, weight=self.k0, bias=self.b0, stride=1)
            # explicitly padding with bias
            y0 = F.pad(y0, (1, 1, 1, 1), 'constant', 0)
            b0_pad = self.b0.view(1, -1, 1, 1)
            y0[:, :, 0:1, :] = b0_pad
            y0[:, :, -1:, :] = b0_pad
            y0[:, :, :, 0:1] = b0_pad
            y0[:, :, :, -1:] = b0_pad
            # conv-3x3
            y1 = F.conv2d(input=y0, weight=self.k1, bias=self.b1, stride=1)
        else:
            y0 = F.conv2d(input=x, weight=self.k0, bias=self.b0, stride=1)
            # explicitly padding with bias
            y0 = F.pad(y0, (1, 1, 1, 1), 'constant', 0)
            b0_pad = self.b0.view(1, -1, 1, 1)
            y0[:, :, 0:1, :] = b0_pad
            y0[:, :, -1:, :] = b0_pad
            y0[:, :, :, 0:1] = b0_pad
            y0[:, :, :, -1:] = b0_pad
            # conv-3x3
            y1 = F.conv2d(input=y0, weight=self.scale * self.mask, bias=self.bias, stride=1, groups=self.out_planes)
        return y1

    def rep_params(self):
        device = self.k0.get_device()
        if device < 0:
            device = None

        if self.type == 'conv1x1-conv3x3':
            # re-param conv kernel
            RK = F.conv2d(input=self.k1, weight=self.k0.permute(1, 0, 2, 3))
            # re-param conv bias
            RB = torch.ones(1, self.mid_planes, 3, 3, device=device) * self.b0.view(1, -1, 1, 1)
            RB = F.conv2d(input=RB, weight=self.k1).view(-1,) + self.b1
        else:
            tmp = self.scale * self.mask
            k1 = torch.zeros((self.out_planes, self.out_planes, 3, 3), device=device)
            for i in range(self.out_planes):
                k1[i, i, :, :] = tmp[i, 0, :, :]
            b1 = self.bias
            # re-param conv kernel
            RK = F.conv2d(input=k1, weight=self.k0.permute(1, 0, 2, 3))
            # re-param conv bias
            RB = torch.ones(1, self.out_planes, 3, 3, device=device) * self.b0.view(1, -1, 1, 1)
            RB = F.conv2d(input=RB, weight=k1).view(-1,) + b1
        return RK, RB


    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33
    • 34
    • 35
    • 36
    • 37
    • 38
    • 39
    • 40
    • 41
    • 42
    • 43
    • 44
    • 45
    • 46
    • 47
    • 48
    • 49
    • 50
    • 51
    • 52
    • 53
    • 54
    • 55
    • 56
    • 57
    • 58
    • 59
    • 60
    • 61
    • 62
    • 63
    • 64
    • 65
    • 66
    • 67
    • 68
    • 69
    • 70
    • 71
    • 72
    • 73
    • 74
    • 75
    • 76
    • 77
    • 78
    • 79
    • 80
    • 81
    • 82
    • 83
    • 84
    • 85
    • 86
    • 87
    • 88
    • 89
    • 90
    • 91
    • 92
    • 93
    • 94
    • 95
    • 96
    • 97
    • 98
    • 99
    • 100
    • 101
    • 102
    • 103
    • 104
    • 105
    • 106
    • 107
    • 108
    • 109
    • 110
    • 111
    • 112
    • 113
    • 114
    • 115
    • 116
    • 117
    • 118
    • 119
    • 120
    • 121
    • 122
    • 123
    • 124
    • 125
    • 126
    • 127
    • 128
    • 129
    • 130
    • 131
    • 132
    • 133
    • 134
    • 135
    • 136
    • 137
    • 138
    • 139
    • 140
    • 141
    • 142
    • 143
    • 144

    4. 结果

    在这里插入图片描述

    edge-SR

    1.转置卷积上采样 和 pixel shuffle的区别

    在这里插入图片描述

    2.pooling or downsample 可能有aliasing artifacts

    using an anti–aliasing low–pass filter and then downsamples the image.

    This process is implemented in tensor processing frameworks with strided convolutional
    layers where the kernel or weight parameters correspond to the low–pass filter coefficients.

    3.单层网络eSR-MAX

    一个卷积，一个pixel shuffle, 一个max
    卷积输出的通道数： sxsxchannel

    out_channels=self.stride[0]*self.stride[1]*self.channels,

    • 1

    在这里插入图片描述

    4.eSR-TM, eSR-TR, eSR-CNN

    直接看代码更好理解：

    class edgeSR_TM(nn.Module):
    def __init__(self, model_id):
        self.model_id = model_id
        super().__init__()

        assert self.model_id.startswith('eSR-TM_')

        parse = self.model_id.split('_')

        self.channels = int([s for s in parse if s.startswith('C')][0][1:])
        self.kernel_size = (int([s for s in parse if s.startswith('K')][0][1:]), ) * 2
        self.stride = (int([s for s in parse if s.startswith('s')][0][1:]), ) * 2

        self.pixel_shuffle = nn.PixelShuffle(self.stride[0])
        self.softmax = nn.Softmax(dim=1)
        self.filter = nn.Conv2d(
            in_channels=1,
            out_channels=2*self.stride[0]*self.stride[1]*self.channels,
            kernel_size=self.kernel_size,
            stride=1,
            padding=(
                (self.kernel_size[0]-1)//2,
                (self.kernel_size[1]-1)//2
            ),
            groups=1,
            bias=False,
            dilation=1
        )
        nn.init.xavier_normal_(self.filter.weight, gain=1.)
        self.filter.weight.data[:, 0, self.kernel_size[0]//2, self.kernel_size[0]//2] = 1.

    def forward(self, input):
        filtered = self.pixel_shuffle(self.filter(input))

        value, key = torch.split(filtered, [self.channels, self.channels], dim=1)
        return torch.sum(
            value * self.softmax(key),
            dim=1, keepdim=True
        )


class edgeSR_TR(nn.Module):
    def __init__(self, model_id):
        self.model_id = model_id
        super().__init__()

        assert self.model_id.startswith('eSR-TR_')

        parse = self.model_id.split('_')

        self.channels = int([s for s in parse if s.startswith('C')][0][1:])
        self.kernel_size = (int([s for s in parse if s.startswith('K')][0][1:]), ) * 2
        self.stride = (int([s for s in parse if s.startswith('s')][0][1:]), ) * 2

        self.pixel_shuffle = nn.PixelShuffle(self.stride[0])
        self.softmax = nn.Softmax(dim=1)
        self.filter = nn.Conv2d(
            in_channels=1,
            out_channels=3*self.stride[0]*self.stride[1]*self.channels,
            kernel_size=self.kernel_size,
            stride=1,
            padding=(
                (self.kernel_size[0]-1)//2,
                (self.kernel_size[1]-1)//2
            ),
            groups=1,
            bias=False,
            dilation=1
        )
        nn.init.xavier_normal_(self.filter.weight, gain=1.)
        self.filter.weight.data[:, 0, self.kernel_size[0]//2, self.kernel_size[0]//2] = 1.

    def forward(self, input):
        filtered = self.pixel_shuffle(self.filter(input))

        value, query, key = torch.split(filtered, [self.channels, self.channels, self.channels], dim=1)
        return torch.sum(
            value * self.softmax(query*key),
            dim=1, keepdim=True
        )

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33
    • 34
    • 35
    • 36
    • 37
    • 38
    • 39
    • 40
    • 41
    • 42
    • 43
    • 44
    • 45
    • 46
    • 47
    • 48
    • 49
    • 50
    • 51
    • 52
    • 53
    • 54
    • 55
    • 56
    • 57
    • 58
    • 59
    • 60
    • 61
    • 62
    • 63
    • 64
    • 65
    • 66
    • 67
    • 68
    • 69
    • 70
    • 71
    • 72
    • 73
    • 74
    • 75
    • 76
    • 77
    • 78
    • 79
    • 80
  • 相关阅读:
    linux搭建单机ES，集成ik分词器，文本抽取，Kibana可视化平台
    亚远景科技-如何应对汽车软件开发中质量与速度的冲突带来的挑战?
    Unity UI锚点和位置关系
    JQuery表单验证(validate):常用例子介绍
    Pandas常用操作命令（六）——数据分组groupby
    创维E900V22C、E900V22D_线刷固件和卡刷固件及教程
    “仿RabbitMQ实现消息队列”---整体架构与模块说明
    Cannot read properties of null (reading ‘insertBefore‘)
    智能汽车-大数据标签系统应用浅谈
    深耕业财一体化，激活企业全面预算管理新动能
  • 原文地址：https://blog.csdn.net/tywwwww/article/details/133906466
