在人工智能中有个入侵检测:当检测到的目标位于指定区域内才算是入侵,思路很简单,判断相关坐标即可:
- from matplotlib import pyplot as plt, patches
- from shapely.geometry import Polygon, Point
-
-
- def is_intrusion(target_box, intrusion_area):
- # 判断目标框的多个个角是否在入侵区域内
- for point in [(target_box[0], target_box[1]), (target_box[2], target_box[3]),
- (target_box[0], target_box[3]), (target_box[2], target_box[1])]:
- if point_in_polygon(point, intrusion_area):
- return True
-
- # 判断入侵区域是否与目标框相交
- intrusion_polygon = Polygon(intrusion_area)
- target_polygon = Polygon([(target_box[0], target_box[1]), (target_box[2], target_box[1]),
- (target_box[2], target_box[3]), (target_box[0], target_box[3])])
-
- return intrusion_polygon.intersects(target_polygon)
-
-
- def point_in_polygon(point, polygon):
- # 使用 shapely 库检查点是否在多边形内
- point = Point(point)
- polygon = Polygon(polygon)
- return point.within(polygon)
-
-
- # 示例用法
- target_box = (100, 100, 200, 200) # 目标框坐标 (x_min, y_min, x_max, y_max)
- intrusion_area_hexagon = [(150, 150), (200, 190), (250, 150), (250, 200), (200, 220), (150, 1000), (100, 220), (150, 190)] # 六边形区域坐标
-
- result = is_intrusion(target_box, intrusion_area_hexagon)
- print("是否入侵:", result)
-
- # 创建一个新的图
- fig, ax = plt.subplots()
-
- # 绘制目标框
- target_rect = patches.Rectangle((target_box[0], target_box[1]), target_box[2] - target_box[0],
- target_box[3] - target_box[1], linewidth=1, edgecolor='r', facecolor='none')
- ax.add_patch(target_rect)
-
- # 绘制六边形区域
- intrusion_area_polygon = patches.Polygon(intrusion_area_hexagon, closed=True, linewidth=1, edgecolor='b',
- facecolor='none')
- ax.add_patch(intrusion_area_polygon)
-
- # 设置图的坐标轴范围
- ax.set_xlim(0, 1920)
- ax.set_ylim(0, 1080)
-
- # 显示图
- plt.show()

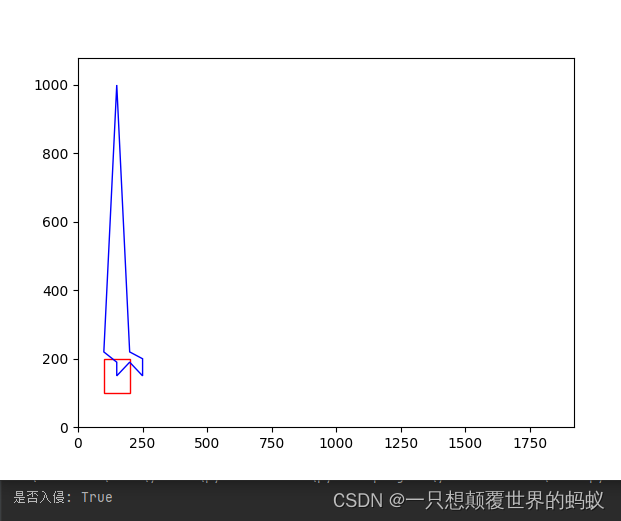

效果如下:
