射频识别技术课程实验--模拟串口间的通信--基础实验

射频识别技术课程实验–模拟串口间的通信

前期准备

串口调试小助手：

模拟串口工具：

Visual Studio 2022：

测试代码（c++）：

#include
#include

using namespace std;

int main()
{
	system("color 3F");
	HANDLE hCom = CreateFile("\\\\.\\COM2", GENERIC_READ | GENERIC_WRITE, 0, NULL, OPEN_EXISTING,// 指定串口编号
		FILE_ATTRIBUTE_NORMAL | FILE_FLAG_OVERLAPPED, NULL);
	if (INVALID_HANDLE_VALUE == hCom)
	{
		cout << "serial open failed" << endl;
		system("pause");
		return -1;
	};

	//设置串口
	//1、设置输入输出缓冲区大小
	SetupComm(hCom, 1024, 1024);
	//2、设置时延
	COMMTIMEOUTS TimeOuts;
	TimeOuts.ReadIntervalTimeout = 1000;
	TimeOuts.ReadTotalTimeoutMultiplier = 500;
	TimeOuts.ReadTotalTimeoutConstant = 5000;//设定写超时
	TimeOuts.WriteTotalTimeoutMultiplier = 500;
	TimeOuts.WriteTotalTimeoutConstant = 2000;
	SetCommTimeouts(hCom, &TimeOuts);
	//3、DCB结构体
	DCB dcb;
	GetCommState(hCom, &dcb);
	dcb.BaudRate = 9600;
	dcb.ByteSize = 32;
	dcb.StopBits = 1;
	SetCommState(hCom, &dcb);
	//4、清空硬件的通信错误，清空输入输出缓冲，为W/R做准备
	PurgeComm(hCom, PURGE_RXCLEAR | PURGE_TXCLEAR | PURGE_RXABORT | PURGE_TXABORT);



	//5、发送串口信息
	char buffer[] = { 0XFE, 0X03, 0X04, 0X00, 0X03, 0X00, 0X00, 0X00, 0X00, 0X00, 0XFA };
	DWORD dwBytesToWrite = sizeof(buffer);
	DWORD dwBytesRealWrite;
	DWORD dwErrorFlags;
	COMSTAT comStat;
	OVERLAPPED osWrite;
	//memset(&osWrite,0,sizeof(OVERLAPPED));
	osWrite.hEvent = CreateEvent(NULL, TRUE, FALSE, NULL);
	osWrite.Offset = 0;
	osWrite.OffsetHigh = 0;
	//清除硬件通信错误；
	ClearCommError(hCom, &dwErrorFlags, &comStat);
	BOOL bWriteStatus;
	bWriteStatus = WriteFile(hCom, buffer, dwBytesToWrite, &dwBytesRealWrite, &osWrite);
	int m = GetLastError();
	if (!bWriteStatus)
	{
		if (GetLastError() == ERROR_IO_PENDING)
		{
			WaitForSingleObject(osWrite.hEvent, 2000);

			//清理IO缓冲区；
			PurgeComm(hCom, PURGE_RXCLEAR | PURGE_TXCLEAR | PURGE_RXABORT | PURGE_TXABORT);
		}
		else
		{
			cout << "failed to send" << endl;
			system("pause");
			return -1;
		}
		PurgeComm(hCom, PURGE_RXCLEAR | PURGE_TXCLEAR | PURGE_RXABORT | PURGE_TXABORT);
	}
	PurgeComm(hCom, PURGE_RXCLEAR | PURGE_TXCLEAR | PURGE_RXABORT | PURGE_TXABORT);

	//6、接收串口信息
	unsigned char lpInBuffer[1024];
	DWORD dwBytesRead;
	OVERLAPPED osRead;
	memset(&osRead, 0, sizeof(OVERLAPPED));


	BOOL bReadStatus;
	DWORD dwRealRead;
	while (1)
	{
		dwBytesRead = 1024;
		osRead.hEvent = CreateEvent(NULL, TRUE, FALSE, NULL);
		ClearCommError(hCom, &dwErrorFlags, &comStat);
		dwBytesRead = min(dwBytesRead, (DWORD)comStat.cbInQue);
		if (!dwBytesRead)
		{
			//cout << "no data to be read" << endl;
			Sleep(1000);
			continue;
		}

		bReadStatus = ReadFile(hCom, lpInBuffer, dwBytesRead, &dwRealRead, &osRead);

		if (!bReadStatus)
			//如果ReadFile函数返回FALSE
		{
			if (GetLastError() == ERROR_IO_PENDING)
				//GetLastError()函数返回ERROR_IO_PENDING,表明串口正在进行读操作
			{
				WaitForSingleObject(osRead.hEvent, 2000);
				//使用WaitForSingleObject函数等待，直到读操作完成或延时已达到2秒钟
				//当串口读操作进行完毕后，osRead的hEvent事件会变为有信号
				PurgeComm(hCom, PURGE_TXABORT | PURGE_RXABORT | PURGE_TXCLEAR | PURGE_RXCLEAR);

				short *temp = new  short[dwRealRead + 1];
				for (int i = 0; i < dwBytesRead; ++i)
				{
					temp[i] = lpInBuffer[i];
					printf("%02X", temp[i]);
				}
				cout << endl;
				/*delete[] temp;*/
			}
			else
				cout << "failed to read" << endl;
		}
		else
		{
			short *temp = new  short[dwRealRead + 1];
			for (int i = 0; i < dwBytesRead; ++i)
			{
				temp[i] = lpInBuffer[i];
				printf("%02X", temp[i]);
			}
			cout << endl;
			delete[] temp;
		}
		Sleep(1000);
		PurgeComm(hCom, PURGE_RXCLEAR | PURGE_TXCLEAR | PURGE_RXABORT | PURGE_TXABORT);
	}
	PurgeComm(hCom, PURGE_RXCLEAR | PURGE_TXCLEAR | PURGE_RXABORT | PURGE_TXABORT);
	system("pause");
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139

实验过程

基础实验

1. 模拟两个串口



2. 打开两个串口调试小助手，分别打开上一步模拟的两个串口，这里我创建的串口名字为“COM1”和“COM2”。



3. 测试串口连通性：



   可以看到串口连通性正常，两端都可以互相发送数据。

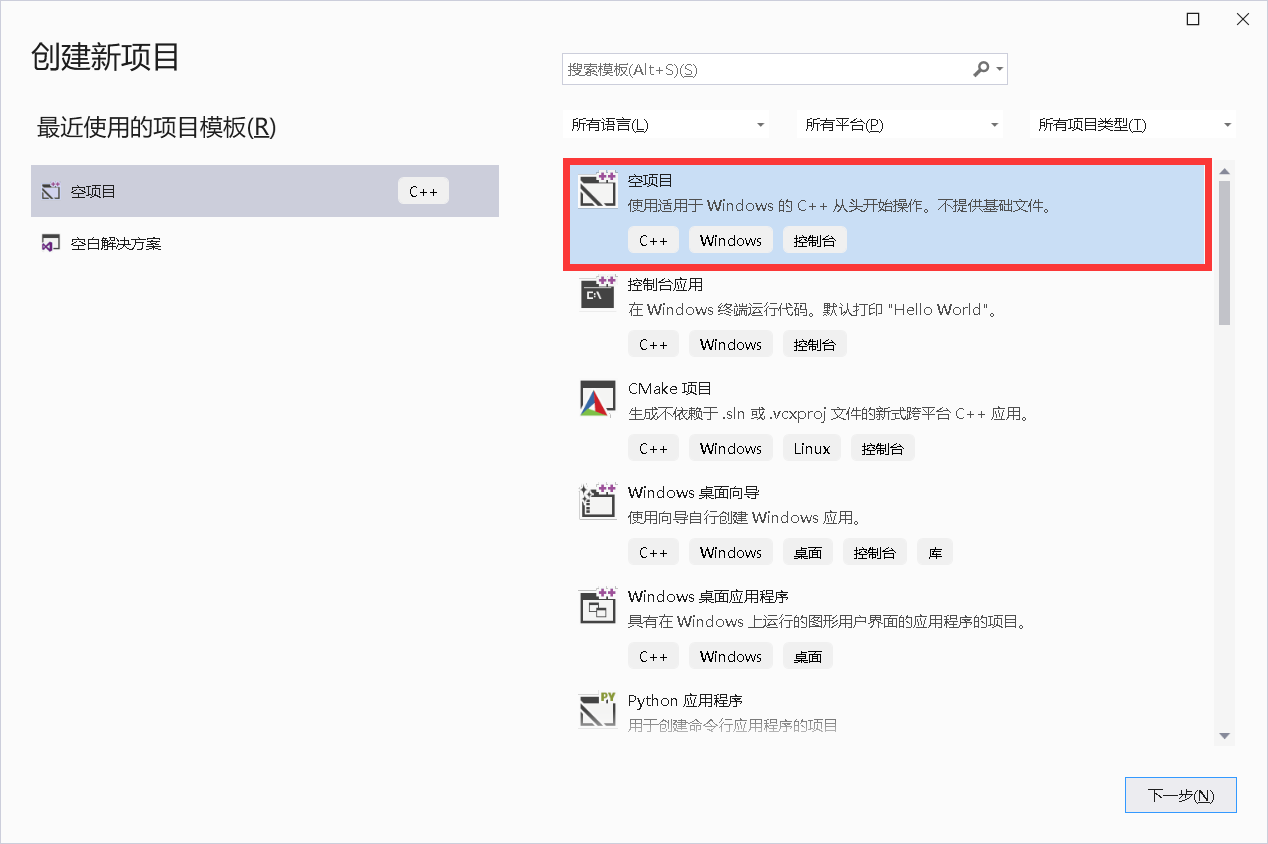

4. 打开Visual Studio 2022，新建空项目



5. 将准备好的代码放在源文件中，运行调试：



   发现提示serial open failed，这是因为我们一开始打开了两个串口，并且代码中指定串口编号为COM2，但是COM2已经打开了，所以报错串口开启失败。

   HANDLE hCom = CreateFile("\\\\.\\COM2", GENERIC_READ | GENERIC_WRITE, 0, NULL, OPEN_EXISTING,// 指定串口编号
   1

6. 于是我们关闭COM2，保留COM1

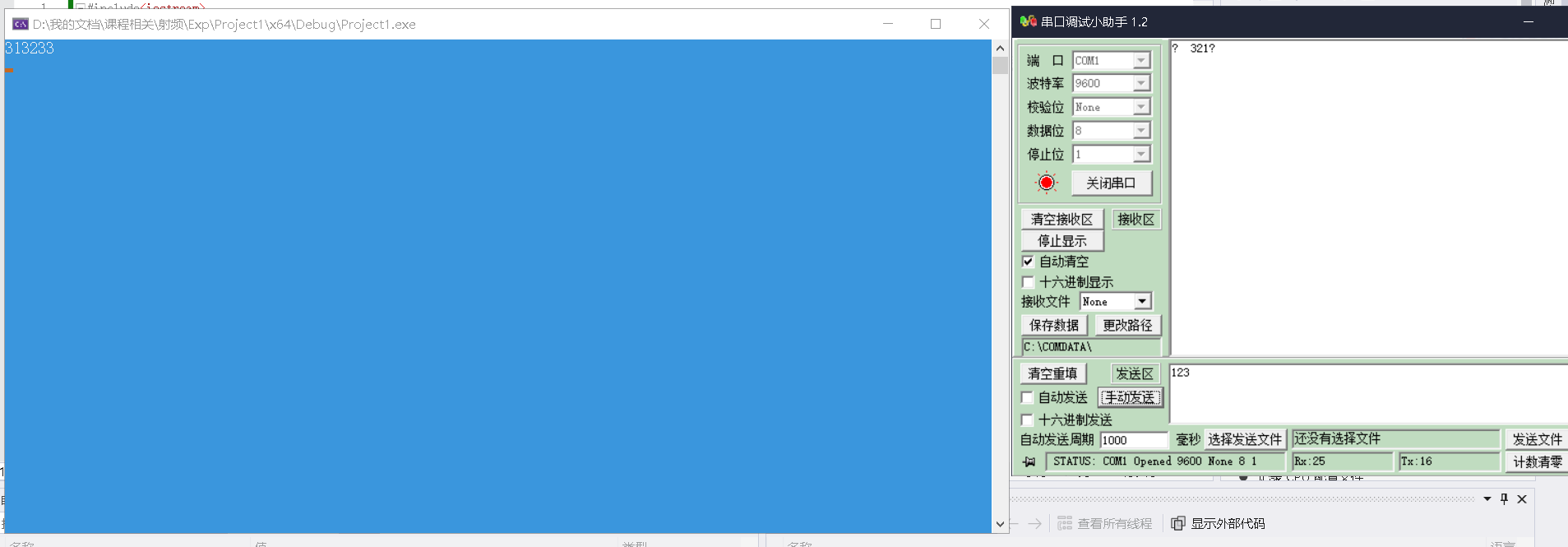

   这时再次运行C++程序，使用串口COM1发送数据：



   此时我们的C++程序扮演的角色其实就是串口COM2，接收到串口COM1发送的数据，至此，基础实验部分就完成了。
