在线云原生边缘计算KubeEdge安装配置（二）
1. K8S集群部署，可以参考如下博客
请安装k8s集群，centos安装k8s集群
请安装k8s集群，ubuntu安装k8s集群请安装kubeedge cloudcore centos安装K8S
2.安装kubEedge
2.1 编辑kube-proxy使用ipvs代理
kubectl edit configmaps kube-proxy -n kube-system #修改kube-proxy- 1
#大约在40多行 37 ipvs: 38 excludeCIDRs: null 39 minSyncPeriod: 0s 40 scheduler: "" 41 strictARP: true #这里由原来的false修改为true 42 syncPeriod: 0s 43 tcpFinTimeout: 0s 44 tcpTimeout: 0s 45 udpTimeout: 0s 46 kind: KubeProxyConfiguration 47 metricsBindAddress: "" 48 mode: "ipvs" #这里原来是空的修改为ipvs 49 nodePortAddresses: null 50 oomScoreAdj: null 51 portRange: "" 52 showHiddenMetricsForVersion: "" 53 winkernel: 54 enableDSR: false 55 forwardHealthCheckVip: false 56 networkName: "" 57 rootHnsEndpointName: "" 58 sourceVip: ""- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
kubectl rollout restart daemonset kube-proxy -n kube-system kubectl get pods -n kube-system- 1
- 2
2.2 基础服务提供，负载均衡器metallb
#无网络情况下，先上传kubeedge.tar 和 metallb-native.yaml文件 docker load -i kubeedge.tar #导入镜像 #有网络可以直接拉去镜像 docker pull quay.io/metallb/controller:v0.13.5 docker pull quay.io/metallb/speaker:v0.13.5 wget https://raw.githubusercontent.com/metallb/metallb/v0.13.5/config/manifests/metallb-native.yaml- 1
- 2
- 3
- 4
- 5
- 6
- 7
kubectl apply -f metallb-native.yaml kubectl get pods -n metallb-system- 1
- 2
[root@k8s-master01 ~]# kubectl get pods -n metallb-system NAME READY STATUS RESTARTS AGE controller-8d9cf599f-m4x27 1/1 Running 0 23s speaker-zm7w4 1/1 Running 0 23s speaker-zww5l 1/1 Running 0 23s [root@k8s-master01 ~]#- 1
- 2
- 3
- 4
- 5
- 6
#具体参考官网地址：https://metallb.universe.tf/configuration/#layer-2-configuration
#创建IP地址资源池，原则是跟主机在同一个网段，没有使用的地址，根据自己项目的规模我合理预留了21个IP cat > first-ippool.yaml << EOF apiVersion: metallb.io/v1beta1 kind: IPAddressPool metadata: name: first-pool namespace: metallb-system spec: addresses: - 192.168.186.200-192.168.186.220 EOF- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
kubectl apply -f first-ippool.yaml kubectl get ipaddresspools -n metallb-system- 1
- 2
[root@k8s-master01 ~]# kubectl get ipaddresspools -n metallb-system NAME AGE first-pool 2m1s [root@k8s-master01 ~]#- 1
- 2
- 3
- 4
#开启二层转发，实现k8s集群节点外访问 cat > l2forward.yaml << EOF apiVersion: metallb.io/v1beta1 kind: L2Advertisement metadata: name: example namespace: metallb-system EOF- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
kubectl apply -f l2forward.yaml kubectl get l2advertisements -n metallb-system- 1
- 2
#二层转发案例测试 cat > nginx.yaml << EOF apiVersion: apps/v1 kind: Deployment metadata: name: nginx spec: replicas: 1 selector: matchLabels: app: nginx template: metadata: labels: app: nginx spec: containers: - image: nginx name: nginx imagePullPolicy: IfNotPresent --- apiVersion: v1 kind: Service metadata: name: nginx-svc spec: type: LoadBalancer ports: - port: 80 targetPort: 80 selector: app: nginx EOF kubectl apply -f nginx.yaml- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
[root@k8s-master01 ~]# kubectl get pods,svc #svc的ip从地址池中分配的,如果是云服务器则是公网IP,公网必须带端口访问 NAME READY STATUS RESTARTS AGE pod/nginx-5f5c64f949-bhpvf 1/1 Running 0 50s NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE service/kubernetes ClusterIP 10.96.0.1 <none> 443/TCP 5h43m service/nginx-svc LoadBalancer 10.99.41.146 192.168.186.200 80:30293/TCP 50s [root@k8s-master01 ~]#- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
测试通过
kubectl delete -f nginx.yaml #删除无用的pod和svc- 1
yum install iptables-services -y #安装iptables后期有用 systemctl start iptables.service systemctl enable iptables.service systemctl status iptables.service- 1
- 2
- 3
- 4
3. 对于kubeEdge概述

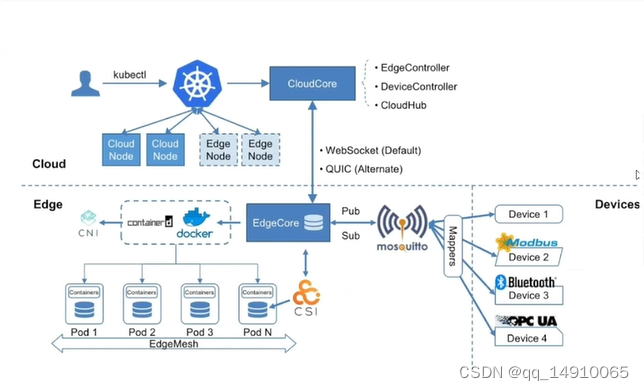

KubeEdge由云和边缘组成。它建立在Kubernetes之上，为联网应用部署和云与边缘之间的元数据同步提供核心基础设施支持。所以如果我们想要设置KubeEdge，我们需要设置Kubernetes集群(可以使用现有的集群)，云端和边缘端在cloud side, 我们需要安装
Docker Kubernetes cluster cloudcore- 1
- 2
- 3
在 edge side, 我们需要安装
Docker
MQTT （配置可以选用，不是一定需要）
edgecore
3.部署kubeedge cloudcore(主节点)
3.1 获取keadm工具
wget https://github.com/kubeedge/kubeedge/releases/download/v1.10.1/keadm-v1.12.1-linux-amd64.tar.gz tar -zxvf keadm-v1.12.1-linux-amd64.tar.gz cp keadm-v1.12.1-linux-amd64/keadm/keadm /usr/local/bin/ keadm version- 1
- 2
- 3
- 4
- 5
3.2 部署cloudcore
#在master上部署 #设置云端 使用keadm初始化，安装cloudcore docker pull kubeedge/cloudcore:v1.14.2 docker pull kubeedge/iptables-manager:v1.14.2 keadm init --advertise-address=192.168.186.200 --set iptablesManager.mode="external" --profile version=v1.12.1 #这里的IP是负载均衡器metallb分配的IP，如果是云服务器则用公网 #以上参数分别为master节点地址和要安装的KubeEdge版本。 #keadm reset #安装错误可以重置 keadm gettoken #获取token- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
[root@k8s-ke-cloud docker]# kubectl get deployment -n kubeedge #上述多此执行后依然不行 NAME READY UP-TO-DATE AVAILABLE AGE CONTAINERS IMAGES SELECTOR cloudcore 0/1 1 0 7m2s cloudcore kubeedge/cloudcore:v1.12.1 k8s-app=kubeedge,kubeedge=cloudcore [root@k8s-ke-cloud docker]# kubectl delete deployment -n kubeedge #删除这个deployment error: resource(s) were provided, but no name was specified [root@k8s-ke-cloud docker]# kubectl delete deployment cloudcore -n kubeedge deployment.apps "cloudcore" deleted [root@k8s-ke-cloud docker]#- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
[root@k8s-master01 ~]# keadm init --advertise-address=192.168.186.200 --set iptablesManager.mode="external" --profile version=v1.12.1 Kubernetes version verification passed, KubeEdge installation will start... CLOUDCORE started =========CHART DETAILS======= NAME: cloudcore LAST DEPLOYED: Mon Oct 9 15:25:36 2023 NAMESPACE: kubeedge STATUS: deployed REVISION: 1 [root@k8s-master ~]# keadm gettoken 7da3a4434a154f267a7ba42727a0f038bbca5ae0d8c7adc739bc32591574b818.eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJleHAiOjE2OTY5OTAxNjd9.htL9plVcKIgVdGuRdb4cp2gviQVol_Jiwa_RNE3ieVI[root@k8s-master ~]#- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
kubectl get pods -n kubeedge kubectl get svc -n kubeedge kubectl get deployment -n kubeedge- 1
- 2
- 3
[root@k8s-master ~]#kubectl get pods -n kubeedge NAME READY STATUS RESTARTS AGE cloud-iptables-manager-rpxm8 1/1 Running 0 7m37s cloudcore-5876c76687-ff9zv 1/1 Running 0 7m37s [root@k8s-master ~]# kubectl get svc -n kubeedge NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE cloudcore ClusterIP 10.109.201.171 <none> 10000/TCP,10001/TCP,10002/TCP,10003/TCP,10004/TCP 7m40s [root@k8s-master ~]# kubectl get deployment -n kubeedge NAME READY UP-TO-DATE AVAILABLE AGE cloudcore 1/1 1 0 7m43s [root@ecs-2ef1-0001 kubeedge]#- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
[root@cloudcorer ~]# kubectl get ns NAME STATUS AGE default Active 58d kube-node-lease Active 58d kube-public Active 58d kube-system Active 58d kubeedge Active 8m44s #在这个空间中中 kubernetes-dashboard Active 58d metallb-system Active 57d [root@cloudcorer ~]# kubectl get pods,svc -n kubeedge NAME READY STATUS RESTARTS AGE pod/cloud-iptables-manager-8kh6q 1/1 Running 0 109m pod/cloudcore-5876c76687-tkkzx 1/1 Running 0 109m NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE service/cloudcore ClusterIP 10.101.140.171 <none> 10000/TCP,10001/TCP,10002/TCP,10003/TCP,10004/TCP 109m [root@cloudcorer ~]#- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
kubectl edit svc cloudcore -n kubeedge #修改大概在51行 49 selector: 50 k8s-app: kubeedge 51 kubeedge: cloudcore 52 sessionAffinity: None 53 type: LoadBalancer #修改后的 54 status: 55 loadBalancer: {}- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
[root@k8s-master ~]# kubectl get pods,svc -n kubeedge NAME READY STATUS RESTARTS AGE pod/cloud-iptables-manager-8kh6q 1/1 Running 0 110m pod/cloudcore-5876c76687-tkkzx 1/1 Running 0 110m NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE service/cloudcore LoadBalancer 10.101.140.171 192.168.186.200 10000:31953/TCP,10001:32329/TCP,10002:31154/TCP,10003:30807/TCP,10004:31038/TCP 110m [root@k8s-master ~]#- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
kubectl apply -f metrics-server.yaml #安装metrics-server- 1
[root@k8s-master kubernetes]# kubectl get pods -n kube-system -o wide #metrics-server不正常 NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES calico-kube-controllers-67bb5696f5-sfhs6 1/1 Running 0 4h3m 10.244.235.195 k8s-master <none> <none> calico-node-2w8jn 1/1 Running 0 4h3m 192.168.186.128 k8s-master <none> <none> calico-node-vt8g4 1/1 Running 0 4h3m 192.168.186.129 k8s-node1 <none> <none> coredns-7f6cbbb7b8-q8z29 1/1 Running 0 4h5m 10.244.235.193 k8s-master <none> <none> coredns-7f6cbbb7b8-qc8d2 1/1 Running 0 4h5m 10.244.235.194 k8s-master <none> <none> etcd-k8s-master 1/1 Running 0 4h5m 192.168.186.128 k8s-master <none> <none> kube-apiserver-k8s-master 1/1 Running 0 4h5m 192.168.186.128 k8s-master <none> <none> kube-controller-manager-k8s-master 1/1 Running 0 4h5m 192.168.186.128 k8s-master <none> <none> kube-proxy-2vt4s 1/1 Running 0 3h52m 192.168.186.129 k8s-node1 <none> <none> kube-proxy-99x2t 1/1 Running 0 3h52m 192.168.186.128 k8s-master <none> <none> kube-scheduler-k8s-master 1/1 Running 0 4h5m 192.168.186.128 k8s-master <none> <none> metrics-server-5f85c44dcd-kpnpk 1/1 Running 0 4m4s 10.244.36.85 k8s-node1 <none> <none> #如果状态和READY不正确，就执行如下的语句 [root@k8s-master kubernetes]#- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
kubectl patch deploy metrics-server -n kube-system --type='json' -p='[{"op":"add","path":"/spec/template/spec/containers/0/args/-","value":"--kubelet-insecure-tls"}]' #metrics-server容器不正常情况下，才修改为不认证，正常就不要执行这句- 1
#修改 kube-proxy 和 kube-flannel 的节点亲和性，不调度到边缘节点 kubectl patch daemonset kube-proxy -n kube-system -p '{"spec": {"template": {"spec": {"affinity": {"nodeAffinity": {"requiredDuringSchedulingIgnoredDuringExecution": {"nodeSelectorTerms": [{"matchExpressions": [{"key": "node-role.kubernetes.io/edge", "operator": "DoesNotExist"}]}]}}}}}}}' kubectl patch daemonset kube-flannel-ds -n kube-flannel -p '{"spec": {"template": {"spec": {"affinity": {"nodeAffinity": {"requiredDuringSchedulingIgnoredDuringExecution": {"nodeSelectorTerms": [{"matchExpressions": [{"key": "node-role.kubernetes.io/edge", "operator": "DoesNotExist"}]}]}}}}}}}'- 1
- 2
- 3
- 4
- 5
kubectl get daemonset -n kube-system | grep -v NAME | awk '{print $1}' | xargs -n 1 kubectl patch daemonset -n kube-system --type='json' -p='[{"op": "replace", "path": "/spec/template/spec/affinity", "value":{"nodeAffinity":{"requiredDuringSchedulingIgnoredDuringExecution":{"nodeSelectorTerms":[{"matchExpressions":[{"key":"node-role.kubernetes.io/edge","operator":"DoesNotExist"}]}]}}}}]' kubectl get daemonset -n metallb-system | grep -v NAME | awk '{print $1}' | xargs -n 1 kubectl patch daemonset -n metallb-system --type='json' -p='[{"op": "replace", "path": "/spec/template/spec/affinity", "value":{"nodeAffinity":{"requiredDuringSchedulingIgnoredDuringExecution":{"nodeSelectorTerms":[{"matchExpressions":[{"key":"node-role.kubernetes.io/edge","operator":"DoesNotExist"}]}]}}}}]' kubectl get daemonset -n calico-system | grep -v NAME | awk '{print $1}' | xargs -n 1 kubectl patch daemonset -n calico-system --type='json' -p='[{"op": "replace", "path": "/spec/template/spec/affinity", "value":{"nodeAffinity":{"requiredDuringSchedulingIgnoredDuringExecution":{"nodeSelectorTerms":[{"matchExpressions":[{"key":"node-role.kubernetes.io/edge","operator":"DoesNotExist"}]}]}}}}]'- 1
- 2
- 3
- 4
- 5
至此cloudcore部署完毕
以下是边缘节点的部署方式
4. 部署edgecore（边缘节点）
[root@k8s-master ~]# kubectl get nodes NAME STATUS ROLES AGE VERSION k8s-master Ready control-plane,master 4h12m v1.22.6 k8s-node1 Ready <none> 4h9m v1.22.6 [root@k8s-master ~]#- 1
- 2
- 3
- 4
- 5
４.1 获取keadm工具
#注意边缘节点配置都很低，只需要运行业务容器 #边缘节点只需要安装docker就可以了 hostnamectl set-hostname edge-node1 && bash wget https://github.com/kubeedge/kubeedge/releases/download/v1.10.1/keadm-v1.12.1-linux-amd64.tar.gz tar -zxvf keadm-v1.12.1-linux-amd64.tar.gz cp keadm-v1.12.1-linux-amd64/keadm/keadm /usr/local/bin/ keadm version- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
#提前拉去镜像 docker pull kubeedge/installation-package:v1.12.1 docker pull kubeedge/pause:3.1 docker pull eclipse-mosquitto:1.6.15- 1
- 2
- 3
- 4
# 在云节点获取 token keadm gettoken # 使用 token 将边缘节点加入集群 keadm join --cloudcore-ipport=192.168.186.200:10000 --token=23bacb0d0fee0b137f821d7f6b100039dee72b198aef159ad7aca5c63f2ad778.eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJleHAiOjE2OTcwNDA5ODF9.siZ4CuljbcNtCmOwgOGS9ZGc8FNIejKQh3q0feiRCI4 --kubeedge-version=v1.12.1 --cgroupdriver systemd ＃如果添加失败了，请在edgecoe中执行 ＃docker rm -f mqtt && rm -fr /etc/kubeedge/ ＃keadm join --token=$TOKEN --cloudcore-ipport=$SERVER --kubeedge-version=1.12.1- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
[root@edge-node1 ~]# keadm join --cloudcore-ipport=192.168.186.200:10000 --token=23bacb0d0fee0b137f821d7f6b100039dee72b198aef159ad7aca5c63f2ad778.eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJleHAiOjE2OTcwNDA5ODF9.siZ4CuljbcNtCmOwgOGS9ZGc8FNIejKQh3q0feiRCI4 --kubeedge-version=v1.12.1 --cgroupdriver systemd I0526 22:43:35.338932 19494 command.go:845] 1. Check KubeEdge edgecore process status I0526 22:43:35.508735 19494 command.go:845] 2. Check if the management directory is clean I0526 22:43:35.509314 19494 join.go:100] 3. Create the necessary directories I0526 22:43:35.516006 19494 join.go:176] 4. Pull Images Pulling kubeedge/installation-package:v1.12.1 ... Pulling eclipse-mosquitto:1.6.15 ... Pulling kubeedge/pause:3.1 ... I0526 22:43:35.521861 19494 join.go:176] 5. Copy resources from the image to the management directory I0526 22:43:36.445496 19494 join.go:176] 6. Start the default mqtt service I0526 22:43:37.119023 19494 join.go:100] 7. Generate systemd service file I0526 22:43:37.120245 19494 join.go:100] 8. Generate EdgeCore default configuration I0526 22:43:37.120309 19494 join.go:230] The configuration does not exist or the parsing fails, and the default configuration is generated W0526 22:43:37.232157 19494 validation.go:71] NodeIP is empty , use default ip which can connect to cloud. I0526 22:43:37.243148 19494 join.go:100] 9. Run EdgeCore daemon I0526 22:43:37.824194 19494 join.go:317] I0526 22:43:37.824216 19494 join.go:318] KubeEdge edgecore is running, For logs visit: journalctl -u edgecore.service -xe [root@edge-node1 ~]#- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
journalctl -u edgecore -n 50 #edge端查看日志- 1
iptables -t nat -A OUTPUT -p tcp --dport 10350 -j DNAT --to 114.115.220.147:10003 #这个IP114.115.220.147是cloudcorer的- 1
-
