【STM32 CubeMX】移植u8g2(一次成功)

---

前言

在本文中，我们将介绍如何在STM32上成功地移植u8g2图形库，以便能够轻松地控制OLED或LCD显示屏。u8g2库提供了一个灵活、功能强大的框架，可以简化图形界面的开发过程。通过合理地配置STM32 CubeMX以及适当的硬件连接，我们可以使得u8g2与STM32微控制器完美结合。

我们将逐步引导您完成整个移植过程，从STM32 CubeMX的项目创建，到u8g2库的集成和配置，最终实现一个简单的示例程序，以确保整个过程的顺利进行。让我们一起开始吧！

---

一、下载u8g2源文件

u8g2下载地址
如果进不去可以私信我。找我要源代码。

下载好之后解压出来

二、复制和更改文件

2.1 复制文件

1、首先，在工程下面创建一个u8g2文件夹

2、把我们下载好的u8g2文件夹里面的csrc下图中的这些文件复制进去

3、在工程中创建一个drive文件夹，里面放oled文件夹，oled文件夹放oled.c和oled.h，之后有用

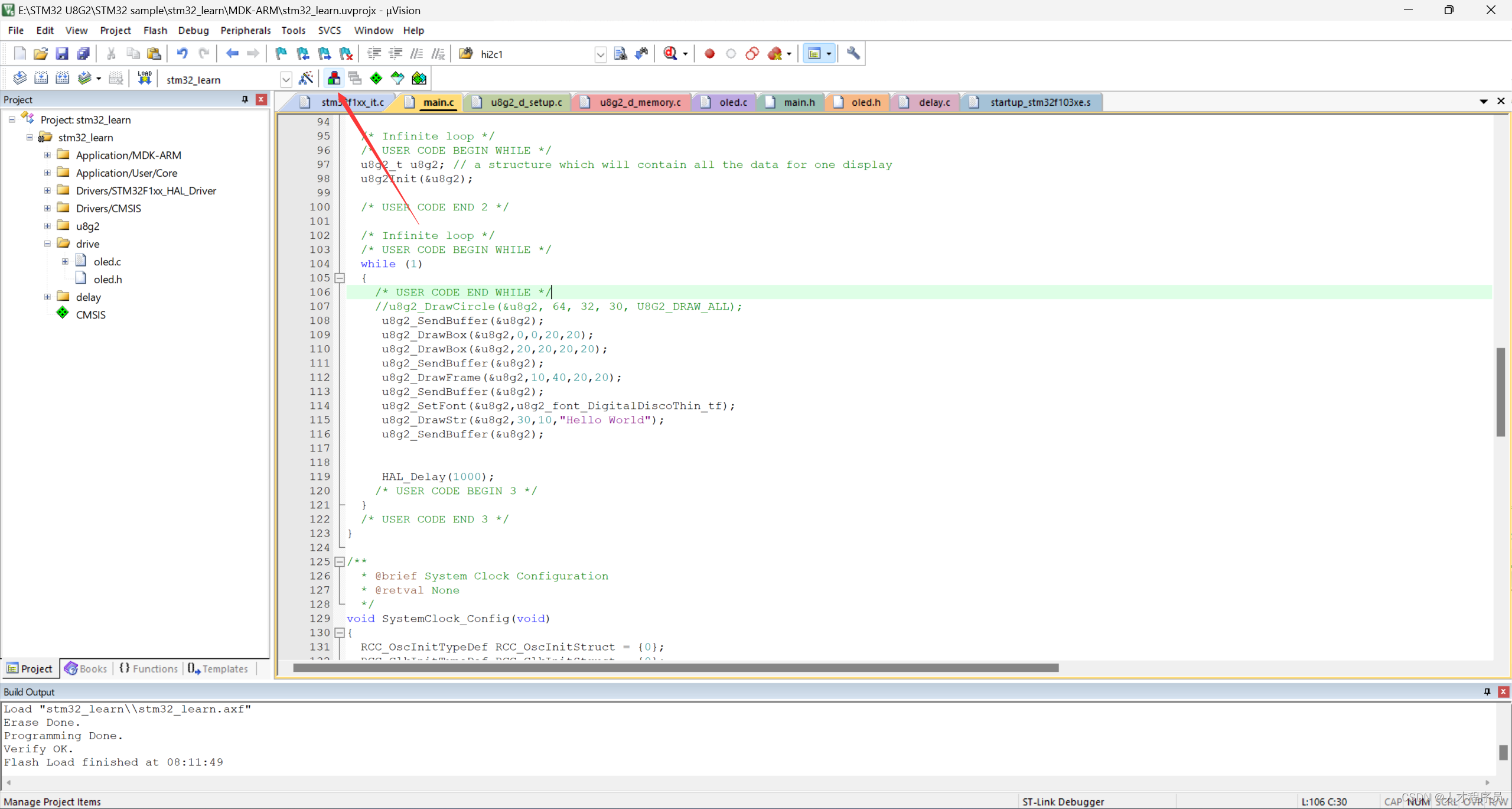

4、打开keil，把前面的这些文件放进去

2.2 修改文件

u8g2_d_setup文件

我们需要找到下面这个函数：

void u8g2_Setup_ssd1306_i2c_128x64_noname_f(u8g2_t *u8g2, const u8g2_cb_t *rotation, u8x8_msg_cb byte_cb, u8x8_msg_cb gpio_and_delay_cb)
{
  uint8_t tile_buf_height;
  uint8_t *buf;
  u8g2_SetupDisplay(u8g2, u8x8_d_ssd1306_128x64_noname, u8x8_cad_ssd13xx_fast_i2c, byte_cb, gpio_and_delay_cb);
  buf = u8g2_m_16_8_f(&tile_buf_height);
  u8g2_SetupBuffer(u8g2, buf, tile_buf_height, u8g2_ll_hvline_vertical_top_lsb, rotation);
}
1
2
3
4
5
6
7
8

然后把其他函数给删除或者注释掉。

u8g2_d_memory

我们需要找到下面这个函数

uint8_t *u8g2_m_16_8_f(uint8_t *page_cnt)
{
  #ifdef U8G2_USE_DYNAMIC_ALLOC
  *page_cnt = 8;
  return 0;
  #else
  static uint8_t buf[1024];
  *page_cnt = 8;
  return buf;
  #endif
}
1
2
3
4
5
6
7
8
9
10
11

把其他函数删除或注释掉.

三、编写oled.c和oled.h文件

3.1 CubeMX配置I2C

首先我们在CubeMX配置好我们的I2C，这个在之前的文章已经讲过了，这里不多赘述。

3.2 编写文件

oled.h

我们在oled.h文件里面，把下面的代码复制进去就可以了

#ifndef __oled_H
#define __oled_H
#ifdef __cplusplus
 extern "C" {
#endif

/* Includes ------------------------------------------------------------------*/
#include "main.h"
#include "u8g2.h"
/* USER CODE BEGIN Includes */

/* USER CODE END Includes */



/* USER CODE BEGIN Private defines */

/* USER CODE END Private defines */
#define u8         unsigned char  // ?unsigned char ????
#define MAX_LEN    128  //
#define OLED_ADDRESS  0x78 // oled??????
#define OLED_CMD   0x00  // ???
#define OLED_DATA  0x40  // ???

/* USER CODE BEGIN Prototypes */
 uint8_t u8x8_byte_hw_i2c(u8x8_t *u8x8, uint8_t msg, uint8_t arg_int, void *arg_ptr);
 uint8_t u8x8_gpio_and_delay(u8x8_t *u8x8, uint8_t msg, uint8_t arg_int, void *arg_ptr);
 void u8g2Init(u8g2_t *u8g2);
 #ifdef __cplusplus
}
#endif
#endif /*__ i2c_H */
/* USER CODE END Prototypes */

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34

oled.c

我们需要把MX_I2C1_Init，这个函数复制进去，这个函数是CubeMX生成的不需要我们自己写，如果你的函数名和我的不同，那就把u8x8_byte_hw_i2c里面的MX_I2C1_Init替换成你的函数

#include "stm32f1xx_hal.h"
#include "u8g2.h"
#include "oled.h"
#include "delay.h"
#include "main.h"
#include "oled.h"

I2C_HandleTypeDef hi2c1;

static void MX_I2C1_Init(void)
{

  /* USER CODE BEGIN I2C1_Init 0 */

  /* USER CODE END I2C1_Init 0 */

  /* USER CODE BEGIN I2C1_Init 1 */

  /* USER CODE END I2C1_Init 1 */
  hi2c1.Instance = I2C1;
  hi2c1.Init.ClockSpeed = 400000;
  hi2c1.Init.DutyCycle = I2C_DUTYCYCLE_2;
  hi2c1.Init.OwnAddress1 = 0;
  hi2c1.Init.AddressingMode = I2C_ADDRESSINGMODE_7BIT;
  hi2c1.Init.DualAddressMode = I2C_DUALADDRESS_DISABLE;
  hi2c1.Init.OwnAddress2 = 0;
  hi2c1.Init.GeneralCallMode = I2C_GENERALCALL_DISABLE;
  hi2c1.Init.NoStretchMode = I2C_NOSTRETCH_DISABLE;
  if (HAL_I2C_Init(&hi2c1) != HAL_OK)
  {
    Error_Handler();
  }
  /* USER CODE BEGIN I2C1_Init 2 */

  /* USER CODE END I2C1_Init 2 */

}

uint8_t u8x8_byte_hw_i2c(u8x8_t *u8x8, uint8_t msg, uint8_t arg_int, void *arg_ptr)
{
    /* u8g2/u8x8 will never send more than 32 bytes between START_TRANSFER and END_TRANSFER */
    static uint8_t buffer[128];
    static uint8_t buf_idx;
    uint8_t *data;

    switch (msg)
    {
    case U8X8_MSG_BYTE_INIT:
    {
        /* add your custom code to init i2c subsystem */
        MX_I2C1_Init(); //I2C???
    }
    break;

    case U8X8_MSG_BYTE_START_TRANSFER:
    {
        buf_idx = 0;
    }
    break;

    case U8X8_MSG_BYTE_SEND:
    {
        data = (uint8_t *)arg_ptr;

        while (arg_int > 0)
        {
            buffer[buf_idx++] = *data;
            data++;
            arg_int--;
        }
    }
    break;

    case U8X8_MSG_BYTE_END_TRANSFER:
    {
        if (HAL_I2C_Master_Transmit(&hi2c1, (OLED_ADDRESS), buffer, buf_idx, 1000) != HAL_OK)
            return 0;
    }
    break;

    case U8X8_MSG_BYTE_SET_DC:
        break;

    default:
        return 0;
    }

    return 1;
}

void delay_us(uint32_t time)
{
    uint32_t i = 8 * time;
    while (i--)
        ;
}

uint8_t u8x8_gpio_and_delay(u8x8_t *u8x8, uint8_t msg, uint8_t arg_int, void *arg_ptr)
{
    switch (msg)
    {
    case U8X8_MSG_DELAY_100NANO: // delay arg_int * 100 nano seconds
        __NOP();
        break;
    case U8X8_MSG_DELAY_10MICRO: // delay arg_int * 10 micro seconds
        for (uint16_t n = 0; n < 320; n++)
        {
            __NOP();
        }
        break;
    case U8X8_MSG_DELAY_MILLI: // delay arg_int * 1 milli second
        HAL_Delay(1);
        break;
    case U8X8_MSG_DELAY_I2C: // arg_int is the I2C speed in 100KHz, e.g. 4 = 400 KHz
        delay_us(5);
        break;                    // arg_int=1: delay by 5us, arg_int = 4: delay by 1.25us
    case U8X8_MSG_GPIO_I2C_CLOCK: // arg_int=0: Output low at I2C clock pin
        break;                    // arg_int=1: Input dir with pullup high for I2C clock pin
    case U8X8_MSG_GPIO_I2C_DATA:  // arg_int=0: Output low at I2C data pin
        break;                    // arg_int=1: Input dir with pullup high for I2C data pin
    case U8X8_MSG_GPIO_MENU_SELECT:
        u8x8_SetGPIOResult(u8x8, /* get menu select pin state */ 0);
        break;
    case U8X8_MSG_GPIO_MENU_NEXT:
        u8x8_SetGPIOResult(u8x8, /* get menu next pin state */ 0);
        break;
    case U8X8_MSG_GPIO_MENU_PREV:
        u8x8_SetGPIOResult(u8x8, /* get menu prev pin state */ 0);
        break;
    case U8X8_MSG_GPIO_MENU_HOME:
        u8x8_SetGPIOResult(u8x8, /* get menu home pin state */ 0);
        break;
    default:
        u8x8_SetGPIOResult(u8x8, 1); // default return value
        break;
    }
    return 1;
}
void u8g2Init(u8g2_t *u8g2)
{
	u8g2_Setup_ssd1306_i2c_128x64_noname_f(u8g2, U8G2_R0, u8x8_byte_hw_i2c, u8x8_gpio_and_delay); // ??? u8g2 ???
	u8g2_InitDisplay(u8g2);                                                                       // ??????????????,??????,?????????
	u8g2_SetPowerSave(u8g2, 0);                                                                   // ?????
	u8g2_ClearBuffer(u8g2);
}


1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147

四、测试代码

到这里已经大功告成了，最后我们需要设置一下为C99标准：

main函数测试代码

/* USER CODE BEGIN Header */
/**
  ******************************************************************************
  * @file           : main.c
  * @brief          : Main program body
  ******************************************************************************
  * @attention
  *
  * Copyright (c) 2023 STMicroelectronics.
  * All rights reserved.
  *
  * This software is licensed under terms that can be found in the LICENSE file
  * in the root directory of this software component.
  * If no LICENSE file comes with this software, it is provided AS-IS.
  *
  ******************************************************************************
  */
/* USER CODE END Header */
/* Includes ------------------------------------------------------------------*/
#include "main.h"

/* Private includes ----------------------------------------------------------*/
/* USER CODE BEGIN Includes */

#include "u8g2.h"
#include "oled.h"

/* USER CODE END Includes */

/* Private typedef -----------------------------------------------------------*/
/* USER CODE BEGIN PTD */

/* USER CODE END PTD */

/* Private define ------------------------------------------------------------*/
/* USER CODE BEGIN PD */
/* USER CODE END PD */

/* Private macro -------------------------------------------------------------*/
/* USER CODE BEGIN PM */

/* USER CODE END PM */

/* Private variables ---------------------------------------------------------*/

/* USER CODE BEGIN PV */

/* USER CODE END PV */

/* Private function prototypes -----------------------------------------------*/
void SystemClock_Config(void);
static void MX_GPIO_Init(void);
static void MX_I2C1_Init(void);
/* USER CODE BEGIN PFP */

/* USER CODE END PFP */

/* Private user code ---------------------------------------------------------*/
/* USER CODE BEGIN 0 */

/* USER CODE END 0 */

/**
  * @brief  The application entry point.
  * @retval int
  */
int main(void)
{
  /* USER CODE BEGIN 1 */

  /* USER CODE END 1 */

  /* MCU Configuration--------------------------------------------------------*/

  /* Reset of all peripherals, Initializes the Flash interface and the Systick. */
  HAL_Init();

  /* USER CODE BEGIN Init */

  /* USER CODE END Init */

  /* Configure the system clock */
  SystemClock_Config();

  /* USER CODE BEGIN SysInit */

  /* USER CODE END SysInit */

  /* Initialize all configured peripherals */
  MX_GPIO_Init();
  /* USER CODE BEGIN 2 */

  /* USER CODE END 2 */

  /* Infinite loop */
  /* USER CODE BEGIN WHILE */
	u8g2_t u8g2; // a structure which will contain all the data for one display
  u8g2Init(&u8g2);

  /* USER CODE END 2 */

  /* Infinite loop */
  /* USER CODE BEGIN WHILE */
  while (1)
  {
    /* USER CODE END WHILE */
	  //u8g2_DrawCircle(&u8g2, 64, 32, 30, U8G2_DRAW_ALL);
	   u8g2_SendBuffer(&u8g2);
	   u8g2_DrawBox(&u8g2,0,0,20,20);
	   u8g2_DrawBox(&u8g2,20,20,20,20);
	   u8g2_SendBuffer(&u8g2);
	   u8g2_DrawFrame(&u8g2,10,40,20,20);
	   u8g2_SendBuffer(&u8g2);
	   u8g2_SetFont(&u8g2,u8g2_font_DigitalDiscoThin_tf);
	   u8g2_DrawStr(&u8g2,30,10,"Hello World");
	   u8g2_SendBuffer(&u8g2);


	   HAL_Delay(1000);
    /* USER CODE BEGIN 3 */
  }
  /* USER CODE END 3 */
}

/**
  * @brief System Clock Configuration
  * @retval None
  */
void SystemClock_Config(void)
{
  RCC_OscInitTypeDef RCC_OscInitStruct = {0};
  RCC_ClkInitTypeDef RCC_ClkInitStruct = {0};

  /** Initializes the RCC Oscillators according to the specified parameters
  * in the RCC_OscInitTypeDef structure.
  */
  RCC_OscInitStruct.OscillatorType = RCC_OSCILLATORTYPE_HSE;
  RCC_OscInitStruct.HSEState = RCC_HSE_ON;
  RCC_OscInitStruct.HSEPredivValue = RCC_HSE_PREDIV_DIV1;
  RCC_OscInitStruct.HSIState = RCC_HSI_ON;
  RCC_OscInitStruct.PLL.PLLState = RCC_PLL_ON;
  RCC_OscInitStruct.PLL.PLLSource = RCC_PLLSOURCE_HSE;
  RCC_OscInitStruct.PLL.PLLMUL = RCC_PLL_MUL9;
  if (HAL_RCC_OscConfig(&RCC_OscInitStruct) != HAL_OK)
  {
    Error_Handler();
  }
  /** Initializes the CPU, AHB and APB buses clocks
  */
  RCC_ClkInitStruct.ClockType = RCC_CLOCKTYPE_HCLK|RCC_CLOCKTYPE_SYSCLK
                              |RCC_CLOCKTYPE_PCLK1|RCC_CLOCKTYPE_PCLK2;
  RCC_ClkInitStruct.SYSCLKSource = RCC_SYSCLKSOURCE_PLLCLK;
  RCC_ClkInitStruct.AHBCLKDivider = RCC_SYSCLK_DIV1;
  RCC_ClkInitStruct.APB1CLKDivider = RCC_HCLK_DIV2;
  RCC_ClkInitStruct.APB2CLKDivider = RCC_HCLK_DIV1;

  if (HAL_RCC_ClockConfig(&RCC_ClkInitStruct, FLASH_LATENCY_2) != HAL_OK)
  {
    Error_Handler();
  }
}

/**
  * @brief I2C1 Initialization Function
  * @param None
  * @retval None
  */


/**
  * @brief GPIO Initialization Function
  * @param None
  * @retval None
  */
static void MX_GPIO_Init(void)
{

  /* GPIO Ports Clock Enable */
  __HAL_RCC_GPIOA_CLK_ENABLE();
  __HAL_RCC_GPIOB_CLK_ENABLE();

}

/* USER CODE BEGIN 4 */

/* USER CODE END 4 */

/**
  * @brief  This function is executed in case of error occurrence.
  * @retval None
  */
void Error_Handler(void)
{
  /* USER CODE BEGIN Error_Handler_Debug */
  /* User can add his own implementation to report the HAL error return state */
  __disable_irq();
  while (1)
  {
  }
  /* USER CODE END Error_Handler_Debug */
}

#ifdef  USE_FULL_ASSERT
/**
  * @brief  Reports the name of the source file and the source line number
  *         where the assert_param error has occurred.
  * @param  file: pointer to the source file name
  * @param  line: assert_param error line source number
  * @retval None
  */
void assert_failed(uint8_t *file, uint32_t line)
{
  /* USER CODE BEGIN 6 */
  /* User can add his own implementation to report the file name and line number,
     ex: printf("Wrong parameters value: file %s on line %d\r\n", file, line) */
  /* USER CODE END 6 */
}
#endif /* USE_FULL_ASSERT */


1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220

我们编译，烧写，即可看到oled已经显示了！

---

总结

通过本文的介绍与实践，我们成功地将u8g2图形库移植到了STM32微控制器上，并实现了一个简单的示例程序。以下是我们在整个过程中所取得的关键成果：

STM32 CubeMX项目创建：我们从零开始使用了STM32 CubeMX创建了一个新的项目，确保了正确的初始化和配置。

硬件连接：通过正确地连接OLED或LCD显示屏到STM32微控制器，我们保证了u8g2能够与硬件正确通信。

u8g2库的集成与配置：我们成功地将u8g2库添加到了STM32 CubeMX项目中，并配置了相关的参数，以确保适应我们的硬件需求。

示例程序的编写：我们编写了一个简单的示例程序，以验证u8g2库的正确移植与配置。

通过这个实例，我们展示了如何在STM32上成功地移植u8g2库，为您在嵌入式图形界面开发中提供了一个强大的工具。希望本文对您在此方面的工作和项目中能够提供有价值的参考。祝您的项目取得圆满成功！
