• VLAN的配置实例

    基于端口的vlan划分

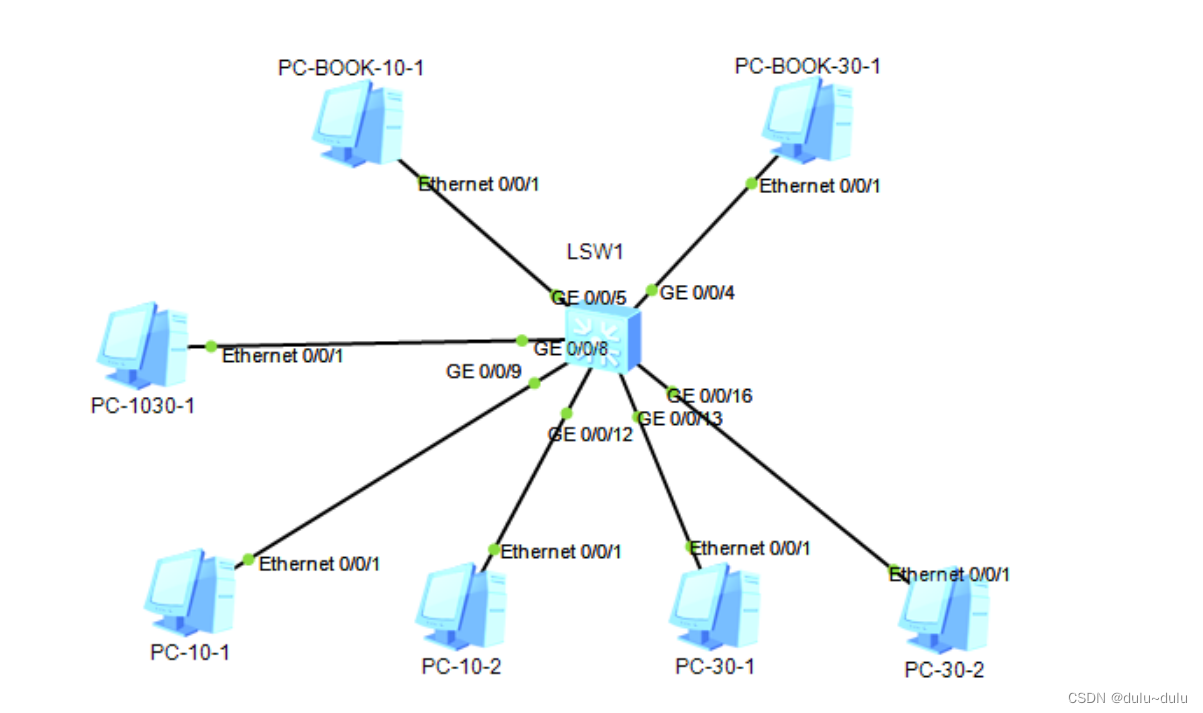

    以下配置为例： 注意选择copper线，可以任意选择端口

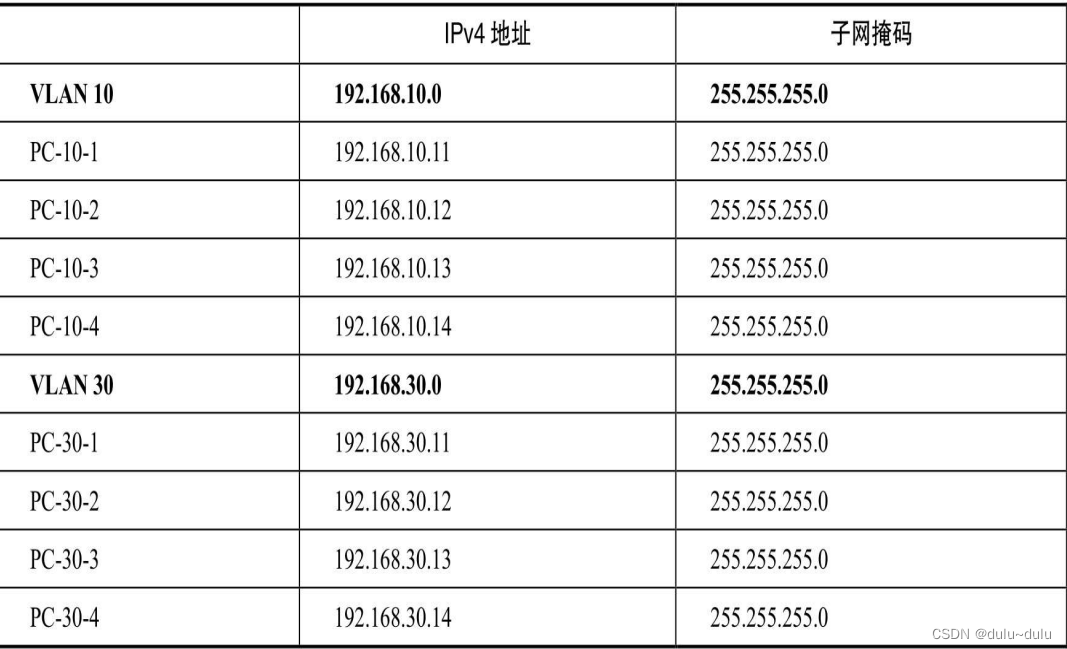

     PC配置如下：

    LSW1配置如下

    1. [LSW1]vlan 10
    2. [LSW1-vlan10]qu
    3. [LSW1]interface g0/0/9
    4. [LSW1-Gigabitethernet0/0/9] port link-type acces
    5. [LSW1-Gigabitethernet0/0/9] port default vlan 10
    6. [LSW1-Gigabitethernet0/0/9] qu
    7. #显示g0/0/9的信息
    8. [LSW1]display interface g0/0/9
    9. GigabitEthernet0/0/9 current state : UP
    10. Line protocol current state : UP
    11. Description:
    12. Switch Port, PVID :   10, TPID : 8100(Hex), The Maximum Frame Length is 9216
    13. IP Sending Frames' Format is PKTFMT_ETHNT_2, Hardware address is 4c1f-cc6c-2c40
    14. Last physical up time   : 2023-09-16 10:15:22 UTC-08:00
    15. Last physical down time : 2023-09-16 10:15:21 UTC-08:00
    16. Current system time: 2023-09-16 10:18:04-08:00
    17. Hardware address is 4c1f-cc6c-2c40
    18.     Last 300 seconds input rate 0 bytes/sec, 0 packets/sec
    19.     Last 300 seconds output rate 0 bytes/sec, 0 packets/sec
    20.     Input: 0 bytes, 0 packets
    21.     Output: 92582 bytes, 778 packets
    22.     Input:
    23.       Unicast: 0 packets, Multicast: 0 packets
    24.       Broadcast: 0 packets
    25.     Output:
    26.       Unicast: 0 packets, Multicast: 778 packets
    27.       Broadcast: 0 packets
    28.     Input bandwidth utilization  :    0%
    29.     Output bandwidth utilization :    0%
    30. #显示g0/0/9的vlan信息
    31. [LSW1]display port vlan g0/0/9
    32. Port                    Link Type    PVID  Trunk VLAN List
    33. -------------------------------------------------------------------------------
    34. GigabitEthernet0/0/9    access       10    -
    35. #其他端口同理
    36. [LSW1]interface g0/0/10
    37. [LSW1-GigabitEthernet0/0/10]port link-type access
    38. [LSW1-GigabitEthernet0/0/10]port default vlan 10
    39. [LSW1-GigabitEthernet0/0/10]qu
    40. [LSW1]display interface g0/0/10
    41. GigabitEthernet0/0/10 current state : DOWN
    42. Line protocol current state : DOWN
    43. Description:
    44. Switch Port, PVID :   10, TPID : 8100(Hex), The Maximum Frame Length is 9216
    45. IP Sending Frames' Format is PKTFMT_ETHNT_2, Hardware address is 4c1f-cc6c-2c40
    46. Last physical up time   : -
    47. Last physical down time : 2023-09-14 18:37:01 UTC-08:00
    48. Current system time: 2023-09-16 10:01:30-08:00
    49. Hardware address is 4c1f-cc6c-2c40
    50.     Last 300 seconds input rate 0 bytes/sec, 0 packets/sec
    51.     Last 300 seconds output rate 0 bytes/sec, 0 packets/sec
    52.     Input: 0 bytes, 0 packets
    53.     Output: 0 bytes, 0 packets
    54.     Input:
    55.       Unicast: 0 packets, Multicast: 0 packets
    56.       Broadcast: 0 packets
    57.     Output:
    58.       Unicast: 0 packets, Multicast: 0 packets
    59.       Broadcast: 0 packets
    60.     Input bandwidth utilization  :    0%
    61.     Output bandwidth utilization :    0%
    62.
    63. [LSW1]display port vlan g0/0/10
    64. Port                    Link Type    PVID  Trunk VLAN List
    65. -------------------------------------------------------------------------------
    66. GigabitEthernet0/0/10   access       10    -
    67.
    68. [LSW1]interface g0/0/11
    69. [LSW1-GigabitEthernet0/0/11]port link-type access
    70. [LSW1-GigabitEthernet0/0/11]port default vlan 10
    71. [LSW1-GigabitEthernet0/0/11]qu
    72. [LSW1]display interface g0/0/11
    73. GigabitEthernet0/0/11 current state : DOWN
    74. Line protocol current state : DOWN
    75. Description:
    76. Switch Port, PVID :   10, TPID : 8100(Hex), The Maximum Frame Length is 9216
    77. IP Sending Frames' Format is PKTFMT_ETHNT_2, Hardware address is 4c1f-cc6c-2c40
    78. Last physical up time   : -
    79. Last physical down time : 2023-09-14 18:37:01 UTC-08:00
    80. Current system time: 2023-09-16 10:04:08-08:00
    81. Hardware address is 4c1f-cc6c-2c40
    82.     Last 300 seconds input rate 0 bytes/sec, 0 packets/sec
    83.     Last 300 seconds output rate 0 bytes/sec, 0 packets/sec
    84.     Input: 0 bytes, 0 packets
    85.     Output: 0 bytes, 0 packets
    86.     Input:
    87.       Unicast: 0 packets, Multicast: 0 packets
    88.       Broadcast: 0 packets
    89.     Output:
    90.       Unicast: 0 packets, Multicast: 0 packets
    91.       Broadcast: 0 packets
    92.     Input bandwidth utilization  :    0%
    93.     Output bandwidth utilization :    0%
    95. [LSW1]display port vlan g0/0/11
    96. Port                    Link Type    PVID  Trunk VLAN List
    97. -------------------------------------------------------------------------------
    98. GigabitEthernet0/0/11   access       10    -
    99. [LSW1]interface g0/0/12
    100. [LSW1-GigabitEthernet0/0/12]port link-type access
    101. [LSW1-GigabitEthernet0/0/12]port default vlan 10
    102. [LSW1-GigabitEthernet0/0/12]qu
    103. [LSW1]display interface g0/0/12
    104. GigabitEthernet0/0/12 current state : UP
    105. Line protocol current state : UP
    106. Description:
    107. Switch Port, PVID :   10, TPID : 8100(Hex), The Maximum Frame Length is 9216
    108. IP Sending Frames' Format is PKTFMT_ETHNT_2, Hardware address is 4c1f-cc6c-2c40
    109. Last physical up time   : 2023-09-16 10:01:17 UTC-08:00
    110. Last physical down time : 2023-09-16 10:01:16 UTC-08:00
    111. Current system time: 2023-09-16 10:05:01-08:00
    112. Hardware address is 4c1f-cc6c-2c40
    113.     Last 300 seconds input rate 0 bytes/sec, 0 packets/sec
    114.     Last 300 seconds output rate 0 bytes/sec, 0 packets/sec
    115.     Input: 0 bytes, 0 packets
    116.     Output: 48909 bytes, 411 packets
    117.     Input:
    118.       Unicast: 0 packets, Multicast: 0 packets
    119.       Broadcast: 0 packets
    120.     Output:
    121.       Unicast: 0 packets, Multicast: 411 packets
    122.       Broadcast: 0 packets
    123.     Input bandwidth utilization  :    0%
    124.     Output bandwidth utilization :    0%
    125.
    126. [LSW1]display port vlan g0/0/12
    127. Port                    Link Type    PVID  Trunk VLAN List
    128. -------------------------------------------------------------------------------
    129. GigabitEthernet0/0/12   access       10    -
    130. [LSW1]display vlan 10
    131. --------------------------------------------------------------------------------
    132. U: Up;         D: Down;         TG: Tagged;         UT: Untagged;
    133. MP: Vlan-mapping;               ST: Vlan-stacking;
    134. #: ProtocolTransparent-vlan;    *: Management-vlan;
    135. --------------------------------------------------------------------------------
    136.
    137. VID  Type    Ports
    138. --------------------------------------------------------------------------------
    139. 10   common  UT:GE0/0/1(D)      GE0/0/9(U)      GE0/0/10(D)     GE0/0/11(D)
    140.                 GE0/0/12(U)
    141.
    142. VID  Status  Property      MAC-LRN Statistics Description
    143. --------------------------------------------------------------------------------
    144. 10   enable  default       enable  disable    VLAN 0010
    145. #创建vlan30
    146. [LSW1]vlan 30
    147. [LSW1-vlan30]qu
    148. [LSW1]port-group pvlan30
    149. #上面的操作重复繁琐，容易出错，这里可以对多个端口进行统一配置
    150. [LSW1-port-group-pvlan30]group-member g0/0/13 to g0/0/16
    151. [LSW1-port-group-pvlan30]display port-group
    152. pvlan30
    153. [LSW1-port-group-pvlan30]display port-group pvlan30
    154. Portgroup: pvlan30
    155. GigabitEthernet0/0/13
    156. GigabitEthernet0/0/14
    157. GigabitEthernet0/0/15
    158. GigabitEthernet0/0/16
    159. [LSW1-port-group-pvlan30]port link-type access
    160. [LSW1-GigabitEthernet0/0/13]port link-type access
    161. [LSW1-GigabitEthernet0/0/14]port link-type access
    162. [LSW1-GigabitEthernet0/0/15]port link-type access
    163. [LSW1-GigabitEthernet0/0/16]port link-type access
    164. [LSW1-port-group-pvlan30]port default vlan 30
    165. [LSW1-GigabitEthernet0/0/13]port default vlan 30
    166. [LSW1-GigabitEthernet0/0/14]port default vlan 30
    167. [LSW1-GigabitEthernet0/0/15]port default vlan 30
    168. [LSW1-GigabitEthernet0/0/16]port default vlan 30
    169. [LSW1-port-group-pvlan30]qu
    170. [LSW1]display vlan 30
    171. --------------------------------------------------------------------------------
    172. U: Up;         D: Down;         TG: Tagged;         UT: Untagged;
    173. MP: Vlan-mapping;               ST: Vlan-stacking;
    174. #: ProtocolTransparent-vlan;    *: Management-vlan;
    175. --------------------------------------------------------------------------------
    176.
    177. VID  Type    Ports
    178. --------------------------------------------------------------------------------
    179. 30   common  UT:GE0/0/13(U)     GE0/0/14(D)     GE0/0/15(D)     GE0/0/16(U)
    180.
    181. VID  Status  Property      MAC-LRN Statistics Description
    182. --------------------------------------------------------------------------------
    183. 30   enable  default       enable  disable    VLAN 0030
    184. [LSW1]display port vlan
    185. Port                    Link Type    PVID  Trunk VLAN List
    186. -------------------------------------------------------------------------------
    187. GigabitEthernet0/0/1    access       10    -
    188. GigabitEthernet0/0/2    hybrid       1     -
    189. GigabitEthernet0/0/3    hybrid       1     -
    190. GigabitEthernet0/0/4    hybrid       1     -
    191. GigabitEthernet0/0/5    hybrid       1     -
    192. GigabitEthernet0/0/6    hybrid       1     -
    193. GigabitEthernet0/0/7    hybrid       1     -
    194. GigabitEthernet0/0/8    hybrid       1     -
    195. GigabitEthernet0/0/9    access       10    -
    196. GigabitEthernet0/0/10   access       10    -
    197. GigabitEthernet0/0/11   access       10    -
    198. GigabitEthernet0/0/12   access       10    -
    199. GigabitEthernet0/0/13   access       30    -
    200. GigabitEthernet0/0/14   access       30    -
    201. GigabitEthernet0/0/15   access       30    -
    202. GigabitEthernet0/0/16   access       30    -
    203. GigabitEthernet0/0/17   hybrid       1     -
    204. GigabitEthernet0/0/18   hybrid       1     -
    205. GigabitEthernet0/0/19   hybrid       1     -
    206. GigabitEthernet0/0/20   hybrid       1     -
    207. GigabitEthernet0/0/21   hybrid       1     -
    208. GigabitEthernet0/0/22   hybrid       1     -
    209. GigabitEthernet0/0/23   hybrid       1     -
    210. GigabitEthernet0/0/24   hybrid       1     -

     统一创建vlan的命令

    #批量创建2....100

    vlan batch 2 to 100

     华为端口恢复默认配置的命令

    撤销操作或命令直接在命令前面加 undo

    不同的vlan之间逻辑上是隔离的，不能相互通信

    从以下信息可以看出，PC1可以与PC2进行通信，但是PC1不能与PC3,PC4相互通信

    1. PC>ping 192.168.10.12
    2.
    3. Ping 192.168.10.12: 32 data bytes, Press Ctrl_C to break
    4. From 192.168.10.12: bytes=32 seq=1 ttl=128 time=32 ms
    5. From 192.168.10.12: bytes=32 seq=2 ttl=128 time=47 ms
    6. From 192.168.10.12: bytes=32 seq=3 ttl=128 time=63 ms
    7. From 192.168.10.12: bytes=32 seq=4 ttl=128 time=46 ms
    8. From 192.168.10.12: bytes=32 seq=5 ttl=128 time=47 ms
    9.
    10. --- 192.168.10.12 ping statistics ---
    11.   5 packet(s) transmitted
    12.   5 packet(s) received
    13.   0.00% packet loss
    14.   round-trip min/avg/max = 32/47/63 ms
    15.
    16. PC>ping 192.168.30.11
    17.
    18. Ping 192.168.30.11: 32 data bytes, Press Ctrl_C to break
    19. From 192.168.10.11: Destination host unreachable
    20. From 192.168.10.11: Destination host unreachable
    21. From 192.168.10.11: Destination host unreachable
    22. From 192.168.10.11: Destination host unreachable
    23. From 192.168.10.11: Destination host unreachable
    24.
    25. --- 192.168.10.254 ping statistics ---
    26.   5 packet(s) transmitted
    27.   0 packet(s) received
    28.   100.00% packet loss
    29.
    30. PC>ping 192.168.30.12
    31.
    32. Ping 192.168.30.12: 32 data bytes, Press Ctrl_C to break
    33. From 192.168.10.11: Destination host unreachable
    34. From 192.168.10.11: Destination host unreachable
    35. From 192.168.10.11: Destination host unreachable
    36. From 192.168.10.11: Destination host unreachable
    37. From 192.168.10.11: Destination host unreachable
    38.
    39. --- 192.168.10.254 ping statistics ---
    40.   5 packet(s) transmitted
    41.   0 packet(s) received
    42.   100.00% packet loss
    43.
    44. PC>



    基于mac地址的VLAN划分

    PC-BOOK的mac地址如下

    PC-BOOK-10-1：54-89-98-9F-25-B6

    PC-BOOK-30-1：54-89-98-88-74-CD

    1. [LSW1]vlan 10
    2. [LSW1-vlan10]qu
    3. [LSW1]vlan 30
    4. [LSW1-vlan30]qu
    5. [LSW1]port-group pvlan10
    6. [LSW1-port-group-pvlan10]group-member g0/0/9 to g0/0/12
    7. [LSW1-port-group-pvlan10]display port-group pvlan10
    8. Portgroup: pvlan10
    9. GigabitEthernet0/0/9
    10. GigabitEthernet0/0/10
    11. GigabitEthernet0/0/11
    12. GigabitEthernet0/0/12
    13. [LSW1-port-group-pvlan10]qu
    14. [LSW1]port-group pvlan30
    15. [LSW1-port-group-pvlan30]group-member g0/0/13 to g0/0/16
    16. [LSW1-port-group-pvlan30]display port-group pvlan30
    17. Portgroup: pvlan30
    18. GigabitEthernet0/0/13
    19. GigabitEthernet0/0/14
    20. GigabitEthernet0/0/15
    21. GigabitEthernet0/0/16
    22. [LSW1-port-group-pvlan30]port link-type access
    23. [LSW1-GigabitEthernet0/0/13]port link-type access
    24. [LSW1-GigabitEthernet0/0/14]port link-type access
    25. [LSW1-GigabitEthernet0/0/15]port link-type access
    26. [LSW1-GigabitEthernet0/0/16]port link-type access
    27. [LSW1-port-group-pvlan30]port default vlan 30
    28. [LSW1-GigabitEthernet0/0/13]port default vlan 30
    29. [LSW1-GigabitEthernet0/0/14]port default vlan 30
    30. [LSW1-GigabitEthernet0/0/15]port default vlan 30
    31. [LSW1-GigabitEthernet0/0/16]port default vlan 30
    32. [LSW1-port-group-pvlan30]qu
    33. [LSW1]port-group pvlan10
    34. [LSW1-port-group-pvlan10]port link-type access
    35. [LSW1-GigabitEthernet0/0/9]port link-type access
    36. [LSW1-GigabitEthernet0/0/10]port link-type access
    37. [LSW1-GigabitEthernet0/0/11]port link-type access
    38. [LSW1-GigabitEthernet0/0/12]port link-type access
    39. [LSW1-port-group-pvlan10]port default vlan 10
    40. [LSW1-GigabitEthernet0/0/9]port default vlan 10
    41. [LSW1-GigabitEthernet0/0/10]port default vlan 10
    42. [LSW1-GigabitEthernet0/0/11]port default vlan 10
    43. [LSW1-GigabitEthernet0/0/12]port default vlan 10
    44. [LSW1-port-group-pvlan10]
    45. [LSW1-port-group-pvlan10]display vlan
    46. The total number of vlans is : 3
    47. --------------------------------------------------------------------------------
    48. U: Up;         D: Down;         TG: Tagged;         UT: Untagged;
    49. MP: Vlan-mapping;               ST: Vlan-stacking;
    50. #: ProtocolTransparent-vlan;    *: Management-vlan;
    51. --------------------------------------------------------------------------------
    52.
    53. VID  Type    Ports
    54. --------------------------------------------------------------------------------
    55. 1    common  UT:GE0/0/1(D)      GE0/0/2(D)      GE0/0/3(D)      GE0/0/4(U)
    56.                 GE0/0/5(U)      GE0/0/6(D)      GE0/0/7(D)      GE0/0/8(D)
    57.                 GE0/0/17(D)     GE0/0/18(D)     GE0/0/19(D)     GE0/0/20(D)
    58.                 GE0/0/21(D)     GE0/0/22(D)     GE0/0/23(D)     GE0/0/24(D)
    59.
    60. 10   common  UT:GE0/0/9(U)      GE0/0/10(D)     GE0/0/11(D)     GE0/0/12(U)
    61.
    62. 30   common  UT:GE0/0/13(U)     GE0/0/14(D)     GE0/0/15(D)     GE0/0/16(U)
    63.
    64.
    65. VID  Status  Property      MAC-LRN Statistics Description
    66. --------------------------------------------------------------------------------
    67.
    68. 1    enable  default       enable  disable    VLAN 0001
    69. 10   enable  default       enable  disable    VLAN 0010
    70. 30   enable  default       enable  disable    VLAN 0030
    71.
    72. [LSW1-port-group-pvlan10]qu
    73. [LSW1]vlan 10
    74. [LSW1-vlan10]mac-vlan mac-address 5489-989F-25B6 priority 0
    75. [LSW1]vlan 30
    76. [LSW1-vlan30]mac-vlan mac-address 5489-9888-74cd priority 0
    77. [LSW1-vlan30]int g0/0/4
    78. [LSW1-GigabitEthernet0/0/4]port link-type hybrid
    79. [LSW1-GigabitEthernet0/0/4]port hybrid untagged vlan 10 30
    80. [LSW1-GigabitEthernet0/0/4]mac-vlan enable
    81. Info: This operation may take a few seconds. Please wait for a moment...done.
    82. [LSW1-GigabitEthernet0/0/4]qu
    83. [LSW1]int g0/0/5
    84. [LSW1-GigabitEthernet0/0/5]port link-type hybrid
    85. [LSW1-GigabitEthernet0/0/5]port hybrid untagged vlan 10 30
    86. [LSW1-GigabitEthernet0/0/5]mac-vlan enable
    87. Info: This operation may take a few seconds. Please wait for a moment...done.
    88. [LSW1-GigabitEthernet0/0/5]qu
    89. [LSW1]display mac-vlan mac-address all
    90. ---------------------------------------------------
    91. MAC Address     MASK            VLAN    Priority
    92. ---------------------------------------------------
    93. 5489-989f-25b6  ffff-ffff-ffff  10      0
    94. 5489-9888-74cd  ffff-ffff-ffff  30      0
    95.
    96. Total MAC VLAN address count: 2
    97.
    98. [LSW1]display mac-vlan vlan 10
    99. ---------------------------------------------------
    100. MAC Address     MASK            VLAN    Priority
    101. ---------------------------------------------------
    102. 5489-989f-25b6  ffff-ffff-ffff  10      0
    103.
    104. Total MAC VLAN address count: 1
    105.
    106. [LSW1]display mac-vlan vlan 30
    107. ---------------------------------------------------
    108. MAC Address     MASK            VLAN    Priority
    109. ---------------------------------------------------
    110. 5489-9888-74cd  ffff-ffff-ffff  30      0
    111.
    112. Total MAC VLAN address count: 1

    至此，PC-BOOK-10-1加入vlan 10，PC-BOOK-30-1加入vlan30

    将 PC-BOOK-10-1和PC-BOOK-30-1所连接的交换机端口互换，依旧可以与同一个vlan中的计算机通信

    1. PC>ping 192.168.30.11
    2.
    3. Ping 192.168.30.11: 32 data bytes, Press Ctrl_C to break
    4. From 192.168.30.11: bytes=32 seq=1 ttl=128 time=63 ms
    5. From 192.168.30.11: bytes=32 seq=2 ttl=128 time=47 ms
    6. From 192.168.30.11: bytes=32 seq=3 ttl=128 time=47 ms
    7. From 192.168.30.11: bytes=32 seq=4 ttl=128 time=47 ms
    8. From 192.168.30.11: bytes=32 seq=5 ttl=128 time=47 ms
    9.
    10. --- 192.168.30.11 ping statistics ---
    11.   5 packet(s) transmitted
    12.   5 packet(s) received
    13.   0.00% packet loss
    14.   round-trip min/avg/max = 47/50/63 ms



    基于IP地址的vlan划分

    在原有的基础上扩展

    PC-1030-1:IPV4地址 192.168.30.18        子网掩码：255.255.255.0

    LSW1上的配置

    1. [LSW1]display vlan
    2. The total number of vlans is : 3
    3. --------------------------------------------------------------------------------
    4. U: Up;         D: Down;         TG: Tagged;         UT: Untagged;
    5. MP: Vlan-mapping;               ST: Vlan-stacking;
    6. #: ProtocolTransparent-vlan;    *: Management-vlan;
    7. --------------------------------------------------------------------------------
    8.
    9. VID  Type    Ports
    10. --------------------------------------------------------------------------------
    11. 1    common  UT:GE0/0/1(D)      GE0/0/2(D)      GE0/0/3(D)      GE0/0/4(U)
    12.                 GE0/0/5(U)      GE0/0/6(D)      GE0/0/7(D)      GE0/0/8(U)
    13.                 GE0/0/17(D)     GE0/0/18(D)     GE0/0/19(D)     GE0/0/20(D)
    14.                 GE0/0/21(D)     GE0/0/22(D)     GE0/0/23(D)     GE0/0/24(D)
    15.
    16. 10   common  UT:GE0/0/4(U)      GE0/0/5(U)      GE0/0/9(U)      GE0/0/10(D)
    17.
    18.                 GE0/0/11(D)     GE0/0/12(U)
    19.
    20. 30   common  UT:GE0/0/4(U)      GE0/0/5(U)      GE0/0/13(U)     GE0/0/14(D)
    21.
    22.                 GE0/0/15(D)     GE0/0/16(U)
    23.
    24.
    25. VID  Status  Property      MAC-LRN Statistics Description
    26. --------------------------------------------------------------------------------
    27.
    28. 1    enable  default       enable  disable    VLAN 0001
    29. 10   enable  default       enable  disable    VLAN 0010
    30. 30   enable  default       enable  disable    VLAN 0030
    31. [LSW1]vlan 10
    32. #按ip地址划分vlan
    33. [LSW1-vlan10]ip-subnet-vlan 2 ip 192.168.10.0 24 priority 1
    34. #2为子网索引，取值范围为1~12,一个vlan最多可以绑定12个子网
    35. #192.168.10.0为子网地址，24为前缀长度，也可以采用子网掩码
    36. #priority为优先级，取值范围为0~7，值越大优先级越高，默认值为0
    37. [LSW1-vlan10]qu
    38. [LSW1]vlan 30
    39. [LSW1-vlan30]ip-subnet-vlan 1 ip 192.168.30.0 24 priority 1
    40. [LSW1-vlan30]qu
    41. [LSW1]interface g 0/0/8
    42. #配置为hybrid,并使其在发送vlan 10和vlan 30的帧时剥除vlan tag
    43. [LSW1-GigabitEthernet0/0/8]port link-type hybrid
    44. [LSW1-GigabitEthernet0/0/8]port hybrid untagged vlan 10 30
    45. [LSW1-GigabitEthernet0/0/8]ip-subnet-vlan enable
    46. [LSW1-GigabitEthernet0/0/8]qu
    47. [LSW1]display ip-subnet-vlan vlan all
    48.  ----------------------------------------------------------------
    49.  Vlan    Index   IpAddress           SubnetMask          Priority
    50.  ----------------------------------------------------------------
    51.  10      2       192.168.10.0        255.255.255.0       1
    52.  30      1       192.168.30.0        255.255.255.0       1
    53.  ----------------------------------------------------------------
    54.  ip-subnet-vlan count: 2  		 total count: 2
    55.
    56. [LSW1]display ip-subnet-vlan vlan 10
    57.  ----------------------------------------------------------------
    58.  Vlan    Index   IpAddress           SubnetMask          Priority
    59.  ----------------------------------------------------------------
    60.  10      2       192.168.10.0        255.255.255.0       1
    61.  ----------------------------------------------------------------
    62.  ip-subnet-vlan count: 1  		 total count: 2
    63.
    64. [LSW1]display ip-subnet-vlan vlan 30
    65.  ----------------------------------------------------------------
    66.  Vlan    Index   IpAddress           SubnetMask          Priority
    67.  ----------------------------------------------------------------
    68.  30      1       192.168.30.0        255.255.255.0       1
    69.  ----------------------------------------------------------------
    70.  ip-subnet-vlan count: 1  		 total count: 2

     至此这台PC加入了vlan10和vlan30

    1. [LSW1]display vlan
    2. The total number of vlans is : 3
    3. --------------------------------------------------------------------------------
    4. U: Up;         D: Down;         TG: Tagged;         UT: Untagged;
    5. MP: Vlan-mapping;               ST: Vlan-stacking;
    6. #: ProtocolTransparent-vlan;    *: Management-vlan;
    7. --------------------------------------------------------------------------------
    8.
    9. VID  Type    Ports
    10. --------------------------------------------------------------------------------
    11. 1    common  UT:GE0/0/1(D)      GE0/0/2(D)      GE0/0/3(D)      GE0/0/4(U)
    12.                 GE0/0/5(U)      GE0/0/6(D)      GE0/0/7(D)      GE0/0/8(U)
    13.                 GE0/0/17(D)     GE0/0/18(D)     GE0/0/19(D)     GE0/0/20(D)
    14.                 GE0/0/21(D)     GE0/0/22(D)     GE0/0/23(D)     GE0/0/24(D)
    15.
    16. 10   common  UT:GE0/0/4(U)      GE0/0/5(U)      GE0/0/8(U)      GE0/0/9(U)
    17.                 GE0/0/10(D)     GE0/0/11(D)     GE0/0/12(U)
    18.
    19. 30   common  UT:GE0/0/4(U)      GE0/0/5(U)      GE0/0/8(U)      GE0/0/13(U)
    20.
    21.                 GE0/0/14(D)     GE0/0/15(D)     GE0/0/16(U)
    22.
    23.
    24. VID  Status  Property      MAC-LRN Statistics Description
    25. --------------------------------------------------------------------------------
    26.
    27. 1    enable  default       enable  disable    VLAN 0001
    28. 10   enable  default       enable  disable    VLAN 0010
    29. 30   enable  default       enable  disable    VLAN 0030
    30. [LSW1]
    31.
    32. #切换到地址192.168.10.18后，能ping 192.168.10.11
    33. PC>ping 192.168.10.11
    34.
    35. Ping 192.168.10.11: 32 data bytes, Press Ctrl_C to break
    36. From 192.168.10.11: bytes=32 seq=1 ttl=128 time=47 ms
    37. From 192.168.10.11: bytes=32 seq=2 ttl=128 time=62 ms
    38. From 192.168.10.11: bytes=32 seq=3 ttl=128 time=47 ms
    39. From 192.168.10.11: bytes=32 seq=4 ttl=128 time=62 ms
    40. From 192.168.10.11: bytes=32 seq=5 ttl=128 time=63 ms
    41.
    42. --- 192.168.10.11 ping statistics ---
    43.   5 packet(s) transmitted
    44.   5 packet(s) received
    45.   0.00% packet loss
    46.   round-trip min/avg/max = 47/56/63 ms
    47.
    48. #切换到192.168.30.18后，能ping 192.168.30.11
    49. PC>ping 192.168.30.11
    50.
    51. Ping 192.168.30.11: 32 data bytes, Press Ctrl_C to break
    52. From 192.168.30.11: bytes=32 seq=1 ttl=128 time=62 ms
    53. From 192.168.30.11: bytes=32 seq=2 ttl=128 time=47 ms
    54. From 192.168.30.11: bytes=32 seq=3 ttl=128 time=47 ms
    55. From 192.168.30.11: bytes=32 seq=4 ttl=128 time=47 ms
    56. From 192.168.30.11: bytes=32 seq=5 ttl=128 time=31 ms
    57.
    58. --- 192.168.30.11 ping statistics ---
    59.   5 packet(s) transmitted
    60.   5 packet(s) received
    61.   0.00% packet loss
    62.   round-trip min/avg/max = 31/46/62 ms



    跨以太网交换机的vlan扩展

     PC配置如下

    LSW1的配置

    1. <LSW1>sys
    2. Enter system view, return user view with Ctrl+Z.
    3. [LSW1]vlan batch 10 30
    4. Info: This operation may take a few seconds. Please wait for a moment...done.
    5. [LSW1]port-group pvlan10
    6. [LSW1-port-group-pvlan10]group-member g0/0/9 to g0/0/12
    7. [LSW1-port-group-pvlan10]port link-type access
    8. [LSW1-GigabitEthernet0/0/9]port link-type access
    9. [LSW1-GigabitEthernet0/0/10]port link-type access
    10. [LSW1-GigabitEthernet0/0/11]port link-type access
    11. [LSW1-GigabitEthernet0/0/12]port link-type access
    12. [LSW1-port-group-pvlan10]port default vlan 10
    13. [LSW1-GigabitEthernet0/0/9]port default vlan 10
    14. [LSW1-GigabitEthernet0/0/10]port default vlan 10
    15. [LSW1-GigabitEthernet0/0/11]port default vlan 10
    16. [LSW1-GigabitEthernet0/0/12]port default vlan 10
    17. [LSW1-port-group-pvlan10]qu
    18. [LSW1]port-group pvlan30
    19. [LSW1-port-group-pvlan30]group-member g0/0/13 to g0/0/16
    20. [LSW1-port-group-pvlan30]port link-type access
    21. [LSW1-GigabitEthernet0/0/13]port link-type access
    22. [LSW1-GigabitEthernet0/0/14]port link-type access
    23. [LSW1-GigabitEthernet0/0/15]port link-type access
    24. [LSW1-GigabitEthernet0/0/16]port link-type access
    25. [LSW1-port-group-pvlan30]port default vlan 30
    26. [LSW1-GigabitEthernet0/0/13]port default vlan 30
    27. [LSW1-GigabitEthernet0/0/14]port default vlan 30
    28. [LSW1-GigabitEthernet0/0/15]port default vlan 30
    29. [LSW1-GigabitEthernet0/0/16]port default vlan 30
    30. [LSW1-port-group-pvlan30]qu
    31. [LSW1]interface g0/0/24
    32. [LSW1-GigabitEthernet0/0/24]port link-type trunk
    33. [LSW1-GigabitEthernet0/0/24]port trunk allow-pass vlan 10 30
    34. [LSW1-GigabitEthernet0/0/24]qu
    35. [LSW1]display vlan
    36. The total number of vlans is : 3
    37. --------------------------------------------------------------------------------
    38. U: Up;         D: Down;         TG: Tagged;         UT: Untagged;
    39. MP: Vlan-mapping;               ST: Vlan-stacking;
    40. #: ProtocolTransparent-vlan;    *: Management-vlan;
    41. --------------------------------------------------------------------------------
    42.
    43. VID  Type    Ports
    44. --------------------------------------------------------------------------------
    45. 1    common  UT:GE0/0/1(D)      GE0/0/2(D)      GE0/0/3(D)      GE0/0/4(D)
    46.                 GE0/0/5(D)      GE0/0/6(D)      GE0/0/7(D)      GE0/0/8(D)
    47.                 GE0/0/17(D)     GE0/0/18(D)     GE0/0/19(D)     GE0/0/20(D)
    48.                 GE0/0/21(D)     GE0/0/22(D)     GE0/0/23(D)     GE0/0/24(U)
    49.
    50. 10   common  UT:GE0/0/4(D)      GE0/0/5(D)      GE0/0/8(D)      GE0/0/9(U)
    51.                 GE0/0/10(D)     GE0/0/11(D)     GE0/0/12(U)
    52.              TG:GE0/0/24(U)
    53.
    54. 30   common  UT:GE0/0/4(D)      GE0/0/5(D)      GE0/0/8(D)      GE0/0/13(U)
    55.
    56.                 GE0/0/14(D)     GE0/0/15(D)     GE0/0/16(U)
    57.              TG:GE0/0/24(U)
    58.
    59.
    60. VID  Status  Property      MAC-LRN Statistics Description
    61. --------------------------------------------------------------------------------
    62.
    63. 1    enable  default       enable  disable    VLAN 0001
    64. 10   enable  default       enable  disable    VLAN 0010
    65. 30   enable  default       enable  disable    VLAN 0030
    66. [LSW1]display port vlan
    67. Port                    Link Type    PVID  Trunk VLAN List
    68. -------------------------------------------------------------------------------
    69. GigabitEthernet0/0/1    hybrid       1     -
    70. GigabitEthernet0/0/2    hybrid       1     -
    71. GigabitEthernet0/0/3    hybrid       1     -
    72. GigabitEthernet0/0/4    hybrid       1     -
    73. GigabitEthernet0/0/5    hybrid       1     -
    74. GigabitEthernet0/0/6    hybrid       1     -
    75. GigabitEthernet0/0/7    hybrid       1     -
    76. GigabitEthernet0/0/8    hybrid       1     -
    77. GigabitEthernet0/0/9    access       10    -
    78. GigabitEthernet0/0/10   access       10    -
    79. GigabitEthernet0/0/11   access       10    -
    80. GigabitEthernet0/0/12   access       10    -
    81. GigabitEthernet0/0/13   access       30    -
    82. GigabitEthernet0/0/14   access       30    -
    83. GigabitEthernet0/0/15   access       30    -
    84. GigabitEthernet0/0/16   access       30    -
    85. GigabitEthernet0/0/17   hybrid       1     -
    86. GigabitEthernet0/0/18   hybrid       1     -
    87. GigabitEthernet0/0/19   hybrid       1     -
    88. GigabitEthernet0/0/20   hybrid       1     -
    89. GigabitEthernet0/0/21   hybrid       1     -
    90. GigabitEthernet0/0/22   hybrid       1     -
    91. GigabitEthernet0/0/23   hybrid       1     -
    92. GigabitEthernet0/0/24   trunk        1     1 10 30
    93. [LSW1]

    LSW2与LSW1的配置同理

    1. <Huawei>sys
    2. Enter system view, return user view with Ctrl+Z.
    3. [Huawei]sysname LSW2
    4. [LSW2]undo info-center enable
    5. Info: Information center is disabled.
    6. [LSW2]vlan batch 10 30
    7. Info: This operation may take a few seconds. Please wait for a moment...done.
    8. [LSW2]port-group pvlan10
    9. [LSW2-port-group-pvlan10]group-member g0/0/9 to g0/0/12
    10. [LSW2-port-group-pvlan10]port link-type access
    11. [LSW2-GigabitEthernet0/0/9]port link-type access
    12. [LSW2-GigabitEthernet0/0/10]port link-type access
    13. [LSW2-GigabitEthernet0/0/11]port link-type access
    14. [LSW2-GigabitEthernet0/0/12]port link-type access
    15. [LSW2-port-group-pvlan10]port default vlan 10
    16. [LSW2-GigabitEthernet0/0/9]port default vlan 10
    17. [LSW2-GigabitEthernet0/0/10]port default vlan 10
    18. [LSW2-GigabitEthernet0/0/11]port default vlan 10
    19. [LSW2-GigabitEthernet0/0/12]port default vlan 10
    20. [LSW2-port-group-pvlan10]qu
    21. [LSW2]port-group pvlan30
    22. [LSW2-port-group-pvlan30]group-member g0/0/13 to g0/0/16
    23. [LSW2-port-group-pvlan30]port link-type access
    24. [LSW2-GigabitEthernet0/0/13]port link-type access
    25. [LSW2-GigabitEthernet0/0/14]port link-type access
    26. [LSW2-GigabitEthernet0/0/15]port link-type access
    27. [LSW2-GigabitEthernet0/0/16]port link-type access
    28. [LSW2-port-group-pvlan30]port default vlan 30
    29. [LSW2-GigabitEthernet0/0/13]port default vlan 30
    30. [LSW2-GigabitEthernet0/0/14]port default vlan 30
    31. [LSW2-GigabitEthernet0/0/15]port default vlan 30
    32. [LSW2-GigabitEthernet0/0/16]port default vlan 30
    33. [LSW2-port-group-pvlan30]qu
    34. [LSW2]interface g0/0/24
    35. [LSW2-GigabitEthernet0/0/24]port link-type trunk
    36. [LSW2-GigabitEthernet0/0/24]port trunk allow-pass vlan 10 30
    37. #这里也可以写
    38. allow-pass vlan all
    39. [LSW2-GigabitEthernet0/0/24]qu
    40. [LSW2]display vlan
    41. The total number of vlans is : 3
    42. --------------------------------------------------------------------------------
    43. U: Up;         D: Down;         TG: Tagged;         UT: Untagged;
    44. MP: Vlan-mapping;               ST: Vlan-stacking;
    45. #: ProtocolTransparent-vlan;    *: Management-vlan;
    46. --------------------------------------------------------------------------------
    47.
    48. VID  Type    Ports
    49. --------------------------------------------------------------------------------
    50. 1    common  UT:GE0/0/1(D)      GE0/0/2(D)      GE0/0/3(D)      GE0/0/4(D)
    51.                 GE0/0/5(D)      GE0/0/6(D)      GE0/0/7(D)      GE0/0/8(D)
    52.                 GE0/0/17(D)     GE0/0/18(D)     GE0/0/19(D)     GE0/0/20(D)
    53.                 GE0/0/21(D)     GE0/0/22(D)     GE0/0/23(D)     GE0/0/24(U)
    54.
    55. 10   common  UT:GE0/0/9(U)      GE0/0/10(D)     GE0/0/11(D)     GE0/0/12(U)
    56.
    57.              TG:GE0/0/24(U)
    58.
    59. 30   common  UT:GE0/0/13(U)     GE0/0/14(D)     GE0/0/15(D)     GE0/0/16(U)
    60.
    61.              TG:GE0/0/24(U)
    62.
    63.
    64. VID  Status  Property      MAC-LRN Statistics Description
    65. --------------------------------------------------------------------------------
    66.
    67. 1    enable  default       enable  disable    VLAN 0001
    68. 10   enable  default       enable  disable    VLAN 0010
    69. 30   enable  default       enable  disable    VLAN 0030
    70. [LSW2]display port vlan
    71. Port                    Link Type    PVID  Trunk VLAN List
    72. -------------------------------------------------------------------------------
    73. GigabitEthernet0/0/1    hybrid       1     -
    74. GigabitEthernet0/0/2    hybrid       1     -
    75. GigabitEthernet0/0/3    hybrid       1     -
    76. GigabitEthernet0/0/4    hybrid       1     -
    77. GigabitEthernet0/0/5    hybrid       1     -
    78. GigabitEthernet0/0/6    hybrid       1     -
    79. GigabitEthernet0/0/7    hybrid       1     -
    80. GigabitEthernet0/0/8    hybrid       1     -
    81. GigabitEthernet0/0/9    access       10    -
    82. GigabitEthernet0/0/10   access       10    -
    83. GigabitEthernet0/0/11   access       10    -
    84. GigabitEthernet0/0/12   access       10    -
    85. GigabitEthernet0/0/13   access       30    -
    86. GigabitEthernet0/0/14   access       30    -
    87. GigabitEthernet0/0/15   access       30    -
    88. GigabitEthernet0/0/16   access       30    -
    89. GigabitEthernet0/0/17   hybrid       1     -
    90. GigabitEthernet0/0/18   hybrid       1     -
    91. GigabitEthernet0/0/19   hybrid       1     -
    92. GigabitEthernet0/0/20   hybrid       1     -
    93. GigabitEthernet0/0/21   hybrid       1     -
    94. GigabitEthernet0/0/22   hybrid       1     -
    95. GigabitEthernet0/0/23   hybrid       1     -
    96. GigabitEthernet0/0/24   trunk        1     1 10 30

     至此，PC-10-1能跨网段ping通PC-10-3,同理PC-30-1能跨网段ping通PC-30-3

    查看捕获的以太网帧是否带标记，首先需要显示vlan id，步骤如下：

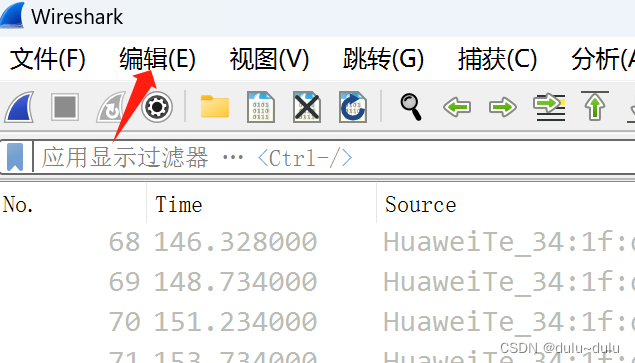

    编辑--->首选项

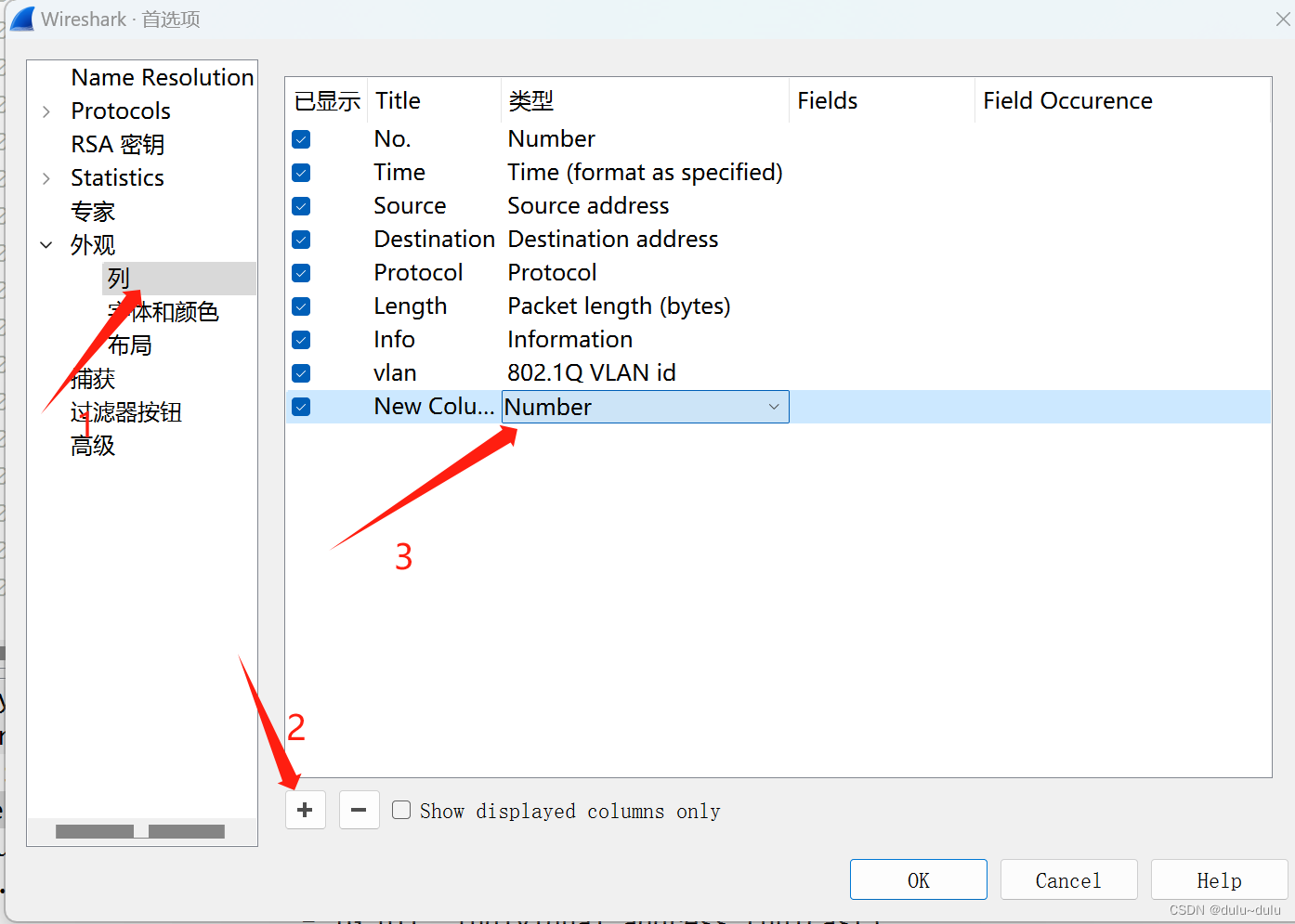

    number下拉，选择802.1Q VLAN id

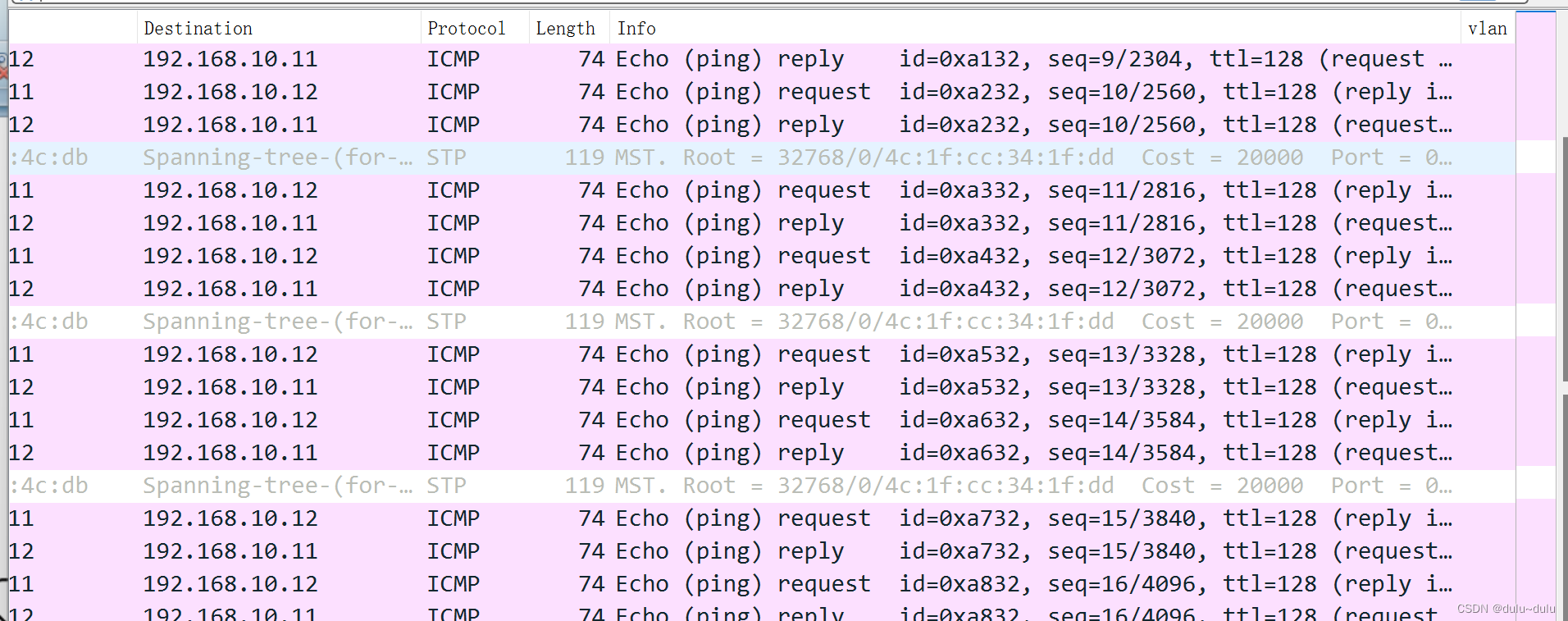

    这里对LSW1的g0/0/9进行抓包，其link-type为access

    对于普通终端的连接，是不需要vlan标记的

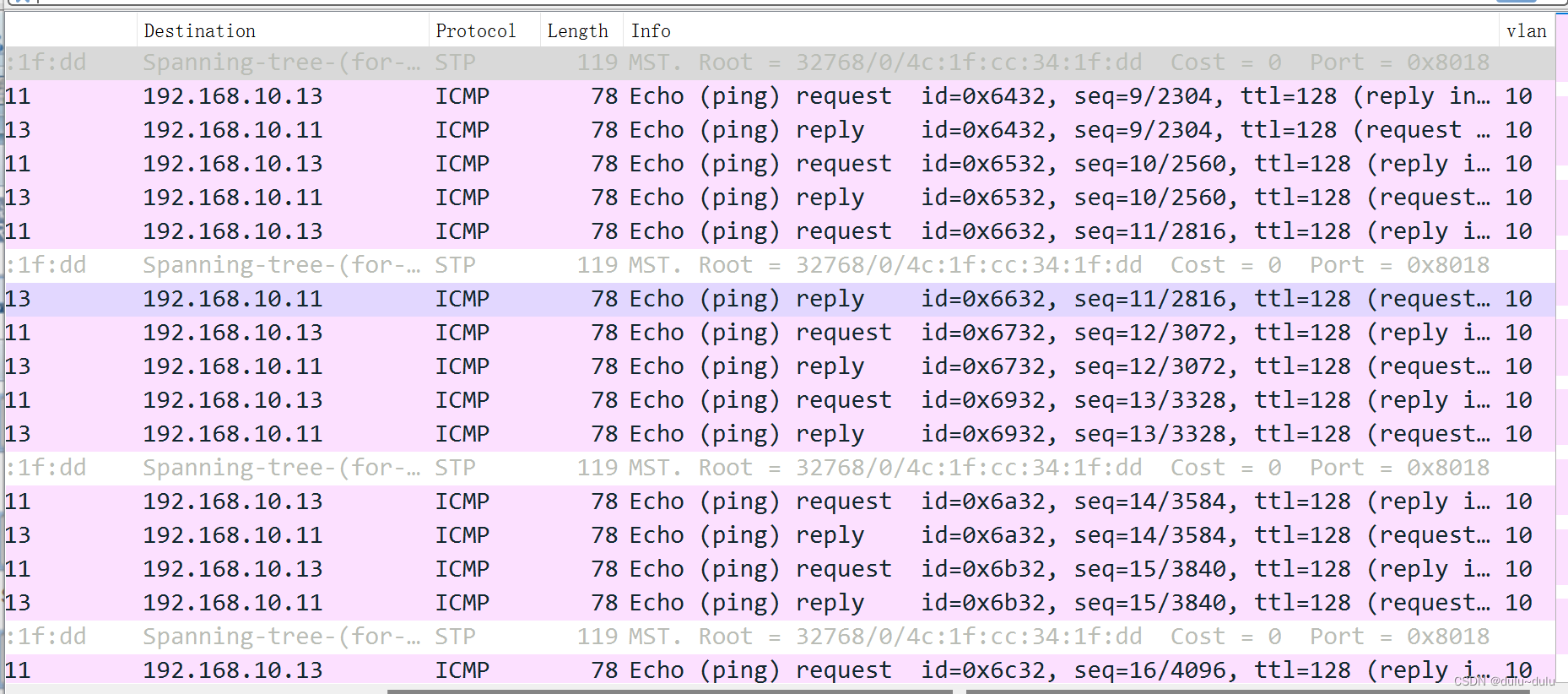

    这里对LSW1的g0/0/24进行抓包，其link-type为trunk，并且带vlan标记，用于标识该数据帧属于哪个 VLAN。

  • 相关阅读:
    NTP/NTPD-时间同步服务
    情绪智力测试
    Android中的KeyEvent详解
    号码吉凶查询易语言代码
    组合电路、触发器、时序电路
    【IEEE出版丨EI检索】2024新型电力系统与电力电子国际会议（NPSPE 2024）
    Web基础 ( 六 ) AJAX
    经典文献阅读之--EGO-Planner(无ESDF的四旋翼局部规划器)
    SAP-QM-检验批和物料凭证
    React Native for Arcgis 地图开发 GraphicCtrl （十三）
  • 原文地址：https://blog.csdn.net/weixin_69884785/article/details/132915096
