• 腾讯mini项目-【指标监控服务重构】2023-08-11

    今日待办

    1. 使用watermill框架替代当前的base_runner框架
      a. 参考官方提供的sarama kafka Pub/Sub(https://github.com/ThreeDotsLabs/watermill-kafka/)实现kafka-go(https://github.com/segmentio/kafka-go)的Pub/Sub（sarama需要cgo，会导致一些额外的镜像依赖）
      b. 参考https://watermill.io/docs/messages-router/实现不同topic（不同事件）走不同的Handler处理逻辑，相同处理逻辑则可以使用MiddleWare(https://watermill.io/docs/middlewares/)
    2. 调研HyperScan golang implement(https://github.com/flier/gohs/)的使用和benchmark，扩充profile事件处理handler，添加一些正则处理任务（这个会给一些示例）

    Watermill

    what？

    • 高效处理消息流，事件驱动程序
    • 用于 event soucing, rpc over messages, sagas
    • pub/sub

    why？

    • 微服务模式，异步通信
    • 减少复杂性

    core？

    • Publisher
    • Subscriber
    • Message

    官方示例

    结合对 kafka 的 pub/sub 的实现和对 router、middleware 的使用尝试替换掉 baserunner

    // Package watermillx
// @Author xzx 2023/8/11 18:53:00
package watermillx

import (
	"fmt"
	"github.com/Shopify/sarama"
	"github.com/ThreeDotsLabs/watermill"
	"github.com/ThreeDotsLabs/watermill-kafka/v2/pkg/kafka"
	"github.com/ThreeDotsLabs/watermill/message"
	"github.com/ThreeDotsLabs/watermill/message/router/middleware"
	"github.com/ThreeDotsLabs/watermill/message/router/plugin"
	"log"
	"profile/internal/config"
	"profile/internal/schema"
	"time"
)

// 测试字段
type WatermillContext struct {
	Status        int
	StageErr      error
	Event         schema.Event
	AppID         string // API 上报
	FetchScenario string // API 上报
}

var logger = watermill.NewStdLogger(false, false)

func (ctx *WatermillContext) Init() {

	saramaSubscriberConfig := kafka.DefaultSaramaSubscriberConfig()
	// equivalent of auto.offset.reset: earliest
	saramaSubscriberConfig.Consumer.Offsets.Initial = sarama.OffsetOldest

	subscriber, err := kafka.NewSubscriber(
		kafka.SubscriberConfig{
			Brokers:               []string{config.Profile.GetString("kafka.bootstrap")},
			Unmarshaler:           kafka.DefaultMarshaler{},
			OverwriteSaramaConfig: saramaSubscriberConfig,
			ConsumerGroup:         "test_consumer_group",
		},
		logger,
	)
	if err != nil {
		panic(err)
	}

	router, err := message.NewRouter(message.RouterConfig{}, logger)
	if err != nil {
		panic(err)
	}
	// SignalsHandler will gracefully shutdown Router when SIGTERM is received.
	// You can also close the router by just calling `r.Close()`.
	router.AddPlugin(plugin.SignalsHandler)
	// Router level middleware are executed for every message sent to the router
	router.AddMiddleware(
		// CorrelationID will copy the correlation id from the incoming message's metadata to the produced messages
		middleware.CorrelationID,
		// The handler function is retried if it returns an error.
		// After MaxRetries, the message is Nacked and it's up to the PubSub to resend it.
		middleware.Retry{
			MaxRetries:      3,
			InitialInterval: time.Millisecond * 100,
			Logger:          logger,
		}.Middleware,
		// Recoverer handles panics from handlers.
		// In this case, it passes them as errors to the Retry middleware.
		middleware.Recoverer,
	)
	// AddHandler returns a handler which can be used to add handler level middleware
	// or to stop handler.
	// just for debug, we are printing all messages received on `incoming_messages_topic`
	router.AddNoPublisherHandler(
		"print_incoming_messages",
		"to_analyzer__0.PERF_CRASH",
		subscriber,
		printMessages,
	)
    // Now that all handlers are registered, we're running the Router.
	// Run is blocking while the router is running.
	ctx := context.Background()
	if err := router.Run(ctx); err != nil {
		panic(err)
	}
}

func printMessages(msg *message.Message) error {
	fmt.Printf(
		"\n> Received message: %s\n> %s\n> metadata: %v\n\n",
		msg.UUID, string(msg.Payload), msg.Metadata,
	)
	return nil
}

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33
    • 34
    • 35
    • 36
    • 37
    • 38
    • 39
    • 40
    • 41
    • 42
    • 43
    • 44
    • 45
    • 46
    • 47
    • 48
    • 49
    • 50
    • 51
    • 52
    • 53
    • 54
    • 55
    • 56
    • 57
    • 58
    • 59
    • 60
    • 61
    • 62
    • 63
    • 64
    • 65
    • 66
    • 67
    • 68
    • 69
    • 70
    • 71
    • 72
    • 73
    • 74
    • 75
    • 76
    • 77
    • 78
    • 79
    • 80
    • 81
    • 82
    • 83
    • 84
    • 85
    • 86
    • 87
    • 88
    • 89
    • 90
    • 91
    • 92
    • 93
    • 94

    image-20230811193329885

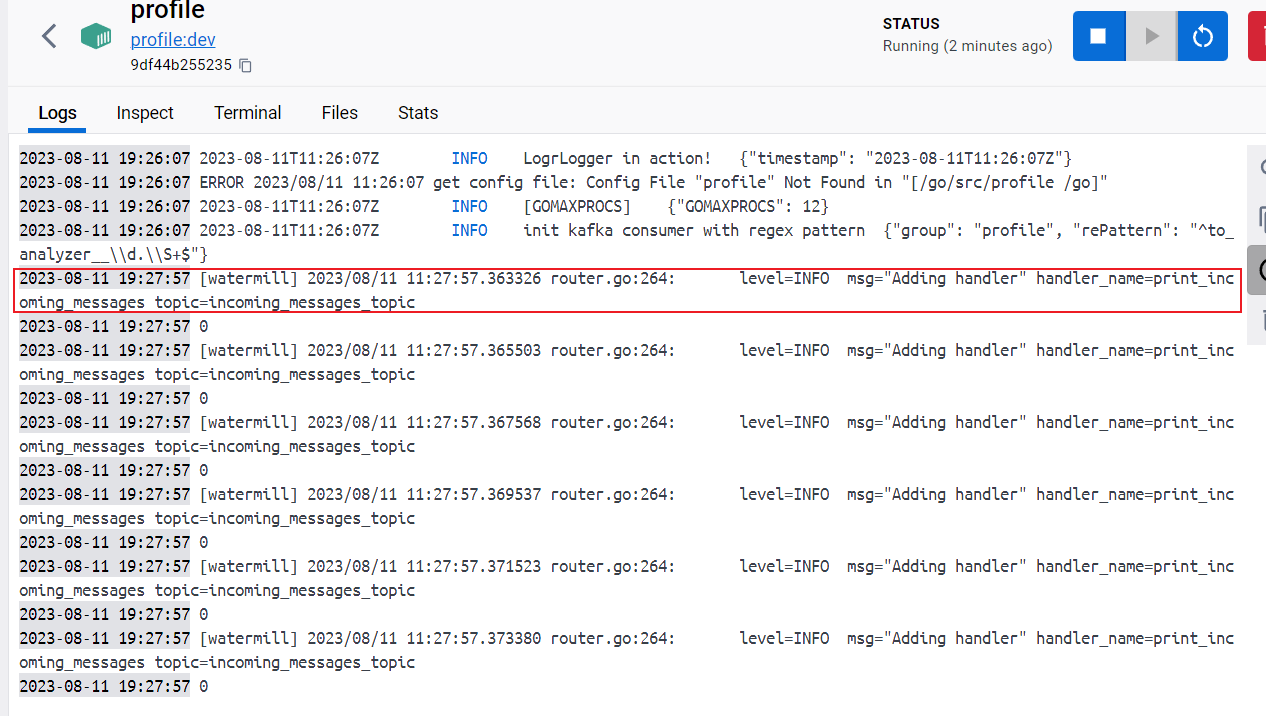

    image-20230811193006417

    思考：

    ConsumerDispatchHandler 每次消费消息都会执行，注册完 4 个 stageHandler 后再执行Run去异步调用 BastContext 的 Handler

    考虑在此处进行订阅者的初始化、MiddleWare、Handler 的注册

    image-20230811195245920

    // Package watermillx
// @Author xzx 2023/8/11 18:53:00
package watermillx

import (
	"context"
	"fmt"
	"github.com/Shopify/sarama"
	"github.com/ThreeDotsLabs/watermill"
	"github.com/ThreeDotsLabs/watermill-kafka/v2/pkg/kafka"
	"github.com/ThreeDotsLabs/watermill/message"
	"github.com/ThreeDotsLabs/watermill/message/router/middleware"
	"github.com/ThreeDotsLabs/watermill/message/router/plugin"
	"log"
	"profile/internal/config"
	"time"
)

var logger = watermill.NewStdLogger(true, false)

func Init() {
	saramaSubscriberConfig := kafka.DefaultSaramaSubscriberConfig()
	// equivalent of auto.offset.reset: earliest
	saramaSubscriberConfig.Consumer.Offsets.Initial = sarama.OffsetOldest

	subscriber, err := kafka.NewSubscriber(
		kafka.SubscriberConfig{
			Brokers:               []string{config.Profile.GetString("kafka.bootstrap")},
			Unmarshaler:           kafka.DefaultMarshaler{},
			OverwriteSaramaConfig: saramaSubscriberConfig,
			ConsumerGroup:         config.Profile.GetString("kafka.group"),
		},
		logger,
	)
	if err != nil {
		panic(err)
	}

	router, err := message.NewRouter(message.RouterConfig{}, logger)
	if err != nil {
		panic(err)
	}
	// SignalsHandler will gracefully shutdown Router when SIGTERM is received.
	// You can also close the router by just calling `r.Close()`.
	router.AddPlugin(plugin.SignalsHandler)
	// Router level middleware are executed for every message sent to the router
	router.AddMiddleware(
		// CorrelationID will copy the correlation id from the incoming message's metadata to the produced messages
		middleware.CorrelationID,
		// The handler function is retried if it returns an error.
		// After MaxRetries, the message is Nacked and it's up to the PubSub to resend it.
		middleware.Retry{
			MaxRetries:      3,
			InitialInterval: time.Millisecond * 100,
			Logger:          logger,
		}.Middleware,
		// Recoverer handles panics from handlers.
		// In this case, it passes them as errors to the Retry middleware.
		middleware.Recoverer,
	)
	// AddHandler returns a handler which can be used to add handler level middleware
	// or to stop handler.
	// just for debug, we are printing all messages received on `incoming_messages_topic`
	handler := router.AddNoPublisherHandler(
		"print_incoming_messages",
		"to_analyzer__0.PERF_CRASH",
		subscriber,
		printMessages,
	)

	// Handler level middleware is only executed for a specific handler
	// Such middleware can be added the same way the router level ones
	handler.AddMiddleware(func(h message.HandlerFunc) message.HandlerFunc {
		return func(message *message.Message) ([]*message.Message, error) {
			log.Println("executing handler specific middleware for ", message.UUID)

			return h(message)
		}
	})
	// Now that all handlers are registered, we're running the Router.
	// Run is blocking while the router is running.
	ctx := context.Background()
	if err := router.Run(ctx); err != nil {
		panic(err)
	}
}

func printMessages(msg *message.Message) error {
	fmt.Printf(
		"\n> Received message: %s\n> %s\n> metadata: %v\n\n",
		msg.UUID, string(msg.Payload), msg.Metadata,
	)
	return nil
}

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33
    • 34
    • 35
    • 36
    • 37
    • 38
    • 39
    • 40
    • 41
    • 42
    • 43
    • 44
    • 45
    • 46
    • 47
    • 48
    • 49
    • 50
    • 51
    • 52
    • 53
    • 54
    • 55
    • 56
    • 57
    • 58
    • 59
    • 60
    • 61
    • 62
    • 63
    • 64
    • 65
    • 66
    • 67
    • 68
    • 69
    • 70
    • 71
    • 72
    • 73
    • 74
    • 75
    • 76
    • 77
    • 78
    • 79
    • 80
    • 81
    • 82
    • 83
    • 84
    • 85
    • 86
    • 87
    • 88
    • 89
    • 90
    • 91
    • 92
    • 93
    • 94

    可以正常消费到消息，接着就可以自定义 Handler 来对接到 Baserunner 的功能

    image-20230811200725567

    测试如下：

    // Package watermillx
// @Author xzx 2023/8/11 18:53:00
package watermillx

import (
	"context"
	"encoding/json"
	"github.com/Shopify/sarama"
	"github.com/ThreeDotsLabs/watermill"
	"github.com/ThreeDotsLabs/watermill-kafka/v2/pkg/kafka"
	"github.com/ThreeDotsLabs/watermill/message"
	"github.com/ThreeDotsLabs/watermill/message/router/middleware"
	"github.com/ThreeDotsLabs/watermill/message/router/plugin"
	kafkago "github.com/segmentio/kafka-go"
	"go.uber.org/zap"
	"profile/internal/config"
	"profile/internal/connector"
	"profile/internal/log"
	"profile/internal/schema"
	"profile/internal/schema/performance"
	"profile/internal/state"
	"time"
)

// ProfileContext
// @Description:
// @Author xzx 2023-08-11 22:21:41
type ProfileContext struct {
	// Properties that can be called by inherited subclasses
	Status int
	Ctx    context.Context

	Event         schema.Event
	AppID         string // API 上报
	FetchScenario string // API 上报
}

//
// NewProfileContext
// @Description
// @Author xzx 2023-08-11 22:49:00
// @Param ctx
// @Return *ProfileContext
//
func NewProfileContext(ctx context.Context) *ProfileContext {
	return &ProfileContext{
		Ctx: ctx,
	}
}

// Init
// @Description 初始化
// @Author xzx 2023-08-11 22:22:01
func (profileCtx *ProfileContext) Init() {
	logger := watermill.NewStdLogger(true, false)
	saramaSubscriberConfig := kafka.DefaultSaramaSubscriberConfig()
	// equivalent of auto.offset.reset: earliest
	saramaSubscriberConfig.Consumer.Offsets.Initial = sarama.OffsetOldest
	subscriber, err := kafka.NewSubscriber(
		kafka.SubscriberConfig{
			Brokers:               []string{config.Profile.GetString("kafka.bootstrap")},
			Unmarshaler:           kafka.DefaultMarshaler{},
			OverwriteSaramaConfig: saramaSubscriberConfig,
			ConsumerGroup:         config.Profile.GetString("kafka.group"),
		},
		logger,
	)
	if err != nil {
		log.Logger.Error("creates a new Kafka Subscriber error", zap.Error(err))
		panic(err)
	}
	router, err := message.NewRouter(message.RouterConfig{}, logger)
	if err != nil {
		log.Logger.Error("creates a new Router with given configuration error", zap.Error(err))
		panic(err)
	}
	router.AddPlugin(plugin.SignalsHandler)
	router.AddMiddleware(
		middleware.CorrelationID,
		middleware.Retry{
			MaxRetries:      3,
			InitialInterval: time.Millisecond * 100,
			Logger:          logger,
		}.Middleware,
		middleware.Recoverer,
	)

	router.AddNoPublisherHandler(
		"print_incoming_messages",
		"to_analyzer__0.PERF_CRASH",
		subscriber,
		profileCtx.UnpackKafkaMessage,
	)
	/*router.AddNoPublisherHandler(
		"print_incoming_messages",
		"to_analyzer__0.PERF_CRASH",
		subscriber,
		profileCtx.InitPerformanceEvent,
	)
	router.AddNoPublisherHandler(
		"print_incoming_messages",
		"to_analyzer__0.PERF_CRASH",
		subscriber,
		profileCtx.AnalyzeEvent,
	)
	router.AddNoPublisherHandler(
		"print_incoming_messages",
		"to_analyzer__0.PERF_CRASH",
		subscriber,
		profileCtx.WriteKafka,
	)*/

	if err = router.Run(context.Background()); err != nil {
		log.Logger.Error("runs all plugins and handlers and starts subscribing to provided topics error", zap.Error(err))
		panic(err)
	}
}

// UnpackKafkaMessage
// @Description
// @Author xzx 2023-08-11 22:29:21
// @Param msg
// @Return contextErr
func (profileCtx *ProfileContext) UnpackKafkaMessage(msg *message.Message) (contextErr error) {
	// 反序列化，存入通用结构体
	if contextErr = json.Unmarshal(msg.Payload, &profileCtx.Event); contextErr != nil {
		profileCtx.Status = state.StatusUnmarshalError
		return
	}

	log.Logger.Info("[UnpackKafkaItem] unpack kafka item success", zap.Any("event", profileCtx.Event))
	return
}

// InitPerformanceEvent
// @Description
// @Author xzx 2023-08-11 22:30:36
// @Param msg
// @Return contextErr
func (profileCtx *ProfileContext) InitPerformanceEvent(msg *message.Message) (contextErr error) {
	event, contextErr := performance.EventFactory(profileCtx.Event.Category, profileCtx.Event.Dimensions, profileCtx.Event.Values)
	if contextErr != nil {
		profileCtx.Status = state.StatusEventFactoryError
		return
	}
	log.Logger.Info("[InitPerformanceEvent] init performance event success", zap.Any("event", event))
	profileCtx.Event.ProfileData = event
	return
}

// AnalyzeEvent
// @Description
// @Author xzx 2023-08-11 22:30:44
// @Param msg
// @Return contextErr
func (profileCtx *ProfileContext) AnalyzeEvent(msg *message.Message) (contextErr error) {
	contextErr = profileCtx.Event.ProfileData.Analyze()
	if contextErr != nil {
		profileCtx.Status = state.StatusAnalyzeError
		return
	}
	// clear dimensions and values
	profileCtx.Event.Dimensions = nil
	profileCtx.Event.Values = nil
	return
}

// WriteKafka
// @Description
// @Author xzx 2023-08-11 22:30:47
// @Param msg
// @Return contextErr
func (profileCtx *ProfileContext) WriteKafka(msg *message.Message) (contextErr error) {
	toWriteBytes, contextErr := json.Marshal(profileCtx.Event)
	if contextErr != nil {
		profileCtx.Status = state.StatusUnmarshalError
		return
	}
	topic := connector.GetTopic(profileCtx.Event.Category)
	contextErr = connector.GetProducer().WriteMessages(profileCtx.Ctx, kafkago.Message{
		Topic: topic,
		Key:   []byte(profileCtx.Event.ID),
		Value: toWriteBytes,
	})
	if contextErr != nil {
		profileCtx.Status = state.StatusWriteKafkaError
		return
	}
	log.Logger.Info("[WriteKafka] write kafka success", zap.String("topic", topic), zap.String("id", profileCtx.Event.ID), zap.String("msg", string(toWriteBytes)))
	return
}

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33
    • 34
    • 35
    • 36
    • 37
    • 38
    • 39
    • 40
    • 41
    • 42
    • 43
    • 44
    • 45
    • 46
    • 47
    • 48
    • 49
    • 50
    • 51
    • 52
    • 53
    • 54
    • 55
    • 56
    • 57
    • 58
    • 59
    • 60
    • 61
    • 62
    • 63
    • 64
    • 65
    • 66
    • 67
    • 68
    • 69
    • 70
    • 71
    • 72
    • 73
    • 74
    • 75
    • 76
    • 77
    • 78
    • 79
    • 80
    • 81
    • 82
    • 83
    • 84
    • 85
    • 86
    • 87
    • 88
    • 89
    • 90
    • 91
    • 92
    • 93
    • 94
    • 95
    • 96
    • 97
    • 98
    • 99
    • 100
    • 101
    • 102
    • 103
    • 104
    • 105
    • 106
    • 107
    • 108
    • 109
    • 110
    • 111
    • 112
    • 113
    • 114
    • 115
    • 116
    • 117
    • 118
    • 119
    • 120
    • 121
    • 122
    • 123
    • 124
    • 125
    • 126
    • 127
    • 128
    • 129
    • 130
    • 131
    • 132
    • 133
    • 134
    • 135
    • 136
    • 137
    • 138
    • 139
    • 140
    • 141
    • 142
    • 143
    • 144
    • 145
    • 146
    • 147
    • 148
    • 149
    • 150
    • 151
    • 152
    • 153
    • 154
    • 155
    • 156
    • 157
    • 158
    • 159
    • 160
    • 161
    • 162
    • 163
    • 164
    • 165
    • 166
    • 167
    • 168
    • 169
    • 170
    • 171
    • 172
    • 173
    • 174
    • 175
    • 176
    • 177
    • 178
    • 179
    • 180
    • 181
    • 182
    • 183
    • 184
    • 185
    • 186
    • 187
    • 188
    • 189
    • 190
    • 191

    可以正常执行 Handler 的逻辑

    image-20230811224842411

    明日待办

    • 为一个主题添加多个 Handler
  • 相关阅读:
    5种常见的服务器种类是哪些
    Kafka学习笔记之进阶篇
    谢邀，ADconf安全大会
    数字先锋 | 打造城市“一朵云”，天翼云推动芜湖新型智慧城市建设
    Rust2 Common Programming Concepts & Understanding Ownership
    字节跳动3-3大牛力荐！RabbitMQ实战指南：消息队列面试必刷手册
    屏幕状态自动检测+鼠标自动操作
    实在智能Agent——RPA终极进化方向
    如何在手机或平板上编写代码?
    微信浏览器H5页面后退并刷新
  • 原文地址：https://blog.csdn.net/xzx18822942899/article/details/132913834
