• 【zlm】 webrtc源码讲解

    目录

    前端WEB

    服务器收到请求

    服务端的处理

     播放

    拉流

    transport-cc goog-remb (webrtc中的两种码率算法）

    push play的关键回调

    日志记录

    主要核心主体的创建

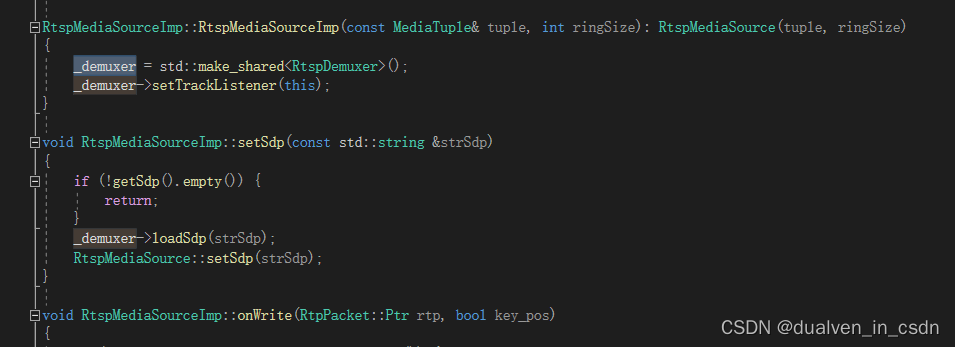

    RtspMediaSourceImp的创建

    影响到何时生成recorder的代码

     Mediasource之主要解复合MultiMediaSourceMuxer

     Mediasource之主要复合

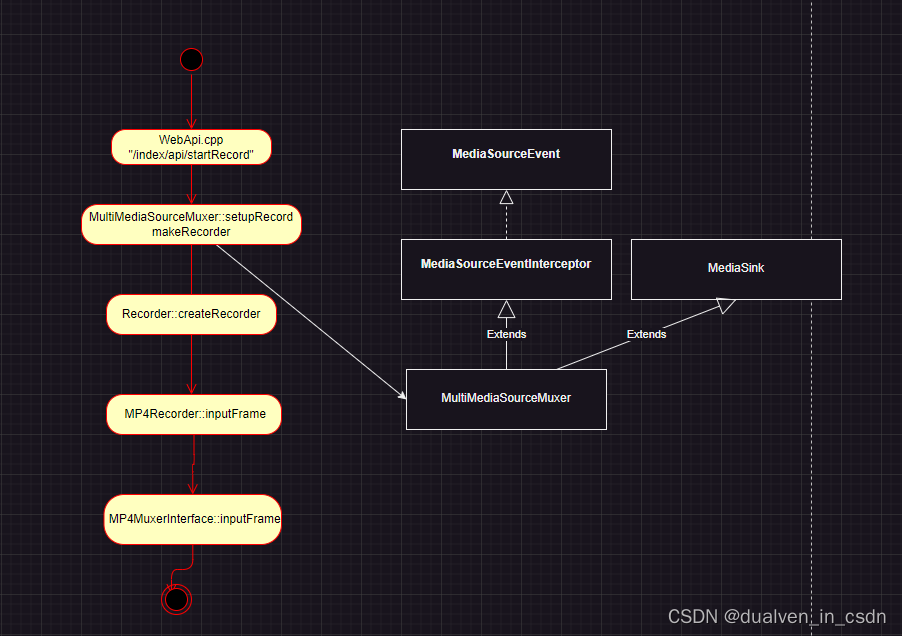

    录相

    trackready

    参考文章

    前端WEB

    服务器收到请求

    POST /index/api/webrtc?app=live&stream=test&type=play HTTP/1.1


    1. HttpSession::onRecvHeader
    2.   HttpSession::Handle_Req_POST
    3.
    4.
    5. HttpSession::Handle_Req_POST
    6.   if (totalContentLen > 0 && (size_t)totalContentLen < maxReqSize )
    7.     _contentCallBack = [this,parserCopy](const char *data,size_t len) {
    8.             //恢复http头
    9.             _parser = parserCopy;
    10.             //设置content
    11.             _parser.setContent(string(data,len));
    12.             //触发http事件，emitHttpEvent内部会选择是否关闭连接
    13.             emitHttpEvent(true);
    14.             //清空数据,节省内存
    15.             _parser.Clear();
    16.             //content已经接收完毕
    17.             return false;
    18.         };
    19.
    20.
    21. HttpSession::onRecvContent(const char *data,size_t len)
    22.   if (_contentCallBack)
    23.     _contentCallBack(data,len);
    24.
    25.
    26. HttpSession::emitHttpEvent
    27.   // 广播HTTP事件
    28.   NoticeCenter::Instance().emitEvent(Broadcast::kBroadcastHttpRequest,_parser,invoker,
    29.                                      consumed,static_cast<SockInfo &>(*this));

    服务端的处理

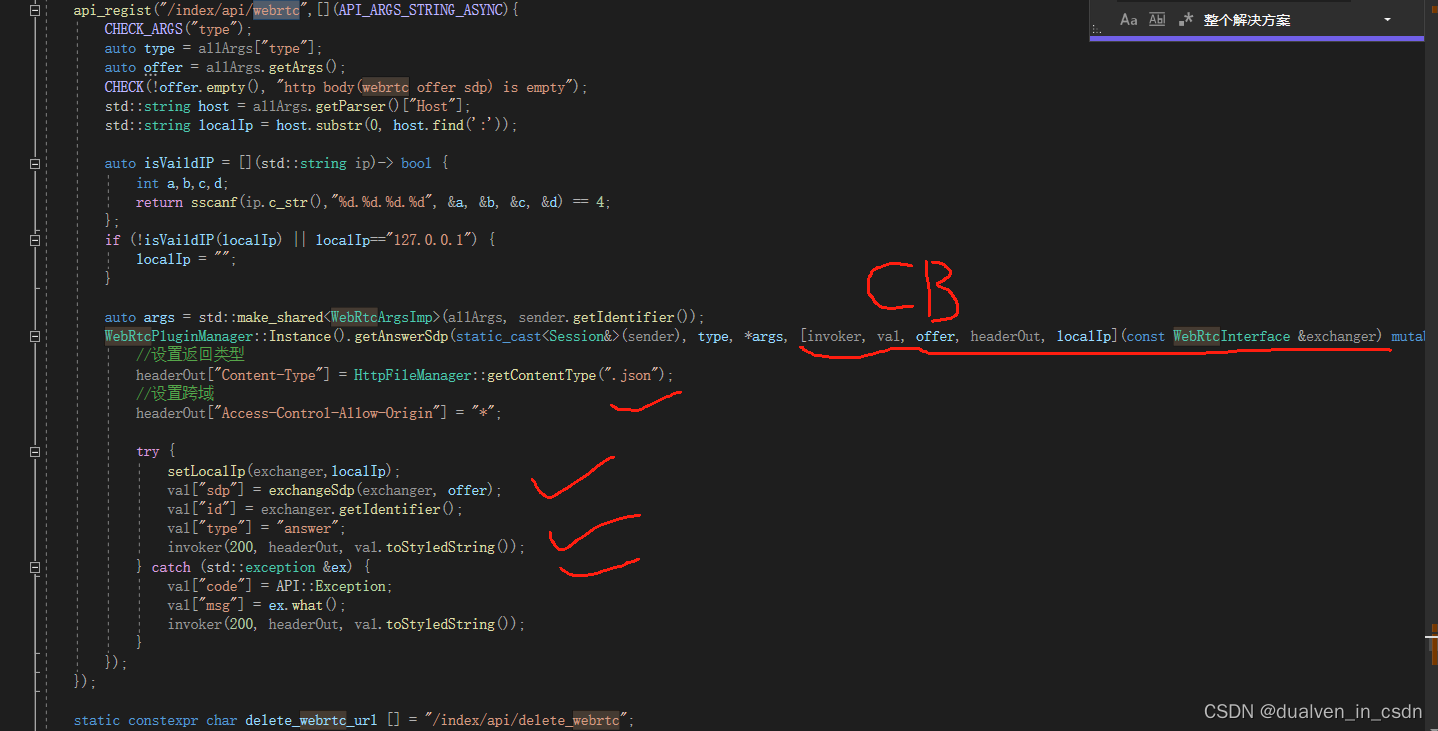

    1. // 主函数中调用web接口安装函数
    2. installWebApi
    3.   addHttpListener();
    4.   api_regist("/index/api/webrtc",[](API_ARGS_STRING_ASYNC){
    5.     auto type = allArgs["type"];
    6.     auto offer = allArgs.getArgs();
    7.     WebRtcPluginManager::Instance().getAnswerSdp(*(static_cast<Session *>(&sender)), type,
    8.                                                    WebRtcArgsImp(allArgs, sender.getIdentifier()),
    9.                                                    [invoker, val, offer, headerOut](const WebRtcInterface &exchanger) mutable {
    10.             headerOut["Content-Type"] = HttpFileManager::getContentType(".json");
    11.             headerOut["Access-Control-Allow-Origin"] = "*";
    12.             val["sdp"] = const_cast<WebRtcInterface &>(exchanger).getAnswerSdp(offer);
    13.             val["id"] = exchanger.getIdentifier();
    14.             val["type"] = "answer";
    15.             invoker(200, headerOut, val.toStyledString());
    16.         });
    17.     });
    18.
    19.
    20. addHttpListener
    21.    //注册监听kBroadcastHttpRequest事件
    22.     NoticeCenter::Instance().addListener(&web_api_tag, Broadcast::kBroadcastHttpRequest,
    23.                                          [](BroadcastHttpRequestArgs) {
    24.       auto it = s_map_api.find(parser.Url());
    25.       it->second(parser, invoker, sender);
    26. 	}

    根据url找到对应的事件回调，最终会调用WebRtcPluginManager::Instance().getAnswerSdp。

    1. WebRtcPluginManager::getAnswerSdp
    2.   auto it = _map_creator.find(type);
    3.   it->second(sender, args, cb);
    4.
    5.
    6. // 静态注册插件
    7. WebRtcPluginManager::Instance().registerPlugin("play", play_plugin);
    8.
    9.
    10. void play_plugin(Session &sender, const WebRtcArgs &args, const WebRtcPluginManager::onCreateRtc &cb)
    11.   // 使用rtsp媒体源，两者均是传输的rtp流
    12.   info._schema = RTSP_SCHEMA;
    13.   MediaSource::findAsync(info, session_ptr, [=](const MediaSource::Ptr &src_in) mutable {
    14.     auto src = dynamic_pointer_cast<RtspMediaSource>(src_in);
    15.     // 还原成rtc，目的是为了hook时识别哪种播放协议
    16.     info._schema = RTC_SCHEMA;
    17.     auto rtc = WebRtcPlayer::create(EventPollerPool::Instance().getPoller(), src, info, preferred_tcp);
    18.       cb(*rtc); // 发送answer SDP给web端
    19.     });

     播放

    拉流

    stun , dtls  先握手把对称密钥通过非对称加密方式 传输 过去后，之后的数据都通过这个对称密钥进行加密。 srtp 加密 rtp . .
    Web端首先根据协商的IP和端口，服务端webrtc的端口是8000，发送STUN命令再次获取STUN地址。
    首次连接，服务端会创建对应的session。

    WebRtcSession::WebRtcSession(const Socket::Ptr &sock) : Session(sock)
      socklen_t addr_len = sizeof(_peer_addr);
      getpeername(sock->rawFD(), (struct sockaddr *)&_peer_addr, &addr_len);


    WebRtcSession::onRecv_l(const char *data, size_t len)
      // 首次进入，根据username获取之前创建的transport.
      auto user_name = getUserName(data, len); // 此处的username就是之前设置的transport标识
      auto transport = WebRtcTransportManager::Instance().getItem(user_name);
      transport->setSession(shared_from_this());
      _transport = std::move(transport);
      _transport->inputSockData((char *)data, len, (struct sockaddr *)&_peer_addr);


    WebRtcTransport::inputSockData
      // 处理STUN消息
      if (RTC::StunPacket::IsStun((const uint8_t *)buf, len))
        std::unique_ptr packet(RTC::StunPacket::Parse((const uint8_t *)buf, len));
        _ice_server->ProcessStunPacket(packet.get(), tuple);
        return;

      // 处理
      if (is_dtls(buf))
        _dtls_transport->ProcessDtlsData((uint8_t *)buf, len);
        return;

      // 由于是拉流，不存在rtp数据，但是有rtcp数据
      if (is_rtcp(buf))
        if (_srtp_session_recv->DecryptSrtcp((uint8_t *)buf, &len))
          onRtcp(buf, len);


    DTLS交互完成后，接下来启动媒体传输

    WebRtcTransport::OnDtlsTransportConnected
      onStartWebRTC();


    WebRtcPlayer::onStartWebRTC
      WebRtcTransportImp::onStartWebRTC();
      _reader = _play_src->getRing()->attach(getPoller(), true);
      weak_ptr weak_self = static_pointer_cast(shared_from_this());
      weak_ptr weak_session = getSession();
      _reader->setReadCB([weak_self](const RtspMediaSource::RingDataType &pkt) {
        size_t i = 0;
        pkt->for_each([&](const RtpPacket::Ptr &rtp) {
          strong_self->onSendRtp(rtp, ++i == pkt->size());
        });
      });


    transport-cc goog-remb (webrtc中的两种码率算法）

    "Transport-CC" 是 WebRTC（Web实时通信）中的一种传输拥塞控制机制，用于管理实时媒体（音频和视频）的传输，以适应网络状况，确保通信的连续性。它有助于根据网络条件调整媒体的比特率，以确保在可用带宽的情况下提供流畅且不中断的通信体验。它用于避免过载网络，以提供最佳可能的质量。

    "Goog-REMB"（Google Receiver Estimated Maximum Bitrate）是由Google开发的一种扩展，用于实时传输控制协议（RTCP）。它在WebRTC中用于估算接收方对特定媒体流能够处理的最大比特率。然后，这些信息会传达给发送方，使其能够调整正在传输的媒体的比特率，以匹配接收方的容量，从而提高通信的整体质量。

    这些术语与WebRTC的技术相关，用于优化互联网上的实时通信的质量和性能

    push play的关键回调

    play与上面类似

    下面是rtspmediasourceImp的继承关系

    日志记录

    push

    1.  request:
    2.
    3. POST /index/api/webrtc?app=2fbe2a926db241b483ab4ea79950fb0c&stream=dxw3Stream&type=push
    4.
    5. # header:
    6.
    7. Accept-Encoding : gzip
    8.
    9. Connection : Keep-Alive
    10.
    11. Content-Length : 3843
    12.
    13. Content-Type : application/json;charset=utf-8
    14.
    15. contentType : application/json;charset=UTF-8
    16.
    17. Host : 10.60.100.196:6080
    18.
    19. User-Agent : okhttp/4.10.0
    20.
    21. # content:
    22.
    23. v=0
    24.
    25. o=- 8012211977922866648 2 IN IP4 127.0.0.1
    26.
    27. s=-
    28.
    29. t=0 0
    30.
    31. a=group:BUNDLE 0 1
    32.
    33. a=msid-semantic: WMS
    34.
    35. m=audio 9 UDP/TLS/RTP/SAVPF 111 103 104 9 102 0 8 106 105 13 110 112 113 126
    36.
    37. c=IN IP4 0.0.0.0
    38.
    39. a=rtcp:9 IN IP4 0.0.0.0
    40.
    41. a=ice-ufrag:w968
    42.
    43. a=ice-pwd:JlvPX+PRmgl9rqj80WFp/SMs
    44.
    45. a=ice-options:trickle renomination
    46.
    47. a=fingerprint:sha-256 B9:B2:FF:EB:8E:68:30:F8:4F:4C:3B:0A:15:9B:29:98:FE:A5:04:E7:DD:9F:D3:AE:AA:A4:6B:74:40:04:FB:59
    48.
    49. a=setup:actpass
    50.
    51. a=mid:0
    52.
    53. a=extmap:1 urn:ietf:params:rtp-hdrext:ssrc-audio-level
    54.
    55. a=extmap:2 http://www.webrtc.org/experiments/rtp-hdrext/abs-send-time
    56.
    57. a=extmap:3 http://www.ietf.org/id/draft-holmer-rmcat-transport-wide-cc-extensions-01
    58.
    59. a=extmap:4 urn:ietf:params:rtp-hdrext:sdes:mid
    60.
    61. a=extmap:5 urn:ietf:params:rtp-hdrext:sdes:rtp-stream-id
    62.
    63. a=extmap:6 urn:ietf:params:rtp-hdrext:sdes:repaired-rtp-stream-id
    64.
    65. a=sendonly
    66.
    67. a=msid:- 85bd69e4-7383-49ff-a10e-817be8850943
    68.
    69. a=rtcp-mux
    70.
    71. a=rtpmap:111 opus/48000/2
    72.
    73. a=rtcp-fb:111 transport-cc
    74.
    75. a=fmtp:111 minptime=10;useinbandfec=1
    76.
    77. a=rtpmap:103 ISAC/16000
    78.
    79. a=rtpmap:104 ISAC/32000
    80.
    81. a=rtpmap:9 G722/8000
    82.
    83. a=rtpmap:102 ILBC/8000
    84.
    85. a=rtpmap:0 PCMU/8000
    86.
    87. a=rtpmap:8 PCMA/8000
    88.
    89. a=rtpmap:106 CN/32000
    90.
    91. a=rtpmap:105 CN/16000
    92.
    93. a=rtpmap:13 CN/8000
    94.
    95. a=rtpmap:110 telephone-event/48000
    96.
    97. a=rtpmap:112 telephone-event/32000
    98.
    99. a=rtpmap:113 telephone-event/16000
    100.
    101. a=rtpmap:126 telephone-event/8000
    102.
    103. a=ssrc:2056661234 cname:kIdPjq4CEzIEdhBD
    104.
    105. a=ssrc:2056661234 msid:- 85bd69e4-7383-49ff-a10e-817be8850943
    106.
    107. a=ssrc:2056661234 mslabel:-
    108.
    109. a=ssrc:2056661234 label:85bd69e4-7383-49ff-a10e-817be8850943
    110.
    111. m=video 9 UDP/TLS/RTP/SAVPF 96 97 98 99 100 101 127 124 125
    112.
    113. c=IN IP4 0.0.0.0
    114.
    115. a=rtcp:9 IN IP4 0.0.0.0
    116.
    117. a=ice-ufrag:w968
    118.
    119. a=ice-pwd:JlvPX+PRmgl9rqj80WFp/SMs
    120.
    121. a=ice-options:trickle renomination
    122.
    123. a=fingerprint:sha-256 B9:B2:FF:EB:8E:68:30:F8:4F:4C:3B:0A:15:9B:29:98:FE:A5:04:E7:DD:9F:D3:AE:AA:A4:6B:74:40:04:FB:59
    124.
    125. a=setup:actpass
    126.
    127. a=mid:1
    128.
    129. a=extmap:14 urn:ietf:params:rtp-hdrext:toffset
    130.
    131. a=extmap:2 http://www.webrtc.org/experiments/rtp-hdrext/abs-send-time
    132.
    133. a=extmap:13 urn:3gpp:video-orientation
    134.
    135. a=extmap:3 http://www.ietf.org/id/draft-holmer-rmcat-transport-wide-cc-extensions-01
    136.
    137. a=extmap:12 http://www.webrtc.org/experiments/rtp-hdrext/playout-delay
    138.
    139. a=extmap:11 http://www.webrtc.org/experiments/rtp-hdrext/video-content-type
    140.
    141. a=extmap:7 http://www.webrtc.org/experiments/rtp-hdrext/video-timing
    142.
    143. a=extmap:8 http://www.webrtc.org/experiments/rtp-hdrext/color-space
    144.
    145. a=extmap:4 urn:ietf:params:rtp-hdrext:sdes:mid
    146.
    147. a=extmap:5 urn:ietf:params:rtp-hdrext:sdes:rtp-stream-id
    148.
    149. a=extmap:6 urn:ietf:params:rtp-hdrext:sdes:repaired-rtp-stream-id
    150.
    151. a=sendonly
    152.
    153. a=msid:- c0476ef1-6022-4371-adc6-dba849de428a
    154.
    155. a=rtcp-mux
    156.
    157. a=rtcp-rsize
    158.
    159. a=rtpmap:96 VP8/90000
    160.
    161. a=rtcp-fb:96 goog-remb
    162.
    163. a=rtcp-fb:96 transport-cc
    164.
    165. a=rtcp-fb:96 ccm fir
    166.
    167. a=rtcp-fb:96 nack
    168.
    169. a=rtcp-fb:96 nack pli
    170.
    171. a=rtpmap:97 rtx/90000
    172.
    173. a=fmtp:97 apt=96
    174.
    175. a=rtpmap:98 VP9/90000
    176.
    177. a=rtcp-fb:98 goog-remb
    178.
    179. a=rtcp-fb:98 transport-cc
    180.
    181. a=rtcp-fb:98 ccm fir
    182.
    183. a=rtcp-fb:98 nack
    184.
    185. a=rtcp-fb:98 nack pli
    186.
    187. a=rtpmap:99 rtx/90000
    188.
    189. a=fmtp:99 apt=98
    190.
    191. a=rtpmap:100 H264/90000
    192.
    193. a=rtcp-fb:100 goog-remb
    194.
    195. a=rtcp-fb:100 transport-cc
    196.
    197. a=rtcp-fb:100 ccm fir
    198.
    199. a=rtcp-fb:100 nack
    200.
    201. a=rtcp-fb:100 nack pli
    202.
    203. a=fmtp:100 level-asymmetry-allowed=1;packetization-mode=1;profile-level-id=42e01f
    204.
    205. a=rtpmap:101 rtx/90000
    206.
    207. a=fmtp:101 apt=100
    208.
    209. a=rtpmap:127 red/90000
    210.
    211. a=rtpmap:124 rtx/90000
    212.
    213. a=fmtp:124 apt=127
    214.
    215. a=rtpmap:125 ulpfec/90000
    216.
    217. a=ssrc-group:FID 3955139128 3307115671
    218.
    219. a=ssrc:3955139128 cname:kIdPjq4CEzIEdhBD
    220.
    221. a=ssrc:3955139128 msid:- c0476ef1-6022-4371-adc6-dba849de428a
    222.
    223. a=ssrc:3955139128 mslabel:-
    224.
    225. a=ssrc:3955139128 label:c0476ef1-6022-4371-adc6-dba849de428a
    226.
    227. a=ssrc:3307115671 cname:kIdPjq4CEzIEdhBD
    228.
    229. a=ssrc:3307115671 msid:- c0476ef1-6022-4371-adc6-dba849de428a
    230.
    231. a=ssrc:3307115671 mslabel:-
    232.
    233. a=ssrc:3307115671 label:c0476ef1-6022-4371-adc6-dba849de428a
    234.
    235.
    236.
    237. # response:
    238.
    239. {
    240. 	"code" : 0,
    241. 	"id" : "wKgSAx9AH0A=_44",
    242. 	"sdp" : "v=0\r\no=- 8012211977922866648 2 IN IP4 10.60.100.196\r\ns=-\r\nt=0 0\r\na=group:BUNDLE 0 1\r\na=msid-semantic: WMS\r\na=ice-lite\r\nm=audio 8000 UDP/TLS/RTP/SAVPF 0\r\nc=IN IP4 10.60.100.196\r\na=rtcp:8000 IN IP4 10.60.100.196\r\na=ice-ufrag:wKgSAx9AH0A=_44\r\na=ice-pwd:Yn7cp275AyIjOGhJc2wBWC8E\r\na=ice-options:trickle\r\na=fingerprint:sha-256 5D:43:0F:2C:BD:82:BB:C5:B4:77:42:D3:8C:2B:D5:1A:32:59:39:1D:78:7A:BB:88:E2:EF:2A:60:37:AD:6E:A3\r\na=setup:passive\r\na=mid:0\r\na=ice-lite\r\na=extmap:1 urn:ietf:params:rtp-hdrext:ssrc-audio-level\r\na=extmap:2 http://www.webrtc.org/experiments/rtp-hdrext/abs-send-time\r\na=extmap:3 http://www.ietf.org/id/draft-holmer-rmcat-transport-wide-cc-extensions-01\r\na=extmap:5 urn:ietf:params:rtp-hdrext:sdes:rtp-stream-id\r\na=extmap:6 urn:ietf:params:rtp-hdrext:sdes:repaired-rtp-stream-id\r\na=recvonly\r\na=rtcp-mux\r\na=rtpmap:0 PCMU/8000/1\r\na=candidate:udpcandidate 1 udp 110 10.60.100.196 8000 typ host\r\na=candidate:tcpcandidate 1 tcp 105 10.60.100.196 8000 typ host tcptype passive\r\nm=video 8000 UDP/TLS/RTP/SAVPF 100 101\r\nc=IN IP4 10.60.100.196\r\na=rtcp:8000 IN IP4 10.60.100.196\r\na=ice-ufrag:wKgSAx9AH0A=_44\r\na=ice-pwd:Yn7cp275AyIjOGhJc2wBWC8E\r\na=ice-options:trickle\r\na=fingerprint:sha-256 5D:43:0F:2C:BD:82:BB:C5:B4:77:42:D3:8C:2B:D5:1A:32:59:39:1D:78:7A:BB:88:E2:EF:2A:60:37:AD:6E:A3\r\na=setup:passive\r\na=mid:1\r\na=ice-lite\r\na=extmap:14 urn:ietf:params:rtp-hdrext:toffset\r\na=extmap:2 http://www.webrtc.org/experiments/rtp-hdrext/abs-send-time\r\na=extmap:3 http://www.ietf.org/id/draft-holmer-rmcat-transport-wide-cc-extensions-01\r\na=extmap:12 http://www.webrtc.org/experiments/rtp-hdrext/playout-delay\r\na=extmap:11 http://www.webrtc.org/experiments/rtp-hdrext/video-content-type\r\na=extmap:7 http://www.webrtc.org/experiments/rtp-hdrext/video-timing\r\na=extmap:8 http://www.webrtc.org/experiments/rtp-hdrext/color-space\r\na=extmap:5 urn:ietf:params:rtp-hdrext:sdes:rtp-stream-id\r\na=extmap:6 urn:ietf:params:rtp-hdrext:sdes:repaired-rtp-stream-id\r\na=recvonly\r\na=rtcp-mux\r\na=rtpmap:100 H264/90000\r\na=rtcp-fb:100 ccm fir\r\na=rtcp-fb:100 goog-remb\r\na=rtcp-fb:100 nack\r\na=rtcp-fb:100 nack pli\r\na=rtcp-fb:100 transport-cc\r\na=fmtp:100 level-asymmetry-allowed=1;packetization-mode=1;profile-level-id=42e01f\r\na=rtpmap:101 rtx/90000\r\na=fmtp:101 apt=100\r\na=candidate:udpcandidate 1 udp 110 10.60.100.196 8000 typ host\r\na=candidate:tcpcandidate 1 tcp 105 10.60.100.196 8000 typ host tcptype passive\r\n",
    243. 	"type" : "answer"
    244. }
    245.
    246.
    247.
    248. 2024-03-21 16:02:24.338 W [MediaServer.exe] [23784-event poller 11] EventPoller.cpp:209 async_l | take time: 16ms, thread may be overloaded
    249. 2024-03-21 16:02:24.354 W [MediaServer.exe] [23784-event poller 3] EventPoller.cpp:209 async_l | take time: 16ms, thread may be overloaded
    250. 2024-03-21 16:02:24.364 W [MediaServer.exe] [23784-event poller 3] WebHook.cpp:194 operator () | hook https://10.60.100.196:18080/index/hook/on_stream_not_found 16ms,failed[auth failed]: code:404 msg:"\u8d44\u6e90\u672a\u627e\u5230":{
    251. 	"app" : "2fbe2a926db241b483ab4ea79950fb0c",
    252. 	"hook_index" : 2020,
    253. 	"id" : "221-704",
    254. 	"ip" : "10.60.100.196",
    255. 	"mediaServerId" : "wvpmediaserver001",
    256. 	"params" : "app=2fbe2a926db241b483ab4ea79950fb0c&stream=dxw3Stream&type=play&session=221-704",
    257. 	"port" : 61102,
    258. 	"schema" : "rtsp",
    259. 	"stream" : "dxw3Stream",
    260. 	"vhost" : "__defaultVhost__"
    261. }
    262.
    263. 2024-03-21 16:02:24.367 I [MediaServer.exe] [23784-event poller 11] WebRtcSession.cpp:85 onRecv_l | 222-1452(10.62.14.104:45023)
    264. 2024-03-21 16:02:24.367 D [MediaServer.exe] [23784-event poller 11] IceServer.cpp:340 HandleTuple | transition from state 'new' to 'connected'
    265. 2024-03-21 16:02:24.367 I [MediaServer.exe] [23784-event poller 11] WebRtcTransport.cpp:170 OnIceServerSelectedTuple | wKgSAx9AH0A=_44 select tuple udp 10.62.14.104:45023
    266. 2024-03-21 16:02:24.367 I [MediaServer.exe] [23784-event poller 11] WebRtcTransport.cpp:176 OnIceServerConnected | wKgSAx9AH0A=_44
    267. 2024-03-21 16:02:24.378 E [MediaServer.exe] [23784-event poller 11] DtlsTransport.cpp:744 ProcessDtlsData | cannot process data while not running
    268. 2024-03-21 16:02:24.411 D [MediaServer.exe] [23784-event poller 11] IceServer.cpp:429 HandleTuple | transition from state 'connected' to 'completed'
    269. 2024-03-21 16:02:24.411 I [MediaServer.exe] [23784-event poller 11] WebRtcTransport.cpp:180 OnIceServerCompleted | wKgSAx9AH0A=_44
    270. 2024-03-21 16:02:24.411 I [MediaServer.exe] [23784-event poller 11] WebRtcTransport.cpp:232 OnDtlsTransportConnecting | wKgSAx9AH0A=_44
    271. 2024-03-21 16:02:24.411 D [MediaServer.exe] [23784-event poller 11] DtlsTransport.cpp:699 Run | running [role:server]
    272. 2024-03-21 16:02:24.411 D [MediaServer.exe] [23784-event poller 11] DtlsTransport.cpp:1411 OnSslInfo | DTLS handshake start
    273. 2024-03-21 16:02:24.411 D [MediaServer.exe] [23784-event poller 11] DtlsTransport.cpp:1369 OnSslInfo | [role:server, action:'before SSL initialization']
    274. 2024-03-21 16:02:24.411 D [MediaServer.exe] [23784-event poller 11] DtlsTransport.cpp:1407 OnSslInfo | role: server, waiting:'before SSL initialization']
    275. 2024-03-21 16:02:24.426 D [MediaServer.exe] [23784-event poller 11] DtlsTransport.cpp:1369 OnSslInfo | [role:server, action:'before SSL initialization']
    276. 2024-03-21 16:02:24.426 D [MediaServer.exe] [23784-event poller 11] DtlsTransport.cpp:1369 OnSslInfo | [role:server, action:'SSLv3/TLS read client hello']
    277. 2024-03-21 16:02:24.426 D [MediaServer.exe] [23784-event poller 11] DtlsTransport.cpp:1369 OnSslInfo | [role:server, action:'SSLv3/TLS write server hello']
    278. 2024-03-21 16:02:24.427 D [MediaServer.exe] [23784-event poller 11] DtlsTransport.cpp:1369 OnSslInfo | [role:server, action:'SSLv3/TLS write certificate']
    279. 2024-03-21 16:02:24.428 D [MediaServer.exe] [23784-event poller 11] DtlsTransport.cpp:1369 OnSslInfo | [role:server, action:'SSLv3/TLS write key exchange']
    280. 2024-03-21 16:02:24.428 D [MediaServer.exe] [23784-event poller 11] DtlsTransport.cpp:1369 OnSslInfo | [role:server, action:'SSLv3/TLS write certificate request']
    281. 2024-03-21 16:02:24.428 D [MediaServer.exe] [23784-event poller 11] DtlsTransport.cpp:1369 OnSslInfo | [role:server, action:'SSLv3/TLS write server done']
    282. 2024-03-21 16:02:24.428 D [MediaServer.exe] [23784-event poller 11] DtlsTransport.cpp:1407 OnSslInfo | role: server, waiting:'SSLv3/TLS write server done']
    283. 2024-03-21 16:02:24.428 D [MediaServer.exe] [23784-event poller 11] DtlsTransport.cpp:977 SendPendingOutgoingDtlsData | 2111 bytes of DTLS data ready to sent to the peer
    284. 2024-03-21 16:02:24.428 D [MediaServer.exe] [23784-event poller 11] DtlsTransport.cpp:1015 SetTimeout | DTLS timer set in 100ms
    285. 2024-03-21 16:02:24.434 D [MediaServer.exe] [23784-event poller 11] DtlsTransport.cpp:1369 OnSslInfo | [role:server, action:'SSLv3/TLS write server done']
    286. 2024-03-21 16:02:24.435 D [MediaServer.exe] [23784-event poller 11] DtlsTransport.cpp:1369 OnSslInfo | [role:server, action:'SSLv3/TLS read client certificate']
    287. 2024-03-21 16:02:24.435 D [MediaServer.exe] [23784-event poller 11] DtlsTransport.cpp:1369 OnSslInfo | [role:server, action:'SSLv3/TLS read client key exchange']
    288. 2024-03-21 16:02:24.435 D [MediaServer.exe] [23784-event poller 11] DtlsTransport.cpp:1369 OnSslInfo | [role:server, action:'SSLv3/TLS read certificate verify']
    289. 2024-03-21 16:02:24.435 D [MediaServer.exe] [23784-event poller 11] DtlsTransport.cpp:1369 OnSslInfo | [role:server, action:'SSLv3/TLS read change cipher spec']
    290. 2024-03-21 16:02:24.435 D [MediaServer.exe] [23784-event poller 11] DtlsTransport.cpp:1369 OnSslInfo | [role:server, action:'SSLv3/TLS read finished']
    291. 2024-03-21 16:02:24.435 D [MediaServer.exe] [23784-event poller 11] DtlsTransport.cpp:1369 OnSslInfo | [role:server, action:'SSLv3/TLS write change cipher spec']
    292. 2024-03-21 16:02:24.435 D [MediaServer.exe] [23784-event poller 11] DtlsTransport.cpp:1369 OnSslInfo | [role:server, action:'SSLv3/TLS write finished']
    293. 2024-03-21 16:02:24.435 D [MediaServer.exe] [23784-event poller 11] DtlsTransport.cpp:1415 OnSslInfo | DTLS handshake done
    294. 2024-03-21 16:02:24.435 D [MediaServer.exe] [23784-event poller 11] DtlsTransport.cpp:977 SendPendingOutgoingDtlsData | 67 bytes of DTLS data ready to sent to the peer
    295. 2024-03-21 16:02:24.436 D [MediaServer.exe] [23784-event poller 11] DtlsTransport.cpp:1166 CheckRemoteFingerprint | valid remote fingerprint
    296. 2024-03-21 16:02:24.436 D [MediaServer.exe] [23784-event poller 11] DtlsTransport.cpp:1340 GetNegotiatedSrtpCryptoSuite | chosen SRTP crypto suite: SRTP_AES128_CM_SHA1_80
    297. 2024-03-21 16:02:24.436 I [MediaServer.exe] [23784-event poller 11] WebRtcTransport.cpp:197 OnDtlsTransportConnected | wKgSAx9AH0A=_44
    298. 2024-03-21 16:02:24.694 I [MediaServer.exe] [23784-event poller 11] WebRtcTransport.cpp:1012 createRtpChannel | create rtp receiver of ssrc:2056661234, rid:, codec:PCMU
    299. 2024-03-21 16:02:24.695 I [MediaServer.exe] [23784-event poller 11] MediaSource.cpp:517 emitEvent | 媒体注册:rtsp://__defaultVhost__/2fbe2a926db241b483ab4ea79950fb0c/dxw3Stream
    300. 2024-03-21 16:02:24.695 D [MediaServer.exe] [23784-event poller 3] MediaSource.cpp:456 operator () | 收到媒体注册事件,回复播放器:rtsp://__defaultVhost__/2fbe2a926db241b483ab4ea79950fb0c/dxw3Stream
    301. 2024-03-21 16:02:24.696 I [MediaServer.exe] [23784-event poller 3] WebRtcTransport.cpp:539 WebRtcTransportImp | wKgSAx9AH0A=_45
    302. 2024-03-21 16:02:24.704 D [MediaServer.exe] [23784-event poller 3] WebApi.cpp:261 http api debug |
    303.
    304. # request:

    play:

    1.
    2. POST /index/api/webrtc?app=2fbe2a926db241b483ab4ea79950fb0c&stream=dxw3Stream&type=play
    3.
    4. # header:
    5.
    6. Accept : application/json, text/plain, */*
    7.
    8. Accept-Encoding : gzip, deflate, br
    9.
    10. Accept-Language : zh-CN,zh;q=0.9,en-US;q=0.8,en;q=0.7,en-GB;q=0.6
    11.
    12. Connection : keep-alive
    13.
    14. Content-Length : 6474
    15.
    16. Content-Type : text/plain;charset=UTF-8
    17.
    18. Host : 10.60.100.196:10443
    19.
    20. Origin : https://10.60.100.196:18080
    21.
    22. sec-ch-ua : "Chromium";v="122", "Not(A:Brand";v="24", "Microsoft Edge";v="122"
    23.
    24. sec-ch-ua-mobile : ?0
    25.
    26. sec-ch-ua-platform : "Windows"
    27.
    28. Sec-Fetch-Dest : empty
    29.
    30. Sec-Fetch-Mode : cors
    31.
    32. Sec-Fetch-Site : same-site
    33.
    34. User-Agent : Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/122.0.0.0 Safari/537.36 Edg/122.0.0.0
    35.
    36. # content:
    37.
    38. v=0
    39.
    40. o=- 2603351187133562715 2 IN IP4 127.0.0.1
    41.
    42. s=-
    43.
    44. t=0 0
    45.
    46. a=group:BUNDLE 0 1
    47.
    48. a=extmap-allow-mixed
    49.
    50. a=msid-semantic: WMS
    51.
    52. m=video 9 UDP/TLS/RTP/SAVPF 96 97 98 99 100 101 35 36 37 38 102 103 104 105 106 107 108 109 127 125 39 40 41 42 43 44 45 46 47 48 112 113 114 115 116 117 118 49
    53.
    54. c=IN IP4 0.0.0.0
    55.
    56. a=rtcp:9 IN IP4 0.0.0.0
    57.
    58. a=ice-ufrag:gqVD
    59.
    60. a=ice-pwd:iY37aLVC9/+wM0qGasxp108p
    61.
    62. a=ice-options:trickle
    63.
    64. a=fingerprint:sha-256 AF:9B:DE:28:34:80:D3:82:E9:53:CA:FF:F2:12:D6:B1:A4:31:38:27:82:07:70:C1:E0:DC:66:0B:62:41:42:2D
    65.
    66. a=setup:actpass
    67.
    68. a=mid:0
    69.
    70. a=extmap:1 urn:ietf:params:rtp-hdrext:toffset
    71.
    72. a=extmap:2 http://www.webrtc.org/experiments/rtp-hdrext/abs-send-time
    73.
    74. a=extmap:3 urn:3gpp:video-orientation
    75.
    76. a=extmap:4 http://www.ietf.org/id/draft-holmer-rmcat-transport-wide-cc-extensions-01
    77.
    78. a=extmap:5 http://www.webrtc.org/experiments/rtp-hdrext/playout-delay
    79.
    80. a=extmap:6 http://www.webrtc.org/experiments/rtp-hdrext/video-content-type
    81.
    82. a=extmap:7 http://www.webrtc.org/experiments/rtp-hdrext/video-timing
    83.
    84. a=extmap:8 http://www.webrtc.org/experiments/rtp-hdrext/color-space
    85.
    86. a=extmap:9 urn:ietf:params:rtp-hdrext:sdes:mid
    87.
    88. a=extmap:10 urn:ietf:params:rtp-hdrext:sdes:rtp-stream-id
    89.
    90. a=extmap:11 urn:ietf:params:rtp-hdrext:sdes:repaired-rtp-stream-id
    91.
    92. a=recvonly
    93.
    94. a=rtcp-mux
    95.
    96. a=rtcp-rsize
    97.
    98. a=rtpmap:96 VP8/90000
    99.
    100. a=rtcp-fb:96 goog-remb
    101.
    102. a=rtcp-fb:96 transport-cc
    103.
    104. a=rtcp-fb:96 ccm fir
    105.
    106. a=rtcp-fb:96 nack
    107.
    108. a=rtcp-fb:96 nack pli
    109.
    110. a=rtpmap:97 rtx/90000
    111.
    112. a=fmtp:97 apt=96
    113.
    114. a=rtpmap:98 VP9/90000
    115.
    116. a=rtcp-fb:98 goog-remb
    117.
    118. a=rtcp-fb:98 transport-cc
    119.
    120. a=rtcp-fb:98 ccm fir
    121.
    122. a=rtcp-fb:98 nack
    123.
    124. a=rtcp-fb:98 nack pli
    125.
    126. a=fmtp:98 profile-id=0
    127.
    128. a=rtpmap:99 rtx/90000
    129.
    130. a=fmtp:99 apt=98
    131.
    132. a=rtpmap:100 VP9/90000
    133.
    134. a=rtcp-fb:100 goog-remb
    135.
    136. a=rtcp-fb:100 transport-cc
    137.
    138. a=rtcp-fb:100 ccm fir
    139.
    140. a=rtcp-fb:100 nack
    141.
    142. a=rtcp-fb:100 nack pli
    143.
    144. a=fmtp:100 profile-id=2
    145.
    146. a=rtpmap:101 rtx/90000
    147.
    148. a=fmtp:101 apt=100
    149.
    150. a=rtpmap:35 VP9/90000
    151.
    152. a=rtcp-fb:35 goog-remb
    153.
    154. a=rtcp-fb:35 transport-cc
    155.
    156. a=rtcp-fb:35 ccm fir
    157.
    158. a=rtcp-fb:35 nack
    159.
    160. a=rtcp-fb:35 nack pli
    161.
    162. a=fmtp:35 profile-id=1
    163.
    164. a=rtpmap:36 rtx/90000
    165.
    166. a=fmtp:36 apt=35
    167.
    168. a=rtpmap:37 VP9/90000
    169.
    170. a=rtcp-fb:37 goog-remb
    171.
    172. a=rtcp-fb:37 transport-cc
    173.
    174. a=rtcp-fb:37 ccm fir
    175.
    176. a=rtcp-fb:37 nack
    177.
    178. a=rtcp-fb:37 nack pli
    179.
    180. a=fmtp:37 profile-id=3
    181.
    182. a=rtpmap:38 rtx/90000
    183.
    184. a=fmtp:38 apt=37
    185.
    186. a=rtpmap:102 H264/90000
    187.
    188. a=rtcp-fb:102 goog-remb
    189.
    190. a=rtcp-fb:102 transport-cc
    191.
    192. a=rtcp-fb:102 ccm fir
    193.
    194. a=rtcp-fb:102 nack
    195.
    196. a=rtcp-fb:102 nack pli
    197.
    198. a=fmtp:102 level-asymmetry-allowed=1;packetization-mode=1;profile-level-id=42001f
    199.
    200. a=rtpmap:103 rtx/90000
    201.
    202. a=fmtp:103 apt=102
    203.
    204. a=rtpmap:104 H264/90000
    205.
    206. a=rtcp-fb:104 goog-remb
    207.
    208. a=rtcp-fb:104 transport-cc
    209.
    210. a=rtcp-fb:104 ccm fir
    211.
    212. a=rtcp-fb:104 nack
    213.
    214. a=rtcp-fb:104 nack pli
    215.
    216. a=fmtp:104 level-asymmetry-allowed=1;packetization-mode=0;profile-level-id=42001f
    217.
    218. a=rtpmap:105 rtx/90000
    219.
    220. a=fmtp:105 apt=104
    221.
    222. a=rtpmap:106 H264/90000
    223.
    224. a=rtcp-fb:106 goog-remb
    225.
    226. a=rtcp-fb:106 transport-cc
    227.
    228. a=rtcp-fb:106 ccm fir
    229.
    230. a=rtcp-fb:106 nack
    231.
    232. a=rtcp-fb:106 nack pli
    233.
    234. a=fmtp:106 level-asymmetry-allowed=1;packetization-mode=1;profile-level-id=42e01f
    235.
    236. a=rtpmap:107 rtx/90000
    237.
    238. a=fmtp:107 apt=106
    239.
    240. a=rtpmap:108 H264/90000
    241.
    242. a=rtcp-fb:108 goog-remb
    243.
    244. a=rtcp-fb:108 transport-cc
    245.
    246. a=rtcp-fb:108 ccm fir
    247.
    248. a=rtcp-fb:108 nack
    249.
    250. a=rtcp-fb:108 nack pli
    251.
    252. a=fmtp:108 level-asymmetry-allowed=1;packetization-mode=0;profile-level-id=42e01f
    253.
    254. a=rtpmap:109 rtx/90000
    255.
    256. a=fmtp:109 apt=108
    257.
    258. a=rtpmap:127 H264/90000
    259.
    260. a=rtcp-fb:127 goog-remb
    261.
    262. a=rtcp-fb:127 transport-cc
    263.
    264. a=rtcp-fb:127 ccm fir
    265.
    266. a=rtcp-fb:127 nack
    267.
    268. a=rtcp-fb:127 nack pli
    269.
    270. a=fmtp:127 level-asymmetry-allowed=1;packetization-mode=1;profile-level-id=4d001f
    271.
    272. a=rtpmap:125 rtx/90000
    273.
    274. a=fmtp:125 apt=127
    275.
    276. a=rtpmap:39 H264/90000
    277.
    278. a=rtcp-fb:39 goog-remb
    279.
    280. a=rtcp-fb:39 transport-cc
    281.
    282. a=rtcp-fb:39 ccm fir
    283.
    284. a=rtcp-fb:39 nack
    285.
    286. a=rtcp-fb:39 nack pli
    287.
    288. a=fmtp:39 level-asymmetry-allowed=1;packetization-mode=0;profile-level-id=4d001f
    289.
    290. a=rtpmap:40 rtx/90000
    291.
    292. a=fmtp:40 apt=39
    293.
    294. a=rtpmap:41 H264/90000
    295.
    296. a=rtcp-fb:41 goog-remb
    297.
    298. a=rtcp-fb:41 transport-cc
    299.
    300. a=rtcp-fb:41 ccm fir
    301.
    302. a=rtcp-fb:41 nack
    303.
    304. a=rtcp-fb:41 nack pli
    305.
    306. a=fmtp:41 level-asymmetry-allowed=1;pack
    307.
    308. # response:
    309.
    310. {
    311. 	"code" : 0,
    312. 	"id" : "wKgSAx9AH0A=_45",
    313. 	"sdp" : "v=0\r\no=- 2603351187133562715 2 IN IP4 10.60.100.196\r\ns=-\r\nt=0 0\r\na=group:BUNDLE 0 1\r\na=msid-semantic: WMS\r\na=ice-lite\r\nm=video 8000 UDP/TLS/RTP/SAVPF 106 107\r\nc=IN IP4 10.60.100.196\r\na=rtcp:8000 IN IP4 10.60.100.196\r\na=ice-ufrag:wKgSAx9AH0A=_45\r\na=ice-pwd:lRD99Pf1Co1vushq2tzTDWX4\r\na=ice-options:trickle\r\na=fingerprint:sha-256 5D:43:0F:2C:BD:82:BB:C5:B4:77:42:D3:8C:2B:D5:1A:32:59:39:1D:78:7A:BB:88:E2:EF:2A:60:37:AD:6E:A3\r\na=setup:passive\r\na=mid:0\r\na=ice-lite\r\na=extmap:1 urn:ietf:params:rtp-hdrext:toffset\r\na=extmap:2 http://www.webrtc.org/experiments/rtp-hdrext/abs-send-time\r\na=extmap:4 http://www.ietf.org/id/draft-holmer-rmcat-transport-wide-cc-extensions-01\r\na=extmap:5 http://www.webrtc.org/experiments/rtp-hdrext/playout-delay\r\na=extmap:6 http://www.webrtc.org/experiments/rtp-hdrext/video-content-type\r\na=extmap:7 http://www.webrtc.org/experiments/rtp-hdrext/video-timing\r\na=extmap:8 http://www.webrtc.org/experiments/rtp-hdrext/color-space\r\na=extmap:10 urn:ietf:params:rtp-hdrext:sdes:rtp-stream-id\r\na=extmap:11 urn:ietf:params:rtp-hdrext:sdes:repaired-rtp-stream-id\r\na=sendonly\r\na=rtcp-mux\r\na=rtpmap:106 H264/90000\r\na=rtcp-fb:106 ccm fir\r\na=rtcp-fb:106 goog-remb\r\na=rtcp-fb:106 nack\r\na=rtcp-fb:106 nack pli\r\na=rtcp-fb:106 transport-cc\r\na=fmtp:106 level-asymmetry-allowed=1;packetization-mode=1;profile-level-id=42e01f\r\na=rtpmap:107 rtx/90000\r\na=fmtp:107 apt=106\r\na=msid:zlmediakit-mslabel zlmediakit-label\r\na=ssrc:1 cname:zlmediakit-rtp\r\na=ssrc:1 msid:zlmediakit-mslabel zlmediakit-label\r\na=ssrc:1 mslabel:zlmediakit-mslabel\r\na=ssrc:1 label:zlmediakit-label\r\na=ssrc:3 cname:zlmediakit-rtp\r\na=ssrc:3 msid:zlmediakit-mslabel zlmediakit-label\r\na=ssrc:3 mslabel:zlmediakit-mslabel\r\na=ssrc:3 label:zlmediakit-label\r\na=ssrc-group:FID 1 3\r\na=candidate:udpcandidate 1 udp 110 10.60.100.196 8000 typ host\r\na=candidate:tcpcandidate 1 tcp 105 10.60.100.196 8000 typ host tcptype passive\r\nm=audio 8000 UDP/TLS/RTP/SAVPF 0\r\nc=IN IP4 10.60.100.196\r\na=rtcp:8000 IN IP4 10.60.100.196\r\na=ice-ufrag:wKgSAx9AH0A=_45\r\na=ice-pwd:lRD99Pf1Co1vushq2tzTDWX4\r\na=ice-options:trickle\r\na=fingerprint:sha-256 5D:43:0F:2C:BD:82:BB:C5:B4:77:42:D3:8C:2B:D5:1A:32:59:39:1D:78:7A:BB:88:E2:EF:2A:60:37:AD:6E:A3\r\na=setup:passive\r\na=mid:1\r\na=ice-lite\r\na=extmap:14 urn:ietf:params:rtp-hdrext:ssrc-audio-level\r\na=extmap:2 http://www.webrtc.org/experiments/rtp-hdrext/abs-send-time\r\na=extmap:4 http://www.ietf.org/id/draft-holmer-rmcat-transport-wide-cc-extensions-01\r\na=sendonly\r\na=rtcp-mux\r\na=rtpmap:0 PCMU/8000/1\r\na=msid:zlmediakit-mslabel zlmediakit-label\r\na=ssrc:2 cname:zlmediakit-rtp\r\na=ssrc:2 msid:zlmediakit-mslabel zlmediakit-label\r\na=ssrc:2 mslabel:zlmediakit-mslabel\r\na=ssrc:2 label:zlmediakit-label\r\na=candidate:udpcandidate 1 udp 110 10.60.100.196 8000 typ host\r\na=candidate:tcpcandidate 1 tcp 105 10.60.100.196 8000 typ host tcptype passive\r\n",
    314. 	"type" : "answer"
    315. }
    316.
    317.
    318.
    319. 2024-03-21 16:02:24.709 W [MediaServer.exe] [23784-event poller 11] WebRtcSession.cpp:104 onError | 224-1436(10.60.100.196:61106) 1(end of file)
    320. 2024-03-21 16:02:24.709 W [MediaServer.exe] [23784-event poller 11] WebRtcSession.cpp:104 onError | 225-1368(10.60.100.196:61107) 1(end of file)
    321. 2024-03-21 16:02:24.710 W [MediaServer.exe] [23784-event poller 11] WebRtcSession.cpp:104 onError | 227-1500(10.60.100.196:61109) 1(end of file)
    322. 2024-03-21 16:02:24.773 I [MediaServer.exe] [23784-event poller 3] WebRtcSession.cpp:85 onRecv_l | 228-1500(10.60.100.196:51044)
    323. 2024-03-21 16:02:24.773 D [MediaServer.exe] [23784-event poller 3] IceServer.cpp:340 HandleTuple | transition from state 'new' to 'connected'
    324. 2024-03-21 16:02:24.774 I [MediaServer.exe] [23784-event poller 3] WebRtcTransport.cpp:170 OnIceServerSelectedTuple | wKgSAx9AH0A=_45 select tuple udp 10.60.100.196:51044
    325. 2024-03-21 16:02:24.774 I [MediaServer.exe] [23784-event poller 3] WebRtcTransport.cpp:176 OnIceServerConnected | wKgSAx9AH0A=_45
    326. 2024-03-21 16:02:24.774 E [MediaServer.exe] [23784-event poller 3] DtlsTransport.cpp:744 ProcessDtlsData | cannot process data while not running
    327. 2024-03-21 16:02:24.835 D [MediaServer.exe] [23784-event poller 3] IceServer.cpp:429 HandleTuple | transition from state 'connected' to 'completed'
    328. 2024-03-21 16:02:24.835 I [MediaServer.exe] [23784-event poller 3] WebRtcTransport.cpp:180 OnIceServerCompleted | wKgSAx9AH0A=_45
    329. 2024-03-21 16:02:24.835 I [MediaServer.exe] [23784-event poller 3] WebRtcTransport.cpp:232 OnDtlsTransportConnecting | wKgSAx9AH0A=_45
    330. 2024-03-21 16:02:24.835 D [MediaServer.exe] [23784-event poller 3] DtlsTransport.cpp:699 Run | running [role:server]
    331. 2024-03-21 16:02:24.835 D [MediaServer.exe] [23784-event poller 3] DtlsTransport.cpp:1411 OnSslInfo | DTLS handshake start
    332. 2024-03-21 16:02:24.835 D [MediaServer.exe] [23784-event poller 3] DtlsTransport.cpp:1369 OnSslInfo | [role:server, action:'before SSL initialization']
    333. 2024-03-21 16:02:24.835 D [MediaServer.exe] [23784-event poller 3] DtlsTransport.cpp:1407 OnSslInfo | role: server, waiting:'before SSL initialization']
    334. 2024-03-21 16:02:24.835 D [MediaServer.exe] [23784-event poller 3] DtlsTransport.cpp:1369 OnSslInfo | [role:server, action:'before SSL initialization']
    335. 2024-03-21 16:02:24.835 D [MediaServer.exe] [23784-event poller 3] DtlsTransport.cpp:1369 OnSslInfo | [role:server, action:'SSLv3/TLS read client hello']
    336. 2024-03-21 16:02:24.835 D [MediaServer.exe] [23784-event poller 3] DtlsTransport.cpp:1369 OnSslInfo | [role:server, action:'SSLv3/TLS write server hello']
    337. 2024-03-21 16:02:24.835 D [MediaServer.exe] [23784-event poller 3] DtlsTransport.cpp:1369 OnSslInfo | [role:server, action:'SSLv3/TLS write certificate']
    338. 2024-03-21 16:02:24.836 D [MediaServer.exe] [23784-event poller 3] DtlsTransport.cpp:1369 OnSslInfo | [role:server, action:'SSLv3/TLS write key exchange']
    339. 2024-03-21 16:02:24.836 D [MediaServer.exe] [23784-event poller 3] DtlsTransport.cpp:1369 OnSslInfo | [role:server, action:'SSLv3/TLS write certificate request']
    340. 2024-03-21 16:02:24.836 D [MediaServer.exe] [23784-event poller 3] DtlsTransport.cpp:1369 OnSslInfo | [role:server, action:'SSLv3/TLS write server done']
    341. 2024-03-21 16:02:24.836 D [MediaServer.exe] [23784-event poller 3] DtlsTransport.cpp:1407 OnSslInfo | role: server, waiting:'SSLv3/TLS write server done']
    342. 2024-03-21 16:02:24.836 D [MediaServer.exe] [23784-event poller 3] DtlsTransport.cpp:977 SendPendingOutgoingDtlsData | 2111 bytes of DTLS data ready to sent to the peer
    343. 2024-03-21 16:02:24.836 D [MediaServer.exe] [23784-event poller 3] DtlsTransport.cpp:1015 SetTimeout | DTLS timer set in 100ms
    344. 2024-03-21 16:02:24.836 D [MediaServer.exe] [23784-event poller 3] DtlsTransport.cpp:1369 OnSslInfo | [role:server, action:'SSLv3/TLS write server done']
    345. 2024-03-21 16:02:24.836 D [MediaServer.exe] [23784-event poller 3] DtlsTransport.cpp:1369 OnSslInfo | [role:server, action:'SSLv3/TLS read client certificate']
    346. 2024-03-21 16:02:24.836 D [MediaServer.exe] [23784-event poller 3] DtlsTransport.cpp:1369 OnSslInfo | [role:server, action:'SSLv3/TLS read client key exchange']
    347. 2024-03-21 16:02:24.837 D [MediaServer.exe] [23784-event poller 3] DtlsTransport.cpp:1369 OnSslInfo | [role:server, action:'SSLv3/TLS read certificate verify']
    348. 2024-03-21 16:02:24.837 D [MediaServer.exe] [23784-event poller 3] DtlsTransport.cpp:1369 OnSslInfo | [role:server, action:'SSLv3/TLS read change cipher spec']
    349. 2024-03-21 16:02:24.837 D [MediaServer.exe] [23784-event poller 3] DtlsTransport.cpp:1369 OnSslInfo | [role:server, action:'SSLv3/TLS read finished']
    350. 2024-03-21 16:02:24.837 D [MediaServer.exe] [23784-event poller 3] DtlsTransport.cpp:1369 OnSslInfo | [role:server, action:'SSLv3/TLS write change cipher spec']
    351. 2024-03-21 16:02:24.837 D [MediaServer.exe] [23784-event poller 3] DtlsTransport.cpp:1369 OnSslInfo | [role:server, action:'SSLv3/TLS write finished']
    352. 2024-03-21 16:02:24.837 D [MediaServer.exe] [23784-event poller 3] DtlsTransport.cpp:1415 OnSslInfo | DTLS handshake done
    353. 2024-03-21 16:02:24.837 D [MediaServer.exe] [23784-event poller 3] DtlsTransport.cpp:977 SendPendingOutgoingDtlsData | 67 bytes of DTLS data ready to sent to the peer
    354. 2024-03-21 16:02:24.837 D [MediaServer.exe] [23784-event poller 3] DtlsTransport.cpp:1166 CheckRemoteFingerprint | valid remote fingerprint
    355. 2024-03-21 16:02:24.837 D [MediaServer.exe] [23784-event poller 3] DtlsTransport.cpp:1340 GetNegotiatedSrtpCryptoSuite | chosen SRTP crypto suite: SRTP_AEAD_AES_256_GCM
    356. 2024-03-21 16:02:24.837 I [MediaServer.exe] [23784-event poller 3] WebRtcTransport.cpp:197 OnDtlsTransportConnected | wKgSAx9AH0A=_45
    357. 2024-03-21 16:02:24.890 W [MediaServer.exe] [23784-event poller 11] WebRtcTransport.cpp:903 onRtcp | 未识别的sr rtcp包:version:2
    358.
    359. padding:0
    360.
    361. report_count:0
    362.
    363. pt:200(RTCP_SR)
    364.
    365. size:28
    366.
    367. --------
    368.
    369. ssrc:3955139128
    370.
    371. ntpmsw:3919996944
    372.
    373. ntplsw:3506656113
    374.
    375. ntp time:2024-03-21 16:02:24.816
    376.
    377. rtpts:4187904151
    378.
    379. packet_count:0
    380.
    381. octet_count:0
    382.
    383.
    384. 2024-03-21 16:02:24.898 I [MediaServer.exe] [23784-event poller 11] WebRtcTransport.cpp:1012 createRtpChannel | create rtp receiver of ssrc:3955139128, rid:, codec:H264
    385. 2024-03-21 16:02:24.898 D [MediaServer.exe] [23784-event poller 11] MediaSink.cpp:162 emitAllTrackReady | All track ready use 452ms
    386. 2024-03-21 16:02:24.899 I [MediaServer.exe] [23784-event poller 11] MediaSource.cpp:517 emitEvent | 媒体注册:fmp4://__defaultVhost__/2fbe2a926db241b483ab4ea79950fb0c/dxw3Stream
    387. 2024-03-21 16:02:24.900 I [MediaServer.exe] [23784-event poller 11] MultiMediaSourceMuxer.cpp:551 onAllTrackReady | stream: rtc://10.60.100.196:6080/2fbe2a926db241b483ab4ea79950fb0c/dxw3Stream?app=2fbe2a926db241b483ab4ea79950fb0c&stream=dxw3Stream&type=push&session=219-1380 , codec info: PCMU[8000/1/16] H264[480/640/0]
    388. 2024-03-21 16:02:24.900 I [MediaServer.exe] [23784-event poller 11] MediaSource.cpp:517 emitEvent | 媒体注册:rtmp://__defaultVhost__/2fbe2a926db241b483ab4ea79950fb0c/dxw3Stream
    389. 2024-03-21 16:02:24.901 I [MediaServer.exe] [23784-event poller 11] MediaSource.cpp:517 emitEvent | 媒体注册:ts://__defaultVhost__/2fbe2a926db241b483ab4ea79950fb0c/dxw3Stream
    390. 2024-03-21 16:02:24.964 I [MediaServer.exe] [23784-event poller 3] WebRtcSession.cpp:85 onRecv_l | 229-1392(169.167.123.119:51045)
    391. 2024-03-21 16:02:25.039 I [MediaServer.exe] [23784-event poller 3] WebRtcSession.cpp:85 onRecv_l | 230-1472(192.168.18.3:51046)
    392. 2024-03-21 16:02:26.962 W [MediaServer.exe] [23784-event poller 11] EventPoller.cpp:209 async_l | take time: 16ms, thread may be overloaded
    393. 2024-03-21 16:02:27.835 W [MediaServer.exe] [23784-event poller 10] EventPoller.cpp:209 async_l | take time: 16ms, thread may be overloaded
    394. 2024-03-21 16:02:28.406 I [MediaServer.exe] [23784-event poller 11] MediaSource.cpp:517 emitEvent | 媒体注册:hls://__defaultVhost__/2fbe2a926db241b483ab4ea79950fb0c/dxw3Stream
    395. 2024-03-21 16:02:29.939 W [MediaServer.exe] [23784-event poller 10] EventPoller.cpp:209 async_l | take time: 16ms, thread may be overloaded
    396. 2024-03-21 16:02:30.811 W [MediaServer.exe] [23784-event poller 10] EventPoller.cpp:209 async_l | take time: 16ms, thread may be overloaded
    397. 2024-03-21 16:02:32.827 W [MediaServer.exe] [23784-event poller 11] EventPoller.cpp:209 async_l | take time: 16ms, thread may be overloaded
    398. 2024-03-21 16:02:34.390 W [MediaServer.exe] [23784-event poller 6] WebRtcSession.cpp:104 onError | 223-1420(10.62.14.104:49543) 1(end of file)
    399. 2024-03-21 16:02:34.945 W [MediaServer.exe] [23784-event poller 11] WebRtcSession.cpp:104 onError | 226-1496(10.60.100.196:61108) 1(end of file)
    400. 2024-03-21 16:02:35.864 W [MediaServer.exe] [23784-event poller 10] EventPoller.cpp:209 async_l | take time: 16ms, thread may be overloaded

    主要核心主体的创建

    RtspMediaSourceImp的创建

    入口处的CB，即是对http的回复

    影响到何时生成recorder的代码

    下面的invoker为上图中传过来的invoker. 其中最难的就是其中的obj,就是on_publish执行回来的result里的值 。

     研发的环境不对，如下

    生产环境 2.8是对的，如下

     Mediasource之主要解复合MultiMediaSourceMuxer

    下面的初始化直接决定着，什么时候生成recorder,是一拉流就有。比如上面record-push-live设置为true时，那么每段放视频，都会进行录制；反之，就直接取决于配置文件是的enable_mp4=false

     Mediasource之主要复合

    录相

    当上述开关正确设置上，就可以达到当打开开关时，才进行录制

    trackready

    参考文章

    zlm源码研究 - webrtc播放-CSDN博客

    WebRTC: Real-Time Communication in Browsers (w3.org)

    网络抖动Jitter详解-简易百科 (isolves.com)

    【zlm】zlm源码讲解-CSDN博客

    【zlm】MS， 复合器与解复合器-CSDN博客

  • 相关阅读:
    深度学习-第三章概率与信息论
    JUC并发编程(5)（自定义线程池 + 共享模型之工具2）
    ESP32网络开发实例-Web服务器以仪表形式显示传感器计数
    消息队列的简介
    zsh: command not found: bun (已解决)
    数据压缩与管理：掌握Linux VDO和LVM的力量
    JAVA:实现Pow函数功能算法(附完整源码)
    使用Speech to Text API进行语音到文本转换
    【ISO14229_UDS刷写】-1-$34诊断服务RequestDownload理论部分
    推荐一款WPF绘图插件OxyPlot
  • 原文地址：https://blog.csdn.net/dualvencsdn/article/details/132874579
